Model LG HMC024KD1 – Common Parts & Diagrams
Diagram 0

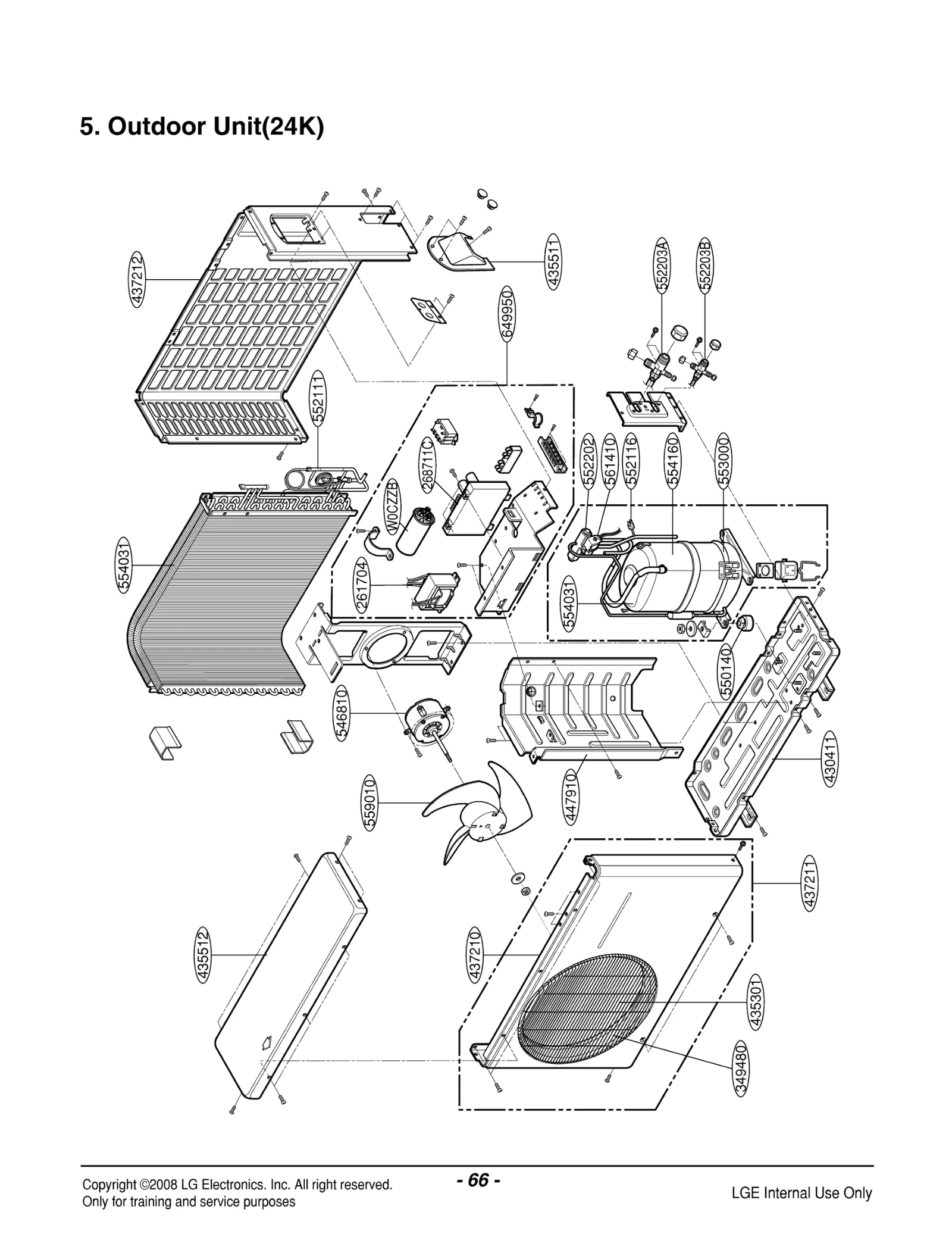

Diagram 1
Diagram 2
Common parts from model LG HMC024KD1
135311
GRILLE ASSY,DISCHARGE(INDOOR) LGE 3531A10008R Contact Us For Availability
135312
GRILLE ASSY,FRONT(INDOOR) LGE 3531A10026X Contact Us For Availability
135314
GRILLE ASSY,INLET SUB LGE 3531A20032R Contact Us For Availability
146811
MOTOR ASSY,STEP LGE 4681AR2727H Contact Us For Availability
152302
FILTER(MECH),A/C LGE 5230A20001A Contact Us For Availability
159901-1
VANE,HORIZONTAL LGE 5990A30001A Contact Us For Availability
159901-2
VANE,HORIZONTAL LGE 5990A30002A Contact Us For Availability
249951
CONTROL BOX ASSY,INDOOR LGE 4995A20123W Contact Us For Availability
261704
TRANSFORMER ASSY LGE 6171AQ3198A Contact Us For Availability
263230
THERMISTOR ASSY LGE 6323A20003A Contact Us For Availability
267110
REMOTE CONTROLLER ASSY LGE 6711A20025M Contact Us For Availability
268711B
PWB (PCB) ASSY - MAIN LGE 6871A10035N Contact Us For Availability
268712
PWB(PCB) ASSY,DISPLAY LGE 6871A30009D Contact Us For Availability
268714
PWB(PCB) ASSY,MAIN LGE 6871A10035B Contact Us For Availability
342800
BEARING LGE 3H02821B Contact Us For Availability
346810
MOTOR ASSY,DC LGE 4681AR2295J Contact Us For Availability
354212
EVAPORATOR ASSY,FINAL LGE 5421A20021E Contact Us For Availability
359011
FAN ASSY,CROSS FLOW LGE 5901AR2441D Contact Us For Availability
430411
BASE ASSEMBLY,WELD[OUTDOOR] LGE 3041A20022G Contact Us For Availability
435511
COVER ASSY,CONTROL(OUTDOOR) LGE 3551AR7184T Contact Us For Availability
435512
COVER ASSY,TOP(OUTDOOR) LGE 3H03266J Contact Us For Availability
437210
LGE 3721A20005B LGE 3721A20005B Contact Us For Availability
437212
PANEL,REAR LGE 3720AP0003D Contact Us For Availability
447910
Barrier Assembly,Outdoor LGE 2H02110M Contact Us For Availability
552102
TUBE,CAPILLARY BEND LGE 5210A30216X Contact Us For Availability
552111
TUBE ASSY,CAPILLARY LGE 5425AR3847Q Contact Us For Availability
552203-1
VALVE SERVICE P9.52 LGE 2A00393C Contact Us For Availability
552203-2
SERVICE VALVE LGE 2A00392E Contact Us For Availability
554031
CONDENSER ASSEMBLY,BENT LGE 5402AR2347Z Contact Us For Availability
559010
EXTRA FAN LGE 1A00195B Contact Us For Availability
649950
CONTROL BOX ASSY,OUTDOOR LGE 4781AR1528S Contact Us For Availability
733010
PLATE INSTALLATION LGE 1H00843A Contact Us For Availability
738281
LGE 3828A20048M LGE 3828A20048M Contact Us For Availability
738290
LGE 3828A20093G LGE 3828A20093G Contact Us For Availability
× ![]()
