Model Huebsch HGT30R Dryer – Common Parts & Diagrams

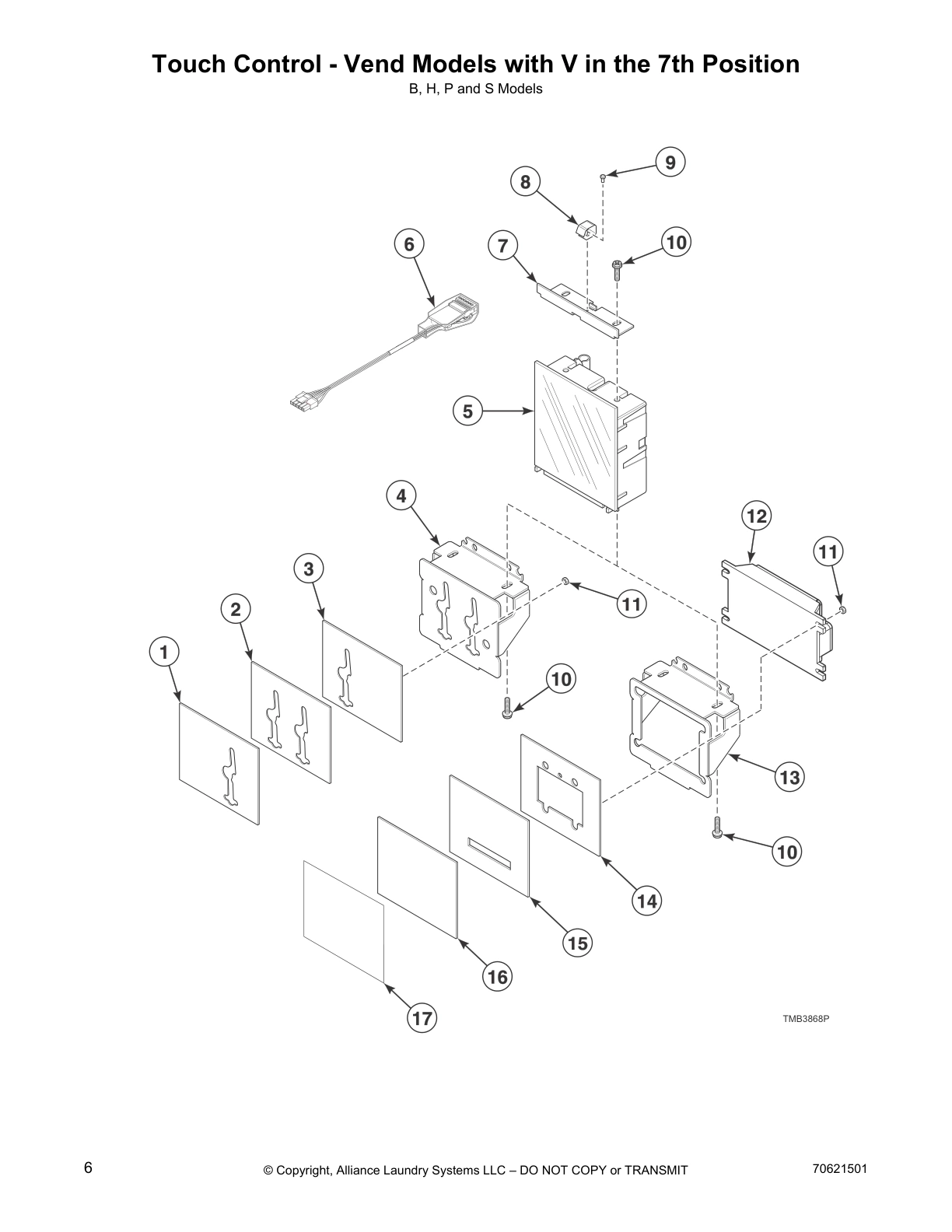

Touch Control - Vend Models with V in the 7th Position

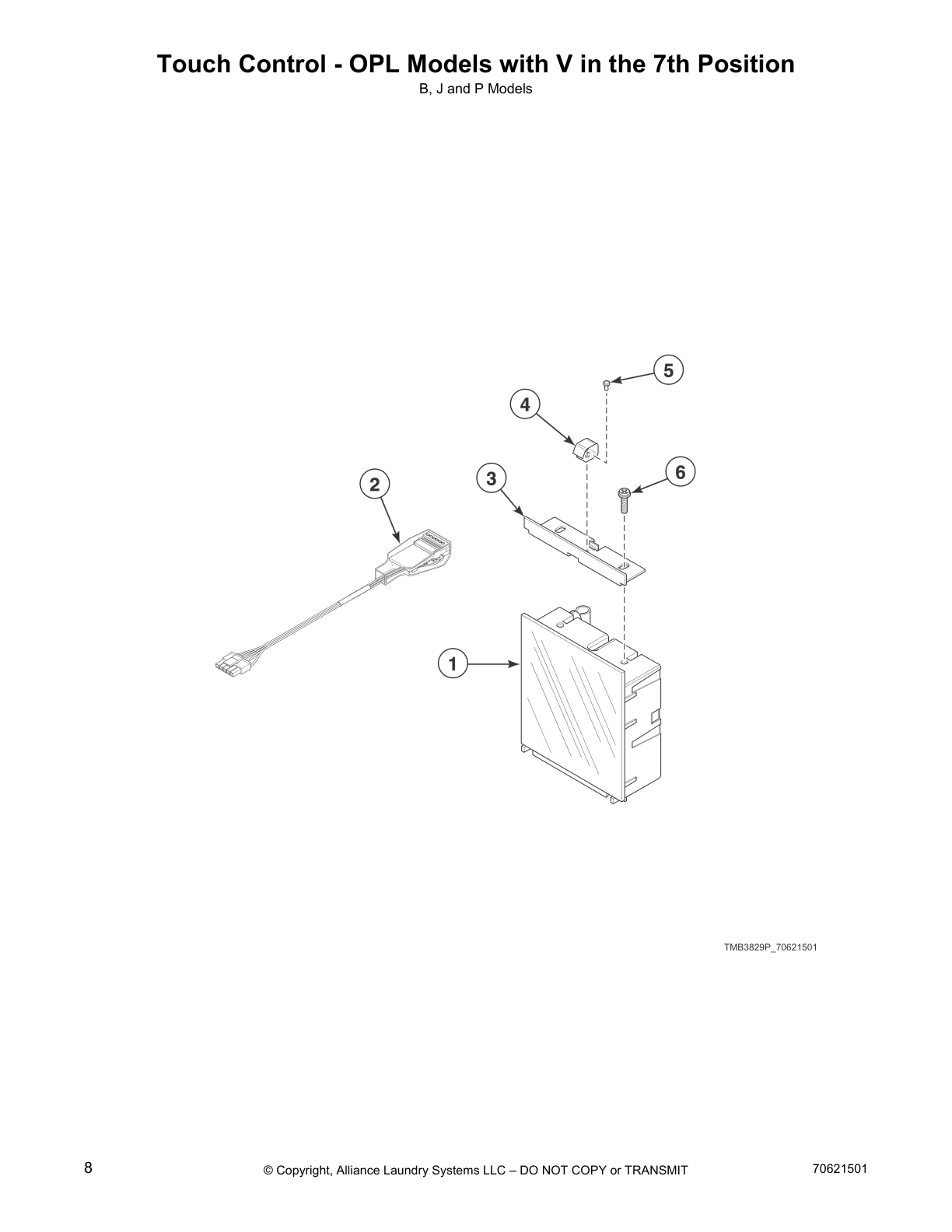

Touch Control - OPL Models with V in the 7th Position

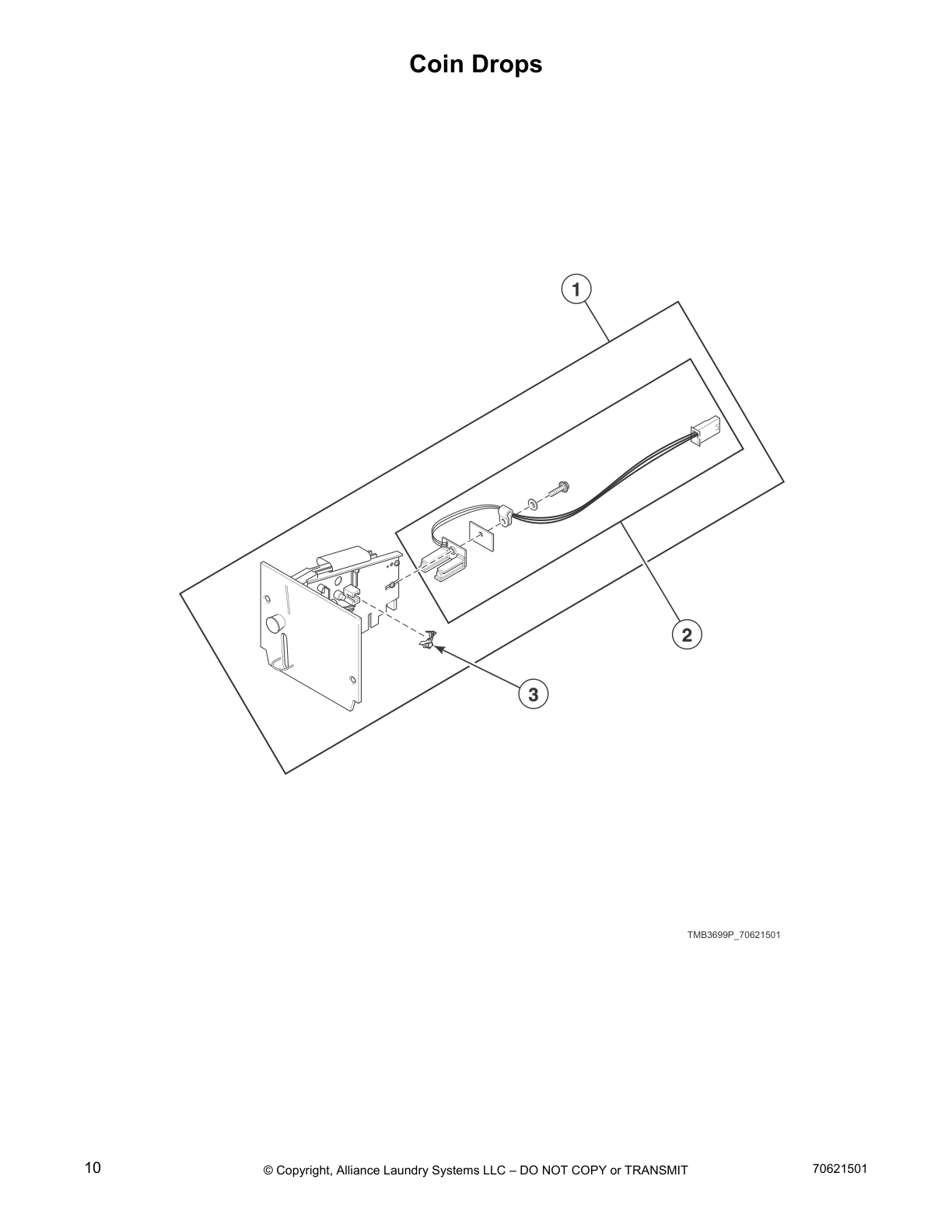

Coin Drops

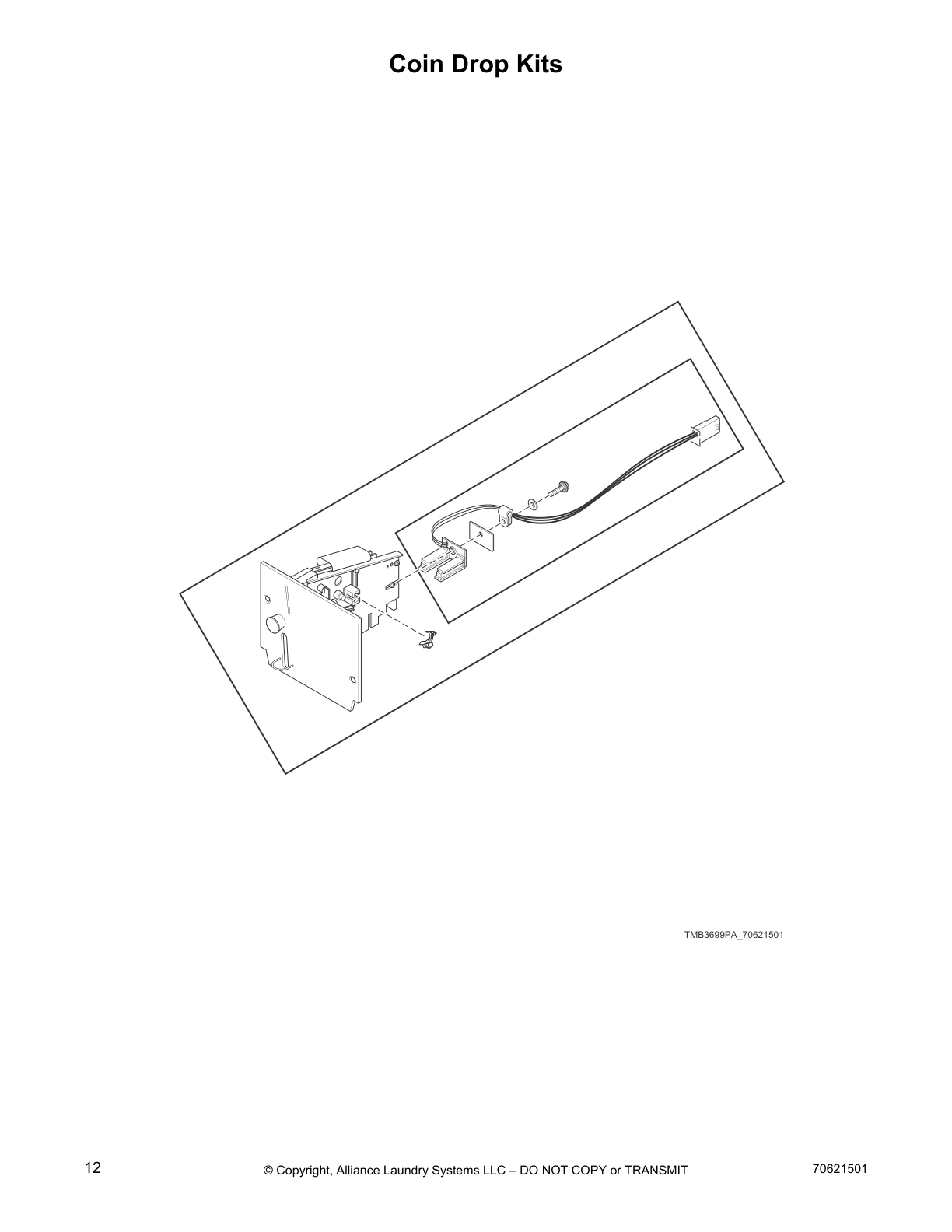

Coin Drop Kits

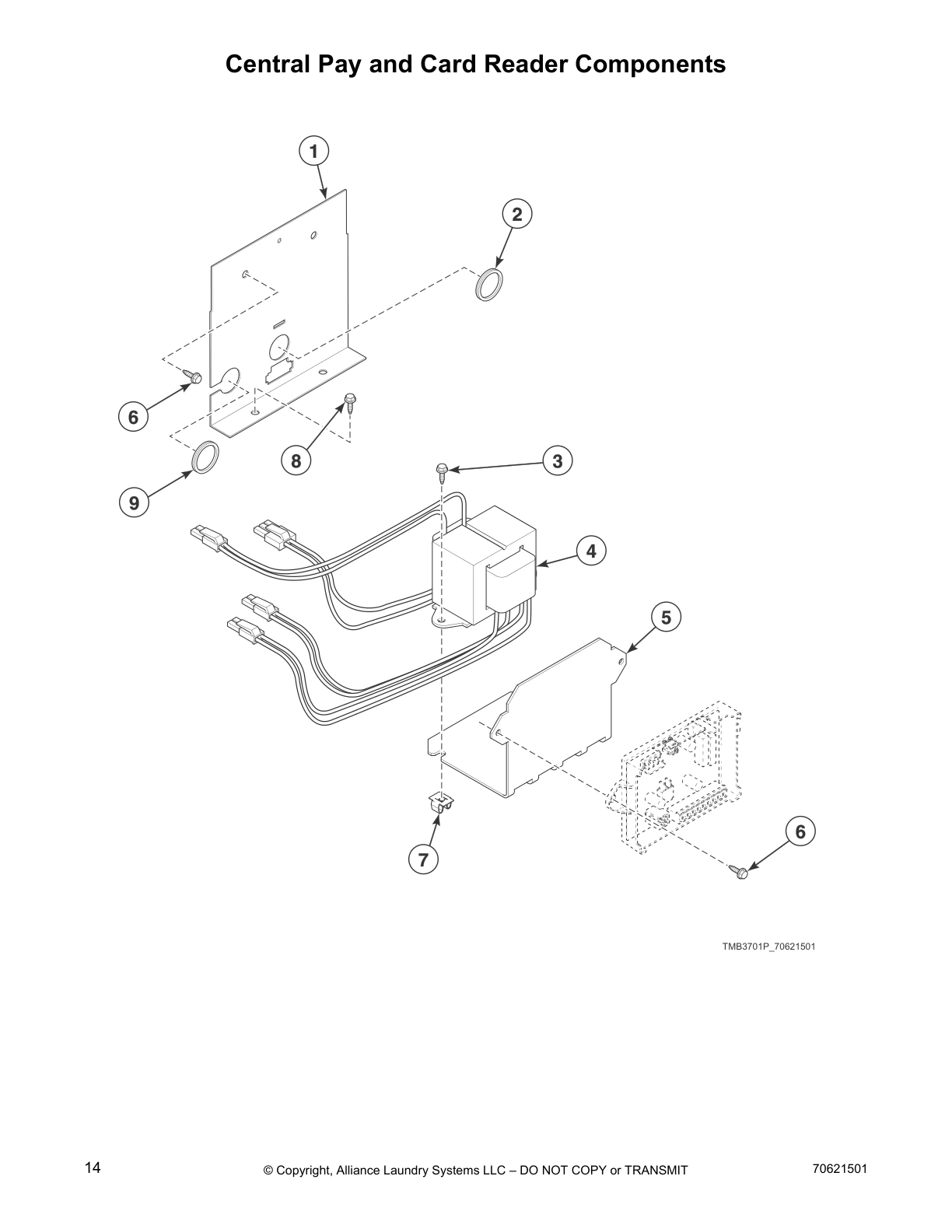

Central Pay and Card Reader Components

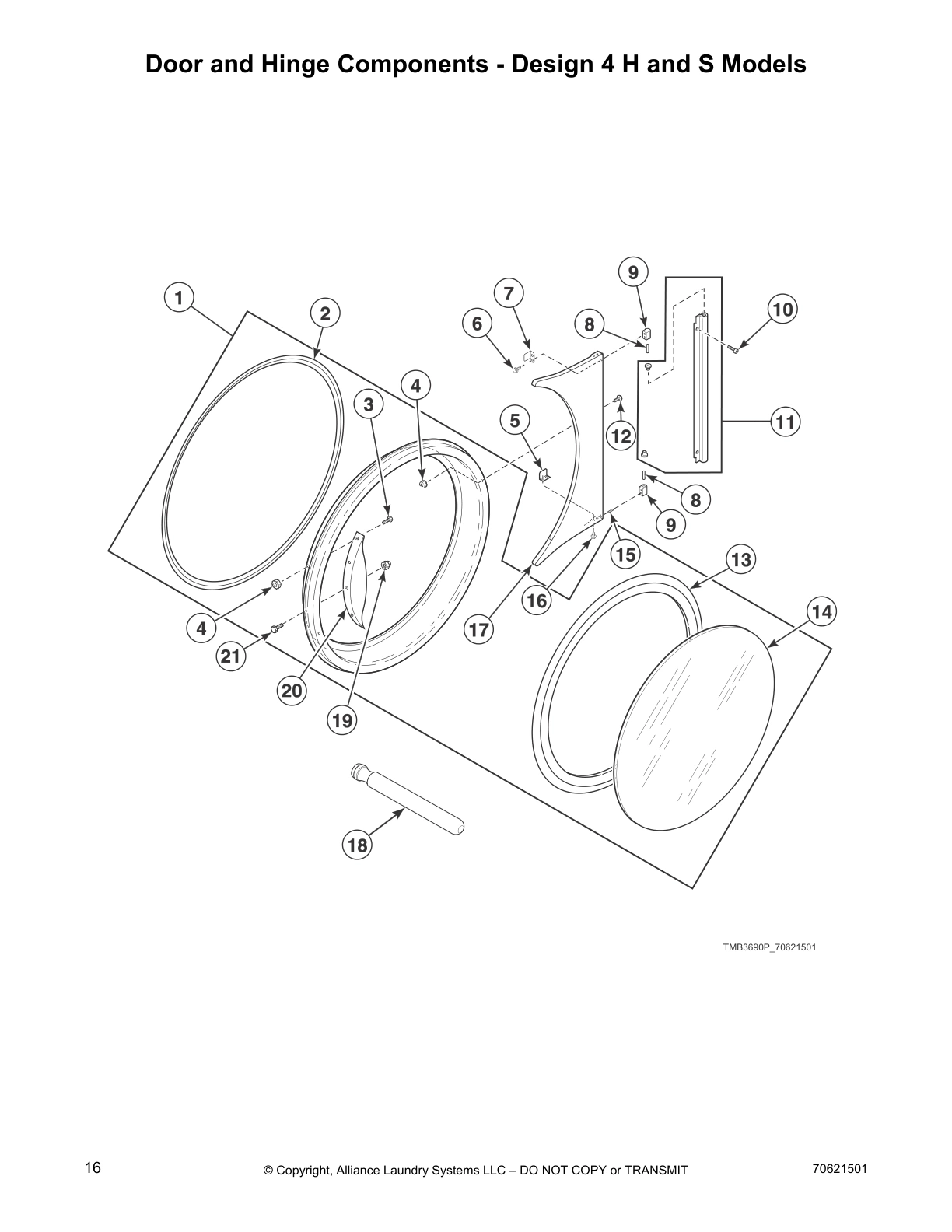

Door and Hinge Components - Design 4 H and S Models

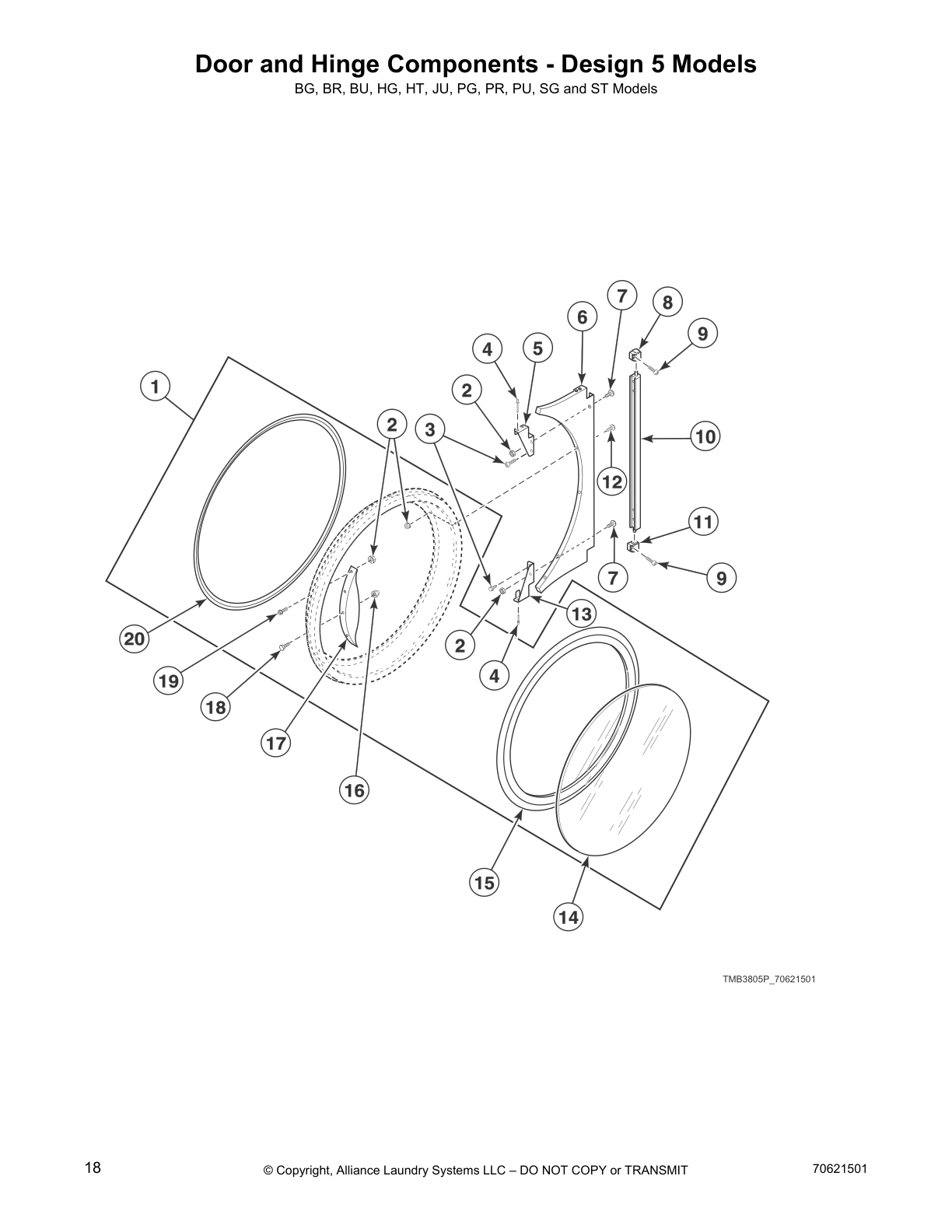

Door and Hinge Components - Design 5 Models

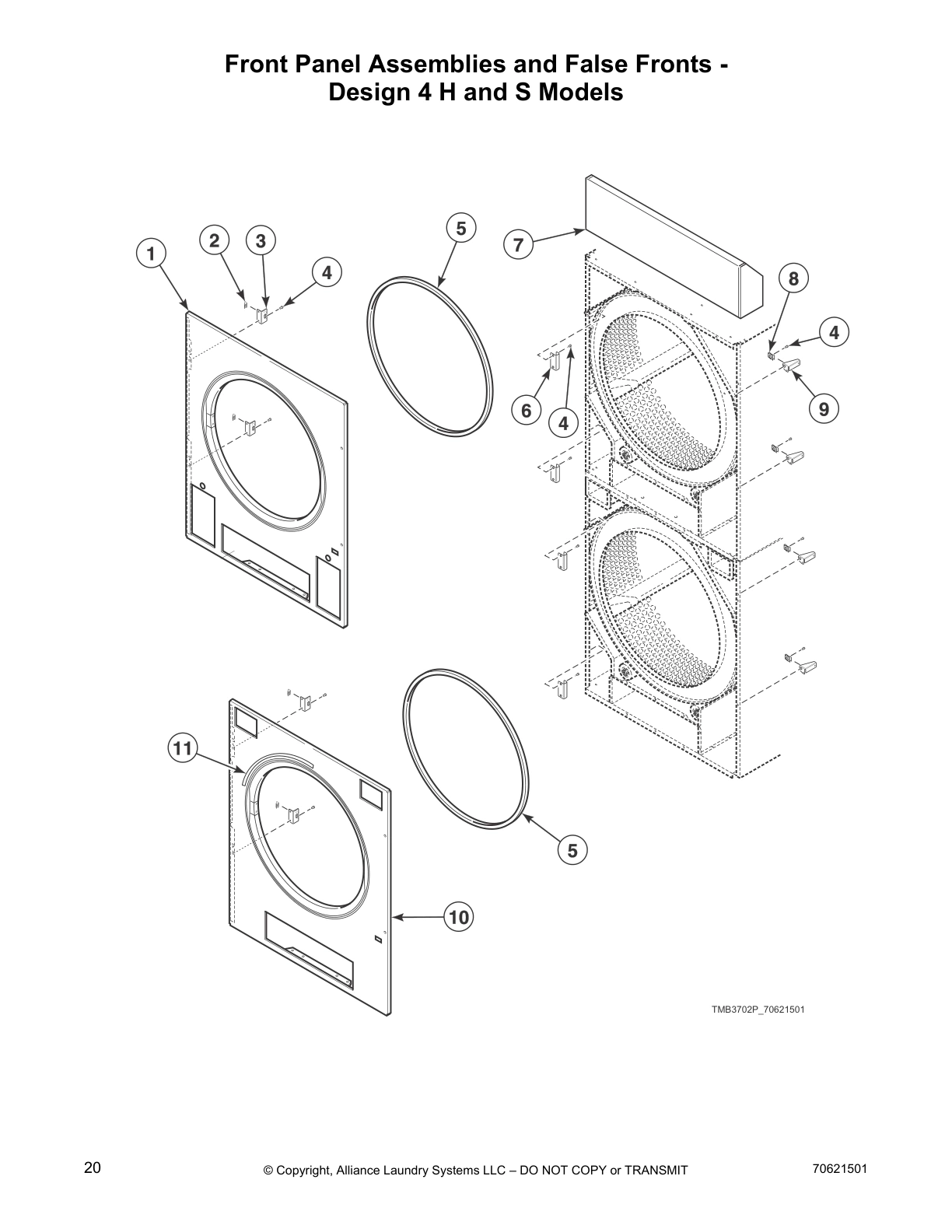

Front Panel Assemblies and False Fronts -
Design 4 H and S Models

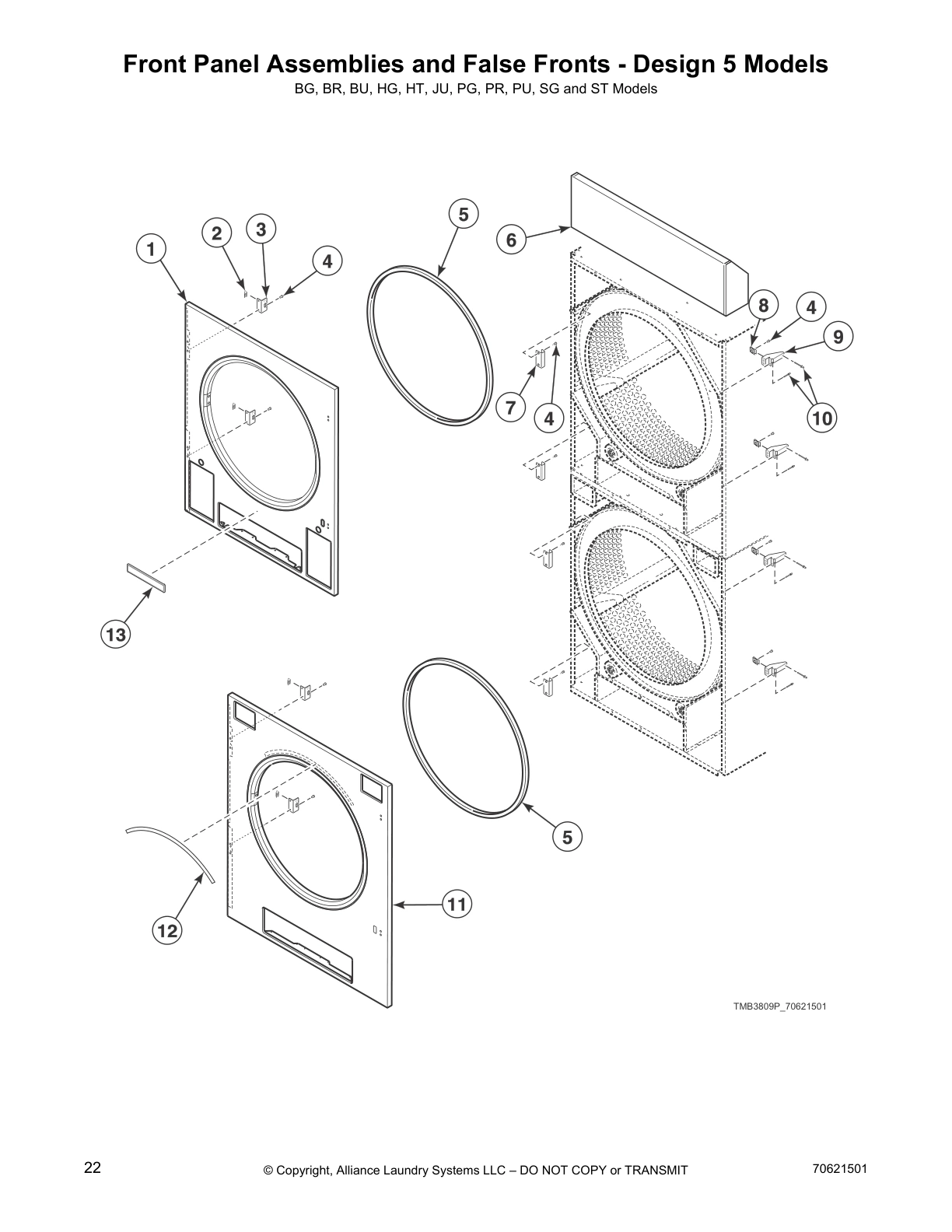

Front Panel Assemblies and False Fronts - Design 5 Models

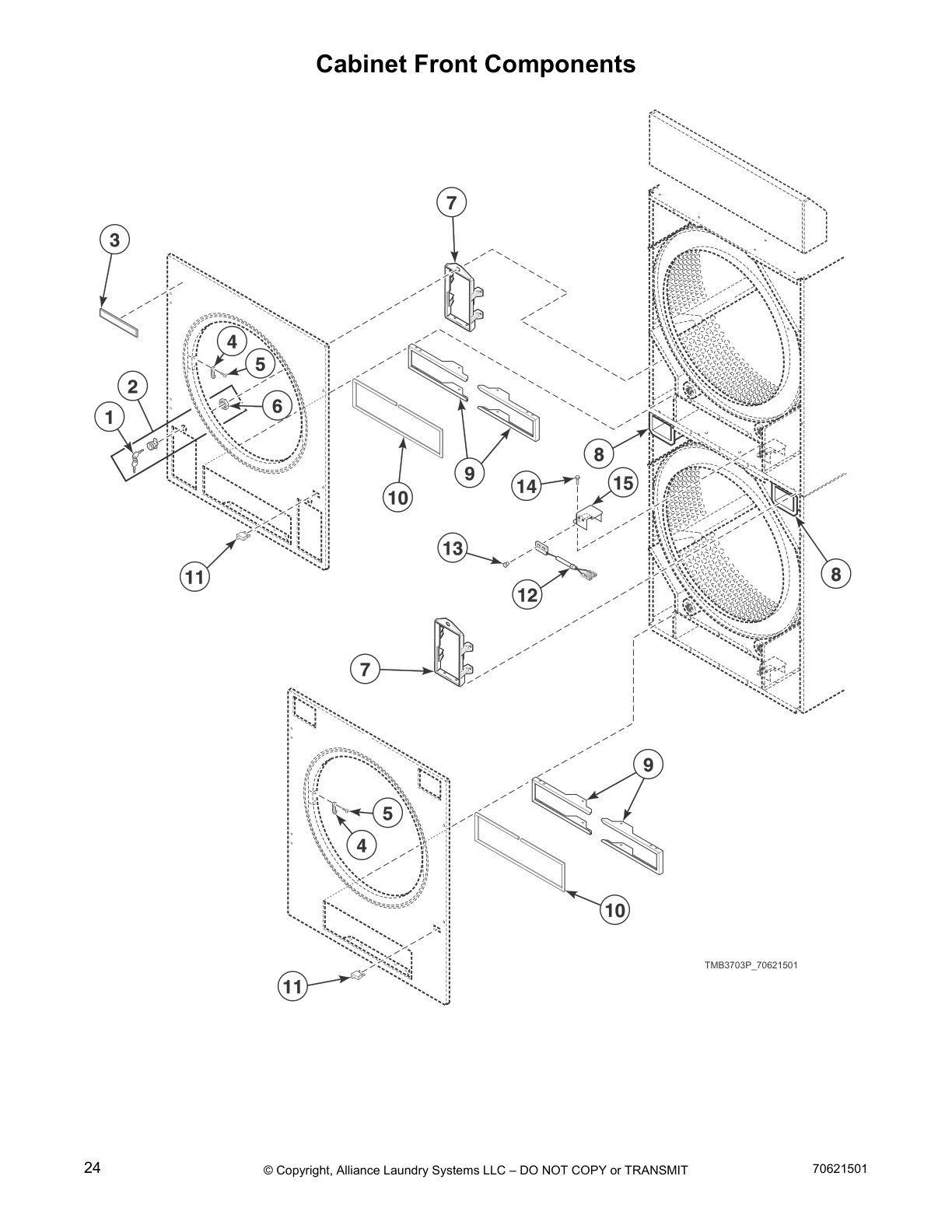

Cabinet Front Components

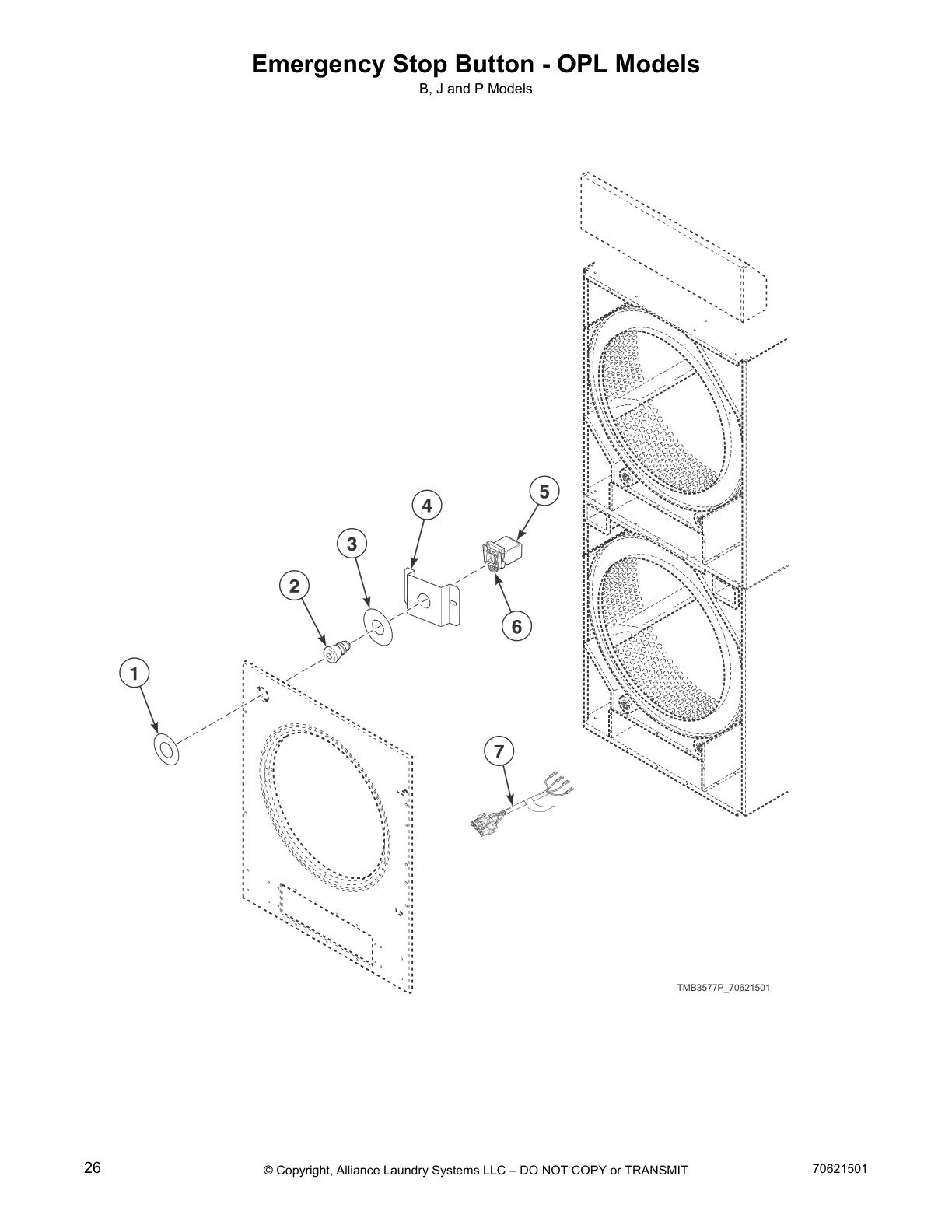

Emergency Stop Button - OPL Models

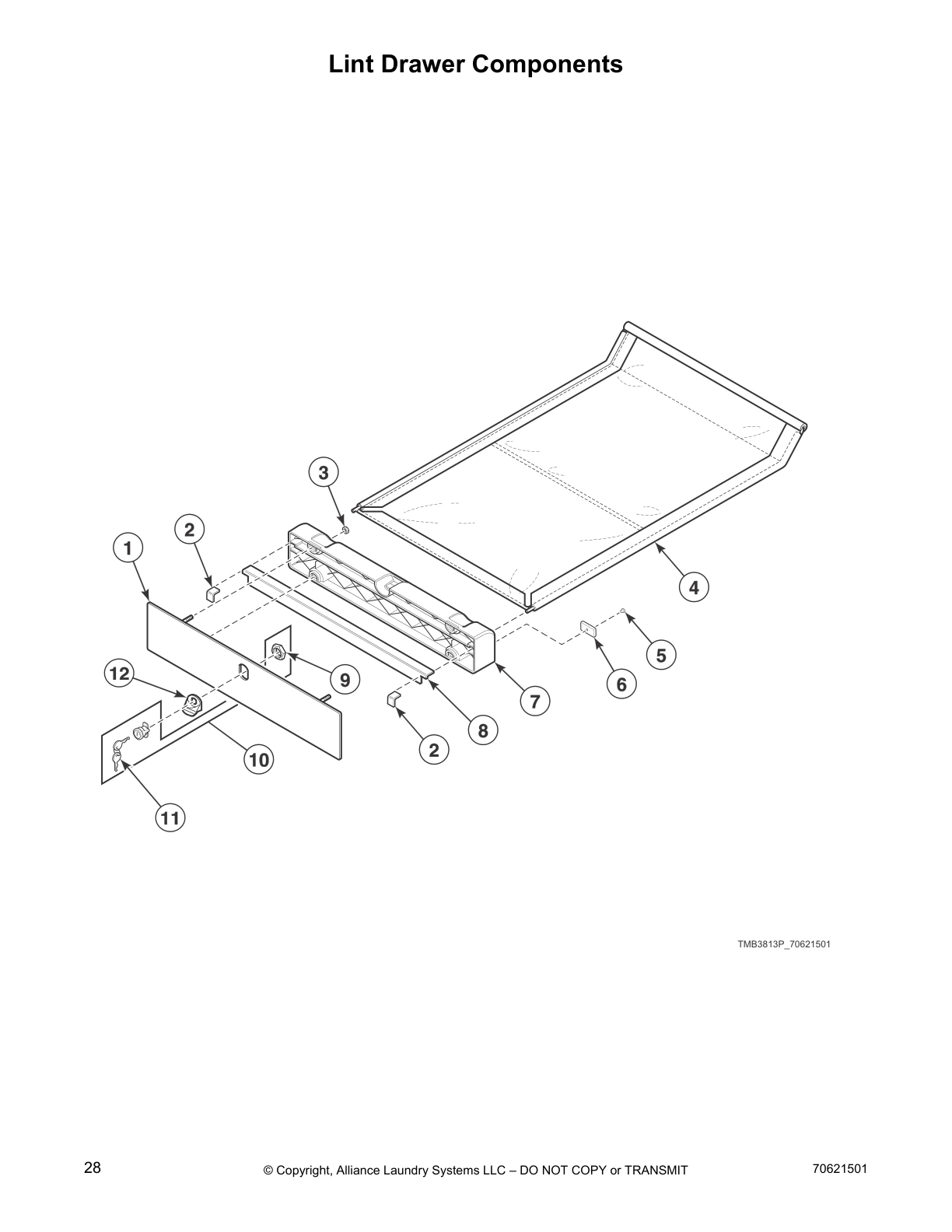

Lint Drawer Components

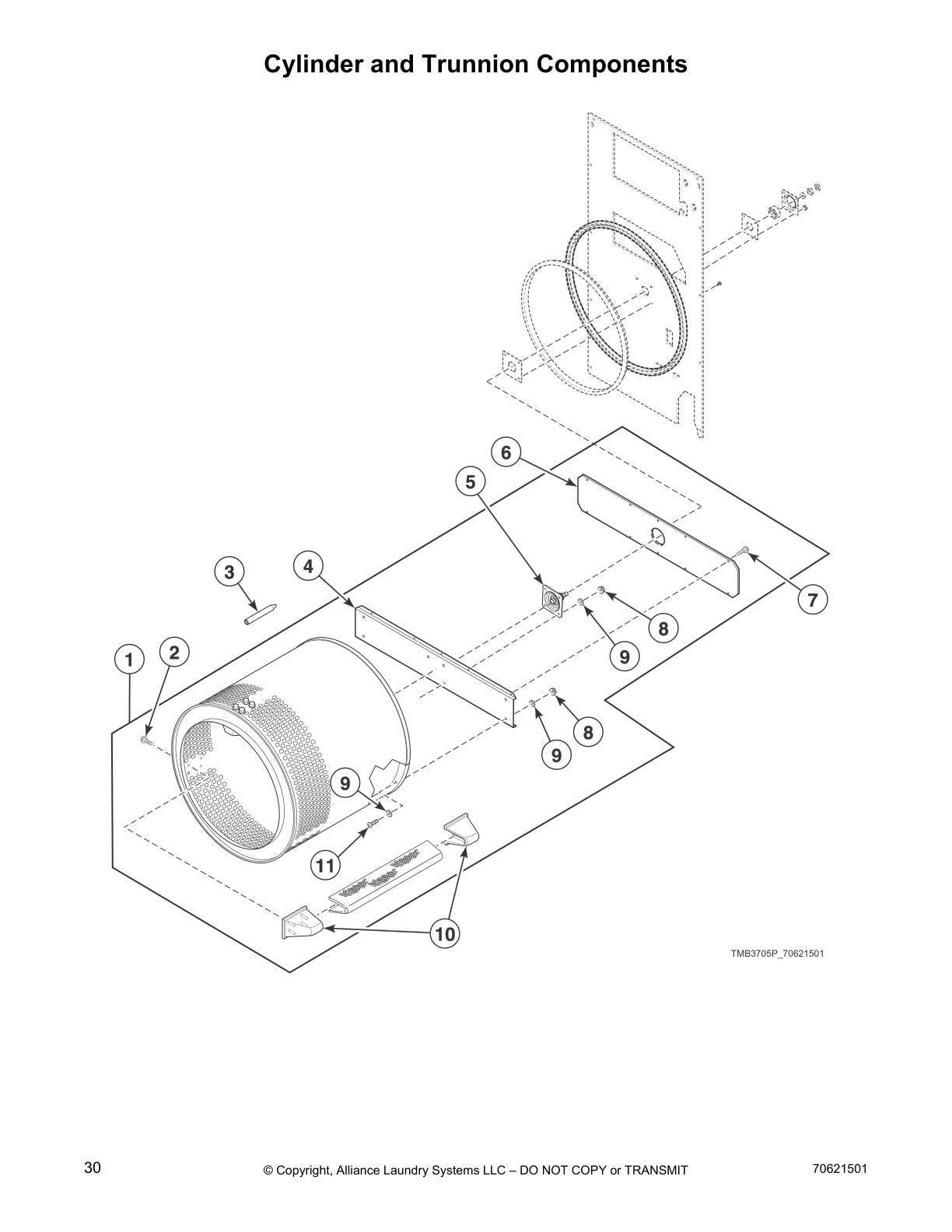

Cylinder and Trunnion Components

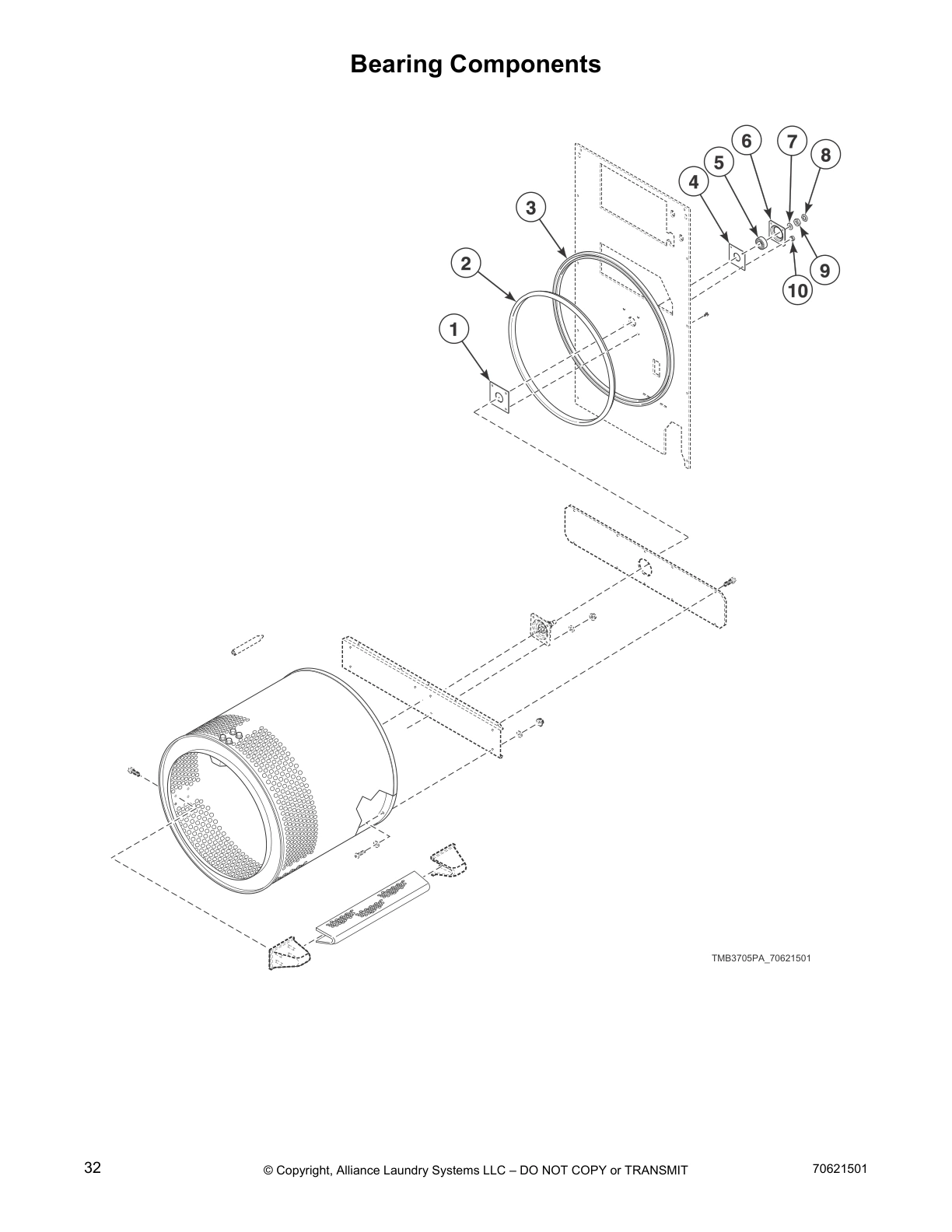

Bearing Components

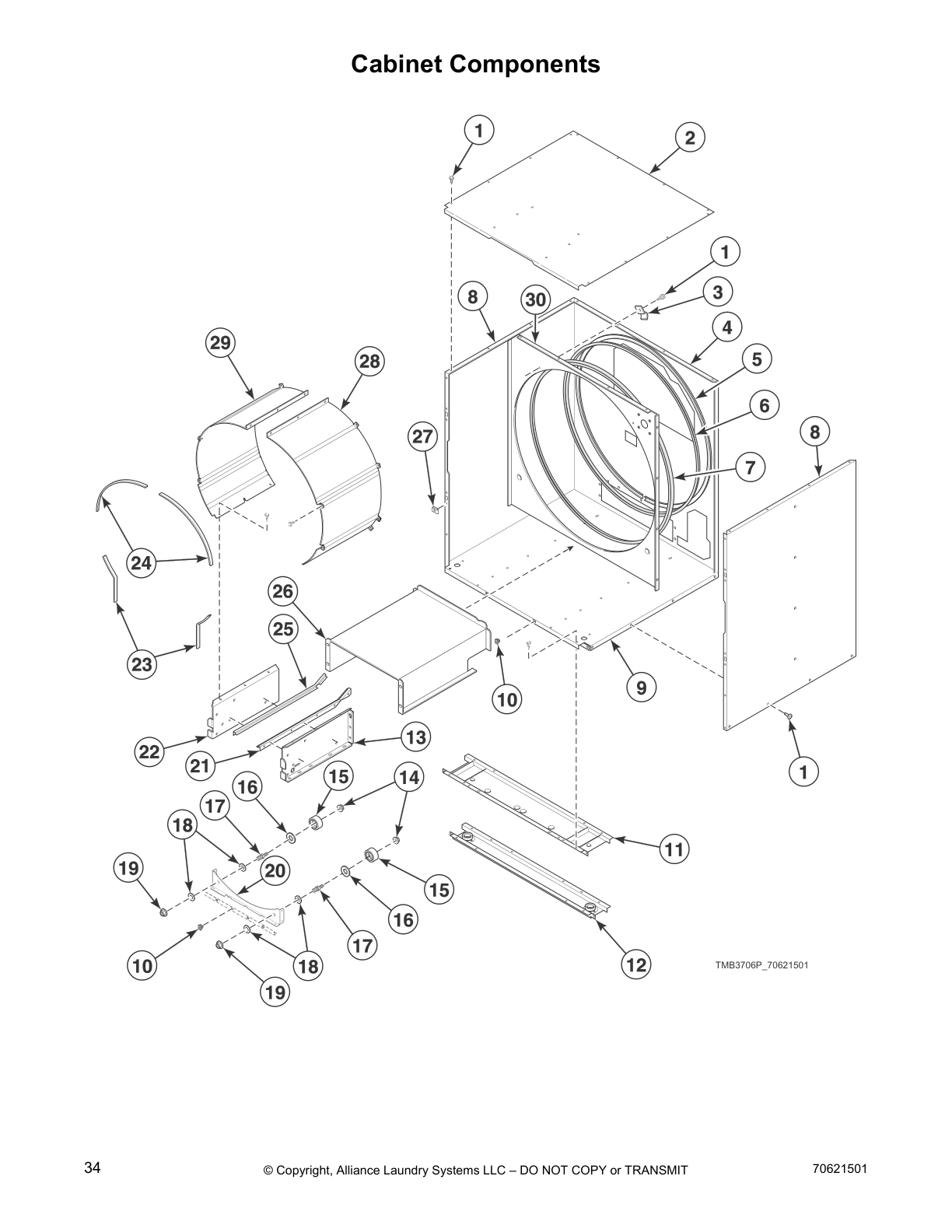

Cabinet Components

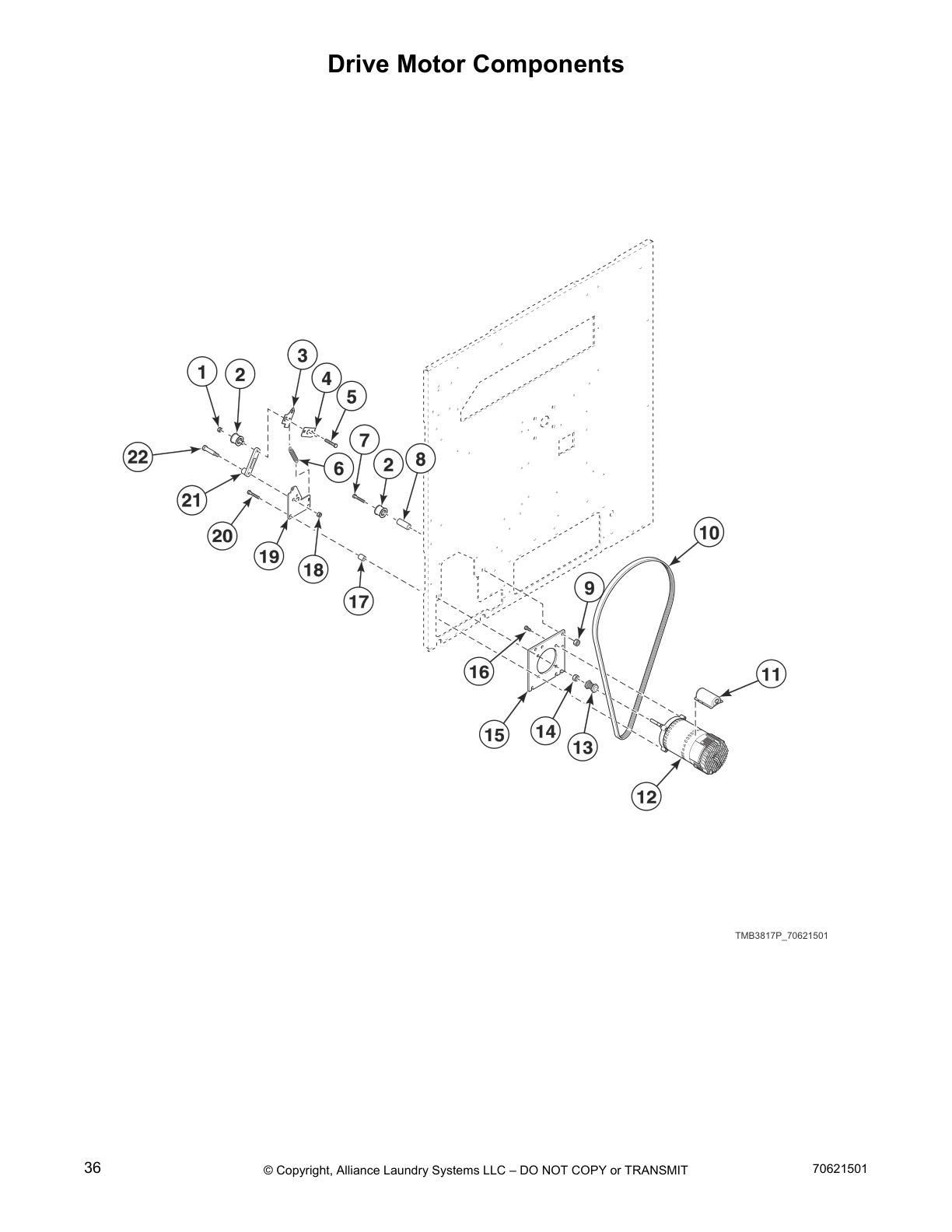

Drive Motor Components

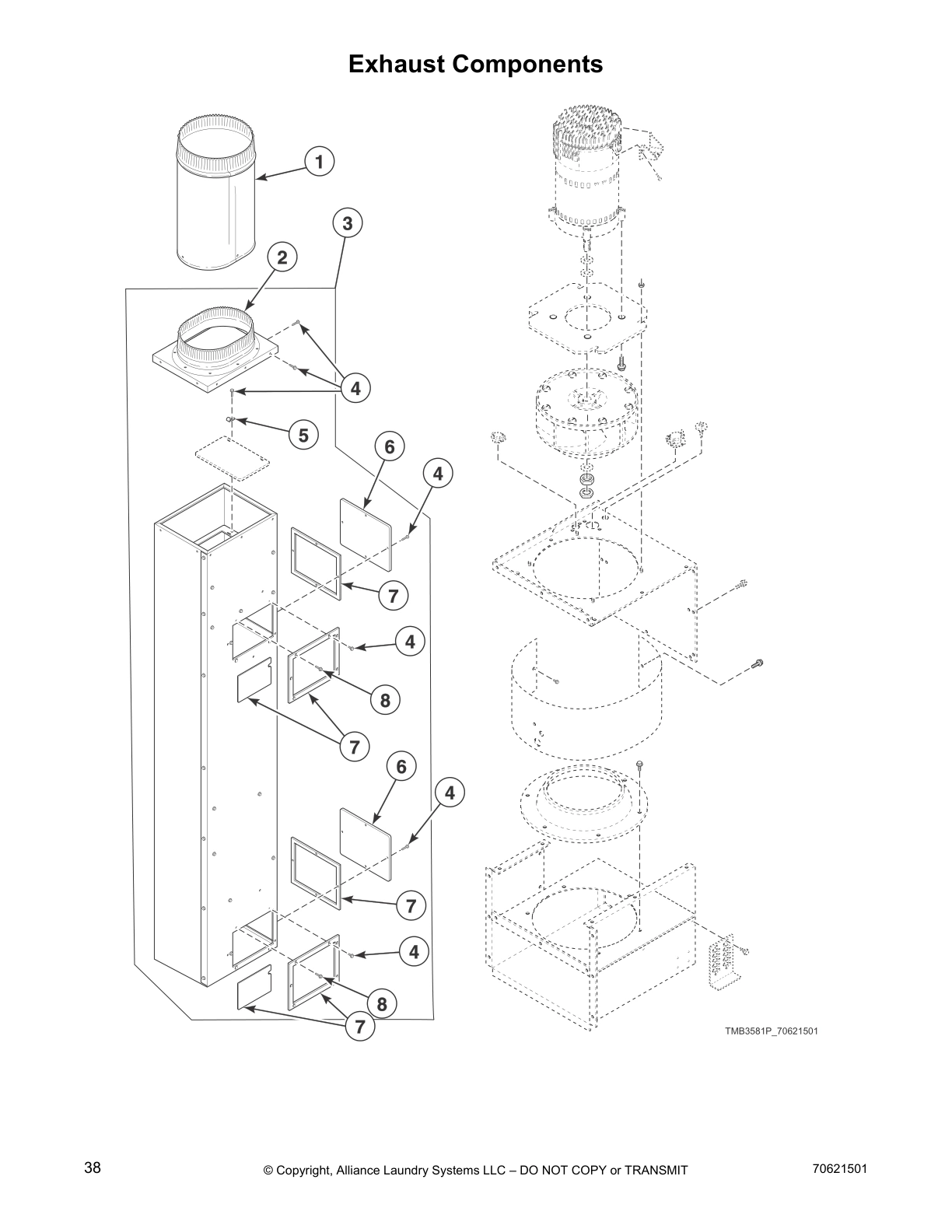

Exhaust Components

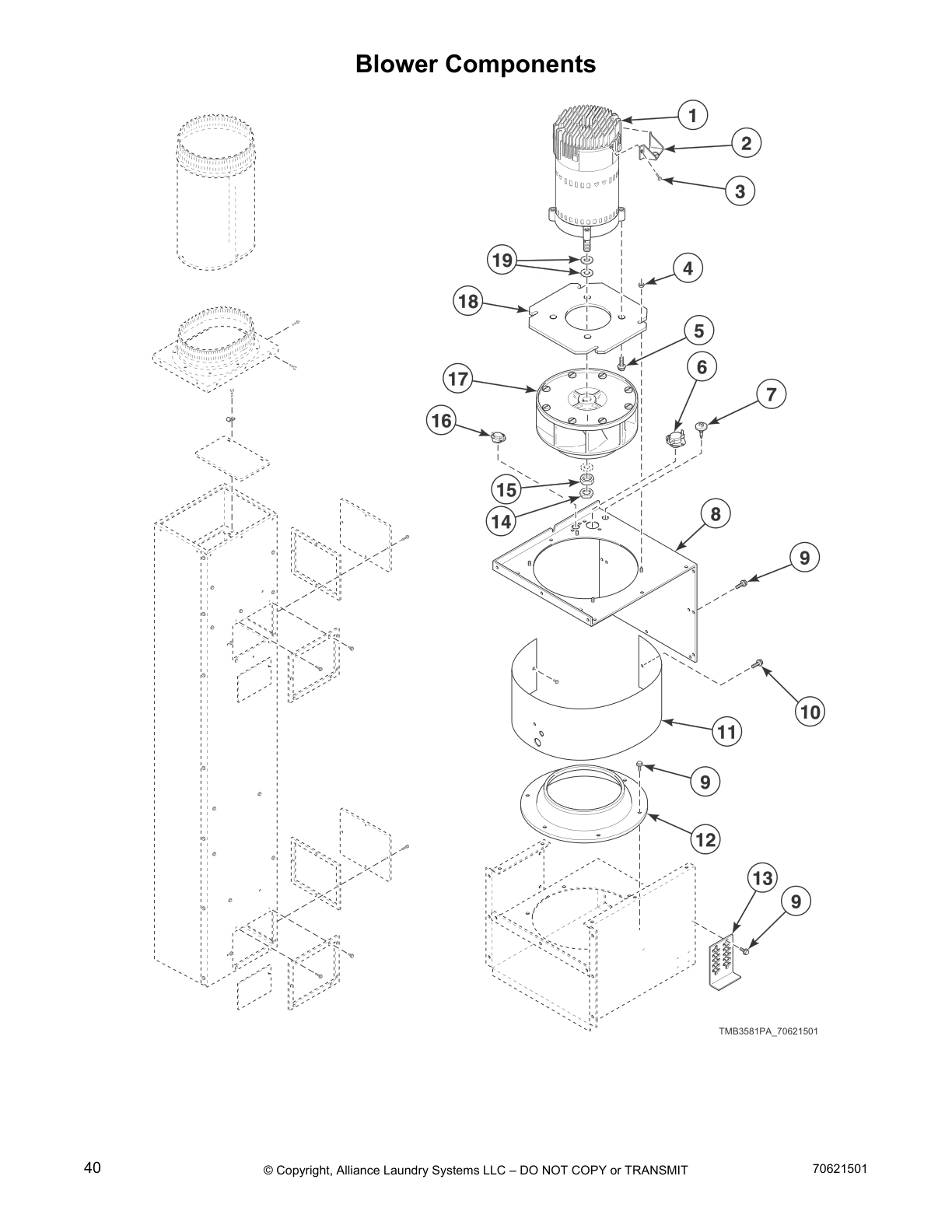

Blower Components

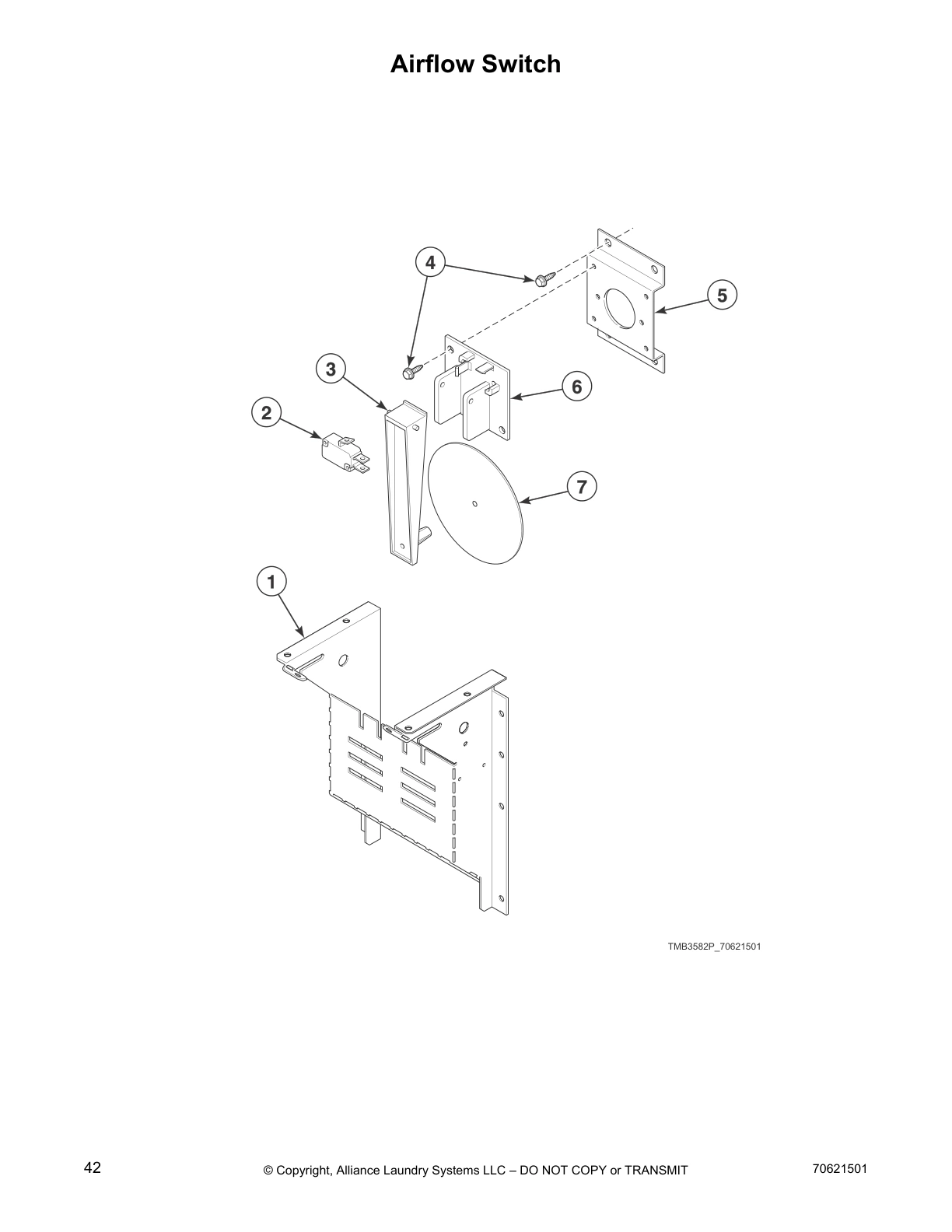

Airflow Switch

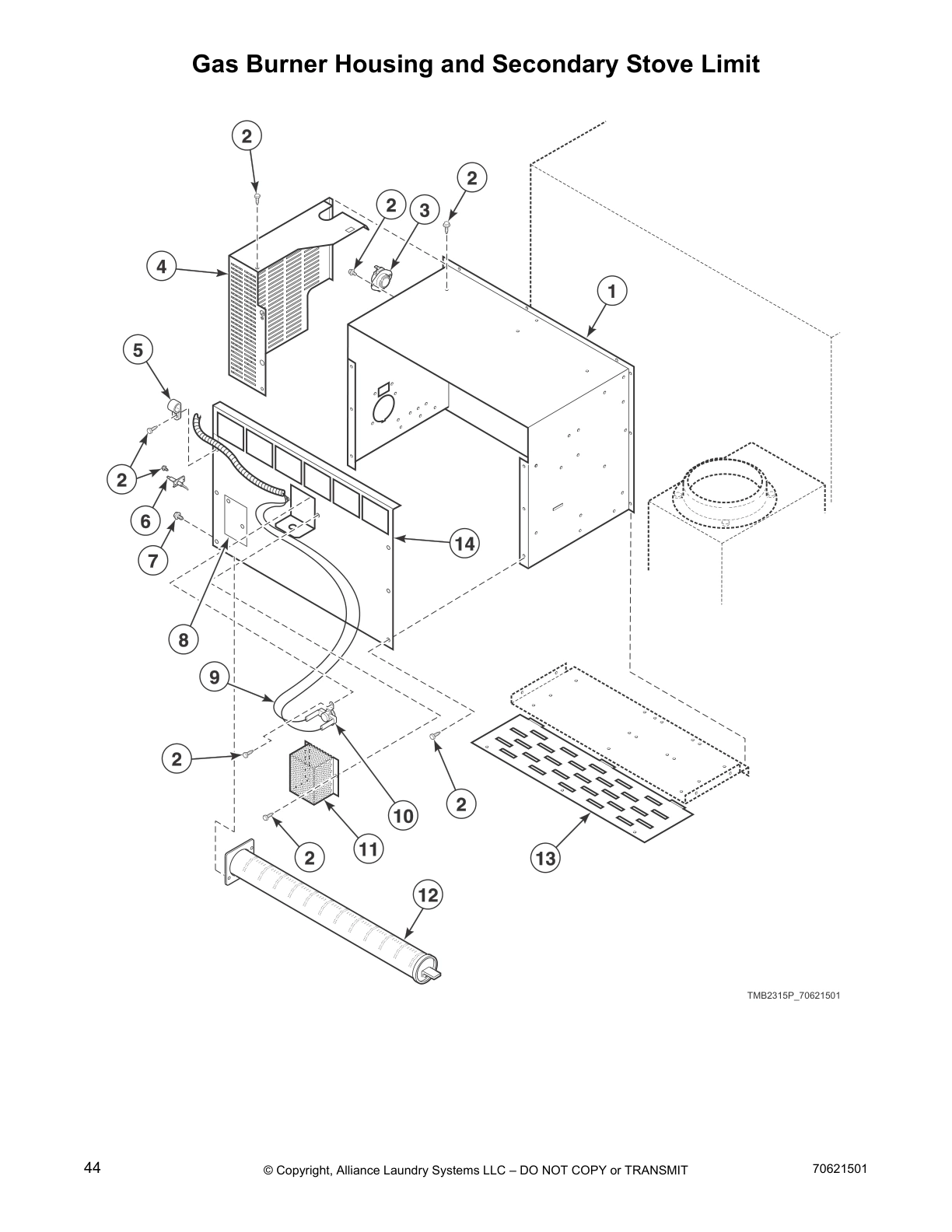

Gas Burner Housing and Secondary Stove Limit

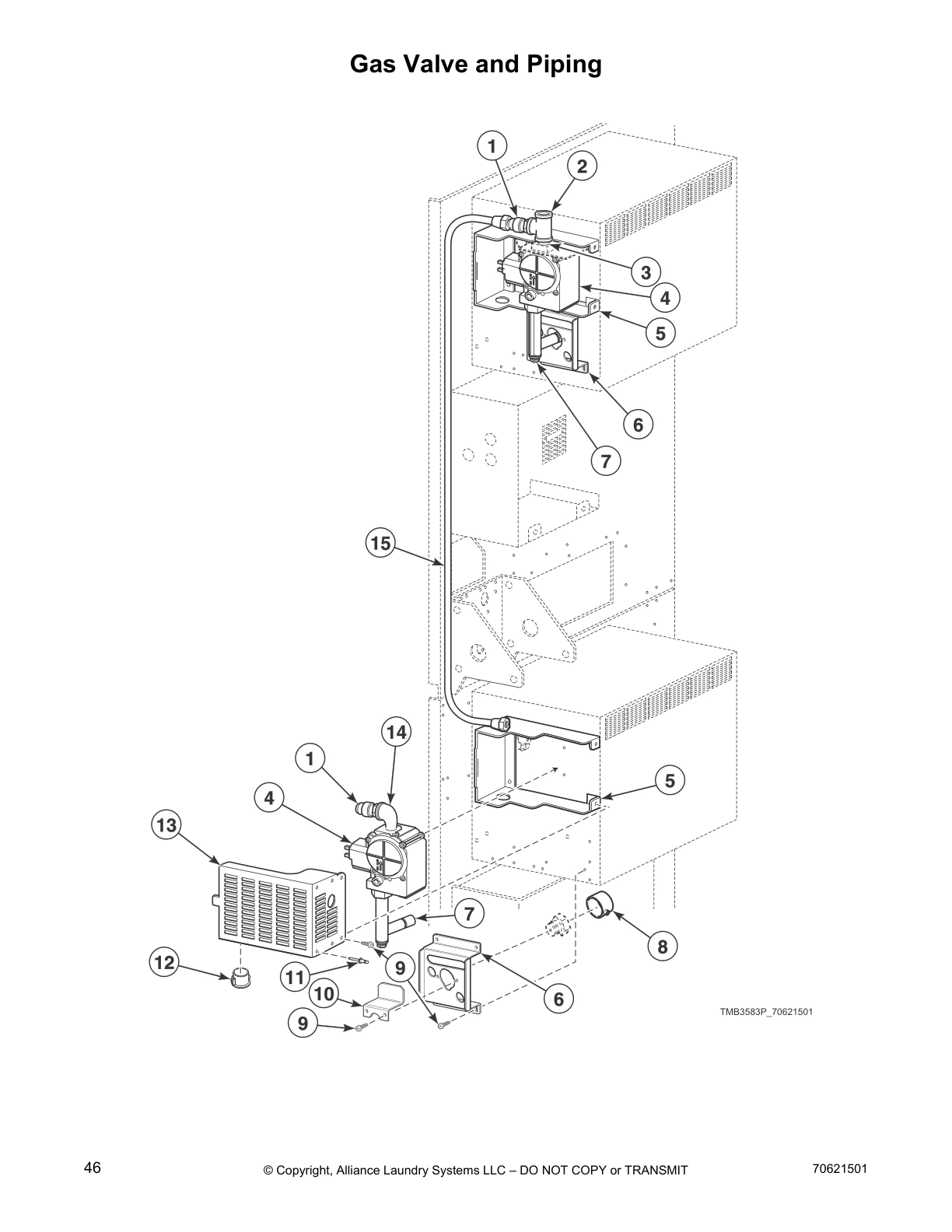

Gas Valve and Piping

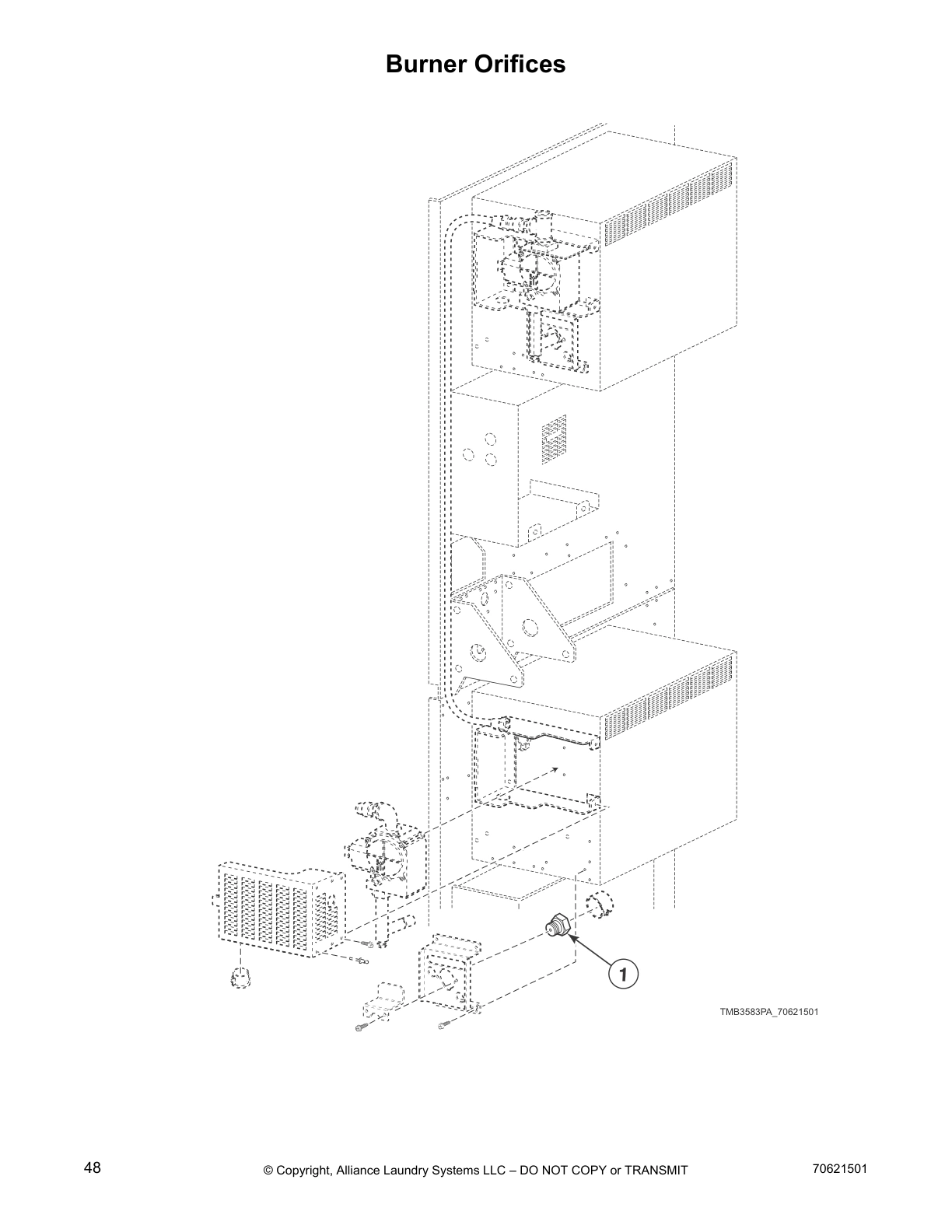

Burner Orifices

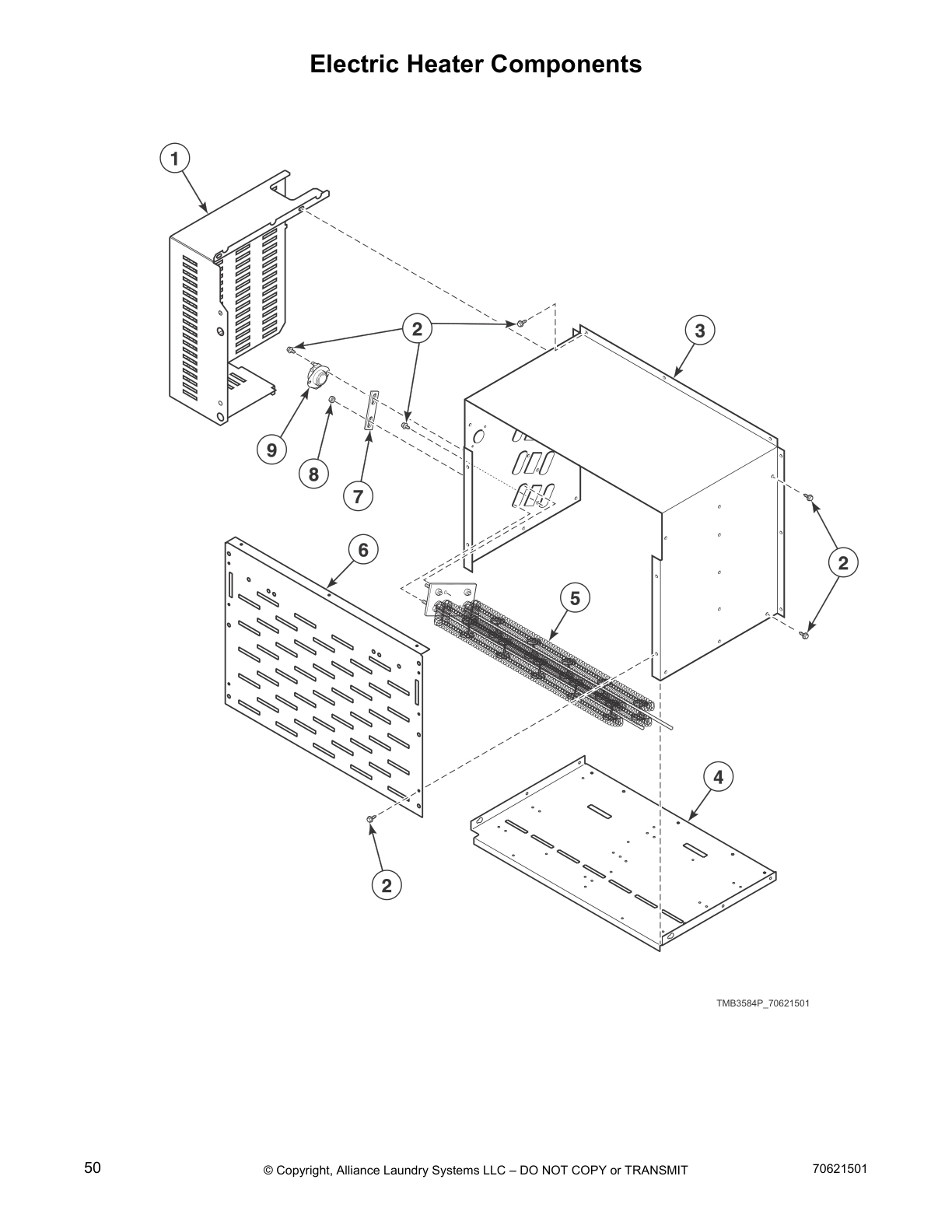

Electric Heater Components

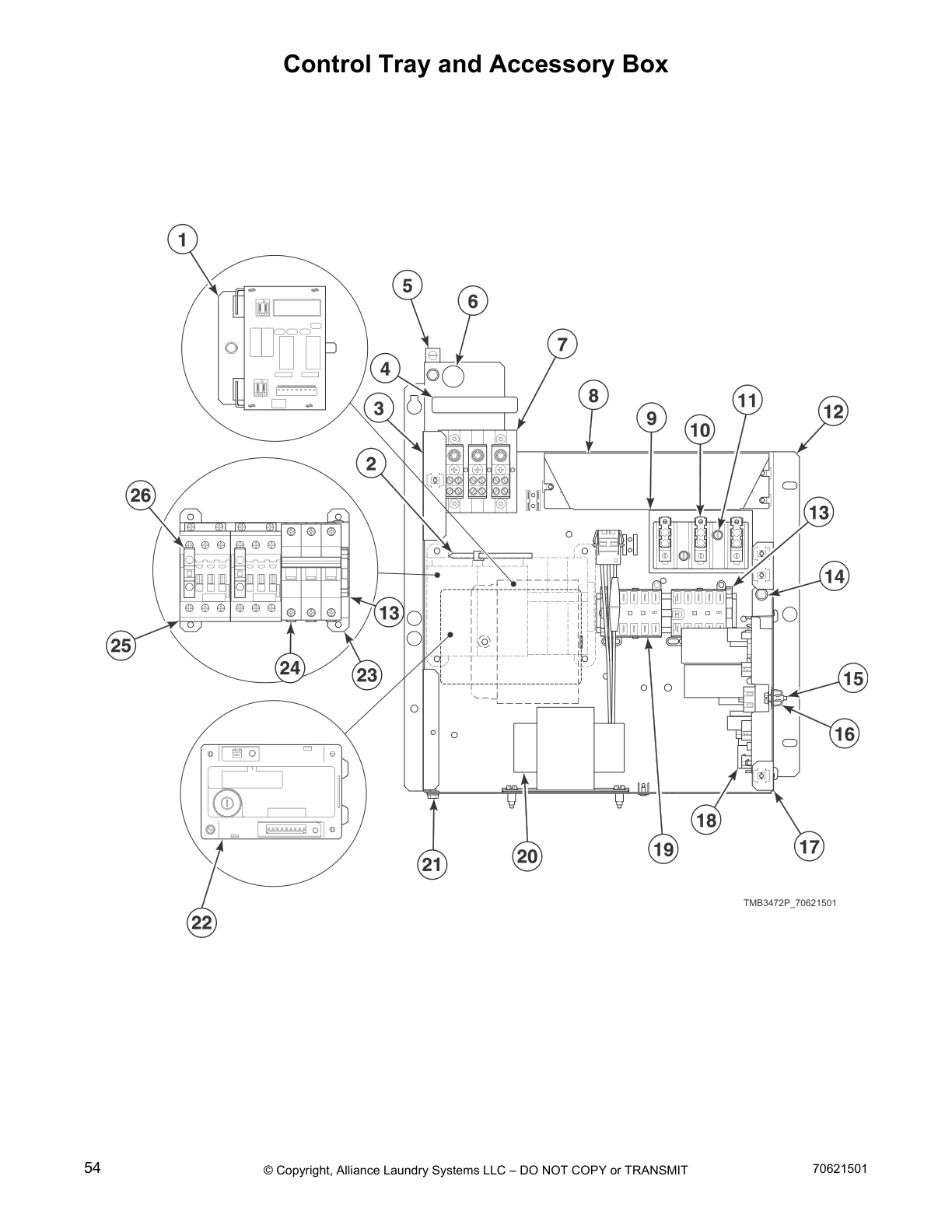

Control Tray and Accessory Box
Common parts from model Huebsch HGT30R Dryer
SPQ 70173401P SPQ 70173401P Contact Us For Availability
Coin Drop Kit SPQ CK108 Contact Us For Availability
SPQ CK100 SPQ CK100 Contact Us For Availability
SPQ CK122 SPQ CK122 Contact Us For Availability
SPQ CK120 SPQ CK120 Contact Us For Availability
SPQ CK117 SPQ CK117 Contact Us For Availability
Power Supply Transformer Harne SPQ 44355603 Contact Us For Availability
SPQ 44272305 SPQ 44272305 Contact Us For Availability
SPQ 70247701 SPQ 70247701 Contact Us For Availability
L.P. Conversion Kit SPQ 70550205 Contact Us For Availability
Plug SPQ 70167601 Contact Us For Availability
SPQ 70684125 SPQ 70684125 Contact Us For Availability
SPQ 70610101 SPQ 70610101 Contact Us For Availability
1
Key SPQ 70155601 Contact Us For Availability
1
Upper Front Panel Assembly SPQ 70643201 Contact Us For Availability
1
Upper Front Panel Assembly SPQ 70703504W Contact Us For Availability
1
Cylinder Assembly SPQ 70372502P Contact Us For Availability
1
Fan Motor SPQ 70484901P Contact Us For Availability
1
Airflow Switch Wrapper SPQ 70356101 Contact Us For Availability
1
Stove Top and Sides SPQ 70333401 Contact Us For Availability
1
Pipe SPQ 70262601 Contact Us For Availability
1
Burner Orifice SPQ 70684130 Contact Us For Availability
2
Pop Rivet SPQ 44088001 Contact Us For Availability
2
Nameplate SPQ 70703502 Contact Us For Availability
2
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
2
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
2
Duct Cover SPQ 70478101 Contact Us For Availability
2
Switch SPQ 70411901 Contact Us For Availability
2
Stove Back SPQ 70371501 Contact Us For Availability
2
Tee SPQ F422208 Contact Us For Availability
2
Ground Lug Connector SPQ 70335601 Contact Us For Availability
3
Key SPQ 70155602 Contact Us For Availability
3
Door Glass Label SPQ 802822 Contact Us For Availability
3
Nameplate SPQ F8688001 Contact Us For Availability
3
Emergency Stop Label SPQ 44012901 Contact Us For Availability
3
Exhaust Duct Assembly SPQ 70662606 Contact Us For Availability
3
Airflow Switch Arm SPQ 70319401 Contact Us For Availability
4
Rear Bearing Shim SPQ 70355001 Contact Us For Availability
4
Hold-Down Clip SPQ 70703501W Contact Us For Availability
4
Door Latch SPQ M401223 Contact Us For Availability
4
Trunnion and Seal Kit SPQ 70257101 Contact Us For Availability
4
Gasket SPQ 23222 Contact Us For Availability
4
L.P. Valve SPQ 44154504 Contact Us For Availability
5
Support Bearing SPQ 70448701 Contact Us For Availability
5
Cylinder Bearing Stud Plate Asse SPQ 70506402 Contact Us For Availability
5
Rear Cylinder Channel Plate SPQ 70564803 Contact Us For Availability
5
Pop Rivet SPQ 70703501 Contact Us For Availability
5
Pop Rivet SPQ 44166601 Contact Us For Availability
5
Contact Switch SPQ F8069501 Contact Us For Availability
5
Lint Screen Assembly SPQ 70596102 Contact Us For Availability
5
Clip SPQ 70226701 Contact Us For Availability
5
SPQ 70501301 SPQ 70501301 Contact Us For Availability
5
Switch Bracket SPQ 70356301 Contact Us For Availability
5
N.G. Valve SPQ 44154503 Contact Us For Availability
5
Insulator SPQ M411283 Contact Us For Availability
6
Porcelain Touch-Up Paint SPQ 70013701P Contact Us For Availability
6
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
6
SPQ 70576101 SPQ 70576101 Contact Us For Availability
6
SPQ 70632701W SPQ 70632701W Contact Us For Availability
6
Blind Rivet SPQ F8245101 Contact Us For Availability
6
Contact Base SPQ F8538101 Contact Us For Availability
6
Nut SPQ 70257201 Contact Us For Availability
6
Exhaust Duct Gaskets Assembly SPQ 70340201 Contact Us For Availability
6
Airflow Switch and Arm Bracket SPQ 70319602 Contact Us For Availability
6
Pipe Clip SPQ 70203701 Contact Us For Availability
6
Forward Valve Cover SPQ 70328201 Contact Us For Availability
7
Washer SPQ M400991 Contact Us For Availability
7
Control Bezel SPQ 70642001 Contact Us For Availability
7
Emergency Stop Harness SPQ 44272402 Contact Us For Availability
7
SPQ 70066003 SPQ 70066003 Contact Us For Availability
7
SPQ 70508301 SPQ 70508301 Contact Us For Availability
7
Gasket SPQ 70340401 Contact Us For Availability
7
SPQ 70126101 SPQ 70126101 Contact Us For Availability
7
Airflow Switch Vane SPQ 70319201 Contact Us For Availability
7
Spark Electrode SPQ 70548701P Contact Us For Availability
7
Orifice Holder Bracket SPQ 70248901 Contact Us For Availability
7
Snap Bushing SPQ 70333001 Contact Us For Availability
8
SPQ M411072 SPQ M411072 Contact Us For Availability
8
SPQ 70071401 SPQ 70071401 Contact Us For Availability
8
Igniter Cover SPQ 05161 Contact Us For Availability
8
Orifice Adapter SPQ 70552801P Contact Us For Availability
9
SPQ 70622401 SPQ 70622401 Contact Us For Availability
9
Magnet SPQ 70343101 Contact Us For Availability
9
SPQ 70411301 SPQ 70411301 Contact Us For Availability
9
SPQ F430144 SPQ F430144 Contact Us For Availability
9
Stove Limit Harness SPQ 70159601 Contact Us For Availability
9
Primary Air Adjustment Sleev SPQ 70239801 Contact Us For Availability
9
EMI Filter Kit SPQ M413862 Contact Us For Availability
10
Terminal Block SPQ 430642 Contact Us For Availability
10
Screw SPQ FR004022 Contact Us For Availability
10
Rivet SPQ 70703504 Contact Us For Availability
10
Lock, Key and Nut Kit SPQ 44390902P Contact Us For Availability
10
End Cap SPQ 70070101 Contact Us For Availability
10
Lever Arm and Belt Kit SPQ 70655102 Contact Us For Availability
10
Screw SPQ 70478701P Contact Us For Availability
11
Lower Front Panel Assembly SPQ 70614201 Contact Us For Availability
11
Pushbutton Switch SPQ 70413301 Contact Us For Availability
11
Panel Lock SPQ 44390902 Contact Us For Availability
11
Screw SPQ 70391101 Contact Us For Availability
11
Thermostat Cover SPQ M414477 Contact Us For Availability
12
Screw SPQ 44349101 Contact Us For Availability
12
Channel Base Assembly SPQ 70288201 Contact Us For Availability
12
Drive Motor SPQ 70485001P Contact Us For Availability
12
Blower Inlet Cone SPQ 70340801 Contact Us For Availability
12
Anti-Rattle Burner Assembly SPQ 70546701 Contact Us For Availability
12
Snap Bushing SPQ M400770 Contact Us For Availability
13
Lower Front Panel Assembly SPQ 70703502W Contact Us For Availability
13
Rear Stabilizer Bracket SPQ 70014101 Contact Us For Availability
13
Gas Burner SPQ 70229801P Contact Us For Availability
13
Rear Valve Cover SPQ 70282401 Contact Us For Availability
14
Door Glass SPQ M400784P Contact Us For Availability
14
Screw SPQ 70559101 Contact Us For Availability
14
Burner Grill SPQ 70188801 Contact Us For Availability
14
Street Elbow SPQ 70612501 Contact Us For Availability
15
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
15
Door Glass Installation Tool SPQ 70436301 Contact Us For Availability
15
Roller and Seal Kit SPQ 70616701 Contact Us For Availability
15
Nut SPQ 70200301 Contact Us For Availability
15
Tube SPQ 70281601 Contact Us For Availability
15
Expansion Clip SPQ F8206901 Contact Us For Availability
16
Nut SPQ M414215 Contact Us For Availability
16
Roller Seal SPQ 70443601 Contact Us For Availability
16
Idler Wheel Assembly SPQ 44333202 Contact Us For Availability
17
Door Handle SPQ 44007902P Contact Us For Availability
17
Blower Assembly SPQ M400022 Contact Us For Availability
17
Roller Shaft SPQ 70249501 Contact Us For Availability
18
Washer SPQ 70261401 Contact Us For Availability
18
Door Ring Gasket SPQ M4221P4 Contact Us For Availability
18
Nut SPQ M400661 Contact Us For Availability
18
Lever Arm and Bushing Assembly SPQ 70126104 Contact Us For Availability
19
Door Ring Gasket SPQ 70442101 Contact Us For Availability
19
Sheet Metal Edge Gasket SPQ 70288801 Contact Us For Availability
19
Washer SPQ 70341001 Contact Us For Availability
19
Cable Tie SPQ 70482601 Contact Us For Availability
20
Door Hinge SPQ 70296801 Contact Us For Availability
21
SPQ 70050401P SPQ 70050401P Contact Us For Availability
22
SPQ 70653801 SPQ 70653801 Contact Us For Availability
23
Cylinder Shroud SPQ 70015711 Contact Us For Availability
24
Rear Cylinder Seal Support SPQ 70015712 Contact Us For Availability
27
Rear Cylinder Seal SPQ 70030401 Contact Us For Availability
28
Center Cylinder Seal SPQ 70339301 Contact Us For Availability
29
Spray Paint SPQ 70339302 Contact Us For Availability
NI
High Voltage Suppression Ca SPQ 44239701 Contact Us For Availability
NI
Door Catch Kit SPQ 70482901 Contact Us For Availability
NI
SPQ 70513316 SPQ 70513316 Contact Us For Availability
NI
SPQ 70513314 SPQ 70513314 Contact Us For Availability
NI
SPQ 70513312 SPQ 70513312 Contact Us For Availability
NI
SPQ 70513309 SPQ 70513309 Contact Us For Availability
NI
SPQ 70513303 SPQ 70513303 Contact Us For Availability
NI
SPQ 70482401 SPQ 70482401 Contact Us For Availability
NI
SPQ 70513311 SPQ 70513311 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK109 Contact Us For Availability
NI
SPQ CK101 SPQ CK101 Contact Us For Availability
NI
SPQ CK099 SPQ CK099 Contact Us For Availability
NI
SPQ CK121 SPQ CK121 Contact Us For Availability
NI
SPQ CK119 SPQ CK119 Contact Us For Availability
NI
SPQ CK116 SPQ CK116 Contact Us For Availability
NI
Power Harness SPQ 44071501 Contact Us For Availability
NI
Transformer Harness SPQ 70366201 Contact Us For Availability
NI
SPQ 44272306 SPQ 44272306 Contact Us For Availability
NI
SPQ 44272304 SPQ 44272304 Contact Us For Availability
NI
SPQ 44272303 SPQ 44272303 Contact Us For Availability
NI
SPQ 70650401 SPQ 70650401 Contact Us For Availability
NI
SPQ 70289101P SPQ 70289101P Contact Us For Availability
NI
Screw SPQ 44088801 Contact Us For Availability
NI
Emergency Stop Bypass Harness SPQ 44272401 Contact Us For Availability
NI
SPQ F8519403 SPQ F8519403 Contact Us For Availability
NI
SPQ 70598101 SPQ 70598101 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
SPQ 70392701P SPQ 70392701P Contact Us For Availability
NI
Stove Limit Harness SPQ 70564301 Contact Us For Availability
NI
SPQ 70500601 SPQ 70500601 Contact Us For Availability
NI
High Altitude Orifice Kit SPQ 70684128 Contact Us For Availability
NI
SPQ 70684126 SPQ 70684126 Contact Us For Availability
NI
SPQ 70609909 SPQ 70609909 Contact Us For Availability
NI
SPQ 70610102 SPQ 70610102 Contact Us For Availability
NI
SPQ 70476001 SPQ 70476001 Contact Us For Availability
× ![]()
