Model Maytag HGD4300TQ0 GAS DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS

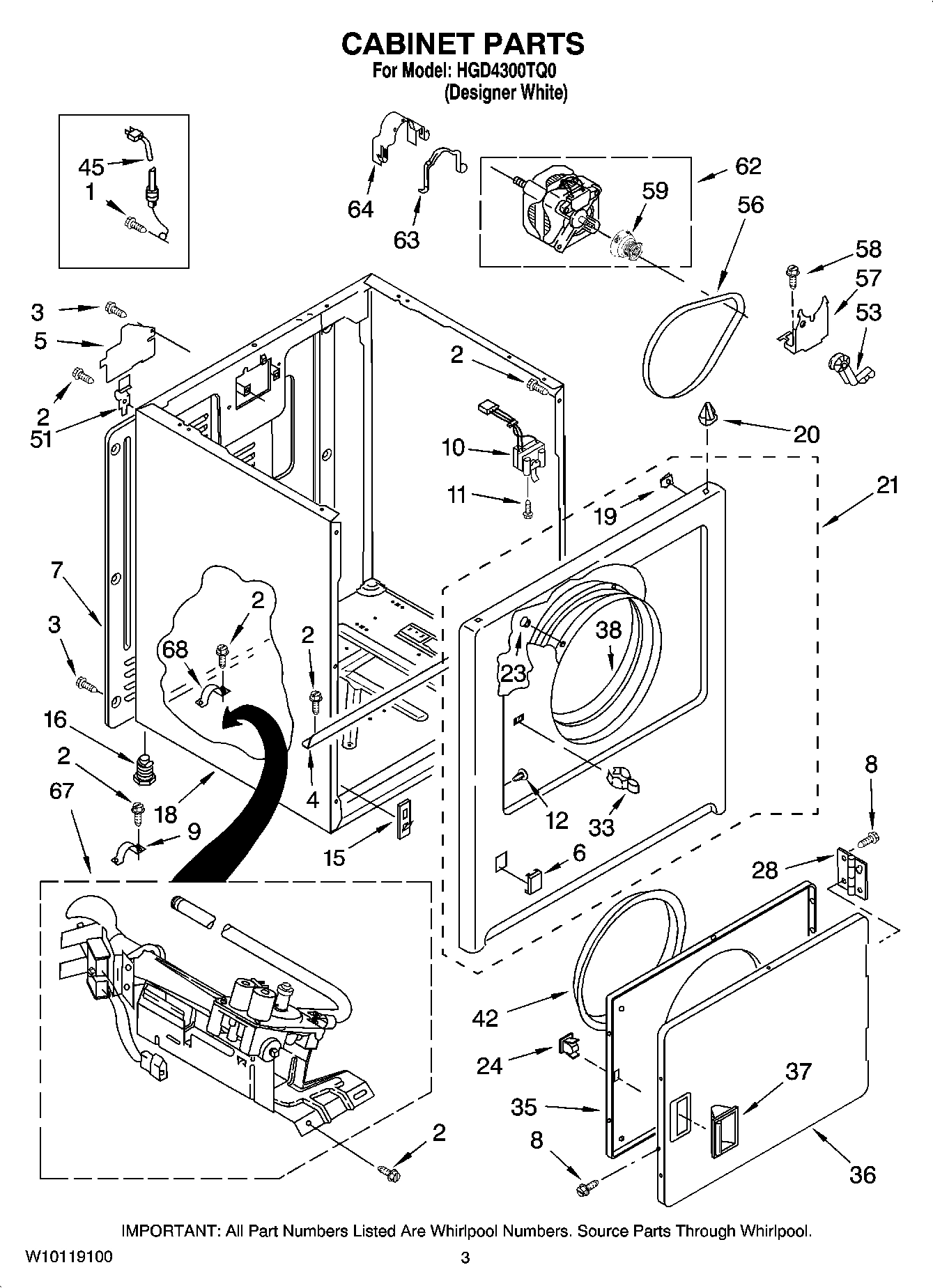

02 - CABINET PARTS

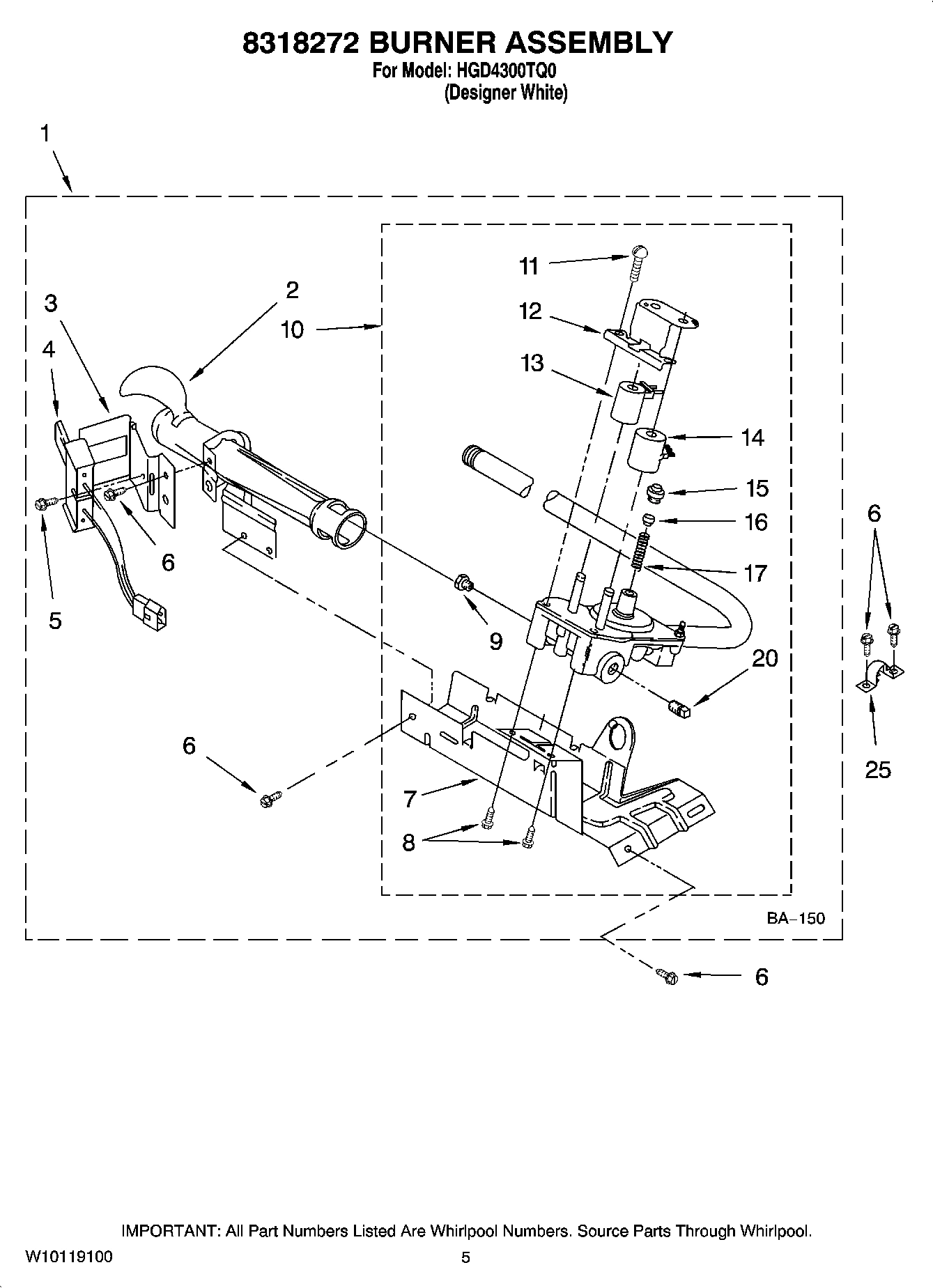

03 - 8318272 BURNER ASSEMBLY

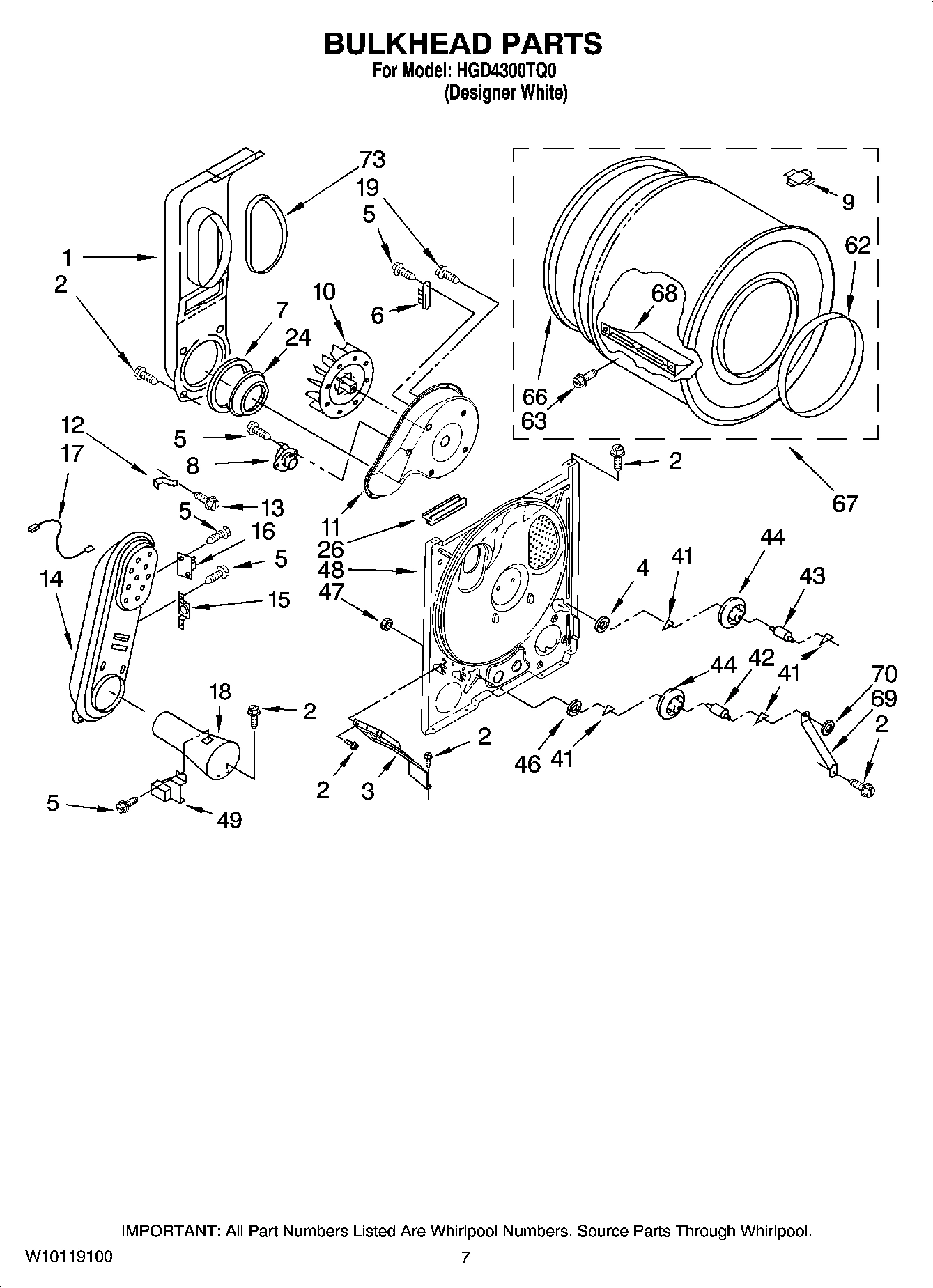

04 - BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag HGD4300TQ0 GAS DRYER
MAY 279948 MAY 279948 Contact Us For Availability
Kit, Hold-Down (Gas Dryer Mobile Home Install MAY 346764 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
Dry Rack MAY 689790 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
MAY 8522199 MAY 8522199 Contact Us For Availability
1
MAY 8576793 MAY 8576793 Contact Us For Availability
1
MAY W10088773 MAY W10088773 Contact Us For Availability
1
MAY W10088971 MAY W10088971 Contact Us For Availability
1
MAY W10089176 MAY W10089176 Contact Us For Availability
1
Screw, 10-32 x 5/8 MAY 697776 Contact Us For Availability
1
Burner Assembly 60 Hz. (Type 1) (White Rodger MAY 8318272 Contact Us For Availability
1
MAY 694283 MAY 694283 Contact Us For Availability
2
MAY 343641 MAY 343641 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
3
MAY 693995 MAY 693995 Contact Us For Availability
3
Connector-Timer MAY 3397269 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
3
MAY 3406022 MAY 3406022 Contact Us For Availability
4
Cap, End (L.H.) MAY 8579674 Contact Us For Availability
4
MAY 8541400 MAY 8541400 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
4
WASHER-SUPPORT MAY 3388703 Contact Us For Availability
5
MAY 3936144 MAY 3936144 Contact Us For Availability
5
MAY 3396795 MAY 3396795 Contact Us For Availability
5
MAY 3393909 MAY 3393909 Contact Us For Availability
5
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
6
CONNECTOR (MOTOR) MAY 3395683 Contact Us For Availability
6
MAY 3394975 MAY 3394975 Contact Us For Availability
6
MAY 3392519 MAY 3392519 Contact Us For Availability
7
Cap, End (R.H.) MAY 8579673 Contact Us For Availability
7
MAY 3396807 MAY 3396807 Contact Us For Availability
7
MAY 693986 MAY 693986 Contact Us For Availability
7
MAY 347139 MAY 347139 Contact Us For Availability
8
Screw, 8-18 x 1/2 MAY 342055 Contact Us For Availability
8
MAY 3387057 MAY 3387057 Contact Us For Availability
8
MAY 3387134 MAY 3387134 Contact Us For Availability
9
MAY 8274261 MAY 8274261 Contact Us For Availability
9
MAY 3980175 MAY 3980175 Contact Us For Availability
9
MAY 229742 MAY 229742 Contact Us For Availability
9
MAY 234826 MAY 234826 Contact Us For Availability
9
MAY 234868 MAY 234868 Contact Us For Availability
9
MAY 8066086 MAY 8066086 Contact Us For Availability
10
MAY 8558467 MAY 8558467 Contact Us For Availability
10
Door Switch Assembly MAY 3406104 Contact Us For Availability
10
MAY 8318277 MAY 8318277 Contact Us For Availability
10
Wheel, Blower MAY 694089 Contact Us For Availability
11
Spring-Clip Knob MAY 8536939 Contact Us For Availability
11
MAY 697773 MAY 697773 Contact Us For Availability
11
MAY 694421 MAY 694421 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
12
MAY 8312709 MAY 8312709 Contact Us For Availability
12
PLUG, HOLE MAY 3404413 Contact Us For Availability
12
MAY 694538 MAY 694538 Contact Us For Availability
12
Clip MAY 3398161 Contact Us For Availability
13
MAY 688983 MAY 688983 Contact Us For Availability
13
MAY 694540 MAY 694540 Contact Us For Availability
13
MAY 489463 MAY 489463 Contact Us For Availability
14
COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITI MAY 694539 Contact Us For Availability
14
MAY 8530285 MAY 8530285 Contact Us For Availability
15
CLIP, HARNESS MAY 3394427 Contact Us For Availability
15
MAY 3394083 MAY 3394083 Contact Us For Availability
15
MAY 694424 MAY 694424 Contact Us For Availability
15
Thermostat, 205 F (96C) MAY 3403140 Contact Us For Availability
16
TOP MAY 8559800 Contact Us For Availability
16
Foot, Dryer (4) MAY 3392100 Contact Us For Availability
16
MAY 694423 MAY 694423 Contact Us For Availability
16
MAY 280010 MAY 280010 Contact Us For Availability
17
MAY 694422 MAY 694422 Contact Us For Availability
17
WIRE JUMPER MAY 3401707 Contact Us For Availability
18
Terminal MAY 94614 Contact Us For Availability
18
MAY 8530603 MAY 8530603 Contact Us For Availability
18
MAY 8066048 MAY 8066048 Contact Us For Availability
19
Screw, 8-18 x 7/32 MAY 8533951 Contact Us For Availability
19
MAY 98234 MAY 98234 Contact Us For Availability
19
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
20
MAY 690363 MAY 690363 Contact Us For Availability
20
MAY 239822 MAY 239822 Contact Us For Availability
21
MAY 8299764 MAY 8299764 Contact Us For Availability
21
MAY 3403574 MAY 3403574 Contact Us For Availability
22
Tie, Cable MAY 3391249 Contact Us For Availability
23
MAY 8299876 MAY 8299876 Contact Us For Availability
23
Clip, Felt Pad MAY 685203 Contact Us For Availability
24
CONNECTOR, 2-POSITION (GAS VALVE) MAY 3403499 Contact Us For Availability
24
Catch, Door MAY 690081 Contact Us For Availability
24
MAY 696302 MAY 696302 Contact Us For Availability
25
MAY 3403498 MAY 3403498 Contact Us For Availability
25
MAY 341029 MAY 341029 Contact Us For Availability
25
MAY 694572 MAY 694572 Contact Us For Availability
26
MAY 8533971 MAY 8533971 Contact Us For Availability
26
MAY 3392247 MAY 3392247 Contact Us For Availability
27
MAY 3977456 MAY 3977456 Contact Us For Availability
28
Timer Knob & Dial MAY W10110064 Contact Us For Availability
28
Hinge & Pin Assembly (2) MAY 3405514 Contact Us For Availability
29
MAY 8579678 MAY 8579678 Contact Us For Availability
30
MAY W10086683 MAY W10086683 Contact Us For Availability
31
Receptacle MAY 717252 Contact Us For Availability
32
MAY W10110065 MAY W10110065 Contact Us For Availability
33
MAY 696144 MAY 696144 Contact Us For Availability
35
MAY 3403371 MAY 3403371 Contact Us For Availability
36
MAY 3403361 MAY 3403361 Contact Us For Availability
37
MAY 3405184 MAY 3405184 Contact Us For Availability
38
MAY 8066124 MAY 8066124 Contact Us For Availability
41
MAY 690997 MAY 690997 Contact Us For Availability
42
MAY 3405245 MAY 3405245 Contact Us For Availability
42
MAY 3399506 MAY 3399506 Contact Us For Availability
43
MAY 3399507 MAY 3399507 Contact Us For Availability
44
MAY 3397590 MAY 3397590 Contact Us For Availability
45
MAY 344020 MAY 344020 Contact Us For Availability
46
MAY 348197 MAY 348197 Contact Us For Availability
47
Nut, 3/8-16 MAY 3359452 Contact Us For Availability
48
MAY 8529955 MAY 8529955 Contact Us For Availability
49
MAY 338906 MAY 338906 Contact Us For Availability
51
MAY 8066217 MAY 8066217 Contact Us For Availability
53
MAY 691366 MAY 691366 Contact Us For Availability
56
MAY 8066065 MAY 8066065 Contact Us For Availability
57
MAY 348780 MAY 348780 Contact Us For Availability
58
MAY 3400500 MAY 3400500 Contact Us For Availability
59
PULLEY, 60 HZ. MAY 8066184 Contact Us For Availability
62
MAY 2304772 MAY 2304772 Contact Us For Availability
62
MAY 3394509 MAY 3394509 Contact Us For Availability
63
MAY 660658 MAY 660658 Contact Us For Availability
63
MAY W10109200 MAY W10109200 Contact Us For Availability
64
MAY 3404162 MAY 3404162 Contact Us For Availability
66
MAY 8066085 MAY 8066085 Contact Us For Availability
67
MAY 3396777 MAY 3396777 Contact Us For Availability
68
MAY 342847 MAY 342847 Contact Us For Availability
69
Bracket, Support MAY 3976435 Contact Us For Availability
70
MAY 90296 MAY 90296 Contact Us For Availability
73
MAY 339956 MAY 339956 Contact Us For Availability
× ![]()
