Model LG HF85LA – Common Parts & Diagrams

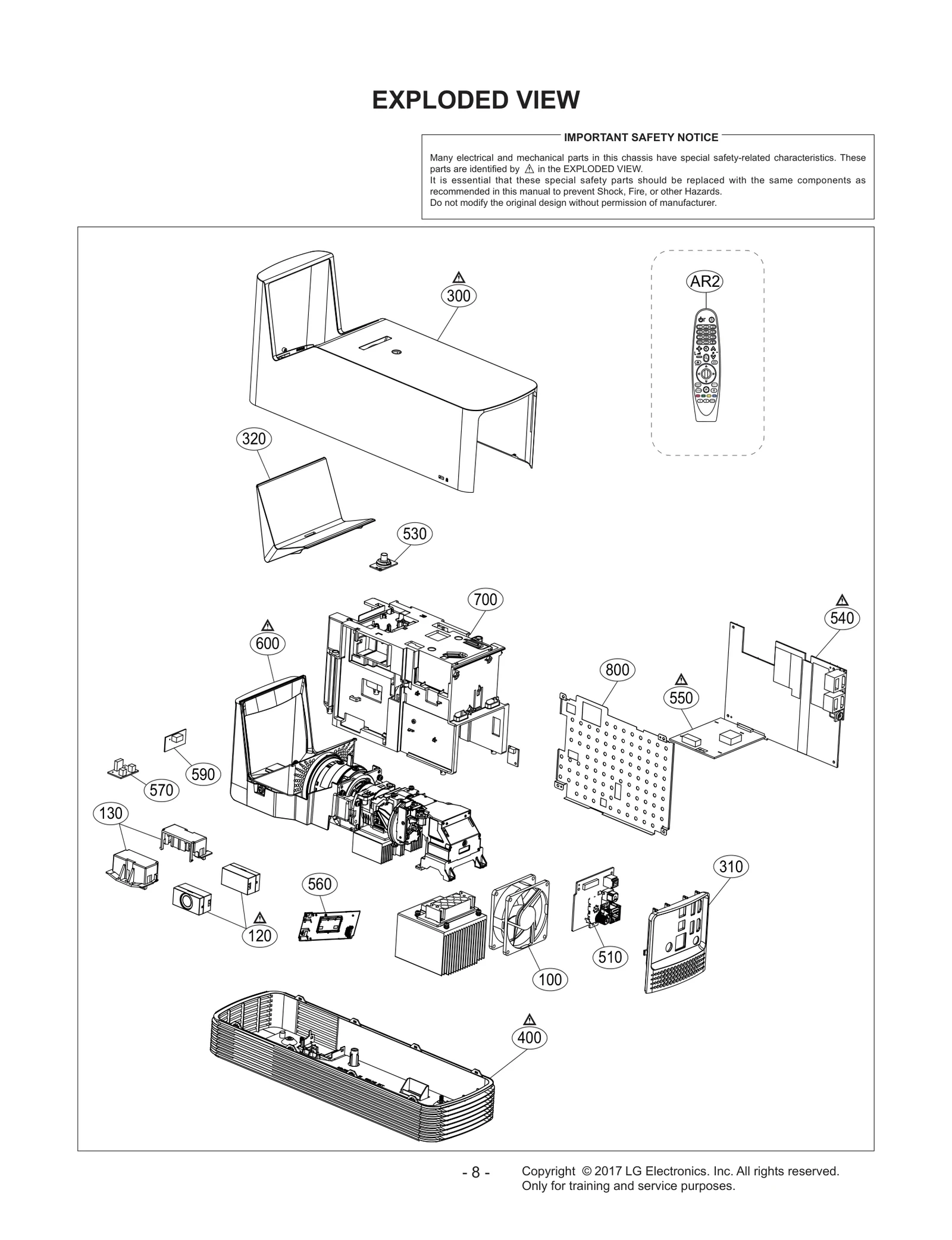

Diagram 0
Diagram 1
Common parts from model LG HF85LA
130
Bracket LGE MAZ65344301 Contact Us For Availability
300
Case Assembly LGE ABQ76061301 Contact Us For Availability
310
Cover Assembly,Rear LGE ACQ89660008 Contact Us For Availability
320
Bracket LGE MAZ65324901 Contact Us For Availability
400
Cover Assembly LGE ACQ89660101 Contact Us For Availability
550
Chassis Assembly LGE EBT65363301 Contact Us For Availability
590
Chassis Assembly LGE EBT64793301 Contact Us For Availability
600
Lens Assembly LGE AFD74110610 Contact Us For Availability
600
Chassis Assembly LGE EBT65472501 Contact Us For Availability
660
IC,ASIC LGE EAN63567903 Contact Us For Availability
665
Gasket LGE 4850V00138J Contact Us For Availability
700
Bracket LGE MAZ65337302 Contact Us For Availability
800
Plate,Shield LGE MGJ65230101 Contact Us For Availability
A3
Power Cord,Detach LGE EAD63785902 Contact Us For Availability
A4
Adapters LGE EAY62949010 Contact Us For Availability
S1
Harness,Single LGE EAD64126106 Contact Us For Availability
S2
Harness,Single LGE EAD63206602 Contact Us For Availability
S3
Harness,Single LGE EAD60732911 Contact Us For Availability
S4
Harness,Single LGE EAD64145107 Contact Us For Availability
S5
Harness,Single LGE EAD63970903 Contact Us For Availability
S6
Cable,FFC LGE EAD61670718 Contact Us For Availability
× ![]()
