Model Whirlpool HE21240S ELECTRIC WATER HEATER – Common Parts & Diagrams

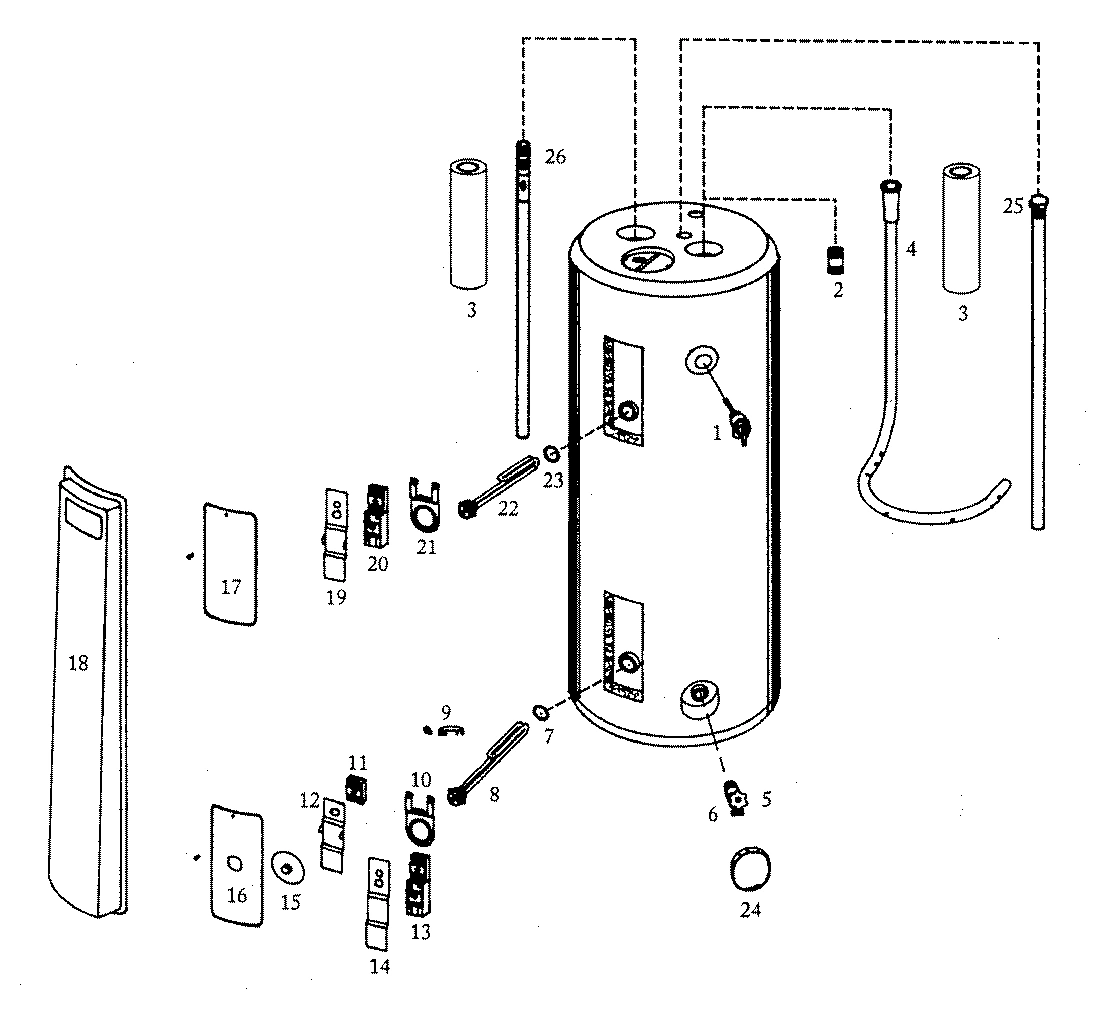

01 - BODY
Common parts from model Whirlpool HE21240S ELECTRIC WATER HEATER
1
VALVE, TEMP/PRESSURE RELIEF WPL 66001010 Contact Us For Availability
2
TRAP, HEAT WPL 66001108 Contact Us For Availability
3
INSULATION, PIPE (2 EA) WPL 66001034 Contact Us For Availability
4
TUBE, DIP WPL 66001052 Contact Us For Availability
5
VALVE, DRAIN (1 1/4`` SHORT) WPL 66001016 Contact Us For Availability
6
WASHER, DRAIN VALVE WPL 66001021 Contact Us For Availability
8
ELEM HTG 5500W 1`` NPS SIF WPL 66001107 Contact Us For Availability
9
BUSS BAR KIT WPL 66001055 Contact Us For Availability
11
THERMOSTAT, LOWER (2 POLE) WPL 66001007 Contact Us For Availability
12
COVER, TERMINAL WPL 66001056 Contact Us For Availability
15
KNOB, ADJUSTABLE (1 1/4``) WPL 66001057 Contact Us For Availability
16
PANEL, ACCESS (LWR) WPL 66001058 Contact Us For Availability
17
PANEL, ACCESS WPL 66001059 Contact Us For Availability
18
PANEL WPL 66001060 Contact Us For Availability
19
COVER, TERMINAL (LWR THR WIRE) WPL 66001064 Contact Us For Availability
20
THERMOSTAT, UPPER (W/HI LIMIT) WPL 66001009 Contact Us For Availability
21
BRACKET, THERMOSTAT WPL 66001054 Contact Us For Availability
22
ELEM HTG 3800W 1`` NPS SIF WPL 66001106 Contact Us For Availability
23
GASKET, ELEMENT WPL 66001053 Contact Us For Availability
24
COVER, DRAIN WPL 66001063 Contact Us For Availability
25
ANODE, PRIMARY WPL 66001109 Contact Us For Availability
26
ANODE, SECONDARY WPL 66001110 Contact Us For Availability
27
MANUAL, USE & CARE WPL 66001088 Contact Us For Availability
× ![]()
