  • LG HBLG2350E Parts List

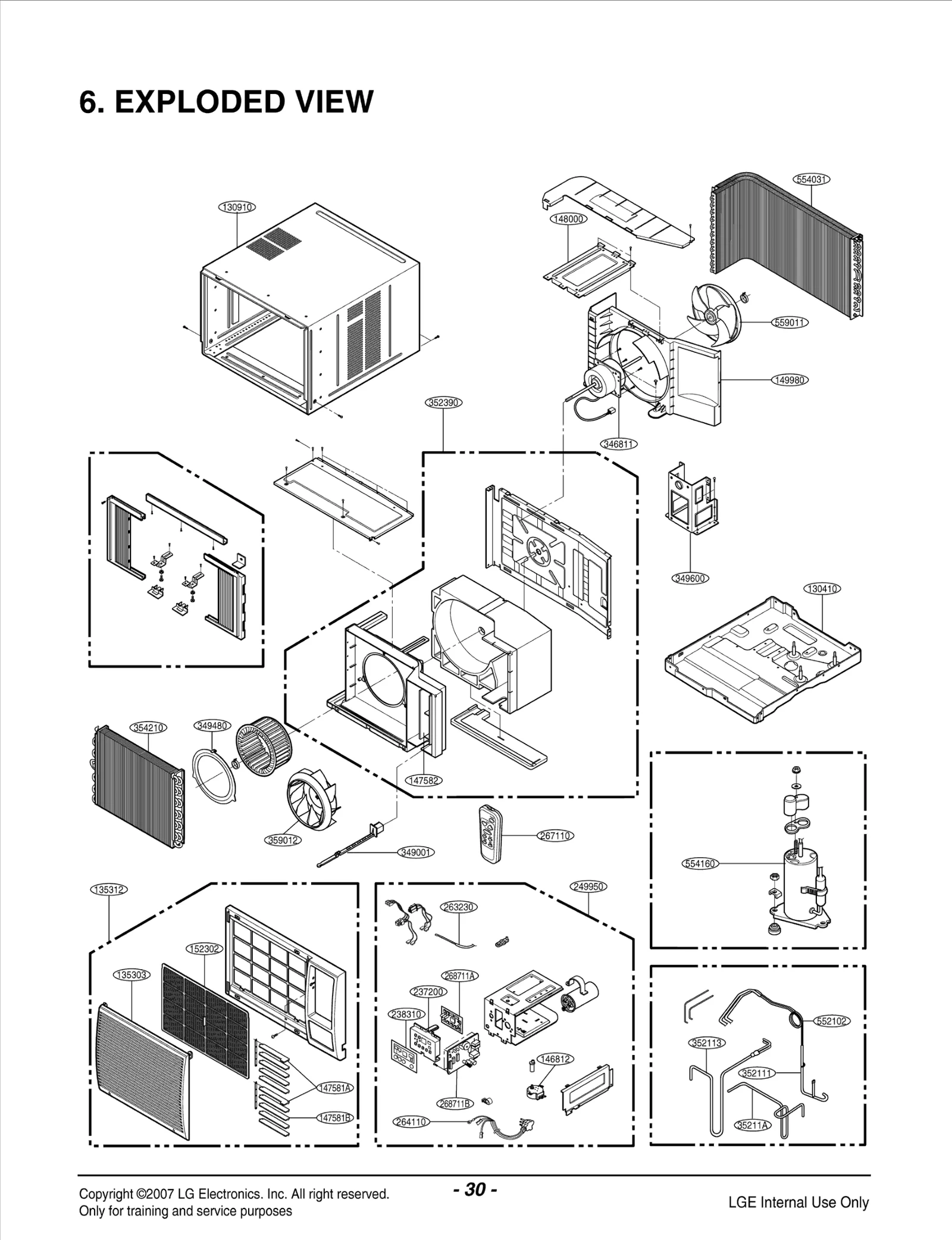

Model LG HBLG2350E WINDOW AC – Common Parts & Diagrams

130410
BASE ASSEMBLY,SINGLE
BASE ASSEMBLY,SINGLE LGE 3041A10010F Contact Us For Availability
View on Model
130910
CABINET ASSY,SINGLE
CABINET ASSY,SINGLE LGE 3091AR6056A Contact Us For Availability
View on Model
135303
GRILLE,INLET
GRILLE,INLET LGE 3530AR1604A Contact Us For Availability
View on Model
135312
GRILLE ASSEMBLY,FRONT(SINGLE)
GRILLE ASSEMBLY,FRONT(SINGLE) LGE 3531A20073J Contact Us For Availability
View on Model
146812
MOTOR ASSY,SYNC.
MOTOR ASSY,SYNC. LGE 2H01102A Contact Us For Availability
View on Model
146812
Motor,AC
Motor,AC LGE 2H01102K Contact Us For Availability
View on Model
147582
LOUVER
LOUVER LGE 4758AR6157A Contact Us For Availability
View on Model
149980
SHROUD
SHROUD LGE 4998AR1602A Contact Us For Availability
View on Model
238310
ESCUTCHEON
ESCUTCHEON LGE 3831A20032M Contact Us For Availability
View on Model
249950
CONTROL BOX ASSEMBLY,SINGLE
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20286A Contact Us For Availability
View on Model
263230
THERMISTOR ASSY
THERMISTOR ASSY LGE 6323A20003D Contact Us For Availability
View on Model
264110
POWER CORD ASSY
POWER CORD ASSY LGE 2H00677U Contact Us For Availability
View on Model
267110
REMOTE CONTROLLER ASSEMBLY
REMOTE CONTROLLER ASSEMBLY LGE 6711A20056D Contact Us For Availability
View on Model
267110
Remote Controller Assembly
Remote Controller Assembly LGE 6711A90028D Contact Us For Availability
View on Model
346811
MOTOR ASSEMBLY,SINGLE
MOTOR ASSEMBLY,SINGLE LGE 4681A20011L Contact Us For Availability
View on Model
349480
ORIFICE
ORIFICE LGE 4948A20014A Contact Us For Availability
View on Model
349600
MOUNT,MOTOR
MOUNT,MOTOR LGE 4960AR2895B Contact Us For Availability
View on Model
352111
TUBE ASSEMBLY,CONDENSER OUT
TUBE ASSEMBLY,CONDENSER OUT LGE 5211A10067F Contact Us For Availability
View on Model
352113
TUBE ASSEMBLY,DISCHARGE SINGLE
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A30325D Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A90005E Contact Us For Availability
View on Model
354210
EVAPORATOR ASSEMBLY,FIRST
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20017N Contact Us For Availability
View on Model
552102
TUBE ASSY,CAPILLARY
TUBE ASSY,CAPILLARY LGE 5211A30296E Contact Us For Availability
View on Model
554031
CONDENSER ASSEMBLY,BENT
CONDENSER ASSEMBLY,BENT LGE 5403A20032F Contact Us For Availability
View on Model
554160
COMPRESSOR SET
COMPRESSOR SET LGE 2520UHFK2CA Contact Us For Availability
View on Model
559011
FAN ASSEMBLY,AXIAL
FAN ASSEMBLY,AXIAL LGE 5900AR1330B Contact Us For Availability
View on Model
