Model LG HBLG1800H – Common Parts & Diagrams

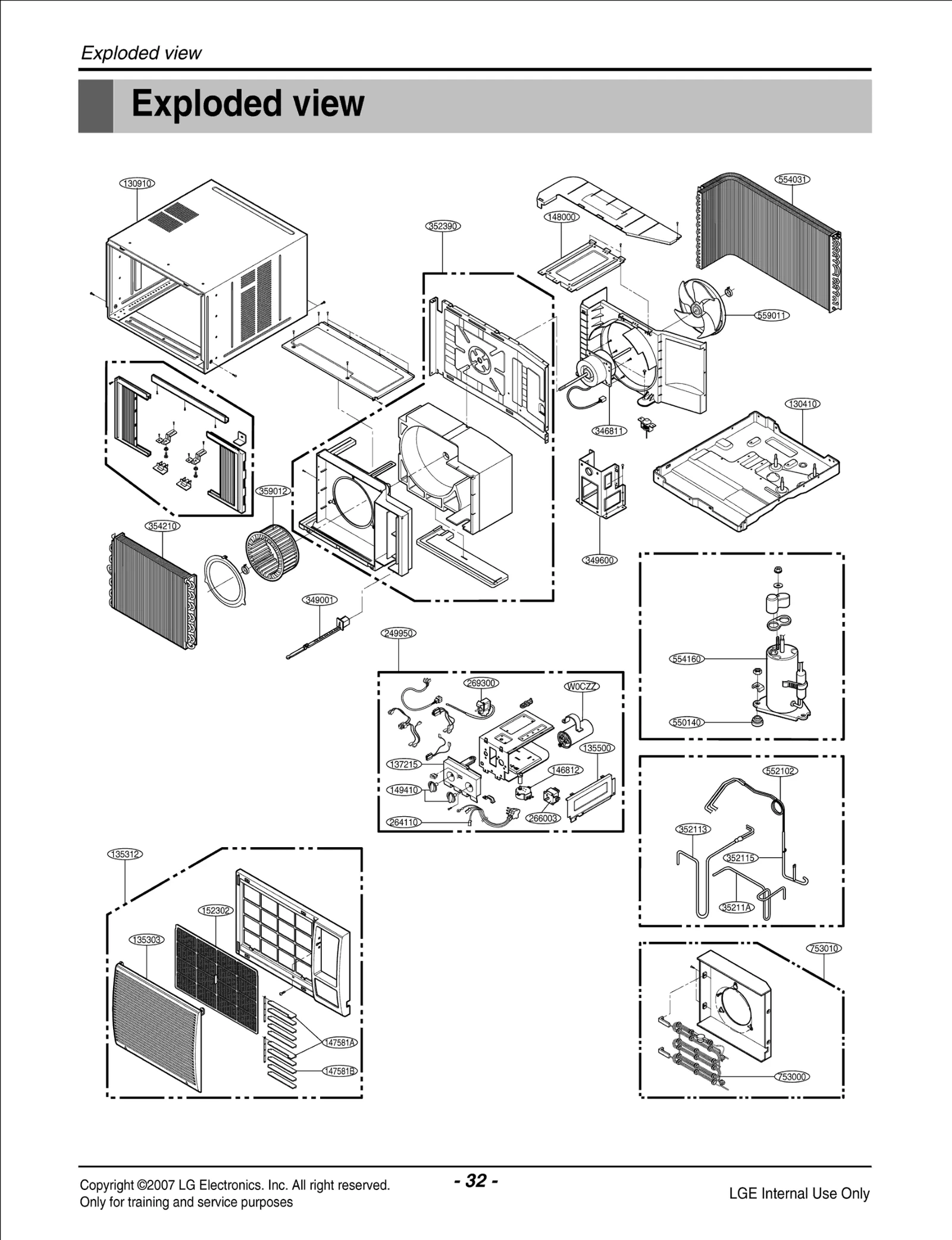

Diagram 0
Common parts from model LG HBLG1800H
137215
PANEL ASSEMBLY,CONTROL LGE 3721A20002Q Contact Us For Availability
146812
Motor,AC LGE 2H01102K Contact Us For Availability
146812
MOTOR ASSY,SYNC. LGE 2H01102A Contact Us For Availability
147581A
LOUVER,HORIZONTAL LGE 4758AR7264C Contact Us For Availability
149410
KNOB ASSY LGE 4941A30001A Contact Us For Availability
249950
CONTROL BOX ASSY,SINGLE LGE 4995A20051A Contact Us For Availability
264110
POWER CORD ASSY LGE 2H00677U Contact Us For Availability
266003
SWITCH ROTARY_2H00598E IS NOT A VALID ALTERNA LGE 2H00598F Contact Us For Availability
269300
THERMOSTAT LGE 2H01127B Contact Us For Availability
346811
MOTOR ASSY,AC LGE 4681AR6033K Contact Us For Availability
349600
MOUNT,MOTOR LGE 4960AR1596A Contact Us For Availability
352113
TUBE ASSY,DISCHARGE LGE 5211A30066A Contact Us For Availability
352115
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20433B Contact Us For Availability
354210
Evaporator Assembly,First LGE 5421A90048A Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20059F Contact Us For Availability
550140
BUSH ANTI VIBRATION QJ-COMP(96 LGE 4H00982C Contact Us For Availability
552102
TUBE ASSY,CAPILLARY LGE 5211A20020P Contact Us For Availability
554031
CONDENSER ASSY,BEND LGE 5403A20004F Contact Us For Availability
554160
COMPRESSOR SET LGE 2520UMNK2BA Contact Us For Availability
559011
FAN LGE 5900AR1508A Contact Us For Availability
W0CZZ
CAPACITOR LGE 6120AR2359E Contact Us For Availability
× ![]()
