Model LG GSC-6001 – Common Parts & Diagrams

*01
LGE 3828W5A0118
LGE 3828W5A0118 LGE 3828W5A0118 Contact Us For Availability
View on Model
*02
LGE 3828W5S0126
LGE 3828W5S0126 LGE 3828W5S0126 Contact Us For Availability
View on Model
*10
LGE 3890W2ZC09E
LGE 3890W2ZC09E LGE 3890W2ZC09E Contact Us For Availability
View on Model

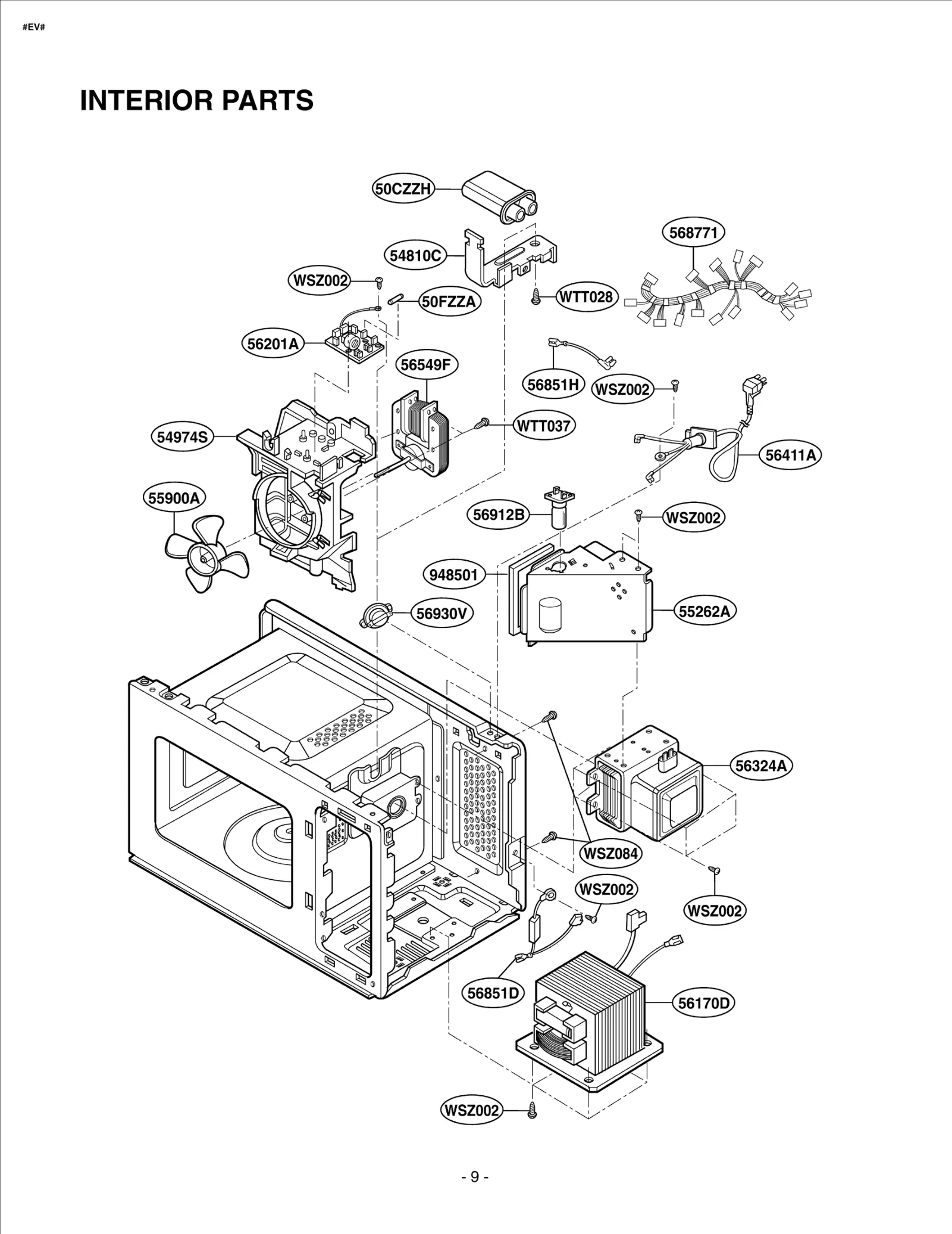

50CZZH
CAPACITOR,DRAWING[HIGH VOLTAGE
CAPACITOR,DRAWING[HIGH VOLTAGE LGE 0CZZW1H002A Contact Us For Availability
View on Model
50FZZA
FUSE
FUSE LGE 3B70856G Contact Us For Availability
View on Model
24781T
LGE 4781W1T007D
LGE 4781W1T007D LGE 4781W1T007D Contact Us For Availability
View on Model

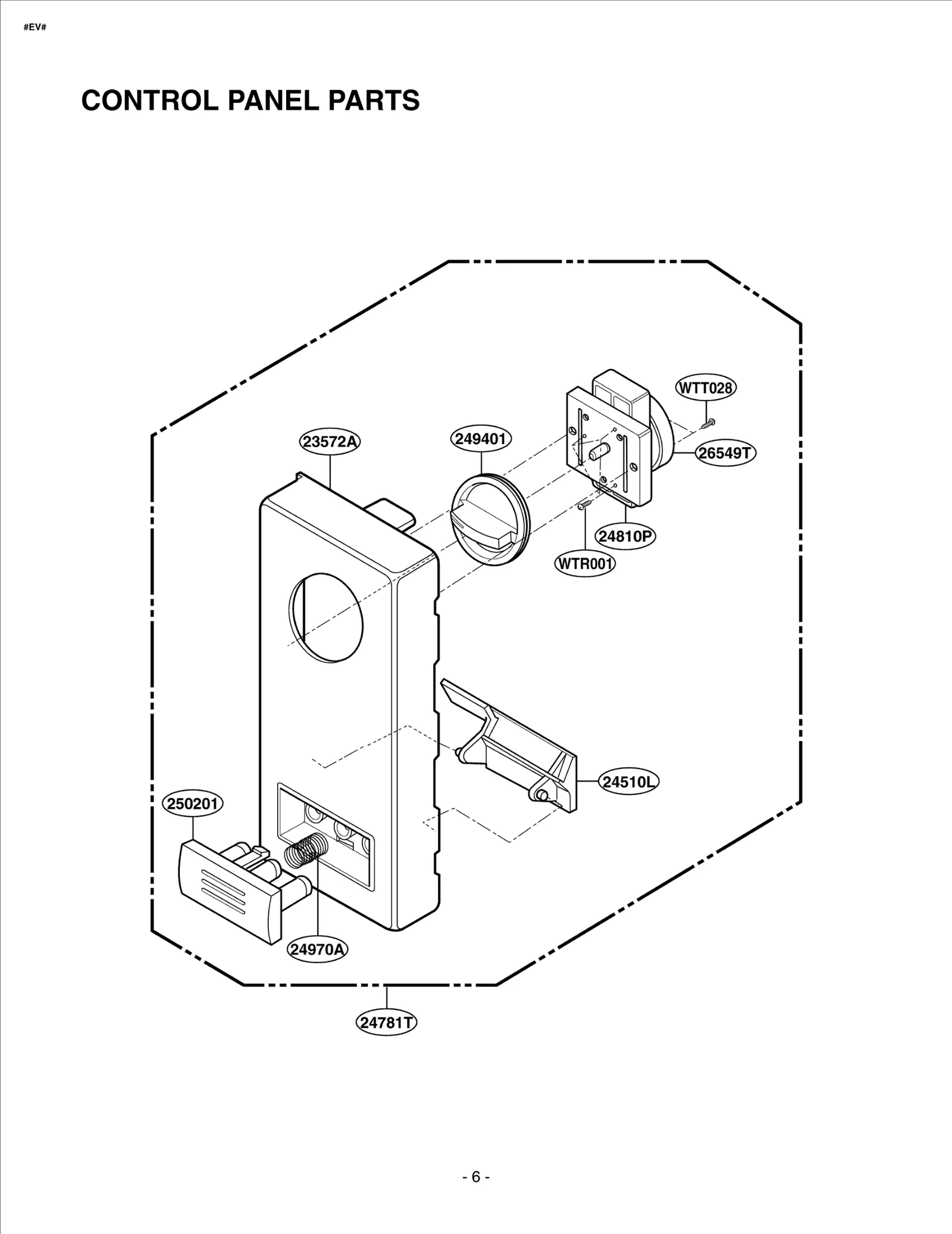

24810P
TIMER BRACKET MA-4001
TIMER BRACKET MA-4001 LGE 4B74662A Contact Us For Availability
View on Model
26549T
TIMER MOTOR SWITCH SEARS 8901
TIMER MOTOR SWITCH SEARS 8901 LGE 2B71446B Contact Us For Availability
View on Model
33052A
LGE 3052W3A007A
LGE 3052W3A007A LGE 3052W3A007A Contact Us For Availability
View on Model

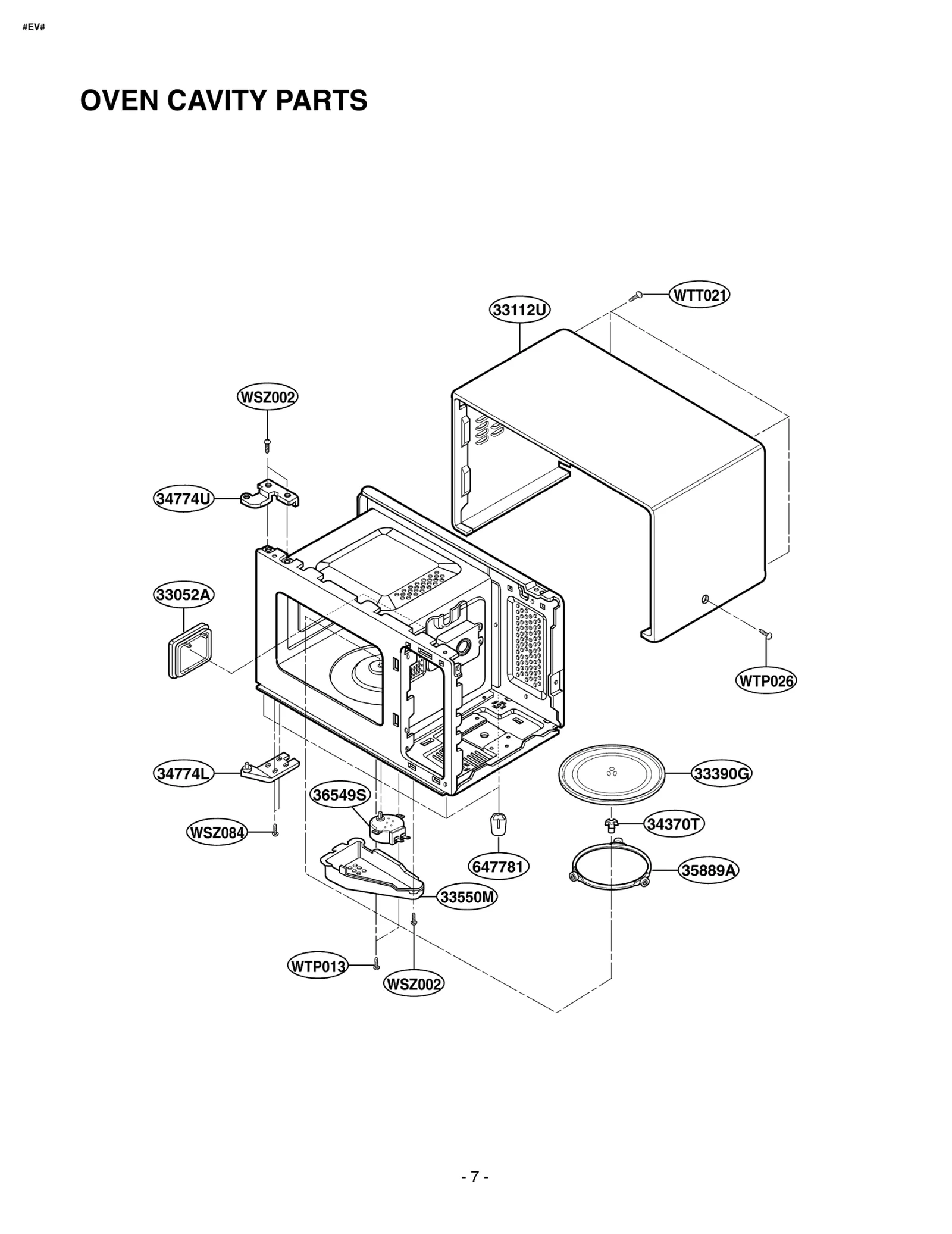

33112U
OUT CASE MA-685M(USE 3112WRU00
OUT CASE MA-685M(USE 3112WRU00 LGE 3112WRU001Q Contact Us For Availability
View on Model
33390G
GLASS TRAY
GLASS TRAY LGE 2B71852A Contact Us For Availability
View on Model
33550M
LGE 3550WRA001A
LGE 3550WRA001A LGE 3550WRA001A Contact Us For Availability
View on Model
34370T
TURN TABLE SHAFT MS-1715 TEFLO
TURN TABLE SHAFT MS-1715 TEFLO LGE 4370WRT001C Contact Us For Availability
View on Model
34774L
HINGE PLATE ASM-LWR MA-880M/68
HINGE PLATE ASM-LWR MA-880M/68 LGE 4775WRP001A Contact Us For Availability
View on Model
34774U
HINGE PLATE-UPPER MA-880M/680M
HINGE PLATE-UPPER MA-880M/680M LGE 4774WRP001A Contact Us For Availability
View on Model

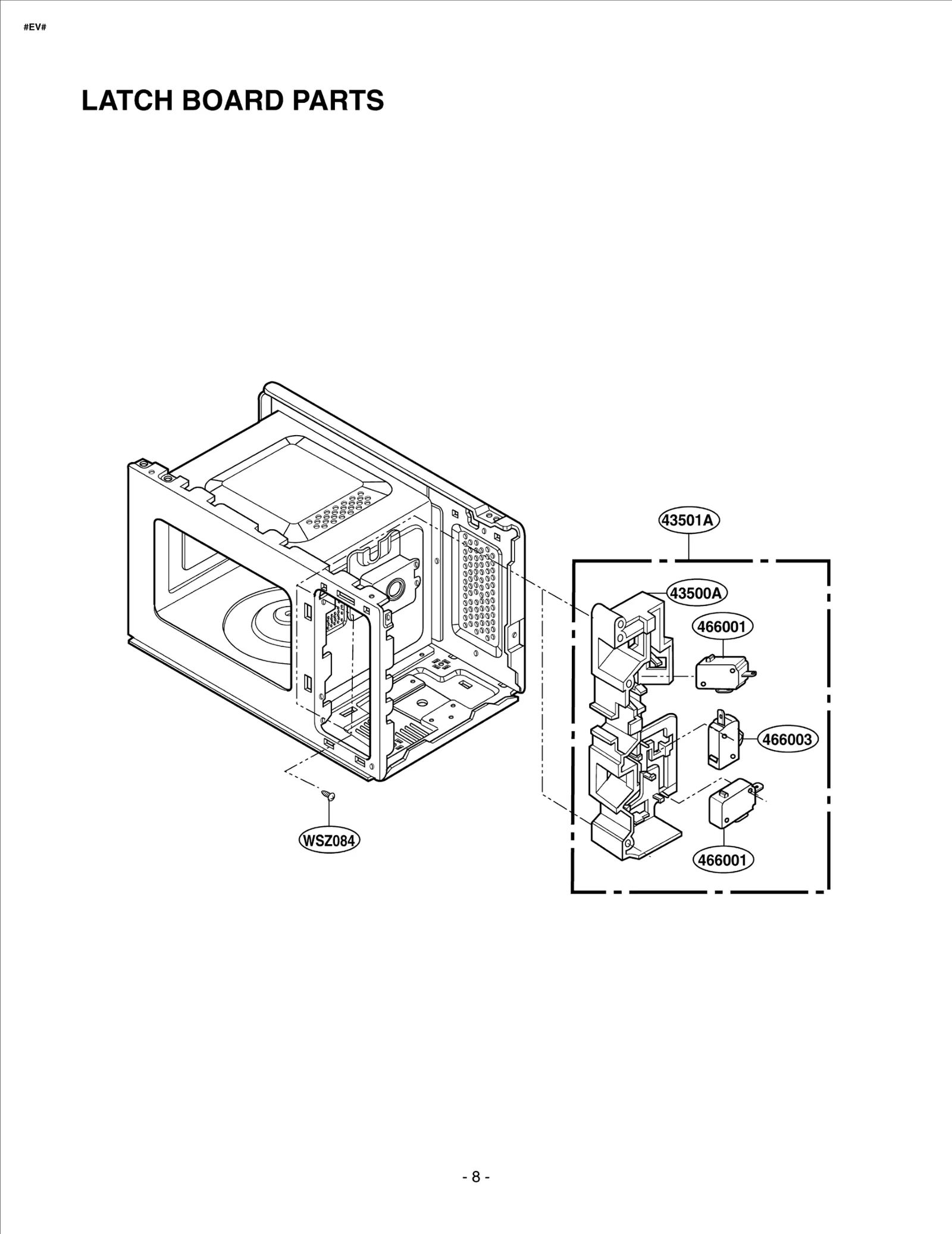

43500A
BOARD LATCH MA-880M/680M/681M
BOARD LATCH MA-880M/680M/681M LGE 3500WRA001A Contact Us For Availability
View on Model
43501A
BOARD ASSY LATCH MA-6802,MA-68
BOARD ASSY LATCH MA-6802,MA-68 LGE 3501WRA001E Contact Us For Availability
View on Model
54810C
BRACKET HVC MA-690M,1190M,685M
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
View on Model
54974S
GUIDE SUCTION
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
View on Model
55262A
AIR DUCT MA-685M (USE 5262WRA0
AIR DUCT MA-685M (USE 5262WRA0 LGE 5262W2A009A Contact Us For Availability
View on Model
55900A
PROPELLER
PROPELLER LGE 2B72125A Contact Us For Availability
View on Model
56201A
NOISE FILTER ASSY 100V 50/60HZ
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
View on Model
56324A
MAGNETRON
MAGNETRON LGE 2B71732B Contact Us For Availability
View on Model
56411A
POWER CORD ASSY
POWER CORD ASSY LGE 6411W2A002A Contact Us For Availability
View on Model
56549F
MOTOR FAN 120V/60HZ
MOTOR FAN 120V/60HZ LGE 2B73670B Contact Us For Availability
View on Model
56851D
H.V. DIODE-CABLE ASM STD.PART1
H.V. DIODE-CABLE ASM STD.PART1 LGE 3B73348D Contact Us For Availability
View on Model
56851H
LGE 3B73347A
LGE 3B73347A LGE 3B73347A Contact Us For Availability
View on Model
56930V
THERMOSTAT HORIZONTAL 90/75,PA
THERMOSTAT HORIZONTAL 90/75,PA LGE 6930WRT001C Contact Us For Availability
View on Model
249401
LGE 4940WRG001E
LGE 4940WRG001E LGE 4940WRG001E Contact Us For Availability
View on Model
250201
BUTTON RELEASE MA-680 S MA-880
BUTTON RELEASE MA-680 S MA-880 LGE 5020WRG002B Contact Us For Availability
View on Model
568771
LGE 6877W1T189A
LGE 6877W1T189A LGE 6877W1T189A Contact Us For Availability
View on Model
647781
LEG HOOK TYPE BLACK
LEG HOOK TYPE BLACK LGE 4778WRA001A Contact Us For Availability
View on Model
948501
CUSHION 5X8X215, MV-1006P BKE
CUSHION 5X8X215, MV-1006P BKE LGE 3B72244J Contact Us For Availability
View on Model
WTP026
LGE 1TPL0402422
LGE 1TPL0402422 LGE 1TPL0402422 Contact Us For Availability
View on Model
WTR001
LGE 1TRL0302618
LGE 1TRL0302618 LGE 1TRL0302618 Contact Us For Availability
View on Model
