Model LG GR-K30PS – Common Parts & Diagrams

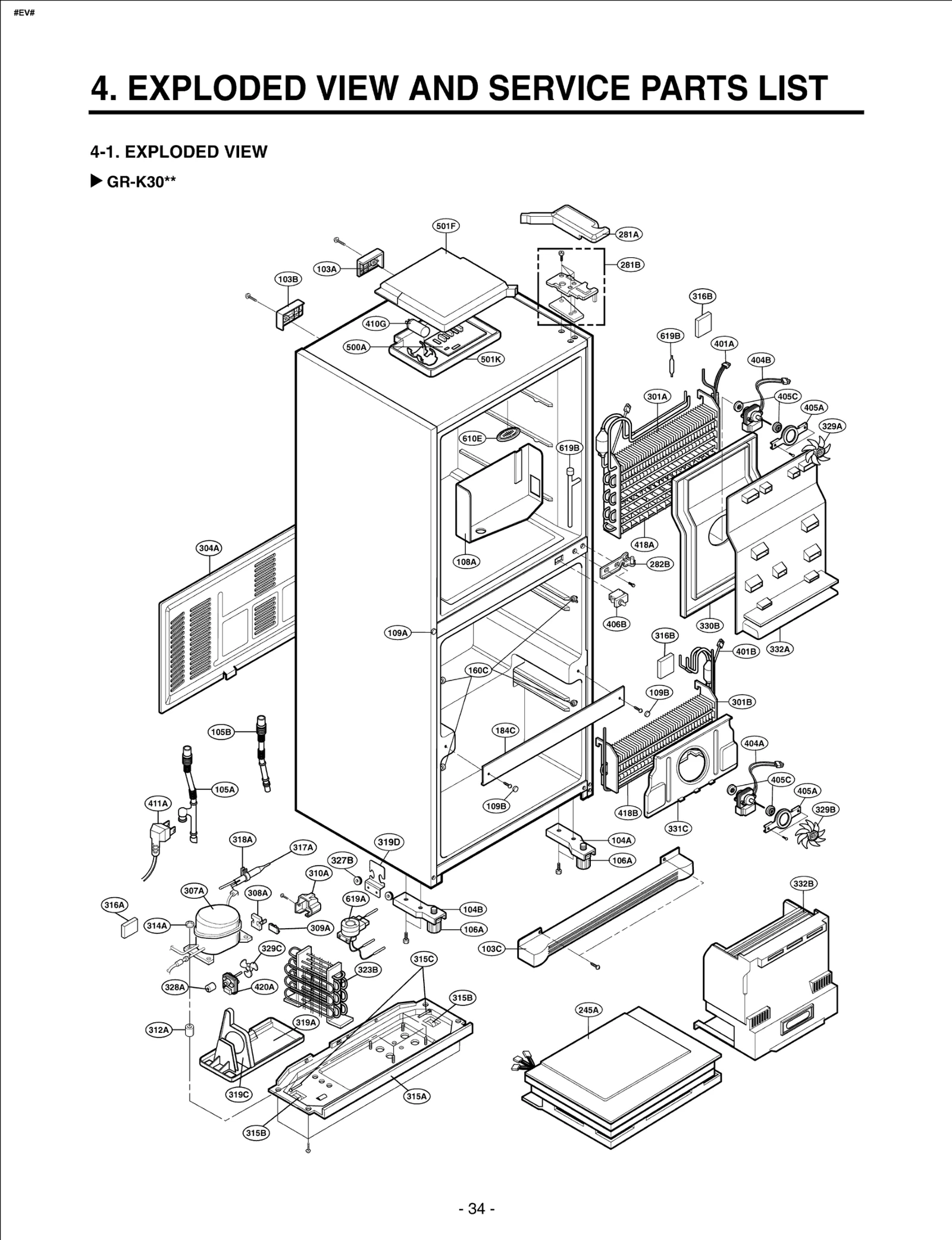

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Common parts from model LG GR-K30PS
136B
Tray Assembly,Drawer LGE AJP30624701 Contact Us For Availability
140A
Door Assembly,Freeze Room LGE ADC30624601 Contact Us For Availability
149C
Shelf,Freezer LGE 5026JA0015B Contact Us For Availability
200A
DOOR ASSEMBLY,F LGE 3581JA0052P Contact Us For Availability
200B
DOOR ASSEMBLY,R/SEMI LGE 3581JA1055W Contact Us For Availability
200C
DOOR ASSEMBLY,R/SEMI LGE 3581JA1056W Contact Us For Availability
201A
DOOR FOAM ASSEMBLY,F LGE 5433JA0138J Contact Us For Availability
201B
DOOR FOAM ASSEMBLY,R LGE 5433JA1068V Contact Us For Availability
201C
DOOR FOAM ASSEMBLY,R LGE 5433JA1069V Contact Us For Availability
203A
GASKET ASSEMBLY,DOOR LGE 4987JA1024Y Contact Us For Availability
203B
GASKET ASSEMBLY,DOOR LGE 4987JA1024L Contact Us For Availability
203C
GASKET ASSEMBLY,DOOR LGE 4987JA1024M Contact Us For Availability
212A
HANDLE ASSEMBLY,F LGE 3651JA1007E Contact Us For Availability
212B
HANDLE,DECO LGE 3650JA2108H Contact Us For Availability
212C
HANDLE,DECO LGE 3650JA2109H Contact Us For Availability
239A
MARK LGE 3846JD1007B Contact Us For Availability
241A
BASKET,DOOR LGE 5004JA0007A Contact Us For Availability
241B
BASKET,DOOR LGE 5004JA0006A Contact Us For Availability
244A
HANDLE ASSEMBLY,R LGE 3651JA1008E Contact Us For Availability
244B
HANDLE,DECO LGE 3650JA2110Q Contact Us For Availability
245A
BARRIER ASSEMBLY,INSULATION LGE 4791JA1036G Contact Us For Availability
248A
RAIL ASSEMBLY,T/V LGE 5219JA1004D Contact Us For Availability
248B
RAIL ASSEMBLY,T/V LGE 5219JA1004E Contact Us For Availability
251A
BANK ASSEMBLY,SIDE DISH LGE 5075JA1030E Contact Us For Availability
252A
BANK ASSEMBLY,SIDE DISH LGE 5075JA1028D Contact Us For Availability
252B
BANK,SIDE DISH LGE 5074JA1053B Contact Us For Availability
252C
COVER ASSEMBLY,BANK LGE 3551JA1070D Contact Us For Availability
253A
BANK ASSEMBLY,SIDE DISH LGE 5075JA1030D Contact Us For Availability
253B
BANK,SIDE DISH LGE 5074JA1057B Contact Us For Availability
253C
Cover Assembly,Bucket LGE 3551JA1069D Contact Us For Availability
254A
BANK ASSEMBLY,SIDE DISH LGE 5075JA1027D Contact Us For Availability
254B
BANK,SIDE DISH LGE 5074JA1052B Contact Us For Availability
279A
FRAME ASSEMBLY,DISPLAY LGE 3211JA1074B Contact Us For Availability
279B
FRAME,DISPLAY LGE 3210JD1031B Contact Us For Availability
279C
DECO,COVER DSP LGE 3806JA2140A Contact Us For Availability
279D
BUTTON,DECO LGE 5020JA2050A Contact Us For Availability
279E
BUTTON,LINK LGE 5020JA2051A Contact Us For Availability
281A
COVER,HINGE LGE 3550JA1251D Contact Us For Availability
281B
HINGE ASSEMBLY,U LGE 4775JA2008D Contact Us For Availability
282B
HINGE ASSEMBLY,C LGE 4775JA3021A Contact Us For Availability
301B
EVAPORATOR ASSEMBLY LGE 5421JA0027E Contact Us For Availability
304A
COVER ASSEMBLY,BACK-M/C LGE 3551JA1039A Contact Us For Availability
307A
Compressor,Set Assembly LGE 2521C-A62CD Contact Us For Availability
309B
Drawing,Assembly LGE 6877JB2163G Contact Us For Availability
310A
COVER,P.T.C LGE 3550JA2059A Contact Us For Availability
315A
COMP BASE ASSEMBLY,STD LGE 3103JA0010C Contact Us For Availability
317A
DRIER ASSEMBLY LGE 5851JA2002T Contact Us For Availability
319A
Tray,Drip LGE 3390JA0008B Contact Us For Availability
319C
Guide,Fan LGE 4974JA1036B Contact Us For Availability
319D
BRACKET,VALVE LGE 4810JA2139A Contact Us For Availability
329B
FAN ASSEMBLY LGE 5901JA1007A Contact Us For Availability
330B
Shroud Assembly,Freezer LGE 4999JA1017B Contact Us For Availability
331D
SHROUD,F LGE 4998JA1013A Contact Us For Availability
332B
Grille Assembly, Fan LGE 3531JA1021C Contact Us For Availability
332C
Grille Assembly,Fan LGE 3531JA1045G Contact Us For Availability
332C
Grille Assembly,Fan LGE 3531JA1022B Contact Us For Availability
404A
MOTOR(MECH),FAN LGE 4680JB1036H Contact Us For Availability
404B
MOTOR(MECH),FAN LGE 4680JB1036N Contact Us For Availability
405A
BRACKET, MOTOR LGE 4810JA3007B Contact Us For Availability
410H
CAPACITOR-S LGE J513-00012P Contact Us For Availability
411A
Power Cord Assembly LGE 6411JB1011B Contact Us For Availability
418A
HEATER,SHEATH LGE 5300JB1121D Contact Us For Availability
418B
HEATER,SHEATH LGE 5300JB1085D Contact Us For Availability
420A
MOTOR(MECH),COOLING LGE 4680JB1035H Contact Us For Availability
500A
PCB Assembly,Main LGE 6871JB1129Q Contact Us For Availability
501A
PCB Assembly,Display LGE 6871JB1400C Contact Us For Availability
501F
Cover,PCB LGE 3550JA1399C Contact Us For Availability
501K
CASE,PWB LGE 3110JA1020B Contact Us For Availability
604G
COVER,DEODORIZER LGE 3550JA2143A Contact Us For Availability
610E
COVER,SENSOR LGE 3550JA2035D Contact Us For Availability
619A
VALVE ASSEMBLY,PIPE LGE 5221JA1008A Contact Us For Availability
619B
VALVE ASSEMBLY,CHECK LGE 5221JA3002C Contact Us For Availability
× ![]()
