Model LG GR-J303TS DIOS – Common Parts & Diagrams

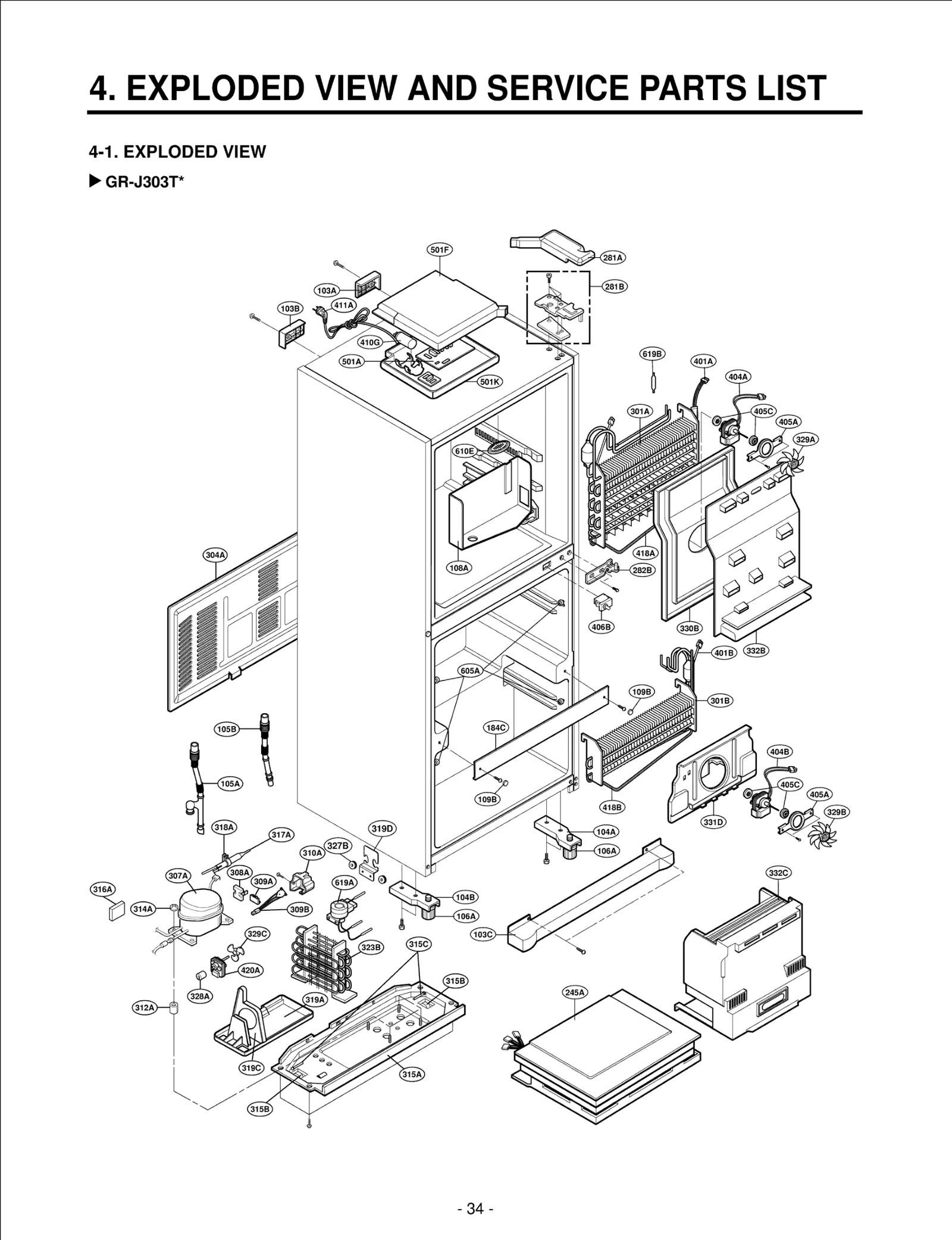

Diagram 0

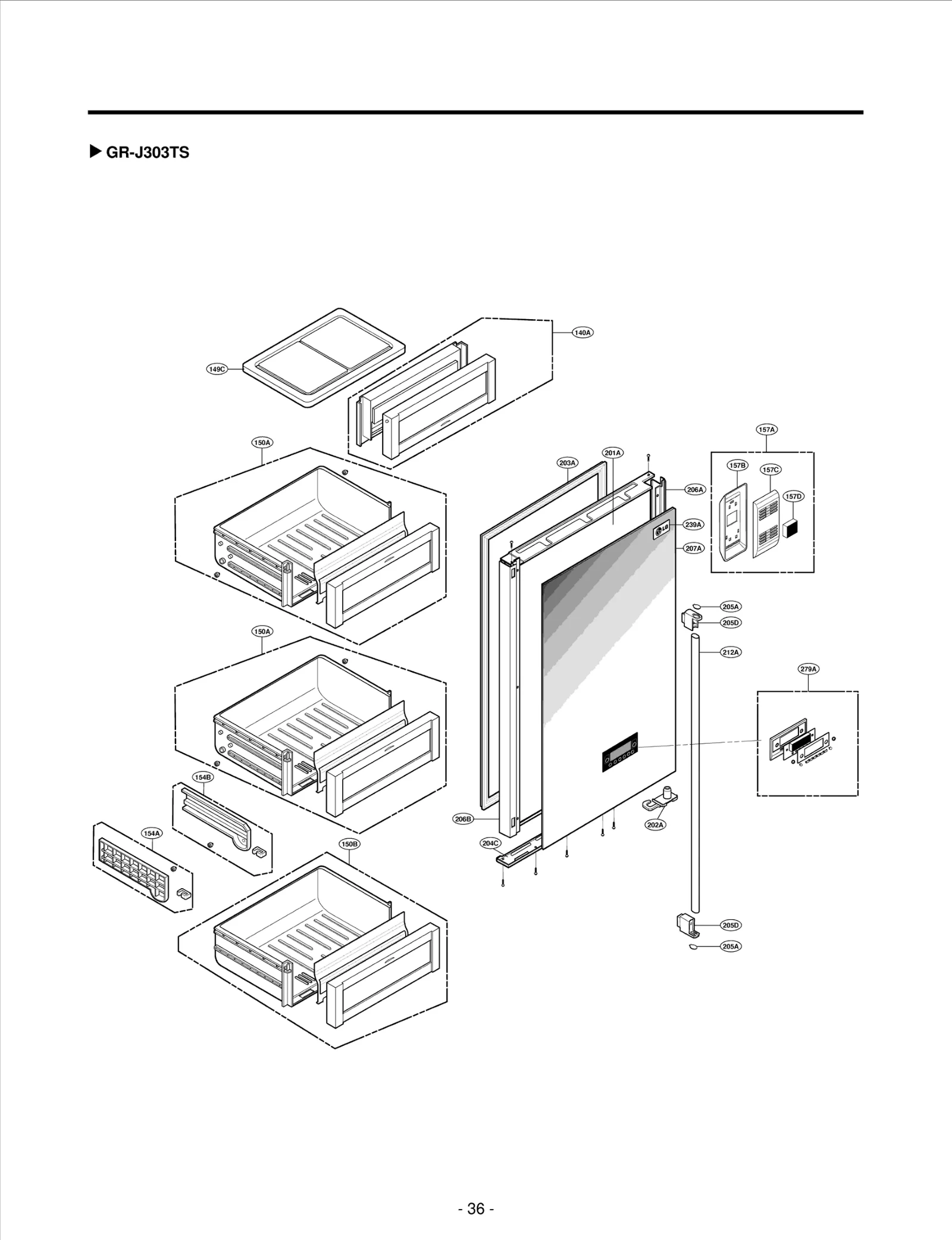

Diagram 1

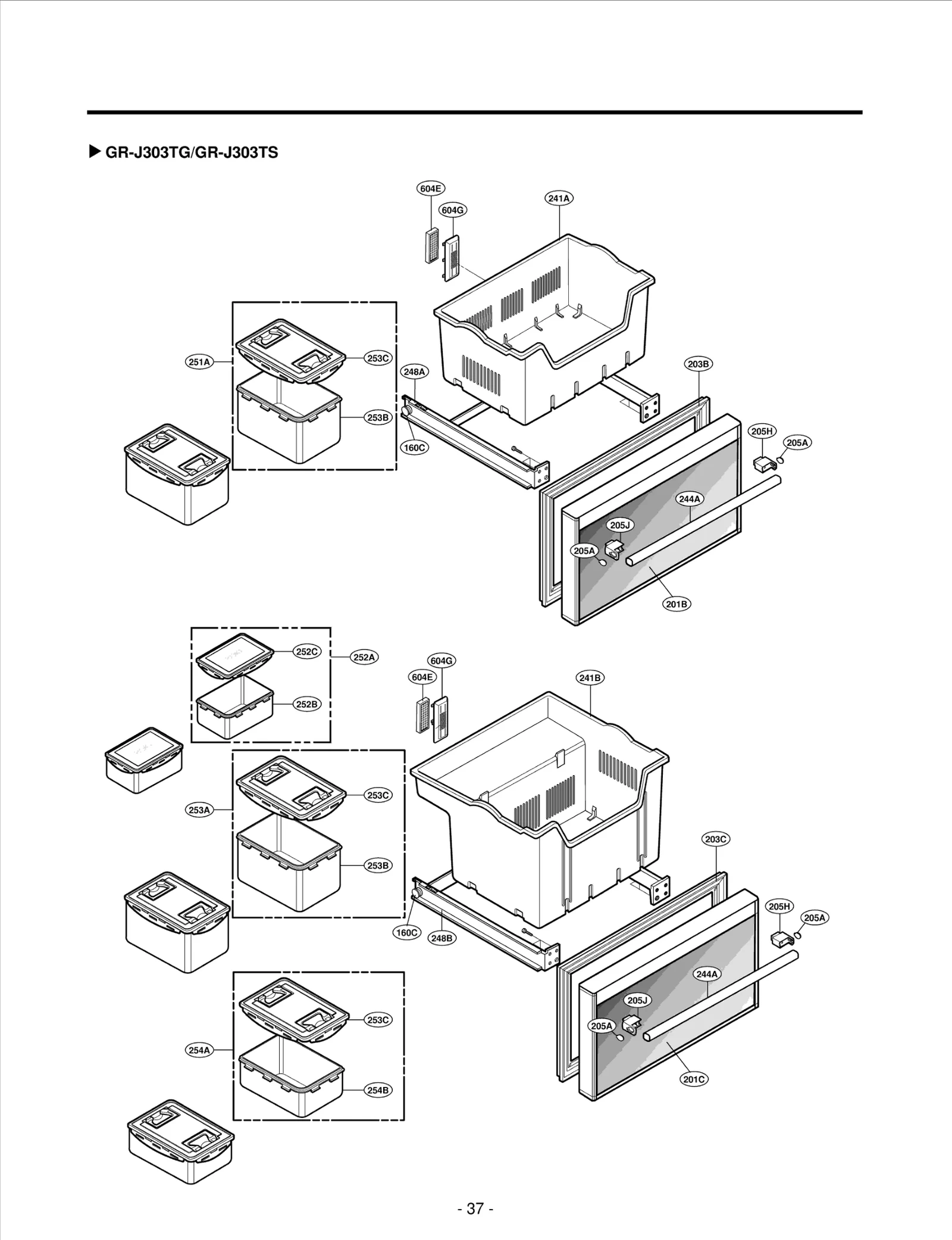

Diagram 2

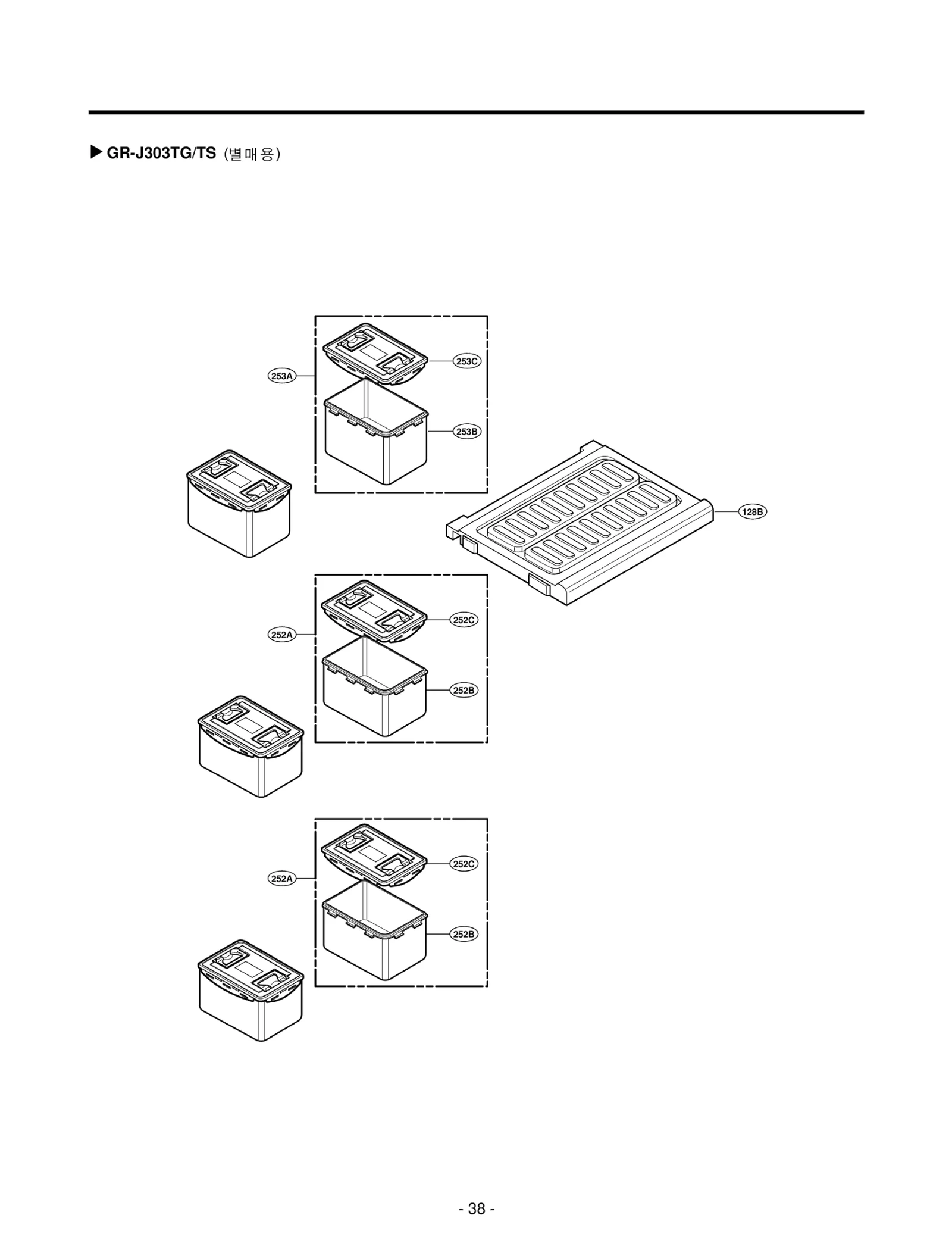

Diagram 3
Diagram 4
Common parts from model LG GR-J303TS DIOS
140A
Door Assembly,Freeze Room LGE ADC30624601 Contact Us For Availability
149B
Stopper,Door LGE 4620JA2029A Contact Us For Availability
149C
Shelf,Freezer LGE 5026JA0015B Contact Us For Availability
150A
Tray Assembly,Drawer LGE AJP30624701 Contact Us For Availability
154A
Guide Assembly,Rail LGE AEC30604401 Contact Us For Availability
154B
Guide Assembly,Rail LGE AEC30604402 Contact Us For Availability
157A
Cover Assembly,Deodorizer LGE ACQ30638001 Contact Us For Availability
157B
Cover,Deodorizer LGE MCK32972501 Contact Us For Availability
157C
Cover,Deodorizer LGE MCK32293802 Contact Us For Availability
160C
Roller Assembly LGE 4581JA3003D Contact Us For Availability
200A
Door Assembly,Freezer LGE ADC30604611 Contact Us For Availability
200C
Door Assembly,Semi Refrigerator LGE ADC32645507 Contact Us For Availability
200D
Door Assembly,Semi Refrigerator LGE ADC32915701 Contact Us For Availability
201A
Door Foam Assembly LGE ADD30277503 Contact Us For Availability
201B
Door Foam Assembly, Refrigerator LGE 5433JA1168U Contact Us For Availability
201C
Door Foam Assembly, Refrigerator LGE 5433JA1169U Contact Us For Availability
203A
GASKET ASSEMBLY,DOOR LGE 4987JA1024Y Contact Us For Availability
203B
GASKET ASSEMBLY,DOOR LGE 4987JA1024L Contact Us For Availability
203C
GASKET ASSEMBLY,DOOR LGE 4987JA1024M Contact Us For Availability
204C
Cap,Decor Freezer LGE 5078JA0072A Contact Us For Availability
205A
Cap,Handle LGE 5006JA2070B Contact Us For Availability
205D
Holder, Handle LGE 4930JA2112C Contact Us For Availability
205H
Holder,Handle LGE 4930JA2113C Contact Us For Availability
205J
Holder,Handle LGE 4930JA2113D Contact Us For Availability
206A
Decor,Door LGE 3806JA1205A Contact Us For Availability
206B
Decor,Door LGE 3806JA1206C Contact Us For Availability
207A
Sheet,Steel LGE RAA30145906 Contact Us For Availability
212A
Handle, Freezer LGE 3650JA1245C Contact Us For Availability
212G
MARK LGE 3846JD1007B Contact Us For Availability
241A
Basket,Door LGE 5004JA0007C Contact Us For Availability
241B
Basket,Door LGE 5004JA0006B Contact Us For Availability
244A
Handle,Freezer LGE 3650JA1245D Contact Us For Availability
248A
Rail Assembly,TV LGE 5219JA1004G Contact Us For Availability
248B
Rail Assembly,TV LGE 5219JA1004H Contact Us For Availability
252A
Bucket Assembly,Side Dish LGE 5075JA1028E Contact Us For Availability
252B
Bucket,Side Dish LGE 5074JA1053C Contact Us For Availability
252C
Cover Assembly,Bucket LGE 3551JA1070E Contact Us For Availability
253A
Bucket Assembly,Side Dish LGE 5075JA1030F Contact Us For Availability
253B
Bucket,Side Dish LGE 5074JA1057C Contact Us For Availability
253C
Cover Assembly,Bucket LGE 3551JA1069E Contact Us For Availability
254B
Bucket,Side Dish LGE 5074JA1052C Contact Us For Availability
279A
Frame Assembly, Display LGE ADV30639709 Contact Us For Availability
281B
HINGE ASSEMBLY,U LGE 4775JA2008D Contact Us For Availability
301B
EVAPORATOR ASSEMBLY LGE 5421JA0027E Contact Us For Availability
304A
COVER ASSEMBLY,BACK-M/C LGE 3551JA1039A Contact Us For Availability
307A
Compressor,Set Assembly LGE 2521C-A62CD Contact Us For Availability
309B
Drawing,Assembly LGE 6877JB2163G Contact Us For Availability
315A
COMP BASE ASSEMBLY,STD LGE 3103JA0010C Contact Us For Availability
316C
RESTRAINER LGE 4J04330E Contact Us For Availability
317A
DRIER ASSEMBLY LGE 5851JA2002T Contact Us For Availability
318A
Holder,Drier LGE 4930JA3034B Contact Us For Availability
319A
Tray,Drip LGE 3390JA0008B Contact Us For Availability
319C
Guide,Fan LGE 4974JA1036B Contact Us For Availability
319D
BRACKET,VALVE LGE 4810JA2139A Contact Us For Availability
329B
FAN ASSEMBLY LGE 5901JA1007A Contact Us For Availability
330B
Shroud Assembly,Freezer LGE 4999JA1017B Contact Us For Availability
331C
Shroud Assembly,Freezer LGE 4999JA2021N Contact Us For Availability
331D
SHROUD,F LGE 4998JA1013A Contact Us For Availability
332A
Grille Assembly,Fan LGE 3531JA1045G Contact Us For Availability
332B
Grille Assembly, Fan LGE 3531JA1021C Contact Us For Availability
332C
Grille Assembly,Fan LGE 3531JA1022B Contact Us For Availability
404A
MOTOR(MECH),FAN LGE 4680JB1036H Contact Us For Availability
404B
MOTOR(MECH),FAN LGE 4680JB1036N Contact Us For Availability
405B
BRACKET, MOTOR LGE 4810JA3007B Contact Us For Availability
410H
CAPACITOR-S LGE J513-00012P Contact Us For Availability
411A
Power Cord Assembly LGE 6411JB1011B Contact Us For Availability
418A
HEATER,SHEATH LGE 5300JB1121D Contact Us For Availability
418B
HEATER,SHEATH LGE 5300JB1085D Contact Us For Availability
420A
MOTOR(MECH),COOLING LGE 4680JB1035H Contact Us For Availability
501A
PCB Assembly,Main LGE 6871JB1129Q Contact Us For Availability
501F
Cover,PCB LGE 3550JA1399C Contact Us For Availability
501K
CASE,PWB LGE 3110JA1020B Contact Us For Availability
605A
Roller Assembly LGE AHJ30124501 Contact Us For Availability
610E
COVER,SENSOR LGE 3550JA2035D Contact Us For Availability
619A
VALVE ASSEMBLY,PIPE LGE 5221JA1008A Contact Us For Availability
619B
VALVE ASSEMBLY,CHECK LGE 5221JA3002C Contact Us For Availability
× ![]()
