GE GPT225SSL2SS Dishwasher

2

24" FRONT BOTTOM BRACE GEN WD02X25499 Contact Us For Availability

View on Model

3

24" REAR BOTTOM BRACE GEN WD02X25502 Contact Us For Availability

View on Model

7

LEFT SIDE BRACE SUPPORT GEN WD02X25501 Contact Us For Availability

View on Model

8

RIGHT SIDE BRACE SUPPORT GEN WD02X25512 Contact Us For Availability

View on Model

13

WD02X24608 GE Dishwasher Screw Backorder GEN WD02X24608 $7.54

View on Model

15

FRONT APRON SCREW GEN WD02X25589 Contact Us For Availability

View on Model

16

WH02X26297 GE Tub Bolt Backorder GEN WH02X26297 $7.54

View on Model

17

COUNTERWEIGHT BRACKET SCREW GEN WD02X25504 Contact Us For Availability

View on Model

19

MOUNTING PLATE GEN WD02X25588 Contact Us For Availability

View on Model

20

WD01X25604 GE Front Caster Assembly Backorder GEN WD01X25604 $12.80

View on Model

102

VENT FUNNEL INLET NUT Backorder GEN WD12X27561 $7.54

View on Model

302

WD12X24658 GE Dishwasher Flood Float Cover Backorder GEN WD12X24658 $7.54

View on Model

308

WD12X24657 GE Dishwasher Float and Switch Ass Backorder GEN WD12X24657 $28.25

View on Model

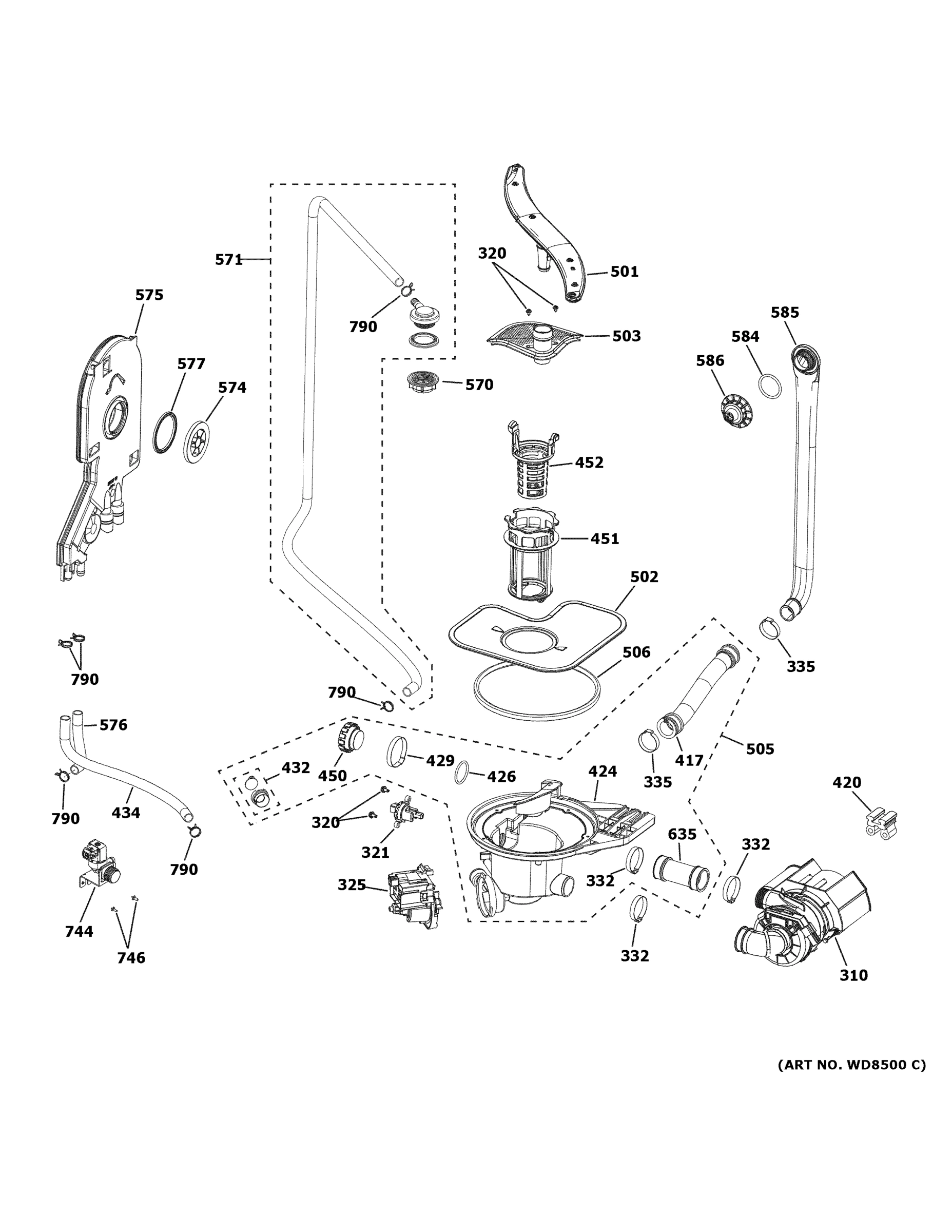

310

WD19X24705 GE Dishwasher Wash Pump Assembly Backorder GEN WD19X24705 $279.36

View on Model

320

WD02X24690 GE Screw Backorder GEN WD02X24690 $9.27

View on Model

321

WD21X24700 GE Dishwasher Turbidity Sensor Backorder GEN WD21X24700 $35.44

View on Model

325

WD19X24651 GE Dishwasher Drain Pump Assembly In Stock GEN WD19X24651 $61.76

View on Model

335

WD01X27538 GE Dishwasher Hose Clamp In Stock GEN WD01X27538 $8.50

View on Model

417

WD24X24675 GE Dishwasher Main Conduit Hose Backorder GEN WD24X24675 $15.61

View on Model

420

WD01X24707 GE Pump Harness Backorder GEN WD01X24707 $7.17

View on Model

424

WD08X24694 GE Dishwasher Sump Insert Backorder GEN WD08X24694 $7.57

View on Model

426

WD08X24696 GE Dishwasher Sump Port Plug Gaske Backorder GEN WD08X24696 $7.54

View on Model

429

WD35X10382 GE Dishwasher Piranha Clamps Kit In Stock GEN WD35X10382 $87.54

View on Model

432

WD15X24624 GE Dishwasher Check Valve and Hous Backorder GEN WD15X24624 $7.57

View on Model

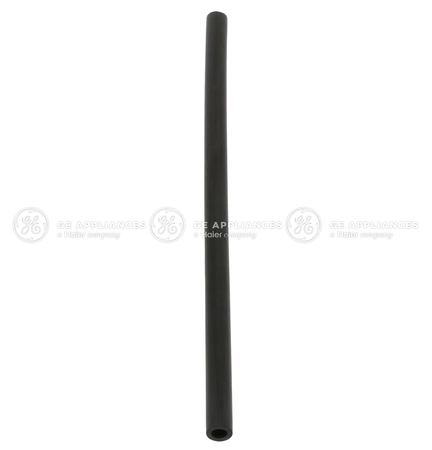

434

WD24X24729 GE Dishwasher Air Break to Sump Fi Backorder GEN WD24X24729 $13.25

View on Model

450

SUMP PORT PLUG GEN WD01X24695 Contact Us For Availability

View on Model

451

WD12X24656 GE Dishwasher Fine Filter Backorder GEN WD12X24656 $17.36

View on Model

452

WD12X24663 GE Dishwasher Glass Trap Backorder GEN WD12X24663 $9.82

View on Model

501

WD22X24672 GE Dishwasher Lower Spray Arm In Stock GEN WD22X24672 $23.12

View on Model

502

WD12X26378 GE Coarse Plastic Filter Backorder GEN WD12X26378 $8.76

View on Model

503

WD12X24673 GE Dishwasher Lower Spray Arm Base Backorder GEN WD12X24673 $7.54

View on Model

505

WD19X24692 GE Dishwasher Sump Assembly Backorder GEN WD19X24692 $68.47

View on Model

506

WD08X28058 GE Dishwasher Sump Gasket Backorder GEN WD08X28058 $12.82

View on Model

510

WD12X24659 GE Dishwasher Flood Float Stem Backorder GEN WD12X24659 $7.57

View on Model

511

WD08X24660 GE Dishwasher Flood Float Stem Gas Backorder GEN WD08X24660 $8.31

View on Model

570

WD22X24704 GE Upper Spray Nozzle Backorder GEN WD22X24704 $8.31

View on Model

571

WD22X24753 GE Upper Spray Assembly Backorder GEN WD22X24753 $33.69

View on Model

574

WD02X24709 GE Dishwasher Water Inlet Nut Backorder GEN WD02X24709 $7.54

View on Model

575

WD12X24598 GE Dishwasher Airbreak Flow Meter In Stock GEN WD12X24598 $53.90

View on Model

576

WD24X24599 GE Dishwasher Fill Hose Backorder GEN WD24X24599 $7.54

View on Model

577

WD08X24710 GE Dishwasher Water Inlet Gasket N Backorder GEN WD08X24710 $7.54

View on Model

584

WD08X24720 GE Main Conduit Gasket Backorder GEN WD08X24720 $7.54

View on Model

585

WD12X24719 GE Conduit Assembly Backorder GEN WD12X24719 $16.41

View on Model

586

MID SPRAY DOCKING PORT Backorder GEN WD22X24722 $7.54

View on Model

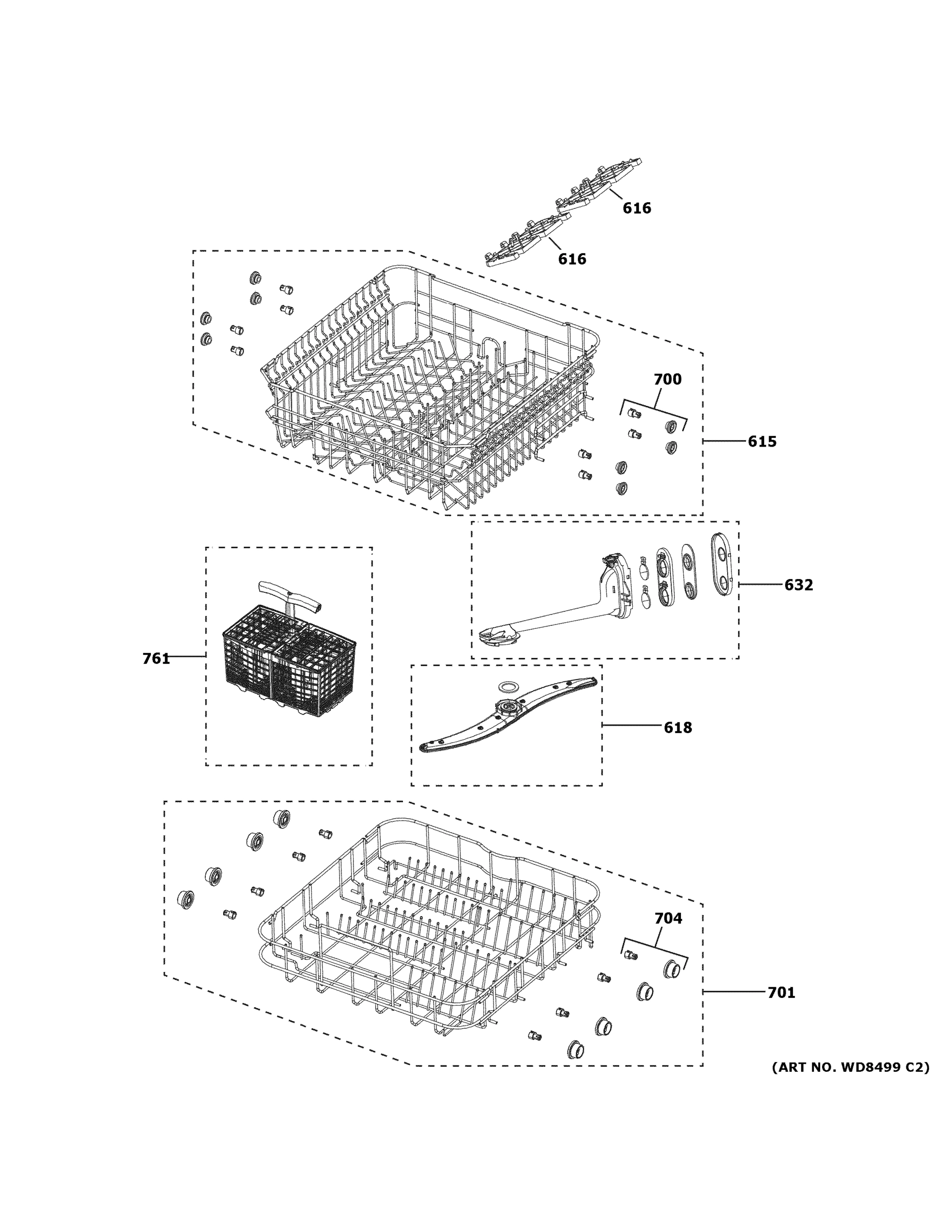

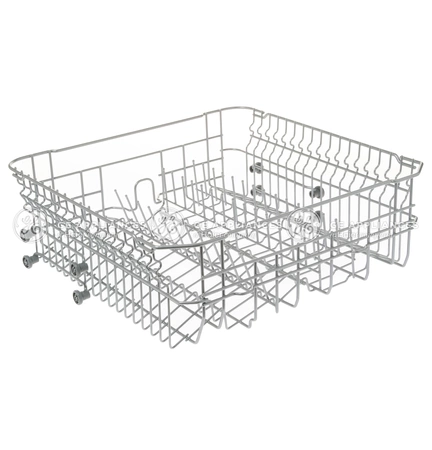

615

WD28X25179 GE Dishwasher Upper Rack Assembly Backorder GEN WD28X25179 $202.84

View on Model

616

CUP SHELF Backorder GEN WD12X24636 $8.34

View on Model

618

WD22X28059 GE Dishwasher Mid Spray Arm and Ga Backorder GEN WD22X28059 $35.84

View on Model

632

WD22X25158 GE Dishwasher Mid Spray Arm Condui Backorder GEN WD22X25158 $16.17

View on Model

635

WD24X31318 GE Dishwasher Pump Discharge Hose Backorder GEN WD24X31318 $9.96

View on Model

650

WD30X25805 GE Dishwasher Upper Rack Slide In Stock GEN WD30X25805 $14.66

View on Model

652

WD12X24354 GE Dishwasher Rack Slide End Cap In Stock GEN WD12X24354 $7.57

View on Model

654

WD30X24688 GE Dishwasher Slide Support Rack Backorder GEN WD30X24688 $8.34

View on Model

679

WD01X25525 GE Dishwasher Left Side Counterwei Backorder GEN WD01X25525 $39.59

View on Model

680

WD01X25518 GE Dishwasher Right Counterweight Backorder GEN WD01X25518 $39.59

View on Model

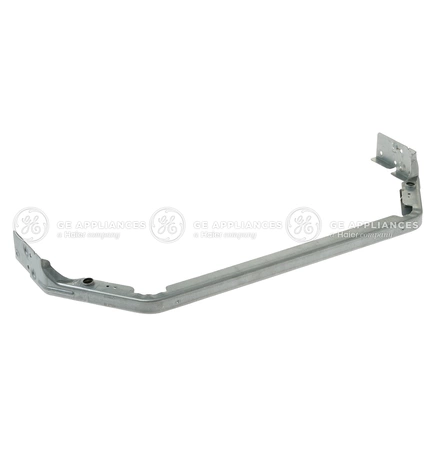

681

WD02X25503 GE Dishwasher 24" Rear Counterweig Backorder GEN WD02X25503 $21.69

View on Model

682

COUNTERTOP SCREW Backorder GEN WD02X25508 $7.54

View on Model

683

BOTTOM SCREW GEN WH02X27461 Contact Us For Availability

View on Model

689

WH02X26236 GE Screw Assembly Backorder GEN WH02X26236 $9.24

View on Model

699

24" BOTTOM COVER Backorder GEN WD01X25505 $16.20

View on Model

700

WD12X24713 GE Dishwasher Upper Rack Wheel Stu Backorder GEN WD12X24713 $21.88

View on Model

701

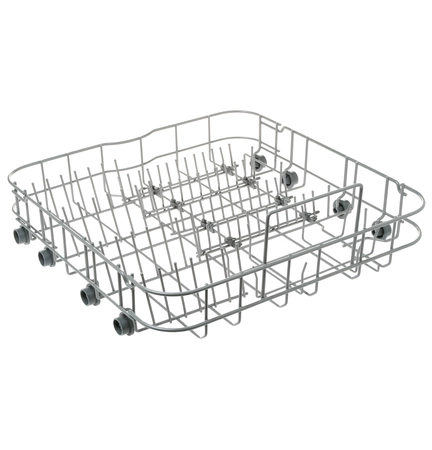

WD28X32802 GE Lower Rack Assembly Backorder GEN WD28X32802 $153.30

View on Model

704

WD12X24712 GE Dishwasher Lower Rack Wheel Stu In Stock GEN WD12X24712 $12.48

View on Model

705

24" TOP REAR BRACE COLLAR GEN WD01X25522 Contact Us For Availability

View on Model

706

24" COUNTERWEIGHT STRAP GEN WD02X25500 Contact Us For Availability

View on Model

711

WD27X24744 GE Dishwasher Stainless Steel Oute Backorder GEN WD27X24744 $167.48

View on Model

725

WD09X24601 GE Dishwasher Dorian Gray Button A Backorder GEN WD09X24601 $7.57

View on Model

733

WD02X24746 GE Dishwasher Cable Pulley Assembl Backorder GEN WD02X24746 $7.54

View on Model

735

WD02X25586 GE Dishwasher Power Cord Backorder GEN WD02X25586 $50.63

View on Model

739

WD01X25527 GE Dishwasher Caster Assembly Backorder GEN WD01X25527 $19.30

View on Model

744

WD15X24711 GE Dishwasher Water Valve Backorder GEN WD15X24711 $50.87

View on Model

745

WJ01X23759 GE Screw Backorder GEN WJ01X23759 $14.31

View on Model

746

WD02X24617 GE Water Valve Screw Backorder GEN WD02X24617 $54.61

View on Model

747

WD21X25696 GE Dishwasher Fuse In Stock GEN WD21X25696 $7.54

View on Model

750

WD21X24676 GE Dishwasher Main Control Board In Stock GEN WD21X24676 $236.83

View on Model

752

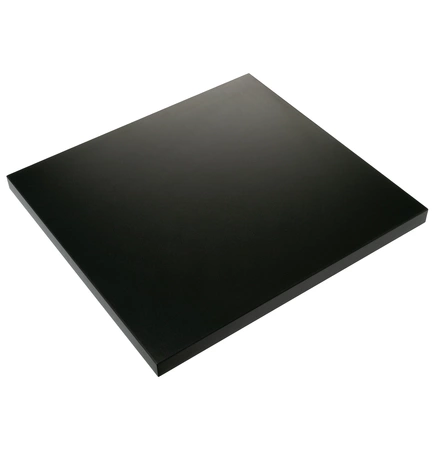

WD31X25528 GE Dishwasher 24" Black Countertop Backorder GEN WD31X25528 $139.02

View on Model

753

WD01X24634 GE Dishwasher Control Box Bracket Backorder GEN WD01X24634 $74.87

View on Model

755

WD01X24635 GE Dishwasher Front Control Box Backorder GEN WD01X24635 $86.02

View on Model

757

BLACK 24" TOE KICK Backorder GEN WD27X25515 $21.74

View on Model

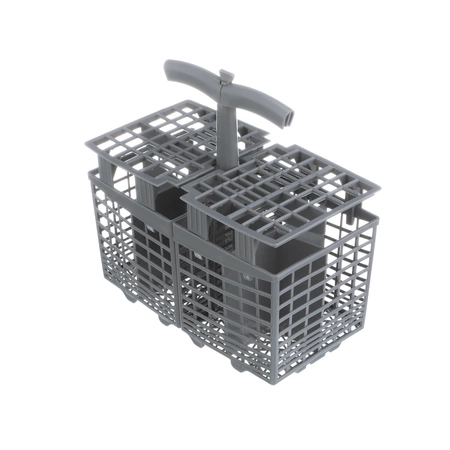

761

WD28X24747 GE Dishwasher Silverware Basket an Backorder GEN WD28X24747 $25.83

View on Model

777

24" TUB INSULATION BLANKET GEN WD30X26202 Contact Us For Availability

View on Model

785

WD01X10383 GE Dishwasher Faucet Adapter In Stock GEN WD01X10383 $32.09

View on Model

787

WD15X30838 GE Dishwasher Unicouple Assembly w Backorder GEN WD15X30838 $163.60

View on Model

789

WD12X25517 GE Dishwasher Unicouple Pocket Backorder GEN WD12X25517 $11.15

View on Model

790

WD01X24620 GE Dishwasher Small Squeeze Clamp Backorder GEN WD01X24620 $7.54

View on Model

803

WD12X24644 GE Dishwasher Door Latch In Stock GEN WD12X24644 $47.22

View on Model

804

WD12X24648 GE Dishwasher Door Striker Assembl In Stock GEN WD12X24648 $23.12

View on Model

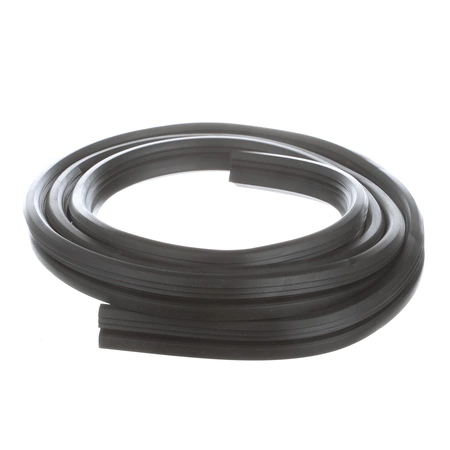

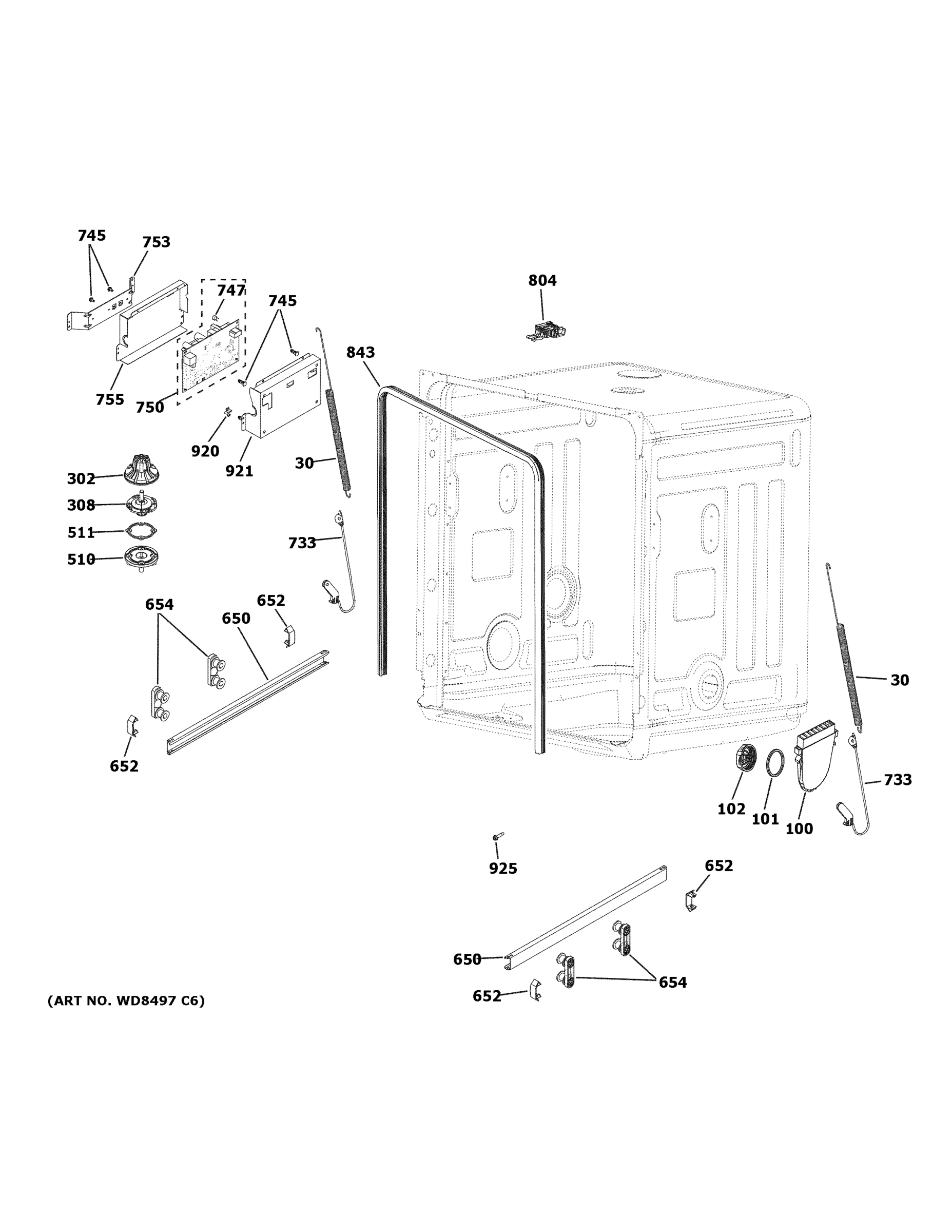

843

WD08X24750 GE Dishwasher Tub Gasket In Stock GEN WD08X24750 $40.18

View on Model

920

WD02X24632 GE Dishwasher Control Board Clip Backorder GEN WD02X24632 $7.57

View on Model

921

WD01X24633 GE Control Box Back Backorder GEN WD01X24633 $90.32

View on Model

925

SCREW GROUND GEN WD02X24614 Contact Us For Availability

View on Model

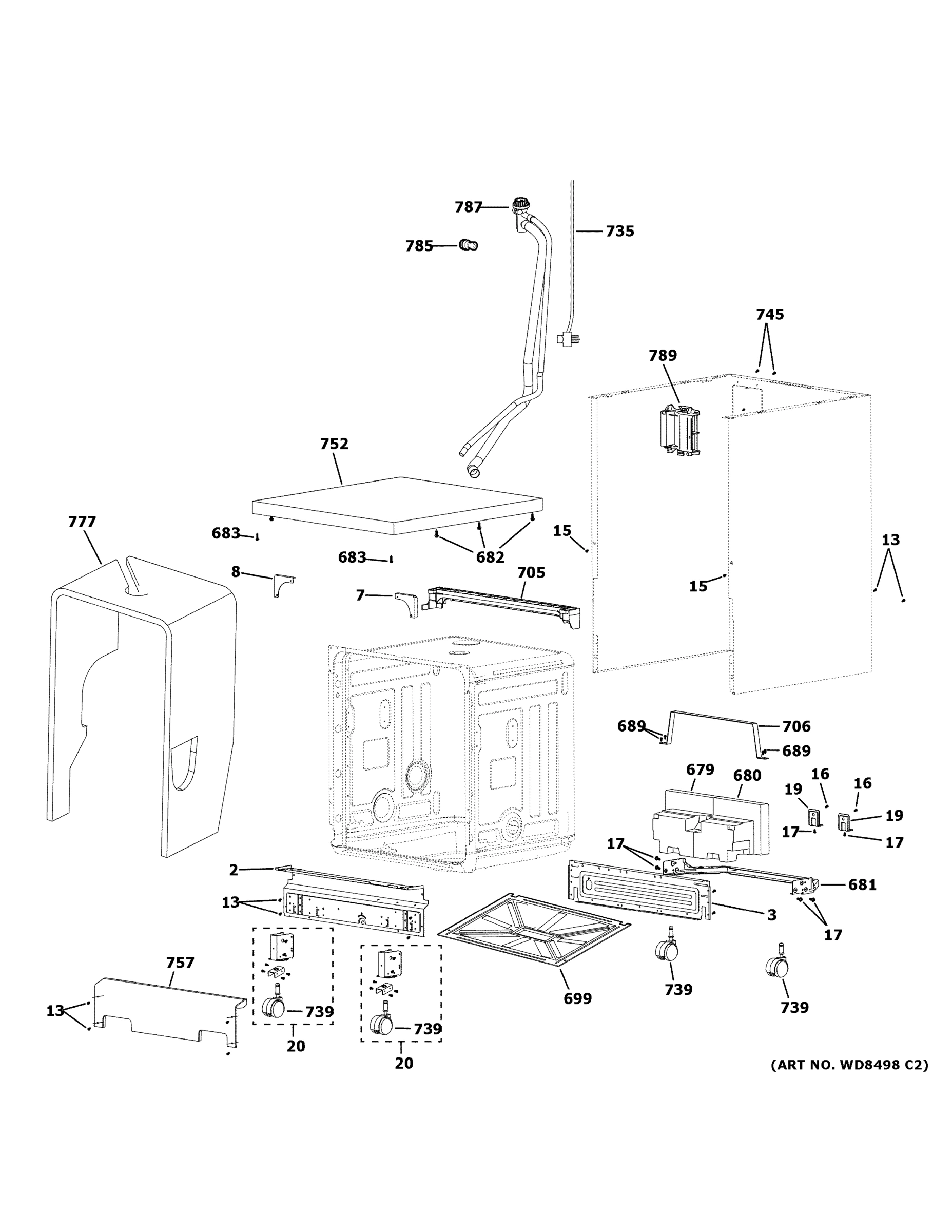

Model GE GPT225SSL2SS Dishwasher – Common Parts & Diagrams

Common parts from model GE GPT225SSL2SS Dishwasher
