Model LG GL6004 – Common Parts & Diagrams

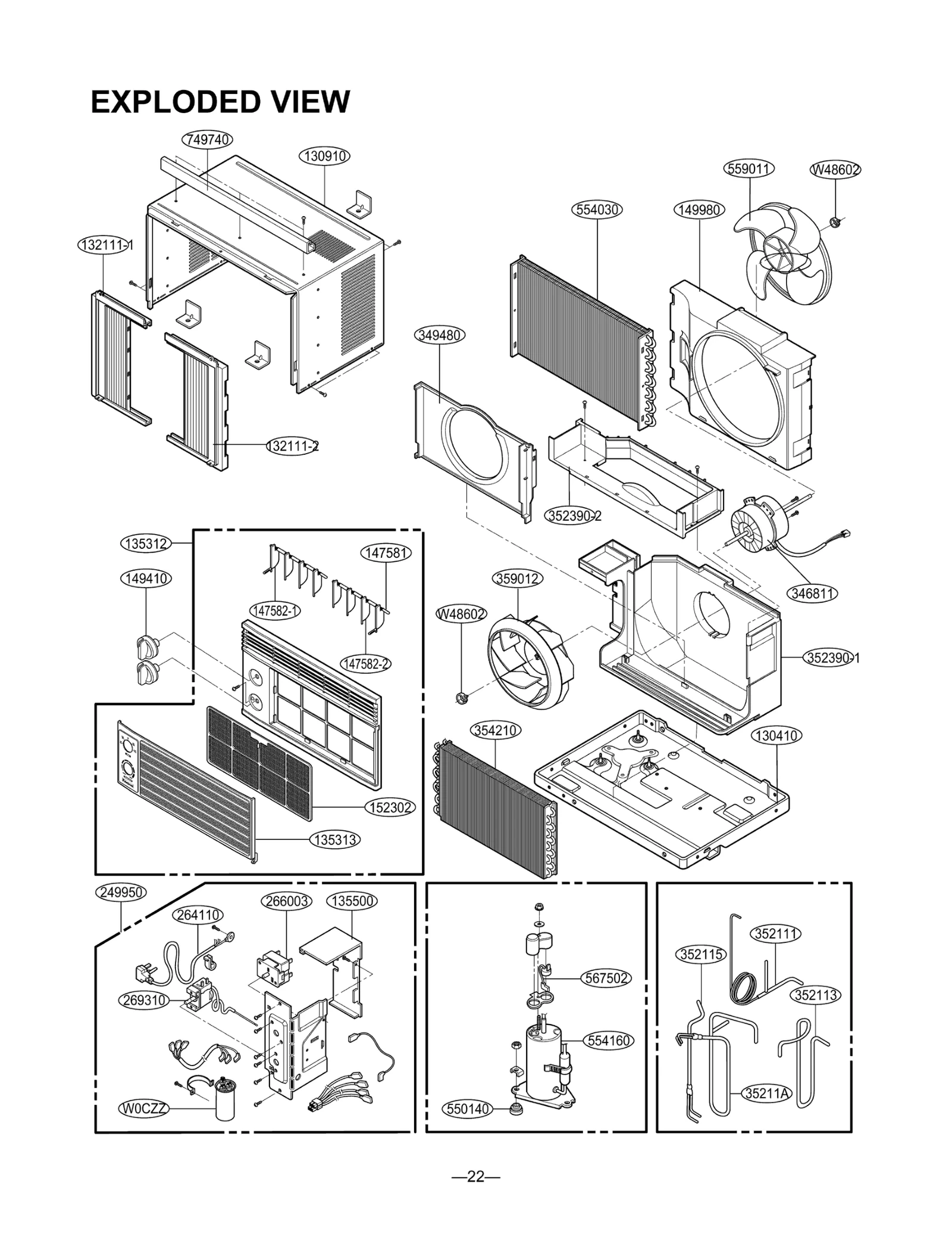

Diagram 0
Common parts from model LG GL6004
135313
GRILLE LGE 3530AR1616A Contact Us For Availability
135500
LGE 3550A20026B LGE 3550A20026B Contact Us For Availability
147581
LINK HOLDER PP JI-350 LW-A0512 LGE 4520AR3191A Contact Us For Availability
147582-2
VANE,VERTICAL LGE 5990AR3190D Contact Us For Availability
149410
KNOB ASSY LGE 4941AR7315A Contact Us For Availability
149980
SHROUD LGE 4998A10025A Contact Us For Availability
249950
CONTROL BOX ASSEMBLY. SINGLE LGE 4995AR6202P Contact Us For Availability
264110
POWER CODE ASSY WA-CHASSIS, S LGE 2H00677P Contact Us For Availability
266003
SWITCH ROTARY SRB-315-4-2 LGE 2H00154H Contact Us For Availability
269310
THERMOSTAT ASSEMBLY LGE 2H01109X Contact Us For Availability
352111
TUBE ASSEMBLY,CAPILLARY LGE 5211AR3332X Contact Us For Availability
352113
LGE 5210A21748B LGE 5210A21748B Contact Us For Availability
352390-1
AIR GUIDE ASSEMBLY LGE 5239A30003D Contact Us For Availability
352390-2
AIR GUIDE LGE 5238A20013A Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20016K Contact Us For Availability
554160
COMPRESSOR SET,CHINA LGE 2520UCAA004 Contact Us For Availability
567502
O.L.P MRA98703-12003 LW-A0512C LGE 6750U-L004A Contact Us For Availability
749740
UPPER GUIDE LW-A0510/511CL LGE 5210AR3196C Contact Us For Availability
× ![]()
