Model Electrolux GFU16F7AW3 FREEZER – Common Parts & Diagrams

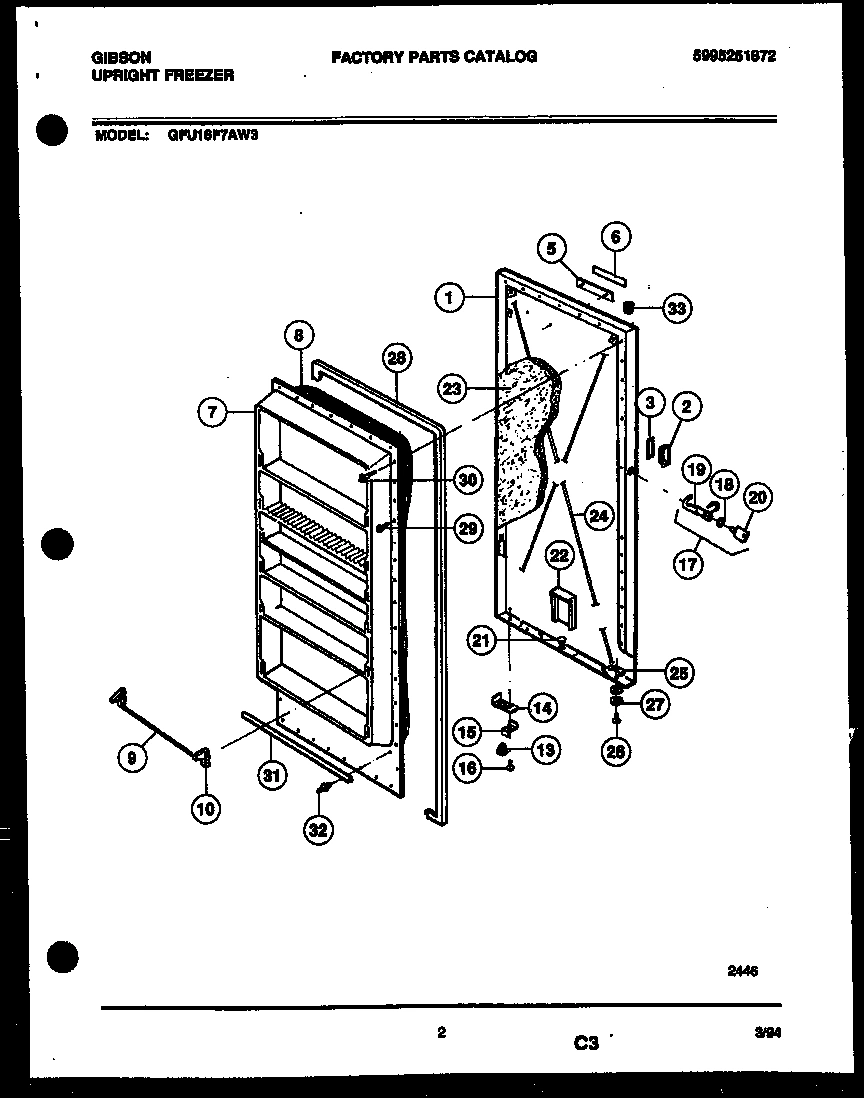

02 - DOOR PARTS

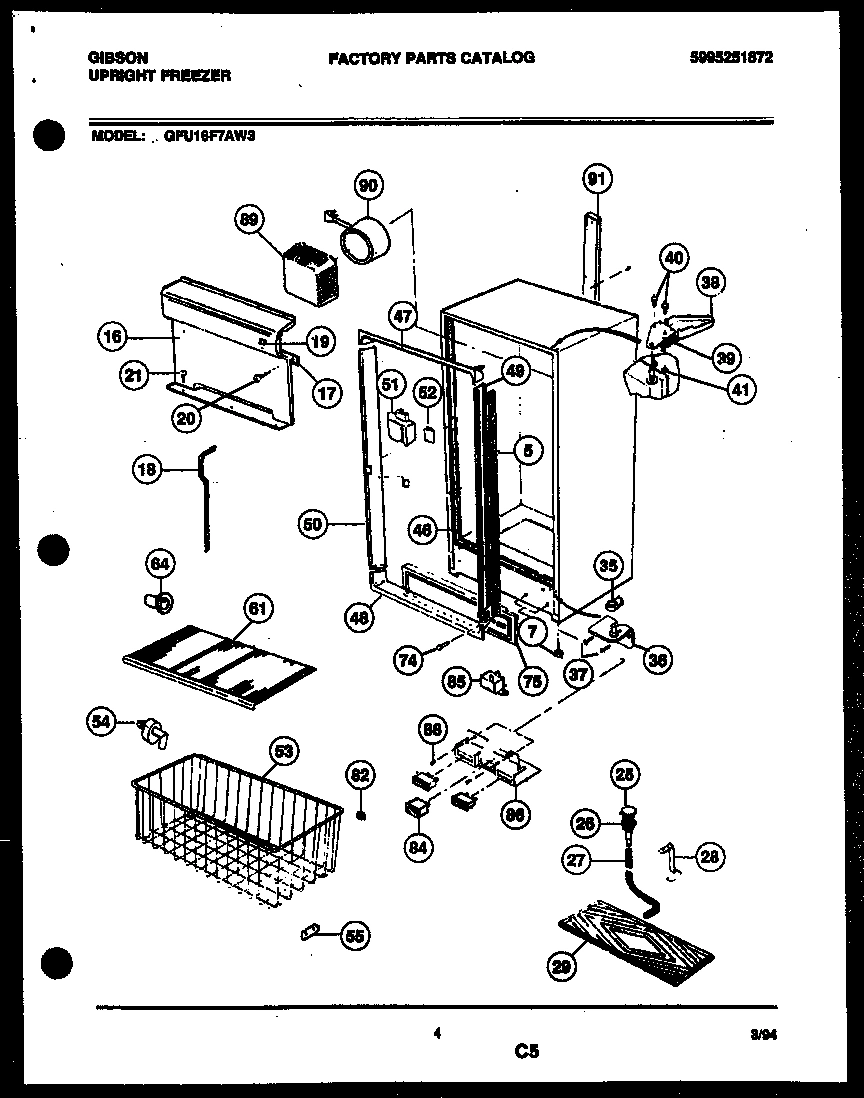

03 - CABINET PARTS

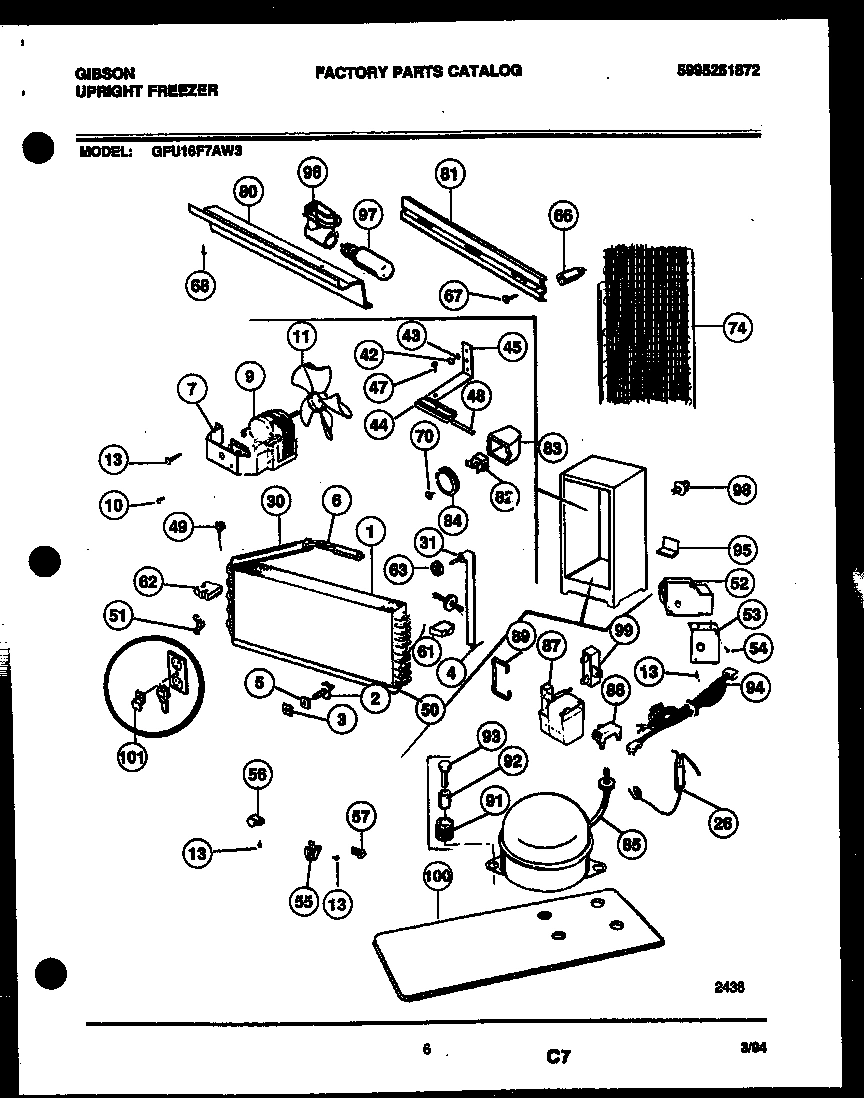

04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux GFU16F7AW3 FREEZER
1
WCI 216195900 WCI 216195900 Contact Us For Availability
2
WCI 06599544 WCI 06599544 Contact Us For Availability
3
SPACER (2) WCI 08013198 Contact Us For Availability
4
HEAT EXCHANGER WCI 5303272332 Contact Us For Availability
5
WCI 09950831 WCI 09950831 Contact Us For Availability
5
WCI 06599546 WCI 06599546 Contact Us For Availability
6
SLEEVE-EVAPORATOR TUBING (2) WCI 08005187 Contact Us For Availability
7
LEG LEVELER-ADJ (4) WCI 205363701 Contact Us For Availability
7
WCI 08013207 WCI 08013207 Contact Us For Availability
10
SCREW MOTOR TO BRACKET WCI 08037851 Contact Us For Availability
11
WCI 3205520 WCI 3205520 Contact Us For Availability
15
WCI 08016354 WCI 08016354 Contact Us For Availability
16
PANEL-EVAPORATOR WCI 216084100 Contact Us For Availability
17
WCI 06599547 WCI 06599547 Contact Us For Availability
18
GASKET-PANEL WCI 216204900 Contact Us For Availability
19
PLUG CONTROL WCI 5303208663 Contact Us For Availability
21
VALVE BREATHER (2) WCI 5309950074 Contact Us For Availability
25
WCI 05879859 WCI 05879859 Contact Us For Availability
27
WCI 09950839 WCI 09950839 Contact Us For Availability
28
GASKET DOOR (WHITE) WCI 3206251 Contact Us For Availability
28
WCI 06594637 WCI 06594637 Contact Us For Availability
29
DEFROST DRAIN PAN WCI 5308016387 Contact Us For Availability
30
SCREW PANEL (24) WCI 08009384 Contact Us For Availability
30
WCI 06594625 WCI 06594625 Contact Us For Availability
31
GASKET WCI 5308016356 Contact Us For Availability
31
INSULATION WCI 5303207297 Contact Us For Availability
33
BEARING, TOP WCI 5303297490 Contact Us For Availability
35
CLOSER-DOOR WCI 5303210424 Contact Us For Availability
36
WCI 216247400 WCI 216247400 Contact Us For Availability
38
WCI 5303212912 WCI 5303212912 Contact Us For Availability
39
HINGE, TOP WCI 5303212935 Contact Us For Availability
40
SCREW-HINGE WCI 5303212937 Contact Us For Availability
40A
SPACER-TOP BREAKER (2) (NON-ILLUSTRATED) WCI 08037937 Contact Us For Availability
41
NUT INSERT WCI 5303294372 Contact Us For Availability
43
WASHER BRACKET WCI 5300095480 Contact Us For Availability
44
WCI 05878562 WCI 05878562 Contact Us For Availability
44A
WCI 06594508 WCI 06594508 Contact Us For Availability
45
WCI 06594601 WCI 06594601 Contact Us For Availability
46
WCI 06594680 WCI 06594680 Contact Us For Availability
47
WCI 216085900 WCI 216085900 Contact Us For Availability
47
SCREW, CLAMP WCI 5300052943 Contact Us For Availability
48
WCI 216085800 WCI 216085800 Contact Us For Availability
49
SWITCH-TERMINATION WCI 216254500 Contact Us For Availability
49
WCI 216108801 WCI 216108801 Contact Us For Availability
50
WCI 216108901 WCI 216108901 Contact Us For Availability
51
WCI 216013600 WCI 216013600 Contact Us For Availability
52
CLIP SUPPORT WCI 216013700 Contact Us For Availability
53
WCI 08016580 WCI 08016580 Contact Us For Availability
54
WCI 09948791 No Longer Available
54
SCREW, TIMER WCI 08037849 Contact Us For Availability
56
WCI 06599553 WCI 06599553 Contact Us For Availability
57
CLIP, COMPRESSOR WIRE WCI 05878556 Contact Us For Availability
61
WCI 216266701 WCI 216266701 Contact Us For Availability
61
AIR SEAL, RH WCI 06599531 Contact Us For Availability
61A
WCI 216266801 WCI 216266801 Contact Us For Availability
62
AIR SEAL, LH WCI 3017674 Contact Us For Availability
63
WCI 06594629 WCI 06594629 Contact Us For Availability
66
SPACER BAFFLE PLATE (2) WCI 08000456 Contact Us For Availability
68
SCREW SHIELD (2) WCI 5303283898 Contact Us For Availability
70
WCI 09950853 WCI 09950853 Contact Us For Availability
70A
WCI 06594651 WCI 06594651 Contact Us For Availability
75
WCI 216294415 WCI 216294415 Contact Us For Availability
80
WCI 216241601 WCI 216241601 Contact Us For Availability
81
BAFFLE WCI 5303288233 Contact Us For Availability
82
WCI 216303500 WCI 216303500 Contact Us For Availability
83
COVER, CONTROL WCI 216230300 Contact Us For Availability
84
SWITCH WCI 5303017178 Contact Us For Availability
84
WCI 216008801 WCI 216008801 Contact Us For Availability
85
WCI 08016367 WCI 08016367 Contact Us For Availability
85
COMPRESSOR WCI 5303917190 Contact Us For Availability
86
WCI 08016369 WCI 08016369 Contact Us For Availability
86
WCI 5308037789 WCI 5308037789 Contact Us For Availability
87
RELAY WCI 216008900 Contact Us For Availability
89
WCI 3205349 WCI 3205349 Contact Us For Availability
89
CLIP COVER WCI 215012000 Contact Us For Availability
90
SENSOR ASSEMBLY WCI 5308037992 Contact Us For Availability
90A
WIRE HARNESS-ALARM (NON-ILLUSTRATED) WCI 5303212683 Contact Us For Availability
91
COVER-HARNESS WCI 216009000 Contact Us For Availability
92
SLEEVE (3) WCI 5306594529 Contact Us For Availability
93
SCREW (3) WCI 5303272328 Contact Us For Availability
94
WCI 216268800 WCI 216268800 Contact Us For Availability
95
WCI 5303272330 WCI 5303272330 Contact Us For Availability
96
SOCKET WCI 5300136117 Contact Us For Availability
100
WCI 216159200 WCI 216159200 Contact Us For Availability
101
CLIP-POWER CORD WCI 08016777 Contact Us For Availability
× ![]()
