Model Electrolux GF410HXD5 RANGE – Common Parts & Diagrams

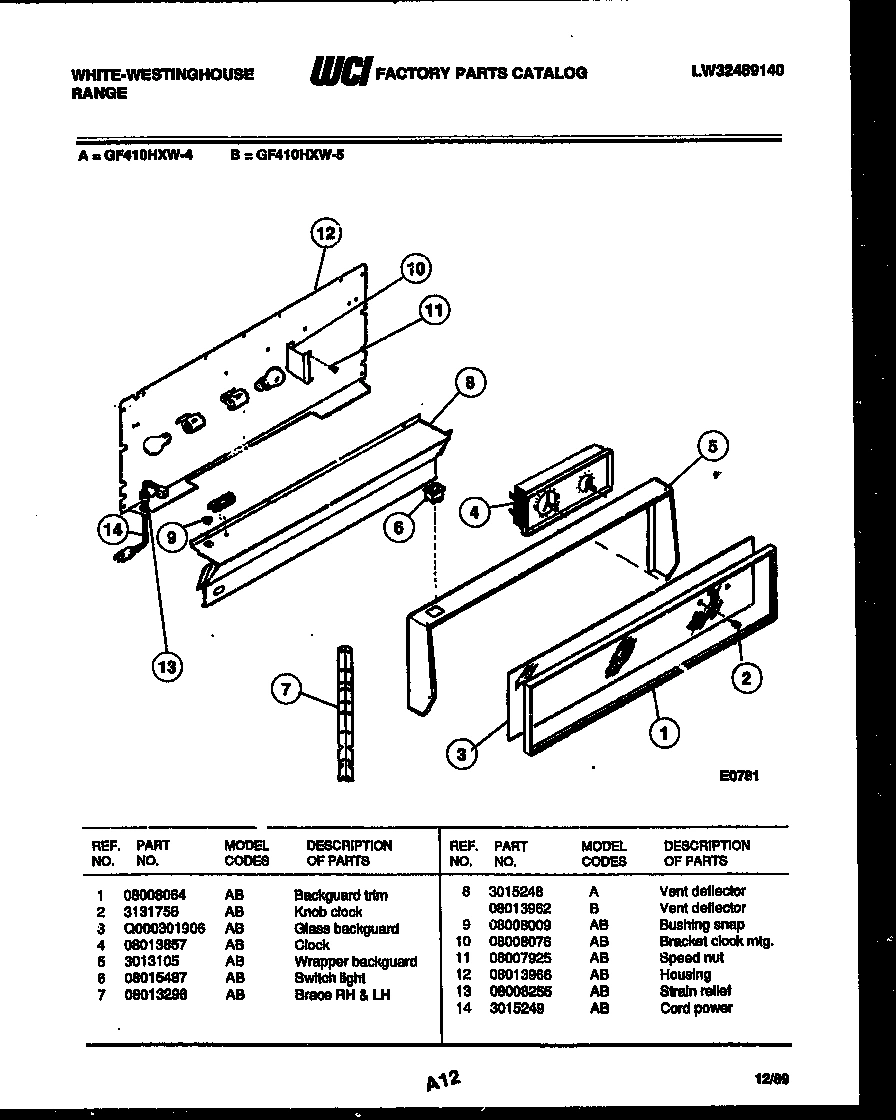

02 - BACKGUARD

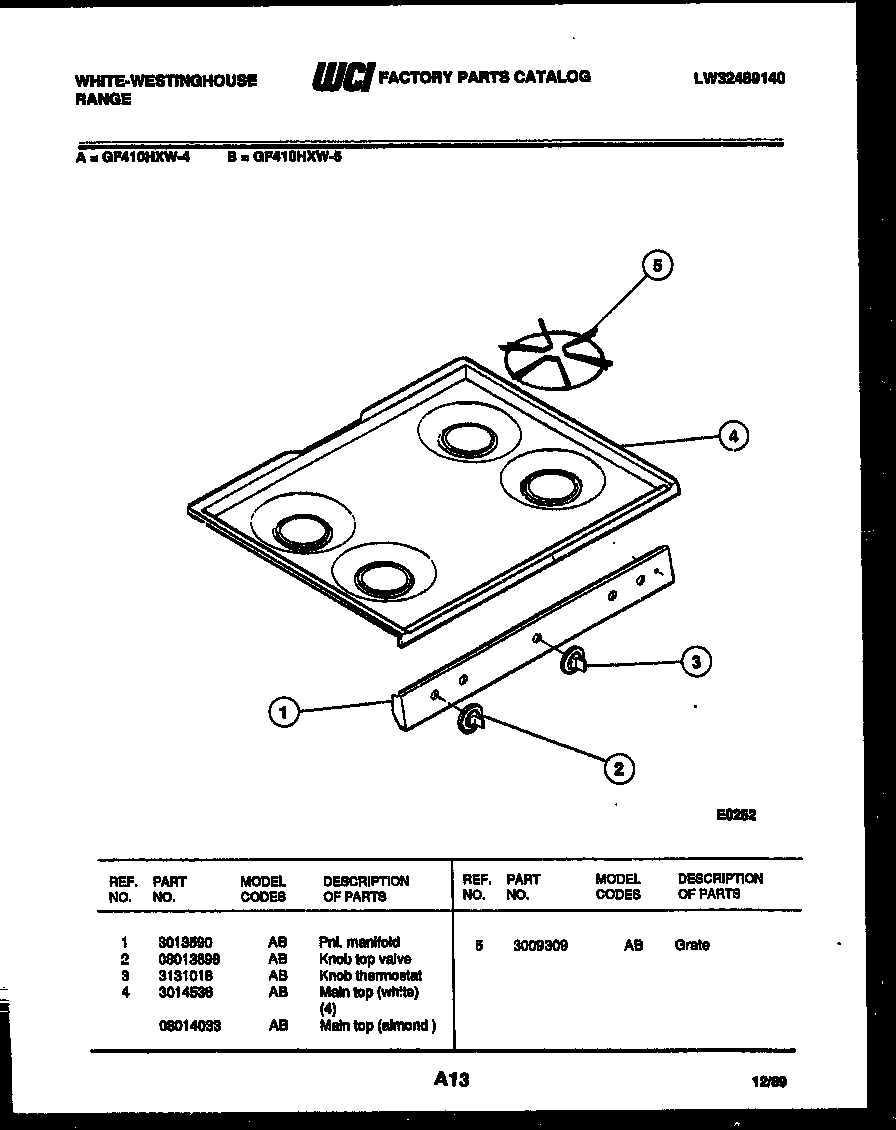

03 - COOKTOP PARTS

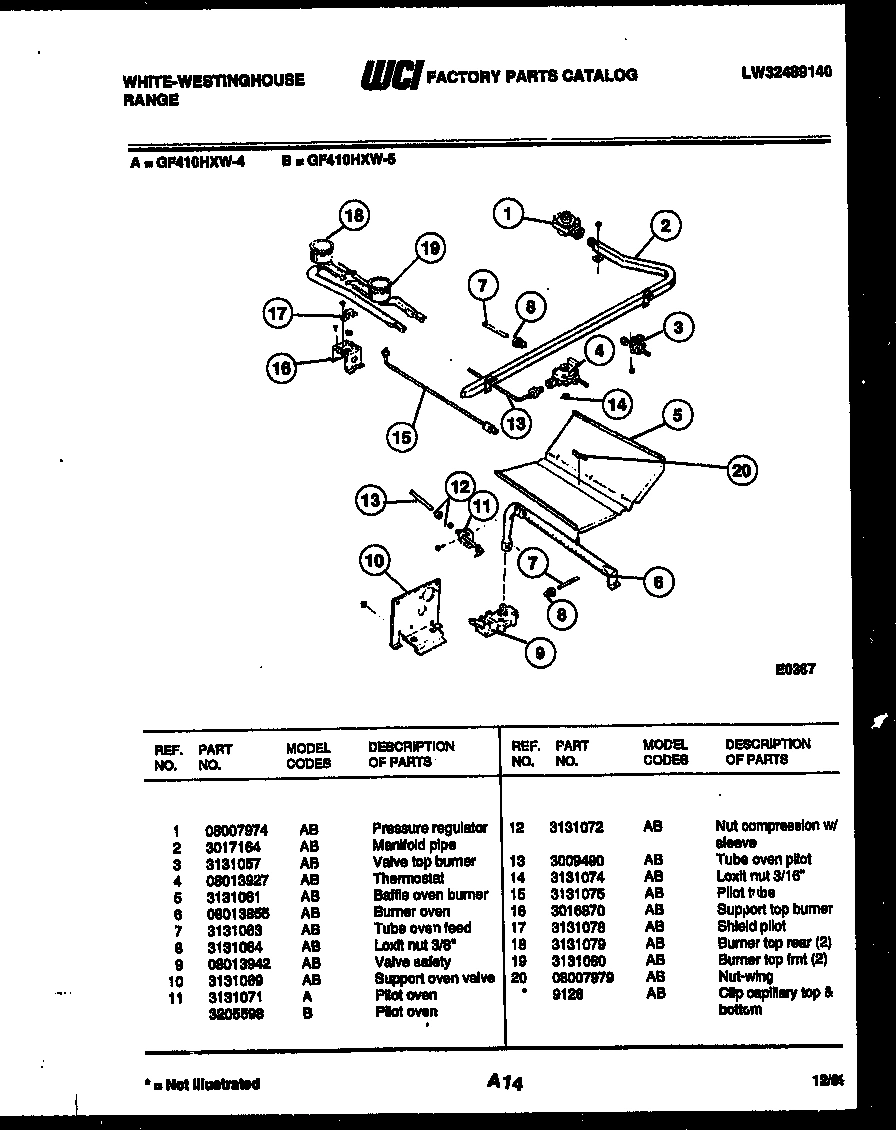

04 - BURNER, MANIFOLD AND GAS CONTROL

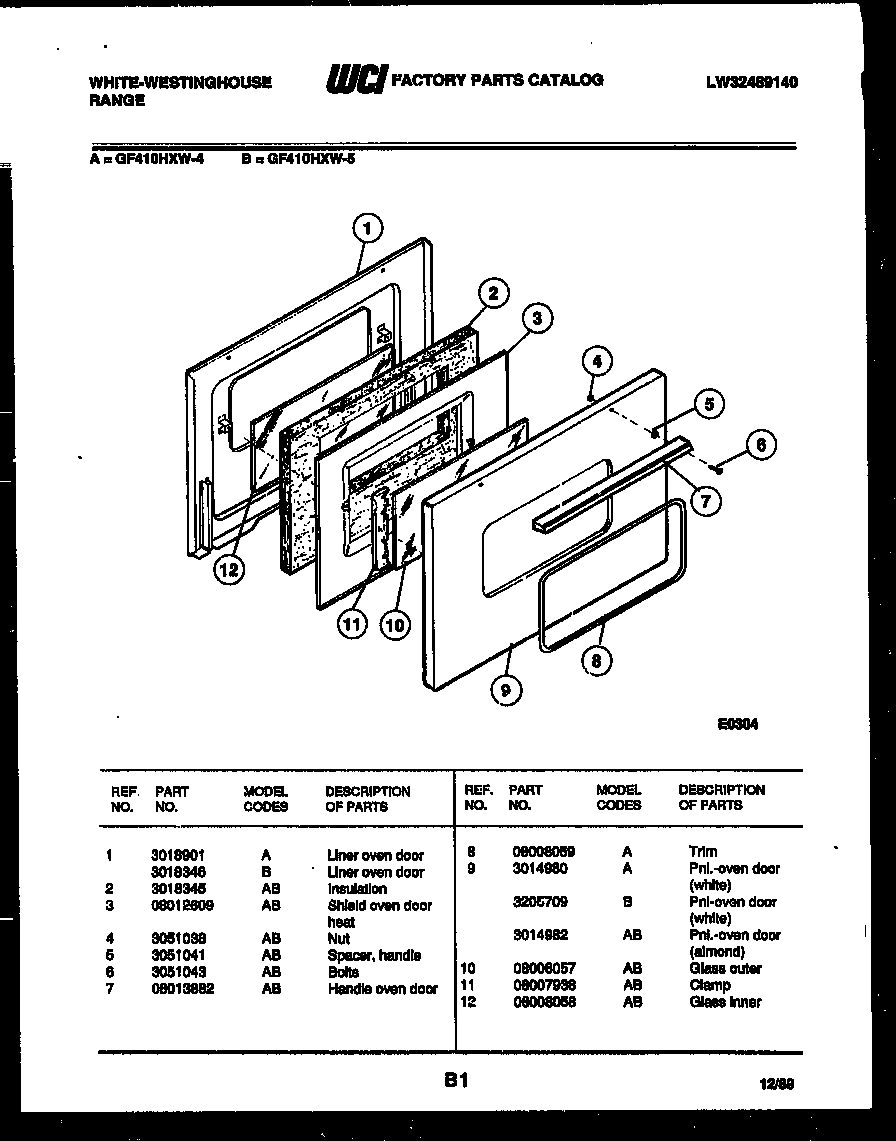

05 - DOOR PARTS
06 - BODY PARTS
07 - BROILER DRAWER PARTS
Common parts from model Electrolux GF410HXD5 RANGE
*13512
CLIP CAPILLARY TOP & BOTTOM WCI 9126 Contact Us For Availability
*13522
ANTI-TIP KIT WCI 3934059 Contact Us For Availability
1
PNL. MANIFOLD WCI 3013590 Contact Us For Availability
1
LINER-OVEN DOOR WCI 3018346 Contact Us For Availability
1
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
1
GRID BROILER WCI 3131021 Contact Us For Availability
2
WCI 3131756 WCI 3131756 Contact Us For Availability
2
KNOB - TOP VALVE WCI 08013898 Contact Us For Availability
2
WCI 3017164 WCI 3017164 Contact Us For Availability
2
WCI 3018345 WCI 3018345 Contact Us For Availability
2
GROMMET PLASTIC WCI 3051063 Contact Us For Availability
2
PAN-BROILER WCI 3016973 Contact Us For Availability
3
WCI Q000301906 WCI Q000301906 Contact Us For Availability
3
WCI 3131018 WCI 3131018 Contact Us For Availability
3
VALVE - TOP BURNER WCI 3131057 Contact Us For Availability
3
SHIELD OVEN DOOR HEAT WCI 08012609 Contact Us For Availability
3
WCI 08014019 WCI 08014019 Contact Us For Availability
4
WCI 08013857 WCI 08013857 Contact Us For Availability
4
WCI 08014033 WCI 08014033 Contact Us For Availability
4
WCI 08013927 WCI 08013927 Contact Us For Availability
4
BURNER-BOX BTM WCI 3017174 Contact Us For Availability
4
WCI 3018344 WCI 3018344 Contact Us For Availability
5
WRAPPER BACKGUARD WCI 3013105 Contact Us For Availability
5
GRATE WCI 3009309 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 3131061 Contact Us For Availability
5
SUPPORT CONTROL PNL WCI 3131811 Contact Us For Availability
5
WCI 3017184 WCI 3017184 Contact Us For Availability
6
WCI 08013855 WCI 08013855 Contact Us For Availability
6
WCI 3205578 WCI 3205578 Contact Us For Availability
7
BRACE - RH & LH WCI 08013296 Contact Us For Availability
7
TUBE-OVEN FEED WCI 3131063 Contact Us For Availability
7
SPACER-HANDLE WCI 3051041 Contact Us For Availability
7
SEAL-OVEN DOOR WCI 08008022 Contact Us For Availability
8
VENT - DEFLECTOR WCI 08013962 Contact Us For Availability
8
LOXIT NUT-3/8 WCI 3131064 Contact Us For Availability
8
HINGE-OVEN DOOR RH WCI 3204670 Contact Us For Availability
9
WCI 08008009 WCI 08008009 Contact Us For Availability
9
WCI 08013942 WCI 08013942 Contact Us For Availability
9
HANDLE WCI 08013882 Contact Us For Availability
9
PNL. OVEN DOOR (ALMOND) WCI 3014982 Contact Us For Availability
9
SPRING - OVEN DOOR WCI 08008028 Contact Us For Availability
10
BRACKET CLOCK MTG WCI 08008076 Contact Us For Availability
10
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
10
WCI 08008057 WCI 08008057 Contact Us For Availability
10
LINER-RT SIDE WCI 3018284 Contact Us For Availability
10
LINER RT SIDE WCI 3131032 Contact Us For Availability
10
PNL. BROILER (ALMOND) WCI 3017170 Contact Us For Availability
10A
LINER-LT SIDE WCI 3018285 Contact Us For Availability
10A
LINER LT SIDE WCI 3131033 Contact Us For Availability
10B
WCI 3018347 WCI 3018347 Contact Us For Availability
10B
WCI 3018902 WCI 3018902 Contact Us For Availability
10C
WCI 3018286 WCI 3018286 Contact Us For Availability
10C
WCI 3018903 WCI 3018903 Contact Us For Availability
11
WCI 08007925 WCI 08007925 Contact Us For Availability
11
PILOT - OVEN WCI 3131071 Contact Us For Availability
11
WCI 3205598 WCI 3205598 Contact Us For Availability
11
CLAMP WCI 08007938 Contact Us For Availability
11
RACK-OVEN WCI 3015714 Contact Us For Availability
11
HINGE BROILER DRAWER RT WCI 3131028 Contact Us For Availability
11A
HINGE BROILER DRAWER LT WCI 3131029 Contact Us For Availability
12
WCI 08013966 WCI 08013966 Contact Us For Availability
12
NUT-COMPRESSION W/ SLEEVE WCI 3131072 Contact Us For Availability
12
WCI 08008058 WCI 08008058 Contact Us For Availability
12
LINER BTTM WCI 3017168 Contact Us For Availability
12
LINER BTTM WCI 3018282 Contact Us For Availability
12
SPRING-BROILER WCI 3131030 Contact Us For Availability
13
WCI 08008255 WCI 08008255 Contact Us For Availability
13
TUBE OVEN PILOT WCI 3009490 Contact Us For Availability
13
WCI 3131038 WCI 3131038 Contact Us For Availability
13
TRACK BROILER RT WCI 3051055 Contact Us For Availability
13A
TRACK BROILER LT WCI 3051056 Contact Us For Availability
14
CORD - POWER WCI 3015249 Contact Us For Availability
14
LOXIT NUT-3/16 WCI 3131074 Contact Us For Availability
14
SCREW-LEVELING LEG WCI 3051080 Contact Us For Availability
15
PILOT TUBE WCI 3131075 Contact Us For Availability
15
BASE RAIL WCI 08068047 Contact Us For Availability
16
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
17
SHIELD-PILOT WCI 3131078 Contact Us For Availability
18
WCI 3051511 WCI 3051511 Contact Us For Availability
18
BURNER-TOP REAR (2) WCI 3131079 Contact Us For Availability
19
BURNER TOP FRNT (2) WCI 3131080 Contact Us For Availability
19
BTTM. MAIN WCI 3011645 Contact Us For Availability
20
NUT - WING WCI 08007979 Contact Us For Availability
20
WCI 3017171 WCI 3017171 Contact Us For Availability
20A
WCI 3017172 WCI 3017172 Contact Us For Availability
21
Support,oven rear WCI 3051096 Contact Us For Availability
22
WCI 08013153 WCI 08013153 Contact Us For Availability
23
MAIN BACK WCI 3013340 Contact Us For Availability
24
VENT BOX WCI 3017173 Contact Us For Availability
25
SHIELD BURNER BOX (RT) WCI 3131053 Contact Us For Availability
25A
SHIELD BURNER BOX (LT) WCI 3131054 Contact Us For Availability
× ![]()
