Model Whirlpool GDG33CA GAS DRYER – Common Parts &amp; Diagrams

001

TWIN SPEED NUT WPL 210866 Contact Us For Availability

001

VALVE, SHUT-OFF WPL Y330073 Contact Us For Availability

RECIRCULATION TEE ASSEMBLY WPL Y330202 Contact Us For Availability

SAFETY THERMOSTAT WPL Y330300 Contact Us For Availability

SCREW, No.6-32 X 1/4 INCH WPL 212951 Contact Us For Availability

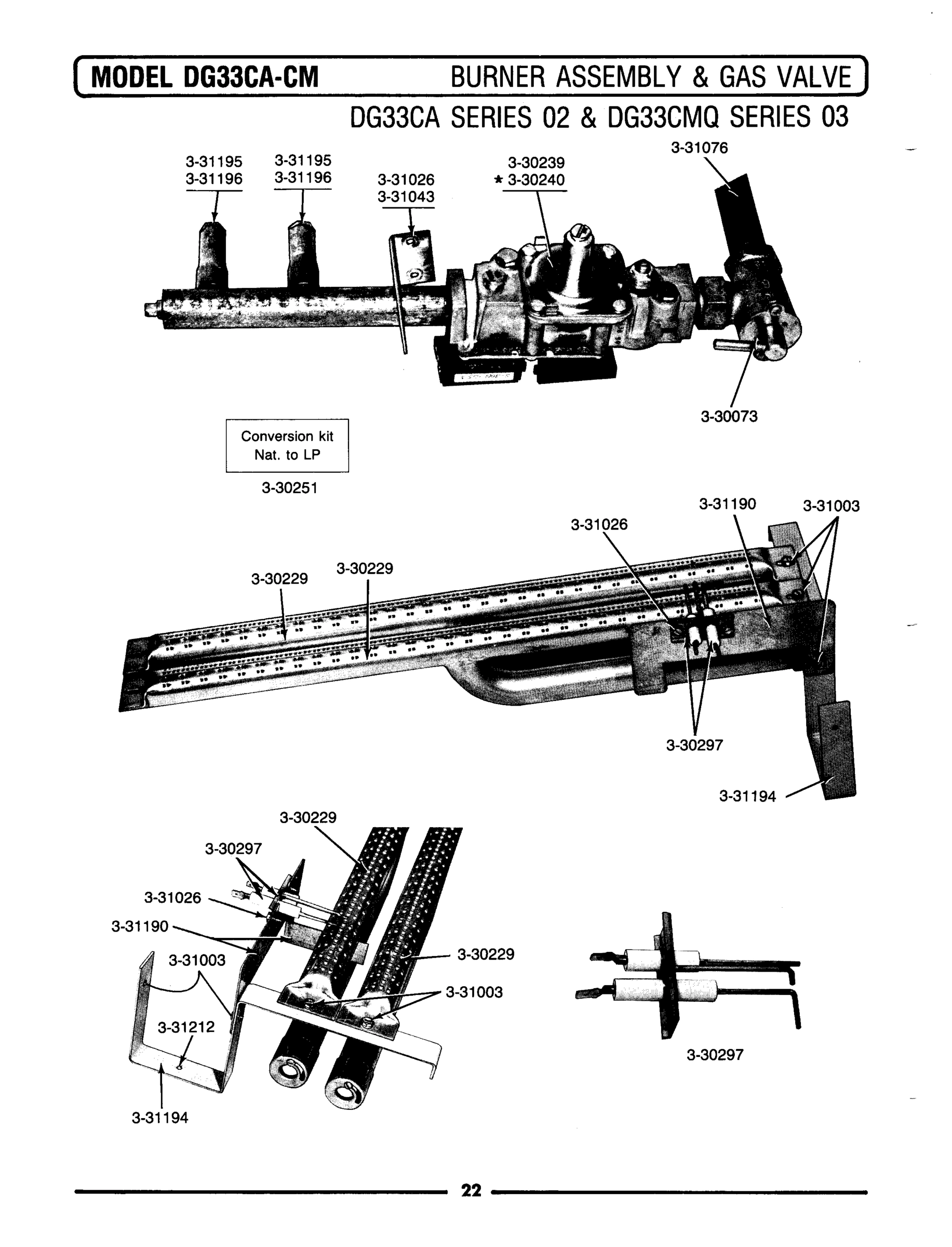

BURNER ASSEMBLY WPL Y330229 Contact Us For Availability

BALL BEARING, RADIAL----S WPL Y200720 Contact Us For Availability

RETAINING RING WPL 210180 Contact Us For Availability

003

PILOT LIGHT WPL Y330064 Contact Us For Availability

003

GAS VALVE - NAT WPL Y330239 Contact Us For Availability

003

MOTOR COMPLETE WPL Y330072 Contact Us For Availability

004

SPIDER AND SHAFT ASY. WPL Y330080 Contact Us For Availability

004

DRUM SUPPORT HOUSING WPL Y330085 Contact Us For Availability

005

SCREW - LID SWITCH WPL 214884 Contact Us For Availability

005

IMPELLER, BLOWER WPL Y330071 Contact Us For Availability

005

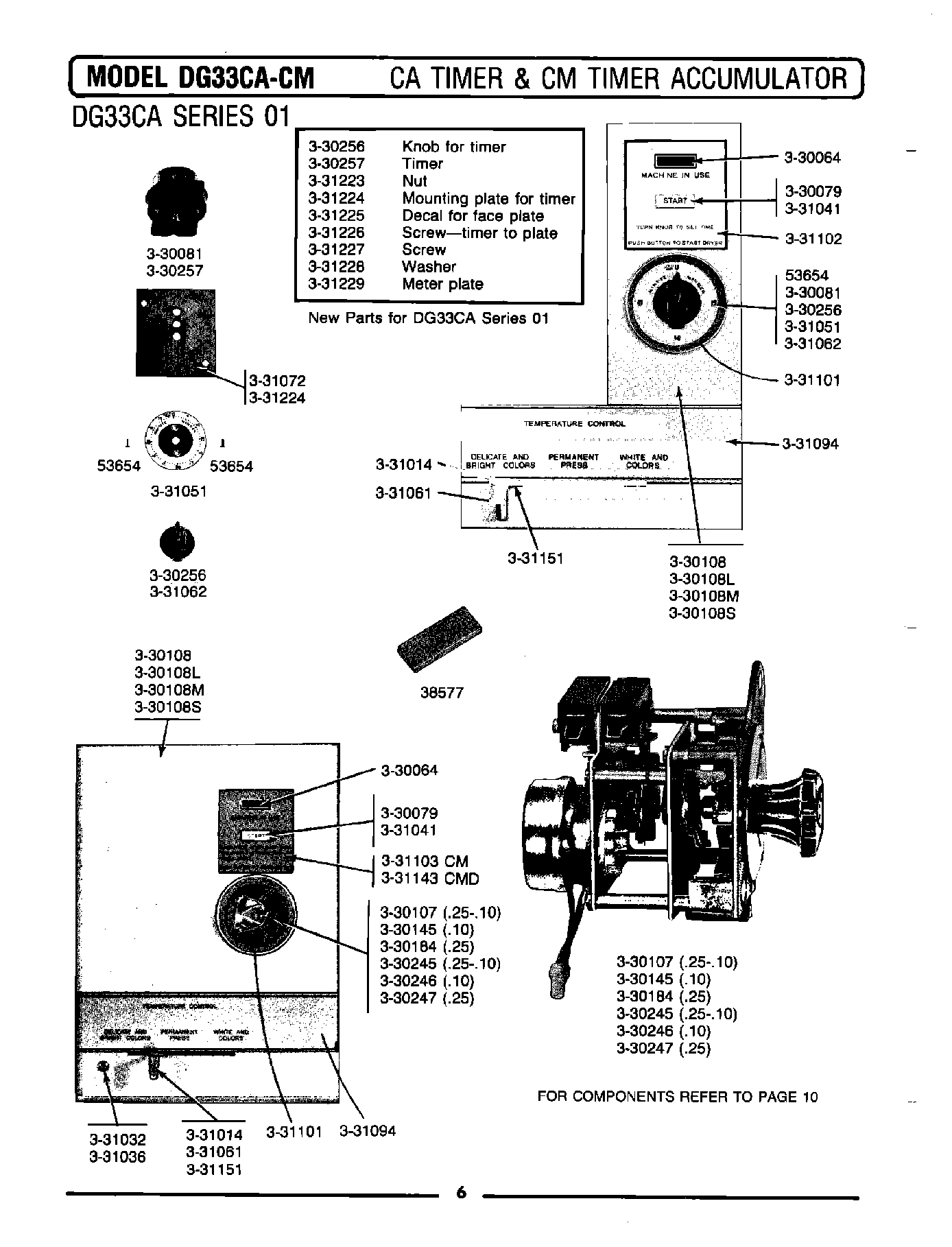

TIMER WPL 330081 Contact Us For Availability

DRUM ASSEMBLY COMPLETE WPL Y330087 Contact Us For Availability

PUSH TO START SWITCH WPL Y330079 Contact Us For Availability

IDLER ARM ASSEMBLY WITH PIN WPL 330187 Contact Us For Availability

REDUCTION PULLEY WPL Y330178 Contact Us For Availability

PART NOT USED WPL Y330078 Contact Us For Availability

LINT SCREEN W/FRAME WPL Y330086 Contact Us For Availability

CONTROL, TEMPERATURE WPL Y330083 Contact Us For Availability

BRACKET AND PIN WPL Y330179 Contact Us For Availability

008

WP489483 Whirlpool Screw Backorder WPL WP489483 $7.61

008

TERMINAL BLOCK WPL Y330092 Contact Us For Availability

008

FRONT PANEL-WHITE WPL Y330102 Contact Us For Availability

010

SET SCREW, IMPELLER WPL 331031 Contact Us For Availability

010

TIMER ACCUMULATOR ASSEMBLY WPL Y330145 Contact Us For Availability

011

(ALMOND) WPL 330108L Contact Us For Availability

011

TIMER ACCUMULATOR-25 WPL 330184 Contact Us For Availability

011

SPACER FOR CENTER BEARING WPL 331080 Contact Us For Availability

012

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

012

(HARVEST WHEAT) WPL 330108M Contact Us For Availability

012

SHIM FOR DRUM ROD WPL 331089 Contact Us For Availability

013

61002031 Whirlpool Air Conditioner Handle Scr Backorder WPL 61002031 $33.53

013

DAMPER WPL 331053 Contact Us For Availability

014

LOCK WPL Y330217 Contact Us For Availability

014

HEX NUT-DRUM PULLEY SHAFT WPL 331033 Contact Us For Availability

COVER FOR BLOWER IMPELLER WPL 331048 Contact Us For Availability

WIRE, IGNITION CONTROL ASSY. WPL Y330226 Contact Us For Availability

LOCK WPL Y330218 Contact Us For Availability

KNOB, TIMER WPL Y330256 Contact Us For Availability

PIVOT PIN FOR TENSION ARMS WPL 331069 Contact Us For Availability

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

GREASE FITTING - PULLEY PIN WPL 331054 Contact Us For Availability

HARNESS, GAS VALVE WPL Y330228 Contact Us For Availability

TIMER WPL Y330257 Contact Us For Availability

TENSION SPRING WPL 331079 Contact Us For Availability

017

KEY FOR DRUM WPL 331060 Contact Us For Availability

018

IGNITION CTRL ASSY. WPL Y330230 Contact Us For Availability

019

TRANSFORMER WPL Y330231 Contact Us For Availability

019

MOTOR PULLEY WPL 331160 Contact Us For Availability

020

PART NOT USED WPL Y330233 Contact Us For Availability

020

V BELT - DRIVE WPL 331162 Contact Us For Availability

021

COIN BOX ASSEMBLY WPL Y330294 Contact Us For Availability

021

V BELT - REDUCTION WPL 331163 Contact Us For Availability

022

WASHER WPL 331173 Contact Us For Availability

022

DRUM PULLEY WPL 331175 Contact Us For Availability

023

WASHER, LOCK (BRACE) WPL 911852 Contact Us For Availability

023

IDLER BRACKET WPL 331174 Contact Us For Availability

024

PANEL, FRONT (WHITE) WPL Y330241 Contact Us For Availability

025

(ALMOND) WPL 330241L Contact Us For Availability

027

VAULT ASSEMBLY WPL Y330242 Contact Us For Availability

028

STRIKE PLATE, DOOR WPL 331071 Contact Us For Availability

029

FUSE WPL Y330253 Contact Us For Availability

030

FUSE BLOCK WPL Y330254 Contact Us For Availability

035

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

036

GASKET, DOOR-OUTER WPL 331167 Contact Us For Availability

037

HINGE PIN, DOOR WPL 331185 Contact Us For Availability

038

WASHER-FRONT PANEL SCREWS WPL 331036 Contact Us For Availability

038

GLASS, LOADING DOOR WPL 331192 Contact Us For Availability

039

COVER, DOOR SWITCH BOX WPL 331193 Contact Us For Availability

039

BUTTON-PUSH-TO-START SWITCH WPL 331041 Contact Us For Availability

040

ACTUATOR, DOOR SWITCH WPL 331198 Contact Us For Availability

040

GASKET, DOOR GLASS WPL 331199 Contact Us For Availability

041

VENTILATED COVER - HI-LIMIT WPL 331049 Contact Us For Availability

042

GROMMET-TEMP. CONTROL TUBIN WPL 331058 Contact Us For Availability

042

SCREW WPL 331204 Contact Us For Availability

043

KNOB, TEMPERATURE CONTROL WPL 331061 Contact Us For Availability

046

SUPPORT ROD, UPPER DOOR WPL 331084 Contact Us For Availability

047

BEZEL, TIMER (ACCUMULATOR) WPL 331101 Contact Us For Availability

050

LEVER-TEMPERATURE CONTROL WPL 331151 Contact Us For Availability

054

CLIP WPL 331230 Contact Us For Availability

057

W10756178 Whirlpool Screw Backorder WPL W10756178 $4.55

058

M0282005 Whirlpool Nut Backorder WPL M0282005 $5.10

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $5.02

WPY055980 Whirlpool High-Temperature Adhesive In Stock WPL WPY055980 $23.34

NUT-DRUM SUPPORT BOLT, 5/16 WPL NLA Contact Us For Availability

SHIELD, DOOR SWITCH WPL 331197 Contact Us For Availability

DOOR SWITCH BOX WPL 331201 Contact Us For Availability

DOOR SWITCH WPL Y330232 Contact Us For Availability

COIL ON GAS VALVE WPL Y330250 Contact Us For Availability

WPL Y330201 WPL Y330201 Contact Us For Availability

MAGNET, DOOR HANDLE WPL 331064 Contact Us For Availability

HANDLE, DOOR WPL 331200 Contact Us For Availability
