Model Whirlpool GCLE750 ELECTRIC RANGE – Common Parts & Diagrams
02 - BASE ASSEMBLY & COMPONENTS

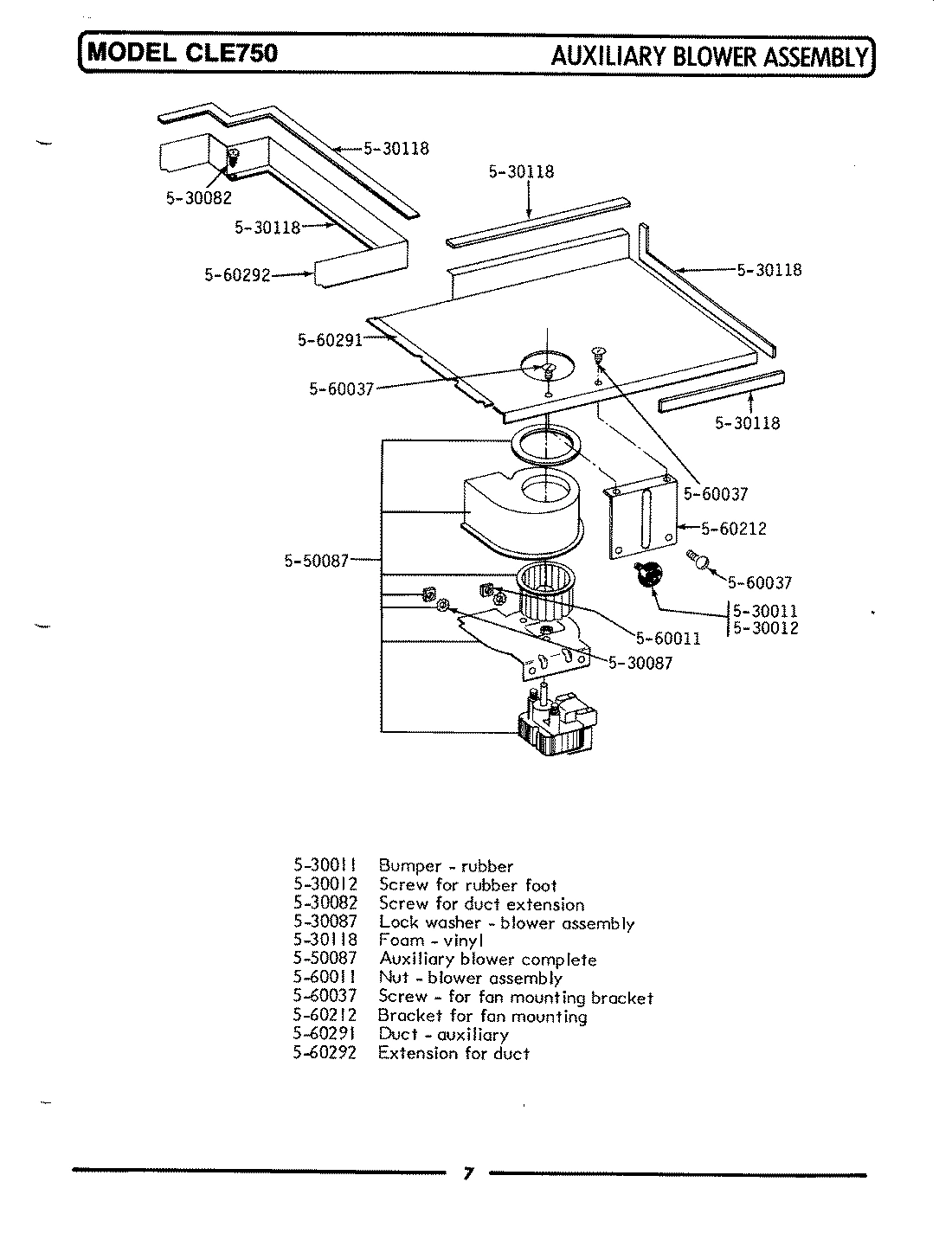

01 - AUXILIARY BLOWER ASSEMBLY

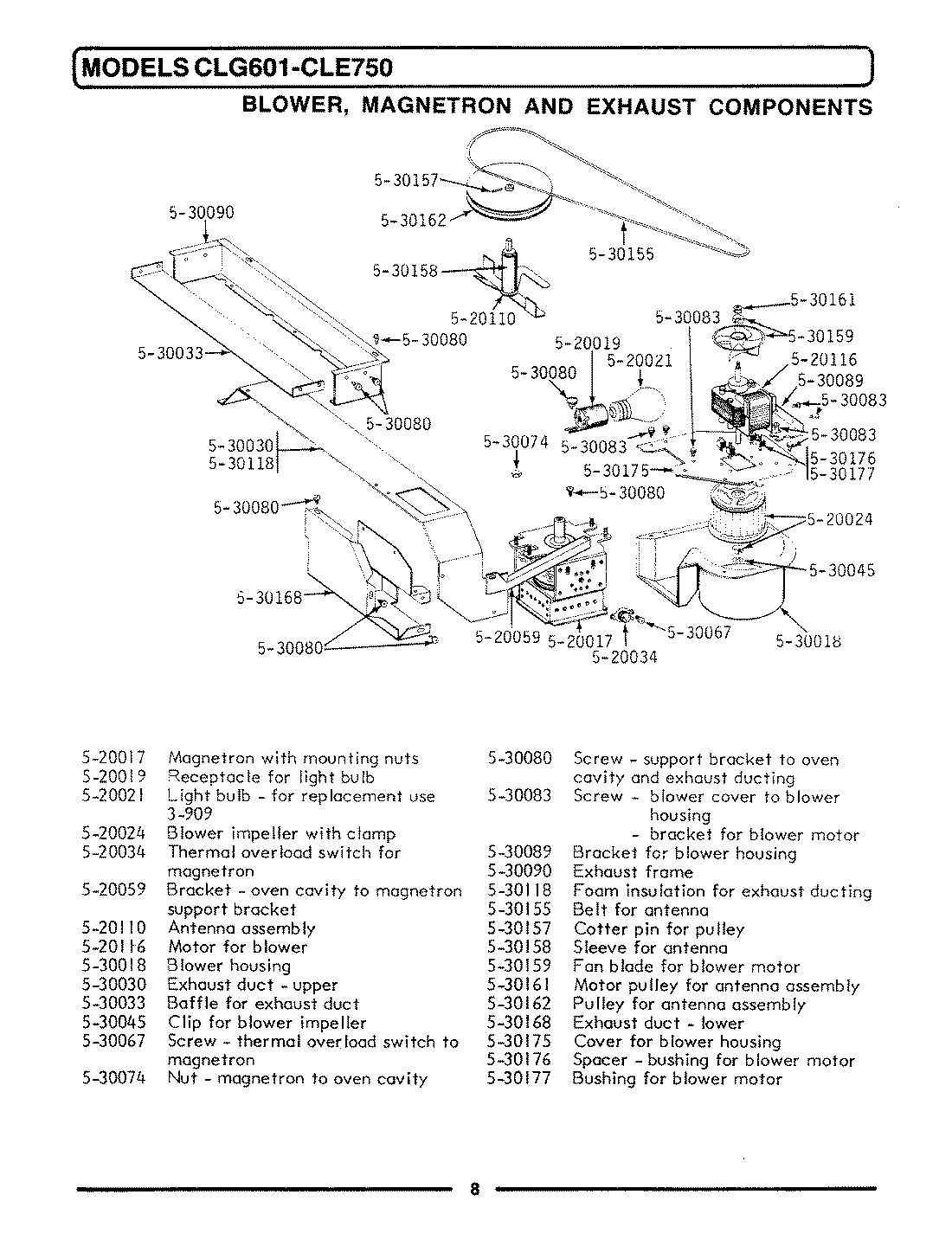

03 - BLOWER, MAGNETRON & EXHAUST COMPONENTS

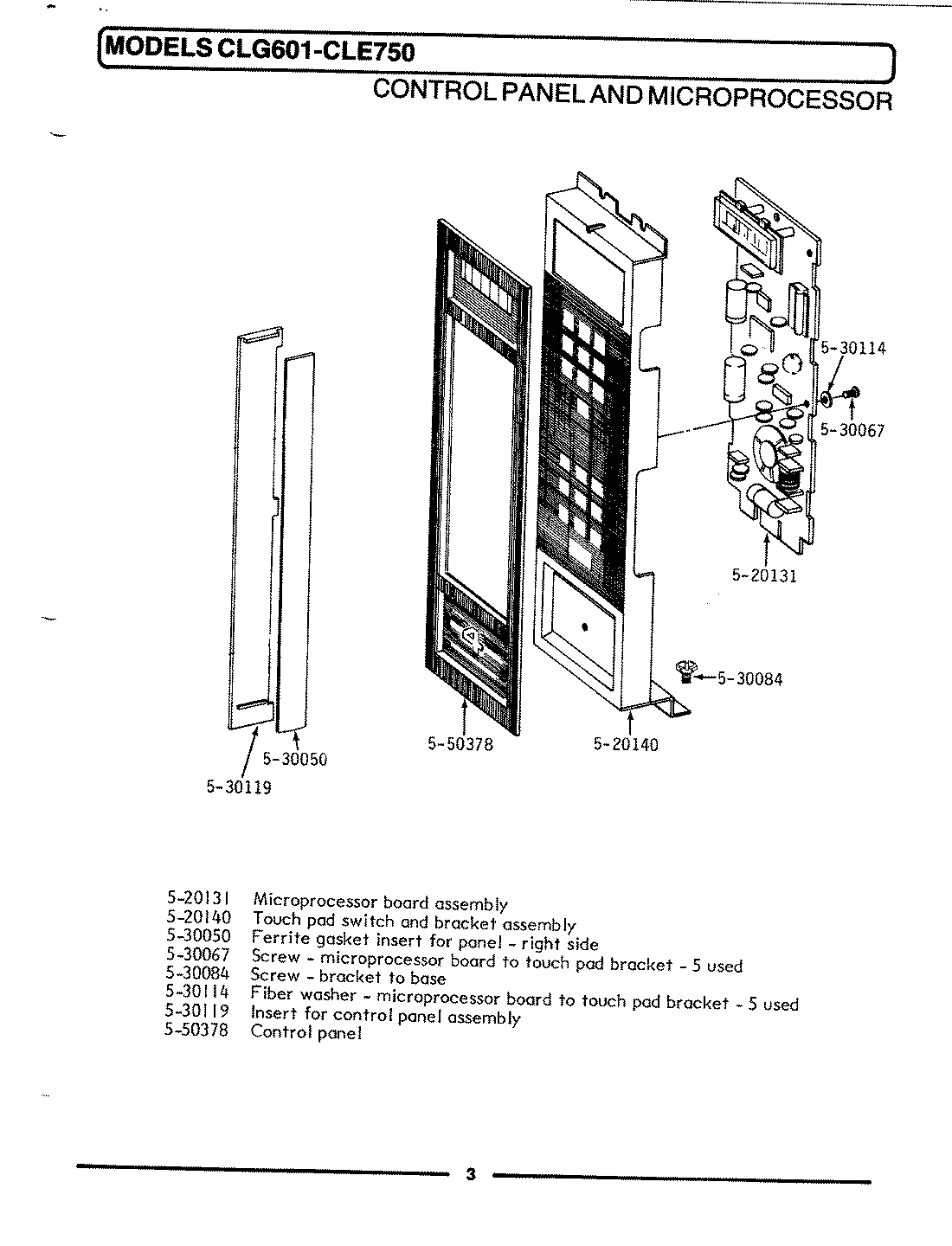

04 - CONTROL PANEL & MICROPROCESSOR

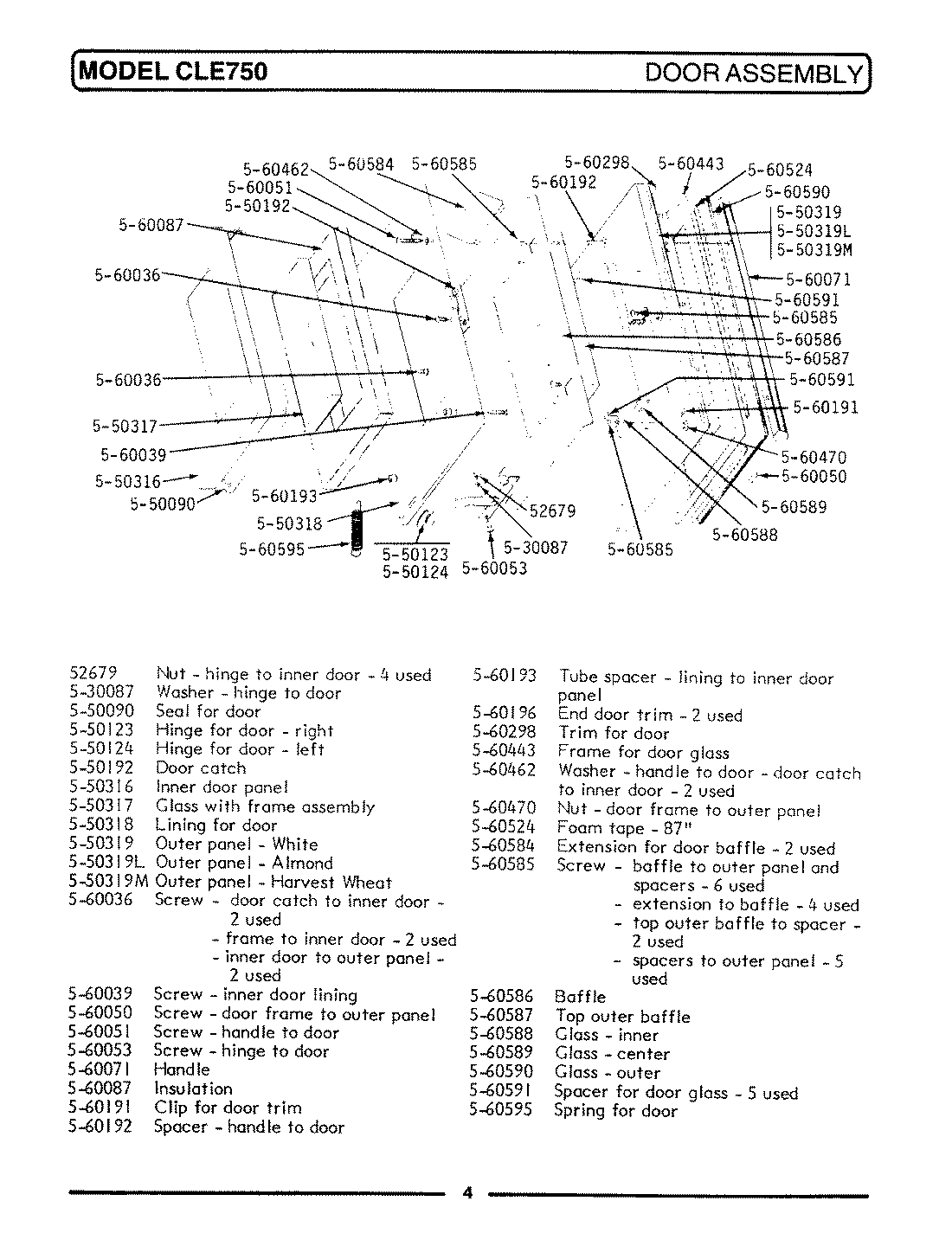

06 - DOOR ASSEMBLY/RANGE

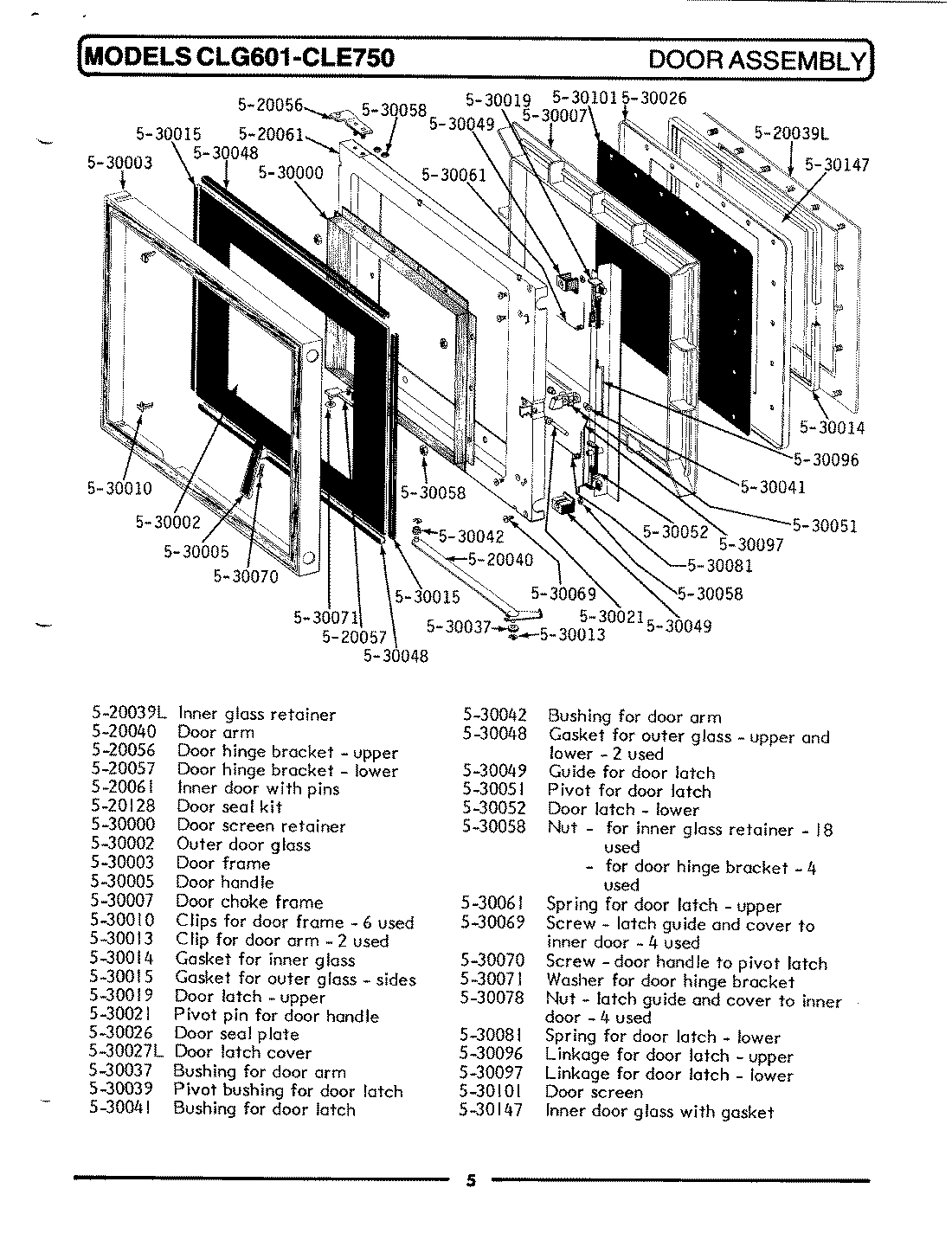

05 - DOOR ASSEMBLY/MICROWAVE

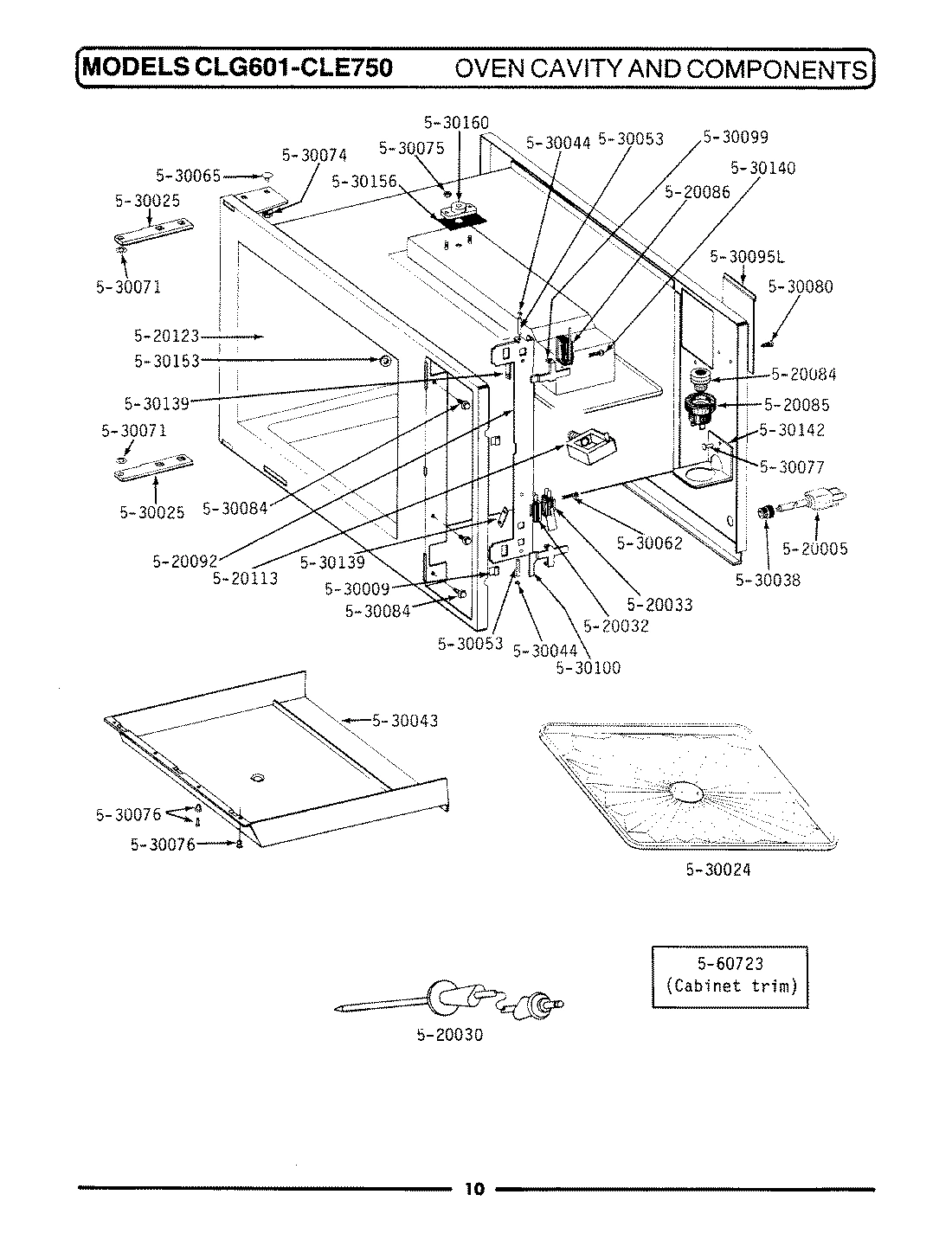

07 - OVEN CAVITY & COMPONENTS
Common parts from model Whirlpool GCLE750 ELECTRIC RANGE
1
TERMINAL BLOCK WPL 520015 Contact Us For Availability
1
RUBBER FOOT WPL 530011 Contact Us For Availability
1
MAGNETRON WPL 520017 Contact Us For Availability
1
MICROPROCESSOR BOARD ASSM WPL 520131 Contact Us For Availability
1
POWER CORD WPL 520005 Contact Us For Availability
2
TRIAC W/HEAT SINK PLATE ASS WPL 520023 Contact Us For Availability
2
LOCK WASHER WPL 530087 Contact Us For Availability
2
RECEPTACLE FOR LIGHT BULB WPL 520019 Contact Us For Availability
2
TOUCH PAD SWITCH WPL 520140 Contact Us For Availability
2
DOOR ARM WPL 520040 Contact Us For Availability
2
TEMPERATURE PROBE WPL 520030 Contact Us For Availability
3
CAPACITOR WPL 520026 Contact Us For Availability
3
SWITCH-INTERLOCK FOR DOOR WPL 520032 Contact Us For Availability
3
SCREW, No.6 X 3/8 INCH WPL 530082 Contact Us For Availability
3
GASKET INSERT F/PANEL-RIGHT WPL 530050 Contact Us For Availability
3
SEAL FOR DOOR WPL 550090 Contact Us For Availability
3
DOOR HINGE BRACKET-UPPER WPL 520056 Contact Us For Availability
4
RECTIFIER WPL 520031 Contact Us For Availability
4
SWITCH-SAFETY FOR DOOR WPL 520033 Contact Us For Availability
4
BLOWER IMPELLER WITH CLAMP WPL Y520024 Contact Us For Availability
4
SCREW, No.5-40 X 1/4 INCH WPL 530067 Contact Us For Availability
4
HINGE FOR DOOR-RIGHT WPL 550123 Contact Us For Availability
4
DOOR HINGE BRACKET-LOWER WPL 520057 Contact Us For Availability
5
THERMAL OVERLOAD SWITCH WPL 520034 Contact Us For Availability
5
HINGE FOR DOOR-LEFT WPL 550124 Contact Us For Availability
5
INNER DOOR WITH PINS WPL 520061 Contact Us For Availability
5
FUSE WPL 520084 Contact Us For Availability
6
BLOWER ASSEMBLY-AUXILIARY WPL 550087 Contact Us For Availability
6
BRACKET FOR OVEN CAVITY WPL 520059 Contact Us For Availability
6
FIBER WASHER WPL 530114 Contact Us For Availability
6
DOOR CATCH WPL 550192 Contact Us For Availability
6
FUSE HOLDER WPL 520085 Contact Us For Availability
7
TRANSFORMER F/MICROPROCESSO WPL 520036 Contact Us For Availability
7
ANTENNA ASSEMBLY WPL 520110 Contact Us For Availability
7
INSERT FOR CONTROL PANEL WPL 530119 Contact Us For Availability
7
INNER DOOR PANEL WPL 550316 Contact Us For Availability
7
DOOR SCREEN RETAINER WPL 530000 Contact Us For Availability
7
INTERLOCK SWITCH WPL Y520086 Contact Us For Availability
8
POWER TRANSFORMER WPL 520049 Contact Us For Availability
8
MOTOR FOR BLOWER WPL 520116 Contact Us For Availability
8
CONTROL PANEL WPL 550378 Contact Us For Availability
8
GLASS WITH FRAME ASSEMBLY WPL 550317 Contact Us For Availability
8
OUTER DOOR GLASS WPL 530002 Contact Us For Availability
8
BRACKET PLATE FOR SWITCH WPL 520092 Contact Us For Availability
9
FILAMENT TRANSFORMER WPL 520129 Contact Us For Availability
9
BRACKET FOR AUXILLARY BLOWE WPL 560212 Contact Us For Availability
9
BLOWER HOUSING WPL 530018 Contact Us For Availability
9
INNER DOOR LINER WPL 550318 Contact Us For Availability
9
DOOR FRAME WPL 530003 Contact Us For Availability
9
RECEPTACLE WPL 520113 Contact Us For Availability
10
POWER RELAY WPL 520111 Contact Us For Availability
10
DUCT-AUXILIARY WPL 560291 Contact Us For Availability
10
EXHAUST DUCT-LOWER WPL 530030 Contact Us For Availability
10
DOOR HANDLE WPL 530005 Contact Us For Availability
10
OVEN CAVITY WPL 520123 Contact Us For Availability
11
SCREW WPL 520135 Contact Us For Availability
11
EXTENSION FOR DUCT WPL 560292 Contact Us For Availability
11
BAFFLE FOR EXHAUST DUCT WPL 530033 Contact Us For Availability
11
DOOR CHOKE FRAME WPL 530007 Contact Us For Availability
11
FASTENER WPL 530009 Contact Us For Availability
12
VARISTOR WPL 520136 Contact Us For Availability
12
CLIP FOR BLOWER IMPELLER WPL 530045 Contact Us For Availability
12
PANEL-HARVEST WHEAT WPL 550319M Contact Us For Availability
12
CLIP FOR DOOR FRAME WPL 530010 Contact Us For Availability
12
COOKING TRAY WPL 530024 Contact Us For Availability
13
SCREW WPL 560036 Contact Us For Availability
13
CLIP FOR DOOR ARM WPL 530013 Contact Us For Availability
13
DOOR HINGE-UPPER AND LOWER WPL 530025 Contact Us For Availability
14
SCREW-INNER DOOR LINING WPL 560039 Contact Us For Availability
14
GASKET FOR INNER GLASS WPL 530014 Contact Us For Availability
14
GROMMET FOR POWER CORD WPL 530038 Contact Us For Availability
15
INSULATOR FOR SWITCHES WPL 530028 Contact Us For Availability
15
SCREW WPL 560050 Contact Us For Availability
15
GASKET FOR OUTER GLASS WPL 530015 Contact Us For Availability
15
COVER FOR STIRRER WPL 530043 Contact Us For Availability
16
GUIDE WPL 530047 Contact Us For Availability
16
SCREW WPL 560051 Contact Us For Availability
16
DOOR LATCH-UPPER WPL 530019 Contact Us For Availability
16
CLIP FOR PIN WPL 530044 Contact Us For Availability
17
NUT, No.6 - 32 WPL 530057 Contact Us For Availability
17
BRACKET FOR BLOWER HOUSING WPL 530089 Contact Us For Availability
17
SCREW WPL 560053 Contact Us For Availability
17
PIVOT PIN FOR DOOR HANDLE WPL 530021 Contact Us For Availability
17
PIN FOR SWITCH ACTUATOR WPL 530053 Contact Us For Availability
18
SCREW, No.6-32 X 1/4 INCH WPL 530064 Contact Us For Availability
18
EXHAUST FRAME WPL 530090 Contact Us For Availability
18
HANDLE FOR DOOR WPL 560071 Contact Us For Availability
18
DOOR SEAL PLATE WPL 530026 Contact Us For Availability
18
SCREW, No.4-40 X 1 INCH WPL 530062 Contact Us For Availability
19
FOAM INSULATION-EXHAUST DUC WPL 530118 Contact Us For Availability
19
INSULATION WPL 560087 Contact Us For Availability
19
SCREW, 1/4-20 X 1/2 INCH WPL 530065 Contact Us For Availability
20
NUT FOR GROUND SCREW WPL 530073 Contact Us For Availability
20
BELT FOR ANTENNA WPL Y530155 Contact Us For Availability
20
CLIP WPL 560191 Contact Us For Availability
20
BUSHING FOR DOOR ARM WPL 530037 Contact Us For Availability
20
WASHER-DOOR HINGE BRACKET WPL 530071 Contact Us For Availability
21
NUT FOR DOOR HINGES WPL 530074 Contact Us For Availability
21
COTTER PIN FOR PULLEY WPL 530157 Contact Us For Availability
21
SPACER WPL 560192 Contact Us For Availability
21
PIVOT BUSHING FOR DOOR LATC WPL 530039 Contact Us For Availability
22
SLEEVE FOR ANTENNA WPL 530158 Contact Us For Availability
22
TUBING SPACER WPL 560193 Contact Us For Availability
22
BUSHING FOR DOOR LATCH WPL 530041 Contact Us For Availability
22
NUT FOR STIRRER MOTOR WPL 530075 Contact Us For Availability
23
SCREW, No.4-40 WPL 530107 Contact Us For Availability
23
FAN BLADE FOR BLOWER MOTOR WPL 530159 Contact Us For Availability
23
BUSHING FOR DOOR ARM WPL 530042 Contact Us For Availability
23
PLASTIC RIVET WPL Y530076 Contact Us For Availability
24
CLIP FOR WIRE HARNESS WPL 530109 Contact Us For Availability
24
MOTOR PULLEY WPL 530161 Contact Us For Availability
24
TRIM FOR DOOR WPL 560298 Contact Us For Availability
24
GASKET FOR OUTER GLASS WPL 530048 Contact Us For Availability
24
RIVET WPL 530077 Contact Us For Availability
25
SCREW, No.8-32 X 1/2 INCH WPL 530110 Contact Us For Availability
25
PULLEY FOR ANTENNA WPL 530162 Contact Us For Availability
25
FRAME WPL 560443 Contact Us For Availability
25
GUIDE FOR DOOR LATCH WPL 530049 Contact Us For Availability
26
SCREW, No.8-32 X 1/4 INCH WPL 530084 Contact Us For Availability
26
BRACKET FOR CAPACITOR WPL 530115 Contact Us For Availability
26
EXHAUST DUCT - LOWER WPL 530168 Contact Us For Availability
26
WASHER WPL 560462 Contact Us For Availability
26
PIVOT FOR DOOR LATCH WPL 530051 Contact Us For Availability
27
BOLT-STOP FOR DOOR ARM WPL 530116 Contact Us For Availability
27
COVER FOR BLOWER HOUSING WPL 530175 Contact Us For Availability
27
NUT WPL 560470 Contact Us For Availability
27
DOOR LATCH-LOWER WPL 530052 Contact Us For Availability
28
SCREW WPL 530170 Contact Us For Availability
28
SPACER WPL 530176 Contact Us For Availability
28
FOAM TAPE - 87 INCHES WPL 560524 Contact Us For Availability
28
NUT, No.10 - 32 WPL 530058 Contact Us For Availability
28
ACTUATOR F/DOOR SWITCH-UPPE WPL 530099 Contact Us For Availability
29
BASE FOR MICROWAVE WPL 560724 Contact Us For Availability
29
BUSHING WPL 530177 Contact Us For Availability
29
EXTENSION FOR DOOR BAFFLE WPL 560584 Contact Us For Availability
29
SPRING FOR DOOR LATCH-UPPER WPL 530061 Contact Us For Availability
29
ACTUATOR F/DOOR SWITCH-LOWE WPL 530100 Contact Us For Availability
30
SCREW WPL 560585 Contact Us For Availability
30
SCREW, No.8-32 X 3/8 INCH WPL 530069 Contact Us For Availability
30
NUT WPL 530139 Contact Us For Availability
31
SCREW, No.6-32 X 3/8 INCH WPL 530070 Contact Us For Availability
31
BAFFLE WPL 560586 Contact Us For Availability
31
SCREW WPL Y530140 Contact Us For Availability
32
TOP OUTER BAFFLE WPL 560587 Contact Us For Availability
32
SUPPORT, FUSE HOLDER WPL 530142 Contact Us For Availability
33
GLASS - INNER DOOR WPL 560588 Contact Us For Availability
33
NUT FOR RECEPTACLE WPL 530153 Contact Us For Availability
34
GLASS FOR OVEN DOOR-CENTER WPL 560589 Contact Us For Availability
34
SPRING FOR DOOR LATCH-LOWER WPL 530081 Contact Us For Availability
34
GASKET FOR ANTENNA WPL 530156 Contact Us For Availability
35
GLASS - OUTER DOOR WPL 560590 Contact Us For Availability
35
LINKAGE FOR DOOR LATCH-UPPE WPL 530096 Contact Us For Availability
35
BEARING FOR ANTENNA WPL Y530160 Contact Us For Availability
36
SPACER FOR DOOR GLASS WPL 560591 Contact Us For Availability
36
LINKAGE FOR DOOR LATCH-LOWE WPL 530097 Contact Us For Availability
37
SPRING FOR OVEN DOOR WPL 560595 Contact Us For Availability
37
DOOR SCREEN WPL 530101 Contact Us For Availability
38
INNER DOOR GLASS WITH GASKE WPL 530147 Contact Us For Availability
NI
TRIM-DOOR ENDS WPL 560196 Contact Us For Availability
NI
DOOR SEAL KIT WPL 520128 Contact Us For Availability
NI
NUT, No.8 - 32 WPL 530078 Contact Us For Availability
× ![]()
