Model Whirlpool GBE26AA ELECTRIC RANGE – Common Parts & Diagrams

1

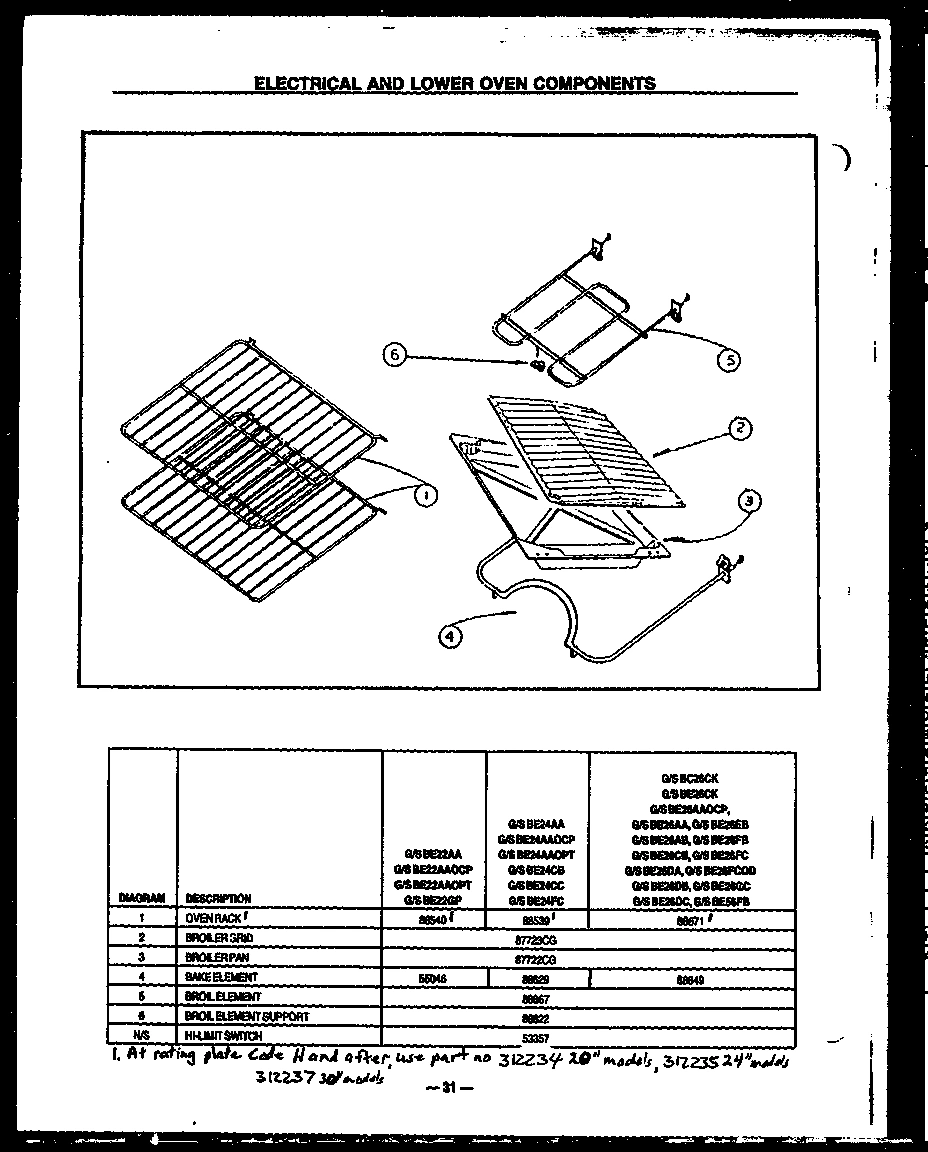

OVEN RACK
OVEN RACK WPL Y0088671 Contact Us For Availability
View on Model
1

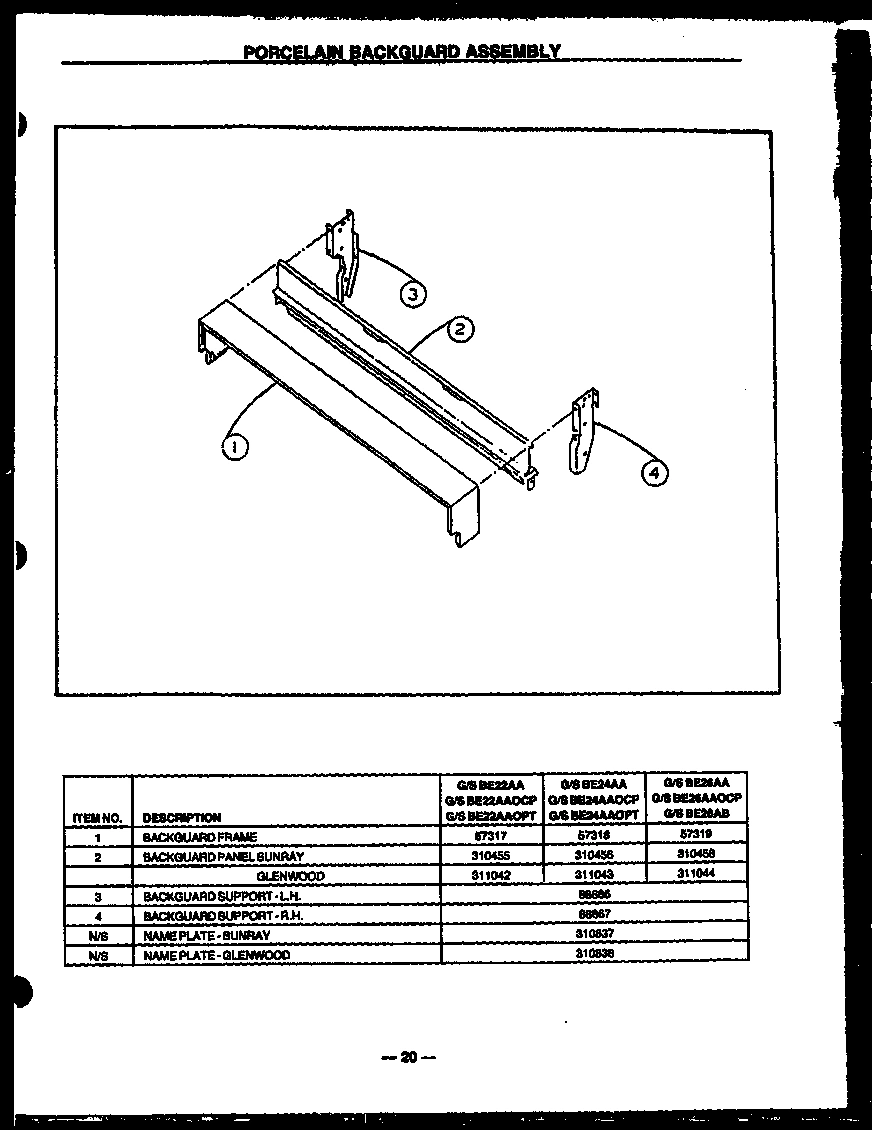

BACKGUARD FRAME (J)
BACKGUARD FRAME (J) WPL 0057319 Contact Us For Availability
View on Model
1

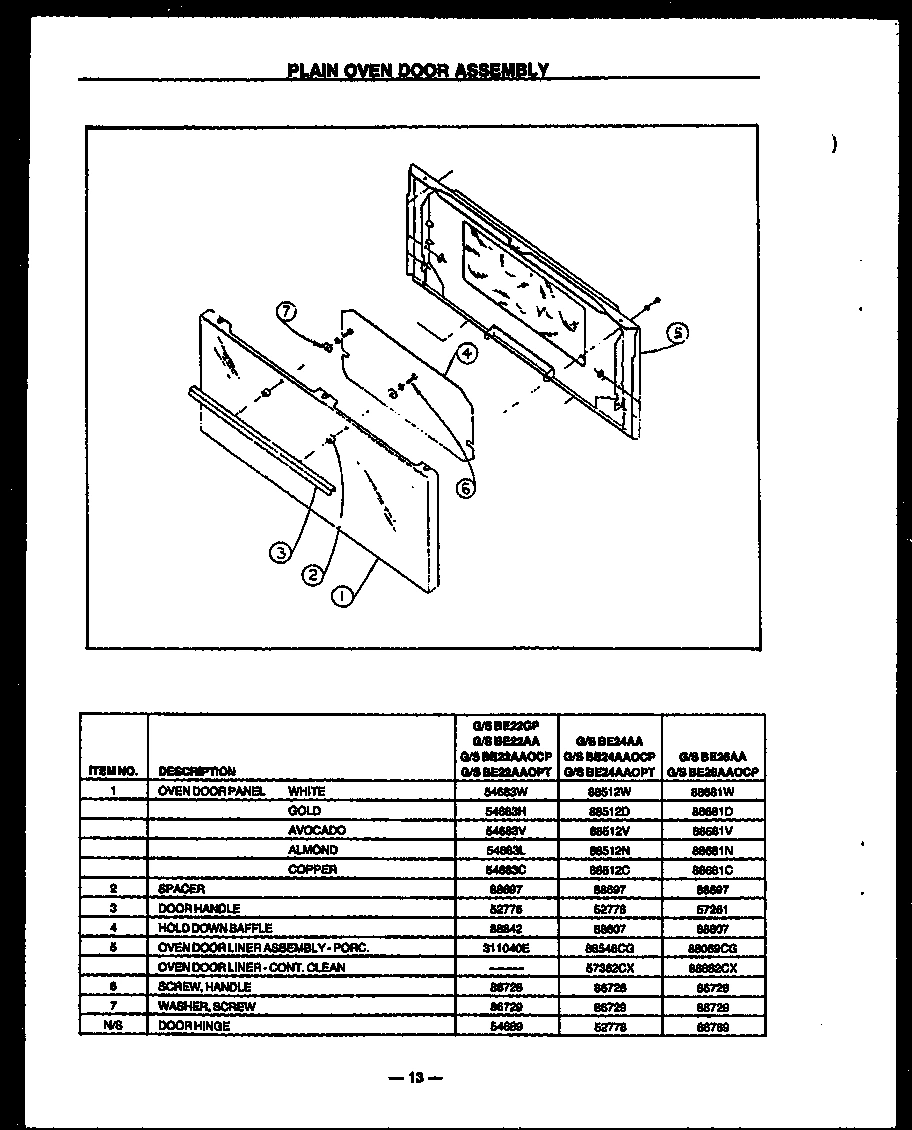

OVEN DOOR PANEL, ALMOND
OVEN DOOR PANEL, ALMOND WPL 088681N Contact Us For Availability
View on Model
1
PANEL (WHITE)
PANEL (WHITE) WPL 088681W Contact Us For Availability
View on Model
1
OVEN DOOR PANEL, DARK COPPER
OVEN DOOR PANEL, DARK COPPER WPL Y088681C Contact Us For Availability
View on Model
1
OVEN DOOR PANEL, GOLD
OVEN DOOR PANEL, GOLD WPL Y088681D Contact Us For Availability
View on Model
1
OVEN DOOR PANEL, AVOCADO
OVEN DOOR PANEL, AVOCADO WPL Y088681V Contact Us For Availability
View on Model
1

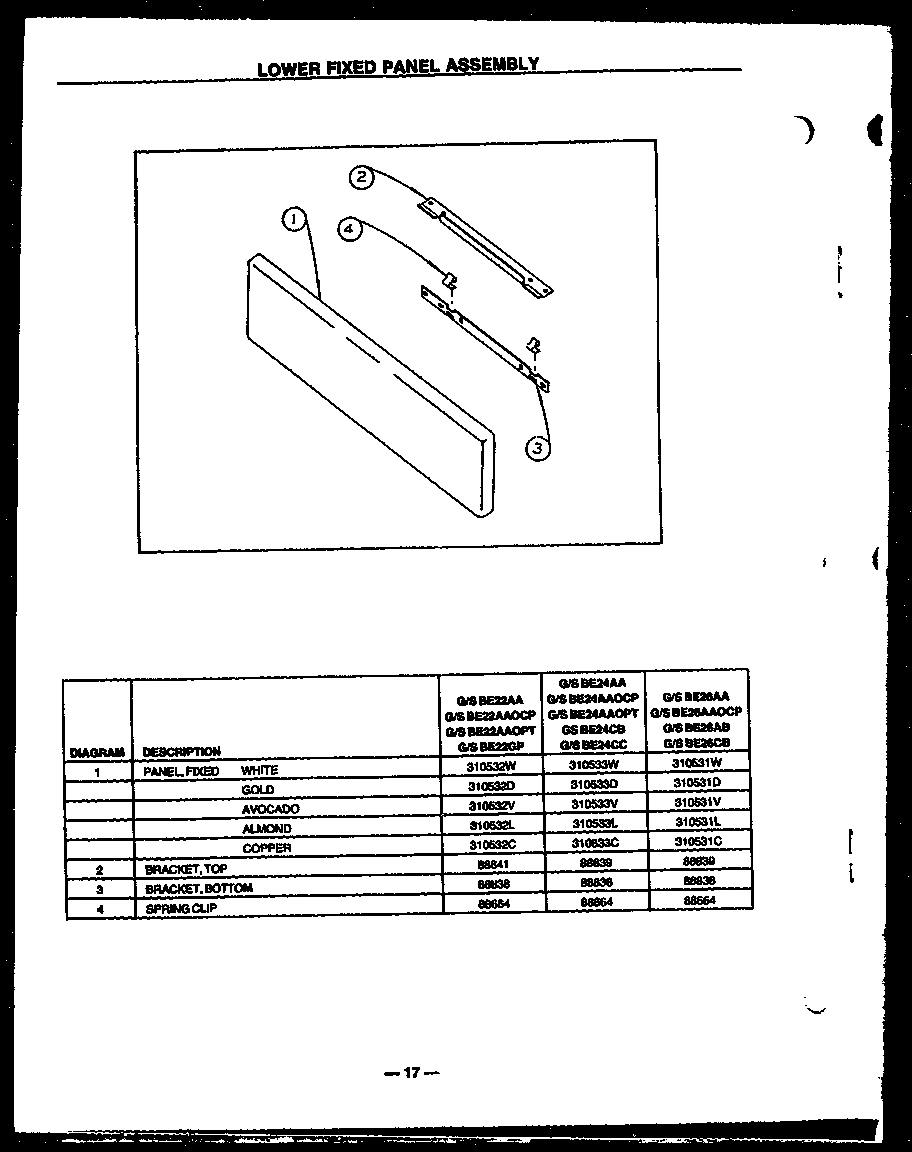

PANEL, FIXED COPPER
PANEL, FIXED COPPER WPL 310531C Contact Us For Availability
View on Model
1
PANEL, FIXED
PANEL, FIXED WPL 310531D Contact Us For Availability
View on Model
1
PANEL, FIXED
PANEL, FIXED WPL 310531L Contact Us For Availability
View on Model
1
PANEL, FIXED AVOCADO
PANEL, FIXED AVOCADO WPL 310531V Contact Us For Availability
View on Model
1
PANEL, FIXED
PANEL, FIXED WPL 310531W Contact Us For Availability
View on Model
2
PANEL, FILR, 4 X 30
PANEL, FILR, 4 X 30 WPL 0310458 Contact Us For Availability
View on Model
2
KIT, PANEL 30`` GLENWOOD
KIT, PANEL 30`` GLENWOOD WPL Y0311044 Contact Us For Availability
View on Model
2
HANDLE SPACER, PLASTIC (J)
HANDLE SPACER, PLASTIC (J) WPL Y0088697 Contact Us For Availability
View on Model
2
BRACKET, TOP
BRACKET, TOP WPL Y88839 Contact Us For Availability
View on Model
3
SUPPORT, BACKGUARD, L.H.
SUPPORT, BACKGUARD, L.H. WPL 0088666 Contact Us For Availability
View on Model
3
SUB 88812, HANDLE OVEN DR {J}
SUB 88812, HANDLE OVEN DR {J} WPL Y0057261 Contact Us For Availability
View on Model
3
BRACKET, BOTTOM
BRACKET, BOTTOM WPL 88838 Contact Us For Availability
View on Model
4
SUPPORT, BACKGUARD, R.H.
SUPPORT, BACKGUARD, R.H. WPL 0088667 Contact Us For Availability
View on Model
4
RING, INSULATION HOLD DOWN
RING, INSULATION HOLD DOWN WPL 0088807 Contact Us For Availability
View on Model
4
SPRING CLIP
SPRING CLIP WPL Y0088664 Contact Us For Availability
View on Model
5
BACKER, OVEN DOOR (NO WINDOW)
BACKER, OVEN DOOR (NO WINDOW) WPL 88069CG Contact Us For Availability
View on Model
5
LINER, OVEN DOOR
LINER, OVEN DOOR WPL 88682CX Contact Us For Availability
View on Model
6
SCREW, No.10-24X1/2 (PH TRUS HD)
SCREW, No.10-24X1/2 (PH TRUS HD) WPL Y0086728 Contact Us For Availability
View on Model
7
WASHER, STEEL (1/4 X 9/16)
WASHER, STEEL (1/4 X 9/16) WPL Y0086729 Contact Us For Availability
View on Model
9
MANIFOLD PANEL, 30``
MANIFOLD PANEL, 30`` WPL Y0310481 Contact Us For Availability
View on Model
11
KNOB, THERMOSTAT
KNOB, THERMOSTAT WPL Y0310527 Contact Us For Availability
View on Model
14
BURNER BOX
BURNER BOX WPL 56011CG Contact Us For Availability
View on Model
16
COVER, REAR BURNER BOX
COVER, REAR BURNER BOX WPL 311014E Contact Us For Availability
View on Model
20
BOTTOM WIRE COVER SUPPORT
BOTTOM WIRE COVER SUPPORT WPL Y0088832 Contact Us For Availability
View on Model
22
COVER WIRE
COVER WIRE WPL Y0088833 Contact Us For Availability
View on Model
31
TOP DOOR SEAL
TOP DOOR SEAL WPL 56069 Contact Us For Availability
View on Model
NI
SUNRAY LABEL
SUNRAY LABEL WPL 0310837 Contact Us For Availability
View on Model
NI
NAMEPLATE, GLENWOOD
NAMEPLATE, GLENWOOD WPL 0310838 Contact Us For Availability
View on Model
NI
HINGE, OVEN DOOR
HINGE, OVEN DOOR WPL Y0086789 Contact Us For Availability
View on Model
NI
SCREW
SCREW WPL 0055047 Contact Us For Availability
View on Model
