Model Whirlpool GAX97DW DISHWASHER – Common Parts & Diagrams
05 - MOTOR

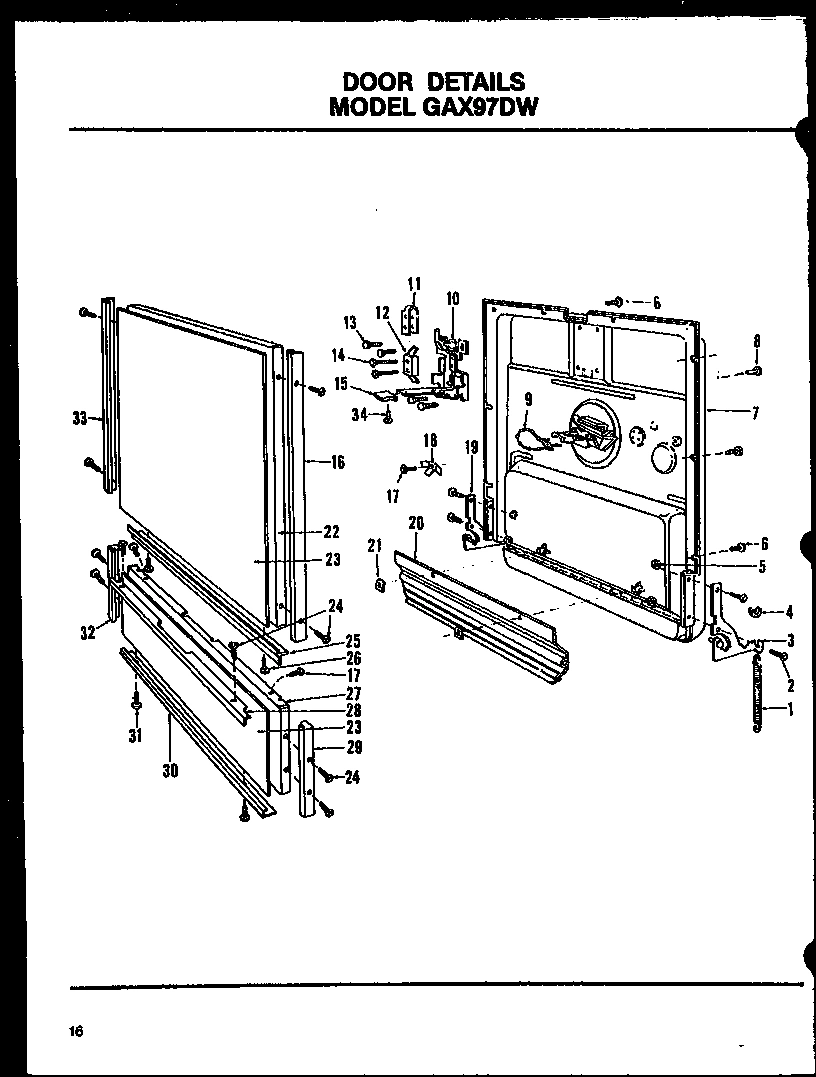

03 - DOOR DETAILS

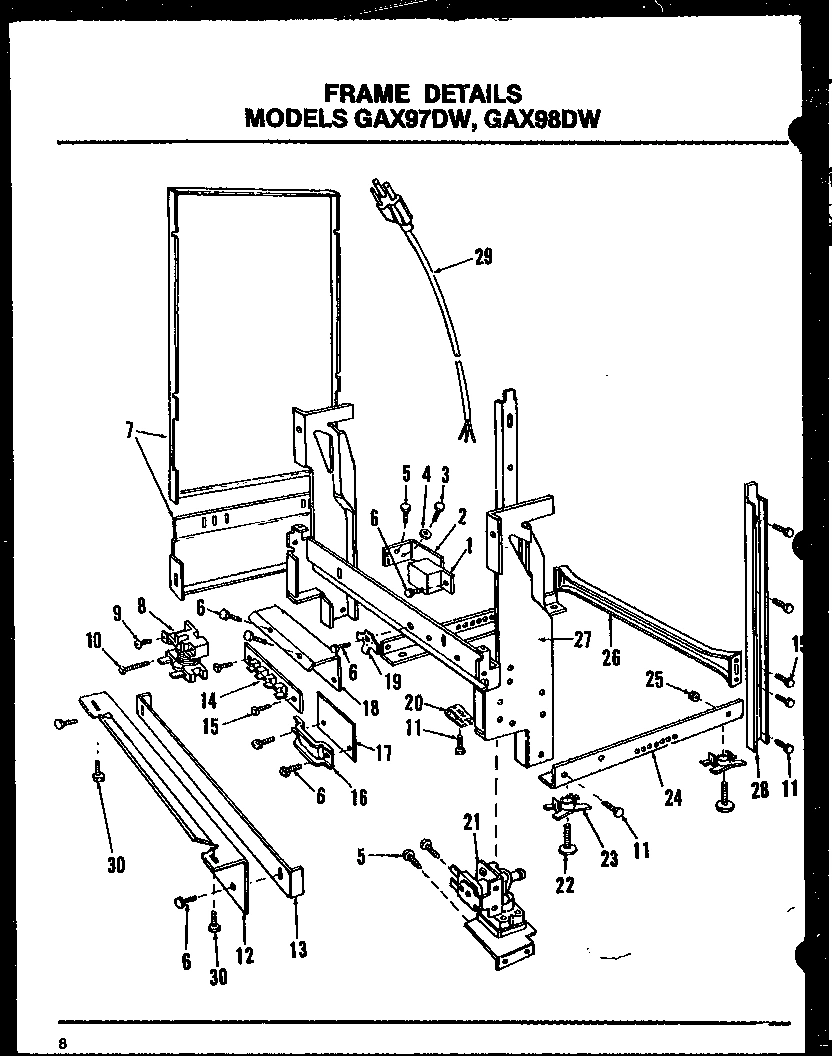

04 - FRAME DETAILS

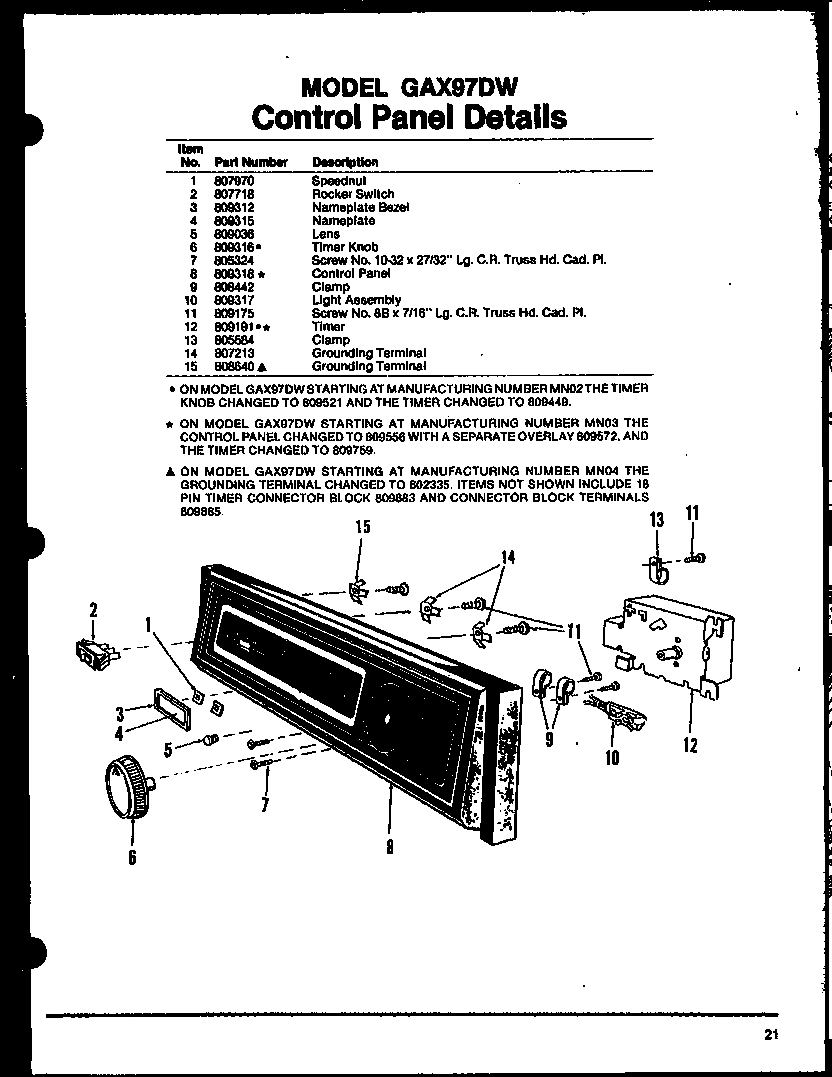

01 - CONTROL PANEL DETAILS

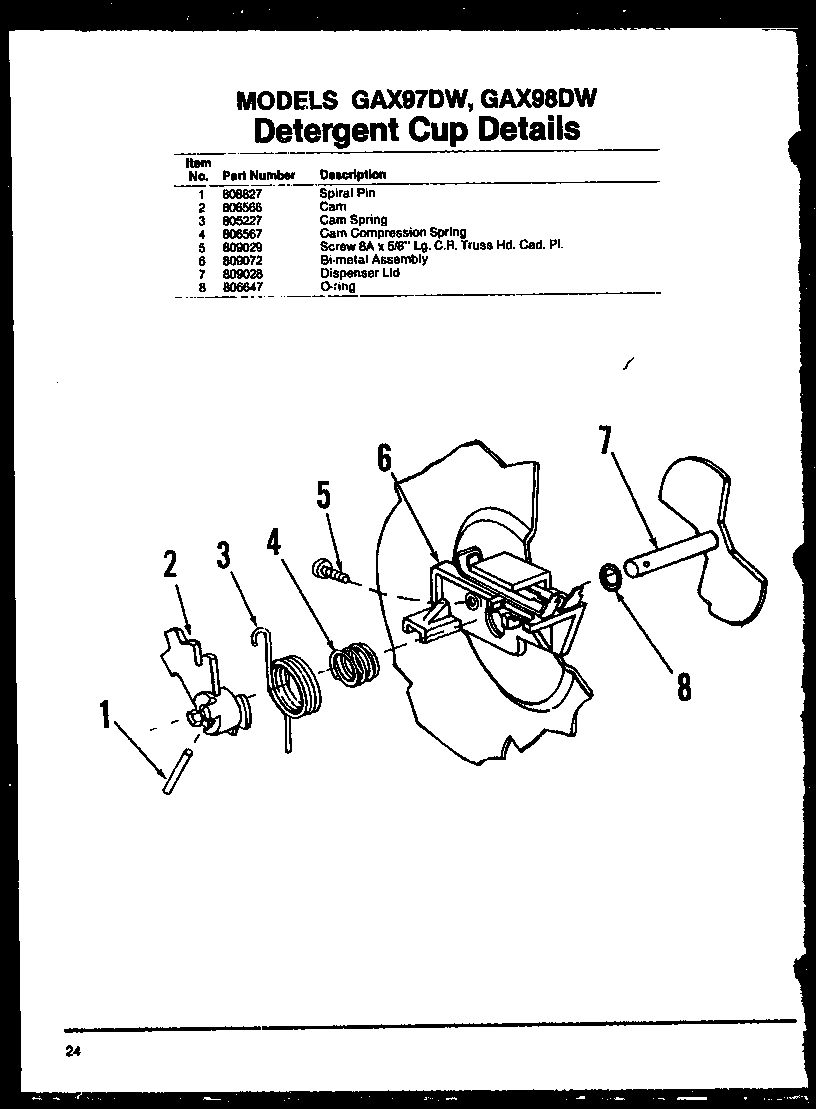

02 - DETERGENT CUP DETAILS

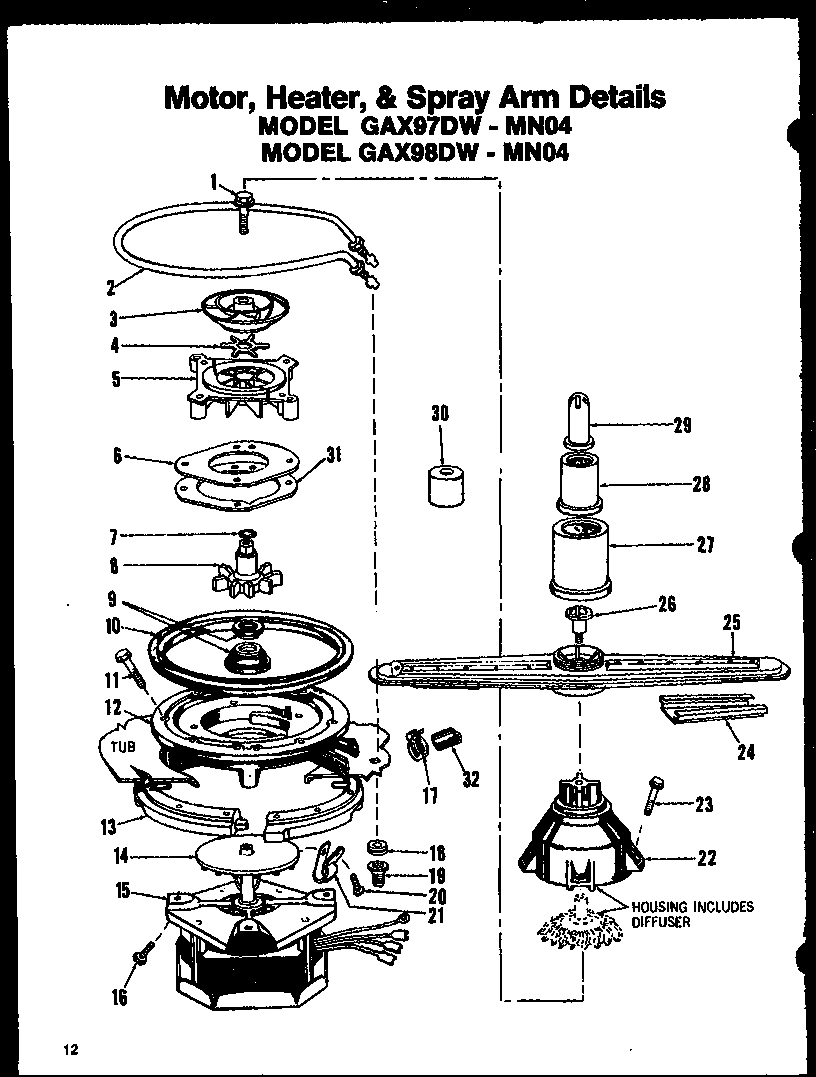

06 - MOTOR

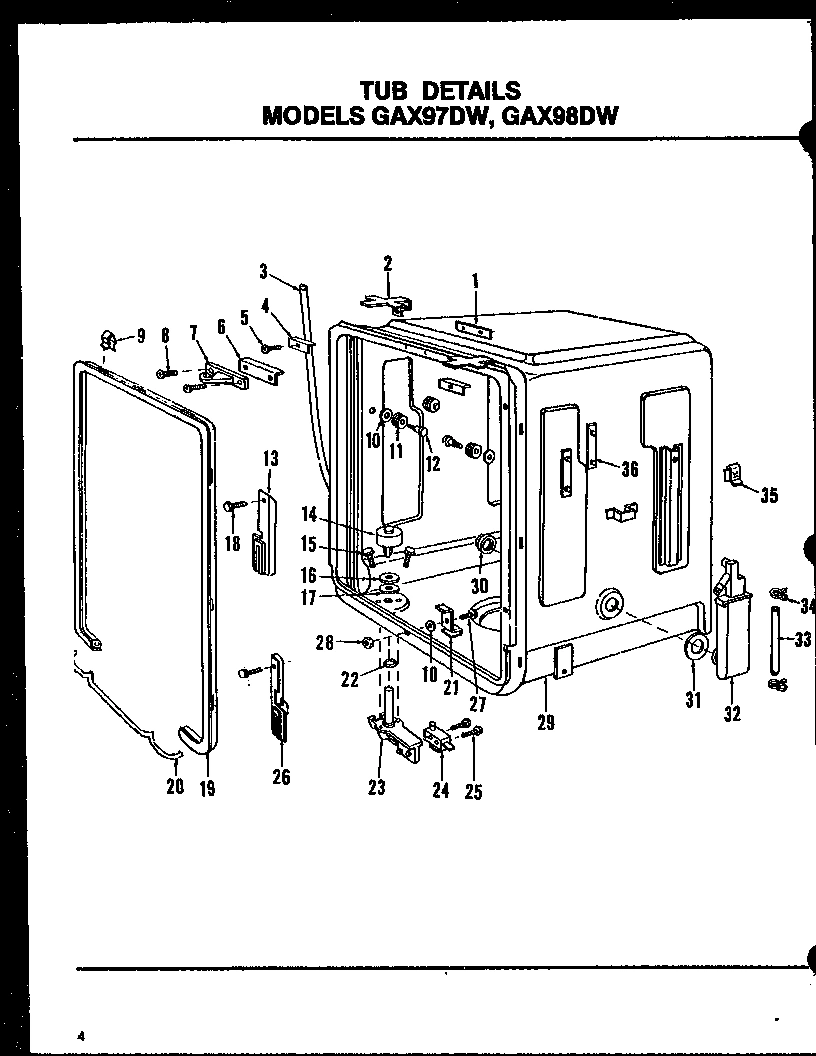

08 - TUB DETAILS

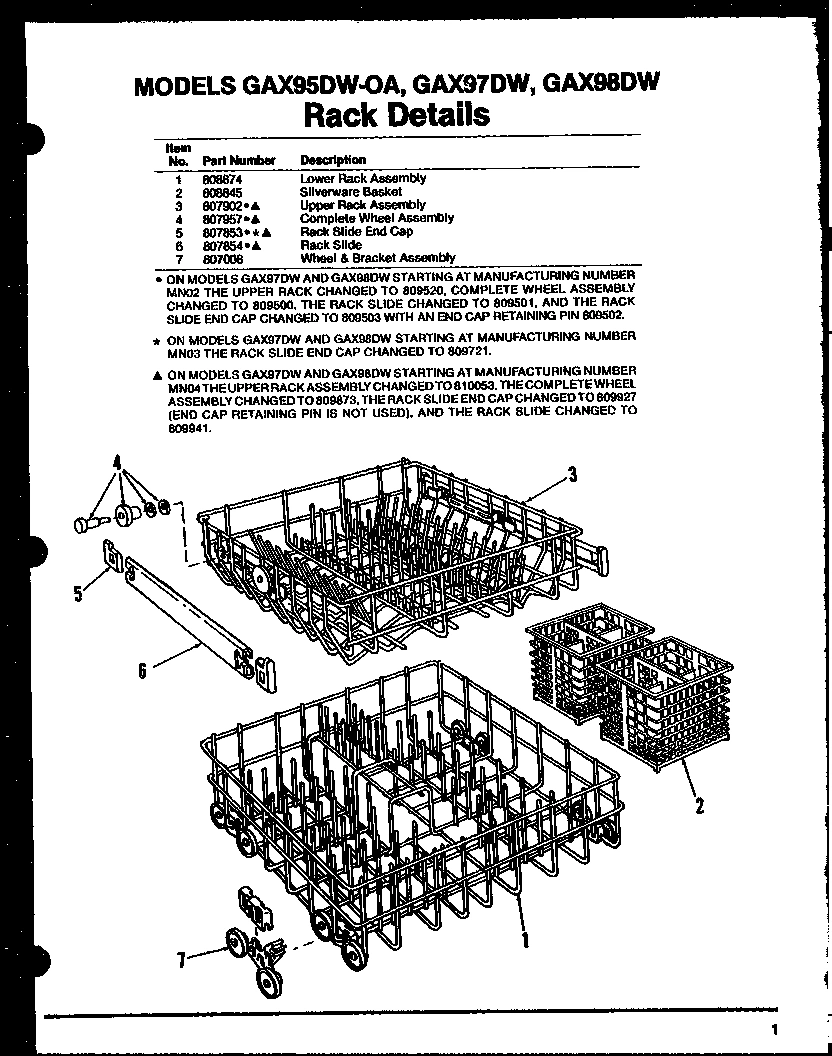

07 - RACK DETAILS
Common parts from model Whirlpool GAX97DW DISHWASHER
1
SCREW No.10X1-1/4`` LG HEX WASHER WPL Y0806353 Contact Us For Availability
1
JUNCTION BOX COVER WPL 0800222 Contact Us For Availability
1
SPEEDNUT WPL 807970 Contact Us For Availability
1
SPIROL PIN WPL Y0808827 Contact Us For Availability
1
LATCH TAPPING PLATE WPL 0808868 Contact Us For Availability
1
LOWER RACK ASSY WPL Y0808874 Contact Us For Availability
2
No.8 TYPE A SET SST WASHER WPL 0803367 Contact Us For Availability
2
HEATER WPL Y0809060 Contact Us For Availability
2
SCREW WPL 0803311 Contact Us For Availability
2
COVER BRACKET WPL 0807019 Contact Us For Availability
2
SWITCH ROCKER WPL Y0807718 Contact Us For Availability
2
CAM WPL Y0806566 Contact Us For Availability
2
SILVERWARE BASKET WPL Y0808845 Contact Us For Availability
3
ARM ASSY COUNTERBALANCE R H WPL Y0805681 Contact Us For Availability
3
SCREW WPL 0807951 Contact Us For Availability
3
BEZEL, NAMEPLATE WPL 0809312 Contact Us For Availability
3
SPRING WPL Y0805227 Contact Us For Availability
3
IMPELLER, UPPER WPL Y0809918 Contact Us For Availability
3
DRAIN HOSE WPL Y0809112 Contact Us For Availability
4
UPPER IMPELLER WPL Y0809005 Contact Us For Availability
4
SPRING PAD WPL 0805884 Contact Us For Availability
4
WASHER WPL 0807373 Contact Us For Availability
4
NAMEPLATE WPL 809315 Contact Us For Availability
4
SPRING, CAM COMPRESSION WPL 0806567 Contact Us For Availability
4
MACERATOR WPL Y0809920 Contact Us For Availability
4
CLIP, SHIM WPL 0809199 Contact Us For Availability
5
BLADE, MACERATOR WPL 0808075 Contact Us For Availability
5
SCREW WPL Y0807950 Contact Us For Availability
5
LENS WPL 0809036 Contact Us For Availability
5
PLATE, SPACER WPL 0809921 Contact Us For Availability
5
SCREW WPL 0806976 Contact Us For Availability
6
SHROUD IMPELLER WPL Y0806267 Contact Us For Availability
6
PUMP PLATE WPL 0807884 Contact Us For Availability
6
BI-METAL ASSY. WPL Y0809072 Contact Us For Availability
6
SHIM WPL 0809214 Contact Us For Availability
7
``O`` RING WPL Y0806521 Contact Us For Availability
7
DOOR ASSY. WPL 0809052 Contact Us For Availability
7
SIDE PANEL KIT, WHITE WPL 0808880 Contact Us For Availability
7
SIDE PANEL KIT, ALMOND WPL 0808884 Contact Us For Availability
7
SIDE PANEL KIT WPL 808881 Contact Us For Availability
7
SIDE PANEL KIT WPL 808882 Contact Us For Availability
7
SIDE PANEL KIT WPL 808883 Contact Us For Availability
7
SCREW WPL 0805324 Contact Us For Availability
7
LID, DISPENSER WPL Y0809028 Contact Us For Availability
7
STRIKE WPL Y0807015 Contact Us For Availability
7
WHEEL ASSY WPL Y0807008 Contact Us For Availability
8
SCREW WPL Y0808749 Contact Us For Availability
8
RELAY WPL 0805255 Contact Us For Availability
8
``O`` RING WPL Y0806647 Contact Us For Availability
8
IMPELLER, UPPER WPL Y0809909 Contact Us For Availability
9
WATER SEAL WPL Y0803903 Contact Us For Availability
9
TIE WIRE WPL Y0809075 Contact Us For Availability
9
FASTENER GASKET WPL Y0805763 Contact Us For Availability
10
PUMP SEAL KIT WPL Y0809116 Contact Us For Availability
10
GASKET WPL Y0809008 Contact Us For Availability
10
LATCH ASSEMBLY WPL Y0807016 Contact Us For Availability
10
SCREW WPL 0804672 Contact Us For Availability
10
LIGHT, ASSY. WPL 0809317 Contact Us For Availability
10
WASHER, SEALING WPL 0809044 Contact Us For Availability
11
SWITCH COVER WPL 0807450 Contact Us For Availability
11
SCREW WPL 0807001 Contact Us For Availability
11
SCREW WPL 0809175 Contact Us For Availability
11
SUB 807268, SCREW HEX HD. WPL Y0809697 Contact Us For Availability
11
ROLLER WPL 0807180 Contact Us For Availability
12
SWITCH, DOOR LATCH WPL Y0807043 Contact Us For Availability
12
PUMP HOUSING, LOWER WPL Y0809919 Contact Us For Availability
12
SCREW & WASHER KIT WPL 80564 Contact Us For Availability
13
CLAMP RING WPL Y0807712 Contact Us For Availability
13
TOE PLATE, ADJUSTABLE WPL 0809303 Contact Us For Availability
13
GUIDE, COUNTERBALANCE, L.H. WPL Y0807470 Contact Us For Availability
14
PUMP HOUSING WPL Y0809059 Contact Us For Availability
14
SCREW WPL 0808618 Contact Us For Availability
14
TERMINAL, GROUNDING WPL 0807213 Contact Us For Availability
14
TERMINAL BLOCK WPL 0807486 Contact Us For Availability
14
WATER SHIELD ASSY WPL Y0809366 Contact Us For Availability
15
SCREW WPL Y0807268 Contact Us For Availability
15
SUB 806893 LATCH KNOB WPL 0806398 Contact Us For Availability
15
GND TERM WPL 808640 Contact Us For Availability
15
MOTOR ASSEMBLY WPL Y0809985 Contact Us For Availability
16
SCREW WPL Y0809022 Contact Us For Availability
16
DOOR PNL TRIM, RH WPL 0808976 Contact Us For Availability
16
WIRING CLAMP WPL 0806723 Contact Us For Availability
16
RING WPL Y0808064 Contact Us For Availability
17
TOLERANCE RING WPL 0808898 Contact Us For Availability
17
WIRE SHIELD WPL 0809144 Contact Us For Availability
17
GASKET WPL Y0808063 Contact Us For Availability
18
MOTOR ASSY WPL Y0809100 Contact Us For Availability
18
GROMMET WPL Y0806833 Contact Us For Availability
18
BRACKET, TERMINAL BOARD WPL 0807849 Contact Us For Availability
18
SCREW, No.10-24 X 5/8 WPL 0806539 Contact Us For Availability
19
NUT WPL 0806834 Contact Us For Availability
19
ARM ASSY LH COUNTERBALANCE WPL 0805682 Contact Us For Availability
19
GASKET & WIRE ASSY WPL Y0809035 Contact Us For Availability
20
SHIM GAUGE WPL 0807077 Contact Us For Availability
20
SCREW WPL 0807270 Contact Us For Availability
20
BAFFLE SEAL WPL Y0809025 Contact Us For Availability
20
SPEED NUT WPL 0808170 Contact Us For Availability
20
GASKET JUNCTION WIRE WPL 808320 Contact Us For Availability
21
CLAMP WPL Y0808442 Contact Us For Availability
21
SPEEDNUT WPL 0809026 Contact Us For Availability
21
VALVE ASSY WPL Y0809240 Contact Us For Availability
21
CLIP, GASKET WPL 0808115 Contact Us For Availability
22
DOOR PANEL, WHITE WPL 0807262 Contact Us For Availability
22
PUMP HOUSING, UPPER WPL Y0809953 Contact Us For Availability
22
``0`` RING WPL Y0807759 Contact Us For Availability
23
DOOR & ACCESS PANEL INSERT,ALM WPL 0808908 Contact Us For Availability
23
DOOR & ACCESS PNL INSERTS AVOC WPL 0808909 Contact Us For Availability
23
DOOR & ACCESS PNL INSERTS HARV WPL 0808912 Contact Us For Availability
23
SUB 808804, DOOR&ACC. PANEL IN WPL 0808913 Contact Us For Availability
23
DOOR AND ACCESS PANEL INSERTS WPL 0808914 Contact Us For Availability
23
DOOR TRIM WPL 808910 Contact Us For Availability
23
DOOR TRIM WPL 808911 Contact Us For Availability
23
DOOR TRIM WPL 808916 Contact Us For Availability
23
TEE NUT - SNAP IN WPL 0807671 Contact Us For Availability
23
SCREW WPL 0809831 Contact Us For Availability
24
SHIELD, SPRAY ARM WPL 0809938 Contact Us For Availability
25
DOOR TRIM, BOTTOM WPL Y0807347 Contact Us For Availability
25
SPRAY ARM, LOWER WPL 0809954 Contact Us For Availability
26
SPRAY ARM BOLT WPL Y0809018 Contact Us For Availability
26
BRACE, REAR WPL Y0807852 Contact Us For Availability
26
GUIDE, COUNTERBALANCE, R.H. WPL Y0807471 Contact Us For Availability
27
IMPELLER, HOUSING KIT WPL Y0809119 Contact Us For Availability
27
TOWER BASE WPL Y0808178 Contact Us For Availability
27
ACCESS PANEL, WHITE WPL 0809108 Contact Us For Availability
27
WELD ASSEMBLY, HINGE WPL 0807848 Contact Us For Availability
28
SCREW, PUMP HOUSING WPL 0807359 Contact Us For Availability
28
TOWER SECTION WPL Y0808179 Contact Us For Availability
28
TRIM, TOP, ACCESS PANEL WPL 0808346 Contact Us For Availability
28
SUPPORT CHANNEL WPL 0808670 Contact Us For Availability
28
USE M0281003 WPL 0803346 Contact Us For Availability
29
BEARING WPL Y0809046 Contact Us For Availability
29
TOWER TIP WPL Y0808180 Contact Us For Availability
29
TRIM, R.H. WPL 0808028 Contact Us For Availability
29
POWER CORD WPL Y0808395 Contact Us For Availability
29
TUB & GASKET ASSY. WPL 0809257 Contact Us For Availability
30
SEAL INSTALLATION TOOL WPL Y0803923 Contact Us For Availability
30
ACCESS PANEL TRIM, BOTTOM WPL Y0808027 Contact Us For Availability
30
USE M0217224 WPL Y0803416 Contact Us For Availability
30
NUT PLASTIC WPL 0805669 Contact Us For Availability
31
GASKET, PUMP WPL Y0807709 Contact Us For Availability
31
SPRAY ARM WPL 0808177 Contact Us For Availability
31
WASHER WPL Y0803573 Contact Us For Availability
32
WATER INLET ASSY WPL Y0806470 Contact Us For Availability
33
DOOR PNL TRIM, LH WPL 0808977 Contact Us For Availability
33
TUBE, INLET WPL 0807891 Contact Us For Availability
34
USE 0806830 WPL 0809163 Contact Us For Availability
34
CLAMP WPL Y0807813 Contact Us For Availability
35
NUT, CAGE WPL 0806291 Contact Us For Availability
36
TWIN NUT ASSEM. WPL 0807038 Contact Us For Availability
NI
GAX97DW/MN01 (INCLUDES MN00, 01, 02, 03) WPL NOTE Contact Us For Availability
NI
DOOR KIT, BLACK ACRYLIC WPL 0808926 Contact Us For Availability
× ![]()
