Model Electrolux GAL128W1A2 ROOM AIR CONDITIONER – Common Parts & Diagrams

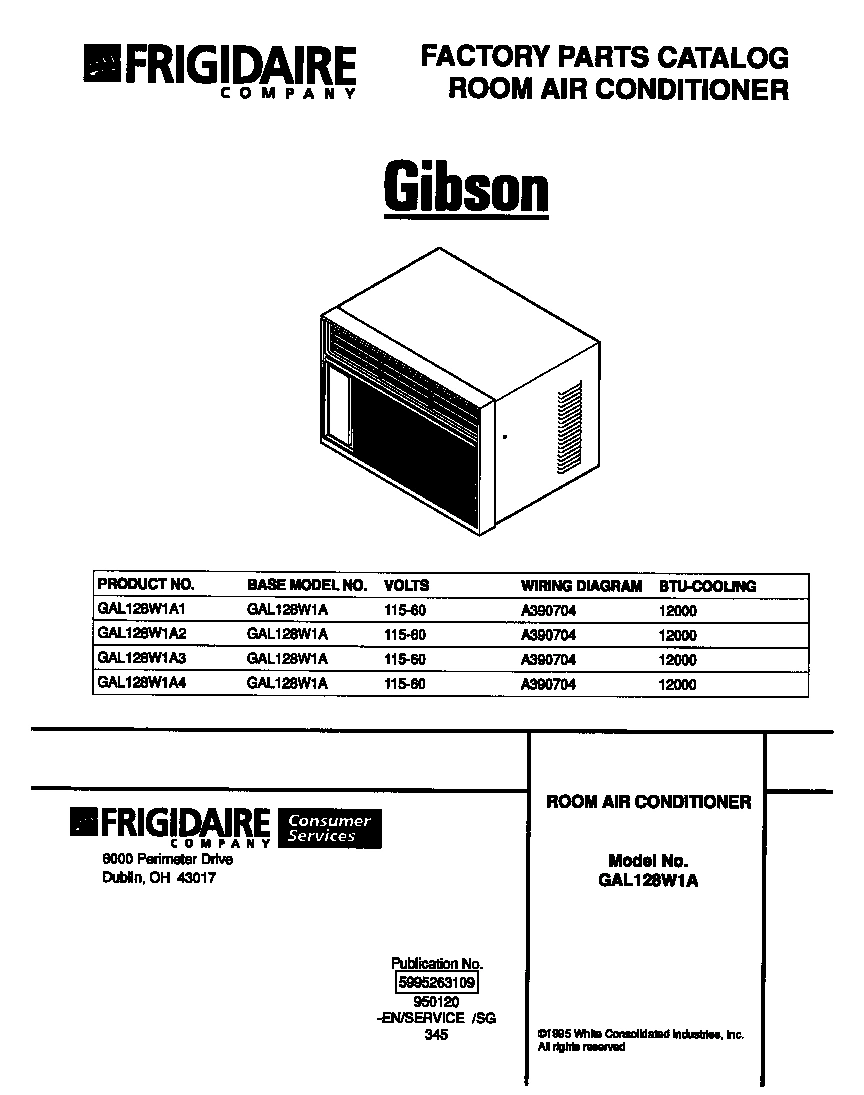

01 - COVER

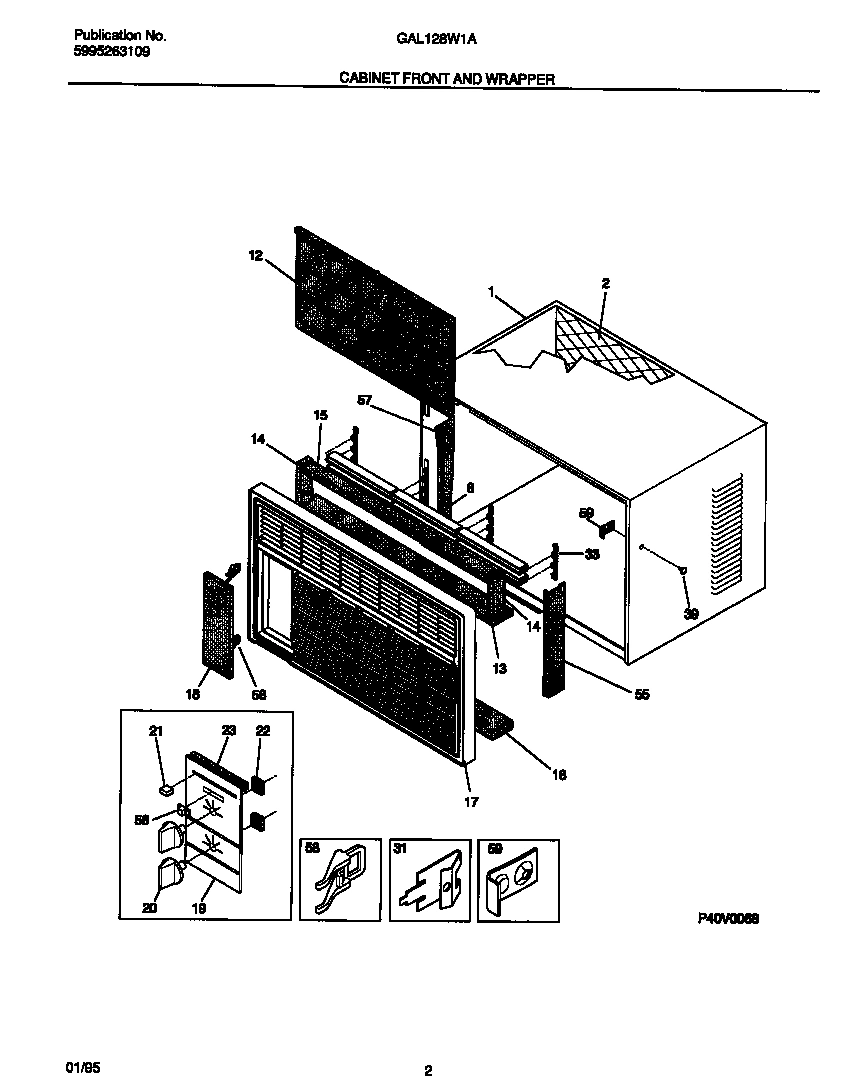

02 - CABINET FRONT AND WRAPPER

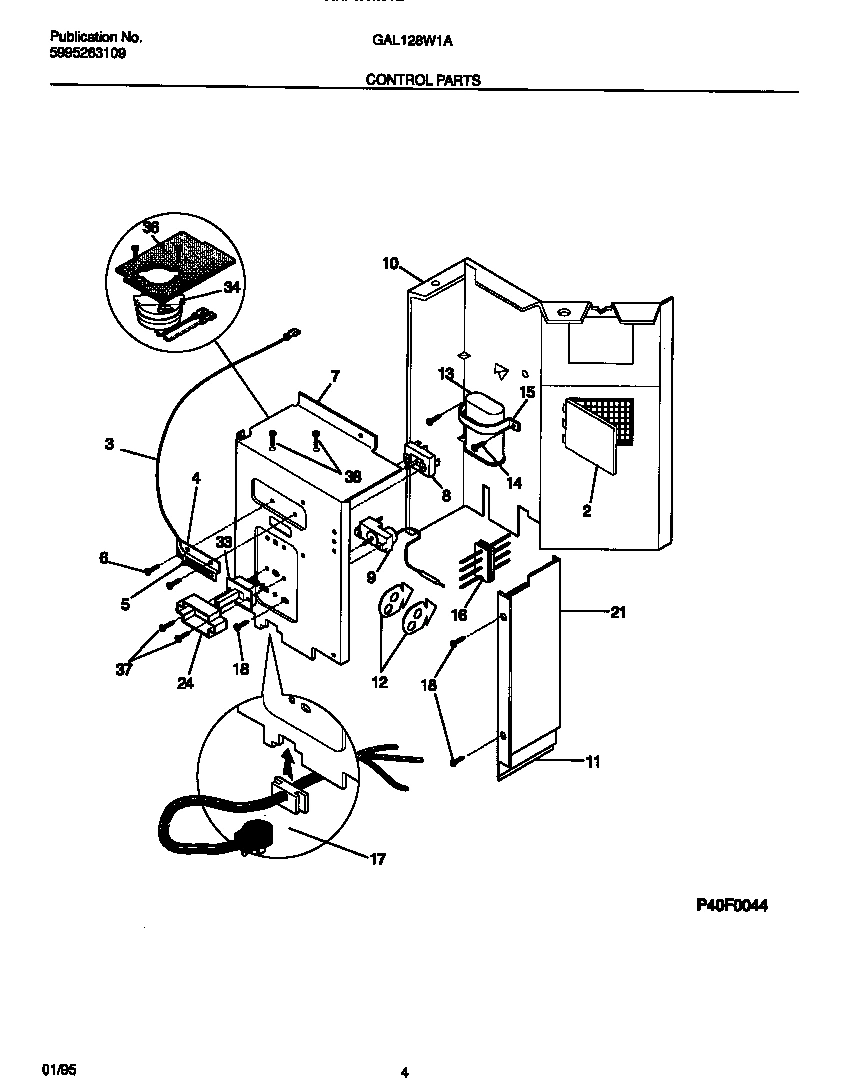

03 - CONTROL PARTS

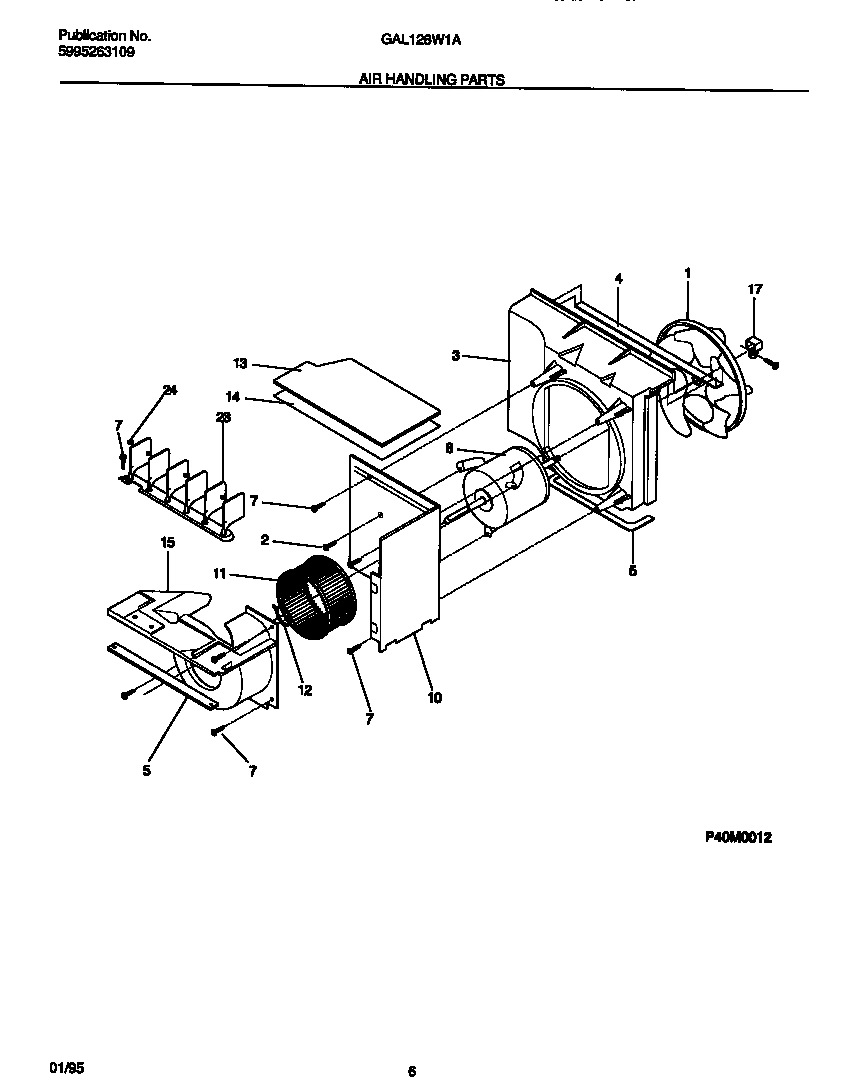

04 - AIR HANDLING PARTS

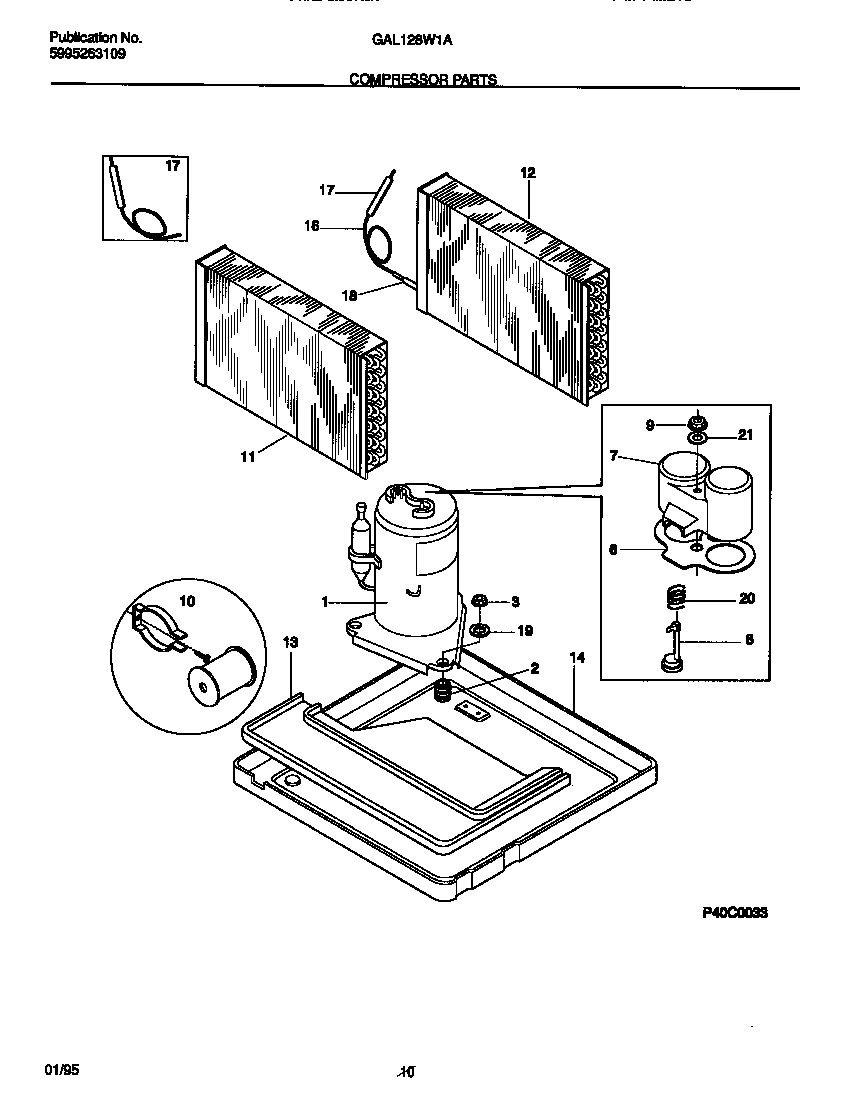

06 - COMPRESSOR PARTS

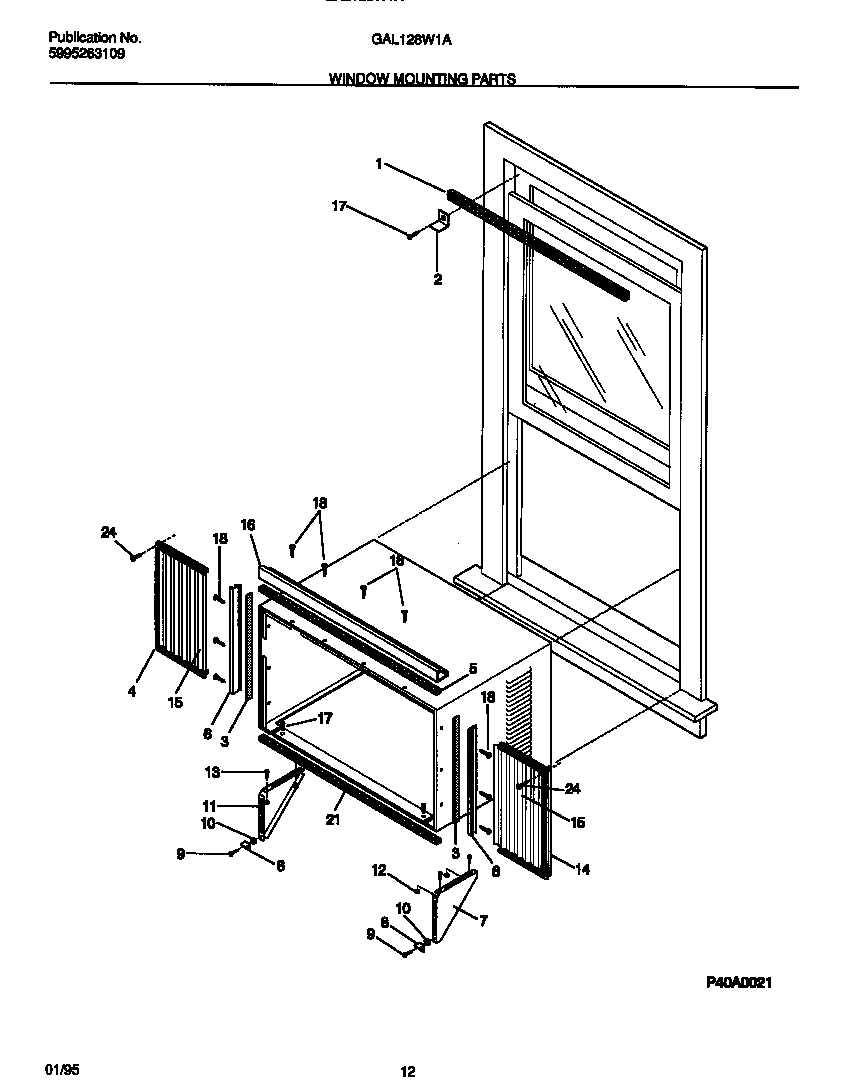

07 - WINDOW MOUNTING PARTS

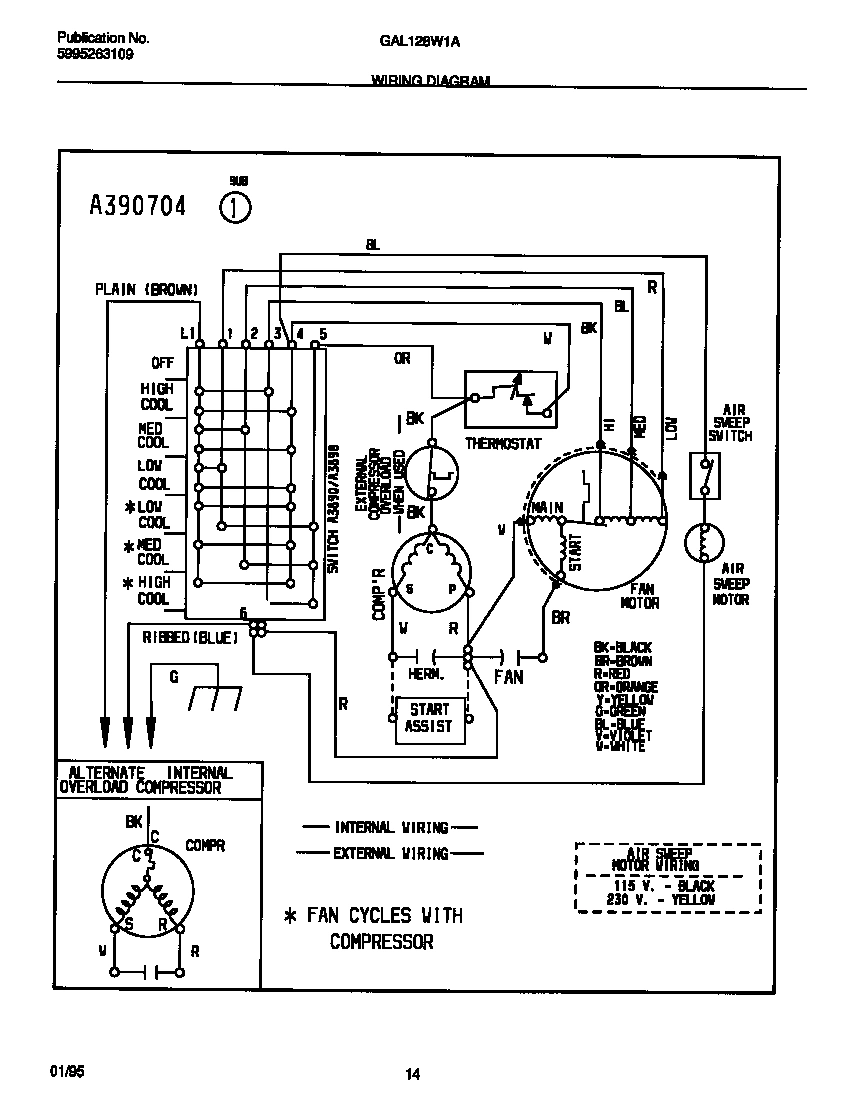

08 - WIRING DIAGRAM
Common parts from model Electrolux GAL128W1A2 ROOM AIR CONDITIONER
*38280
WCI 5303301887 WCI 5303301887 Contact Us For Availability
1
WCI 5303202954 WCI 5303202954 Contact Us For Availability
1
WCI 5303307244 WCI 5303307244 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
DOOR-VENT WCI 5303295752 Contact Us For Availability
2
GROMMET-COMPRESSOR WCI 5303283877 Contact Us For Availability
3
CABLE - VENT DOOR WCI 5303015298 Contact Us For Availability
3
WCI 3202950 WCI 3202950 Contact Us For Availability
3
NUT - COMPRESSOR WCI 5308006948 Contact Us For Availability
3
WCI 5303276728 WCI 5303276728 Contact Us For Availability
4
RETAINER - ACTUATOR WCI 5303202999 Contact Us For Availability
4
SEAL-SHROUD TOP WCI 3202953 Contact Us For Availability
4
FRAME, LH WCI 5303301245 Contact Us For Availability
5
ARM-ACTUATOR WCI 3202941 Contact Us For Availability
5
SEAL WCI 3202951 Contact Us For Availability
5
WCI 5303207200 WCI 5303207200 Contact Us For Availability
6
WCI 5303002035 WCI 5303002035 Contact Us For Availability
6
RETAINER-ACCORDIAN WCI 5303301250 Contact Us For Availability
7
WCI 5303296861 WCI 5303296861 Contact Us For Availability
7
COVER-TERMINAL WCI 5303211011 Contact Us For Availability
7
WCI 5303301254 WCI 5303301254 Contact Us For Availability
8
WCI 3017344 WCI 3017344 Contact Us For Availability
8
LOUVER WCI 3018412 Contact Us For Availability
8
WCI 5303202807 WCI 5303202807 Contact Us For Availability
8
OVERLOAD WCI 5303307245 Contact Us For Availability
8
BRACKET - SUPPORT WCI 3001815 Contact Us For Availability
9
WCI 5303301708 WCI 5303301708 Contact Us For Availability
9
WCI 5303301734 WCI 5303301734 Contact Us For Availability
9
SCREW - SILL SUPT WCI 3007756 Contact Us For Availability
10
WCI 5303306050 WCI 5303306050 Contact Us For Availability
10
WCI 5303201723 WCI 5303201723 Contact Us For Availability
10
NUT - BRACKET WCI 3007759 Contact Us For Availability
11
WCI 5303306020 WCI 5303306020 Contact Us For Availability
11
BLOWER WHEEL WCI 5303210236 Contact Us For Availability
11
WCI 5303307606 WCI 5303307606 Contact Us For Availability
11
WCI 5303301255 WCI 5303301255 Contact Us For Availability
12
FILTER WCI 3018657 Contact Us For Availability
12
WCI 3203075 WCI 3203075 Contact Us For Availability
12
WCI 5303012110 WCI 5303012110 Contact Us For Availability
12
WCI 5303307613 WCI 5303307613 Contact Us For Availability
13
WCI 3018550 WCI 3018550 Contact Us For Availability
13
WCI 5303305998 WCI 5303305998 Contact Us For Availability
13
WCI 3202957 WCI 3202957 Contact Us For Availability
13
WCI 5303210203 WCI 5303210203 Contact Us For Availability
13
SCREW - SUPPORT, 4 WCI 5303281649 Contact Us For Availability
14
SEAL-SIDES WCI 5303207203 Contact Us For Availability
14
WCI 3202958 WCI 3202958 Contact Us For Availability
14
WCI 5303301505 WCI 5303301505 Contact Us For Availability
14
FRAME, RH WCI 5303301246 Contact Us For Availability
15
SEAL-FRAME WCI 3018407 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 5303300760 WCI 5303300760 Contact Us For Availability
15
ACCORDIAN WCI 5303301247 Contact Us For Availability
16
SEAL-BOTTOM WCI 5303278925 Contact Us For Availability
16
WCI 309602905 WCI 309602905 Contact Us For Availability
16
CAPILLARY TUBE, CUT TO 40`` WCI 5308017120 Contact Us For Availability
16
WCI 5303301251 WCI 5303301251 Contact Us For Availability
17
CORD-ELECTRIC POWER WCI 5303301021 Contact Us For Availability
17
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
17
SCREW - SASH LOCK WCI 3002803 Contact Us For Availability
17A
WCI 5303272481 WCI 5303272481 Contact Us For Availability
17B
WCI 5303272482 WCI 5303272482 Contact Us For Availability
18
DOOR-FRONT WCI 5303272483 Contact Us For Availability
18
SCREW WCI 5303007754 Contact Us For Availability
18
WCI 5303290357 WCI 5303290357 Contact Us For Availability
19
WCI 5303307742 WCI 5303307742 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
KNOB-CONTROL, (2) WCI 5303017300 Contact Us For Availability
20
SLEEVE-CONTROL TUBE WCI 5303002600 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
21
WCI 5303017340 WCI 5303017340 Contact Us For Availability
21
WCI 5303306004 WCI 5303306004 Contact Us For Availability
21
WCI 5303295516 WCI 5303295516 Contact Us For Availability
21
Seal-chassis,bottom WCI 5314949603 Contact Us For Availability
22
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
23
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
23
LOUVERS W/LINK WCI 5303299761 Contact Us For Availability
24
WCI 5303207304 WCI 5303207304 Contact Us For Availability
24
NUT, PUSH-ON WCI 3202733 Contact Us For Availability
24
SCREW, FRAME EXT LKG WCI 3002801 Contact Us For Availability
26
WCI 5308007834 WCI 5308007834 Contact Us For Availability
31
CLIP-FRONT, (2) WCI 5303295272 Contact Us For Availability
33
WCI 5303017319 WCI 5303017319 Contact Us For Availability
33
SWITCH - SLIDE WCI 3202118 Contact Us For Availability
34
WCI 5303281923 WCI 5303281923 Contact Us For Availability
36
WCI 3202960 WCI 3202960 Contact Us For Availability
36
STRAP - BASE WCI 5303303558 Contact Us For Availability
37
WCI 5303302257 WCI 5303302257 Contact Us For Availability
38
SCREW, MOTOR DRIVE WCI 5303015294 Contact Us For Availability
39
WCI 5303271346 WCI 5303271346 Contact Us For Availability
55
WCI 3018548 WCI 3018548 Contact Us For Availability
56
KNOB - SLIDE, SWITCH WCI 3017341 Contact Us For Availability
57
WCI 3018547 WCI 3018547 Contact Us For Availability
58
HINGE - DOOR WCI 5303017980 Contact Us For Availability
59
NUT - FRONT LOCK WCI 08010928 Contact Us For Availability
× ![]()
