Model GE G6S28TSLBSS – Common Parts & Diagrams

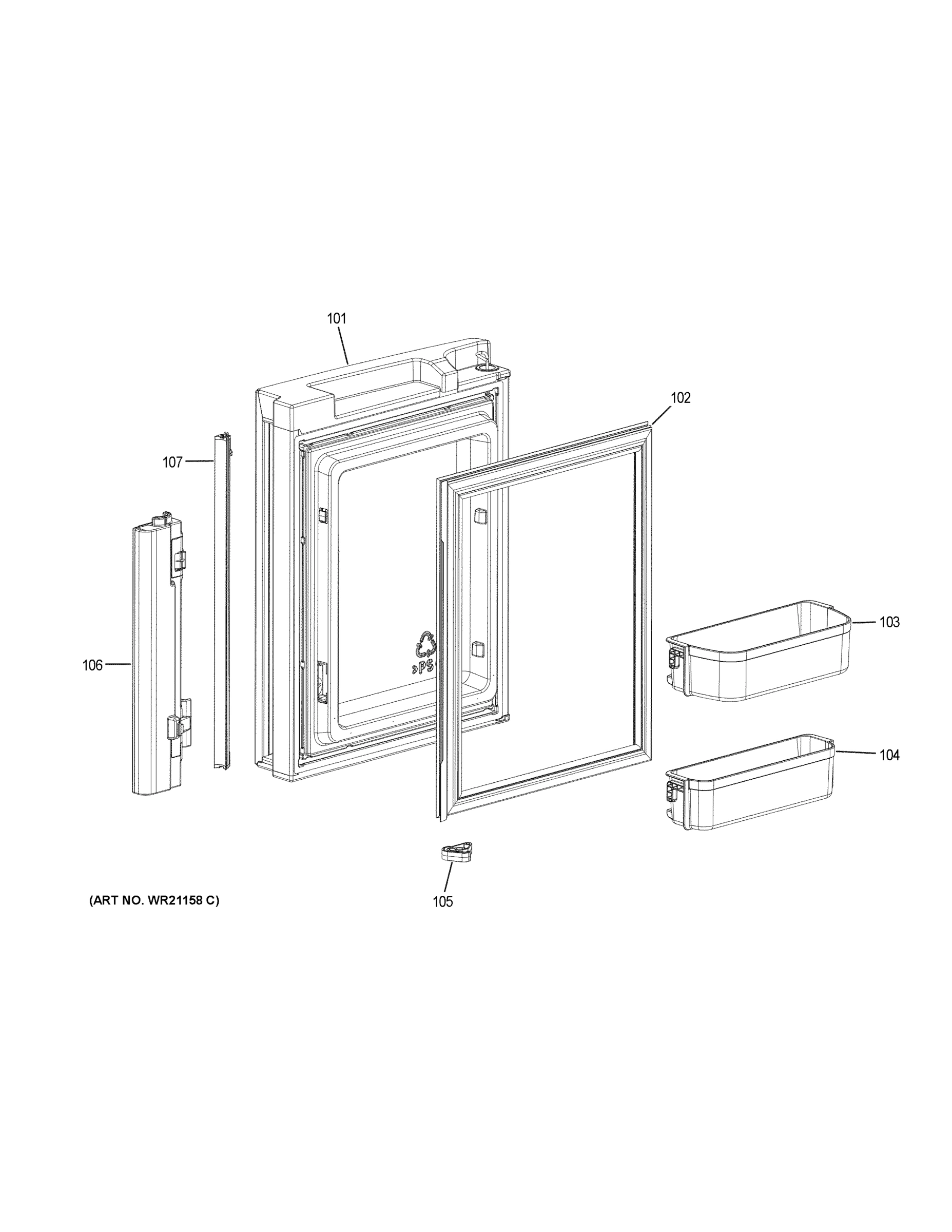

FREEZER DOOR - LH

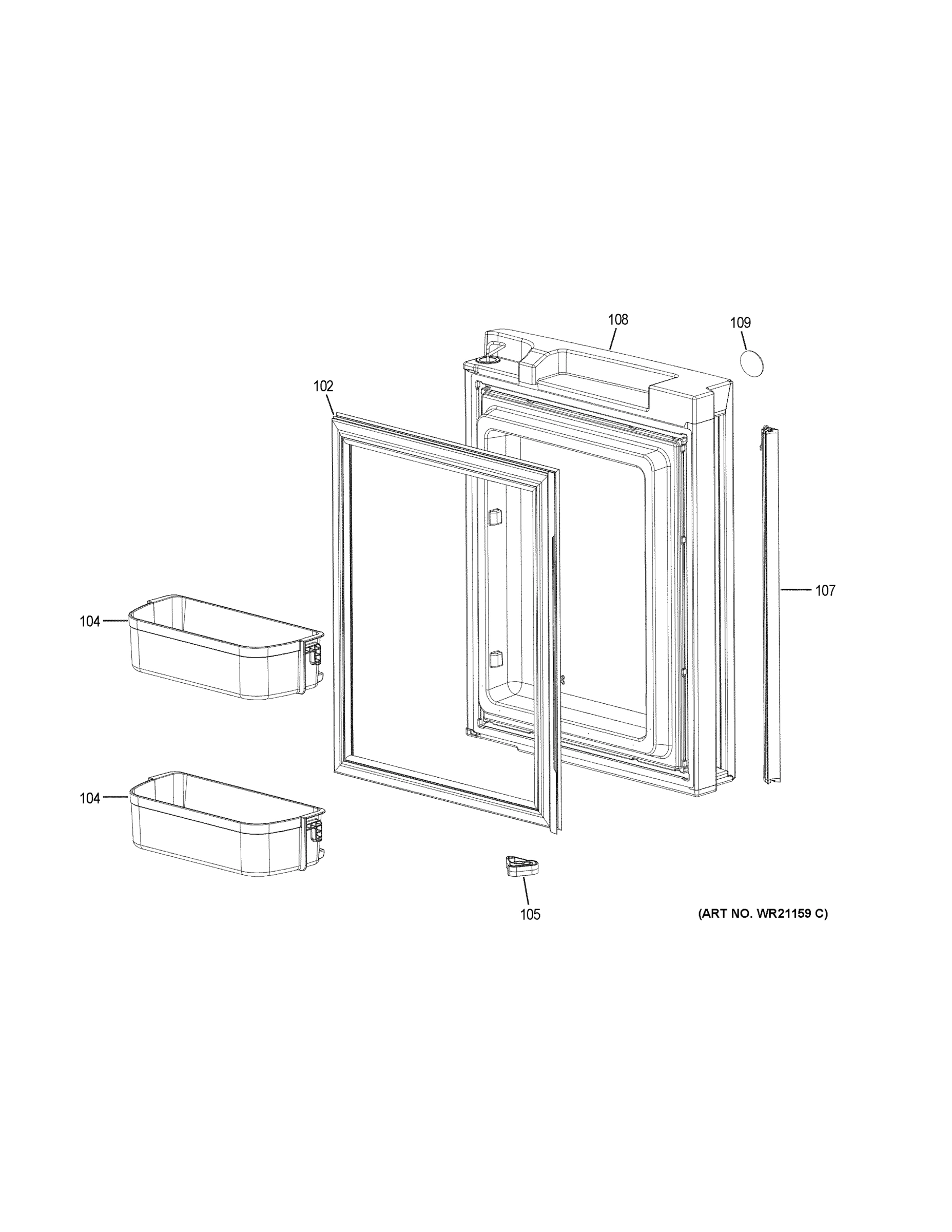

FREEZER DOOR - RH

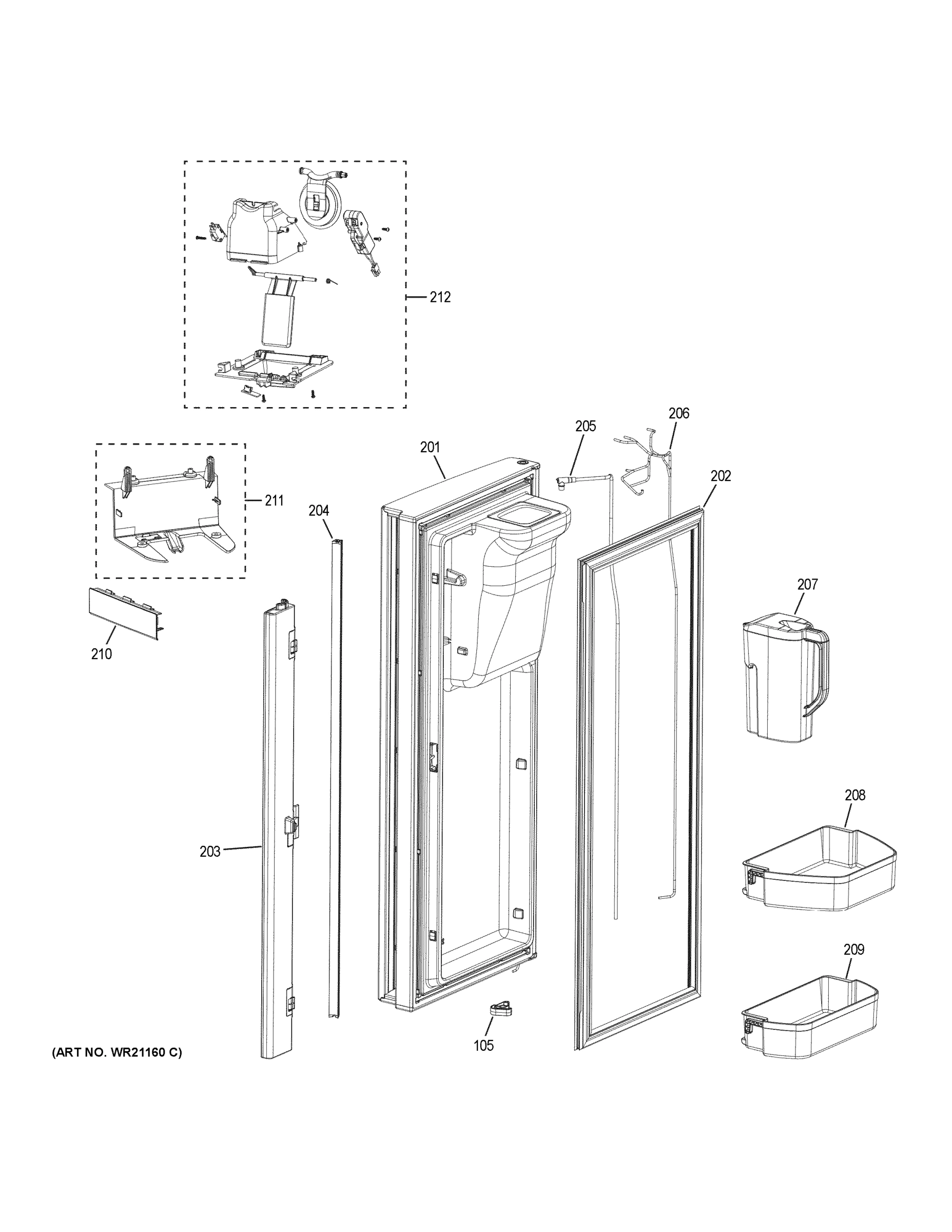

FRESH FOOD DOOR - LH

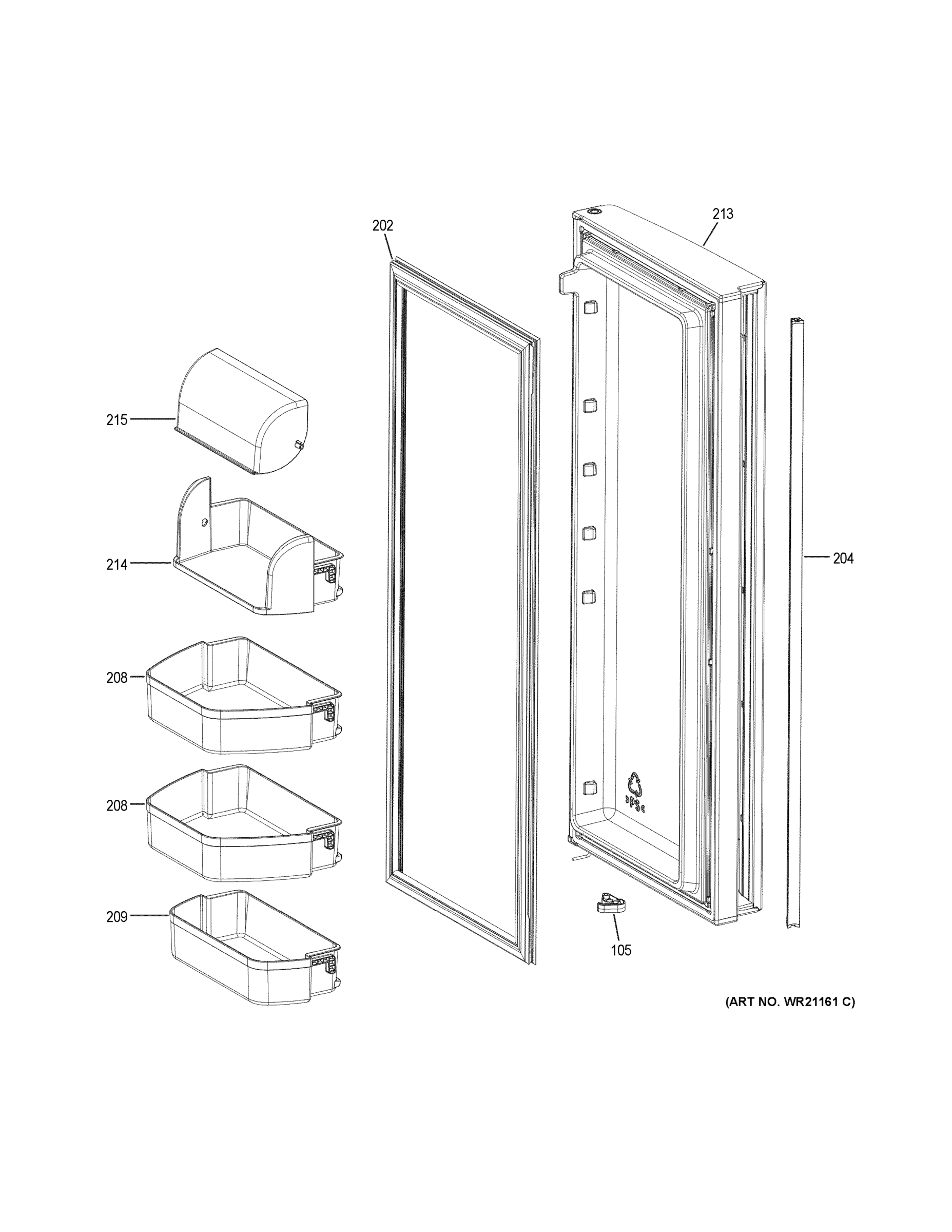

FRESH FOOD DOOR - RH

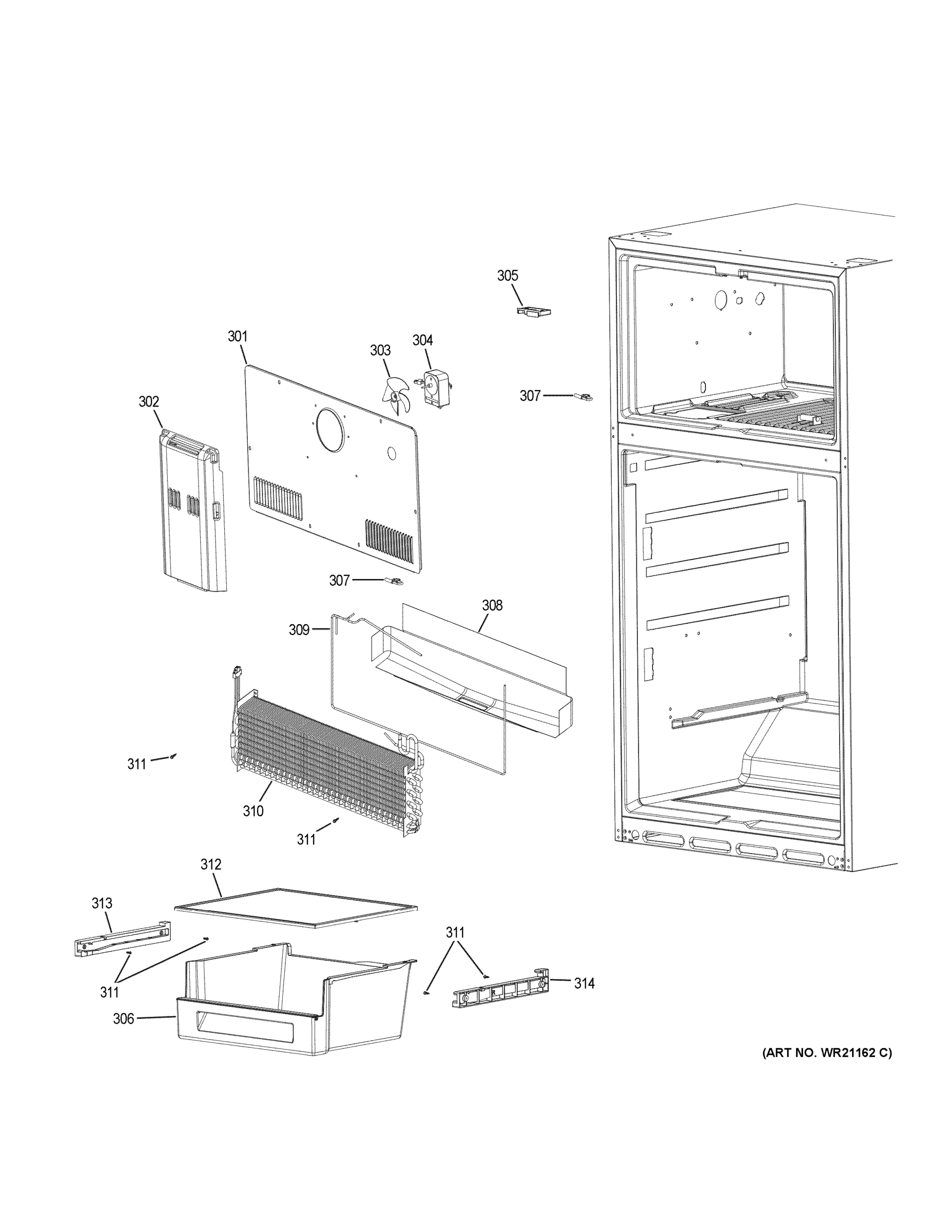

FREEZER SECTION

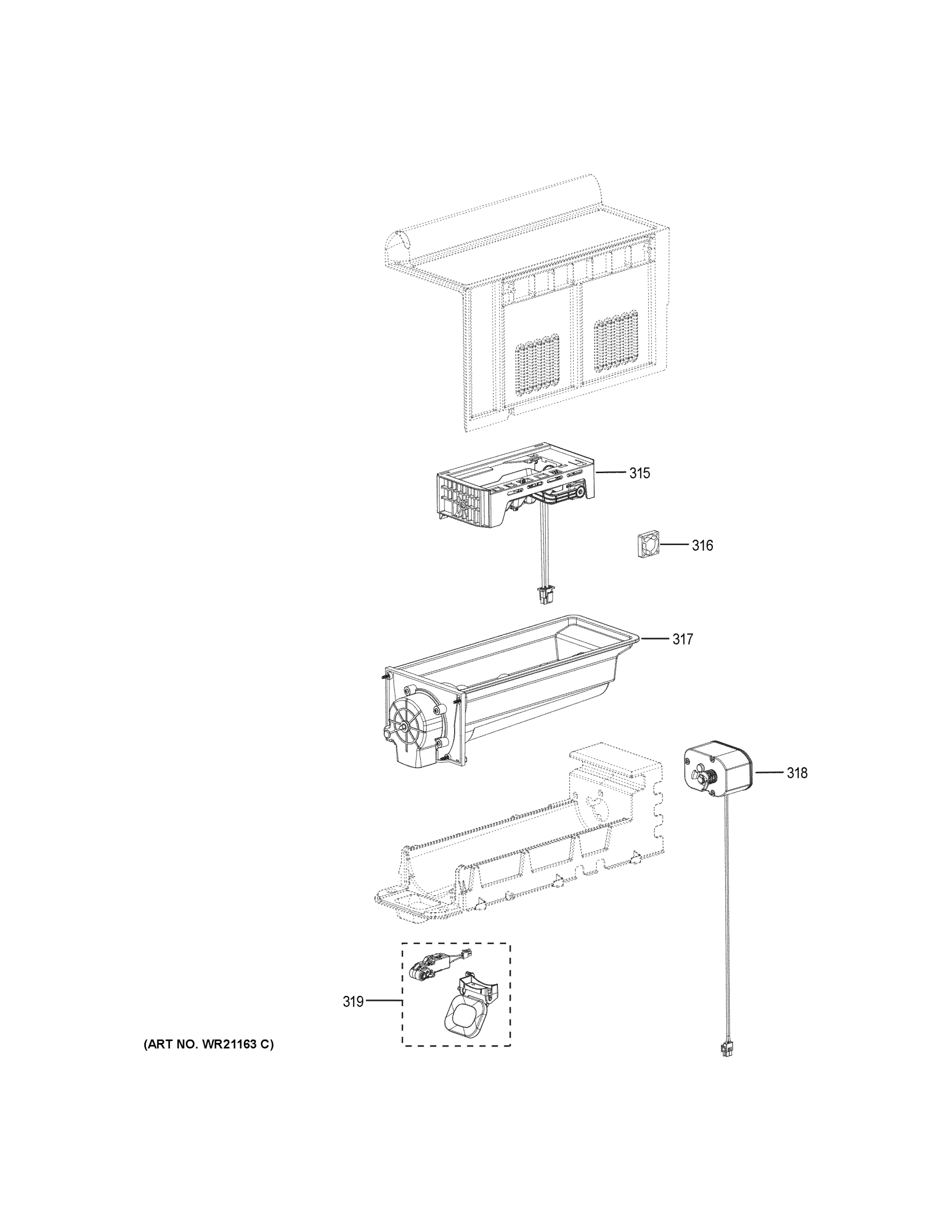

ICE MAKER & DISPENSER

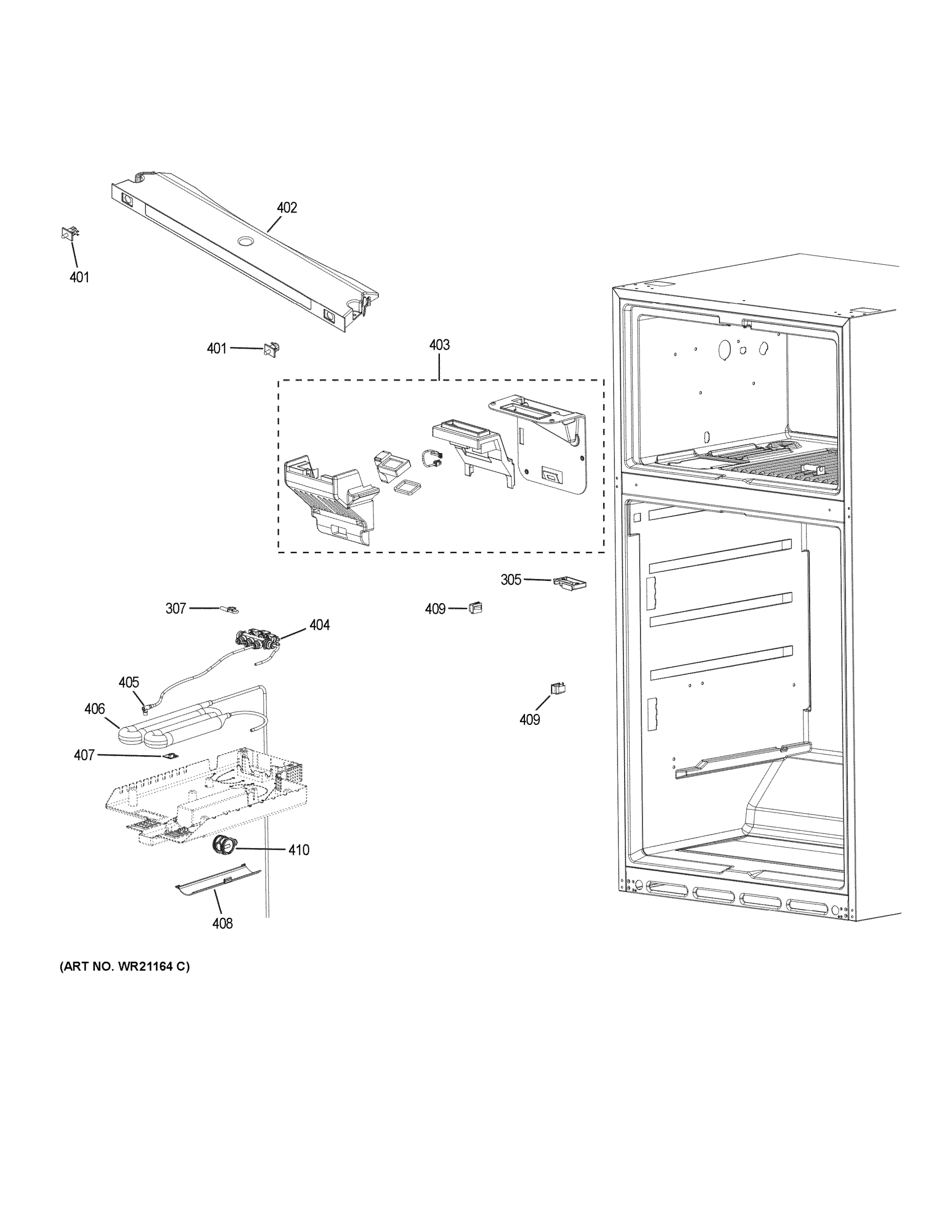

FRESH FOOD SECTION

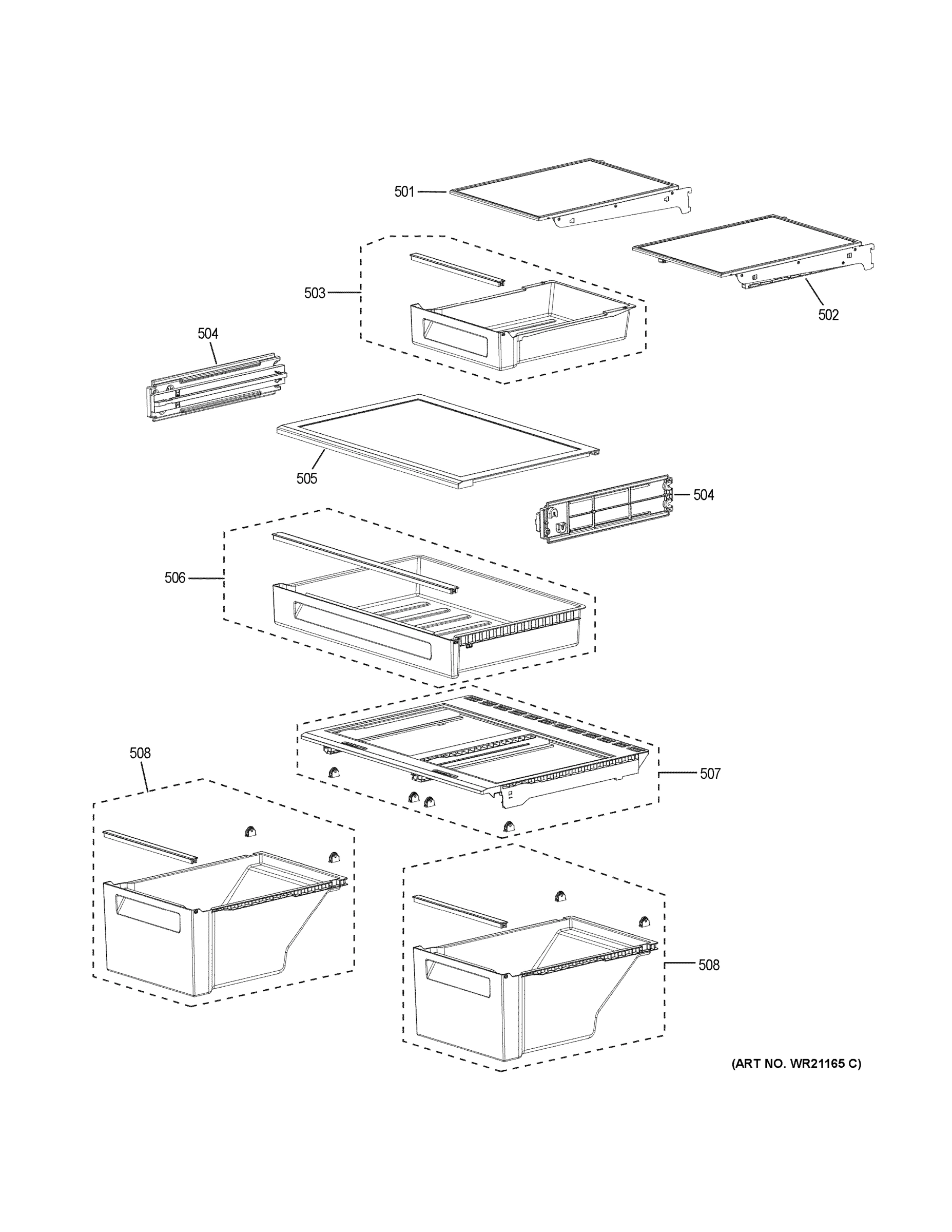

FRESH FOOD SHELVES

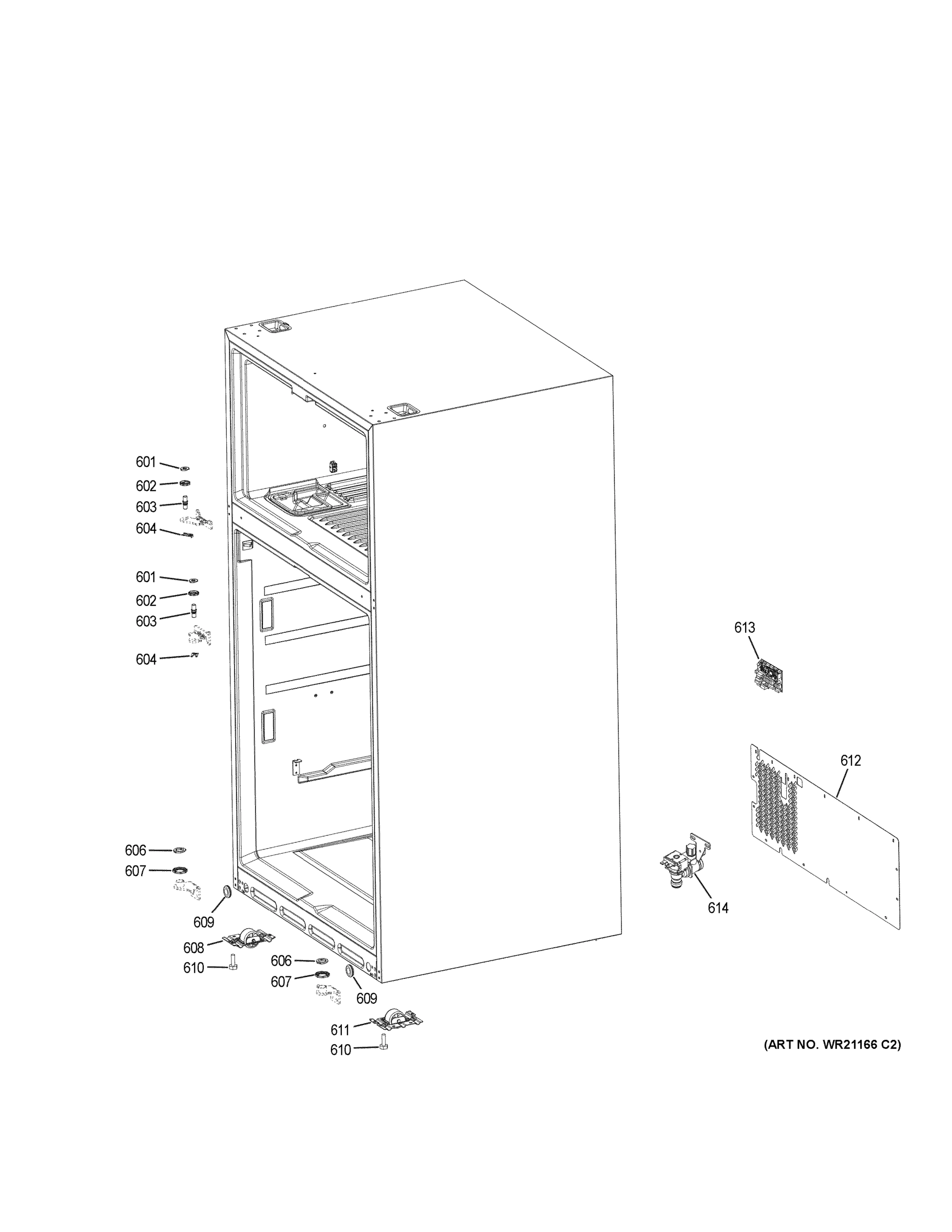

CASE PARTS

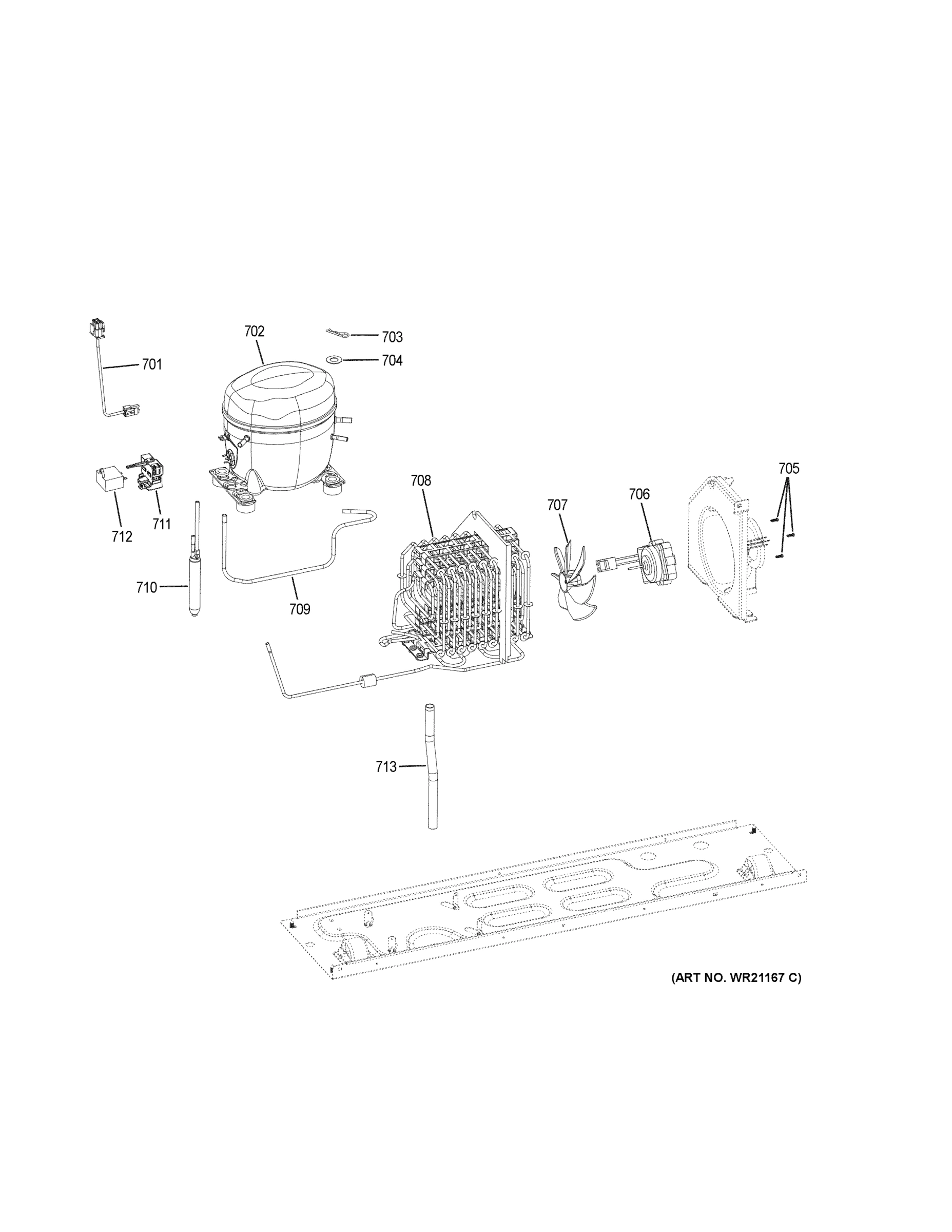

MACHINE COMPARTMENT
Common parts from model GE G6S28TSLBSS
105
SPRING CLOSURE DOOR GEN WR01X28588 Contact Us For Availability
107
FREEZER DOOR HANDLE LED LIGHT GEN WR55X28619 Contact Us For Availability
108
REFRIGERATOR DOOR - FREEZER DOOR RIGHT S GEN WR78X28567 Contact Us For Availability
202
REFRIGERATOR DOOR - GASKET GRAY GEN WR14X28609 Contact Us For Availability
203
FRESH FOOD DOOR ARTICULATING MULLION GEN WR14X28611 Contact Us For Availability
204
FRESH FOOD DOOR HANDLE LED LIGHT GEN WR55X28595 Contact Us For Availability
206
DOOR HARNESS GEN WR55X28580 Contact Us For Availability
207
AUTOFILL PITCHER GEN WR01X28563 Contact Us For Availability
208
FRESH FOOD DOOR BIN GALLON PLUS GEN WR71X28590 Contact Us For Availability
209
FRESH FOOD DOOR BIN GALLON GEN WR71X28615 Contact Us For Availability
210
UI DISPLAY GEN WR55X28594 Contact Us For Availability
211
DISPENSER PADDLE GEN WR17X28564 Contact Us For Availability
212
ICE DISPENSER GEN WR30X28581 Contact Us For Availability
214
DAIRY BIN GEN WR71X28570 Contact Us For Availability
215
DAIRY BIN COVER GEN WR71X28569 Contact Us For Availability
301
EVAPORATOR COVER GEN WR14X28596 Contact Us For Availability
302
FREEZER AIR TOWER GEN WR14X28601 Contact Us For Availability
304
EVAPORATOR FAN MOTOR GEN WR60X28561 Contact Us For Availability
305
STRIKER MULLION GEN WR13X28612 Contact Us For Availability
306
FREEZER BASKET GEN WR71X28620 Contact Us For Availability
307
TEMPERATURE SENSOR GEN WR55X28598 Contact Us For Availability
308
DRAIN TROUGH GEN WR14X28557 Contact Us For Availability
309
DEFROST HEATER GEN WR09X28562 Contact Us For Availability
310
EVAPORATOR & HEATER GEN WR87X28618 Contact Us For Availability
311
SCREW #8 X 5/8" GEN WR01X27329 Contact Us For Availability
312
FREEZER SHELF GEN WR71X28603 Contact Us For Availability
313
FREEZER BASKET SLIDE LH GEN WR72X28560 Contact Us For Availability
314
FREEZER BASKET SLIDE RH GEN WR72X28578 Contact Us For Availability
316
ICEMAKER FAN GEN WR60X28771 Contact Us For Availability
317
ICE BUCKET GEN WR30X28768 Contact Us For Availability
319
MULLION MOTOR W/DOOR GEN WR14X28565 Contact Us For Availability
401
FRESH FOOD DOOR SWITCH GEN WR09X28593 Contact Us For Availability
402
CONTROL INTERFACE GEN WR55X28889 Contact Us For Availability
403
FRESH FOOD AIR TOWER GEN WR14X28613 Contact Us For Availability
405
DISPENSER FILL TUBE GEN WR01X28584 Contact Us For Availability
406
WATER RESERVOIR GEN WR57X28583 Contact Us For Availability
407
PITCHER PCB & FLOAT GEN WR55X28772 Contact Us For Availability
408
WATER FILTER DOOR GEN WR01X28599 Contact Us For Availability
409
LIGHT SWITCH GEN WR09X28616 Contact Us For Availability
410
FILTER HEAD GEN WR14X28607 Contact Us For Availability
501
GLASS SHELF GEN WR71X28773 Contact Us For Availability
502
DELI PAN GLASS COVER GEN WR71X28775 Contact Us For Availability
503
DELI PAN GEN WR71X28576 Contact Us For Availability
504
MEAT PAN SLIDE LEFT & RIGHT GEN WR72X28776 Contact Us For Availability
505
MEAT PAN GLASS COVER GEN WR71X28777 Contact Us For Availability
507
VEGETABLE PAN COVER GEN WR71X28571 Contact Us For Availability
601
FREEZER DOOR CAM TOP GEN WR01X28573 Contact Us For Availability
602
FREEZER CAM DOOR BOTTOM GEN WR01X28592 Contact Us For Availability
603
CENTER HINGE PIN GEN WR01X28589 Contact Us For Availability
604
HINGE RETAINER CLIP GEN WR01X28774 Contact Us For Availability
606
FRESH FOOD DOOR CAM TOP GEN WR01X28575 Contact Us For Availability
607
FRESH FOOD DOOR CAM BOTTOM GEN WR01X28574 Contact Us For Availability
608
WHEEL MOBILITY LH GEN WR60X28621 Contact Us For Availability
609
WIRE GROMMET GEN WR01X28604 Contact Us For Availability
610
LEVELING LEG GEN WR01X27313 Contact Us For Availability
611
WHEEL MOBILITY RH GEN WR60X28622 Contact Us For Availability
612
REAR ACCESS COVER GEN WR14X28600 Contact Us For Availability
613
MAIN BOARD GEN WR55X29494 Contact Us For Availability
701
COMPRESSOR JUMPER GEN WR87X28566 Contact Us For Availability
702
COMPRESSOR-EGD80HLC GEN WR87X28597 Contact Us For Availability
704
WASHER COMPRESSOR GEN WR01X27359 Contact Us For Availability
705
SCREW 3.9MM X 11MM GEN WR01X27332 Contact Us For Availability
708
CONDENSER GEN WR87X28558 Contact Us For Availability
709
TUBE SUCTION GEN WR01X28602 Contact Us For Availability
711
TSD W/BALE STRAP GEN WR87X28579 Contact Us For Availability
712
CAPACITOR GEN WR55X28559 Contact Us For Availability
713
DRAIN TUBE GEN WR14X28577 Contact Us For Availability
× ![]()
