Model Electrolux FV19F5WSFE FREEZER – Common Parts & Diagrams

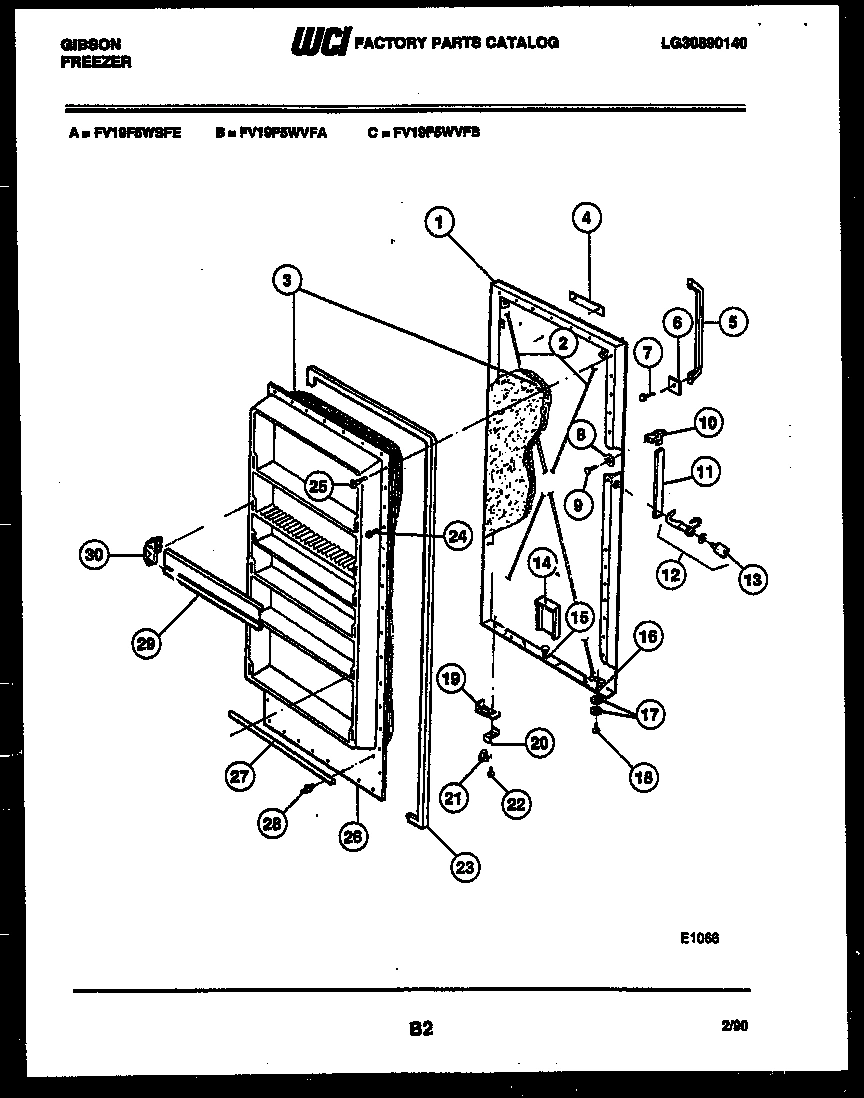

02 - DOOR PARTS

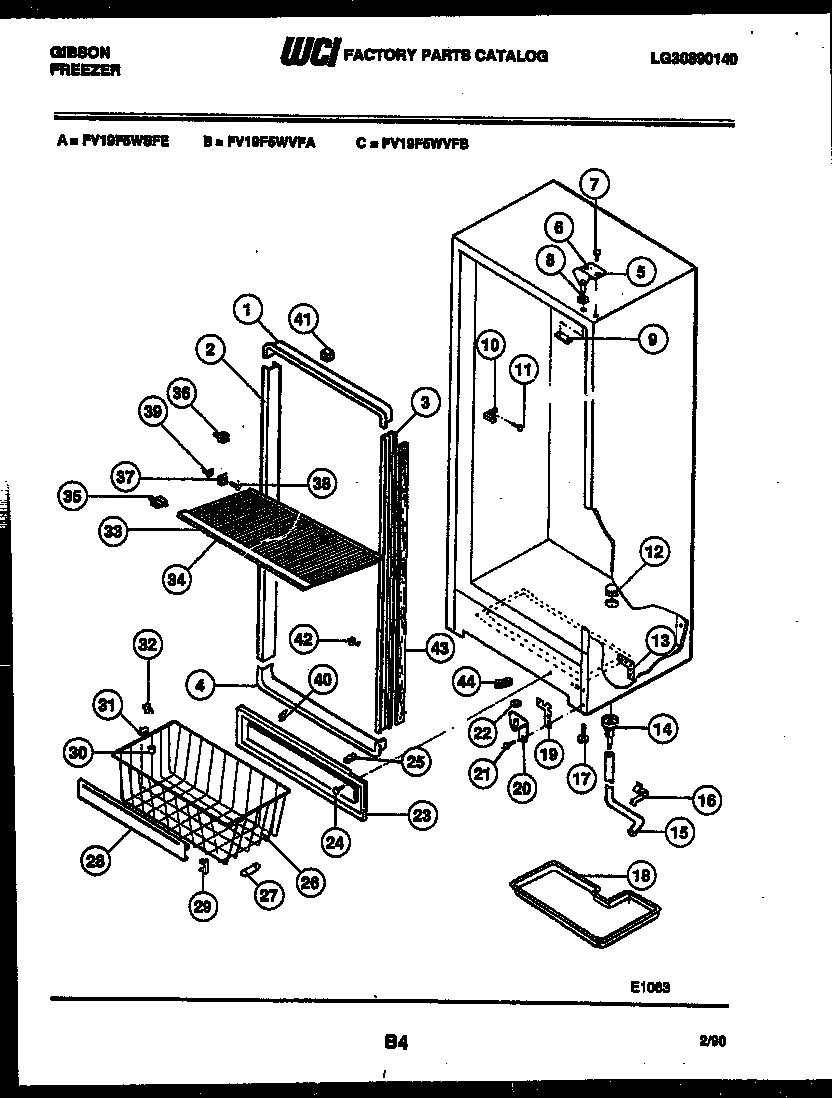

03 - CABINET PARTS

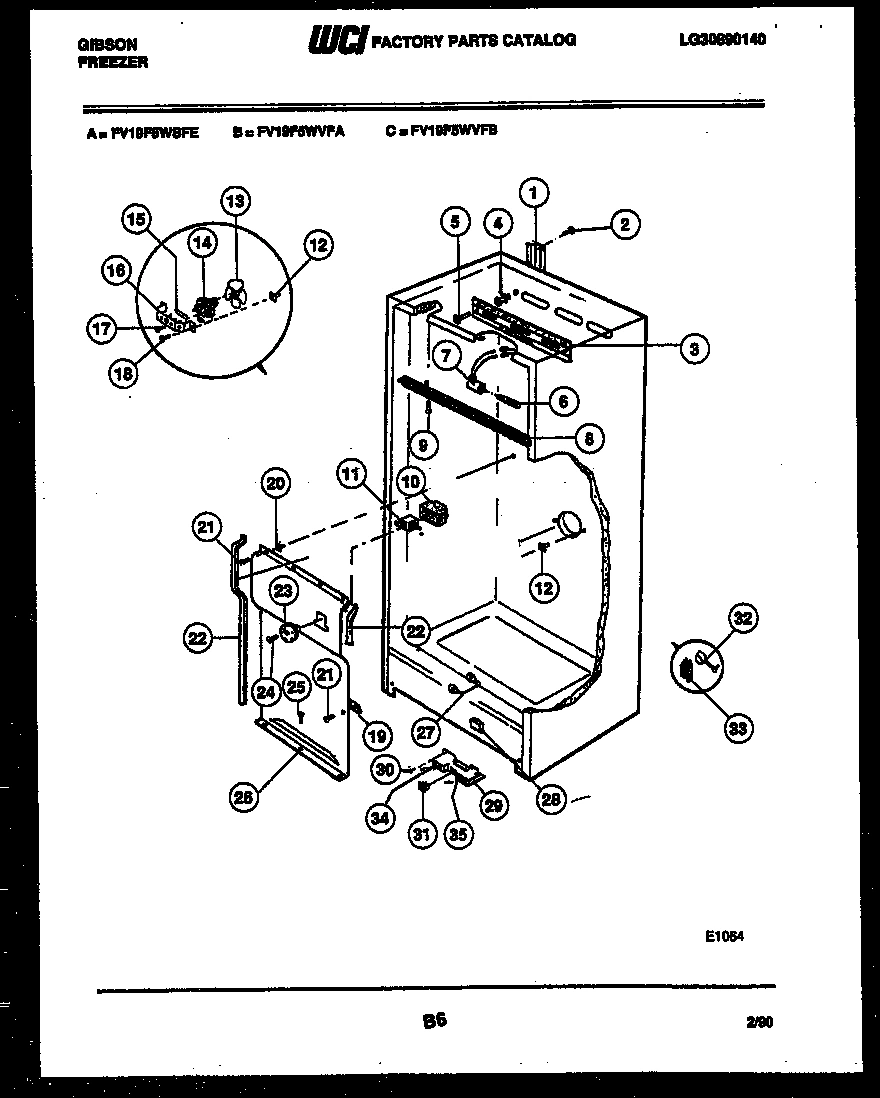

04 - INTERIOR PARTS

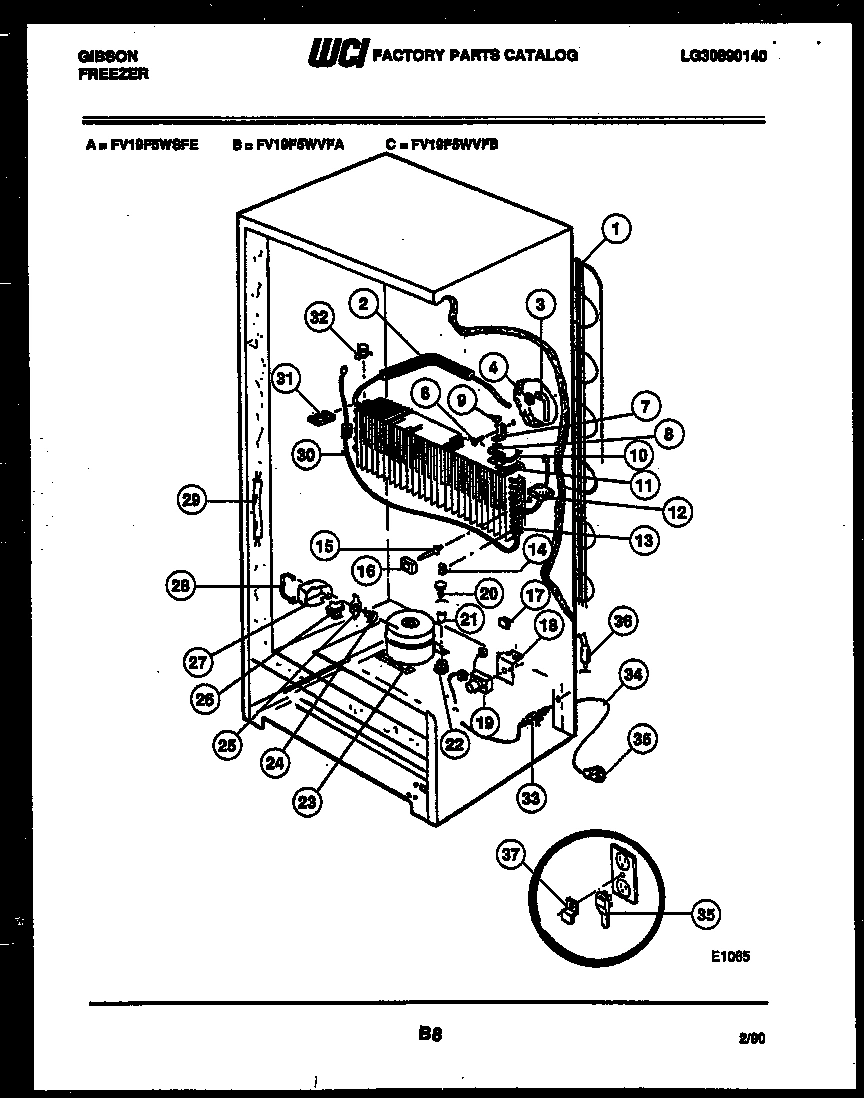

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FV19F5WSFE FREEZER
1
PANEL DOOR WCI F129303-S Contact Us For Availability
1
WCI F85126-64 WCI F85126-64 Contact Us For Availability
1
WCI F91583-S WCI F91583-S Contact Us For Availability
1
CONDENSER (NOT ORIGINAL EQUIPMENT. SERVICE RE WCI F300847 Contact Us For Availability
2
WIRE WCI F129669 Contact Us For Availability
2
BREAKER LH WCI F113764-64 Contact Us For Availability
2
SCREW WCI F96849 Contact Us For Availability
2
SLEEVE EVAP TUBE WCI F121431 Contact Us For Availability
3
INSULATION WCI F116277 Contact Us For Availability
3
BREAKER RH WCI F300737 Contact Us For Availability
3
WCI F300248 WCI F300248 Contact Us For Availability
3
WCI 3017673 WCI 3017673 Contact Us For Availability
4
NAMEPLATE WCI F128768 Contact Us For Availability
4
WCI F85127-64 WCI F85127-64 Contact Us For Availability
4
SPACER WCI F117151 Contact Us For Availability
4
WCI F92161 WCI F92161 Contact Us For Availability
4A
INSERT WCI F300246 Contact Us For Availability
5
HANDLE WCI F119165 Contact Us For Availability
5
WCI G190387 WCI G190387 Contact Us For Availability
5
SLEEVE HEAT EXCHANGER WCI F96886-1 Contact Us For Availability
6
WCI F116980 WCI F116980 Contact Us For Availability
6
WCI F300459 WCI F300459 Contact Us For Availability
6
BULB WCI F92472 Contact Us For Availability
6
SCREW-CLAMP WCI F52943 Contact Us For Availability
7
SCREW WCI F111365 Contact Us For Availability
7
SOCKET WCI F115515 Contact Us For Availability
7
WCI F88658 WCI F88658 Contact Us For Availability
8
WCI F128200 WCI F128200 Contact Us For Availability
8
WASHER BRACKET WCI F95480 Contact Us For Availability
9
PLATE WCI F93207 Contact Us For Availability
9
WCI F12236 WCI F12236 Contact Us For Availability
10
LATCH WCI F117634 Contact Us For Availability
10
COVER-CONTROL WCI F111759 Contact Us For Availability
11
CONTROL TEMPERATURE WCI F113899 Contact Us For Availability
11
WCI F52940 WCI F52940 Contact Us For Availability
12
WCI G190358 WCI G190358 Contact Us For Availability
12
SEAL RH WCI F111779 Contact Us For Availability
13
WCI F120978 WCI F120978 Contact Us For Availability
13
FAN-BLADE WCI F115069 Contact Us For Availability
13
WCI 3200705 WCI 3200705 Contact Us For Availability
14
AIR DUCT WCI F128421 Contact Us For Availability
14
FAN-MOTOR WCI 3200706 Contact Us For Availability
15
WCI F90503-2 WCI F90503-2 Contact Us For Availability
15
SUPPORT EVAPORATOR WCI F111731 Contact Us For Availability
16
WCI F57880 WCI F57880 Contact Us For Availability
16
WCI F93775 WCI F93775 Contact Us For Availability
16
WCI F127112 WCI F127112 Contact Us For Availability
16
SPACER WCI F125980 Contact Us For Availability
17
WASHER WCI F119827 Contact Us For Availability
17
LEG (4) WCI F91169 Contact Us For Availability
17
CLIP WIRES WCI F117388 Contact Us For Availability
18
SCREW WCI F57906 Contact Us For Availability
18
DRAIN PAN WCI F111871 Contact Us For Availability
18
SCREW WCI F82473 Contact Us For Availability
18
BRACKET TIMER WCI F111694 Contact Us For Availability
19
WCI F91170 WCI F91170 Contact Us For Availability
19
PLATE WCI F84948 Contact Us For Availability
19
WCI F111732 WCI F111732 Contact Us For Availability
20
DOOR STOP WCI F84896 Contact Us For Availability
20
WCI F84943 WCI F84943 Contact Us For Availability
20
INSERT NUT WCI F50144 Contact Us For Availability
20
WCI F59211 WCI F59211 Contact Us For Availability
21
WCI F59556 WCI F59556 Contact Us For Availability
21A
BEARING, TOP WCI F84893 Contact Us For Availability
22
SCREW WCI F121387 Contact Us For Availability
22
BEARING BOTTOM WCI F57523 Contact Us For Availability
22
GASKET WCI F111782 Contact Us For Availability
23
GASKET WCI F129797 Contact Us For Availability
23
WCI F124794 WCI F124794 Contact Us For Availability
23
WCI F127762 WCI F127762 Contact Us For Availability
23
WCI F128668 WCI F128668 Contact Us For Availability
24
PIN WCI F118001 Contact Us For Availability
24
SCREW KNOB WCI F110410 Contact Us For Availability
24
WCI F128638 WCI F128638 Contact Us For Availability
25
WCI F124860 WCI F124860 Contact Us For Availability
25
WCI F118003 WCI F118003 Contact Us For Availability
25
CLIP WCI F300749 Contact Us For Availability
26
INNER PANEL WCI F124697-64 Contact Us For Availability
26
INNER PANEL WCI F124698-95 Contact Us For Availability
26
WCI F124618 WCI F124618 Contact Us For Availability
26
WCI F111725 WCI F111725 Contact Us For Availability
26
WCI F128637 WCI F128637 Contact Us For Availability
27
WCI F99438 WCI F99438 Contact Us For Availability
27
WCI F95424 WCI F95424 Contact Us For Availability
28
HANDLE WCI F121217 Contact Us For Availability
28
WCI F128518 WCI F128518 Contact Us For Availability
29
FRONT SHELF (5) WCI F129782 Contact Us For Availability
29
END CAP (2) WCI F119952 Contact Us For Availability
29
BRACKET WCI F129965 Contact Us For Availability
29
WCI F83588 WCI F83588 Contact Us For Availability
30
END CAP RH WCI F124984 Contact Us For Availability
30
WCI F81693 WCI F81693 Contact Us For Availability
30
WCI F111728-2 WCI F111728-2 Contact Us For Availability
30A
END CAP LH WCI F124986 Contact Us For Availability
31
SPACER (4) WCI F129805 Contact Us For Availability
31
SWITCH ALARM WCI 3017178 Contact Us For Availability
31
SEAL LH WCI 3200707 Contact Us For Availability
32
STOP WCI F115158 Contact Us For Availability
32
WCI 3200708 WCI 3200708 Contact Us For Availability
33
WCI F300044 WCI F300044 Contact Us For Availability
33
WCI 3205349 WCI 3205349 Contact Us For Availability
33A
HARNESS ALARM (NON-ILLUSTRATED) WCI F300210 Contact Us For Availability
34
SHELF LOWER WCI F300045 Contact Us For Availability
34
HARNESS W/ POWER CORD WCI 08016376 Contact Us For Availability
35
SUPPORT-RH (5) WCI F110931 Contact Us For Availability
35
WCI Q86065 WCI Q86065 Contact Us For Availability
35A
SUPPORT-LH (5) WCI F110932 Contact Us For Availability
36
SUPPORT-REAR (8) WCI F86178 Contact Us For Availability
37
SUPPORT (2) WCI F86224 Contact Us For Availability
37
RETAINER WCI F128777 Contact Us For Availability
38
SCREW WCI F59837 Contact Us For Availability
39
NUT WCI F81321 Contact Us For Availability
40
CLIP, BREAKER (5) WCI F126240 Contact Us For Availability
41
WCI F86536 WCI F86536 Contact Us For Availability
43
INSULATION WCI F116171-50 Contact Us For Availability
44
DOOR CLOSER W/ BEARING WCI F900253 Contact Us For Availability
× ![]()
