Model GE FUF20DHRBWW – Common Parts & Diagrams

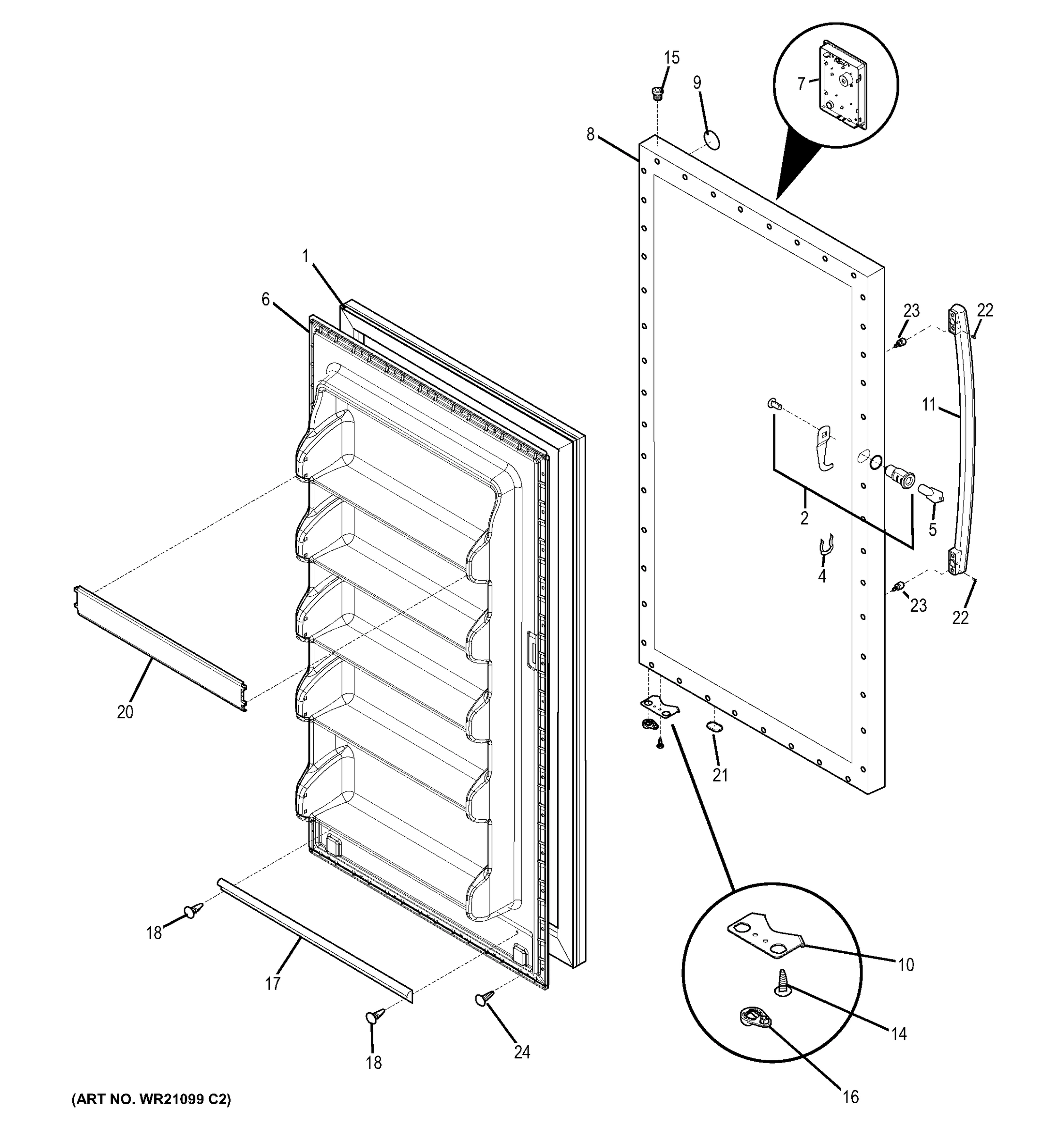

DOOR

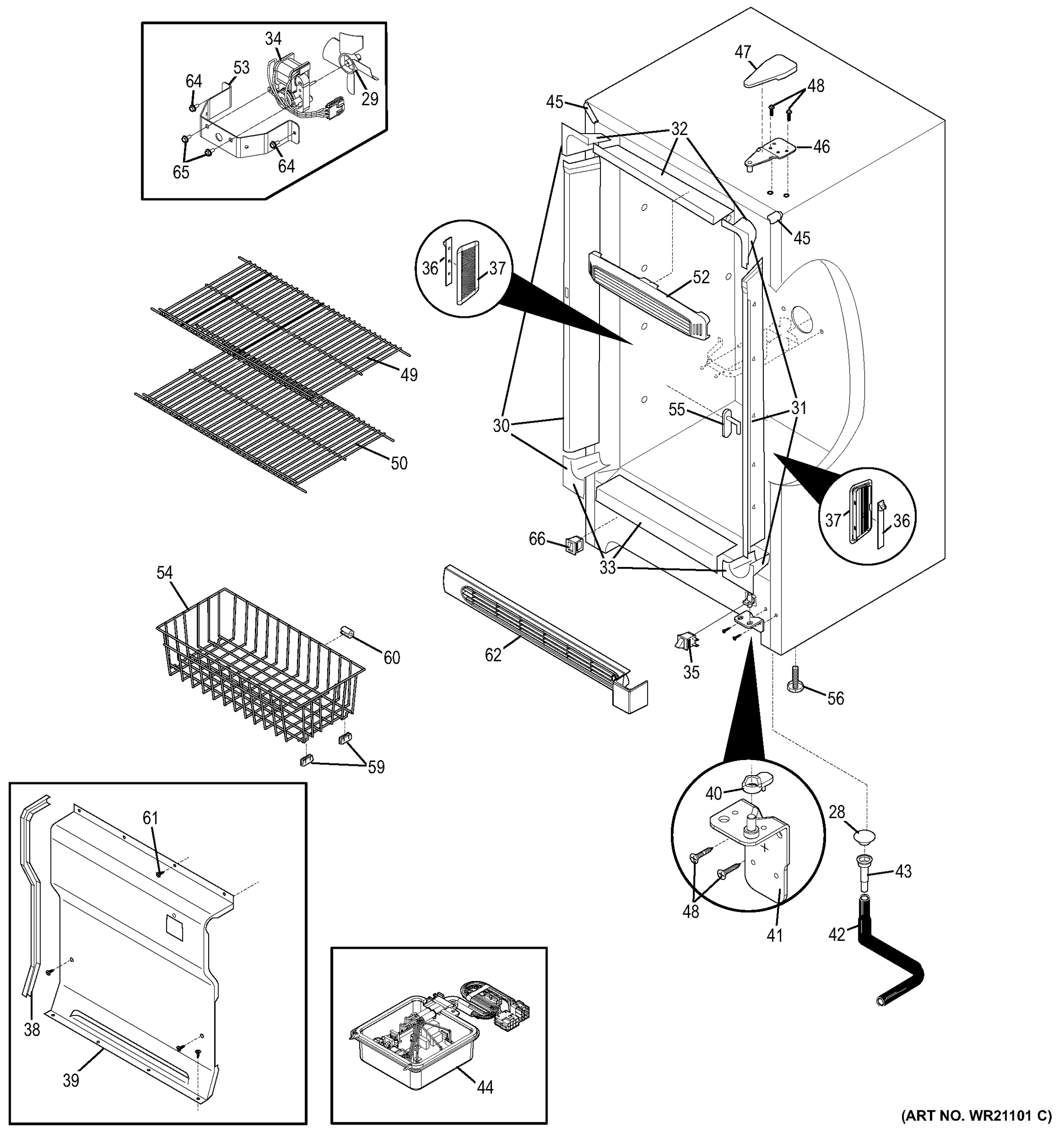

CABINET

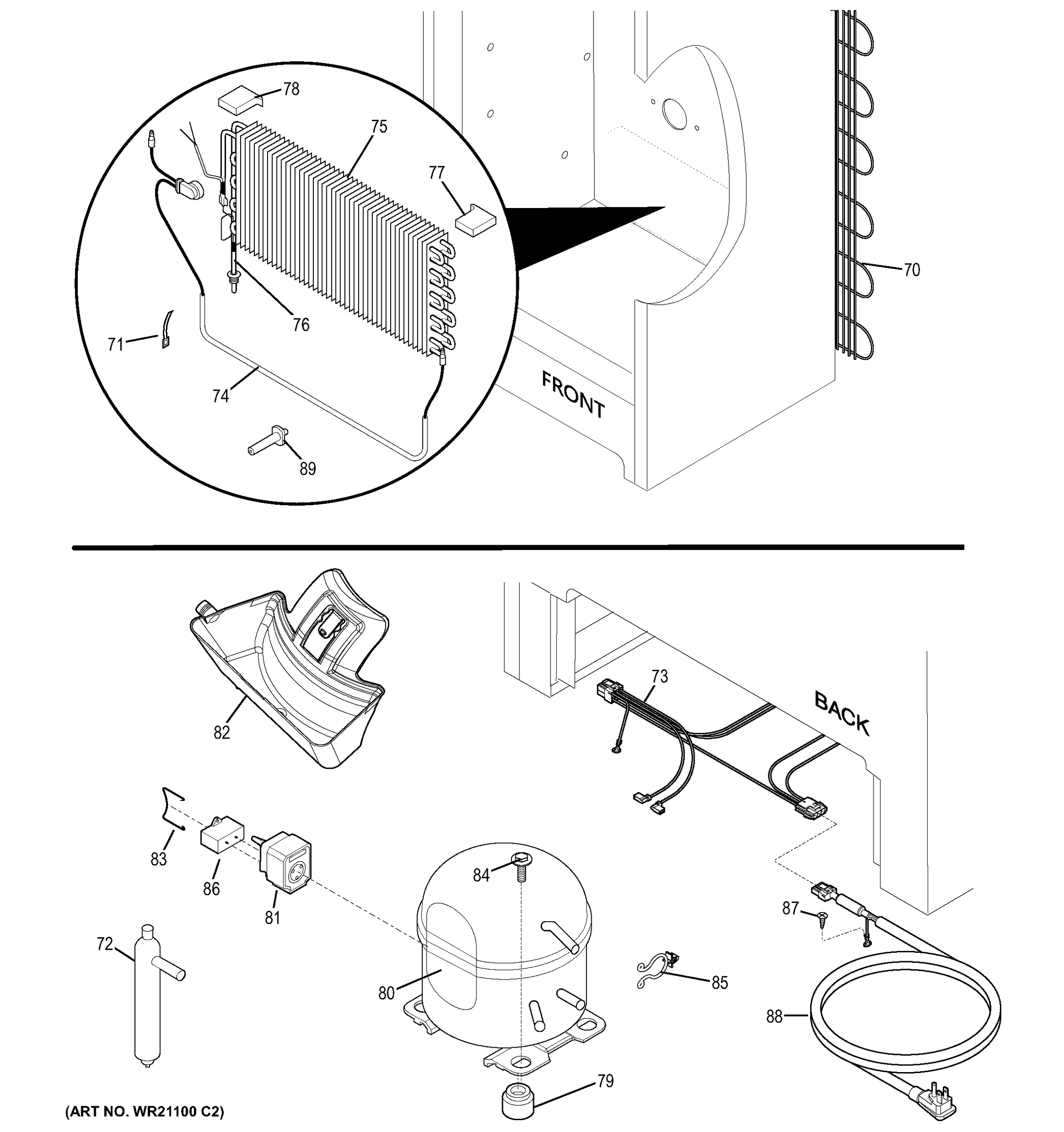

MACHINE COMPARTMENT
Common parts from model GE FUF20DHRBWW
2
LOCK ASSY GEN WR05X10038 Contact Us For Availability
5
KEY GEN WR05X10005 Contact Us For Availability
7
CONTROL,ELECTRONIC GEN WR09X24017 Contact Us For Availability
21
PLUG-BUTTON,DOOR BASE GEN WR02X23542 Contact Us For Availability
22
SCREW-SET GEN WR01X10922 Contact Us For Availability
28
PLUG-DRAIN GEN WR01X10031 Contact Us For Availability
30
BREAKER GEN WR40X23511 Contact Us For Availability
31
BREAKER,U21 ,W/LOCK GEN WR40X23514 Contact Us For Availability
32
BREAKER,TOP GEN WR40X23513 Contact Us For Availability
33
BREAKER,BOTTOM GEN WR40X23512 Contact Us For Availability
34
MOTOR,FAN ,115 V GEN WR60X10293 Contact Us For Availability
35
SWITCH LIGHT GEN WR23X10303 Contact Us For Availability
39
COVER-EVAPORATOR GEN WR17X12665 Contact Us For Availability
40
RAMP,DOOR CLOSER GEN WR02X23543 Contact Us For Availability
41
HINGE,1/2" PIN ,BOTTOM R GEN WR12X23534 Contact Us For Availability
42
HOSE-DRAIN 17 50" GEN WR17X4120 Contact Us For Availability
43
DRAIN GEN WR17X23526 Contact Us For Availability
45
TRIM-CABINET CORNER, WHI GEN WR02X13348 Contact Us For Availability
46
HINGE-UPPER GEN WR12X10891 Contact Us For Availability
47
COVER-HINGE GEN WR02X12689 Contact Us For Availability
48
SCREW BOTTOM HINGE GEN WR01X10997 Contact Us For Availability
49
SHELF,16.69 X 23.88 ,WIR GEN WR71X24032 Contact Us For Availability
52
BAFFLE, AIR GEN WR17X12658 Contact Us For Availability
54
BASKET GEN WR21X24015 Contact Us For Availability
55
STOP-BASKET GEN WR02X11446 Contact Us For Availability
56
FOOT ADJ. GEN WR2X9485 Contact Us For Availability
60
BUMPER GEN WR2X6361 Contact Us For Availability
61
SCREW, 8-18AB X.470 QX" GEN WR01X10958 Contact Us For Availability
62
GRILLE/KICKPLATE GEN WR74X24021 Contact Us For Availability
65
SCREW,HEX WASHER HEAD ,8 GEN WR01X10798 Contact Us For Availability
66
VALVE, BREATHER GEN WR86X10064 Contact Us For Availability
71
STRAP-EVAP/HEATER,ALUMIN GEN WR02X11458 Contact Us For Availability
74
DEFROST HEATER GEN WR51X24019 Contact Us For Availability
75
EVAPORATOR ASSY GEN WR85X10033 Contact Us For Availability
76
HEAT EXCHANGER, SUCT/CAP GEN WR86X10052 Contact Us For Availability
77
INSULATOR-EVAP, STYROFOA GEN WR02X13242 Contact Us For Availability
78
INSULATOR-EVAP, STYROFOA GEN WR02X13243 Contact Us For Availability
80
COMPRESSOR GEN WR87X24016 Contact Us For Availability
81
CONTROLLER,COMPRESSOR GEN WR07X23521 Contact Us For Availability
82
PAN-DRAIN GEN WR02X24027 Contact Us For Availability
83
CLIP,CONTROLLER GEN WR02X12032 Contact Us For Availability
84
SCREW COMP. MTG GEN WR01X10999 Contact Us For Availability
86
CAPACITOR-RUN GEN WR62X23515 Contact Us For Availability
87
SCREW,RWHD ,8-32A X 0.50 GEN WR02X12764 Contact Us For Availability
89
SUPPORT, EVAPORATOR MTG GEN WR02X12991 Contact Us For Availability
× ![]()
