  • Electrolux FRS124YW10 Parts List

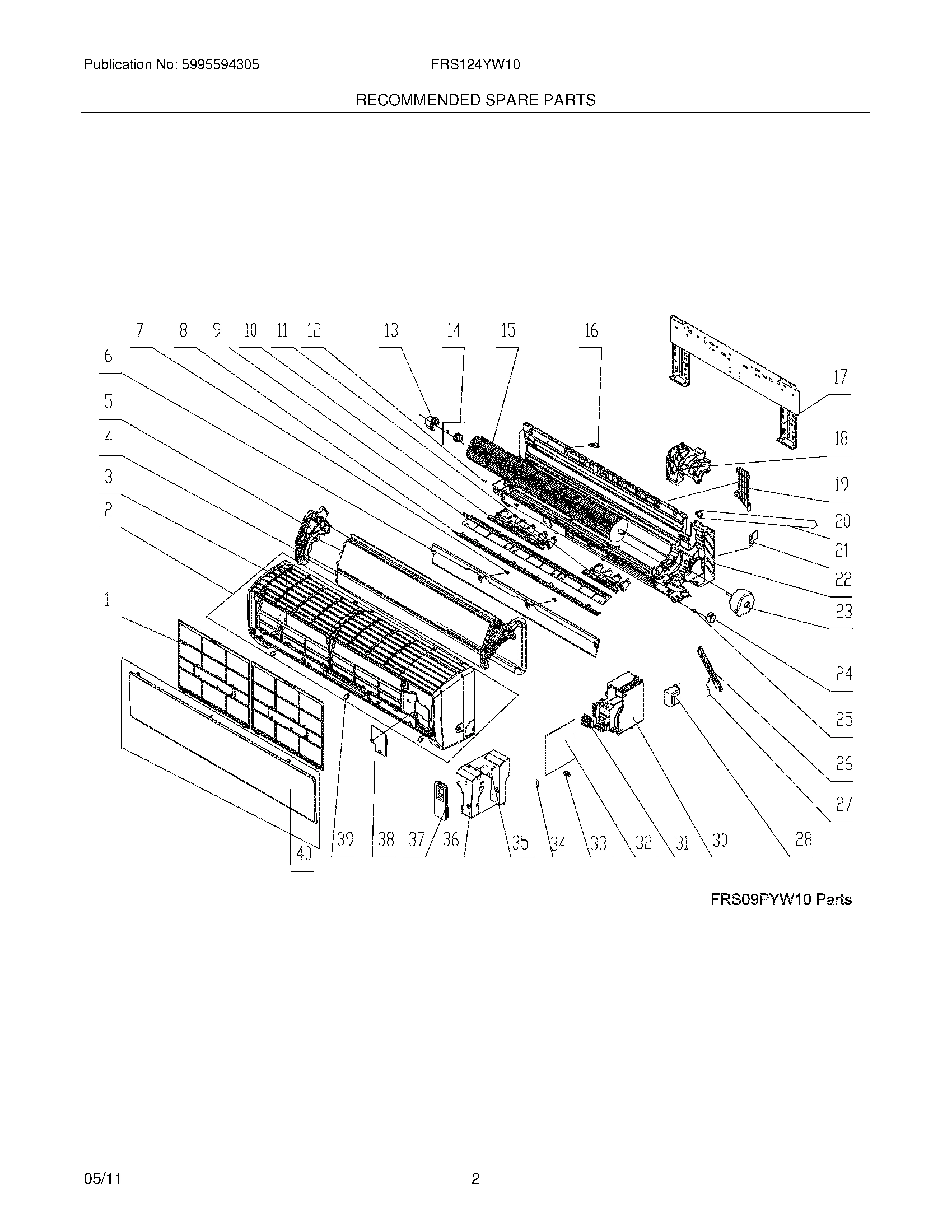

Model Electrolux FRS124YW10 ROOM AIR CONDITIONER – Common Parts & Diagrams

2
WCI 5304482784
WCI 5304482784 WCI 5304482784 Contact Us For Availability
View on Model
3
WCI 5304482785
WCI 5304482785 WCI 5304482785 Contact Us For Availability
View on Model
4
WCI 5304483234
WCI 5304483234 WCI 5304483234 Contact Us For Availability
View on Model
5
Support,evaporator
Support,evaporator WCI 5304482775 Contact Us For Availability
View on Model
6
WCI 5304482790
WCI 5304482790 WCI 5304482790 Contact Us For Availability
View on Model
7
WCI 5304482906
WCI 5304482906 WCI 5304482906 Contact Us For Availability
View on Model
8
WCI 5304482783
WCI 5304482783 WCI 5304482783 Contact Us For Availability
View on Model
9
WCI 5304482779
WCI 5304482779 WCI 5304482779 Contact Us For Availability
View on Model
10
Louver,vertical ,left ,long
Louver,vertical ,left ,long WCI 5304482782 Contact Us For Availability
View on Model
11
Louver,vertical ,right ,short
Louver,vertical ,right ,short WCI 5304482781 Contact Us For Availability
View on Model
12
Bushing,louver shaft ,left
Bushing,louver shaft ,left WCI 5304482905 Contact Us For Availability
View on Model
13
Bearing Block,housing ,w/O`ring
Bearing Block,housing ,w/O`ring WCI 5304482777 Contact Us For Availability
View on Model
14
O`Ring,bearing ,gasket/seal
O`Ring,bearing ,gasket/seal WCI 5304482778 Contact Us For Availability
View on Model
15
Blower Wheel,cross flow fan
Blower Wheel,cross flow fan WCI 5304482776 Contact Us For Availability
View on Model
16
Drain Plug,drip tray
Drain Plug,drip tray WCI 5304482805 Contact Us For Availability
View on Model
17
Plate,installation ,wall mount
Plate,installation ,wall mount WCI 5304483235 Contact Us For Availability
View on Model
18
Housing,motor cover
Housing,motor cover WCI 5304482793 Contact Us For Availability
View on Model
19
Clamp,drain hose
Clamp,drain hose WCI 5304482791 Contact Us For Availability
View on Model
20
Hose,drain
Hose,drain WCI 5304482780 Contact Us For Availability
View on Model
21
WCI 5304483236
WCI 5304483236 WCI 5304483236 Contact Us For Availability
View on Model
22
Casing,rear
Casing,rear WCI 5304482773 Contact Us For Availability
View on Model
23
WCI 5304482794
WCI 5304482794 WCI 5304482794 Contact Us For Availability
View on Model
24
WCI 5304482792
WCI 5304482792 WCI 5304482792 Contact Us For Availability
View on Model
25
Lever,louver control ,crank
Lever,louver control ,crank WCI 5304482907 Contact Us For Availability
View on Model
26
WCI 5304482802
WCI 5304482802 WCI 5304482802 Contact Us For Availability
View on Model
27
Sensor,ambient temp ,thermistor
Sensor,ambient temp ,thermistor WCI 5304459792 Contact Us For Availability
View on Model
28
WCI 5304482800
WCI 5304482800 WCI 5304482800 Contact Us For Availability
View on Model
30
WCI 5304482799
WCI 5304482799 WCI 5304482799 Contact Us For Availability
View on Model
31
Terminal Block,4-bit
Terminal Block,4-bit WCI 5304482804 Contact Us For Availability
View on Model
32
WCI 5304483383
WCI 5304483383 WCI 5304483383 Contact Us For Availability
View on Model
33
WCI 5304483384
WCI 5304483384 WCI 5304483384 Contact Us For Availability
View on Model
34
Sensor,evaporator temp ,defrost
Sensor,evaporator temp ,defrost WCI 5304460537 Contact Us For Availability
View on Model
35
WCI 5304482795
WCI 5304482795 WCI 5304482795 Contact Us For Availability
View on Model
36
WCI 5304482796
WCI 5304482796 WCI 5304482796 Contact Us For Availability
View on Model
37
WCI 5304482787
WCI 5304482787 WCI 5304482787 Contact Us For Availability
View on Model
38
WCI 5304482797
WCI 5304482797 WCI 5304482797 Contact Us For Availability
View on Model
39
Cover,screws ,front assembly
Cover,screws ,front assembly WCI 5304482789 Contact Us For Availability
View on Model
40
WCI 5304483237
WCI 5304483237 WCI 5304483237 Contact Us For Availability
View on Model
NI
WCI 5304483381
WCI 5304483381 WCI 5304483381 Contact Us For Availability
View on Model
