Model LG FPD1830 – Common Parts & Diagrams

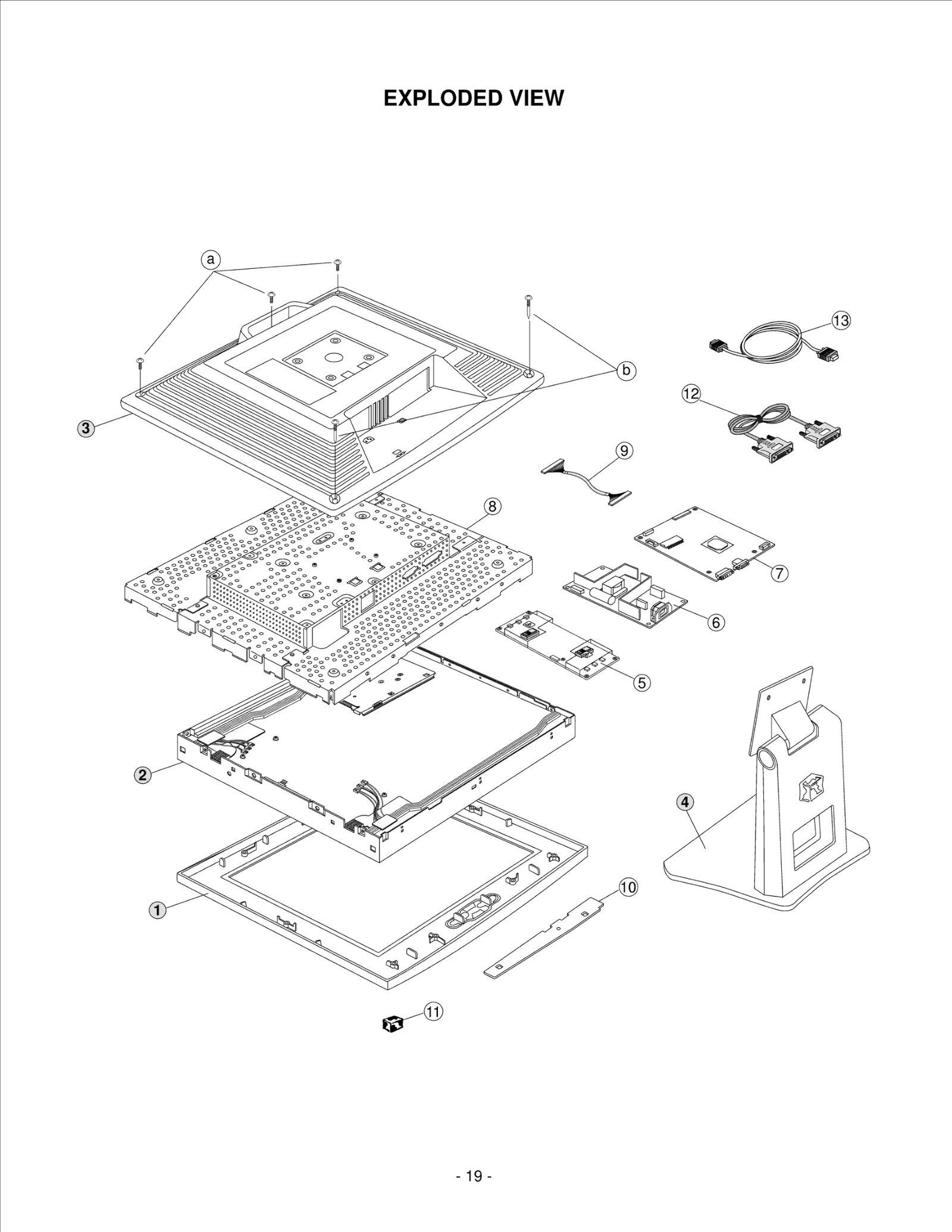

Diagram 0
Common parts from model LG FPD1830
0
MAIN TOTAL ASSEMBLY LGE 3313TL8022A Contact Us For Availability
0
LGE 3550TKK188B LGE 3550TKK188B Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11016D Contact Us For Availability
0
POWER CORD LGE 174-206M Contact Us For Availability
0
LGE 1MCC0302423 LGE 1MCC0302423 Contact Us For Availability
0
LGE 3550TKK190B LGE 3550TKK190B Contact Us For Availability
0
LGE 3809TKL033A LGE 3809TKL033A Contact Us For Availability
0
LGE 3920TKE198A LGE 3920TKE198A Contact Us For Availability
0
LGE 6631T20015B LGE 6631T20015B Contact Us For Availability
0
PWB(PCB) ASSEMBLY,SU LGE 6871TST239C Contact Us For Availability
0
LGE 3043TKK078G LGE 3043TKK078G Contact Us For Availability
0
LGE 3550TKK187B LGE 3550TKK187B Contact Us For Availability
0
LGE 3846TKK053A LGE 3846TKK053A Contact Us For Availability
0
LGE 3871TZL224J LGE 3871TZL224J Contact Us For Availability
0
LGE 1SZZTPC001B LGE 1SZZTPC001B Contact Us For Availability
0
SCREW, LGE 1SZZTPC002A Contact Us For Availability
0
SCREW, LGE 332-105G Contact Us For Availability
0
Bag LGE 373-071D Contact Us For Availability
0
LGE 3890TSE387A LGE 3890TSE387A Contact Us For Availability
0
Harness,Single LGE 6631T25008Q Contact Us For Availability
0
PWB(PCB) ASSEMBLY,PO LGE 6871TPT230A Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTER001H Contact Us For Availability
0
SCREW, LGE 1SZZTPC002C Contact Us For Availability
0
SCREW LGE 332-095B Contact Us For Availability
0
LGE 332-105F LGE 332-105F Contact Us For Availability
0
LGE 3880TKZ010B LGE 3880TKZ010B Contact Us For Availability
0
LGE 4001TKK007C LGE 4001TKK007C Contact Us For Availability
0
LGE 4940TKT113D LGE 4940TKT113D Contact Us For Availability
0
LGE 4951TKS093A LGE 4951TKS093A Contact Us For Availability
0
LCD,Module-TFT LGE 6304FLP034A Contact Us For Availability
0
CABLE,DVI LGE 6866TDV004J Contact Us For Availability
0
LGE 6871TMT333A LGE 6871TMT333A Contact Us For Availability
0
LGE 3091TKL052A LGE 3091TKL052A Contact Us For Availability
0
SCREW,DRAWING LGE 332-112F Contact Us For Availability
0
LGE 4940TKP089D LGE 4940TKP089D Contact Us For Availability
0
INVERTER ASSEMBLY LGE 6633TZA015A Contact Us For Availability
0
LGE 332-110A LGE 332-110A Contact Us For Availability
0
SCREW,DRAWING LGE 332-113S Contact Us For Availability
0
LGE 3550TKK189B LGE 3550TKK189B Contact Us For Availability
0
LGE 6631T20015K LGE 6631T20015K Contact Us For Availability
BD901
DIODE D3SBA60 SHINDENKEN CM-77 LGE 0DD360000DA Contact Us For Availability
C1
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C2
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C106
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C230
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH6150K416 Contact Us For Availability
C236
LGE 0CH6680K416 LGE 0CH6680K416 Contact Us For Availability
C262
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH6330K416 Contact Us For Availability
C265
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH6470K416 Contact Us For Availability
C274
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH3103K516 Contact Us For Availability
C409
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C410
CAPACITOR,CHIP[AL. E LGE 0CH8226F691 Contact Us For Availability
C508
CAPACITOR,FIXED CERA LGE 0CK222CK51A Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C531
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C548
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C706
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C840
CAPACITOR,AL.ELECTRO LGE 0CE477EH618 Contact Us For Availability
C860
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C901
Capacitor,Film,Box LGE 0CBZTBU002B Contact Us For Availability
C903
LGE 0CKZTTA003A LGE 0CKZTTA003A Contact Us For Availability
C904
Capacitor,Film,Box LGE 0CBZTBU002A Contact Us For Availability
C905
Capacitor,AL,Radial LGE 0CZZTAB002C Contact Us For Availability
C906
Capacitor,Ceramic,Radial LGE 0CK10302945 Contact Us For Availability
C907
Capacitor,AL,Radial LGE 0CE476EK638 Contact Us For Availability
C908
Capacitor,Film,DIP LGE 0CQ2721N419 Contact Us For Availability
C909
CAPACITOR CERAMIC(HIGH DIELE) LGE 0CK1020K515 Contact Us For Availability
C913
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C914
Capacitor,AL,Radial LGE 0CE228ED630 Contact Us For Availability
C916
Capacitor,Film,DIP LGE 181-288L Contact Us For Availability
C919
Capacitor,Ceramic,Radial LGE 0CKZTBU004B Contact Us For Availability
C921
Capacitor,AL,Radial LGE 0CE228EF630 Contact Us For Availability
C923
Capacitor,Ceramic,Radial LGE 0CKZTTA002E Contact Us For Availability
C924
CAPACITOR,ELECTROLYTIC LGE 0CE336BH638 Contact Us For Availability
D502
Diode,Schottky LGE 0DS301109AA Contact Us For Availability
D746
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D901
Diode,Rectifier LGE 0DD400709CB Contact Us For Availability
D902
DIODE,RECTIFIER LGE 0DR400409AB Contact Us For Availability
D903
Diode,Schottky LGE 0DRIR00011B Contact Us For Availability
D906
Diode,Schottky LGE 0DRIR00021A Contact Us For Availability
D907
DIODE,SWITCHING LGE 0DS113309AA Contact Us For Availability
F901
FUSE HBC 250V 3.15A UL/S (CH47 LGE 131-040C Contact Us For Availability
FH2
Fuse Holder LGE 430-858C Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMGIH001A Contact Us For Availability
IC904
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC905
IC LGE 0ISS780500F Contact Us For Availability
J704
CONNECTOR (CIRC),D-S LGE 6630TGA004A Contact Us For Availability
J705
CONNECTOR (CIRC),WAF LGE 6630VF00530 Contact Us For Availability
J708
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
L204
Filter,Bead LGE 6210TCE001P Contact Us For Availability
L205
FILTER(CIRC),EMC LGE 6210TCE001R Contact Us For Availability
LED2
LGE 0DL305029BA LGE 0DL305029BA Contact Us For Availability
LF902
FILTER(CIRC),DRAWING LGE 6200TZZ001A Contact Us For Availability
P901
LGE 6620TKB002C LGE 6620TKB002C Contact Us For Availability
PC1
IC,LITEON LGE 0ILI817000E Contact Us For Availability
Q103
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q503
IC,KEC LGE 0IKE704200H Contact Us For Availability
Q703
TR,Bipolar LGE 0TR162309CA Contact Us For Availability
Q902
LGE 0TFFN10004A LGE 0TFFN10004A Contact Us For Availability
R2
RESISTOR,FIXED CARBON FILM LGE 0RD4701Q609 Contact Us For Availability
R3
LGE 0RD8200Q609 LGE 0RD8200Q609 Contact Us For Availability
R6
LGE 0RD1501Q609 LGE 0RD1501Q609 Contact Us For Availability
R7
RESISTOR,FIXED CARBON FILM LGE 0RD2201Q609 Contact Us For Availability
R129
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R133
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R202
RESISTOR CHIP 2.0K 1/10W 5 D.R LGE 0RH2001D622 Contact Us For Availability
R223
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R233
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R235
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R241
RESISTOR CHIP 56 1/10W 5 D.R/ LGE 0RH0562D622 Contact Us For Availability
R540
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R544
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R713
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R731
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R752
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R809
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R810
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
R901
Resistor,Carbon Film LGE 0RD6803A609 Contact Us For Availability
R902
RESISTOR,FIXED CARBON FILM LGE 0RD3902A609 Contact Us For Availability
R906A
Resistor,Metal Oxide Film LGE 0RX5102J609 Contact Us For Availability
R908
Resistor,Carbon Film LGE 0RD0222Q609 Contact Us For Availability
R909
Resistor,Carbon Film LGE 0RD1001Q609 Contact Us For Availability
R910
Resistor,Carbon Film LGE 0RD0431A609 Contact Us For Availability
R913
Resistor,Metal Film LGE 0RN1102F409 Contact Us For Availability
R918
RESISTOR,FIXED CARBON FILM LGE 0RD1000Q609 Contact Us For Availability
R921
Resistor,Metal Film LGE 0RN2701F409 Contact Us For Availability
R923
Resistor,Wire Wound LGE 0RB0330K607 Contact Us For Availability
R924
Resistor,Carbon Film LGE 0RD0752Q609 Contact Us For Availability
R925
Resistor,Carbon Film LGE 0RD1002Q609 Contact Us For Availability
R926
Resistor,Metal Film LGE 0RN0471H609 Contact Us For Availability
R927
Resistor,Carbon Film LGE 0RD0102A609 Contact Us For Availability
R928
LGE 0RD0202Q609 LGE 0RD0202Q609 Contact Us For Availability
RA236
Resistor,Array LGE 0RHZTCZ001A Contact Us For Availability
SW1
LGE 140-058D LGE 140-058D Contact Us For Availability
SW7
SWITCH LGE 140-058E Contact Us For Availability
T901
TRANSFORMER,SMPS[COI LGE 6170TMZ125B Contact Us For Availability
TH902
Thermistor,NTC LGE 6322TA080AA Contact Us For Availability
U105
IC,Inverter LGE 0ITI741400T Contact Us For Availability
U110
IC,SAMSUNG ELECTRONICS LGE 0ISS780500H Contact Us For Availability
U201
IC,Video Processors LGE 0IPRPGN001A Contact Us For Availability
U302
IC,ELITE MEMORY TECH LGE 0IEB121616A Contact Us For Availability
U401
IC,LINEAR LGE 0ILNRTH001A Contact Us For Availability
U501
LGE 0IZZTSZ202A LGE 0IZZTSZ202A Contact Us For Availability
U503
IC,EEPROM LGE 0ICS240813B Contact Us For Availability
U504
IC,MEMORIES LGE 0ISS524202B Contact Us For Availability
U802
TRANSISTOR,FETS LGE 0TFFC80009A Contact Us For Availability
U803
IC,POWER MANAGEMENT LGE 0IPMGFA003B Contact Us For Availability
U820
IC,ROHM LGE 0IRH033200A Contact Us For Availability
X501
CRYSTAL LGE 6202TTB004C Contact Us For Availability
X501
LGE 6212AA2004C LGE 6212AA2004C Contact Us For Availability
ZD1
DIODE,ZENER LGE 0DZ560009CE Contact Us For Availability
ZD901
DIODE,ZENERS LGE 0DZ470009BC Contact Us For Availability
× ![]()
