Model Electrolux FLVW7000AW – Common Parts & Diagrams

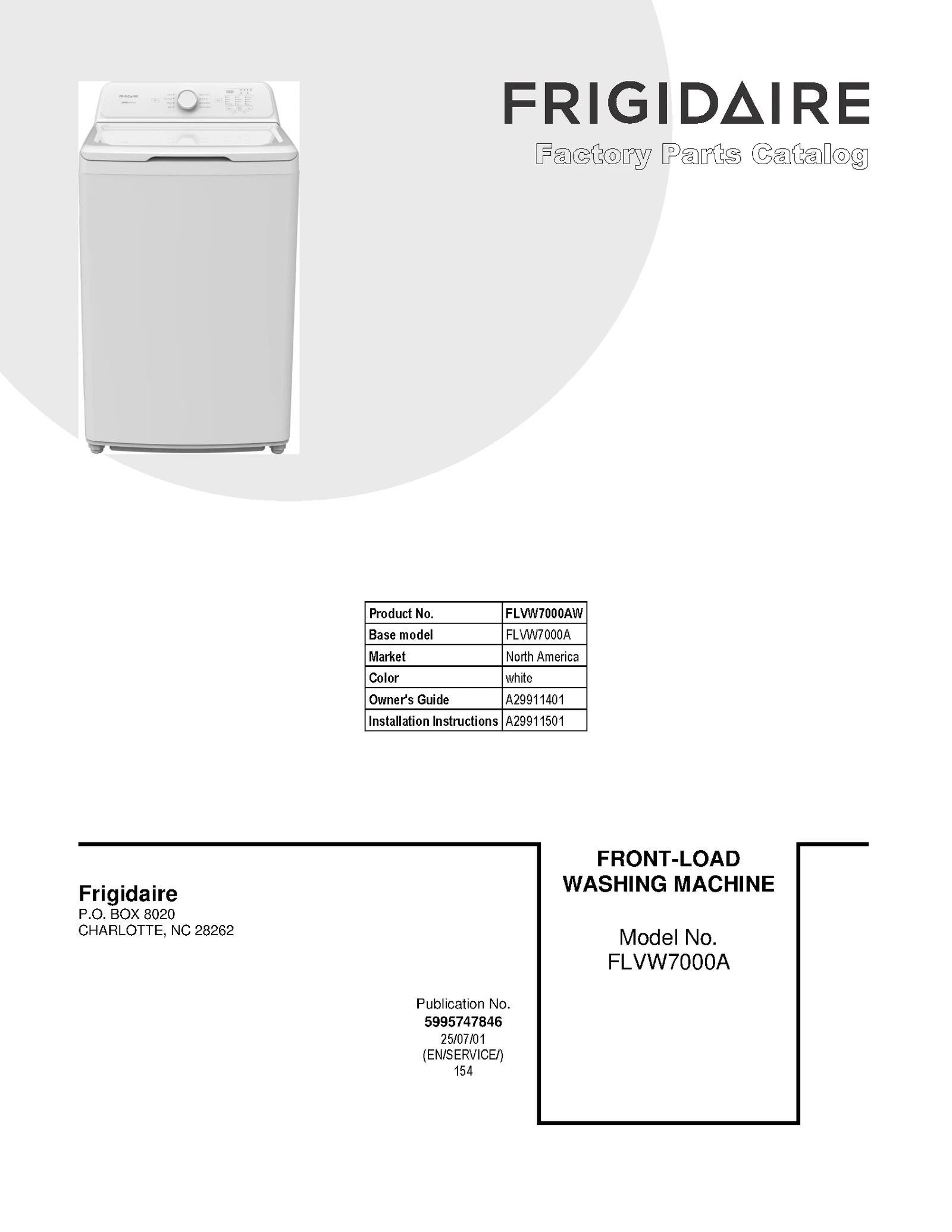

COVER
CONTROL PANEL
CABINET/TOP
MOTOR/TUB
Common parts from model Electrolux FLVW7000AW
3
Cover Pin WCI 4056012463 Contact Us For Availability
4
Impact switch WCI 4055535324 Contact Us For Availability
4
Twist Spring WCI 4056012497 Contact Us For Availability
5
Harness Assembly, internal WCI 4056012513 Contact Us For Availability
5
Screw, Includes bolt WCI 4056012539 Contact Us For Availability
7
Screw cover WCI 5304538541 Contact Us For Availability
12B
Screw set, agitator WCI 4056012521 Contact Us For Availability
13
Rear cover, cabinet WCI 4056012638 Contact Us For Availability
17
Base Assembly, cabinet WCI 4056012604 Contact Us For Availability
17A
Base cabinet WCI 4056012620 Contact Us For Availability
17B
Foot Assembly, adjustable WCI 4055608998 Contact Us For Availability
19
Drain Hose, assembly WCI 5304538547 Contact Us For Availability
20
Tub complete, subassembly WCI 4056021290 Contact Us For Availability
22
Balance Ring, assembly WCI 4056012562 Contact Us For Availability
24
Tub Assembly, stainless WCI 4056012588 Contact Us For Availability
39
Hose, overflow WCI 5304538574 Contact Us For Availability
41
Tub Assembly, outer, subordinate WCI 4056012612 Contact Us For Availability
42
Base Plate, outer tub WCI 4056012646 Contact Us For Availability
45
Cushion, motor mtg, lower WCI 5304538576 Contact Us For Availability
46
Pulley, motor WCI 5304538579 Contact Us For Availability
50
Bracket, clutch mtg WCI 5304538573 Contact Us For Availability
× ![]()
