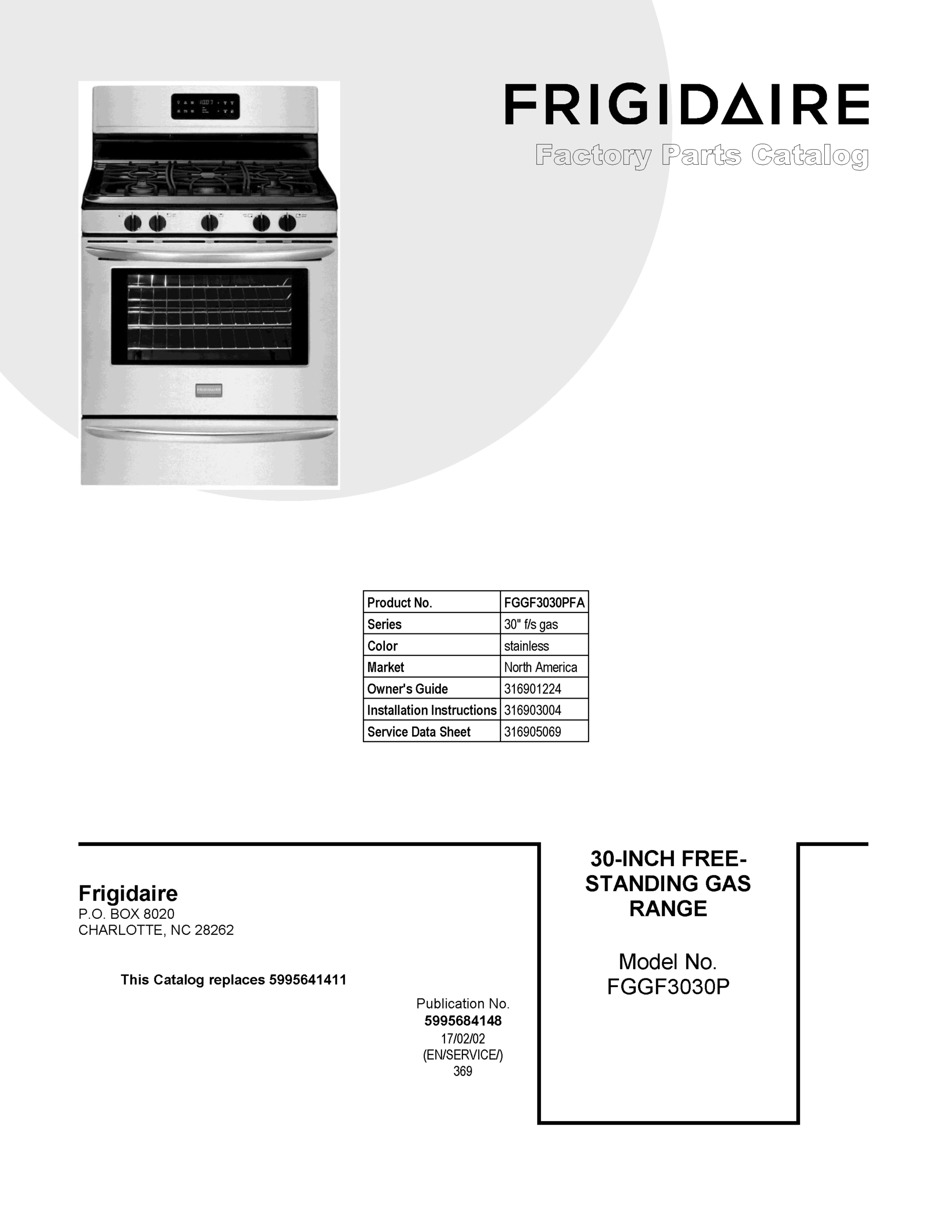

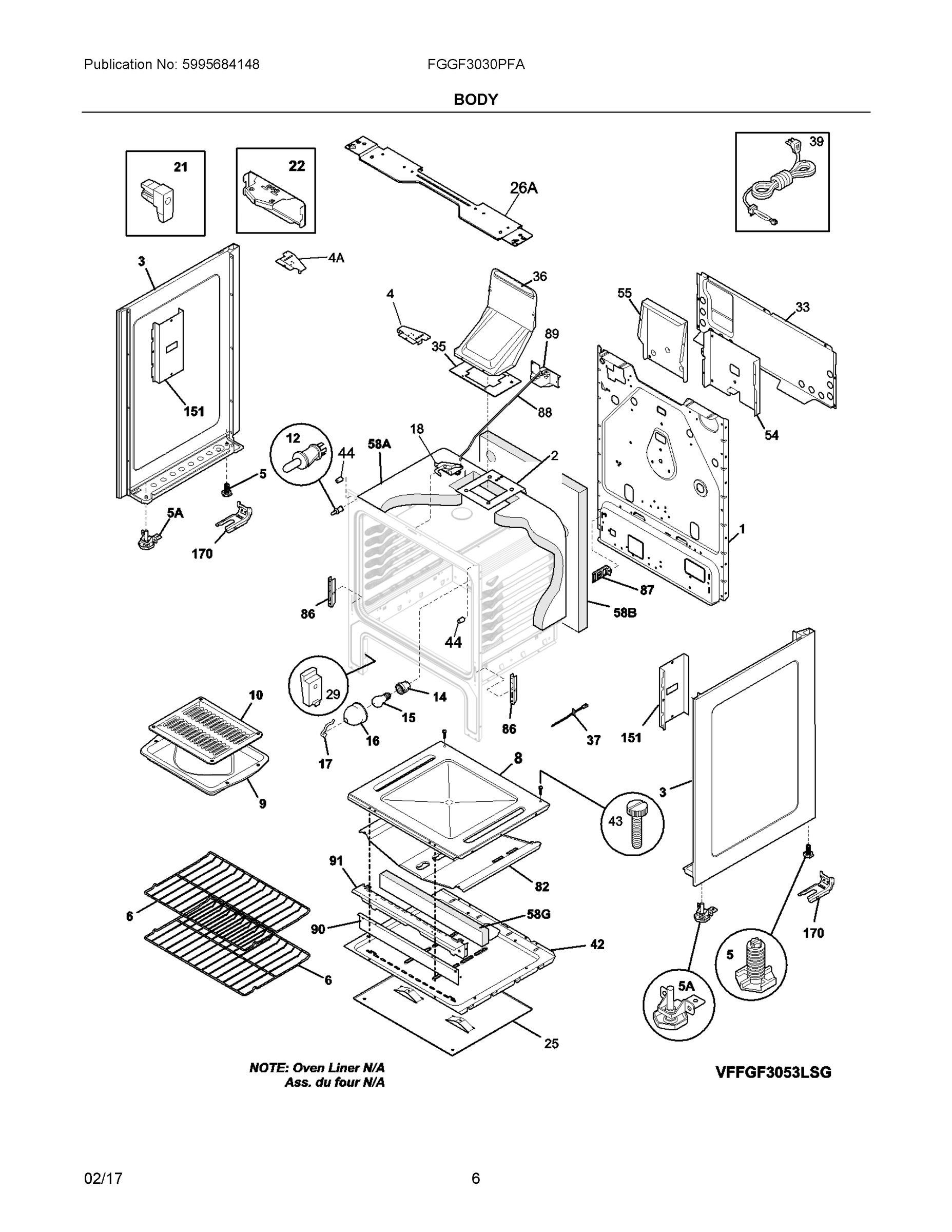

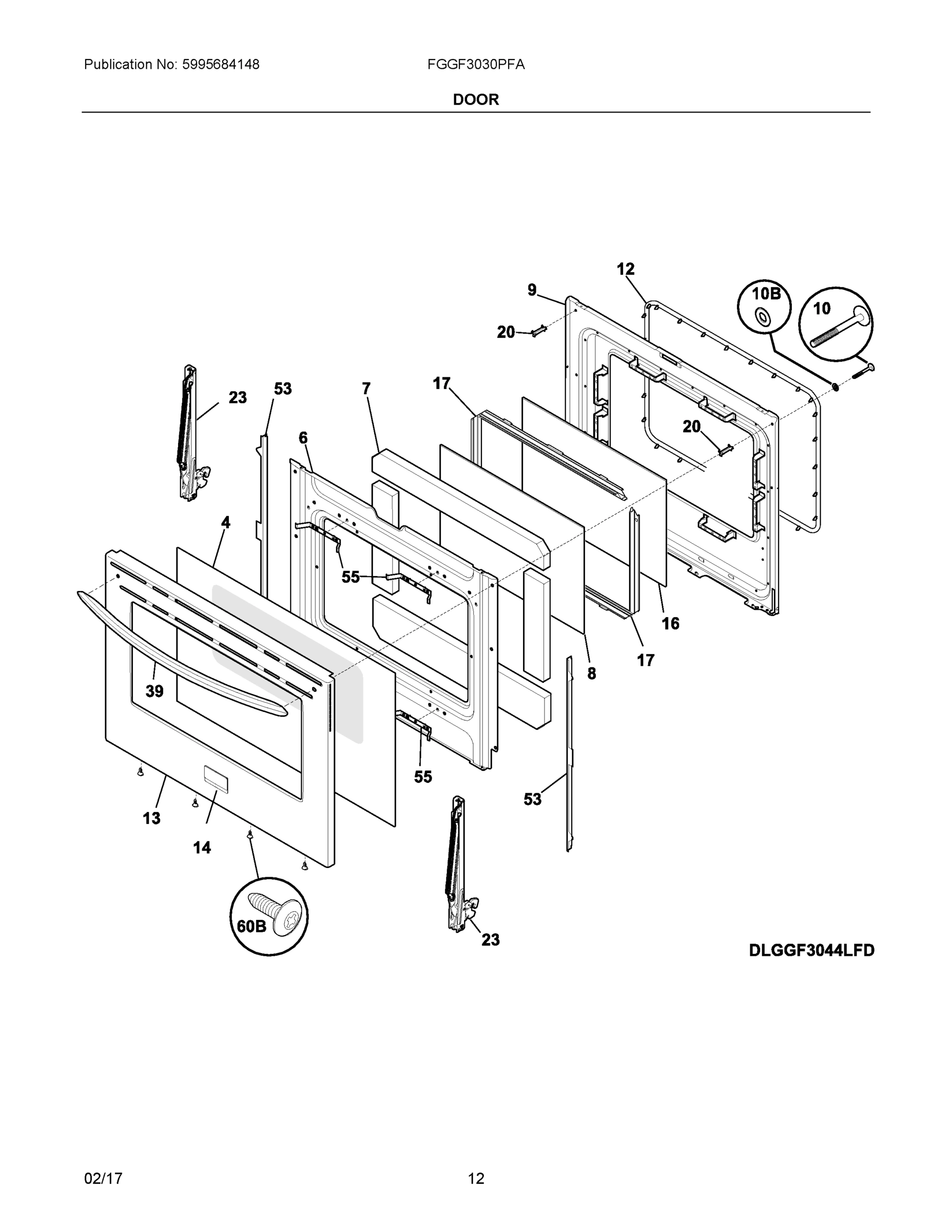

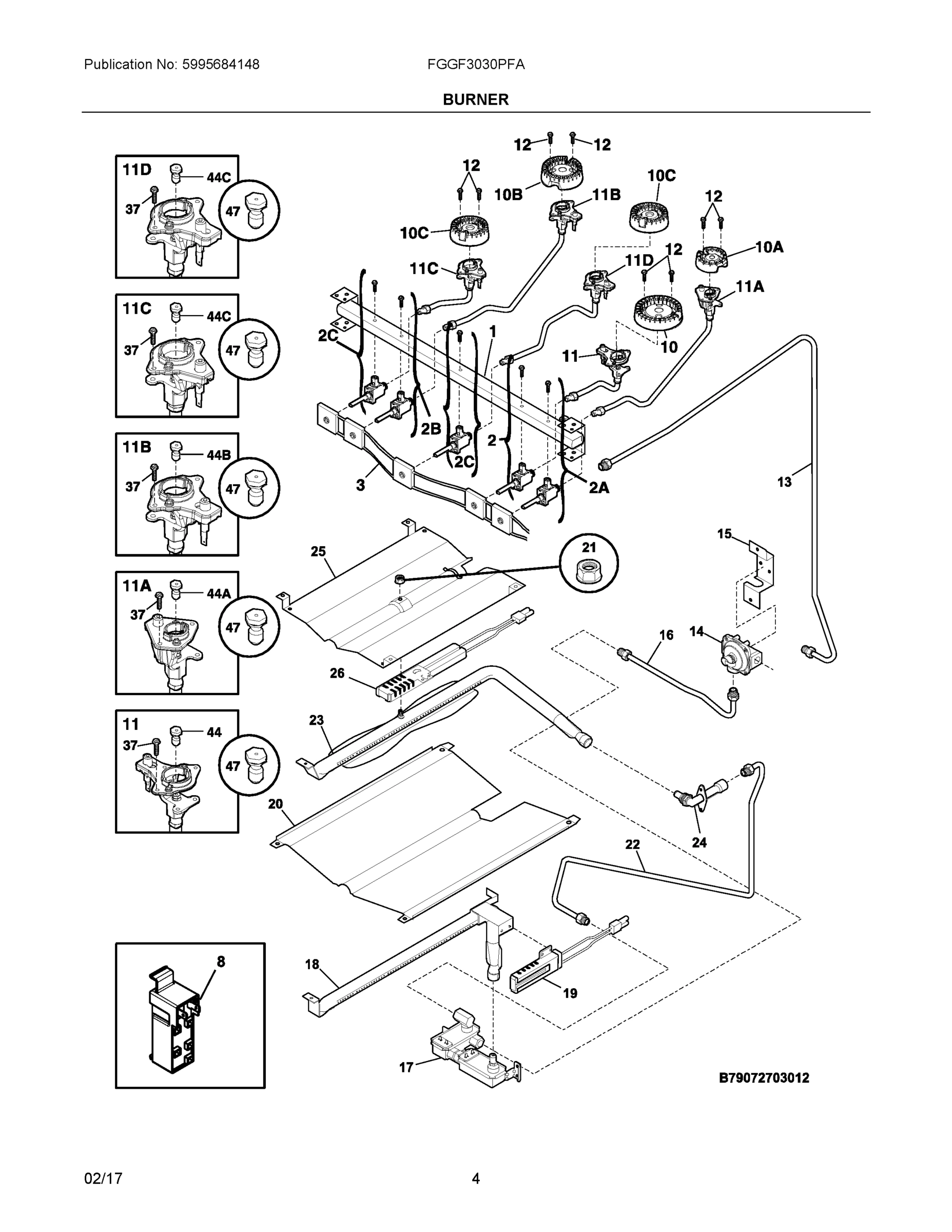

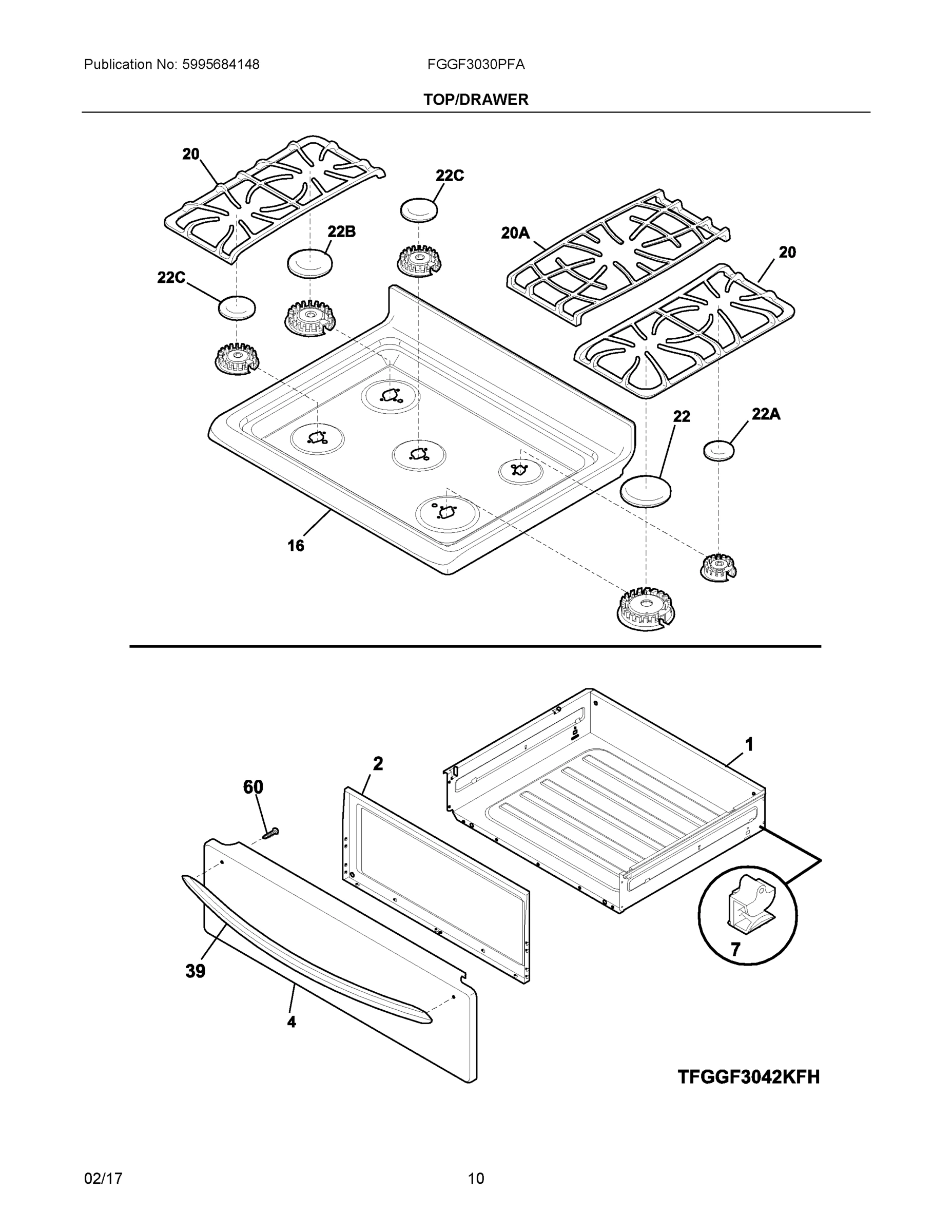

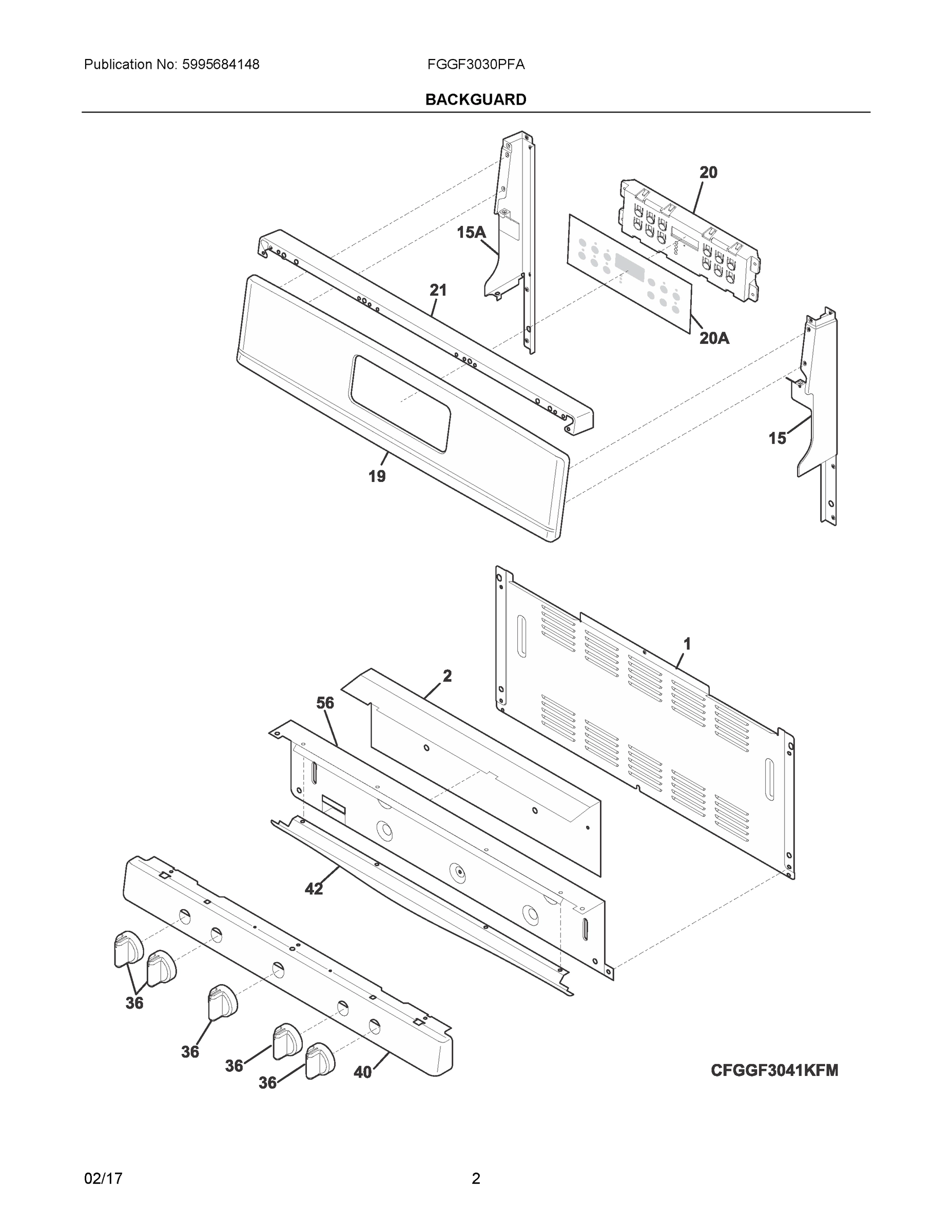

Model Electrolux FGGF3030PFA RANGE/OVEN, GAS, FREESTANDING – Common Parts &amp; Diagrams

1

316408706 Frigidaire Oven Drawer Assembly In Stock WCI 316408706 $82.61

1

SHIELD, REAR WALL WCI 316557600 Contact Us For Availability

2

316560900 Frigidaire Oven Valve In Stock WCI 316560900 $64.89

2

5304527988 Frigidaire Liner Backorder WCI 5304527988 $19.40

2A

5303935308 Frigidaire Oven Valve Backorder WCI 5303935308 $55.47

2B

5303935306 Frigidaire Oven Valve Backorder WCI 5303935306 $63.23

2C

5303935305 Frigidaire Oven Valve Backorder WCI 5303935305 $60.47

3

316580615 Frigidaire Range Spark Ignition Swi In Stock WCI 316580615 $78.22

4

316452722 Frigidaire Oven Glass Backorder WCI 316452722 $194.16

5

316272900 Frigidaire Oven Leg Levelling Plast In Stock WCI 316272900 $10.53

5A

5304509869 Frigidaire Oven Leveling Leg Assem In Stock WCI 5304509869 $4.41

6

316402316 Frigidaire Shield Backorder WCI 316402316 $64.89

6

316496201 Frigidaire Oven Rack In Stock WCI 316496201 $73.67

7

316403900 Frigidaire Insulation Backorder WCI 316403900 $56.58

7

316407402 Frigidaire Range Drawer Glide In Stock WCI 316407402 $7.20

8

316400603 Frigidaire Oven Stove Bottom Panel Backorder WCI 316400603 $136.43

8

5304503232 Frigidaire Oven Inner Door Glass In Stock WCI 5304503232 $91.51

8

5304508269 Frigidaire Oven Range Spark Module In Stock WCI 5304508269 $76.06

9

316423807 Frigidaire Oven Door Liner Backorder WCI 316423807 $125.36

9

PAN, BROILER WCI 316081900 Contact Us For Availability

10

316438400 Frigidaire Range Sealed Burner, 16/ In Stock WCI 316438400 $60.63

10

SCREW, HANDLE MTG., 10-24 X 1.75", (2) WCI 316439500 Contact Us For Availability

10

INSERT, BROILER PAN WCI 316082000 Contact Us For Availability

10A

316438200 Frigidaire Range Sealed Burner, 5K In Stock WCI 316438200 $44.37

10B

316008401 Frigidaire Washer P-1 In Stock WCI 316008401 $8.85

10B

316438000 Frigidaire Sealed Burner 12K Assemb In Stock WCI 316438000 $52.68

10C

316558300 Frigidaire Oven 9.5L Sealed Burner In Stock WCI 316558300 $41.02

11

316536621 Frigidaire Igniter and Orifice Asse In Stock WCI 316536621 $133.12

11A

316536610 Frigidaire Igniter Assembly/Orifice In Stock WCI 316536610 $72.11

11B

316536612 Frigidaire Igniter Assembly/Orifice Backorder WCI 316536612 $90.94

11C

316536602 Frigidaire Oven Igniter/Orifice Ass In Stock WCI 316536602 $97.06

11D

316536623 Frigidaire Igniter/Orifice Assembly In Stock WCI 316536623 $115.37

12

316445500 Frigidaire Oven Switch Backorder WCI 316445500 $47.16

12

316540900 Frigidaire Oven Screw In Stock WCI 316540900 $11.07

12

5304498835 Frigidaire Oven Seal In Stock WCI 5304498835 $78.74

13

316489101 Frigidaire Suppl Tube-Manifold Backorder WCI 316489101 $79.87

14

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $46.03

14

316572700 Frigidaire Oven Nameplate Backorder WCI 316572700 $63.78

15

316091600 Frigidaire Oven Bracket Backorder WCI 316091600 $53.82

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $14.94

15

316546710 Frigidaire Oven Cap Backorder WCI 316546710 $80.66

15A

CAP, BACKGUARD, BLACK, LH END WCI 316546703 Contact Us For Availability

5304507348 Frigidaire Oven Tube Backorder WCI 5304507348 $34.39

5304524341 Frigidaire Lens In Stock WCI 5304524341 $9.98

GLASS, OVEN DOOR, INNER WCI 316117501 Contact Us For Availability

MAINTOP PANEL, BLACK WCI 316469605 Contact Us For Availability

17

316031501 Frigidaire Oven Valve In Stock WCI 316031501 $231.81

17

316087500 Frigidaire Oven Retainer Backorder WCI 316087500 $44.37

17

5304504811 Frigidaire Glass Spacer In Stock WCI 5304504811 $18.29

18

316404400 Frigidaire Oven Burner In Stock WCI 316404400 $81.53

18

316405800 Frigidaire Assembly Latch Backorder WCI 316405800 $47.16

19

316489403 Frigidaire Range Bake Igniter In Stock WCI 316489403 $107.45

19

316572406 Frigidaire Control Panel Backorder WCI 316572406 $199.14

316284100 Frigidaire Oven Spacer Assembly In Stock WCI 316284100 $11.64

316499502 Frigidaire Oven Grate In Stock WCI 316499502 $213.56

5304510580 Frigidaire Oven Clock In Stock WCI 5304510580 $234.27

5304519024 Frigidaire Oven Baffle Backorder WCI 5304519024 $58.77

20A

316419339 Frigidaire Oven Overlay Backorder WCI 316419339 $37.72

20A

316551802 Frigidaire Oven Grate Backorder WCI 316551802 $240.28

21

316408000 Frigidaire Oven Clip Assembly Backorder WCI 316408000 $13.29

21

316546605 Frigidaire Oven Cap Backorder WCI 316546605 $51.57

21

5303013272 Frigidaire Oven Nut Backorder WCI 5303013272 $13.83

22

316286300 Frigidaire Bodyside Bracket Backorder WCI 316286300 $13.86

22

5304507768 Frigidaire Oven Tube Backorder WCI 5304507768 $36.61

22

5304508468 Frigidaire Oven Cap Assembly In Stock WCI 5304508468 $34.93

22A

5304508441 Frigidaire Oven Surface Burner Cap In Stock WCI 5304508441 $24.95

22B

5304508510 Frigidaire Surface Burner Cap Backorder WCI 5304508510 $28.28

22C

5304508442 Frigidaire Oven Surface Burner Cap In Stock WCI 5304508442 $26.08

23

316404302 Frigidaire Oven Burner Backorder WCI 316404302 $81.50

23

316575906 Frigidaire Oven Hinge Backorder WCI 316575906 $68.21

24

5304516894 Frigidaire Oven Elbow Assembly Backorder WCI 5304516894 $63.78

25

316406200 Frigidaire Oven Shield Assembly Backorder WCI 316406200 $64.34

25

BAFFLE, BROIL BURNER WCI 316401301 Contact Us For Availability

26

5304506545 Frigidaire Gas Oven Range Igniter In Stock WCI 5304506545 $88.16

26A

316498200 Frigidaire Oven Bracket Backorder WCI 316498200 $38.24

29

807047102 Frigidaire Oven Front Drawer Glide In Stock WCI 807047102 $8.85

33

316405900 Frigidaire Shield Backorder WCI 316405900 $73.76

35

316542102 Frigidaire Flue Gasket Backorder WCI 316542102 $8.85

36

KNOB, TOP VALVE, BLACK, (4) WCI 316564511 Contact Us For Availability

37

316240600 Frigidaire Igniter Mounting Screw In Stock WCI 316240600 $8.85

37

316490000 Frigidaire Oven Range Temperature S In Stock WCI 316490000 $44.90

39

316554010 Frigidaire Stainless Steel Handle In Stock WCI 316554010 $129.25

39

5304515659 Frigidaire Oven Power Cord In Stock WCI 5304515659 $31.61

42

316416204 Frigidaire Oven Trim Backorder WCI 316416204 $32.17

43

316282700 Frigidaire Oven Screw Backorder WCI 316282700 $7.74

44

316517600 Frigidaire Oven Spacer Backorder WCI 316517600 $9.42

44

316527508 Frigidaire Oven Orifice Assembly Backorder WCI 316527508 $14.42

44A

316527504 Frigidaire Oven Orifice Assembly In Stock WCI 316527504 $17.73

44B

316527502 Frigidaire Oven Orifice In Stock WCI 316527502 $17.75

44C

316527500 Frigidaire Oven Burner Orifice Asse In Stock WCI 316527500 $16.62

47

GRLP4 Frigidaire Oven LP Conversion Kit In Stock WCI GRLP4 $39.94

55

316408300 Frigidaire Oven Bracket Backorder WCI 316408300 $15.51

58A

316403700 Frigidaire Insulation Backorder WCI 316403700 $237.95

58B

INSULATION, OVEN BACK WCI 316403600 Contact Us For Availability

58G

08067973 Frigidaire 0 Insulation Backorder WCI 08067973 $40.48

82

316400801 Frigidaire Oven Shield Backorder WCI 316400801 $120.35

86

316441300 Frigidaire Receptacle Backorder WCI 316441300 $17.18

88

316232702 Frigidaire Rod Backorder WCI 316232702 $9.40

89

5304528973 Frigidaire Motor In Stock WCI 5304528973 $39.19

241853202 Frigidaire Refrigerator Screw Backorder WCI 241853202 $7.74

316001017 Frigidaire Screw Backorder WCI 316001017 $2.24

316021105 Frigidaire Oven Screw Backorder WCI 316021105 $8.85

316021109 Frigidaire Oven Screw In Stock WCI 316021109 $11.09

316089500 Frigidaire Oven Screw In Stock WCI 316089500 $9.31

316215600 Frigidaire Oven Screw Backorder WCI 316215600 $9.79

316418901 Frigidaire Oven Screw Backorder WCI 316418901 $11.09

5303285179 Frigidaire Oven Door Screw Backorder WCI 5303285179 $10.53

5304494425 Frigidaire Oven Harness Backorder WCI 5304494425 $63.21

SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability

WCI 316580338 WCI 316580338 Contact Us For Availability

NIA

316021104 Frigidaire Oven Screw Assembly Backorder WCI 316021104 $6.09

NIA

316401500 Frigidaire Oven Cover Backorder WCI 316401500 $9.40

NIA

316418900 Frigidaire Oven Screw In Stock WCI 316418900 $11.09
