Model Electrolux FGF379WECE RANGE – Common Parts & Diagrams

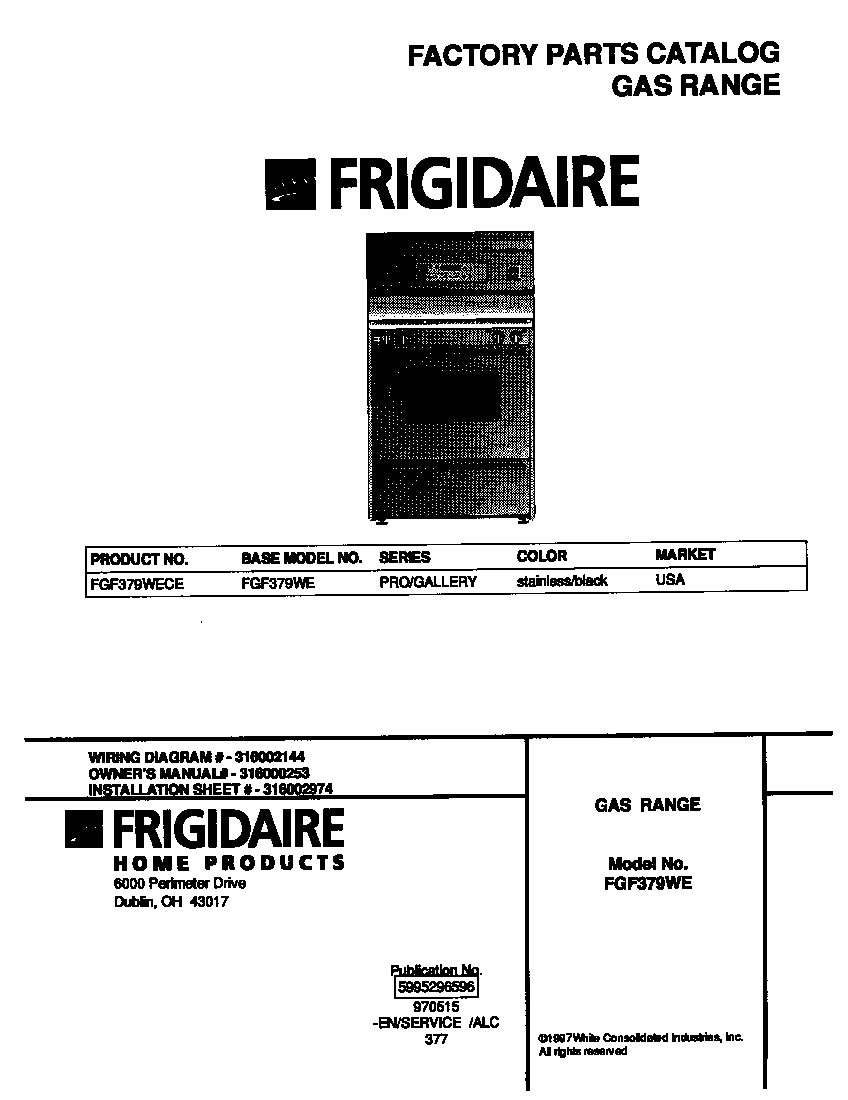

01 - COVER

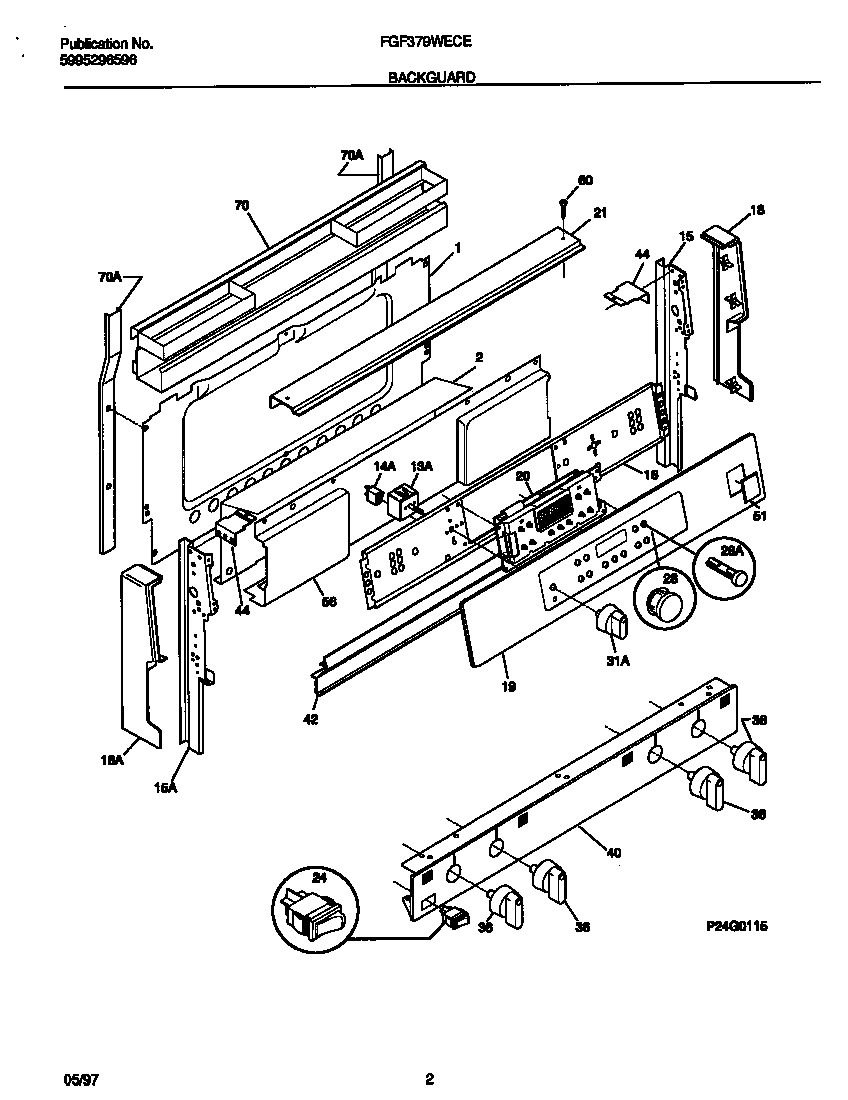

02 - BACKGUARD

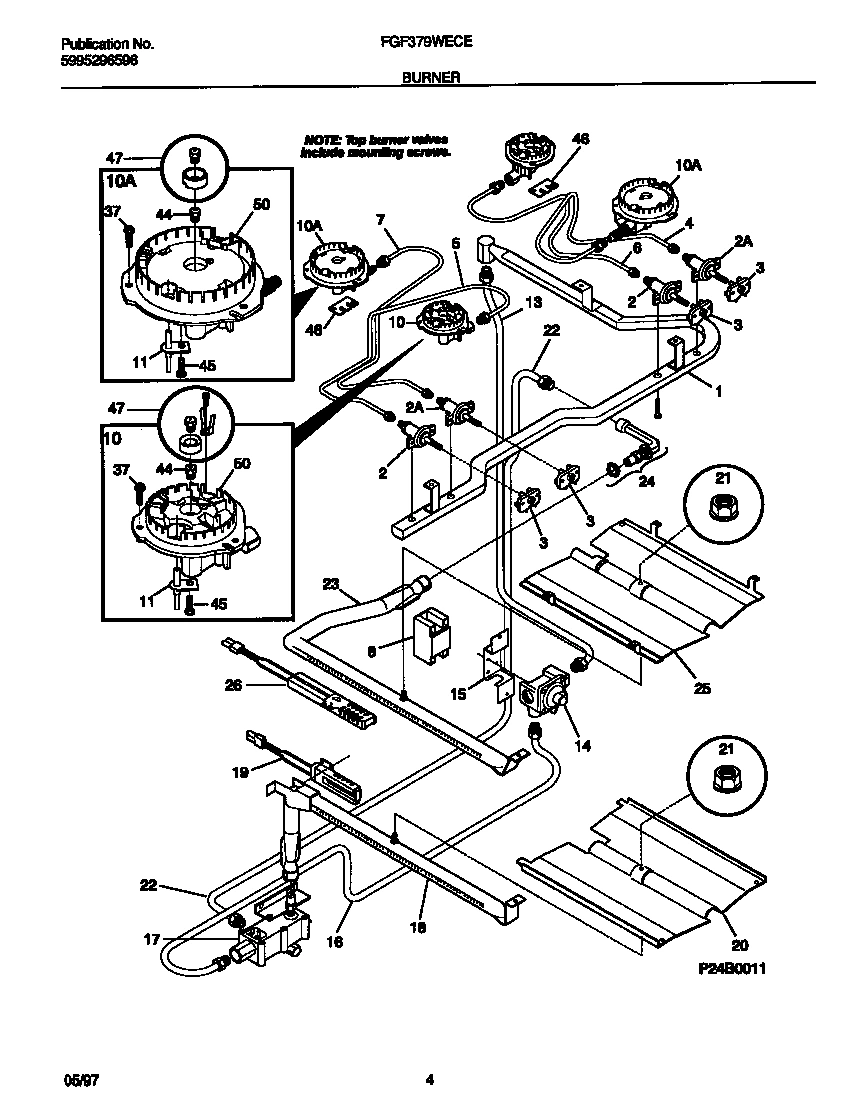

03 - BURNER

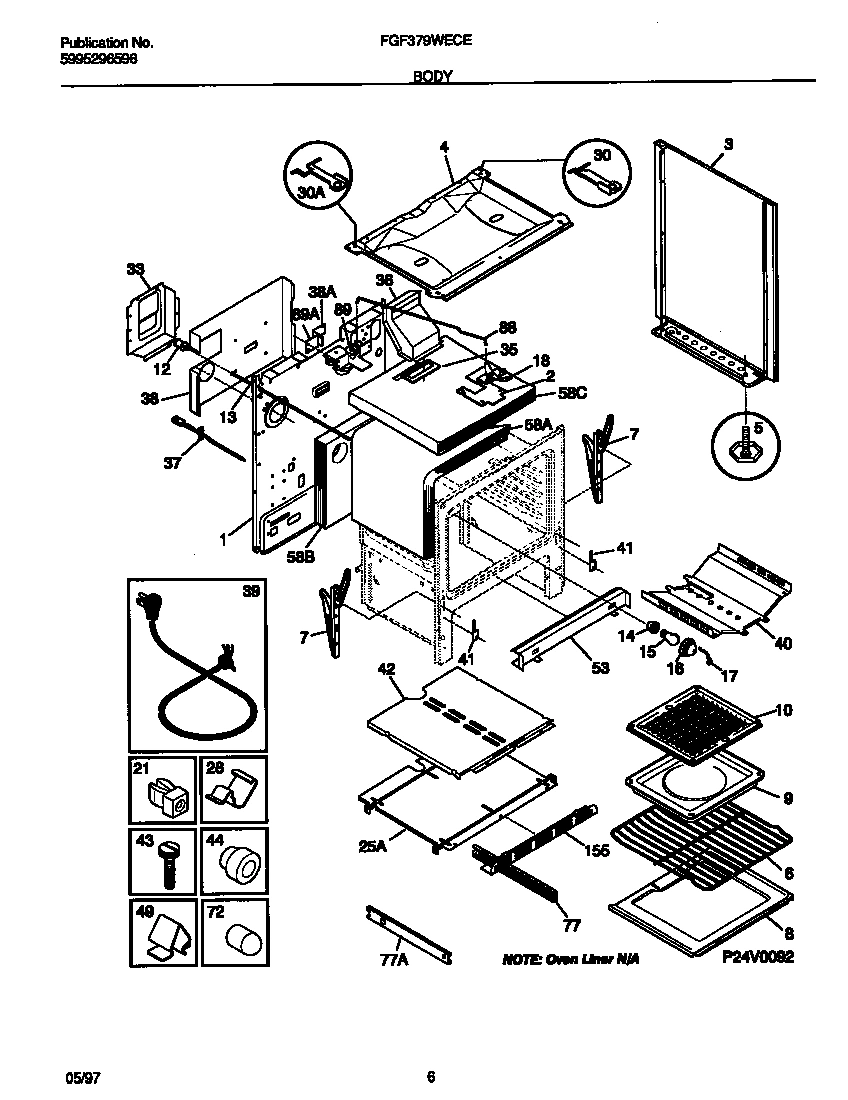

04 - BODY

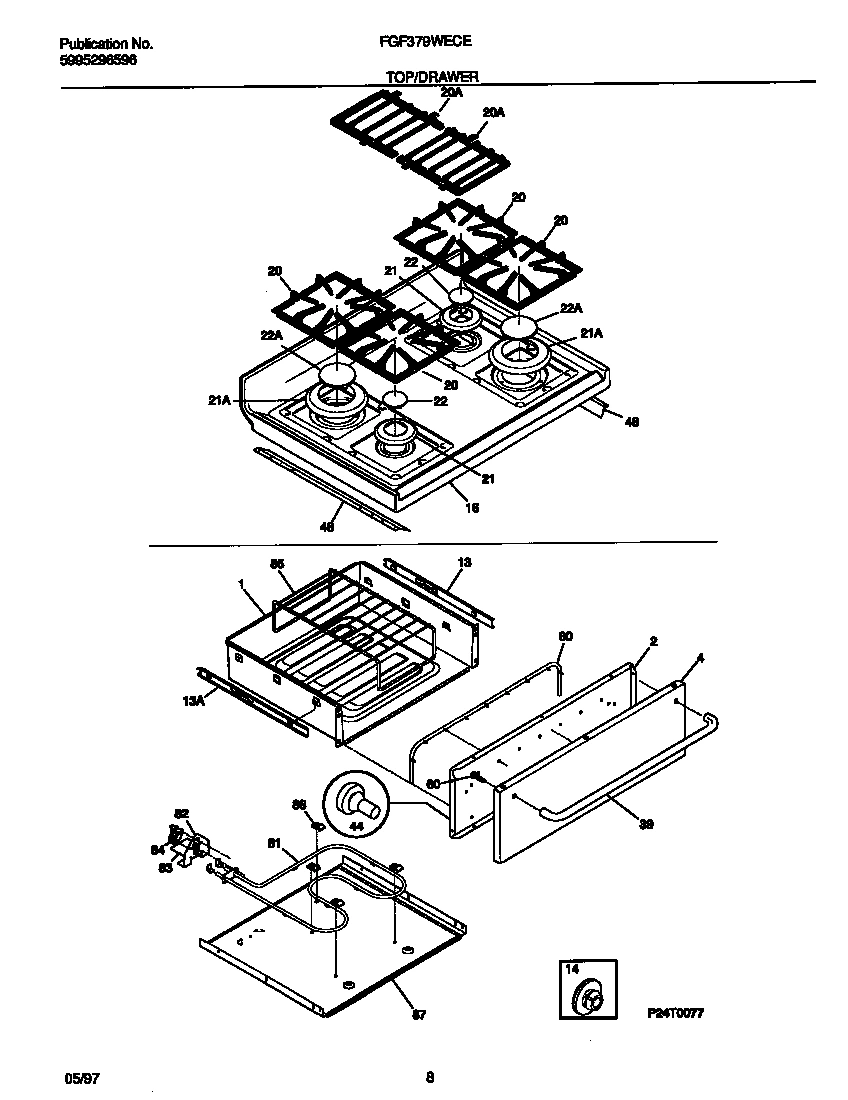

05 - TOP/DRAWER

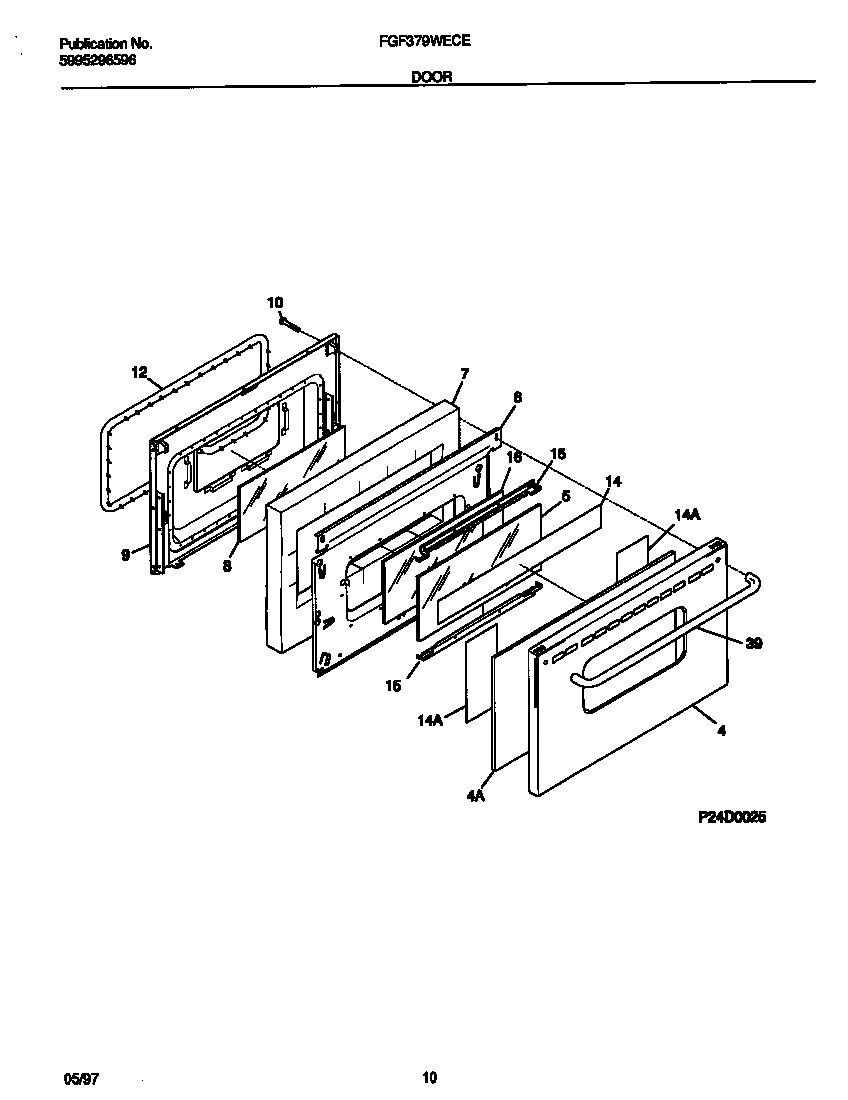

06 - DOOR

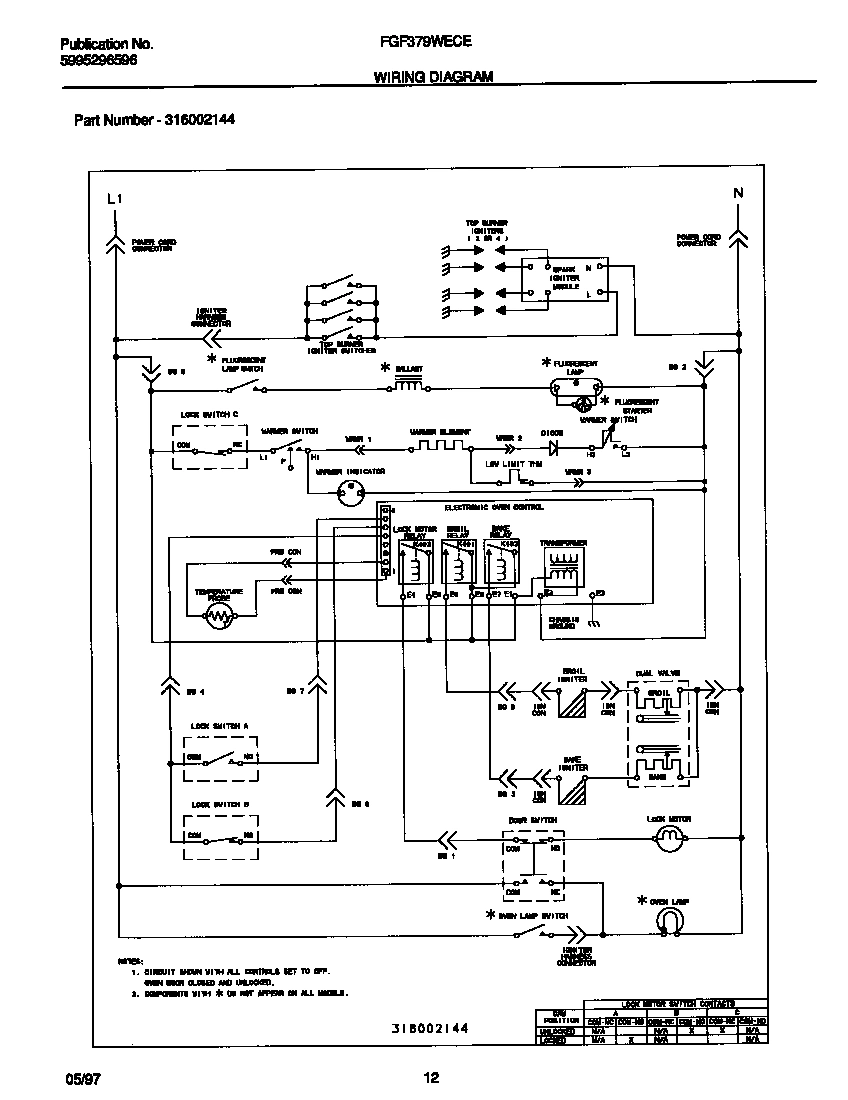

07 - WIRING DIAGRAM
Common parts from model Electrolux FGF379WECE RANGE
*02765
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*02768
SCREW,CUP PT,8-18X3/8,HINGE,IND LT BRKT,MANF WCI 316021108 Contact Us For Availability
*02771
SCREW, TRUSS HEAD, 8-10 X 0.375 WCI 5303288574 Contact Us For Availability
*02772
WCI 218490900 WCI 218490900 Contact Us For Availability
*02773
WCI 316065301 WCI 316065301 Contact Us For Availability
*02774
WCI 316085500 WCI 316085500 Contact Us For Availability
*02775
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*02777
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
1
WCI 316029412 WCI 316029412 Contact Us For Availability
1
WCI 316094601 WCI 316094601 Contact Us For Availability
2
VALVE-TOP BURNER, (4) WCI 5303935130 No Longer Available
2
WCI 3131314 WCI 3131314 Contact Us For Availability
2
WCI 316092901 WCI 316092901 Contact Us For Availability
3
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
3
SHIELD, INSULATION, GALV STEEL (NOT ILLUSTRAT WCI 08067992 Contact Us For Availability
3
WCI 316081026 WCI 316081026 Contact Us For Availability
3
PANEL-BODYSIDE, BLACK, LH (NOT ILLUSTRATED) WCI 316081027 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
WCI 316011914 WCI 316011914 Contact Us For Availability
4
WCI 316079401 WCI 316079401 Contact Us For Availability
4
WCI 316079300 WCI 316079300 Contact Us For Availability
4
WCI 316083900 WCI 316083900 Contact Us For Availability
5
WCI 3934058 WCI 3934058 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
WCI 316059613 WCI 316059613 Contact Us For Availability
5
WCI 316088601 WCI 316088601 Contact Us For Availability
5
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
WCI 316059614 WCI 316059614 Contact Us For Availability
6
WCI 316088405 WCI 316088405 Contact Us For Availability
7
WCI 316059615 WCI 316059615 Contact Us For Availability
7
WCI 316007005 WCI 316007005 Contact Us For Availability
7
WCI 316076400 WCI 316076400 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
8
WCI 316088701 WCI 316088701 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
10
SCREW-HANDLE MTG, 10-32 WCI 316001006 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR FRAME WCI 316027701 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
13
WCI 316096500 WCI 316096500 Contact Us For Availability
13
WCI 316096501 WCI 316096501 Contact Us For Availability
14
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 3131361 Contact Us For Availability
15
WCI 316081401 WCI 316081401 Contact Us For Availability
16
WCI 5303307708 WCI 5303307708 Contact Us For Availability
16
WCI 316085700 WCI 316085700 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
20
WCI 316084500 WCI 316084500 Contact Us For Availability
20
WCI 316084600 WCI 316084600 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
TRIM RING-BURNER, BLACK, SMALL WCI 316011300 Contact Us For Availability
21
TRIM-RING-BURNER, BLACK, LARGE WCI 316011304 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
CAP-BURNER, MATTE BLACK, (4), SMALL WCI 316011014 Contact Us For Availability
22
CAP-BURNER, MATTE BLACK, LARGE, (2) WCI 316011015 Contact Us For Availability
24
SWITCH-ROCKER, BLACK, RH, (1) WCI 316083101 Contact Us For Availability
25
WCI 316092300 WCI 316092300 Contact Us For Availability
28
CLIP-WIRE, HARNESS, MAIN TOP WCI 316045000 Contact Us For Availability
29
PUSH BUTTON-SHAFT, CLOCK/TIMER/EOC, BLACK (NO WCI 316080600 No Longer Available
30
WCI 316059200 WCI 316059200 Contact Us For Availability
30
WCI 316059201 WCI 316059201 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316014401 Contact Us For Availability
36
WCI 5303272844 WCI 5303272844 Contact Us For Availability
38
WCI 316051700 WCI 316051700 Contact Us For Availability
38
WCI 316097100 WCI 316097100 Contact Us For Availability
39
WCI 08067961 WCI 08067961 Contact Us For Availability
39
WCI 316079500 WCI 316079500 Contact Us For Availability
40
WCI 3200836 WCI 3200836 Contact Us For Availability
40
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303288578 No Longer Available
44
ORIFICE-TOP BURNER, SMALL, (4) WCI 5303210090 No Longer Available
44
WCI 316010802 WCI 316010802 Contact Us For Availability
44
WCI 316010804 WCI 316010804 Contact Us For Availability
45
SCREW-IGNITOR MTG, SELF-TAPPING, M3 X 5.8 WCI 316011100 Contact Us For Availability
46
WCI 316074700 WCI 316074700 Contact Us For Availability
47
WCI 5303307190 WCI 5303307190 Contact Us For Availability
48
SHIELD-MAINTOP WCI 316077401 Contact Us For Availability
50
BURNER-TOP, SMALL, INCLUDES 37, M3 X 0.50 WCI 5303935026 Contact Us For Availability
53
WCI 5303288579 WCI 5303288579 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
58
WCI 316047705 WCI 316047705 Contact Us For Availability
58
WCI 316054200 WCI 316054200 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
77
WCI 316094900 WCI 316094900 Contact Us For Availability
77
WCI 316094901 WCI 316094901 Contact Us For Availability
80
WCI 316093000 WCI 316093000 Contact Us For Availability
81
WCI 316093100 WCI 316093100 Contact Us For Availability
82
BRACKET-MOUNTING, WARMER ELEMENT WCI 316093200 Contact Us For Availability
83
SHIELD-TERMINAL, WARMER WCI 316093300 Contact Us For Availability
84
WCI 316093500 WCI 316093500 Contact Us For Availability
86
WCI 316095800 WCI 316095800 Contact Us For Availability
87
WCI 316091902 WCI 316091902 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028103 WCI 316028103 Contact Us For Availability
155
WCI 316095201 WCI 316095201 Contact Us For Availability
× ![]()
