Model Electrolux FGC6X9XGCA COOK-TOP – Common Parts & Diagrams
01 - COVER

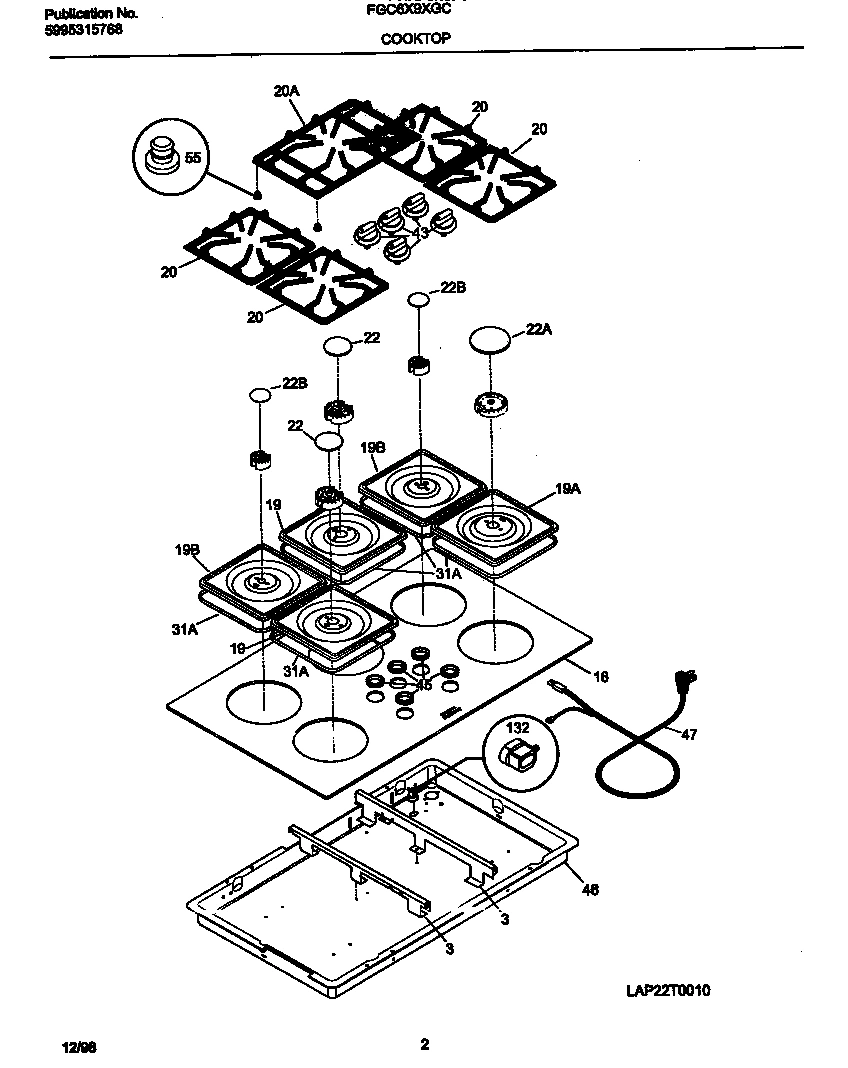

02 - COOKTOP

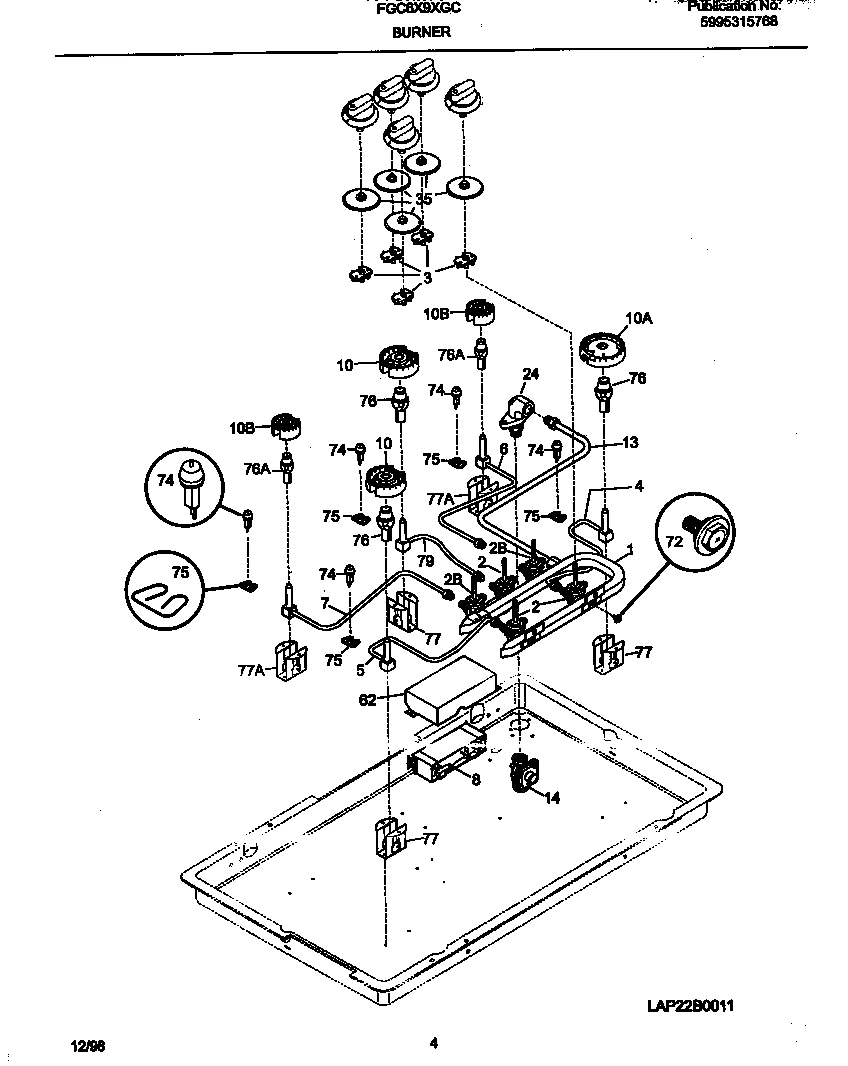

03 - BURNER

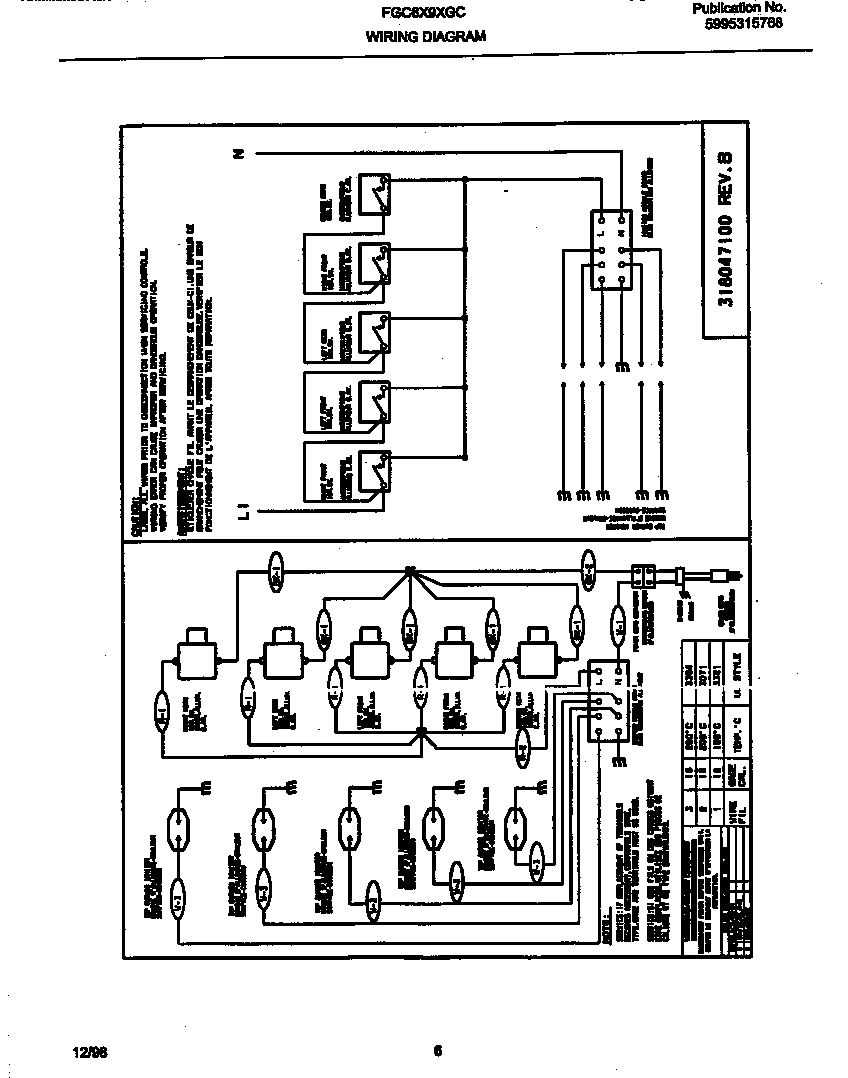

04 - WIRING DIAGRAM
Common parts from model Electrolux FGC6X9XGCA COOK-TOP
*60244
LP KIT WCI 318127704 Contact Us For Availability
2
VALVE-TOP BURNER WCI 318087001 Contact Us For Availability
2
VALVE-TOP BURNERS WCI 5303935042 Contact Us For Availability
3
SWITCH-IGNITOR WCI 316032002 Contact Us For Availability
6
WCI 318167706 WCI 318167706 Contact Us For Availability
7
WCI 318167713 WCI 318167713 Contact Us For Availability
8
WCI 318079000 WCI 318079000 Contact Us For Availability
10
BURNER-TOP,LARGE WCI 318148002 Contact Us For Availability
10
BURNER-TOP,CENTER WCI 318148001 Contact Us For Availability
10
BURNER-TOP,SMALL WCI 318148000 Contact Us For Availability
19
PAN-BURNER,BLACK WCI 318168104 No Longer Available
19
PAN-BURNER,BLACK WCI 318168124 Contact Us For Availability
76
SMALL MIXING TUBE WCI 318167800 Contact Us For Availability
77
BRACKET-BURNER MTG WCI 318112010 Contact Us For Availability
79
WCI 318167712 WCI 318167712 Contact Us For Availability
× ![]()
