Model Electrolux FFU20G9HW2 FREEZER – Common Parts & Diagrams

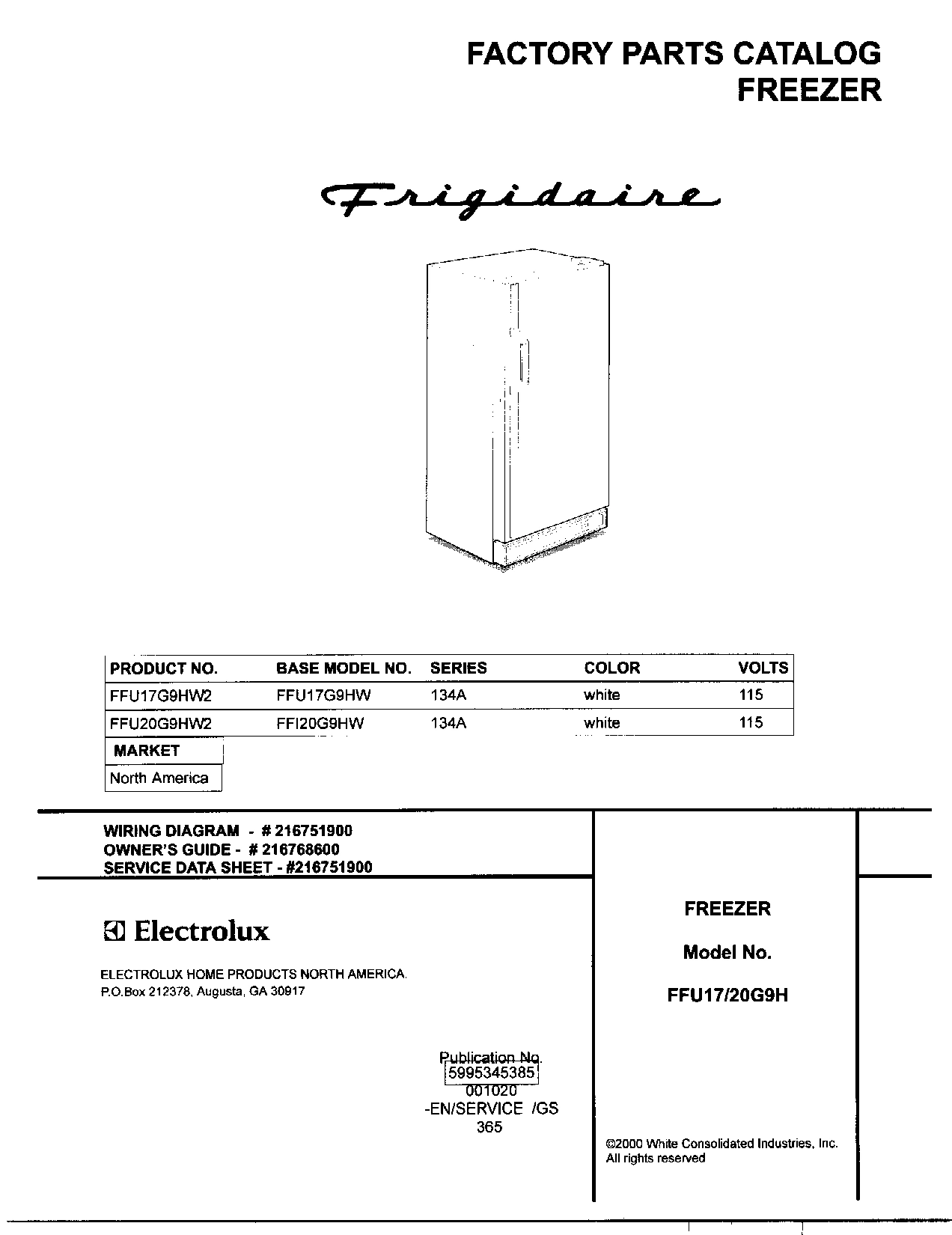

01 - COVER

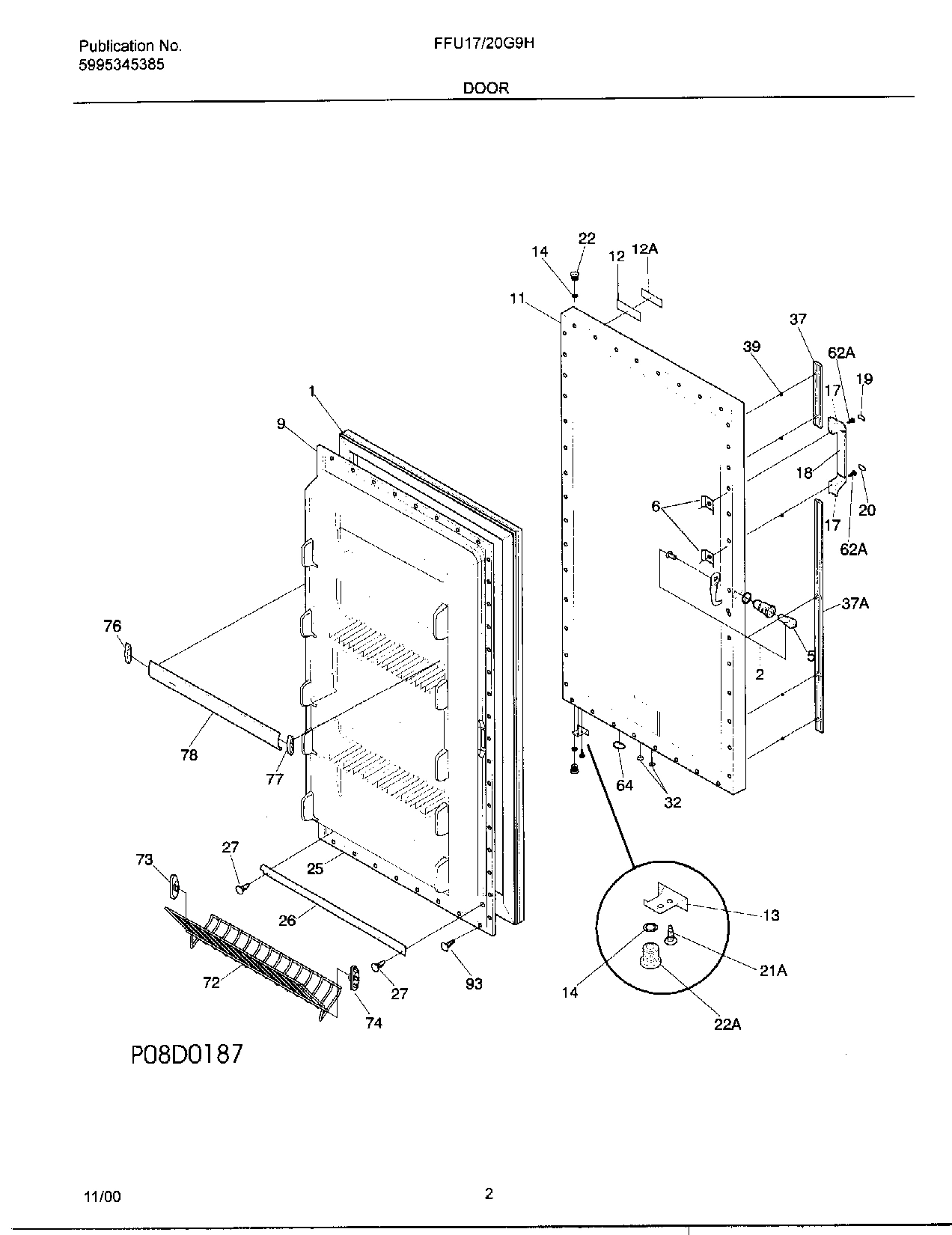

02 - DOOR

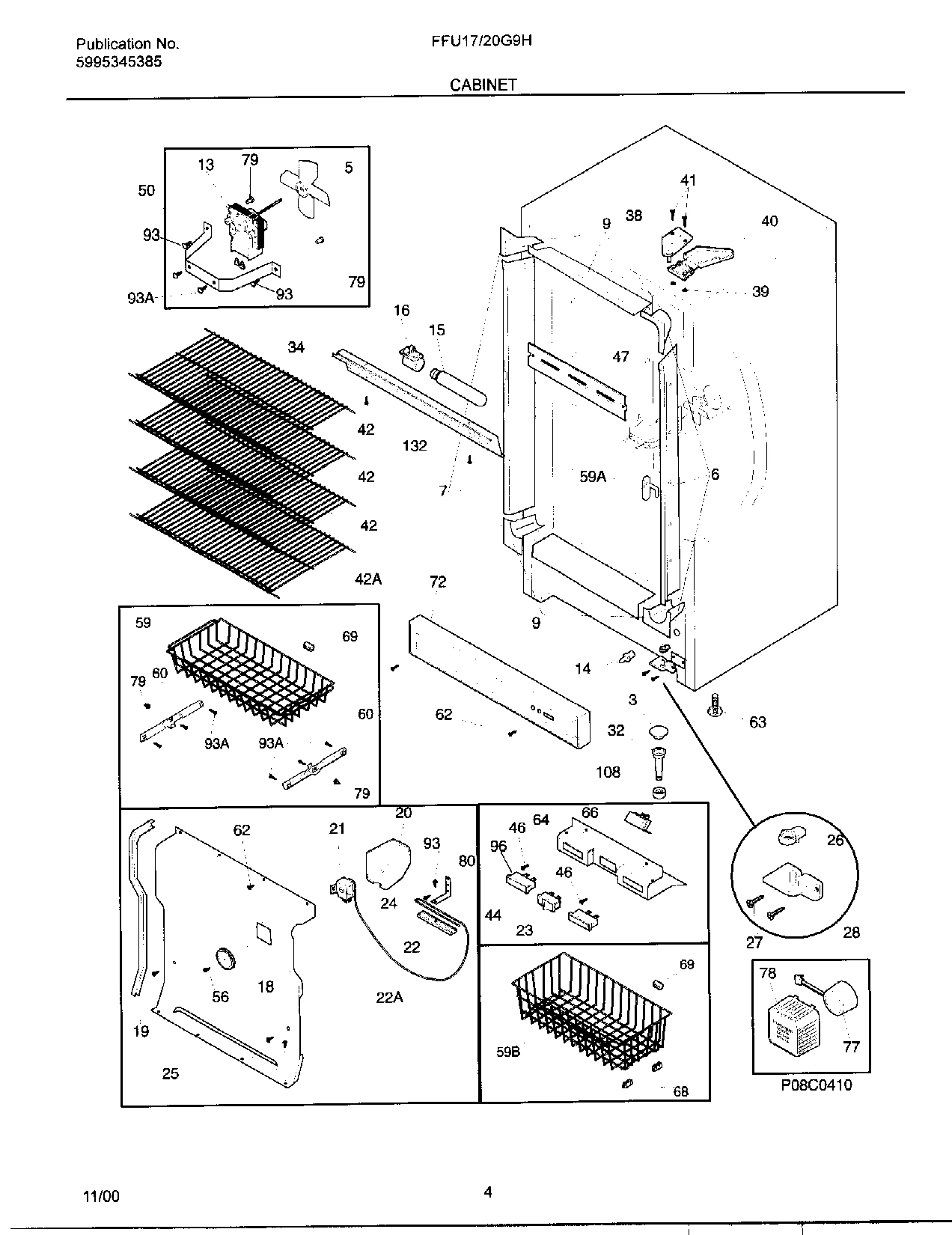

04 - CABINET

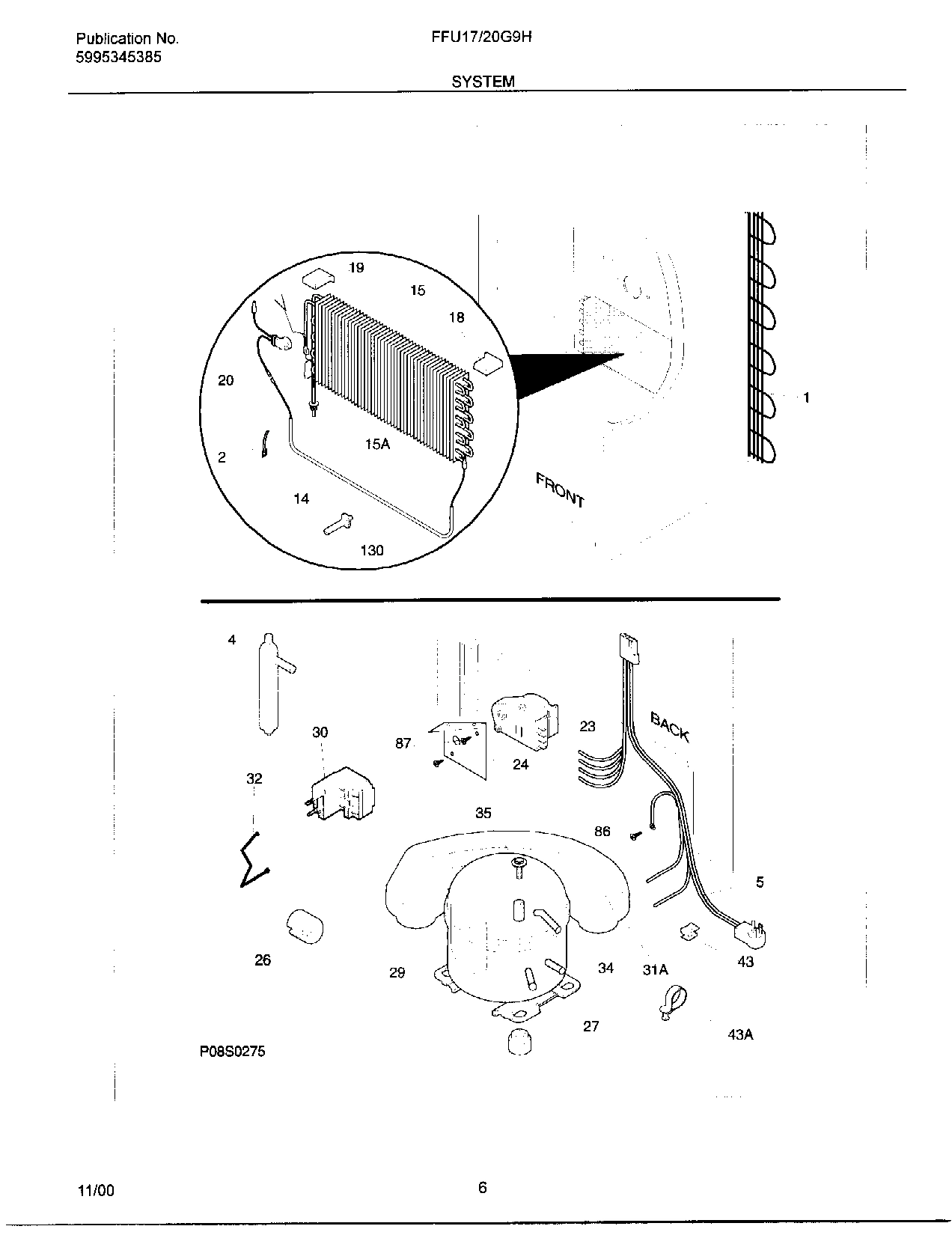

06 - SYSTEM
Common parts from model Electrolux FFU20G9HW2 FREEZER
5
WCI 216747900 WCI 216747900 Contact Us For Availability
13
DOOR STOP WCI 08016354 Contact Us For Availability
15A
WCI 216385200 WCI 216385200 Contact Us For Availability
16
SOCKET, LIGHT/LAMP WCI 5300136117 Contact Us For Availability
17
WCI 216087400 WCI 216087400 Contact Us For Availability
18
WCI 216591700 WCI 216591700 Contact Us For Availability
18
WCI 216727600 WCI 216727600 Contact Us For Availability
19
WCI 216204900 WCI 216204900 Contact Us For Availability
19
WCI 216204901 WCI 216204901 Contact Us For Availability
19
WCI 216727700 WCI 216727700 Contact Us For Availability
20
WCI 216230300 WCI 216230300 Contact Us For Availability
21
WCI 216521100 WCI 216521100 Contact Us For Availability
22
WCI 05878562 WCI 05878562 Contact Us For Availability
23
WCI 5308002706 WCI 5308002706 Contact Us For Availability
24
SCREW, CLAMP, TRUSS HD CR, CONTROL WCI 5300052943 Contact Us For Availability
24
WCI 08016580 WCI 08016580 Contact Us For Availability
25
WCI 216665300 WCI 216665300 Contact Us For Availability
25
WCI 216665400 WCI 216665400 Contact Us For Availability
26
RAMP, CLOSER DOOR WCI 216503300 Contact Us For Availability
26
WCI 216511900 WCI 216511900 Contact Us For Availability
28
WCI 216247400 WCI 216247400 Contact Us For Availability
30
WCI 216649309 WCI 216649309 Contact Us For Availability
30
WCI 216649308 WCI 216649308 Contact Us For Availability
32
WCI 5309950074 WCI 5309950074 Contact Us For Availability
32
WCI 216731900 WCI 216731900 Contact Us For Availability
34
SLEEVE-COMPRESSOR WCI 5306594529 Contact Us For Availability
34
WCI 216557606 WCI 216557606 Contact Us For Availability
35
SCREW, IND HEX SEMS, 1/4, 28 UNFX, COMPRESSOR WCI 5303272328 Contact Us For Availability
38
WCI 5303925086 WCI 5303925086 Contact Us For Availability
39
WCI 5303294372 WCI 5303294372 Contact Us For Availability
40
COVER, HINGE WCI 5303212912 Contact Us For Availability
41
WCI 5303212937 WCI 5303212937 Contact Us For Availability
42
SHELF,14.50X27.88 ,WH WCI 216458400 Contact Us For Availability
42
WCI 216458500 WCI 216458500 Contact Us For Availability
42A
WCI 216458200 WCI 216458200 Contact Us For Availability
42A
WCI 216546000 WCI 216546000 Contact Us For Availability
43
WCI 09950610 WCI 09950610 Contact Us For Availability
44
WCI 5303017178 WCI 5303017178 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
50
BRACKET-MOTOR MTG FAN WCI 216394000 Contact Us For Availability
56
WCI 09950853 WCI 09950853 Contact Us For Availability
59
WCI 216154400 WCI 216154400 Contact Us For Availability
59
WCI 216372800 WCI 216372800 Contact Us For Availability
59A
WCI 09948791 No Longer Available
59B
WCI 216139400 WCI 216139400 Contact Us For Availability
64
PLUG-BUTTON, BASE DOOR WCI 216403700 Contact Us For Availability
64
BRACKET WCI 08016369 Contact Us For Availability
66
WCI 216713700 WCI 216713700 Contact Us For Availability
72
SHELF,TILT OUT ,WIRE WCI 216514100 Contact Us For Availability
72
WCI 216591118 WCI 216591118 Contact Us For Availability
77
WCI 5303313631 WCI 5303313631 Contact Us For Availability
78
WCI 3205349 WCI 3205349 Contact Us For Availability
80
WCI 06594601 WCI 06594601 Contact Us For Availability
87
SCREW WCI 08037849 Contact Us For Availability
93A
WCI 5303302760 WCI 5303302760 Contact Us For Availability
96
LIGHT-SIGNAL,RED WCI 08016772 Contact Us For Availability
108
WCI 216388600 WCI 216388600 Contact Us For Availability
130
WCI 216730400 WCI 216730400 Contact Us For Availability
132
WCI 5303283898 WCI 5303283898 Contact Us For Availability
NI
WCI 09948773 WCI 09948773 Contact Us For Availability
NI
SLEEVE-TUBE INSERT WCI 216502500 Contact Us For Availability
NI
WCI 216539100 WCI 216539100 Contact Us For Availability
× ![]()
