Model Electrolux FFU17M8CW1 FREEZER – Common Parts & Diagrams

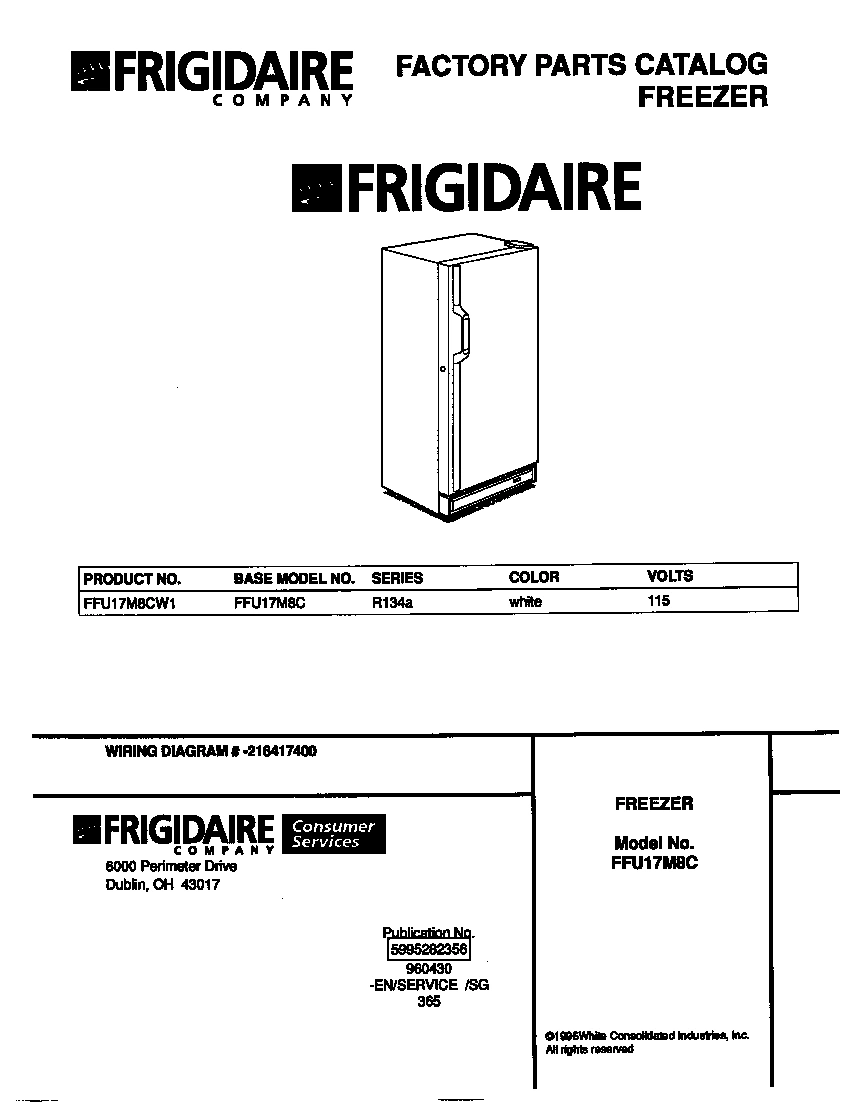

01 - COVER

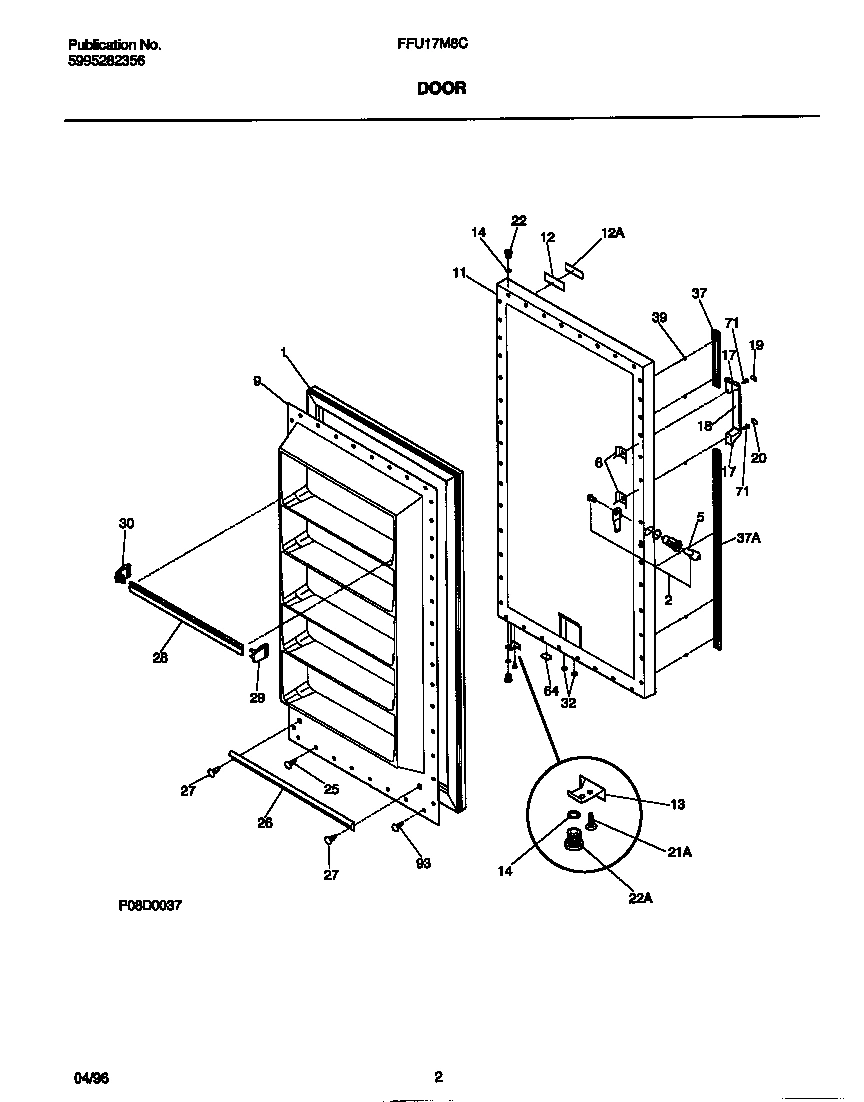

02 - DOOR

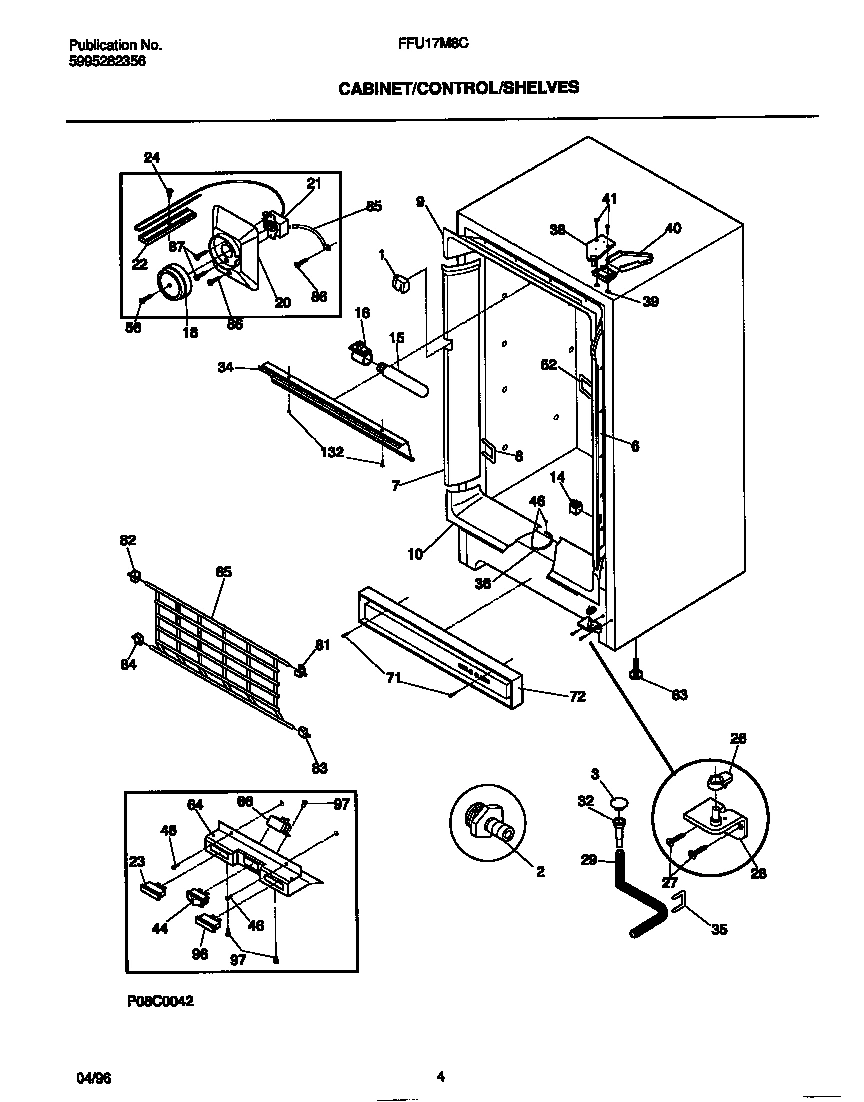

03 - CABINET/CONTROLS/SHELVES

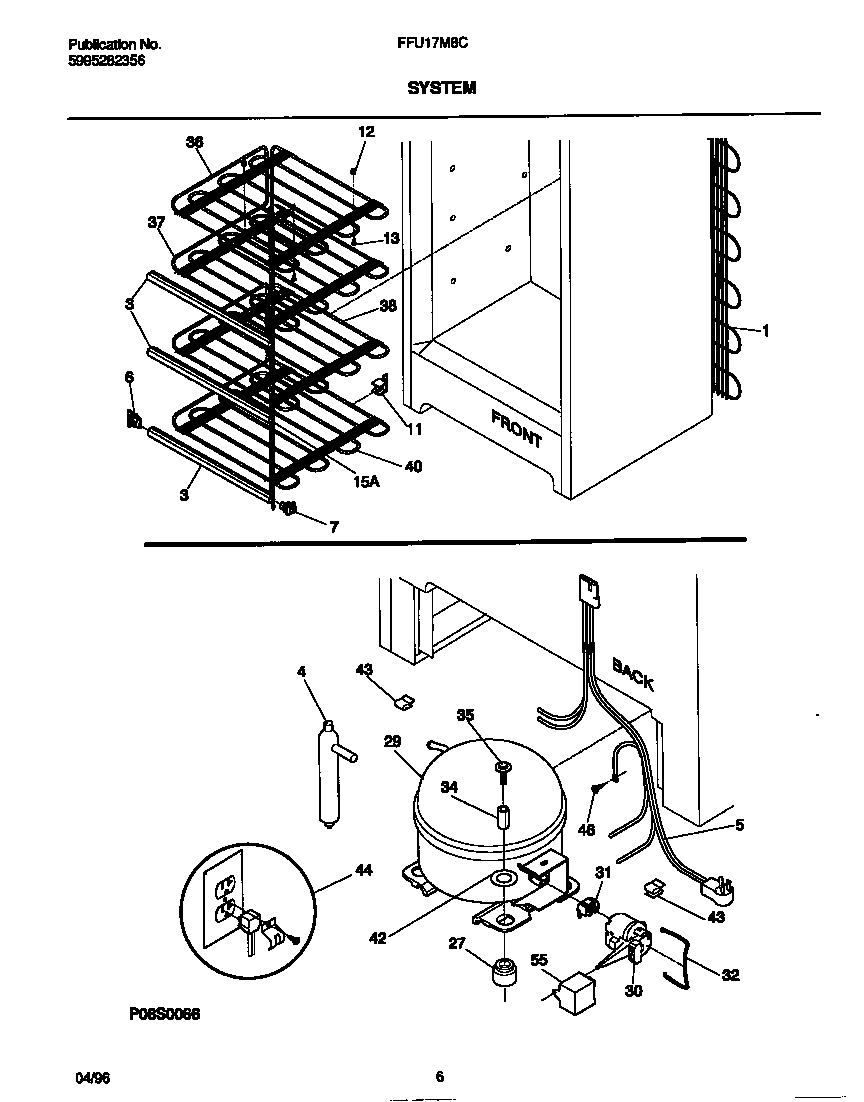

04 - SYSTEM

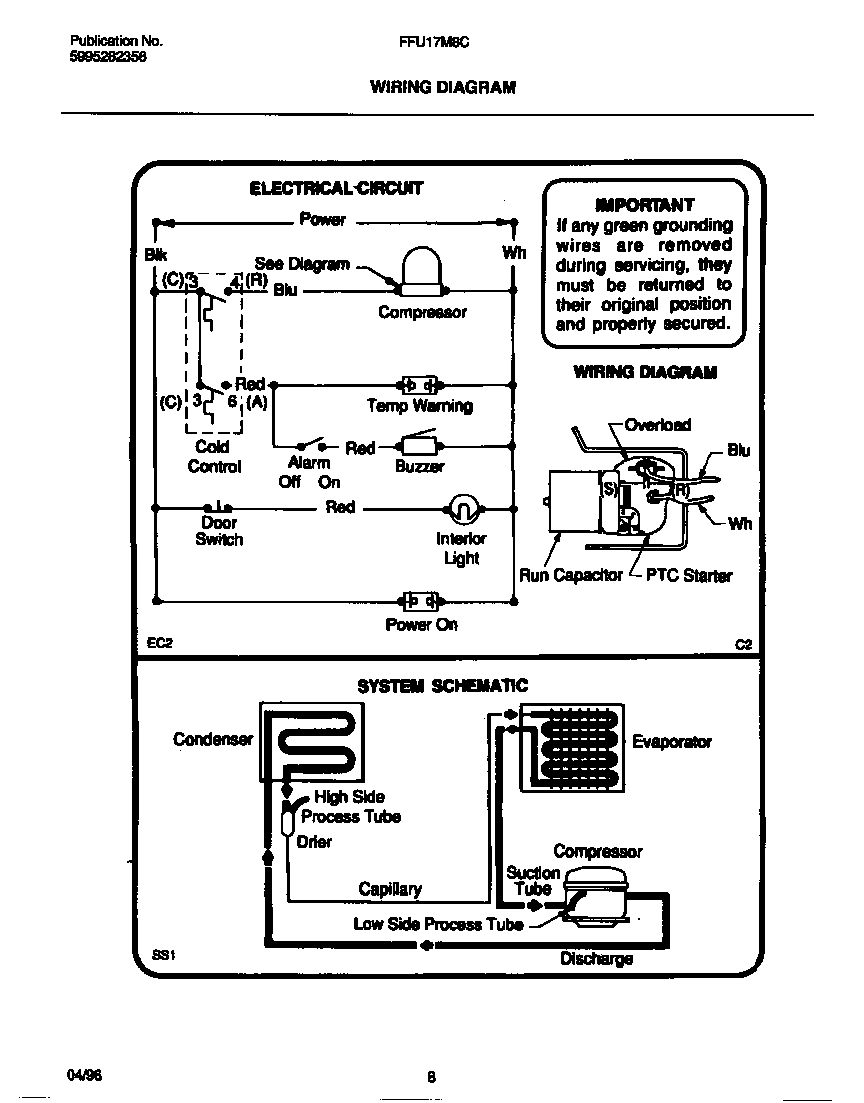

05 - WIRING DIAGRAM
Common parts from model Electrolux FFU17M8CW1 FREEZER
*61320
INSULATION WCI 5303917276 Contact Us For Availability
*61321
WCI 06594680 WCI 06594680 Contact Us For Availability
*61322
WIRING, HARNESS, ALARM WCI 5303286749 Contact Us For Availability
1
WCI 3206256 WCI 3206256 Contact Us For Availability
1
WCI 216013600 WCI 216013600 Contact Us For Availability
2
ADAPTER, DRAIN WCI 216269500 Contact Us For Availability
5
WCI 216371000 WCI 216371000 Contact Us For Availability
6
BREAKER, HINGE SIDE WCI 216109001 Contact Us For Availability
7
WCI 216109101 WCI 216109101 Contact Us For Availability
8
CLIP, U, LOCK WCI 216013700 Contact Us For Availability
9
WCI 216085900 WCI 216085900 Contact Us For Availability
10
WCI 216085800 WCI 216085800 Contact Us For Availability
11
WCI 216225600 WCI 216225600 Contact Us For Availability
12
WCI 216225700 WCI 216225700 Contact Us For Availability
13
DOOR STOP WCI 08016354 Contact Us For Availability
13
WCI 216138900 WCI 216138900 Contact Us For Availability
15
WCI 216401400 WCI 216401400 Contact Us For Availability
16
SOCKET, LIGHT/LAMP WCI 5300136117 Contact Us For Availability
17
WCI 216087400 WCI 216087400 Contact Us For Availability
18
WCI 216008602 WCI 216008602 Contact Us For Availability
20
WCI 5303288184 WCI 5303288184 Contact Us For Availability
21
WCI 216260300 WCI 216260300 Contact Us For Availability
22
CLAMP, CAP TUBE, COLD CONTROL WCI 08037931 Contact Us For Availability
23
WCI 5308002706 WCI 5308002706 Contact Us For Availability
24
SCREW, CLAMP, TRUSS HD CR, CONTROL WCI 5300052943 Contact Us For Availability
26
RAMP, DOOR WCI 5303210424 Contact Us For Availability
28
WCI 216247400 WCI 216247400 Contact Us For Availability
30
WCI 216334200 WCI 216334200 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
WCI 216100104 WCI 216100104 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
34
SLEEVE-COMPRESSOR WCI 5306594529 Contact Us For Availability
34
WCI 216312207 WCI 216312207 Contact Us For Availability
35
SCREW, IND HEX SEMS, 1/4, 28 UNFX, COMPRESSOR WCI 5303272328 Contact Us For Availability
36
WCI 06594651 WCI 06594651 Contact Us For Availability
37
WCI 216373300 WCI 216373300 Contact Us For Availability
37
WCI 216070600 WCI 216070600 Contact Us For Availability
38
WCI 5303925086 WCI 5303925086 Contact Us For Availability
38
WCI 216070700 WCI 216070700 Contact Us For Availability
39
FASTENER,DOOR STRIP WCI 08016809 Contact Us For Availability
39
WCI 5303294372 WCI 5303294372 Contact Us For Availability
40
COVER, HINGE WCI 5303212912 Contact Us For Availability
41
WCI 5303212937 WCI 5303212937 Contact Us For Availability
42
SPACER, COMPRESSOR WCI 5303298960 Contact Us For Availability
44
WCI 5303017178 WCI 5303017178 Contact Us For Availability
44
CLAMP, PWR CORD ASSY WCI 08016777 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
52
RETAINER, WIRE, BREAKER WCI 08037401 Contact Us For Availability
56
WCI 09950853 WCI 09950853 Contact Us For Availability
64
PLUG-BUTTOM, BASE DOOR WCI 216403700 Contact Us For Availability
64
WCI 08016369 WCI 08016369 Contact Us For Availability
65
WCI 216250300 WCI 216250300 Contact Us For Availability
66
BUZZER,ALARM WCI 08016367 Contact Us For Availability
72
WCI 216294418 WCI 216294418 Contact Us For Availability
81
WCI 06599973 WCI 06599973 Contact Us For Availability
82
WCI 06599974 WCI 06599974 Contact Us For Availability
83
WCI 06599975 WCI 06599975 Contact Us For Availability
84
WCI 06599976 WCI 06599976 Contact Us For Availability
85
WIRE-GROUND, TEMP CONTROL WCI 5300125347 Contact Us For Availability
87
SCREW WCI 08037849 Contact Us For Availability
96
LIGHT-SIGNAL,RED WCI 08016772 Contact Us For Availability
97
WCI 5303308288 WCI 5303308288 Contact Us For Availability
132
WCI 5303283898 WCI 5303283898 Contact Us For Availability
× ![]()
