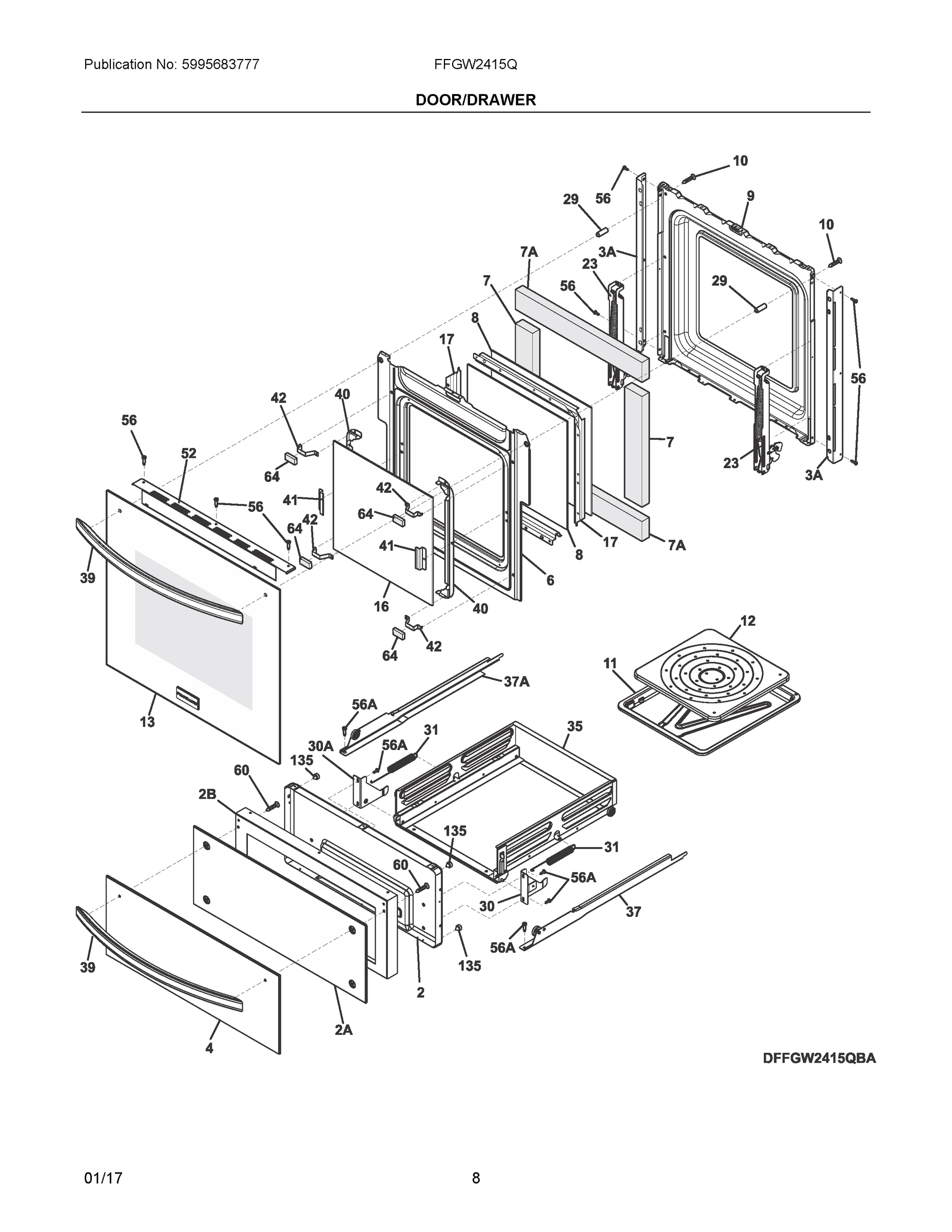

Model Electrolux FFGW2415QWB WALL OVEN, GAS, SINGLE – Common Parts & Diagrams

2B
FRAME, DRAWER LINER
FRAME, DRAWER LINER WCI 807193402 Contact Us For Availability
View on Model
8
GLASS, DOOR, INNER, (2), HRC2
GLASS, DOOR, INNER, (2), HRC2 WCI 139085800 Contact Us For Availability
View on Model
10
SCREW, WAFER HEAD, 10-24 X 1.81, (2), HANDLE
SCREW, WAFER HEAD, 10-24 X 1.81, (2), HANDLE WCI 316001002 No Longer Available
View on Model
11
PAN, BROILER
PAN, BROILER WCI 318126200 Contact Us For Availability
View on Model
12
INSERT, BROILER PAN
INSERT, BROILER PAN WCI 318126300 Contact Us For Availability
View on Model
13
DOOR ASSEMBLY, OUTER, GLASS, WHITE, W/BADGE-T
DOOR ASSEMBLY, OUTER, GLASS, WHITE, W/BADGE-T WCI 5304504222 Contact Us For Availability
View on Model
19
CONTROL PANEL, ASSEMBLY, WHITE/BLACK, W/OVERL
CONTROL PANEL, ASSEMBLY, WHITE/BLACK, W/OVERL WCI 5304504305 Contact Us For Availability
View on Model
30
HINGE, DRAWER, RH
HINGE, DRAWER, RH WCI 808664401 Contact Us For Availability
View on Model
30A
HINGE, DRAWER, LH
HINGE, DRAWER, LH WCI 808664402 Contact Us For Availability
View on Model
31
SPRING, BROILER DRAWER, (2)
SPRING, BROILER DRAWER, (2) WCI 808721501 Contact Us For Availability
View on Model
135
BUMPER, BODY SIDE, (4)
BUMPER, BODY SIDE, (4) WCI 318147413 Contact Us For Availability
View on Model
