Model Whirlpool FET265 ELECTRIC COOK-TOP – Common Parts & Diagrams

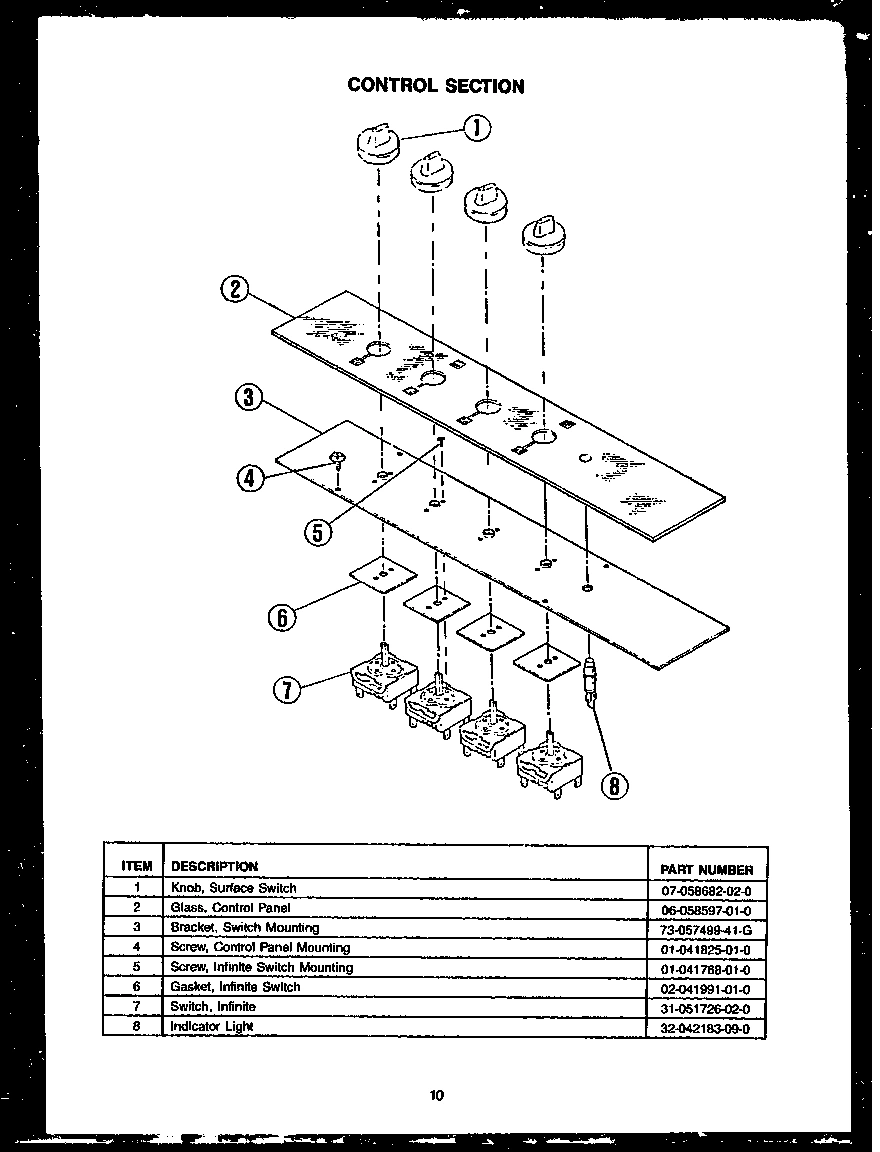

02 - CONTROL SECTION

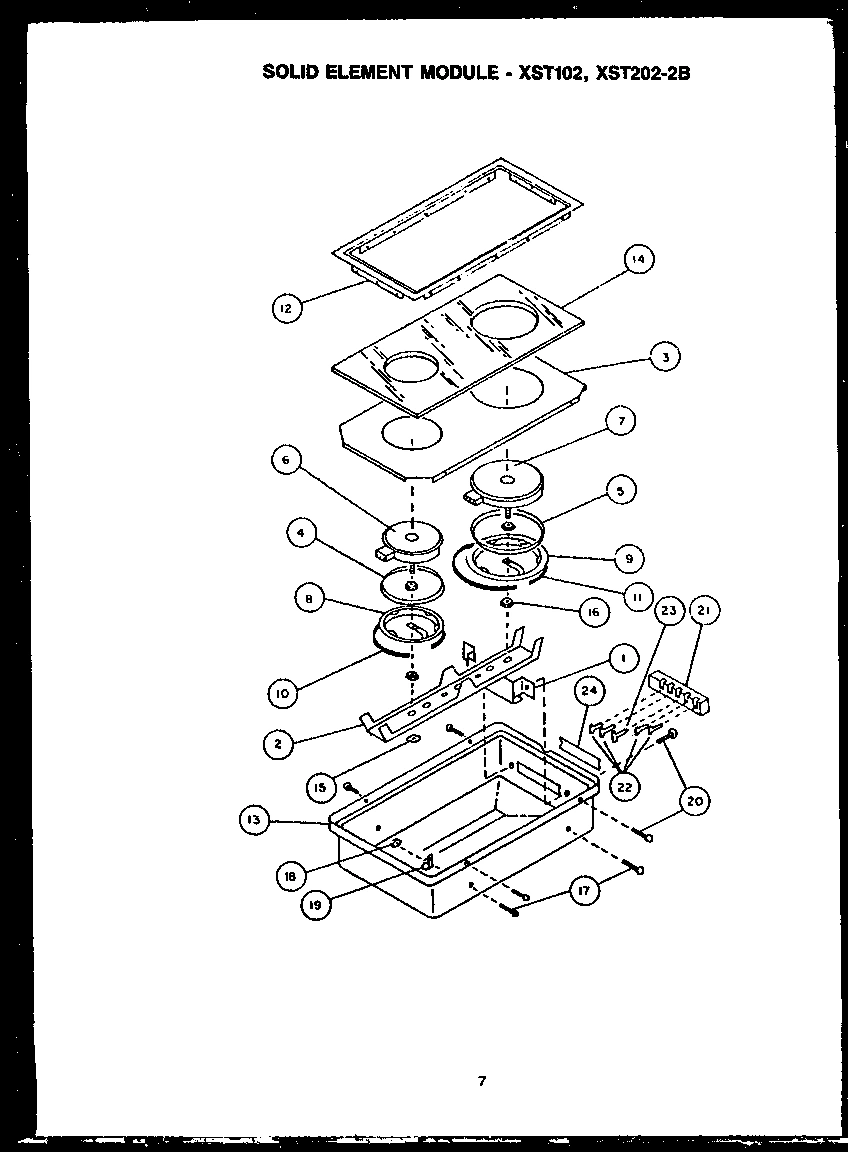

06 - SOLID ELEMENT MODULE - XST102/XST202-2B

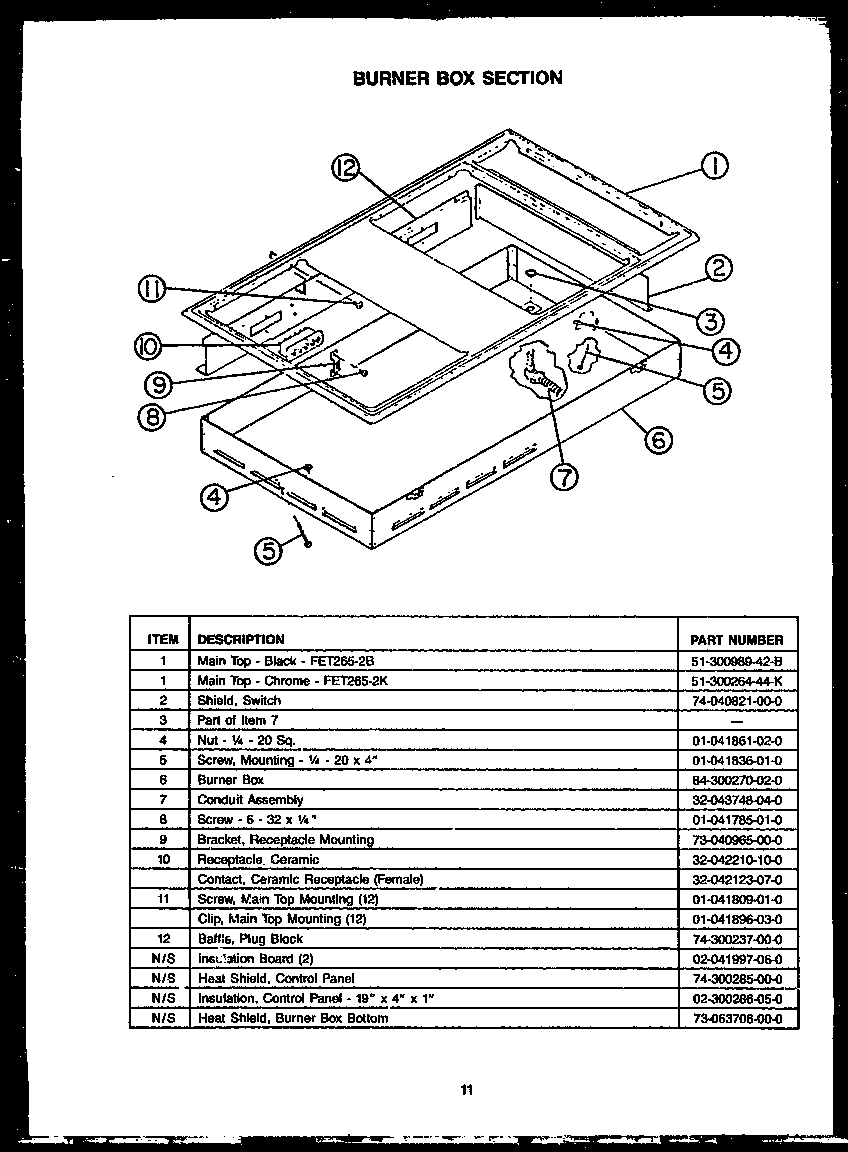

01 - BURNER BOX SECTION

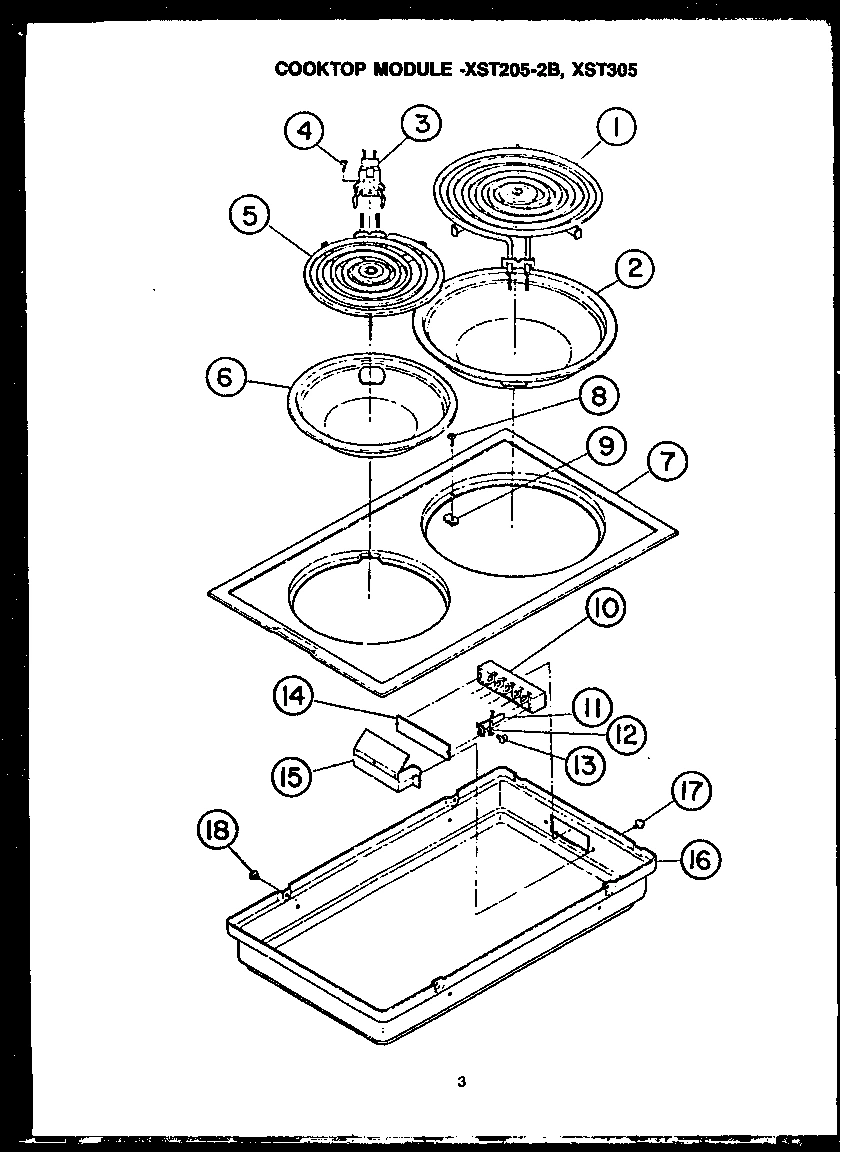

03 - COOKTOP MODULE -XST205-2B/XST305

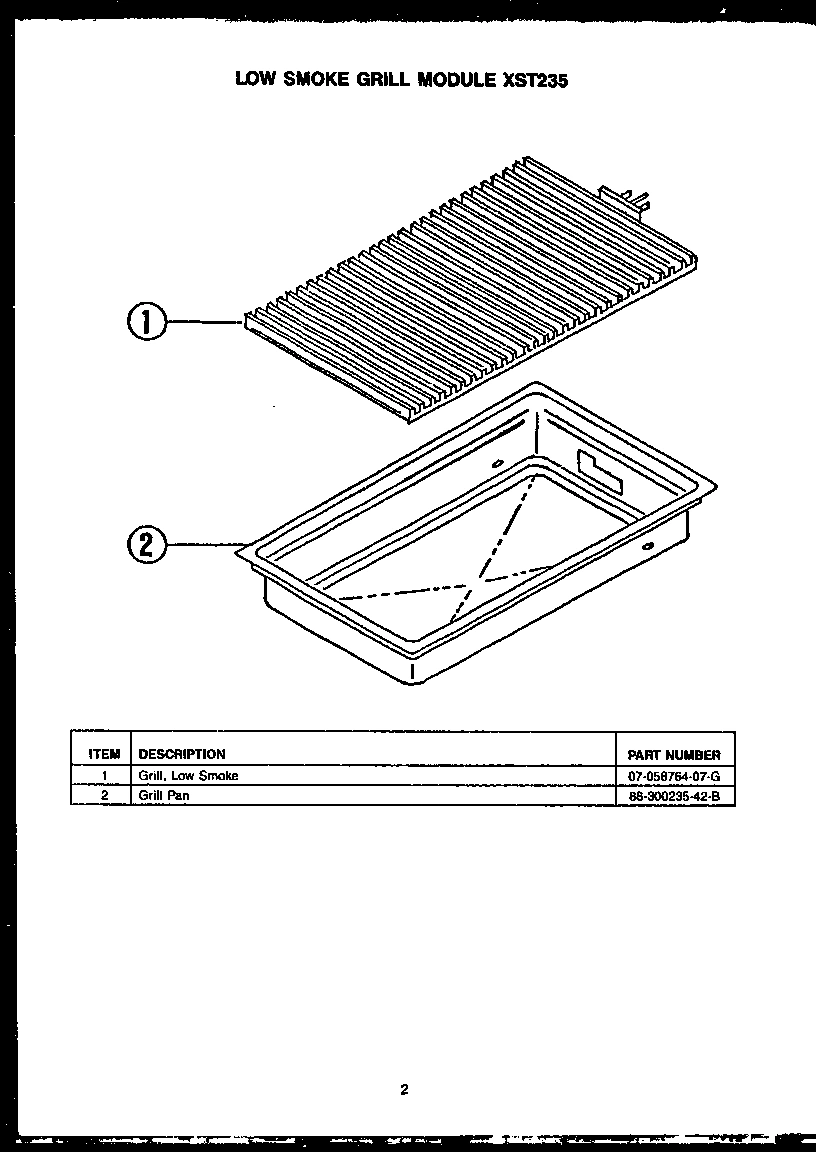

05 - Page 2

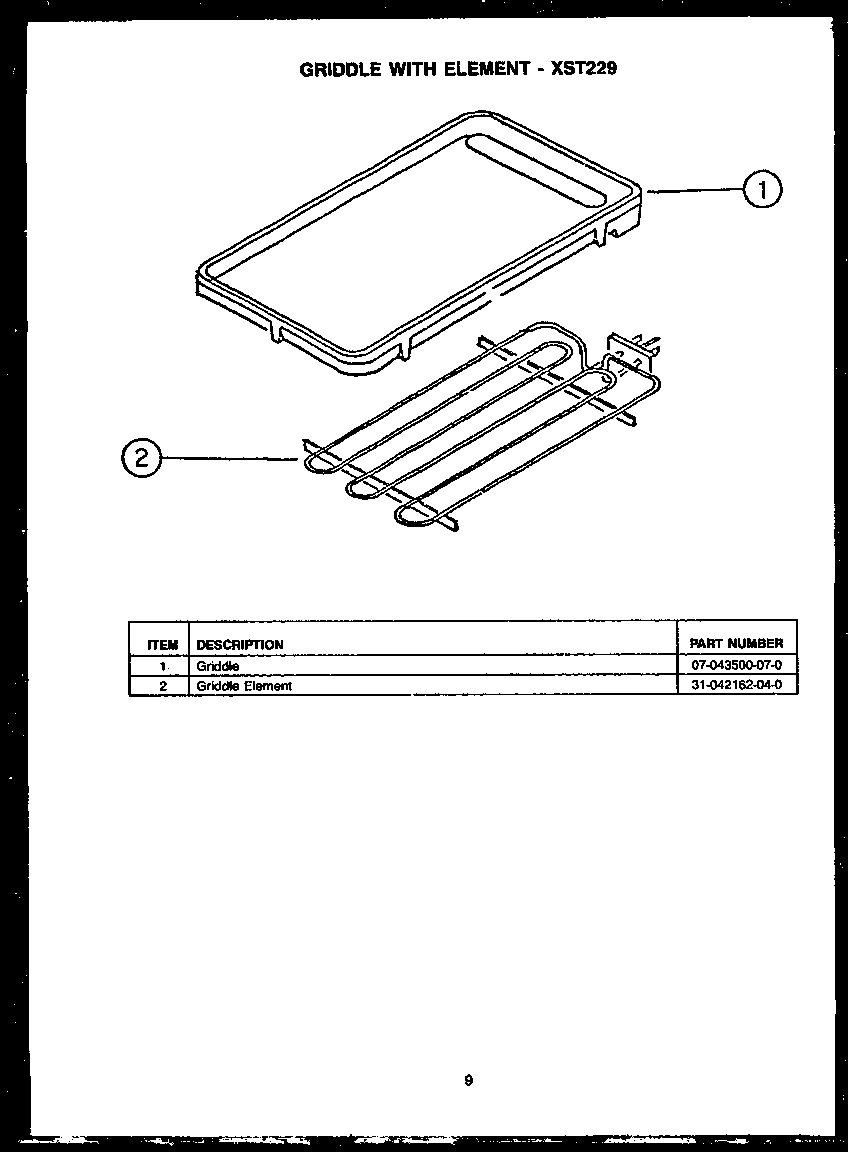

04 - GRIDDLE WITH ELEMENT - XST229
Common parts from model Whirlpool FET265 ELECTRIC COOK-TOP
1
KNOB, INF SWITCH, BLACK WPL 0058682 Contact Us For Availability
1
BRACKET, PLUG BLK. MTG. WPL 0061496 Contact Us For Availability
1
MAIN TOP, CHROME WPL 300264K Contact Us For Availability
1
MAIN TOP, BLACK ENAMEL WPL 300989B Contact Us For Availability
1
KIT, LS GRILL/ELEMENT WPL Y0058764 Contact Us For Availability
1
GRIDDLE, SILVERTONE WPL Y0043500 Contact Us For Availability
2
CONTROL PANEL, GLASS WPL 0058597 Contact Us For Availability
2
BRACKET, ELEM. MTG. WPL Y0061495 Contact Us For Availability
2
SWITCH SHIELD ET-590 595 WPL Y0040821 Contact Us For Availability
2
PKG. 160, B.B. 8`` WPL X042144 Contact Us For Availability
2
GRILLE PAN W/STRIKE KIT WPL 300235B Contact Us For Availability
2
GRIDDLE ELEMENT WPL Y0042162 Contact Us For Availability
3
SWITCH MOUNTING BRACKET WPL 0057499 Contact Us For Availability
3
SUPPORT, GLASS WPL 0061494 Contact Us For Availability
3
SEE NOTE PART OF ITEM 7 WPL Y00000000 Contact Us For Availability
3
MOUNTING BRKT. PLUG BLOCK WPL Y0053131 Contact Us For Availability
4
SCREW, No.8-32 X 3/8 HEX WSH HD WPL Y0041825 Contact Us For Availability
4
RING SMALL TRIM (BLACK) WPL 0061613 Contact Us For Availability
4
NUT 1/4-20 SQ. ET590 595 WPL 0041861 Contact Us For Availability
5
RING LARGE TRIM (BLACK) WPL 0061612 Contact Us For Availability
5
SCREW 1/4-20-4`` 590 595 WPL Y0041836 Contact Us For Availability
5
SURFACE ELEMENT, 6`` 240 V. 125 WPL Y0051575 Contact Us For Availability
6
SWITCH GASKET XET-490 WPL Y0041991 Contact Us For Availability
6
BURNER BOX WPL Y0300270 Contact Us For Availability
6
PKG. 160, B.B. 6`` WPL X042143 Contact Us For Availability
6
BOWL, SMALL BURNER (BLK) WPL Y059011B Contact Us For Availability
7
INFINITE SWITCH WPL Y0051726 Contact Us For Availability
7
ELEMENT, LARGE WPL 0061610 Contact Us For Availability
7
5651118 C WPL Y0043748 Contact Us For Availability
7
MODULE TOP, BRUSHED CHROME WPL 300753K Contact Us For Availability
7
MODULE TOP, BLACK ENAMEL WPL 300984B Contact Us For Availability
8
INDICATOR LIGHT WPL Y0042183 Contact Us For Availability
8
GASKET, RING WPL 0061609 Contact Us For Availability
8
TAPNG SCREW 6 32X1/2 PH P HD WPL 0041786 Contact Us For Availability
9
GASKET, RING WPL 0061608 Contact Us For Availability
9
PLUG BLOCK MTG BRKT ET590 595 WPL Y0040965 Contact Us For Availability
9
WELD NUT 6-32 CAN TOPS WPL 0041859 Contact Us For Availability
10
GASKET WPL Y0059631 Contact Us For Availability
10
MODULE, PLUG BLOCK WPL Y0042211 Contact Us For Availability
10
ELEMENT, CONTACT-MODULE TOP WPL Y0042123 Contact Us For Availability
10
PLUG BLOCK MODULAR TOP WPL Y0042210 Contact Us For Availability
11
GASKET WPL Y0059632 Contact Us For Availability
11
CONTACT, SPADE-POWER WPL Y0052040 Contact Us For Availability
11
CONTACT, SPADE-GROUND WPL Y0052041 Contact Us For Availability
11
TINNERMAN CLIP PYRO TH WPL 0041896 Contact Us For Availability
12
MODULE FRAME, CHROME WPL 300752K Contact Us For Availability
12
MODULE TOP-ELECT (BLK ENAMEL) WPL 300983B Contact Us For Availability
12
BAFFLE, PLUG BLOCK WPL Y0300237 Contact Us For Availability
12
5644044 JUMPER WIRE WPL 0043666 Contact Us For Availability
13
PAN, MODULE WPL 300749B Contact Us For Availability
14
GLASS, TOP WPL Y0061576 Contact Us For Availability
14
INSULATOR-COOKTOP MODULE WPL Y0041994 Contact Us For Availability
15
SPRING, LEAF WPL 0061614 Contact Us For Availability
15
PLUG BLOCK MTG BRKT WPL Y0040964 Contact Us For Availability
16
NUT WPL 0061486 Contact Us For Availability
16
BURNER PAN, MODULE (BLK) WPL 300747B Contact Us For Availability
17
SCREW 8-32X.375 DK GL DR HDL WPL 0041833 Contact Us For Availability
18
SCREW, No.6-32 X .250 PAN HD PH WPL Y0041785 Contact Us For Availability
19
WIRE CLAMP, INSULATED WPL Y0074685 Contact Us For Availability
20
SCREW No.8X3/8 SQ. DRIVE WPL Y0041832 Contact Us For Availability
NI
INSULATION BOARD WPL Y0041997 Contact Us For Availability
NI
SHIELD, HEAT WPL Y0063706 Contact Us For Availability
NI
HEAT SHIELD, CONTROL PANEL WPL Y0300285 Contact Us For Availability
NI
INSULATION, CONTROL PANEL - 19 WPL Y0300286 Contact Us For Availability
× ![]()
