Model Electrolux FEF450WFWE RANGE – Common Parts & Diagrams
01 - COVER

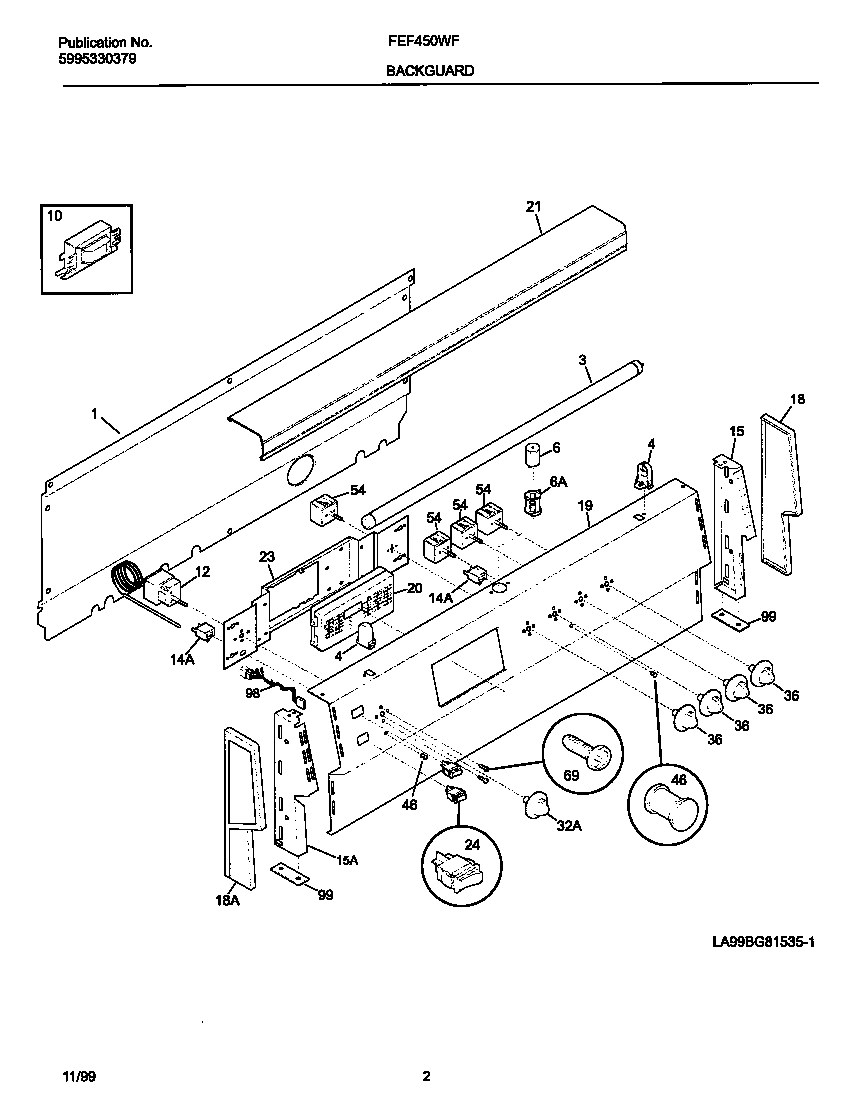

02 - BACKGUARD

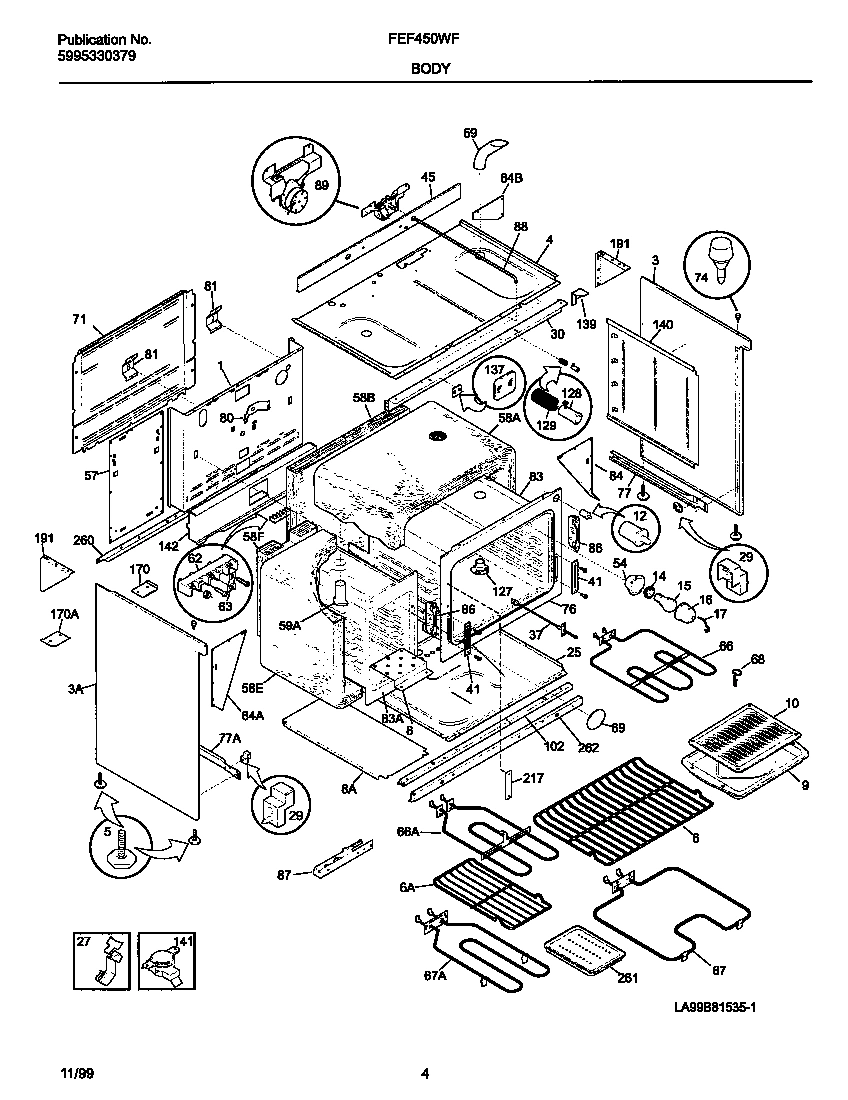

03 - BODY

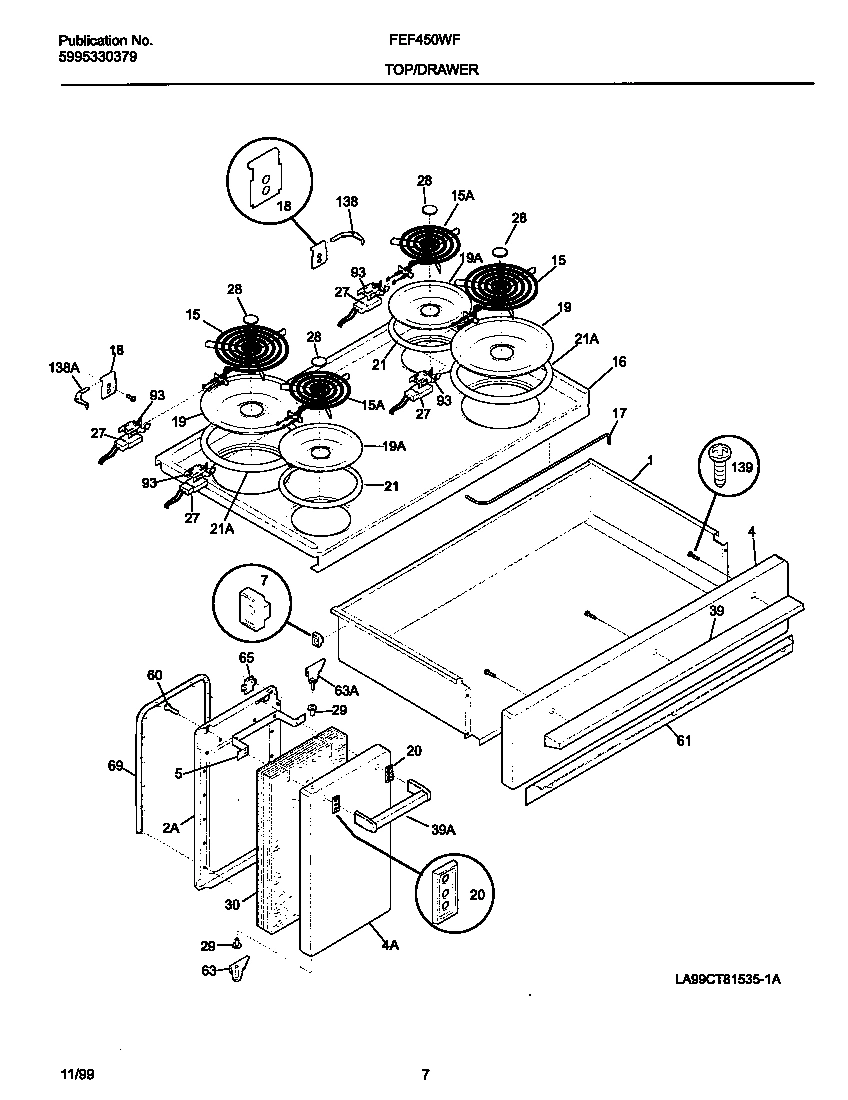

04 - TOP/DRAWER

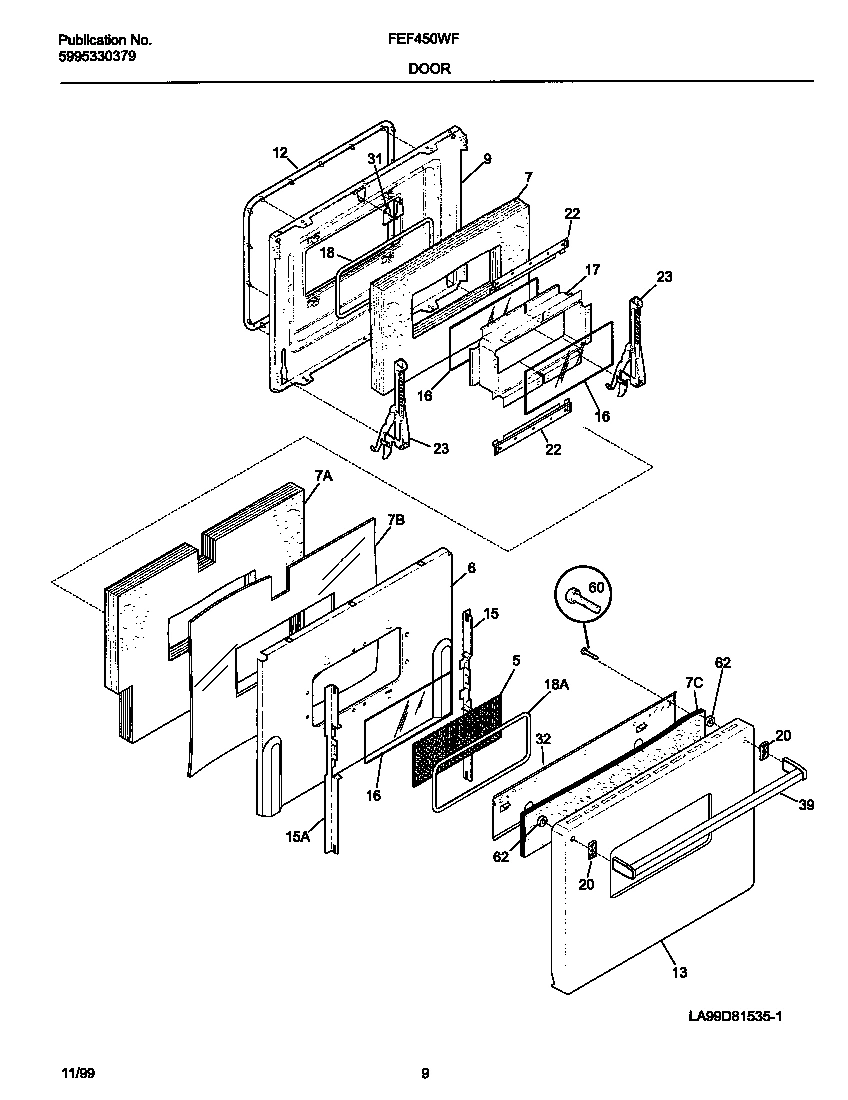

05 - DOOR

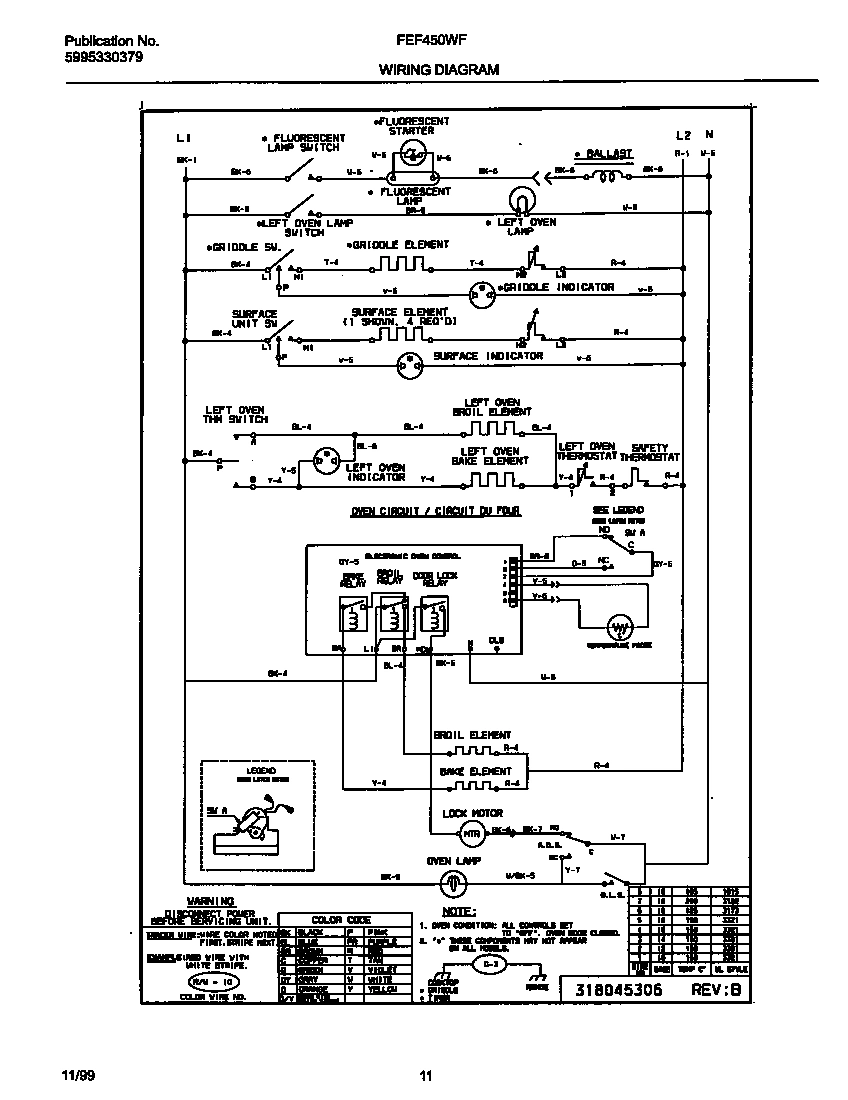

06 - WIRING DIAGRAM
Common parts from model Electrolux FEF450WFWE RANGE
*51408
WCI 08002868 WCI 08002868 Contact Us For Availability
*51411
WCI 5303321106 WCI 5303321106 Contact Us For Availability
*51413
SCREW < 10 X 1/2 >,10 X 1/2 WCI 5303317975 Contact Us For Availability
*51418
FLAT WASHER WCI 318086002 Contact Us For Availability
1
DRAWER-UTILITY WCI 3202108 Contact Us For Availability
2
WCI 318048204 WCI 318048204 Contact Us For Availability
4
PANEL-DRAWER, WHITE WCI 08011980 Contact Us For Availability
4
WCI 318009308 WCI 318009308 Contact Us For Availability
5
SCREW-LEVELLING WCI 318175503 Contact Us For Availability
5
SPACER-HANDLE WCI 318014500 Contact Us For Availability
5
WCI 5303310508 WCI 5303310508 Contact Us For Availability
6
Starter,lamp WCI 5308068062 Contact Us For Availability
6
BAFFLE-DOOR WCI 318057000 Contact Us For Availability
7
DRAWER GUIDE WCI 5303326236 Contact Us For Availability
7
WCI 318106000 WCI 318106000 Contact Us For Availability
7
INSULATION,27.75X5.12X0.56 ,OVEN DOOR WCI 3204813 Contact Us For Availability
7
WCI 5303310532 WCI 5303310532 Contact Us For Availability
7
WCI 5304400472 WCI 5304400472 Contact Us For Availability
9
WCI 318048702 WCI 318048702 Contact Us For Availability
10
WCI 318126400 WCI 318126400 Contact Us For Availability
13
WCI 318009101 WCI 318009101 Contact Us For Availability
15
WCI 318024000 WCI 318024000 Contact Us For Availability
15
WCI 318024001 WCI 318024001 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303310533 Contact Us For Availability
16
MAIN TOP, WHITE WCI 08011961 Contact Us For Availability
17
RETAINER LENZ WCI 5304400195 Contact Us For Availability
17
ROD-MAINTOP SUPPORT WCI 3051554 Contact Us For Availability
17
SPACER-GLASS WCI 318139000 Contact Us For Availability
18
GASKET WCI 318053203 Contact Us For Availability
18
RETAINER-HINGE PIN 57034000 WCI 3051745 Contact Us For Availability
18
SEAL-ROPE WCI 5303310531 Contact Us For Availability
19
WCI 318138501 WCI 318138501 Contact Us For Availability
19
WCI 318138500 WCI 318138500 Contact Us For Availability
20
WCI 3201572 WCI 3201572 Contact Us For Availability
21
TRIM RING-LARGE WCI 5308003114 Contact Us For Availability
21
TRIM RING-SMALL WCI 5308003113 Contact Us For Availability
22
RETAINER-GLASS WCI 5303310511 Contact Us For Availability
23
HINGE-OVEN DOOR, ASSEMBLY WCI 318024700 Contact Us For Availability
25
WCI 318179100 WCI 318179100 Contact Us For Availability
27
WCI 5303323704 WCI 5303323704 Contact Us For Availability
28
WCI 5303301461 WCI 5303301461 Contact Us For Availability
29
GUIDE-DRAWER, FRONT WCI 3051654 Contact Us For Availability
29
SPACER-HINGE PIN WCI 318141800 Contact Us For Availability
30
WCI 318023909 WCI 318023909 Contact Us For Availability
30
INSULATION-DOOR, SMALL OVEN WCI 5301311649 Contact Us For Availability
31
LATCH-DOOR WCI 5303310536 Contact Us For Availability
32
DEFLECTOR-HANDLE WCI 318057202 Contact Us For Availability
39
WCI 318040603 WCI 318040603 Contact Us For Availability
39
WCI 3201576 WCI 3201576 Contact Us For Availability
39
WCI 318040602 WCI 318040602 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
45
SHIELD-WIRE WCI 318057401 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, RED, (2) WCI 5308006417 Contact Us For Availability
54
SWITCH-SURFACE UNIT, (4) WCI 318120501 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
57
PANEL-BACK WCI 318055701 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5301167905 Contact Us For Availability
58
WCI 5301305817 WCI 5301305817 Contact Us For Availability
58
WCI 5303310538 WCI 5303310538 Contact Us For Availability
58
INSULATION WRAPPER WCI 5303310539 Contact Us For Availability
59
WCI 3017402 WCI 3017402 Contact Us For Availability
59
WCI 318072501 WCI 318072501 Contact Us For Availability
61
WCI 318107700 WCI 318107700 Contact Us For Availability
62
SPACER-DOOR HANDLE,(2) WCI 5303310504 Contact Us For Availability
63
WCI 5303310517 WCI 5303310517 Contact Us For Availability
63
WCI 318024505 WCI 318024505 Contact Us For Availability
63
WCI 318024507 WCI 318024507 Contact Us For Availability
65
LATCH-DOOR, SMALL WCI 3204306 Contact Us For Availability
66
WCI 318110100 WCI 318110100 Contact Us For Availability
69
SEAL-OVEN DOOR WCI 318053300 Contact Us For Availability
69
WCI 318036400 WCI 318036400 Contact Us For Availability
71
COVER-WIRING WCI 5303310515 Contact Us For Availability
74
WCI 5308003107 WCI 5308003107 Contact Us For Availability
76
FRAME-FRONT WCI 318056004 Contact Us For Availability
77
RAIL-DRAWER RH WCI 318018000 Contact Us For Availability
77
RAIL-DRAWER LH WCI 318018001 Contact Us For Availability
81
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
LINER-OVEN ASSY, SMALL WCI 318089200 Contact Us For Availability
83
LINER-OVEN,COMP. WCI 318089608 Contact Us For Availability
84
WCI 318055901 WCI 318055901 Contact Us For Availability
84
WCI 3204822 WCI 3204822 Contact Us For Availability
84
WCI 3204823 WCI 3204823 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
87
PLATE-MOUNTING,CORD SET WCI 318111800 Contact Us For Availability
88
WCI 5303311160 WCI 5303311160 Contact Us For Availability
89A
WCI 318095901 WCI 318095901 Contact Us For Availability
89B
WCI 318120702 WCI 318120702 Contact Us For Availability
93
WCI 318122500 WCI 318122500 Contact Us For Availability
102
SUPPORT OVEN FRONT WCI 318111901 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
137
WCI 3204318 WCI 3204318 Contact Us For Availability
138A
BRACKET-HINGE, MAIN TOP RH WCI 5301315631 Contact Us For Availability
138B
BRACKET-HINGE, MAIN TOP LH WCI 3051658 Contact Us For Availability
139
WCI 318042900 WCI 318042900 Contact Us For Availability
140
RETAINER-INSULATION WCI 318071300 Contact Us For Availability
141
WCI 318003600 WCI 318003600 Contact Us For Availability
142
WCI 318123901 WCI 318123901 Contact Us For Availability
170A
WCI 318175700 WCI 318175700 Contact Us For Availability
170B
WCI 318175701 WCI 318175701 Contact Us For Availability
191
BRACKET CORNER WCI 5303304030 Contact Us For Availability
217
WCI 316042300 WCI 316042300 Contact Us For Availability
260
SUPPORT-GUSSET WCI 318055500 Contact Us For Availability
261
GRILL-BROILER, SMALL OVEN WCI 08014183 Contact Us For Availability
262
SUPPORT-OVEN FRONT WCI 08011954 Contact Us For Availability
× ![]()
