Model Whirlpool FDU246 ELECTRIC RANGE – Common Parts & Diagrams

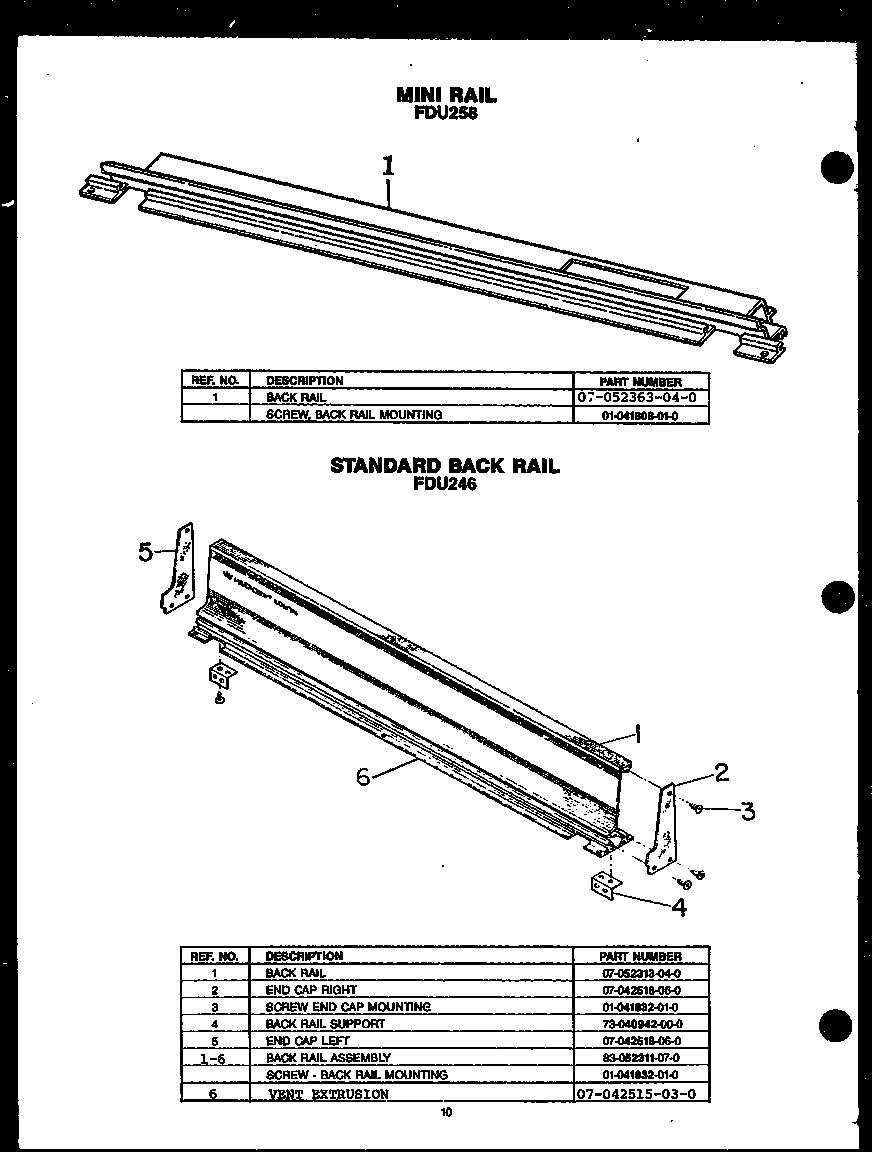

07 - STANDARD BACK RAIL

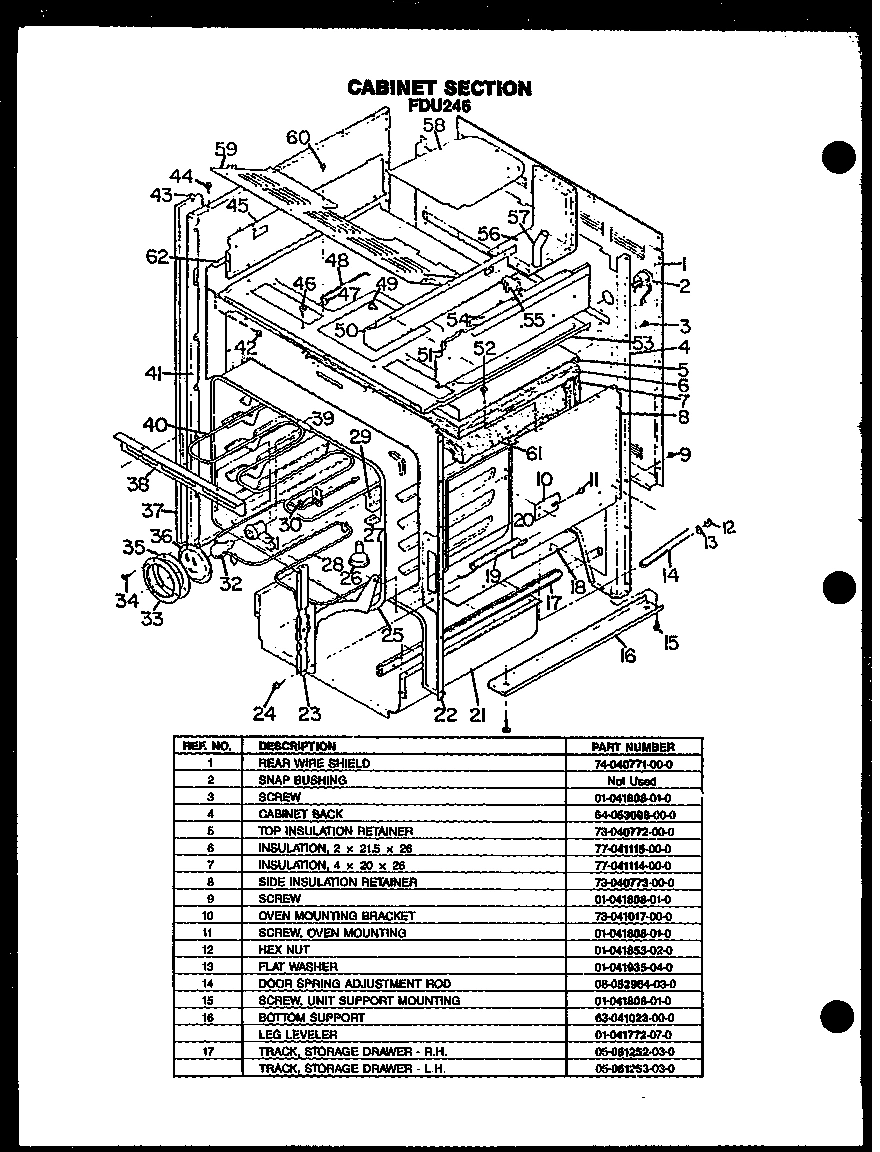

02 - CABINET SECTION

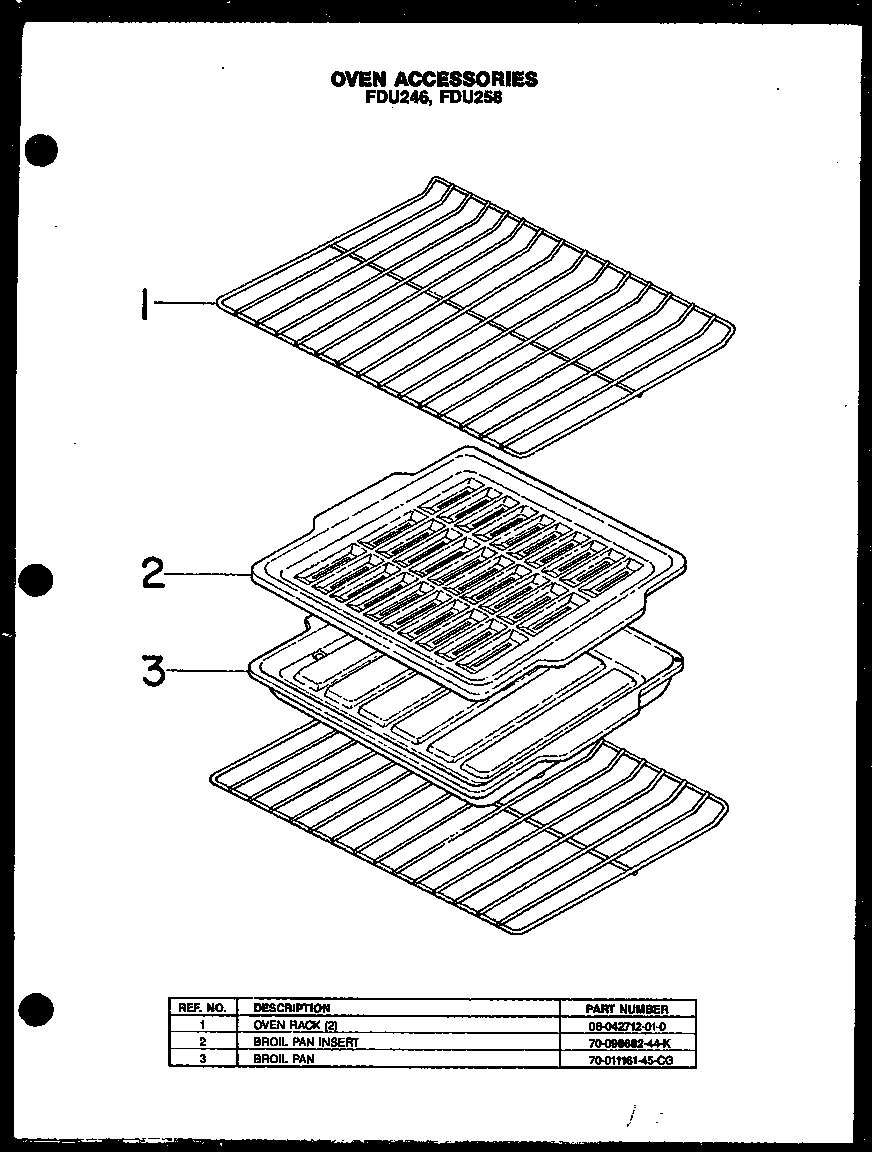

04 - OVEN ACCESSORIES

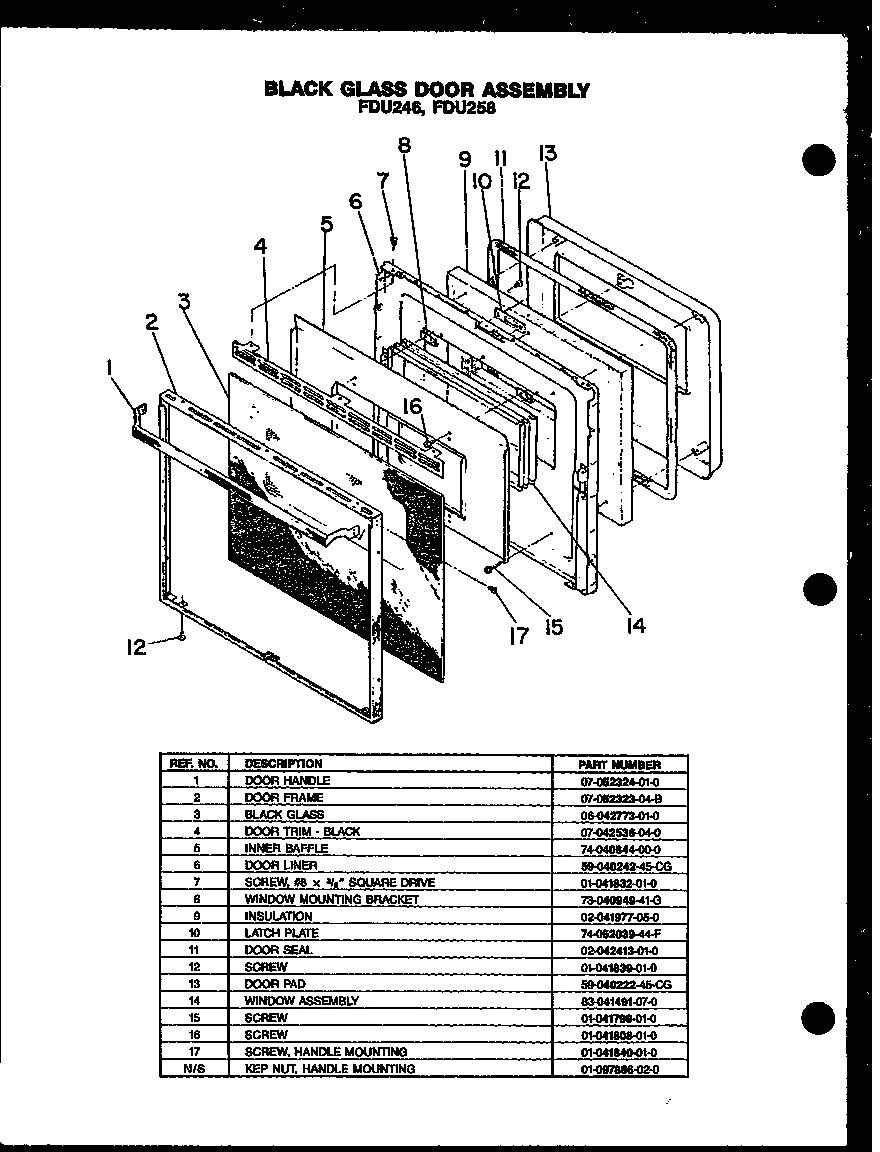

01 - BLACK GLASS DOOR ASSY

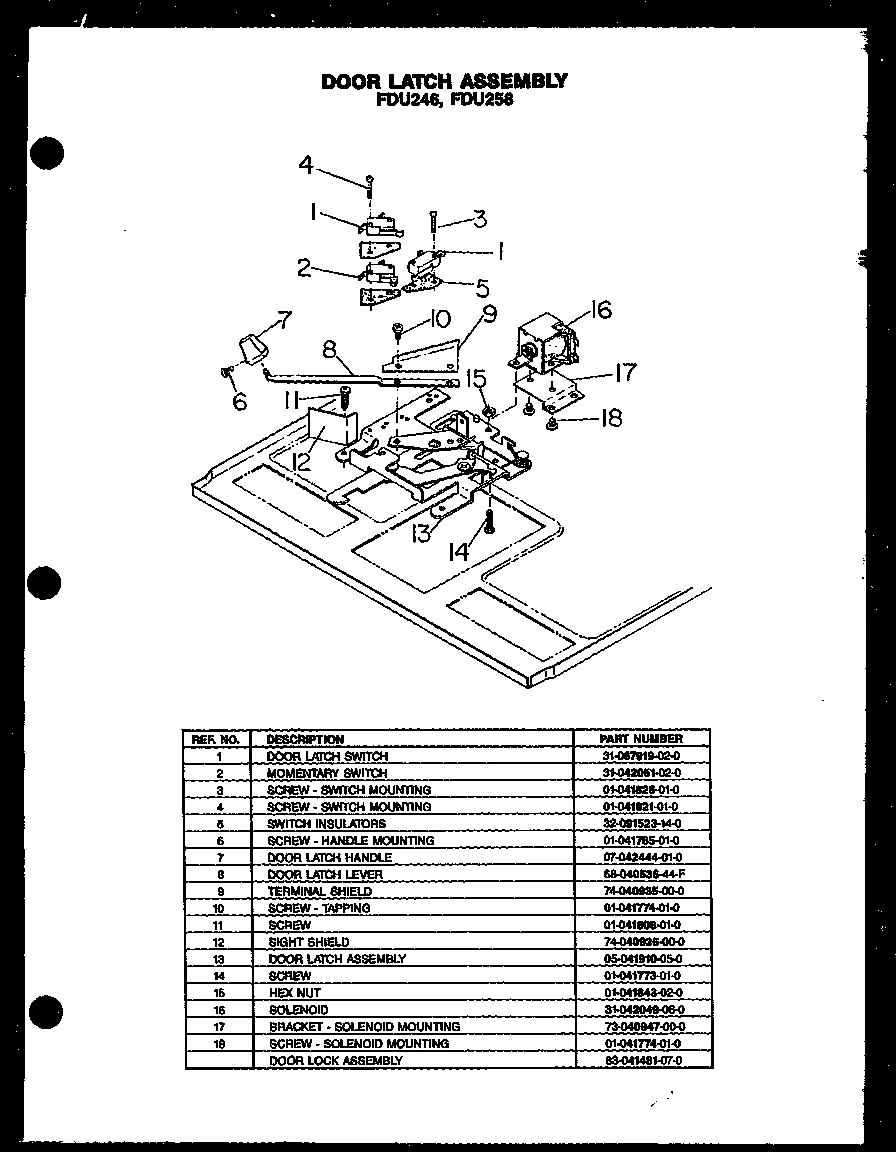

03 - DOOR LATCH ASSY

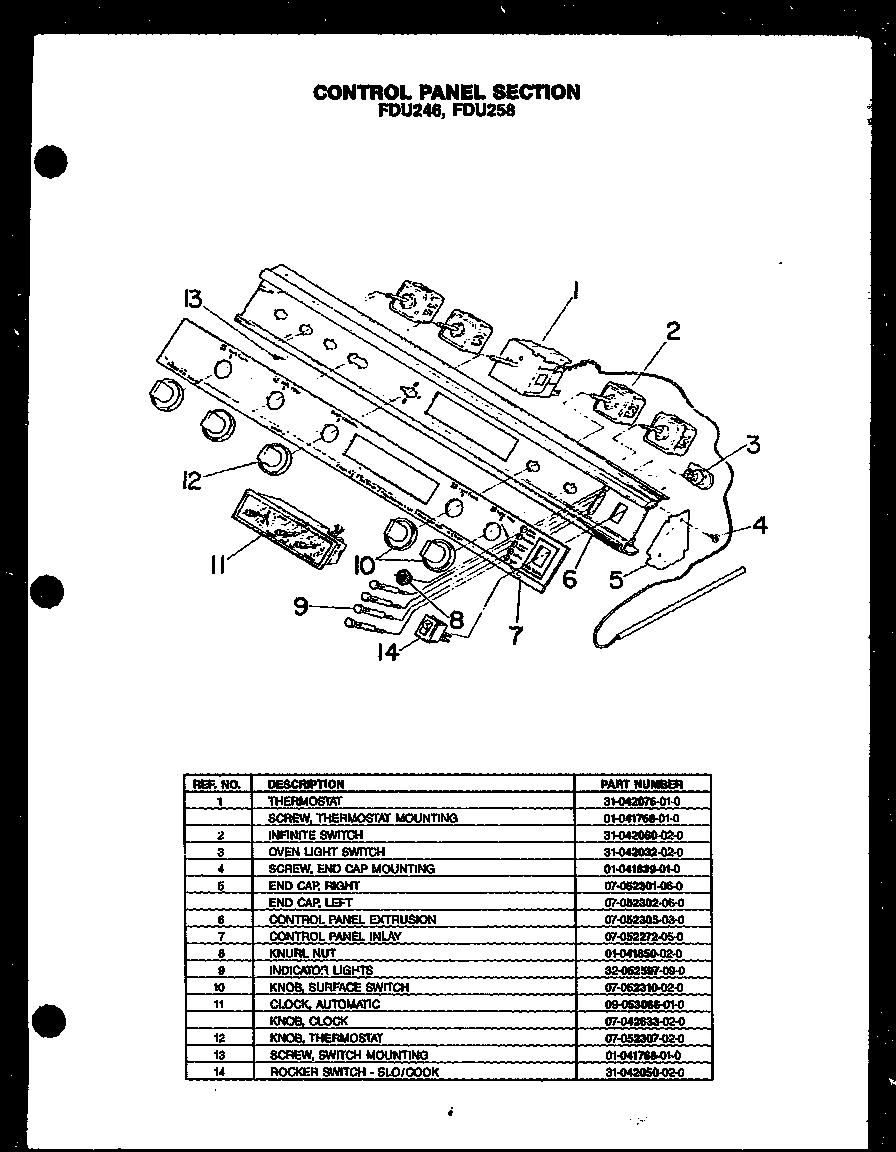

05 - Page 1

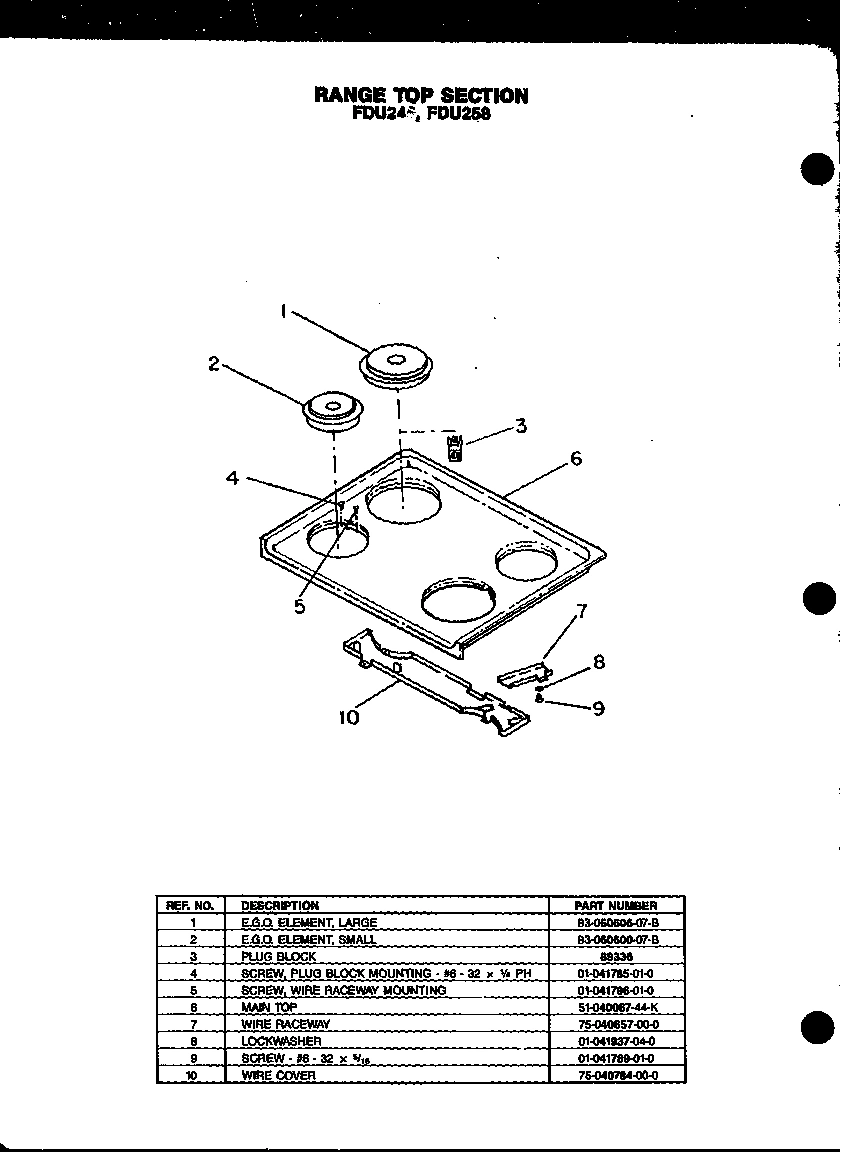

06 - RANGE TOP SECTION

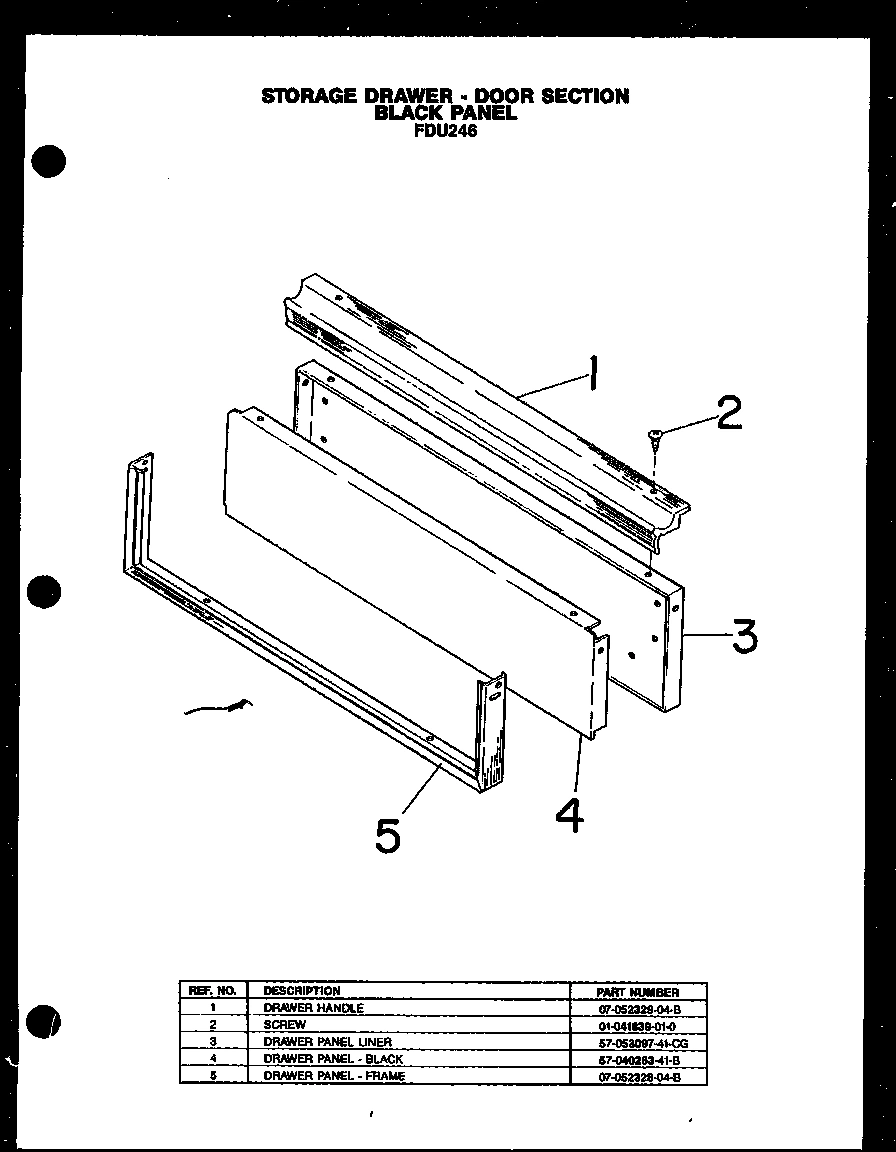

08 - STORAGE DRAWER-DOOR SECTION BLACK PANEL
Common parts from model Whirlpool FDU246 ELECTRIC RANGE
1
BACKRAIL ASSY. WPL Y0052311 Contact Us For Availability
1
BACKRAIL WPL Y0052313 Contact Us For Availability
1
REAR WIRE SHIELD WPL Y0040771 Contact Us For Availability
1
RACK WPL Y0042712 Contact Us For Availability
1
HANDLE WPL Y0052324 Contact Us For Availability
1
SWITCH-CLEAN/PRIMARY INTERLOCK WPL Y0067919 Contact Us For Availability
1
PYRO THERMOSTAT WITH TOP HEAT WPL 0042076 Contact Us For Availability
1
ELEMENT, SOLID DISC, 8`` WPL Y0060606 Contact Us For Availability
1
HANDLE, DRAWER WPL 0052329 Contact Us For Availability
2
FRAME, DOOR WPL 0052323 Contact Us For Availability
2
BLACK SCREW 8-18X.500 WPL 0041839 Contact Us For Availability
2
MAIN CONTACT SWITCH WPL 0042051 Contact Us For Availability
2
PKG 100 INF. SW. WPL X042060 Contact Us For Availability
2
ELEMENT ASSY, SM W/BLACK x WPL 0060600 Contact Us For Availability
3
SUB 11161CG, BROILER PAN WPL Y0011161 Contact Us For Availability
3
BLACK GLASS DOOR GLASS PYRO TH WPL 0042773 Contact Us For Availability
3
SCREW 4 X 40X.500 DYRO T (BLK) WPL Y0041826 Contact Us For Availability
3
PUSH SWITCH TAB TERMINALS WPL 0042032 Contact Us For Availability
3
LINER, STORAGE DRAWER WPL 53097CG Contact Us For Availability
4
BACKRAIL SUPPORT BRKT PYRO TH WPL Y0040942 Contact Us For Availability
4
CABINET BACK WPL W10124822 Contact Us For Availability
4
TOP DOOR TRIM PYRO TH WPL 0042536 Contact Us For Availability
4
SCREW 4-40X15/16`` WPL Y0041821 Contact Us For Availability
4
SCREW, No.6-32 X .250 PAN HD PH WPL Y0041785 Contact Us For Availability
4
DRAWER PANEL DARK GLASS WPL 0040263 Contact Us For Availability
5
END CAPS 4`` PYRO TH WPL Y0042518 Contact Us For Availability
5
TOP INSULATION RETAIN PYRO TH WPL Y0040772 Contact Us For Availability
5
INNER BAFFLE TH PYRO DOOR WPL Y0040844 Contact Us For Availability
5
INSULATION, ESM WPL Y0091523 Contact Us For Availability
5
END CAP, CONTROL PANEL, RT WPL Y0052301 Contact Us For Availability
5
END CAP, CONTROL PANEL, LT WPL Y0052302 Contact Us For Availability
5
METAL SCREW 6X3/8 PHIL PAN HD WPL Y0041796 Contact Us For Availability
5
FRAME, DRAWER WPL Y0052328 Contact Us For Availability
6
VENT EXTRUSION PYRO TH WPL 0042515 Contact Us For Availability
6
INSULATION 2X20X26 WPL Y0041115 Contact Us For Availability
6
DOOR LINER WPL W10124797 Contact Us For Availability
6
EXTRUSION, CONTROL PANEL WPL 0052305 Contact Us For Availability
6
MAIN TOP, CHROME WPL 0040067 Contact Us For Availability
7
SCREW No.8X3/8 SQ. DRIVE WPL Y0041832 Contact Us For Availability
7
INSULATION 26X4X20 AWX HITEMP WPL Y0041114 Contact Us For Availability
7
DOOR LATCH HANDLE WPL 0042444 Contact Us For Availability
7
x INLAY, CONTROL PANEL WPL 0052272 Contact Us For Availability
7
WIRE RACEWAY WPL Y0040657 Contact Us For Availability
8
WINDOW MTG BRKT PYRO TH DR WPL Y0040949 Contact Us For Availability
8
DOOR LATCH LEVER PYRO TH WPL 0040536 Contact Us For Availability
8
KNURL NUT WPL 0041850 Contact Us For Availability
8
WASHER HANDLE MOUNTING WPL 0041937 Contact Us For Availability
9
SUB 95197 WPL Y0041977 Contact Us For Availability
9
TERMINAL SHIELD PYRO TH WPL Y0040935 Contact Us For Availability
9
LIGHT, INDICATOR WPL 0052597 Contact Us For Availability
9
SCREW, No.8-32 X 5/16 PPH (BLK) WPL Y0041789 Contact Us For Availability
10
BRACKET, OVEN MOUNTING-PYRO WPL Y0041017 Contact Us For Availability
10
LATCH PLATE WPL Y0052039 Contact Us For Availability
10
KNOB, INFINITE SWITCH WPL Y0052310 Contact Us For Availability
10
MAIN TOP WIRE COVER WPL 0040784 Contact Us For Availability
11
GASKET, DOOR (76``) WPL Y0042413 Contact Us For Availability
11
KNOB, CLOCK W/O SPRING WPL Y0042633 Contact Us For Availability
11
CLOCK, AUTOMATIC WPL Y0053066 Contact Us For Availability
12
SIGHT SHIELD PYRO TH WPL Y0040936 Contact Us For Availability
12
KNOB, OVEN CONTROL WPL 0052307 Contact Us For Availability
13
WASHER 3/4X5/16X 080 E L HOODS WPL 0041935 Contact Us For Availability
13
DOOR PAD WPL W10124794 Contact Us For Availability
13
DOOR LATCH ASSY TH WPL 0041910 Contact Us For Availability
14
SPRING ADJUSTMENT ROD WPL 0052964 Contact Us For Availability
14
WINDOW ASSY WPL 0041491 Contact Us For Availability
14
SCREW 6 32X1 SLOTTED RN BRASS WPL 0041773 Contact Us For Availability
14
ROCKER SWITCH PYRO TH SLO/CK WPL 0042050 Contact Us For Availability
15
SCREW, NO. 8A X 1/4 WPL Y0041799 Contact Us For Availability
16
SUPPORT, BOTTOM WPL Y0041023 Contact Us For Availability
16
LEG LEVELER WPL Y0041772 Contact Us For Availability
16
SOLENOID EATON PYRO TH WO WPL Y0042049 Contact Us For Availability
17
DRAWER TRACK, RH. WPL 0061252 Contact Us For Availability
17
TRACK, STORAGE DRAWER, LH WPL 0061253 Contact Us For Availability
17
SCREW 8-32X.375 DK GL DR HDL WPL 0041840 Contact Us For Availability
17
SOLENOID MTG. BRKT PYRO WPL 0040947 Contact Us For Availability
18
BOT INSUL RETAIN PYRO TH WPL Y0040774 Contact Us For Availability
18
SCREW 10-32 X.250 HEX WPL 0041774 Contact Us For Availability
18
DOOR LOCK ASSY WPL 0041481 Contact Us For Availability
19
SPRING, OVEN DOOR-PYRO W/O WPL Y0042740 Contact Us For Availability
21
DRAWER, STORAGE WPL Y0053096 Contact Us For Availability
23
HINGE ASSY WPL Y0052095 Contact Us For Availability
25
SUB 311144E, KIT, OVEN LINER WPL Y059202Y Contact Us For Availability
26
SMOKE ELIMINATOR WPL Y0063337 Contact Us For Availability
27
CAPILLARY HOLE COVER WPL Y0063351 Contact Us For Availability
28
BAKE ELEMENT PYRO TH WPL Y0042146 Contact Us For Availability
29
OVEN PROBE BRKT PYRO TH WPL Y0040924 Contact Us For Availability
31
SUB 90264,KIT LIGHT SOCKET WPL 0073028 Contact Us For Availability
32
BULB, LIGHT WPL Y0042175 Contact Us For Availability
33
LENS RETAINER STAINLESS STEEL WPL 0040995 Contact Us For Availability
35
GASKET,OVEN LIGHT WPL Y0041987 Contact Us For Availability
36
LENS, OVEN LIGHT WPL 0052276 Contact Us For Availability
37
SIDE TRIM WPL 0042512 Contact Us For Availability
37
SIDE TRIM WPL Y0042511 Contact Us For Availability
38
BROIL ELEMENT SUPPORT PYRO WPL Y0040902 Contact Us For Availability
39
CHIP COVER PYRO W.O. WPL 0040398 Contact Us For Availability
40
BROIL UNIT FOR PYRO T.H. RANGE WPL 0042145 Contact Us For Availability
41
CABINET SIDE WPL Y040306L Contact Us For Availability
43
TOP SPACER WPL Y0042007 Contact Us For Availability
45
BURNER BOX SIDE, LEFT WPL W10124653 Contact Us For Availability
47
TIMERMAN WPL Y0041869 Contact Us For Availability
48
TOP SUPPORT ROD WPL 0042734 Contact Us For Availability
50
WIRE CHANNEL WPL W10125643 Contact Us For Availability
51
BURNER BOX SIDE RT PYRO TH WPL Y0040466 Contact Us For Availability
53
BURNE WPL 0040478 Contact Us For Availability
54
WPL 0041024 WPL 0041024 Contact Us For Availability
56
WPL Y0040587 WPL Y0040587 Contact Us For Availability
57
WPL Y00000000 WPL Y00000000 Contact Us For Availability
58
WPL Y0040775 WPL Y0040775 Contact Us For Availability
58
WPL Y0040799 WPL Y0040799 Contact Us For Availability
59
WPL Y0040776 WPL Y0040776 Contact Us For Availability
61
WPL W10125975 WPL W10125975 Contact Us For Availability
62
WPL Y0040773 WPL Y0040773 Contact Us For Availability
NI
WPL 0042155 WPL 0042155 Contact Us For Availability
NI
WPL 0061254 WPL 0061254 Contact Us For Availability
NI
WPL 0061255 WPL 0061255 Contact Us For Availability
NI
WPL Y0040406 WPL Y0040406 Contact Us For Availability
NI
WPL Y0040777 WPL Y0040777 Contact Us For Availability
NI
WPL Y0042040 WPL Y0042040 Contact Us For Availability
NI
WPL Y0060713 WPL Y0060713 Contact Us For Availability
× ![]()
