Model Whirlpool FCG2042W GAS RANGE – Common Parts & Diagrams
03 - CONTROL SYSTEM

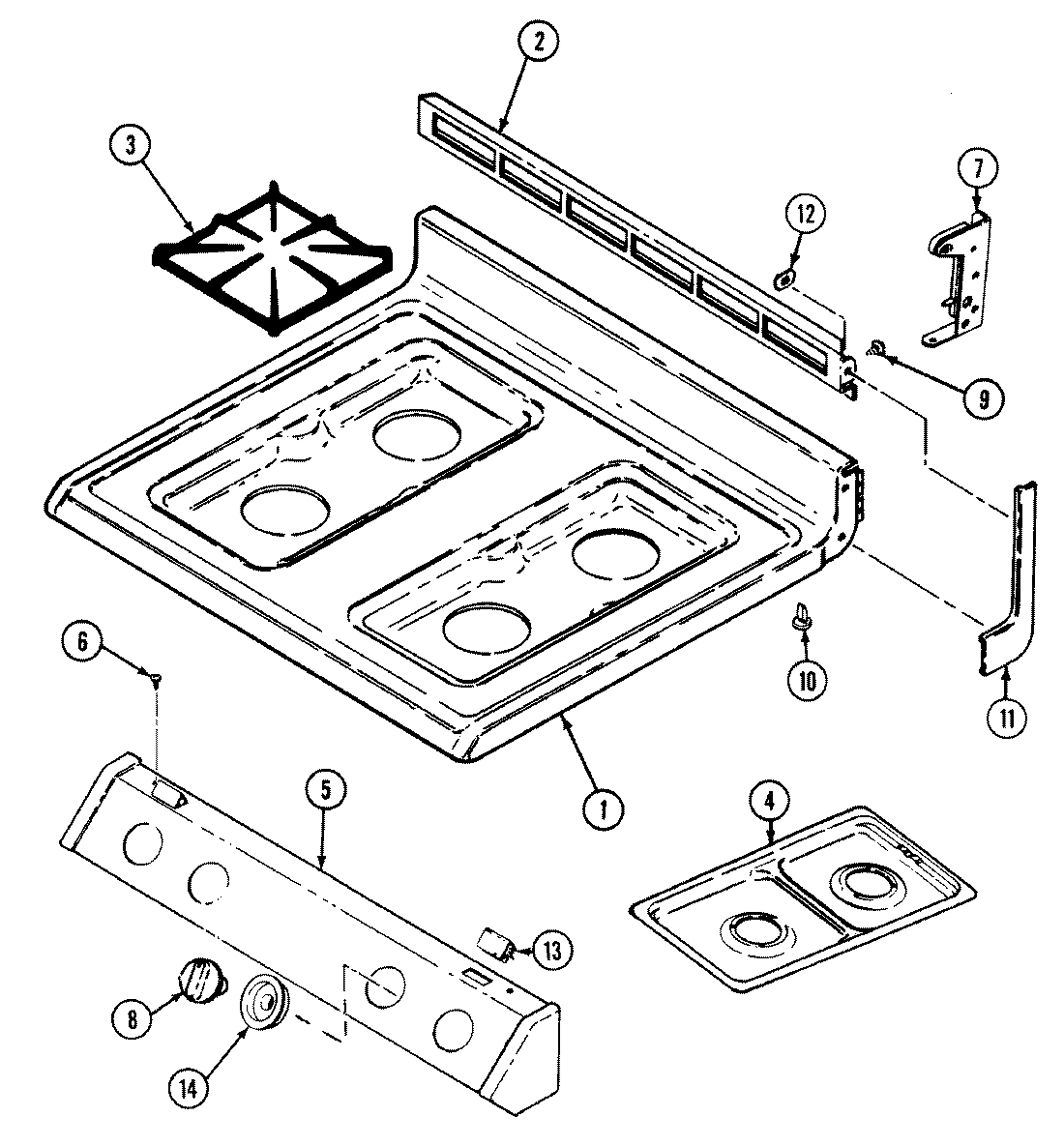

06 - TOP ASSEMBLY

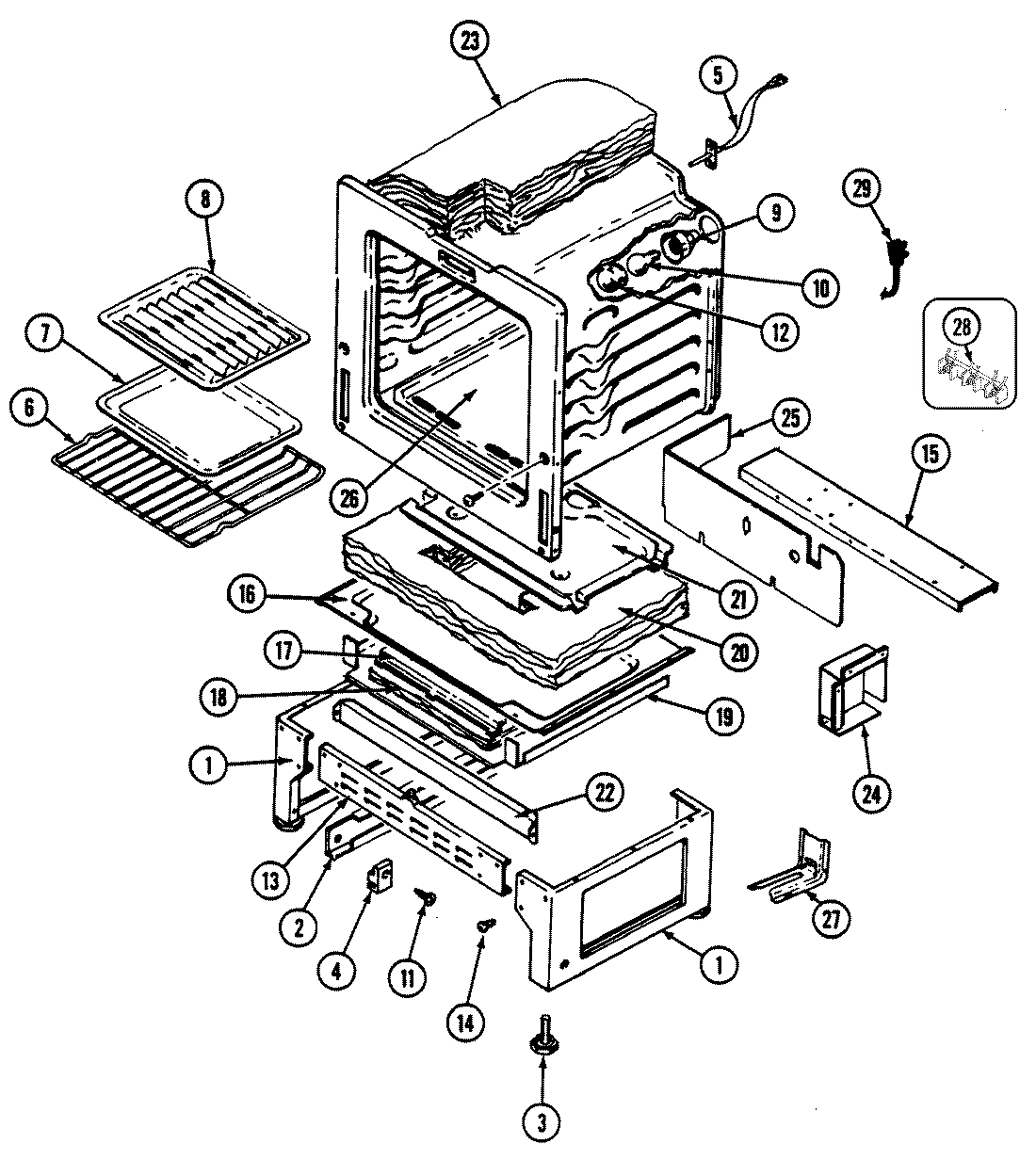

05 - OVEN

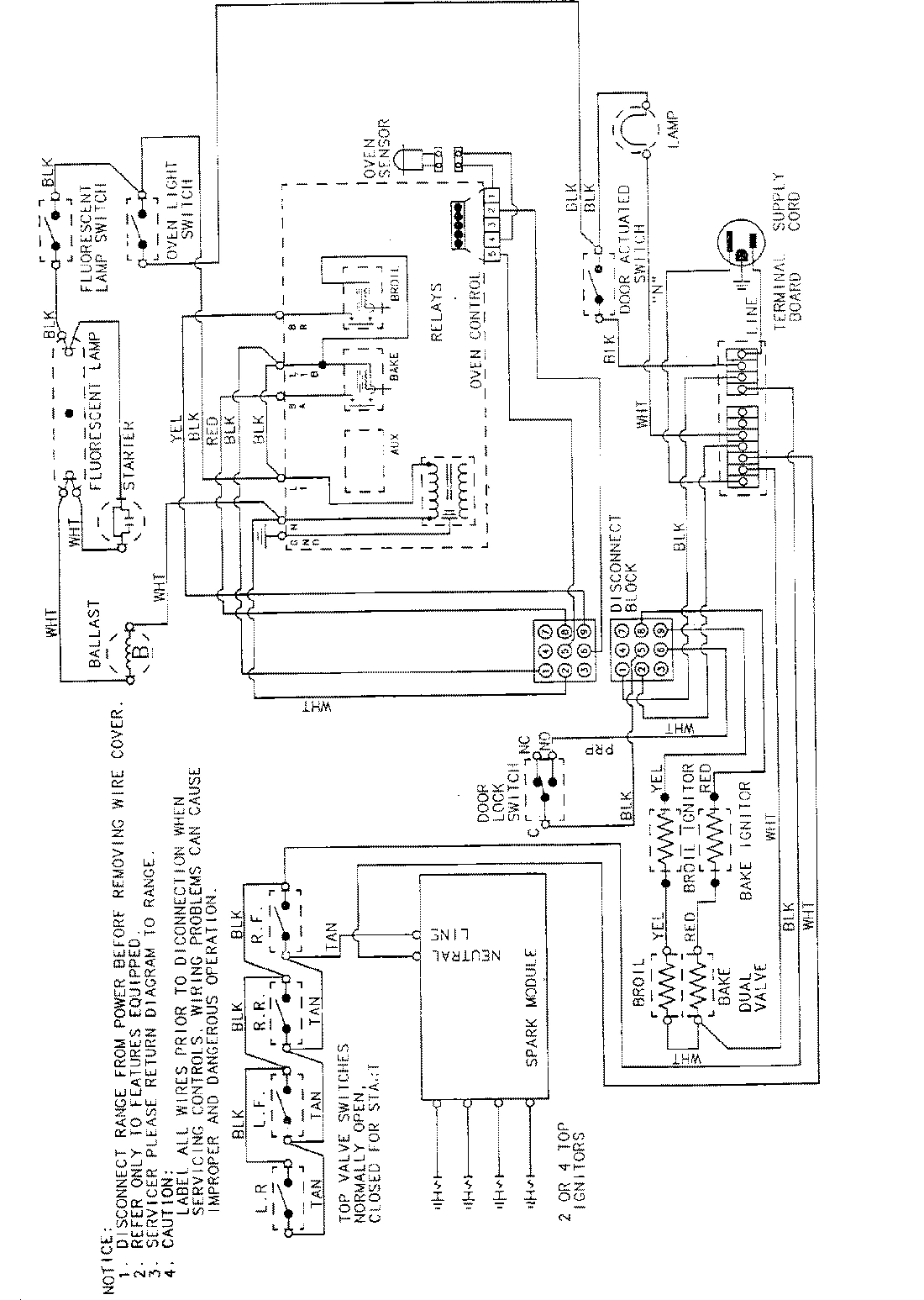

07 - WIRING INFORMATION

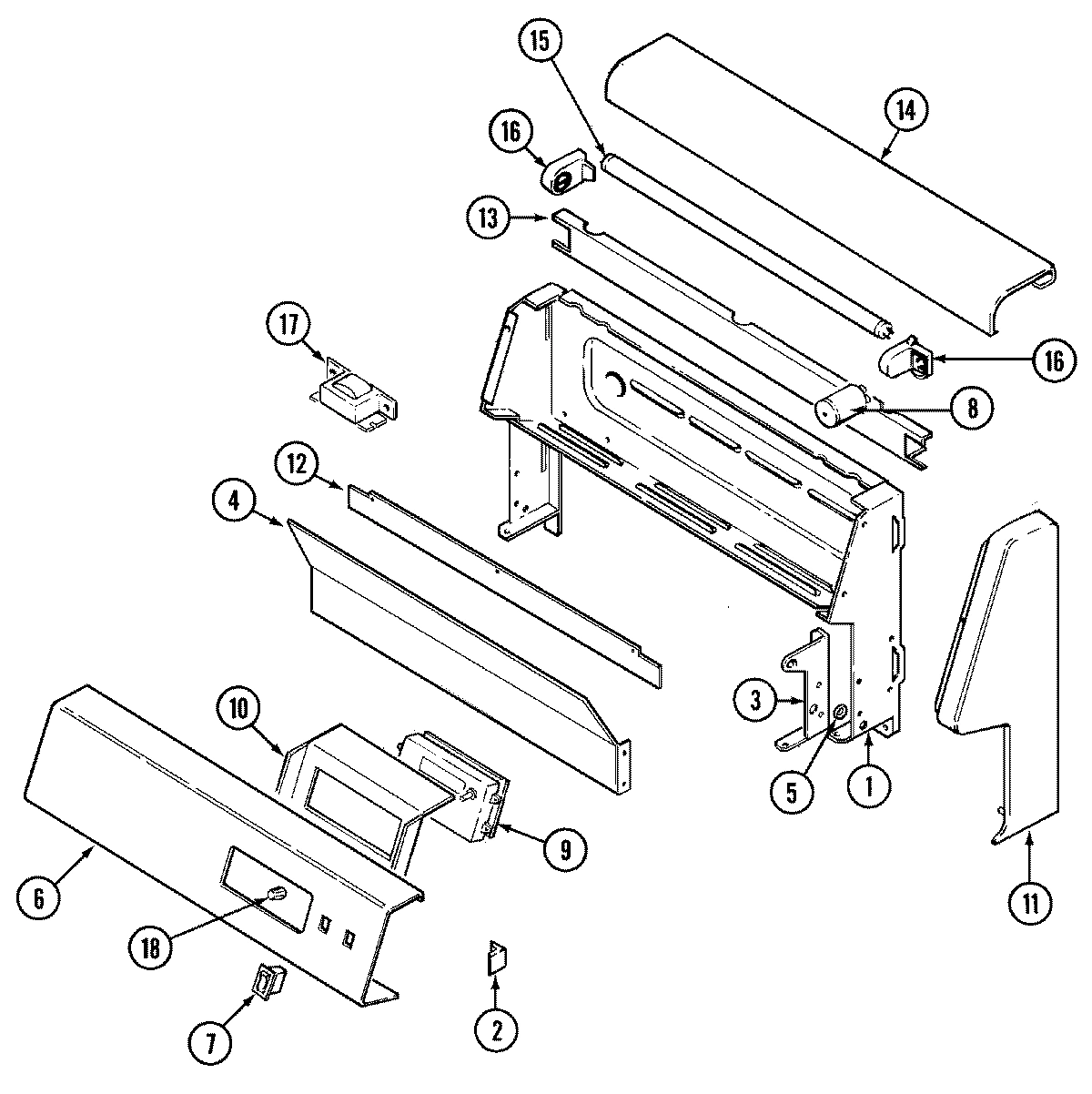

02 - CONTROL PANEL

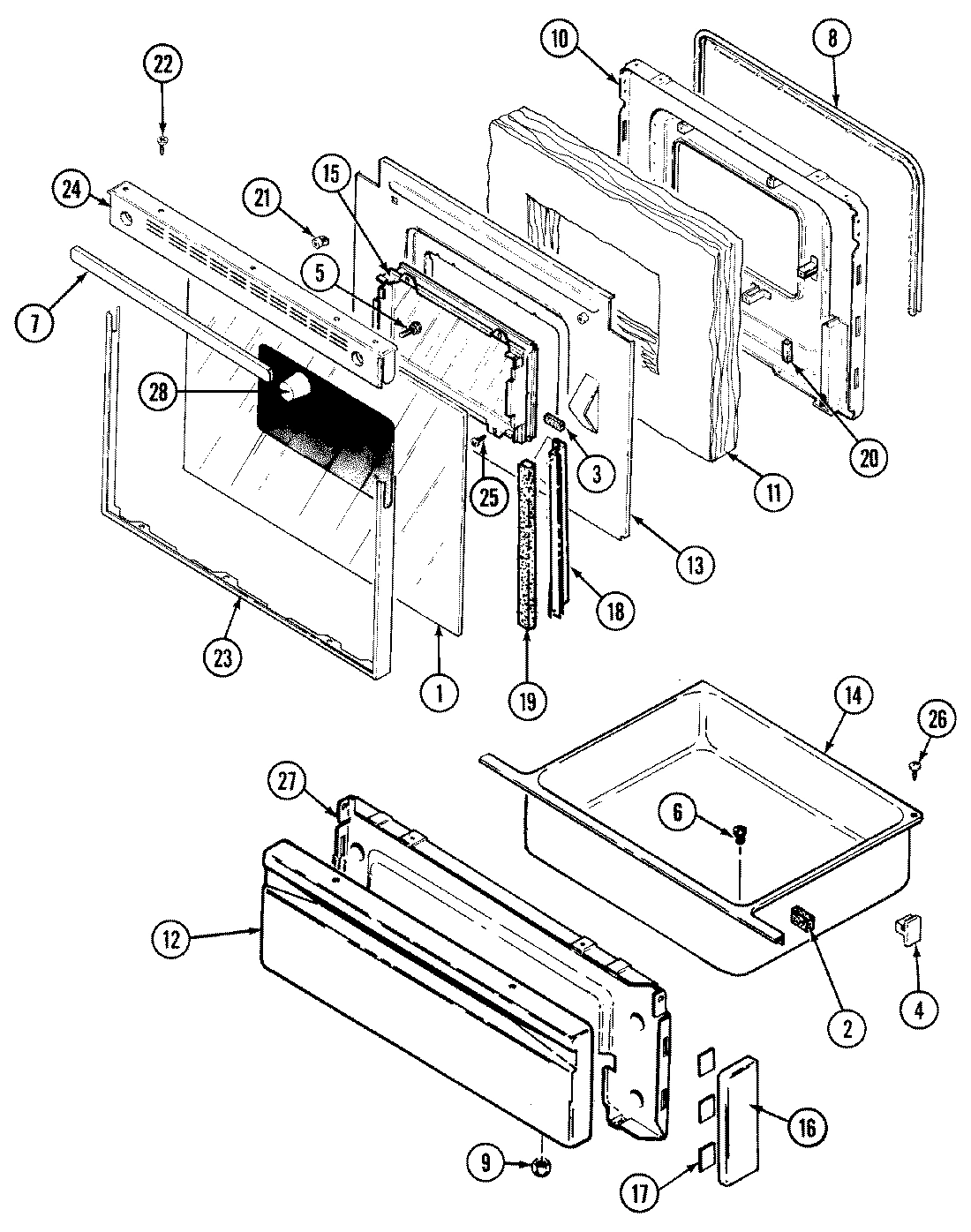

04 - DOOR/DRAWER

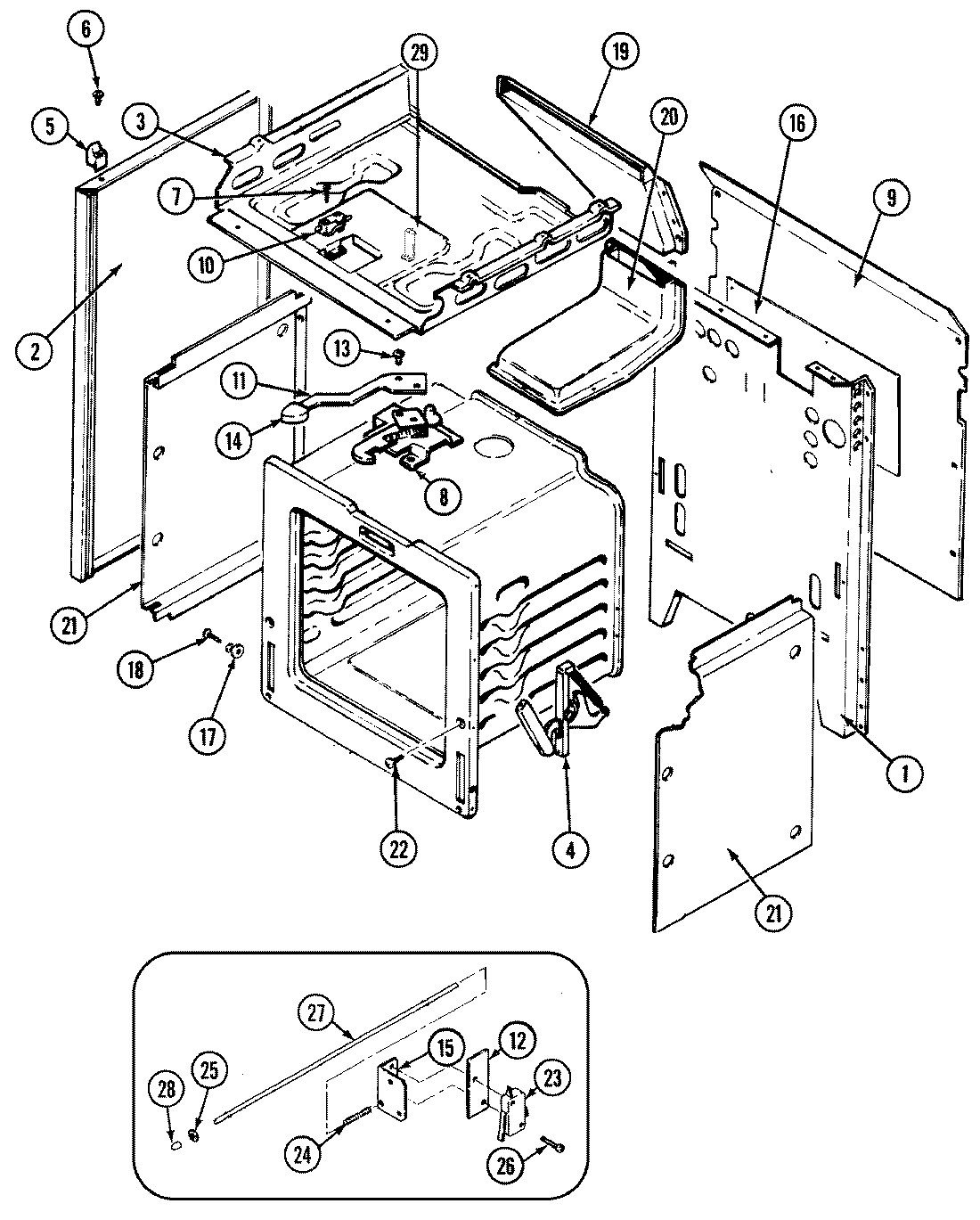

01 - BODY
Common parts from model Whirlpool FCG2042W GAS RANGE
1
VALVE, TOP BURNER WPL 7502P25160 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 74001532 Contact Us For Availability
1
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
1
PEDESTAL (SIDES) WPL 4020W01180 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09751 Contact Us For Availability
1
GLASS, DOOR (WHT) WPL 7902P38560 Contact Us For Availability
1
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
1
BACK, MAIN WPL 4002F21180 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
2
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
2
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
2
TRIM, VENT (DARK GRAY) WPL 3608F04226 Contact Us For Availability
2
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
2
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
3
BURNER, BAKE WPL 3403D04345 Contact Us For Availability
3
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
3
GRATE (GRY) WPL 2003W02726 Contact Us For Availability
3
LEG, LEVELING WPL 74001311 Contact Us For Availability
3
SUPPORT, HOUSING (RT) WPL 3807F42351 Contact Us For Availability
3
SUPPORT, HOUSING (LT) WPL 3807F42451 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
BOX, BURNER WPL 4011F23080 Contact Us For Availability
4
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
4
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
4
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
HINGE WPL 7106P05660 Contact Us For Availability
5
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
5
PANEL, MANIFOLD (WHT) WPL 7712P17460 Contact Us For Availability
5
NUT, SPEED WPL 7103P12960 Contact Us For Availability
5
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
5
SCREW WPL 7101P35360 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
SEALED BURNER ASSY. (GRY) WPL 3412D01826 Contact Us For Availability
6
RACK, OVEN WPL 7801P04760 Contact Us For Availability
6
SCREW WPL 7118P02260 Contact Us For Availability
6
PANEL CONTROL (WHT) WPL 7703P53160 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
7
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
7
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
7
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
7
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
7
PAN, BROIL WPL 3401F01419 Contact Us For Availability
7
SWITCH, ROCKER (WHT) WPL 7403P31060 Contact Us For Availability
7
HANDLE (WHT) WPL 7701P13960 Contact Us For Availability
7
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
8
BAFFLE, BROIL WPL 3601F21745 Contact Us For Availability
8
KNOB, VALVE (WHT) WPL 7733P09360 Contact Us For Availability
8
INSERT, BROIL PAN WPL 3413F01319 Contact Us For Availability
8
STARTER WPL 7415P00160 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
8
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
8
LATCH ASSY. WPL 8002P02760 Contact Us For Availability
9
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
9
CLOCK WPL 7601P26660 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F33151 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
10
GLIDE WPL 8016P01360 Contact Us For Availability
10
BULB, OVEN WPL 7407P09560 Contact Us For Availability
10
BRACKET, CLOCK WPL 3801F34345 Contact Us For Availability
10
LINING, DOOR WPL 2402W20219 Contact Us For Availability
10
NUT, SNAP WPL 7103P13660 Contact Us For Availability
10
BRACKET, SWITCH WPL 3801F26745 Contact Us For Availability
10
SWITCH, DOOR LATCH WPL 7403P36360 Contact Us For Availability
11
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
11
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
11
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
11
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
11
SCREW WPL 7101P10360 Contact Us For Availability
11
END CAP (RT-WHT) WPL 7726P09360 Contact Us For Availability
11
INSULATION, DOOR WPL 4804F03460 Contact Us For Availability
11
WASHER WPL 7109P01560 Contact Us For Availability
11
LEVER, LATCH ASSY. WPL 8009P02360 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P12060 Contact Us For Availability
12
COVER, BULB WPL 7724P04760 Contact Us For Availability
12
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
12
PANEL, DRAWER (WHT) WPL 2416F04771 Contact Us For Availability
12
INSULATOR, SWITCH WPL 7003P06260 Contact Us For Availability
13
TUBING, REGULATOR/PIPE (3/8``) WPL 3414F10344 Contact Us For Availability
13
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
13
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
13
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P06760 Contact Us For Availability
14
BEZEL, KNOB (WHT) WPL 7740P07060 Contact Us For Availability
14
COVER (WHT) WPL 7724P06460 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01780 Contact Us For Availability
14
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
14
HANDLE, DOOR LATCH (WHT) WPL 7701P15360 Contact Us For Availability
15
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
15
SUPPORT, VALVE & REGULATOR WPL 3807F44751 Contact Us For Availability
15
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
15
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
15
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
15
BRACKET, LIGHT SWITCH WPL 3801F35451 Contact Us For Availability
16
NUT, WING WPL 7103P03060 Contact Us For Availability
16
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
16
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
16
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
16
END CAP, DRAWER (WHT) WPL 7744P09060 Contact Us For Availability
16
SHIELD, FLUE (LOWER) WPL 3604F16551 Contact Us For Availability
17
ORIFICE FITTING ASSEMBLY WPL 5187D03460 Contact Us For Availability
17
ORIFICE FITTING ASSEMBLY WPL 5187D03560 Contact Us For Availability
17
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
17
BALLAST WPL 7412P00760 Contact Us For Availability
17
TAPE WPL 8270P09860 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
18
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
18
KNOB, CLOCK (WHT) WPL 7711P48760 Contact Us For Availability
18
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
18
SCREW WPL 7101P30060 Contact Us For Availability
19
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
19
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
19
WIRES, LOOSE WPL 5125A35660 Contact Us For Availability
19
HARNESS, CONTROL PANEL WPL 5180D15160 Contact Us For Availability
19
SEAL WPL 7208P00260 Contact Us For Availability
19
EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability
19
SCREW WPL 7101P27760 Contact Us For Availability
19
WASHER WPL 7109P02860 Contact Us For Availability
20
TUBING, BROIL BURNER (3/8``) WPL 3414F10244 Contact Us For Availability
20
INSULATION, OVEN BOTTOM WPL 4804F01460 Contact Us For Availability
20
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
20
WARRANTY WPL 74001517 Contact Us For Availability
20
MANUAL, USE & CARE WPL 74001525 Contact Us For Availability
20
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
20
BOX, VENT WPL 4006W11345 Contact Us For Availability
21
HARNESS, SPARK MODULE/TOP WPL 5120D01960 Contact Us For Availability
21
WIRES, IGNITER SWITCH(3BK/3TN) WPL 5125A35760 Contact Us For Availability
21
WIRES, IGNITER WPL 5140D03560 Contact Us For Availability
21
PAN, BAKE BURNER WPL 3401F02445 Contact Us For Availability
21
NUT, NYLON WPL 7103P04560 Contact Us For Availability
21
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
22
BAFFLE, OVEN FRONT WPL 3601F20845 Contact Us For Availability
22
SCREW (WHT) WPL 7101P30860 Contact Us For Availability
22
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
23
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
23
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
23
FRAME, DOOR (WHT) WPL 7706P29860 Contact Us For Availability
23
SWITCH, MICRO WPL 7403P28160 Contact Us For Availability
24
SUPPORT, SPARK MODULE WPL 3807F47351 Contact Us For Availability
24
TRIM, TOP WPL 7744P08960 Contact Us For Availability
24
SPRING WPL 7803P06760 Contact Us For Availability
25
SCREW WPL 7101P29060 Contact Us For Availability
25
COVER, VALVE WPL 4005F42951 Contact Us For Availability
25
WASHER WPL 7109P02060 Contact Us For Availability
26
BAFFLE, OVEN BOTTOM WPL 3601F23945 Contact Us For Availability
26
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
26
SCREW WPL 7101P32960 Contact Us For Availability
26
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
27
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
27
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
27
LINING, DRAWER WPL 2404F03880 Contact Us For Availability
27
ROD, LIGHT SWITCH WPL 7809P02260 Contact Us For Availability
28
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
28
END CAP, HANDLE (WHT) WPL 7744P04260 Contact Us For Availability
28
BUMPER WPL 8003P01260 Contact Us For Availability
29
CORD, POWER WPL 7402P04360 Contact Us For Availability
29
SUPPORT, MAIN TOP WPL 3807F43145 Contact Us For Availability
30
HARNESS, SENSOR & LOCK WPL 5170P20460 Contact Us For Availability
30
HARNESS, PEDESTAL WPL 5185D28060 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001129 Contact Us For Availability
× ![]()
Login and Registration Form
