Model Whirlpool FB20 DISPOSAL – Common Parts & Diagrams

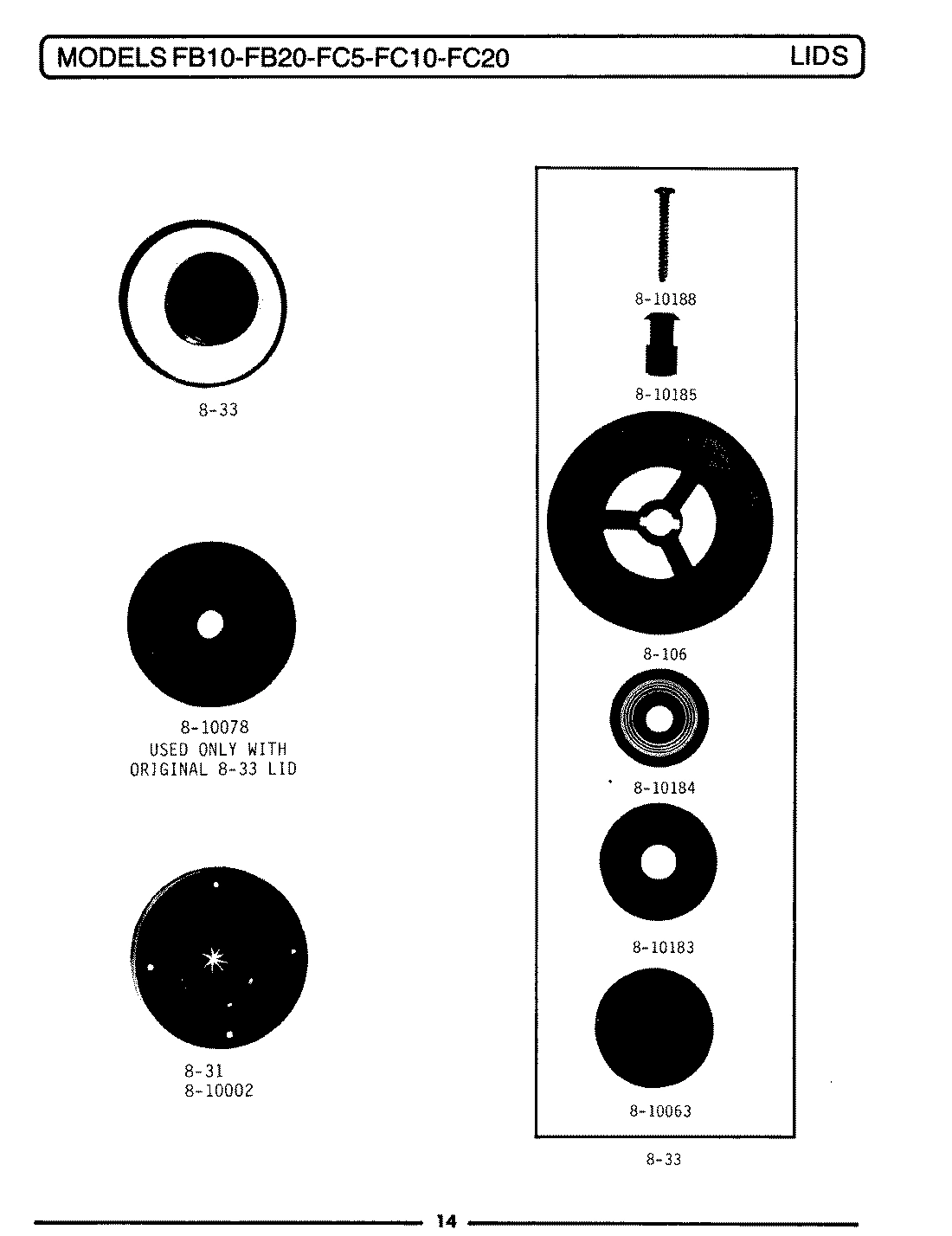

11 - LIDS
12 - OUTER HOUSING & INSULATION (FB20/FC20)

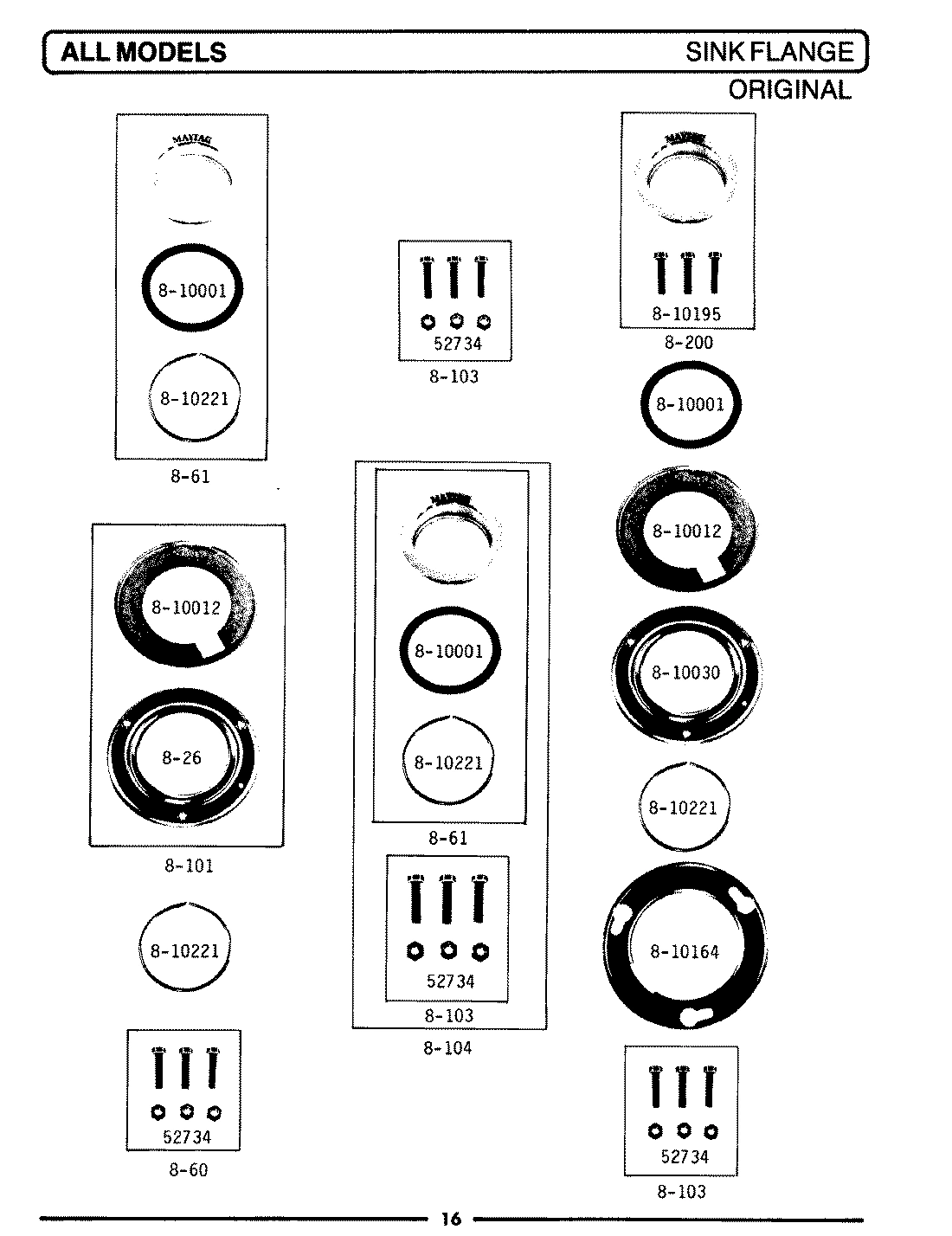

13 - SINK FLANGE

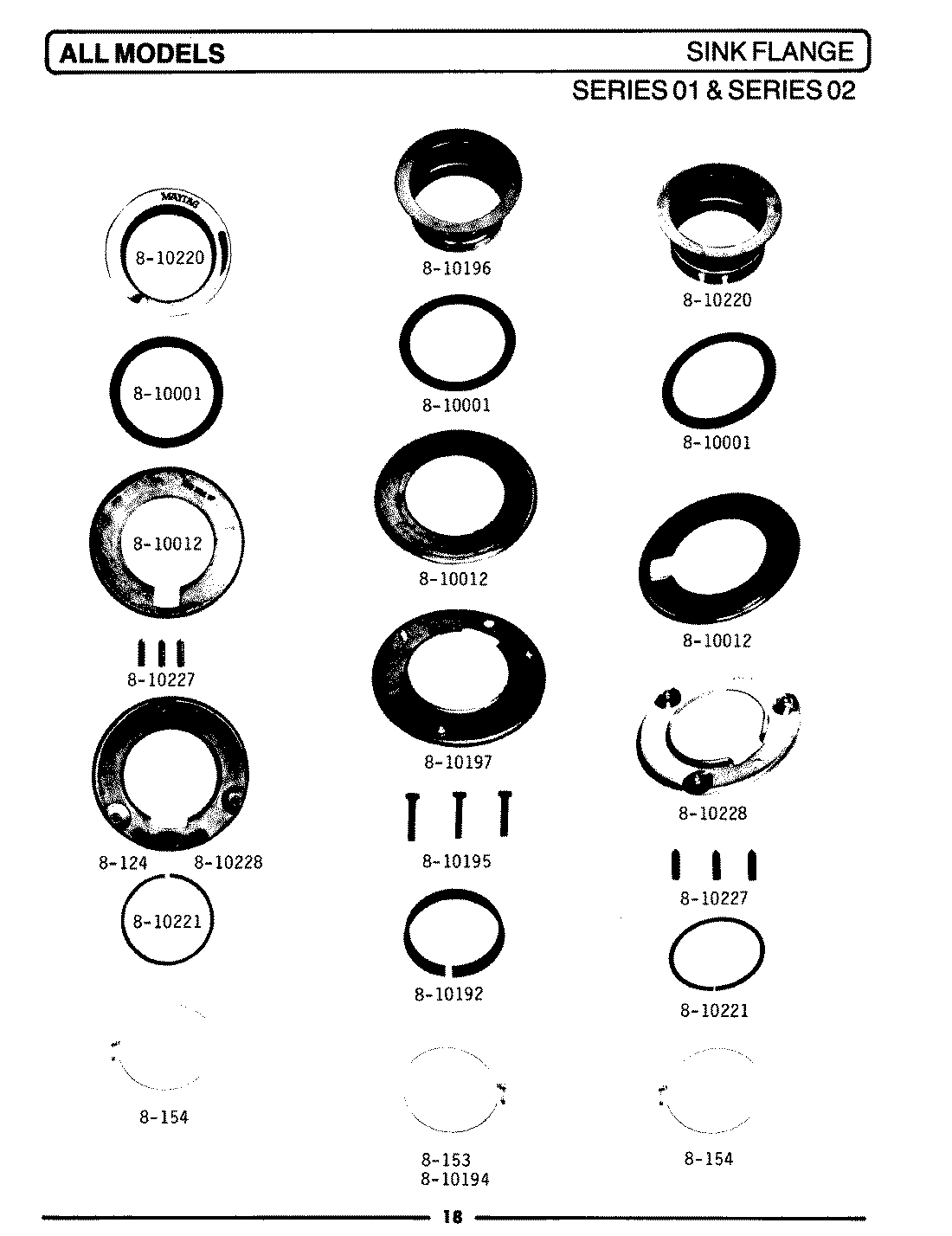

14 - SINK FLANGE (SERIES 01)
10 - INSTALLATION ACCESSORIES
03 - FRONT VIEW (FB10)
05 - FRONT VIEW (FC10)
04 - FRONT VIEW (FB20)
06 - FRONT VIEW (FC20)
02 - ELECTRICAL COMPONENTS
07 - FRONT VIEW (FC5)

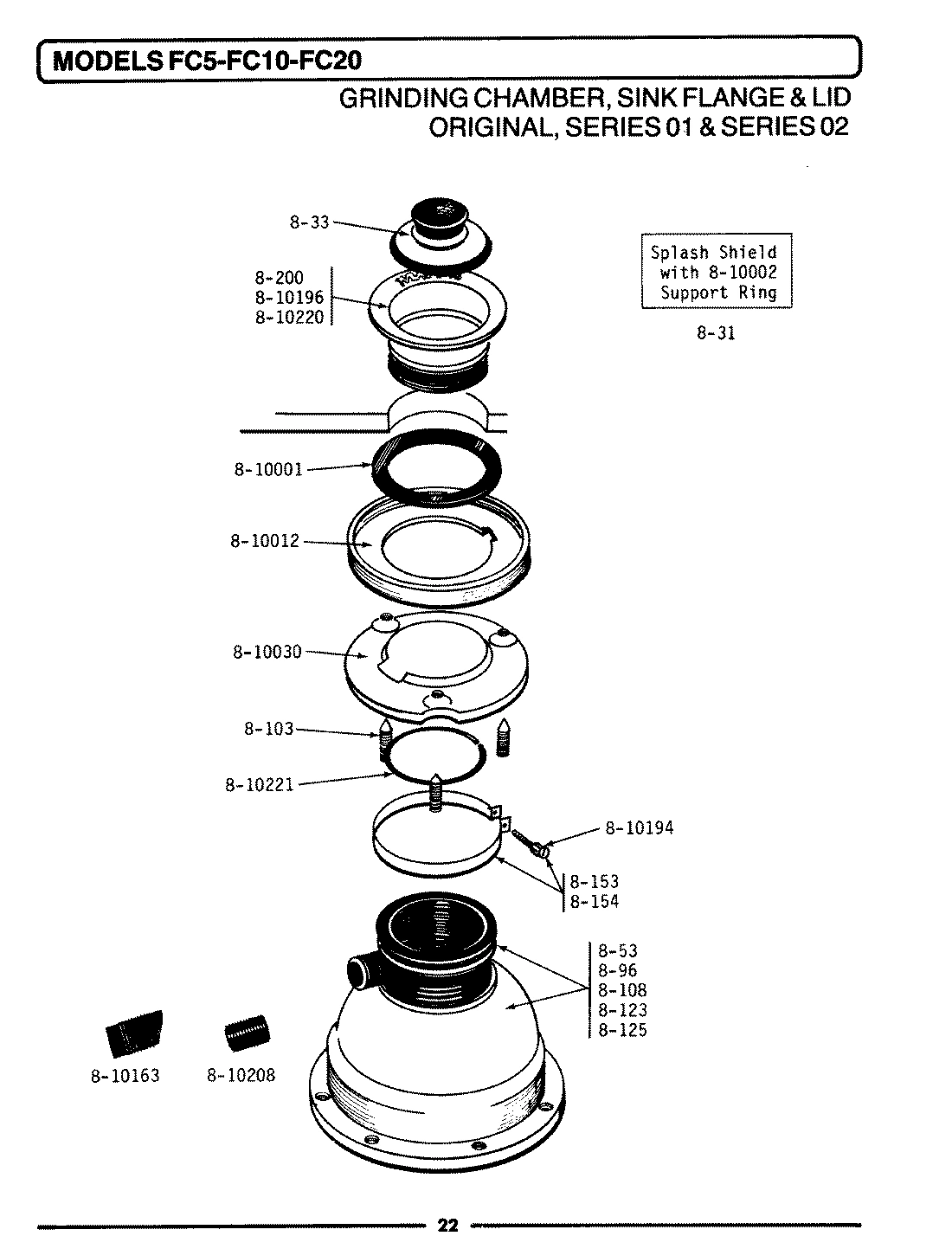

09 - GRINDING CHAMBER, SINK FLANGE & LID (01)
16 - STATR,ROTOR,RELAY,CPTR,BELL (FC5,10,20)

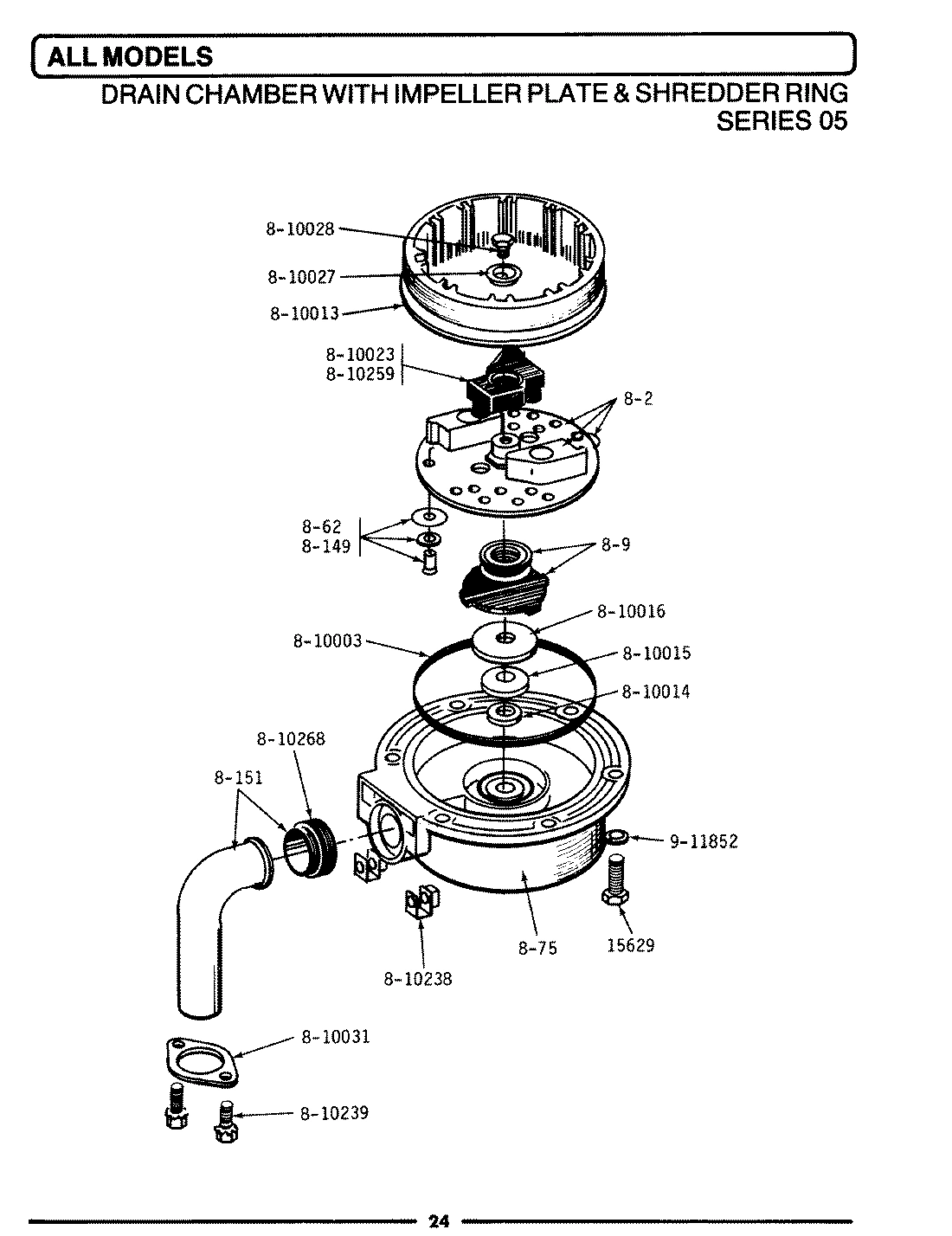

01 - DRAIN CHAMBER/IMPELLER PLATE & SHREDDER

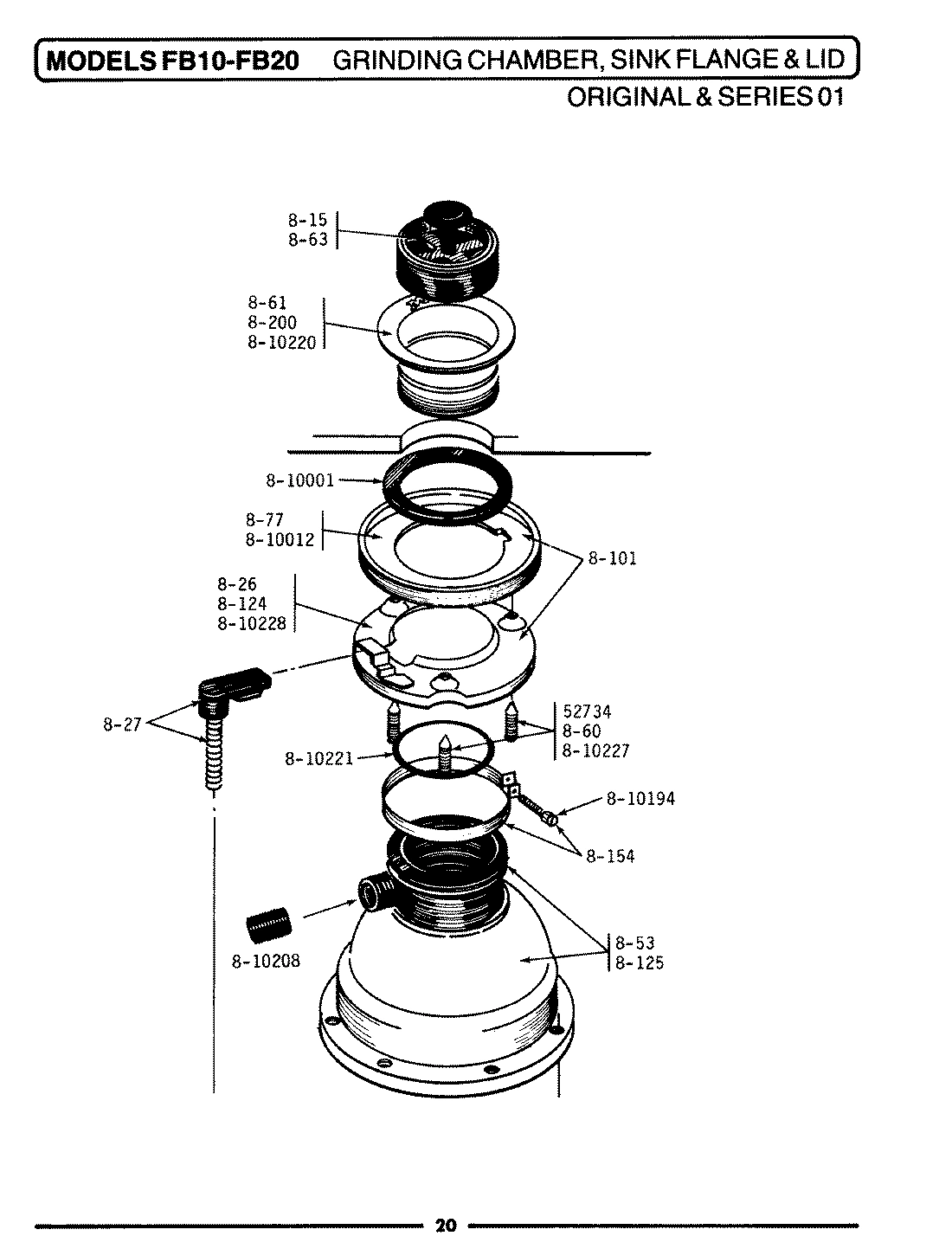

08 - GRINDING CHAMBER, SINK FLANGE & LID

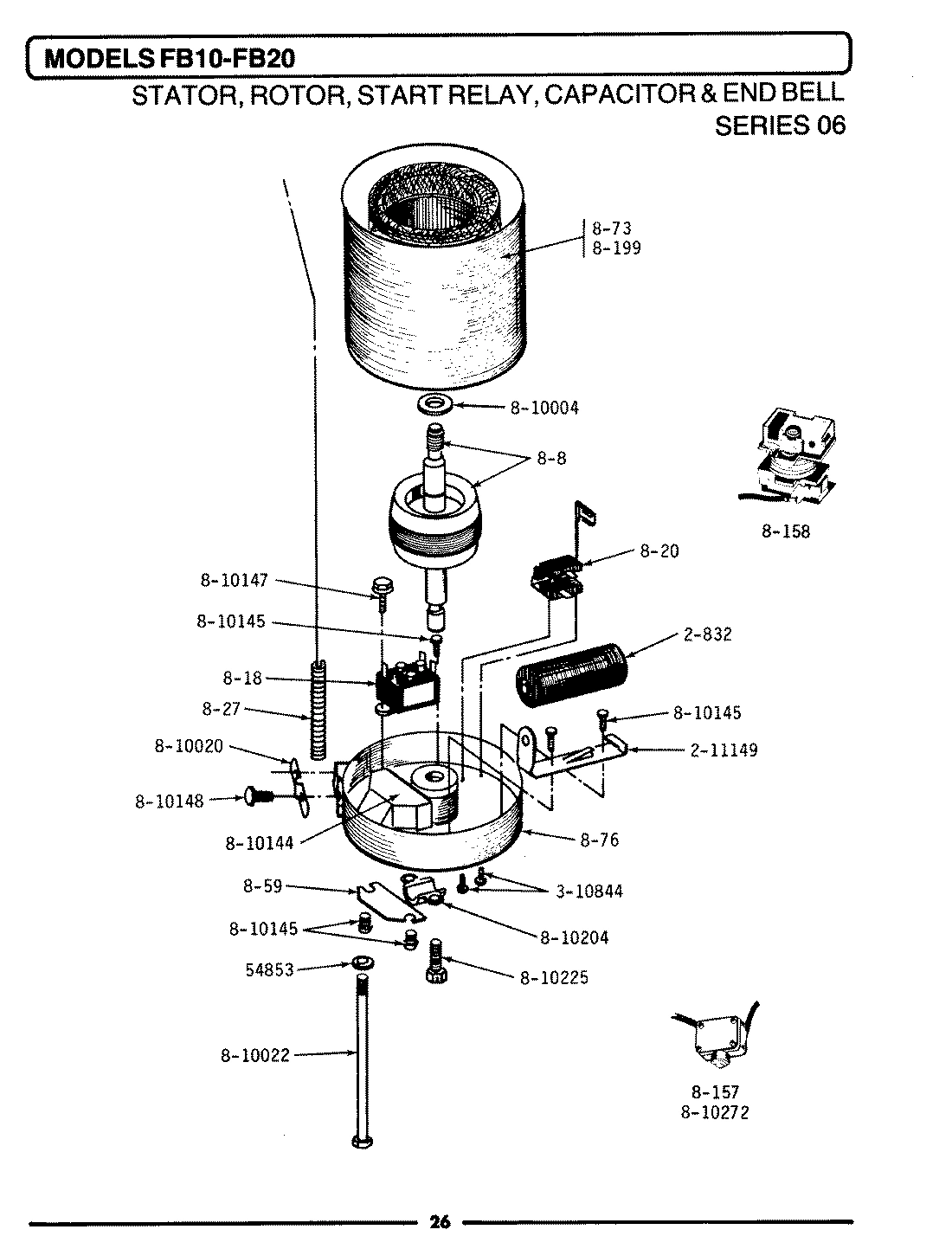

15 - STATR,ROTOR,RELAY,CPTR,BELL (FB10,FB20)
Common parts from model Whirlpool FB20 DISPOSAL
1
KNOB & SHAFT - FB WPL 800013 Contact Us For Availability
1
NUT WPL Y052734 Contact Us For Availability
1
MAYTAG REGULAR DRIVER HANDL WPL 038569 Contact Us For Availability
1
LOCK WASHER,THRU-BOLT WPL 054853 Contact Us For Availability
1
BOLT, GRINDING CHAMBER-DRAI WPL Y015629 Contact Us For Availability
2
KNOB FOR AUTO-START LID-FB WPL Y800014 Contact Us For Availability
2
AUTO-START LID COMPLETE-FB WPL 800015 Contact Us For Availability
2
1/4 MAGNETIC NUTDRIVER WPL 038570 Contact Us For Availability
2
LID - FC WPL 800033 Contact Us For Availability
2
CAPACITOR WPL Y200832 Contact Us For Availability
2
IMPELLER PLATE COMPLETE WPL Y800002 Contact Us For Availability
3
MOUNTING PLATE-LOWER-W/CLIP WPL 800026 Contact Us For Availability
3
5/16 MAGNETIC NUTDRIVER WPL 038571 Contact Us For Availability
3
CLIP, CAPACITOR WPL 211149 Contact Us For Availability
3
BOOT SEAL COMPLETE WPL 800009 Contact Us For Availability
4
1/8 ALLEN DRIVER WPL 038572 Contact Us For Availability
4
SPLASH SHIELD W/SUPPORT - F WPL Y800031 Contact Us For Availability
4
UNDERCUTTER BLADES & RIVETS WPL 800062 Contact Us For Availability
5
MOUNTING BOLT KIT WPL 800103 Contact Us For Availability
5
3/16 ALLEN DRIVER WPL 038573 Contact Us For Availability
5
GRINDING CHAMBER ASSEMBLY WPL 800053 Contact Us For Availability
5
DRAIN CHAMBER WITH BEARING WPL Y800075 Contact Us For Availability
5
ROTOR WITH SLINGER WPL 800008 Contact Us For Availability
6
MOUNTING BOLT KIT WPL 800060 Contact Us For Availability
6
RETAINING RING WPL 810192 Contact Us For Availability
6
NO. 2 POZI-DRIV BIT WPL 038574 Contact Us For Availability
6
RELAY FOR AUTO-START SW-FB WPL 800018 Contact Us For Availability
6
RELAY-START & OVERLOAD WPL 800011 Contact Us For Availability
6
UNDERCUTTER KNIVES & RIVETS WPL 800149 Contact Us For Availability
7
LID - LESS KNOB WPL 800106 Contact Us For Availability
7
SINK FLANGE KIT WPL 800061 Contact Us For Availability
7
NO. 3 POZI-DRIV BIT WPL 038575 Contact Us For Availability
7
DRAIN ELBOW WITH GASKET WPL 800151 Contact Us For Availability
7
RELAY - START & OVERLOAD WPL 800020 Contact Us For Availability
8
SEAL KIT FOR AUTO-START LID WPL 800063 Contact Us For Availability
8
APPLIANCE TOOL KIT WPL 038640 Contact Us For Availability
8
AUTO-START SW & CONDUIT ASS WPL 800027 Contact Us For Availability
8
GASKET-SHREDDER RING-DRAIN WPL 810003 Contact Us For Availability
9
KNOB FOR LID WPL 810063 Contact Us For Availability
9
BAND KIT WPL 800153 Contact Us For Availability
9
NEEDLE NOSE PLIERS-6 INCH WPL 038641 Contact Us For Availability
9
MOUNTING PLATE WITH BOLTS WPL 800077 Contact Us For Availability
9
GRINDING CHAMBER WPL 800096 Contact Us For Availability
9
TERMINAL COVER PLATE & SCRE WPL 800059 Contact Us For Availability
9
SHREDDER RING WPL 810013 Contact Us For Availability
10
UPPER & LOWER MTG PLATES WPL 800101 Contact Us For Availability
10
DIAGONAL CUTTERS-5 INCH WPL 038642 Contact Us For Availability
10
STATOR WITH RELAY WPL 800073 Contact Us For Availability
10
START RELAY - CANADA WPL 800159 Contact Us For Availability
10
THRUST WASHER-STAINLESS STL WPL 810014 Contact Us For Availability
11
SEAL FOR KNOB WPL 810183 Contact Us For Availability
11
LOWER MOUNTING PLATE ASSM WPL 800124 Contact Us For Availability
11
ADJUSTABLE WRENCH-6 INCH WPL 038643 Contact Us For Availability
11
END BELL WITH SCREWS WPL 800076 Contact Us For Availability
11
GRINDING CHAMBER WPL 800108 Contact Us For Availability
11
OIL SLINGER, TOP-STAINLESS WPL 810015 Contact Us For Availability
12
WASHER FOR KNOB WPL 810184 Contact Us For Availability
12
STUBBY MAYTAG DRIVER HANDLE WPL 038644 Contact Us For Availability
12
GRINDING CHAMBER ASSEMBLY WPL 800125 Contact Us For Availability
12
MOTOR PROTECTOR-BATCH WPL Y800157 Contact Us For Availability
12
GRINDING CHAMBER ASSEMBLY WPL 800123 Contact Us For Availability
12
WATER SLINGER-STAINLESS STL WPL 810016 Contact Us For Availability
13
SUPPORT RING WPL 810002 Contact Us For Availability
13
SHAFT WPL 810185 Contact Us For Availability
13
MOUNTING CLAMP KIT WPL 800154 Contact Us For Availability
13
3/16 NUTDRIVER WPL 038645 Contact Us For Availability
13
START RELAY WPL 800158 Contact Us For Availability
13
BUSHING FOR CONDUIT-FB WPL 810047 Contact Us For Availability
13
CUSHION FOR IMPELLER ARMS WPL 810023 Contact Us For Availability
14
SCREW FOR SHAFT WPL 810188 Contact Us For Availability
14
SINK FLANGE KIT WPL 800200 Contact Us For Availability
14
7/32 NUTDRIVER WPL 038646 Contact Us For Availability
14
STATOR WITH RELAY WPL 800199 Contact Us For Availability
14
RETAINING WASHER SS-CUSHION WPL 810027 Contact Us For Availability
15
LOWER HOUSING FC & FB20 WPL 810048 Contact Us For Availability
15
GASKET FOR SINK FLANGE WPL 810001 Contact Us For Availability
15
MOUNTING PLATE-LOWER WPL 810030 Contact Us For Availability
15
9/32 NUTDRIVER WPL 038647 Contact Us For Availability
15
OIL SLINGER, BOTTOM-RUBBER WPL 810004 Contact Us For Availability
15
BOLT-SS-CUSHION-IMPELLER PL WPL 810028 Contact Us For Availability
16
INSULATION-LOWER HOUSING WPL 810052 Contact Us For Availability
16
MOUNTING PLATE-UPPER WPL 810012 Contact Us For Availability
16
11/32 NUTDRIVER WPL 038648 Contact Us For Availability
16
MOUNTING PLATE-DRAIN ELBOW WPL 810031 Contact Us For Availability
16
PLUG FOR HOUSING LINER WPL 810163 Contact Us For Availability
16
CLAMP FOR CONDUIT WPL 810020 Contact Us For Availability
17
TOP INSULATION HALF-CHANNEL WPL 810054 Contact Us For Availability
17
SCREW WPL 810194 Contact Us For Availability
17
3/8 NUTDRIVER WPL 038649 Contact Us For Availability
17
THRU-BOLT-No.10-32 X 6 IN WPL 810022 Contact Us For Availability
17
RETAINER WPL 810238 Contact Us For Availability
18
7/16 NUTDRIVER WPL 038650 Contact Us For Availability
18
PLUG FOR UPPER HOUSING WPL 810208 Contact Us For Availability
18
SCREW WPL 810239 Contact Us For Availability
18
WIRE SHIELD WPL 810144 Contact Us For Availability
19
SPRING FOR HOUSING CLAMP WPL 810061 Contact Us For Availability
19
SINK FLANGE WPL 810220 Contact Us For Availability
19
1/2 NUTDRIVER WPL 038651 Contact Us For Availability
19
SCREW WPL 810145 Contact Us For Availability
19
CUSHION FOR IMPELLER ARMS WPL 810259 Contact Us For Availability
20
RETAINING RING WPL 810221 Contact Us For Availability
20
NO. 1 PHILLIPS BLADE WPL 038652 Contact Us For Availability
20
GASKET FOR DRAIN ELBOW WPL 810268 Contact Us For Availability
20
HOUSING CLAMP WPL 810065 Contact Us For Availability
20
SCREW WPL 810147 Contact Us For Availability
21
TOP HALF COVER W/O HOLE WPL 810075 Contact Us For Availability
21
NO. 2 PHILLIPS BLADE WPL 038653 Contact Us For Availability
21
WASHER, LOCK (BRACE) WPL 911852 Contact Us For Availability
21
SCREW WPL 810148 Contact Us For Availability
22
SPRING RETAINER-TOP HOUSING WPL 810076 Contact Us For Availability
22
MOUNTING BOLT WPL 810227 Contact Us For Availability
22
1/4 STD SCREWDRIVER BLADE WPL 038654 Contact Us For Availability
22
SEAL FOR LID WPL 810078 Contact Us For Availability
22
CABLE CLAMP WPL 810204 Contact Us For Availability
23
TOP HOUSING HALF WPL 810077 Contact Us For Availability
23
EXTENSION SHAFT WPL 038655 Contact Us For Availability
23
DECAL WPL 810096 Contact Us For Availability
23
MOUNTING PLATE-LOWER WPL 810228 Contact Us For Availability
24
HOUSING CLAMP WPL 810097 Contact Us For Availability
24
TOP HALF COVER W/O HOLE WPL 810113 Contact Us For Availability
24
MOUNTING PLATE WPL 810164 Contact Us For Availability
24
1/4 SHORT NUTDRIVER WPL 038656 Contact Us For Availability
24
MOTOR PROTECTOR BRACKET WPL 810272 Contact Us For Availability
25
5/16 SHORT NUTDRIVER WPL 038657 Contact Us For Availability
25
DECAL WPL 810167 Contact Us For Availability
26
3/8 SHORT NUTDRIVER WPL 038658 Contact Us For Availability
26
MOUNTING CLAMP WPL 810191 Contact Us For Availability
27
NO. 2 SHORT PHILLIPS DRIVER WPL Y038659 Contact Us For Availability
28
MOUNTING BOLT, 5/16 X 1-1/2 WPL 810195 Contact Us For Availability
28
SPECIAL MAYTAG CANVAS CASE WPL 038660 Contact Us For Availability
29
SINK FLANGE WPL 810196 Contact Us For Availability
29
INSTALLATION GUIDE-DISPOSER WPL Y056168 Contact Us For Availability
30
LOWER MOUNTING PLATE WPL 810197 Contact Us For Availability
32
WIRE NUT WPL 311934 Contact Us For Availability
34
DRAIN ADAPTER KIT WPL 800093 Contact Us For Availability
35
POWER CORD WPL 800112 Contact Us For Availability
36
J BEND WITH NUTS & WASHERS WPL 800113 Contact Us For Availability
37
DISPOSER INSTALLATION KIT WPL 800114 Contact Us For Availability
38
PLUMBERS PUTTY - 1 LB CAN WPL 800115 Contact Us For Availability
39
BRASS ADAPTER WPL 810158 Contact Us For Availability
40
DRAIN ADAPTER KIT WPL 900434 Contact Us For Availability
41
RUBBER ADAPTER WPL 910982 Contact Us For Availability
× ![]()
