Model Whirlpool FAV9800AWQ WASHER – Common Parts & Diagrams

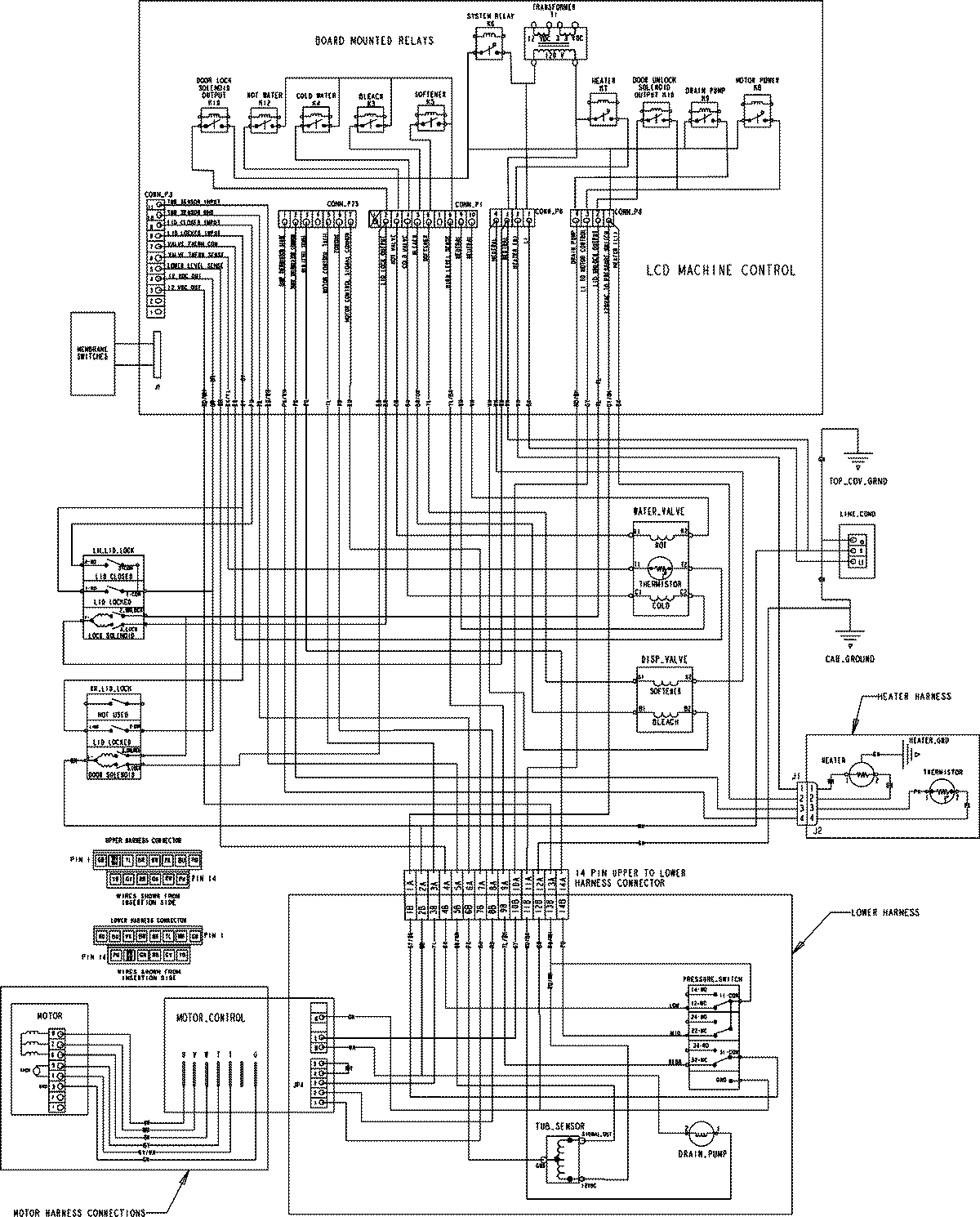

09 - WIRING INFORMATION

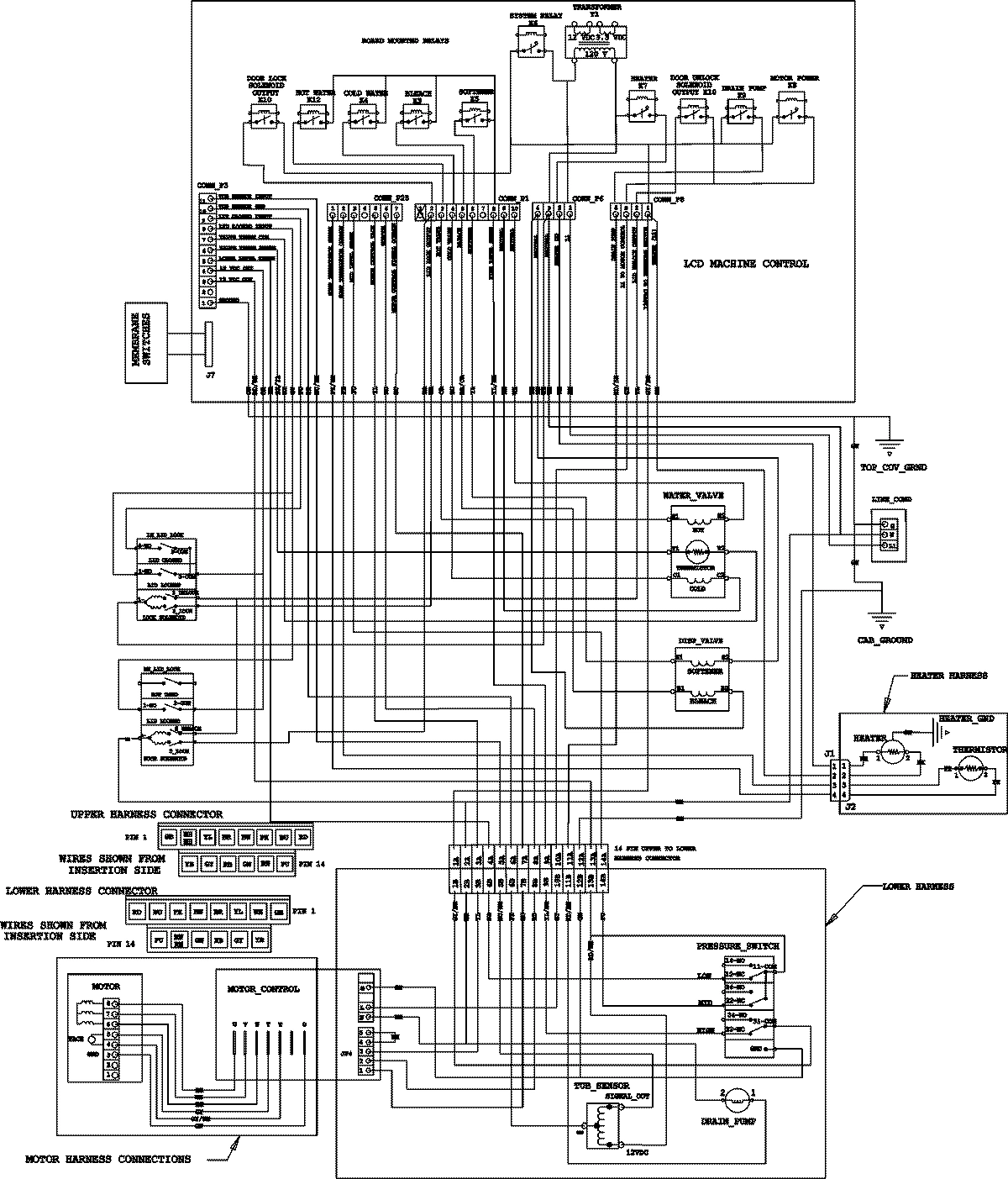

08 - WIRING INFORMATION

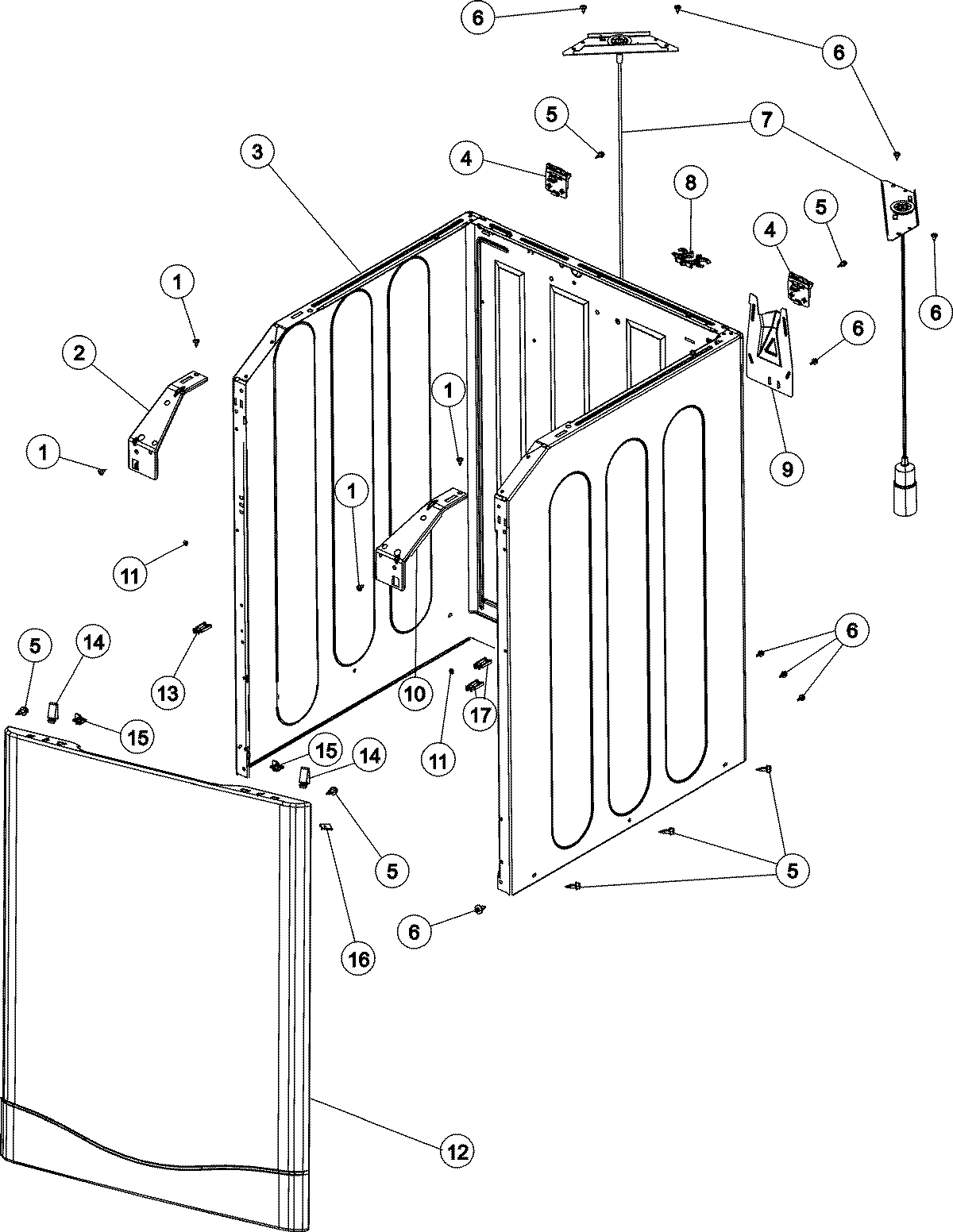

02 - CABINET

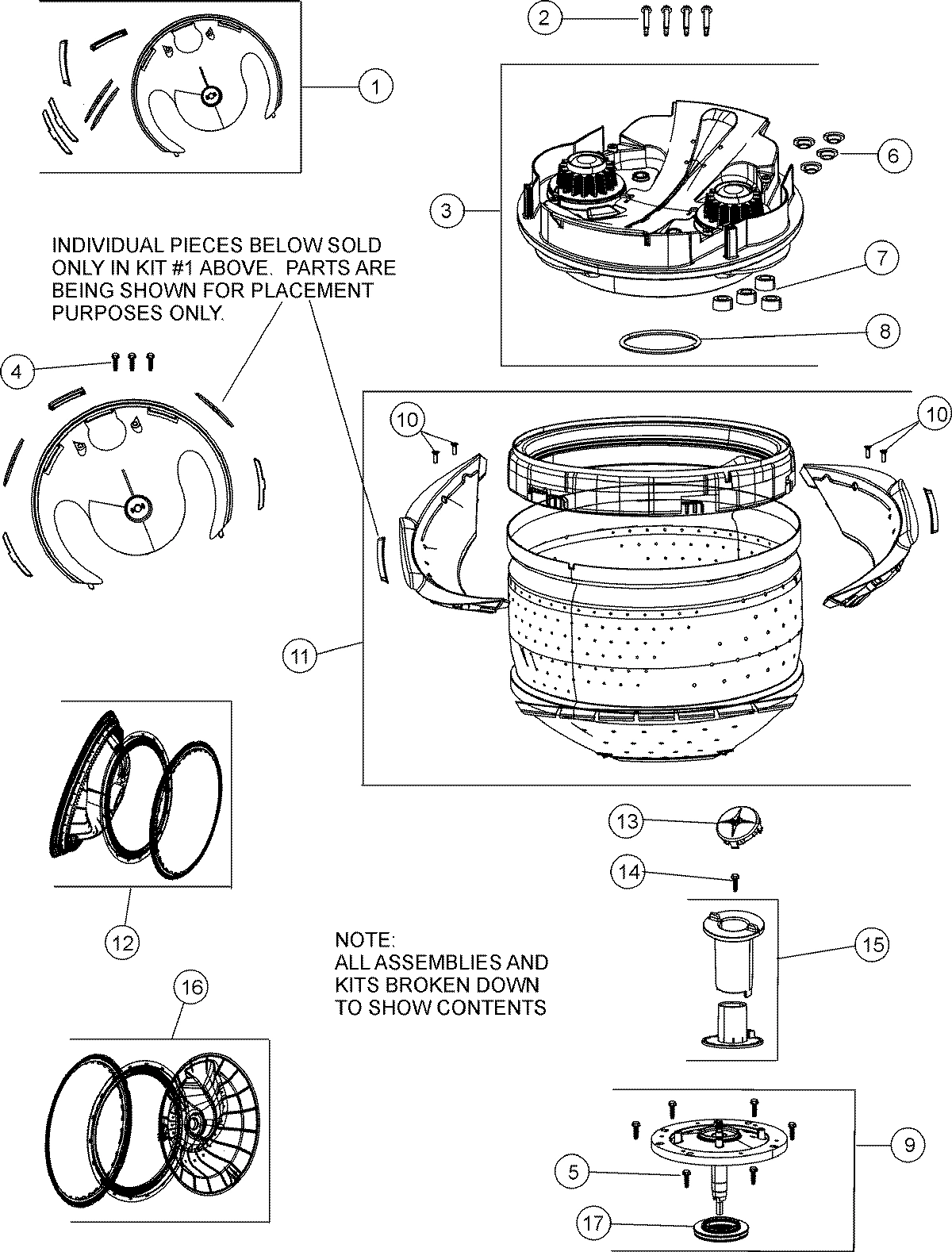

04 - INNER TUB / SPINNER

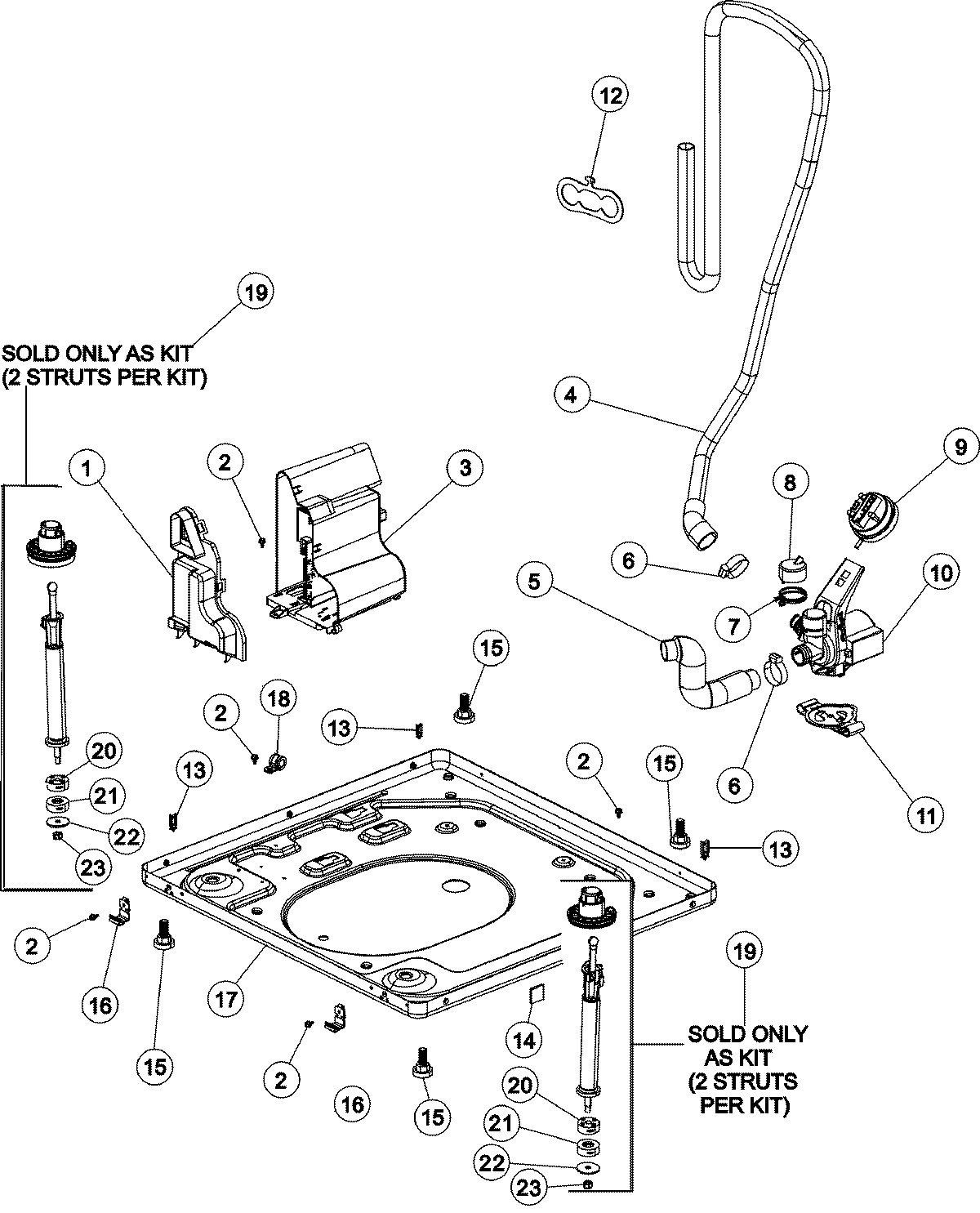

01 - BASE

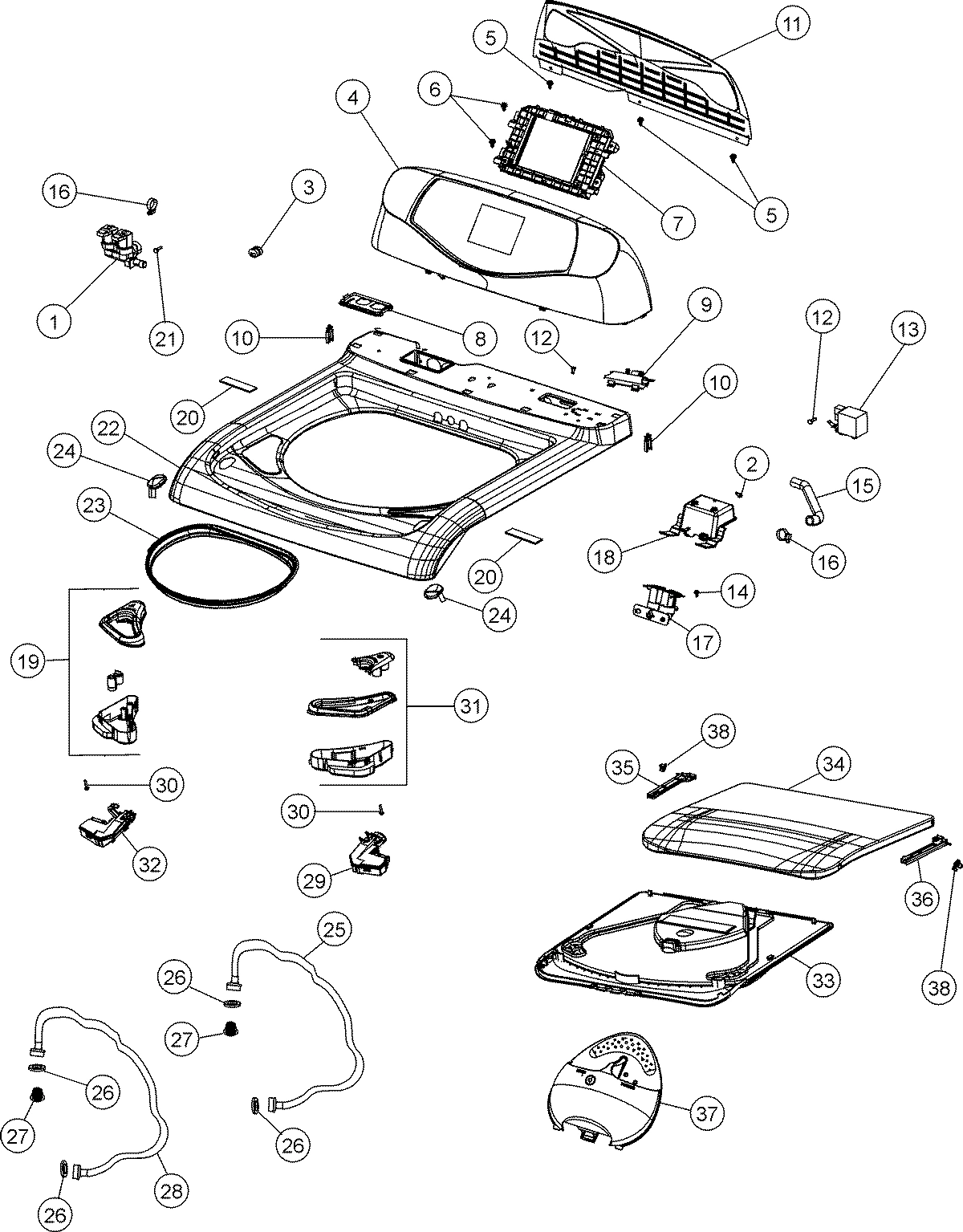

03 - CONTROL PANEL, TOP & LID

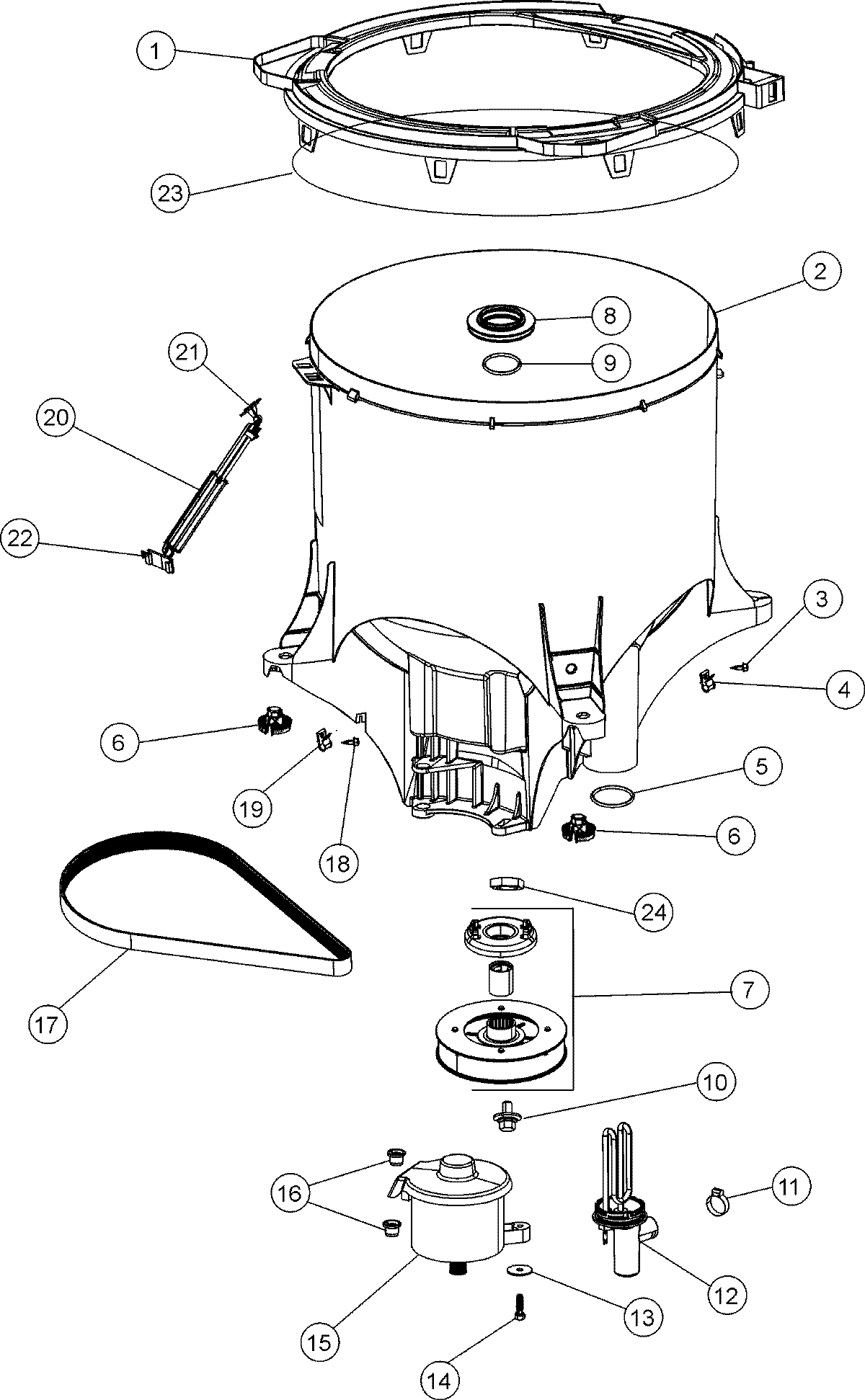

05 - OUTER TUB

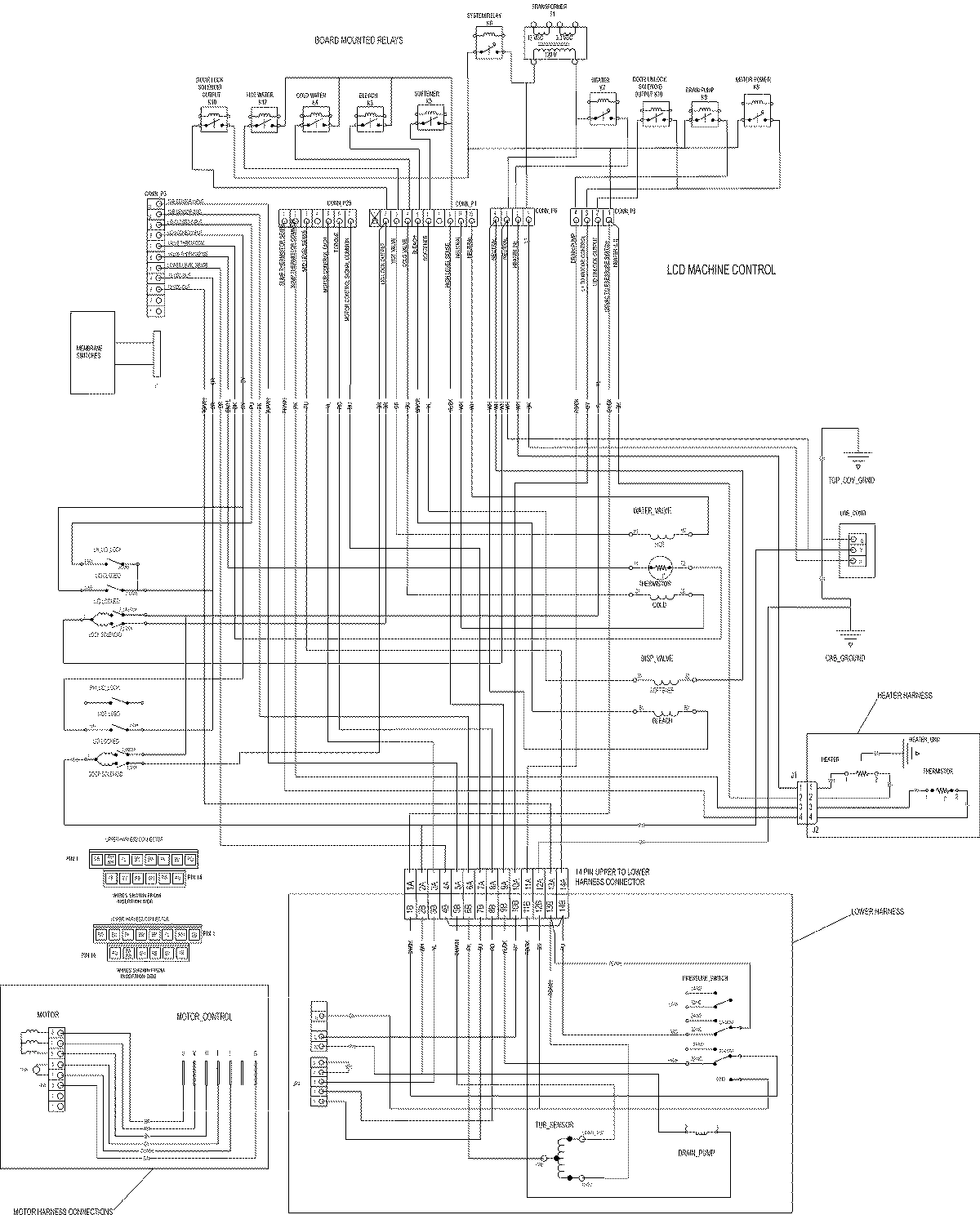

07 - WIRING HARNESS
06 - SUPPLEMENTAL INFORMATION
Common parts from model Whirlpool FAV9800AWQ WASHER
1
SCREW, No.10-16X1/2 AB TRUSS WPL 22003735 Contact Us For Availability
1
LIFTER BEARING KIT WPL 12002196 Contact Us For Availability
1
DRIP SHIELD, MOTOR CONTROL WPL 25001033 Contact Us For Availability
1
VALVE, WATER INLET WPL 25001046 Contact Us For Availability
1
TUB COVER AS PACK WPL 25001030 Contact Us For Availability
1
TUB COVER AS PACK WPL 25001224 Contact Us For Availability
1
MANUAL, QUICK START WPL 2202706 Contact Us For Availability
1
MANUAL, USE & CARE (LCD) WPL 2202708 Contact Us For Availability
1
MANUAL, USE & CARE WPL 62906140 Contact Us For Availability
1
MANUAL, USE & CARE WPL Y2201982 Contact Us For Availability
2
BRACE, CABINET (LT) WPL 22002840 Contact Us For Availability
2
SCREW WPL Y310632 Contact Us For Availability
2
OUTER TUB ASSEMBLY AS PACK WPL 25001199 Contact Us For Availability
2
GUIDE, USER DVD WPL 534240 Contact Us For Availability
3
CABINET (BSQ AS PK) WPL 25001078 Contact Us For Availability
3
SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability
3
TRANSMISSION ASSY (AS PK) WPL 25001089 Contact Us For Availability
3
GROMMET, CORD WPL 211881 Contact Us For Availability
3
LAUNDERING TIPS (TRILINGUAL) WPL 22003218 Contact Us For Availability
4
HINGE, PLASTIC WPL 22004095 Contact Us For Availability
4
HOSE, DRAIN WPL 25001050 Contact Us For Availability
4
P CLIPS WPL 22004102 Contact Us For Availability
4
LCD CONSOLE ASSY (BSQ) WPL 25001121 Contact Us For Availability
4
LCD CONSOLE ASSY (BSQ) WPL 25001209 Contact Us For Availability
4
HANG TAG, ENERGY (LCD) WPL 25001019 Contact Us For Availability
5
BOLT, 5/16 WPL 25001091 Contact Us For Availability
5
RUBBER ISOLATOR PAD WPL 25001104 Contact Us For Availability
5
HOSE, TUB TO PUMP WPL 25001051 Contact Us For Availability
6
BASE STRUT ASSY WPL 25001139 Contact Us For Availability
6
HEATER HARNESS WPL 25001097 Contact Us For Availability
7
ASSEMBLY, CLUTCH WPL 25001169 Contact Us For Availability
7
PULLEY & CLUTCH ASSY - AS PK WPL 12002211 Contact Us For Availability
7
ASSY., REAR STRUT WPL 25001014 Contact Us For Availability
7
RUBBER ISOLATOR SLEEVE WPL 25001103 Contact Us For Availability
7
CONTROL BOARD / LCD NTL WPL 25001002 Contact Us For Availability
7
LCD MACHINE CONTROL BOARD ASSY WPL 25001189 Contact Us For Availability
7
WIRE HARNESS (LOWER) WPL 25001003 Contact Us For Availability
7
HARNESS, WIRE - LOWER WPL 25001205 Contact Us For Availability
8
CLIP, DRAIN HOSE WPL 22002932 Contact Us For Availability
8
O-RING SEAL WPL 25001105 Contact Us For Availability
8
TUB SEAL WPL 25001090 Contact Us For Availability
8
CAP, RUBBER WPL 22003268 Contact Us For Availability
8
HOLE PLUG - WATER VALVE WPL 25001026 Contact Us For Availability
8
WIRE HARNESS, MOTOR WPL 25001032 Contact Us For Availability
9
COVER, DRAIN HOSE WPL 22002704 Contact Us For Availability
9
SPINNER SUPPORT ASSY (AS PK) WPL 25001057 Contact Us For Availability
9
PRESSURE SWITCH WPL 25001053 Contact Us For Availability
9
PRESSURE SWITCH (TWO LEVEL) WPL 25001204 Contact Us For Availability
9
HOLE PLUG - WIRE HARNESS WPL 25001025 Contact Us For Availability
9
O-RING, TUB OUTLET WPL 25001096 Contact Us For Availability
10
BRACE, CABINET (RT) WPL 22002839 Contact Us For Availability
10
SCREW No.8-18 1/2 C`SINK SS WPL 25001059 Contact Us For Availability
10
RETAINER, WIRE WPL 22003298 Contact Us For Availability
10
BOLT, SEMS 1/4 X.5 WPL 25001099 Contact Us For Availability
11
HOLE PLUG WPL 22002965 Contact Us For Availability
11
SPINNER ASSEMBLY (AS PK) WPL Y25001058 Contact Us For Availability
11
PUMP ISOLATOR BRACKET WPL 25001012 Contact Us For Availability
11
PANEL, CONSOLE BACK WPL 25001047 Contact Us For Availability
11
WIRE HARNESS, UPPER (LCD) WPL 25001073 Contact Us For Availability
11
WIRE HARNESS, UPPER LCD WPL 25001202 Contact Us For Availability
12
FRONT PANEL (BSQ AS PK) WPL 25001076 Contact Us For Availability
12
TUMBLER ASSY. RH WPL 25001144 Contact Us For Availability
12
HEATER ASSY - AS PACK WPL 12002208 Contact Us For Availability
12
PRESSURE SWITCH COVER WPL 25001186 Contact Us For Availability
13
CLIP, HARNESS WPL 25001178 Contact Us For Availability
13
LIFTER CAP, PLASTIC WPL 25001010 Contact Us For Availability
13
EMI FILTER (LINE) WPL 25001031 Contact Us For Availability
13
WASHER, HARDENED WPL 22004306 Contact Us For Availability
13
SVC MAN, DOM WASHER WPL 16022808 Contact Us For Availability
14
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
14
SCREW, No.8 SS WPL 25001011 Contact Us For Availability
14
PAD, FOAM (SOUND DAMPENER) WPL 22002782 Contact Us For Availability
14
BOLT, MOTOR WPL 22003686 Contact Us For Availability
14
PLATE, LOCKING WPL 20001130 Contact Us For Availability
15
STOP, SHIPPING WPL 22002013 Contact Us For Availability
15
LIFTER FLANGE BEARING KIT WPL 12002195 Contact Us For Availability
15
FOOT & PAD ASSEMBLY WPL 25001119 Contact Us For Availability
15
HOSE, H2O VALVE TO DISP VALVE WPL 25001045 Contact Us For Availability
15
MOTOR, VARIABLE SPEED WPL 25001034 Contact Us For Availability
15
MOTOR WPL 25001222 Contact Us For Availability
15
WRENCH WPL 20001129 Contact Us For Availability
16
FRONT PANEL BRACKET/FASTENER WPL 213280 Contact Us For Availability
16
TUMBLER ASSY. LH WPL 25001145 Contact Us For Availability
16
CLIP, LOWER FRONT PANEL WPL 22004045 Contact Us For Availability
16
ISOLATOR, MOTOR WPL 22003329 Contact Us For Availability
16
KIT, SPINNER TOOL WPL 12002139 Contact Us For Availability
17
CLIP, WIRE HARNESS WPL 33002040 Contact Us For Availability
17
BASE ASSY, AS-PACK WPL 25001007 Contact Us For Availability
17
VALVE, DISPENSER WPL 25001043 Contact Us For Availability
17
MEMBRANE SWITCH WPL 25001221 Contact Us For Availability
17
BELT, STRETCH WPL 25001054 Contact Us For Availability
17
SOUND PAD WPL 25001075 Contact Us For Availability
18
SCREW, No.8-16 TRUSS HD WPL 25001021 Contact Us For Availability
18
BRACKET, DISP VALVE MTG. WPL 25001023 Contact Us For Availability
19
BASE STRUT ASSY - AS PK - KIT WPL 12002202 Contact Us For Availability
19
BLEACH DISPENSER KIT - BSQ WPL 12002200 Contact Us For Availability
19
BLEACH DISPENSER KIT (BSQ) WPL 12002566 Contact Us For Availability
19
``P`` CLIP WPL 25001017 Contact Us For Availability
20
ISOLATOR, MALE WPL 25001142 Contact Us For Availability
20
CLIP, UPPER HARNESS WPL 25001004 Contact Us For Availability
20
TUB DISPLACEMENT SENSOR KIT WPL 12002194 Contact Us For Availability
21
STRUT ISOLATOR, MALE WPL 25001141 Contact Us For Availability
21
OUTER TUB SENSOR CLIP WPL 25001181 Contact Us For Availability
22
WASHER, STRUT WPL 22002320 Contact Us For Availability
22
TOP COVER AS PACK (BSQ) WPL 25001177 Contact Us For Availability
22
CABINET SENSOR CLIP WPL 25001182 Contact Us For Availability
23
NUT, LOCKING WPL 22002321 Contact Us For Availability
23
SPLASH GUARD WPL 25001179 Contact Us For Availability
23
TUB COVER SEAL WPL 25001180 Contact Us For Availability
24
BUMPER WPL 25001035 Contact Us For Availability
24
JAM NUT WPL 25001036 Contact Us For Availability
25
HOSE, 4` INLET WPL 337891 Contact Us For Availability
26
GASKET, INLET HOSE WPL Y013783 Contact Us For Availability
28
HOSE, INLET (HOT) WPL 21001316 Contact Us For Availability
29
LID LOCK (R.H.) WPL WP25001037 No Longer Available
30
SCREW, No.6 X 3/4 PLASTITE WPL 25001028 Contact Us For Availability
31
SOFTENER DISPENSER KIT-BSQ WPL 12002198 Contact Us For Availability
31
SOFTENER DISPENSER KIT (BSQ) WPL 12002563 Contact Us For Availability
32
LID LOCK MAGNET WPL 25001024 Contact Us For Availability
32
LID LOCK (L.H.) WPL 25001048 Contact Us For Availability
33
INNER LID W`SEAL (BSQ AS PK) WPL 25001085 Contact Us For Availability
34
LID - BSQ - AS PK WPL 25001118 Contact Us For Availability
35
RETAINER, LID HINGE (L.H.) WPL 25001038 Contact Us For Availability
36
RETAINER, LID HINGE (R.H.) WPL 25001027 Contact Us For Availability
37
DETERGENT DISP. ASSY. (BSQ) WPL 25001174 Contact Us For Availability
38
BUSHING, HINGE WPL 22002753 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003650 Contact Us For Availability
× ![]()
