Model Electrolux FAV18EJ2A3 ROOM AIR CONDITIONER – Common Parts & Diagrams

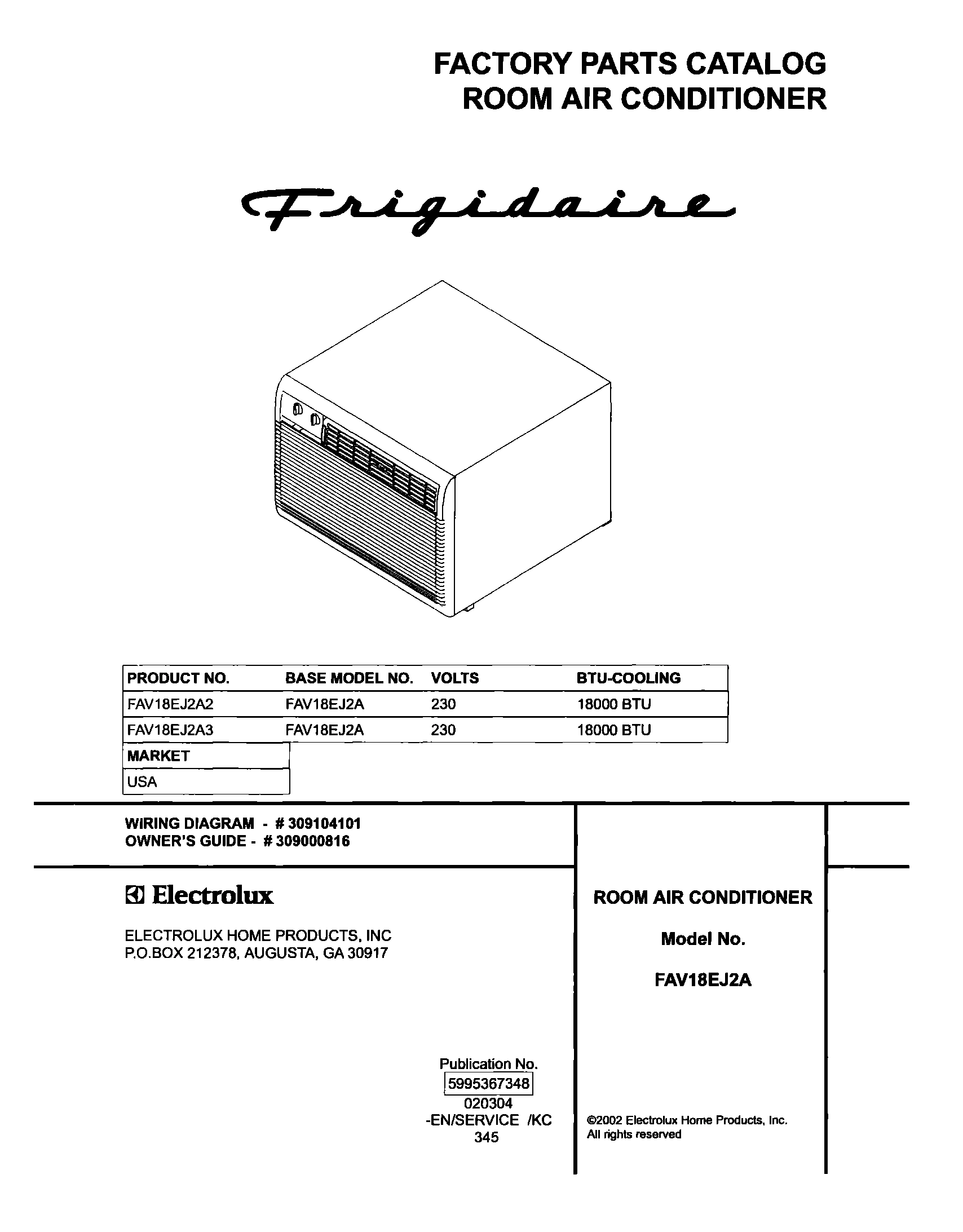

01 - COVER

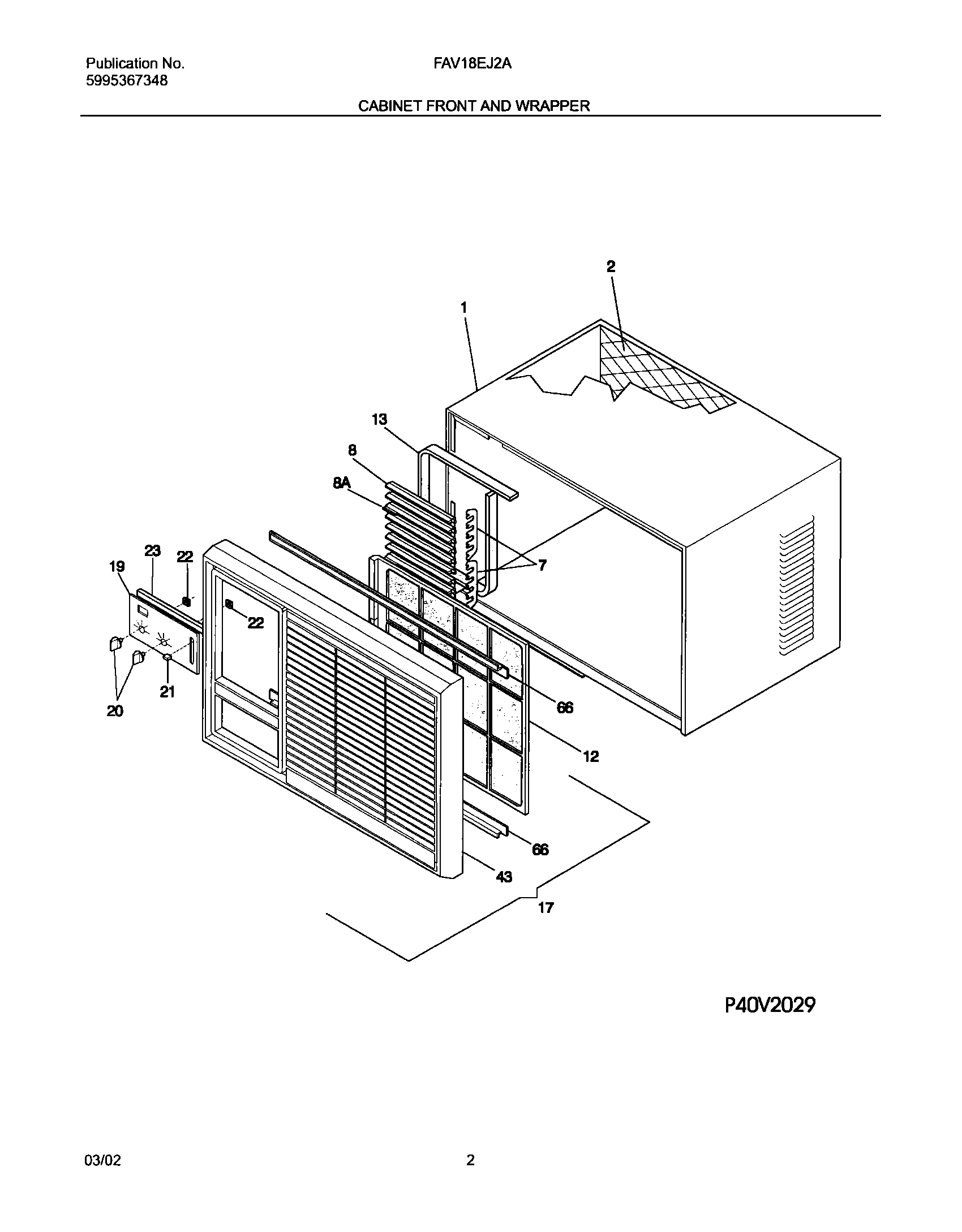

03 - CABINET FRONT AND WRAPPER

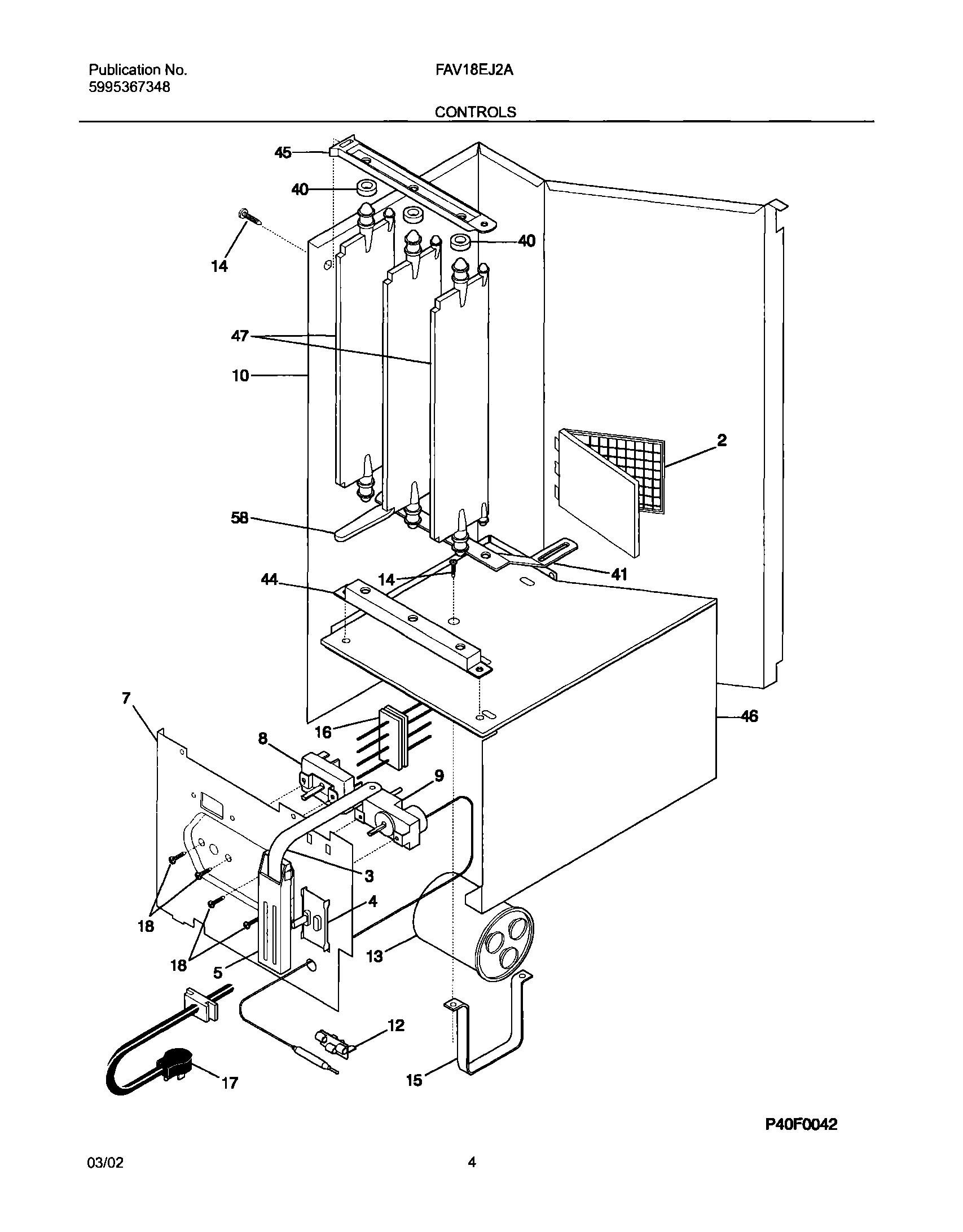

05 - CONTROLS

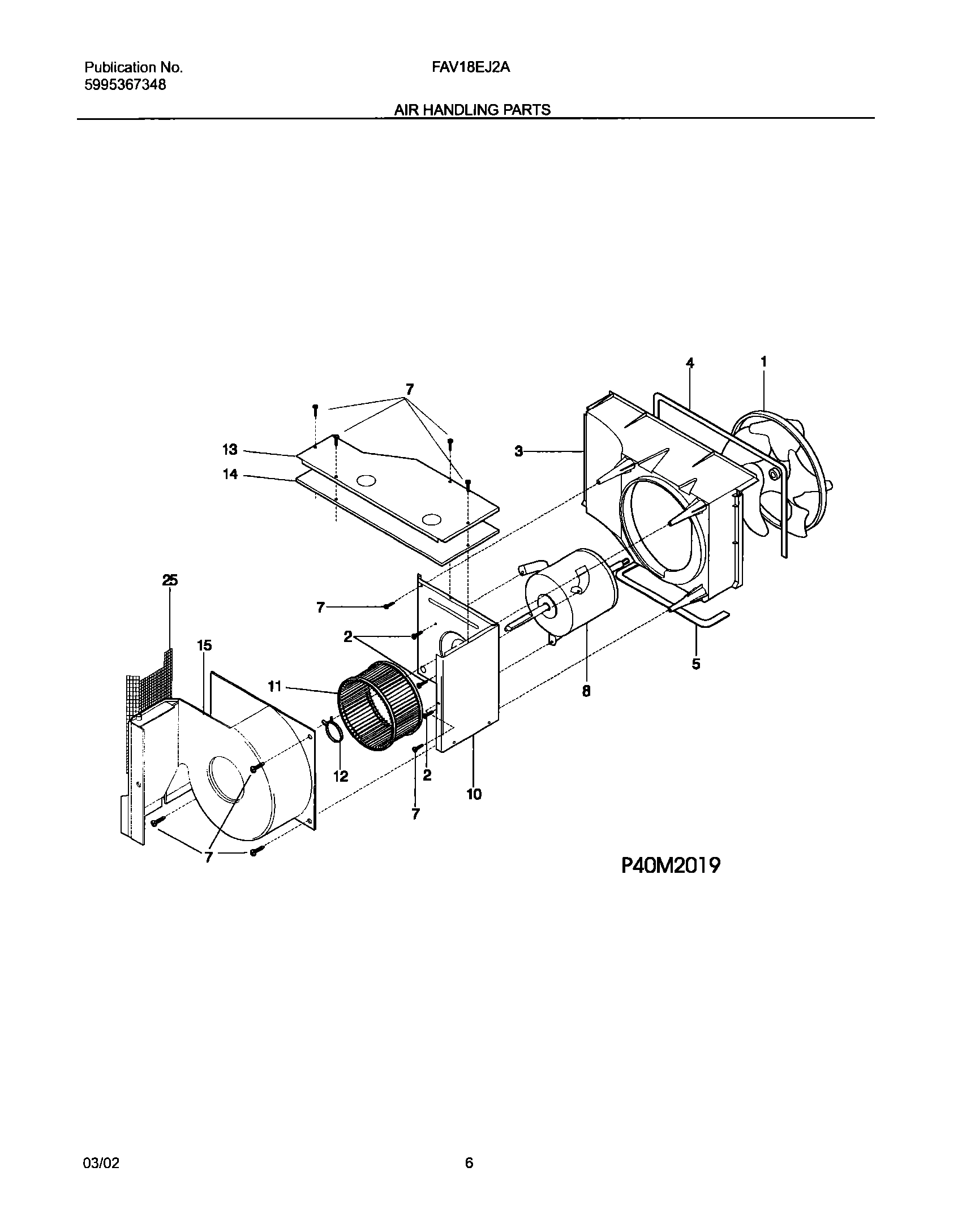

07 - AIR HANDLING PARTS

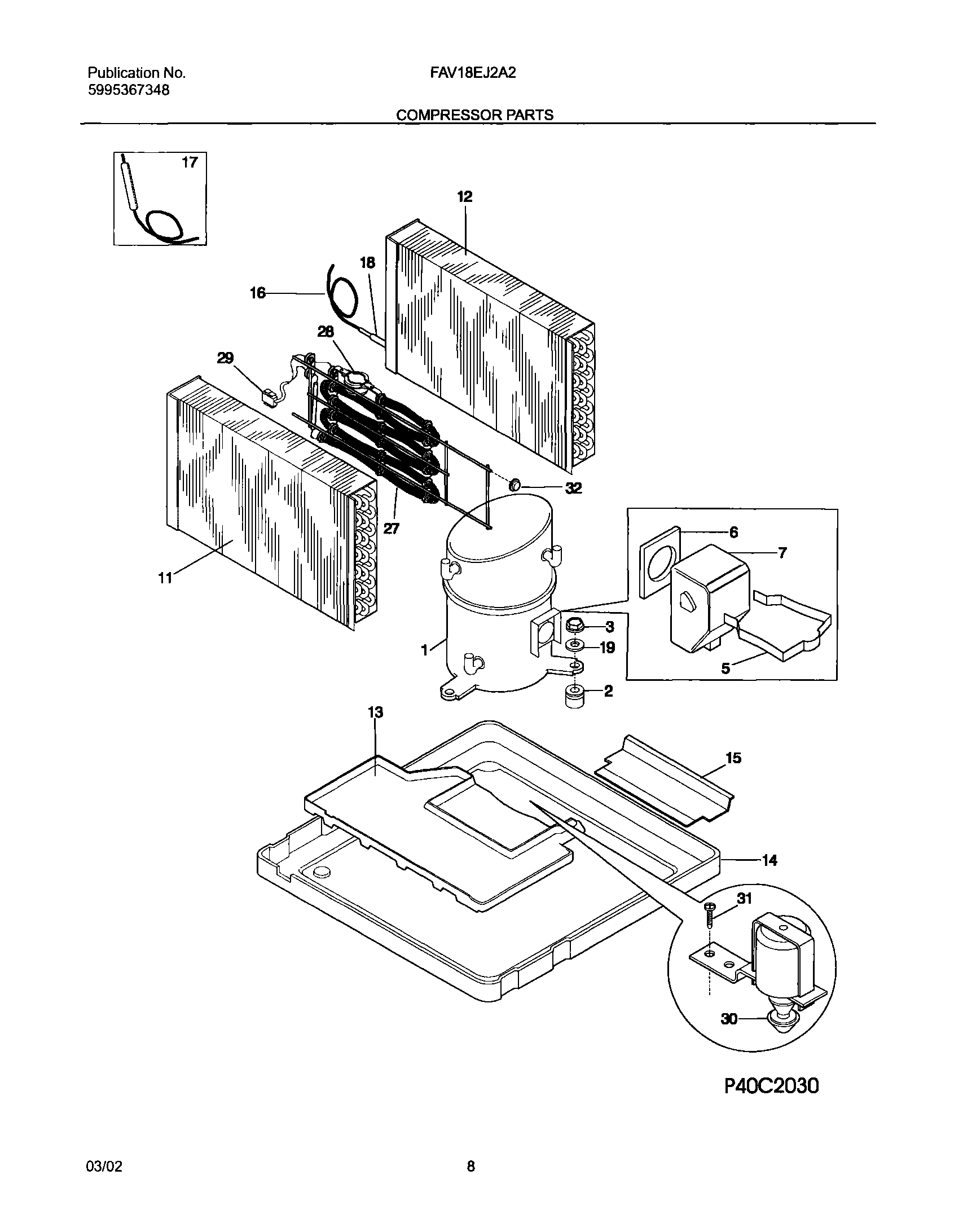

09 - COMPRESSOR PARTS

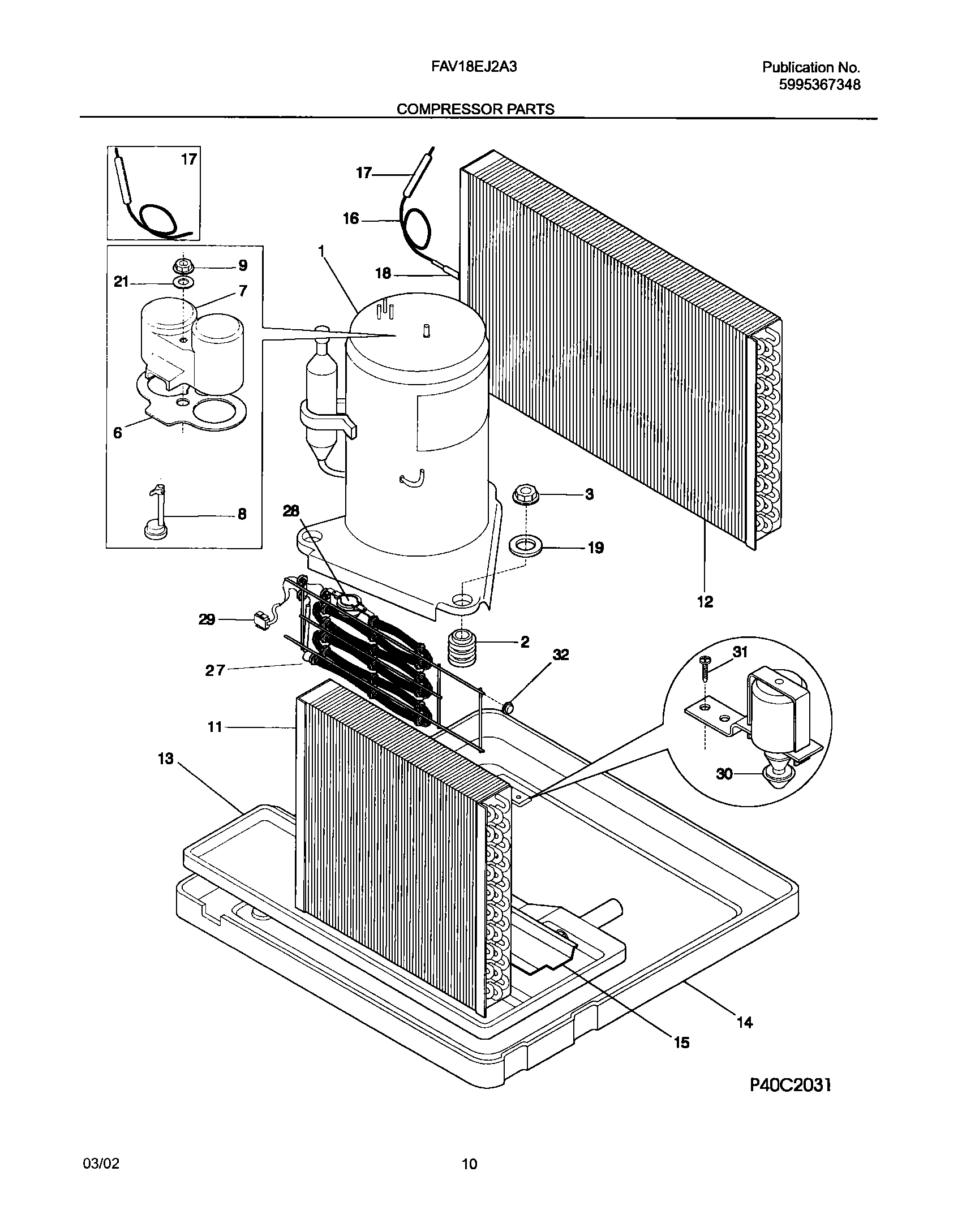

11 - COMPRESSOR PARTS

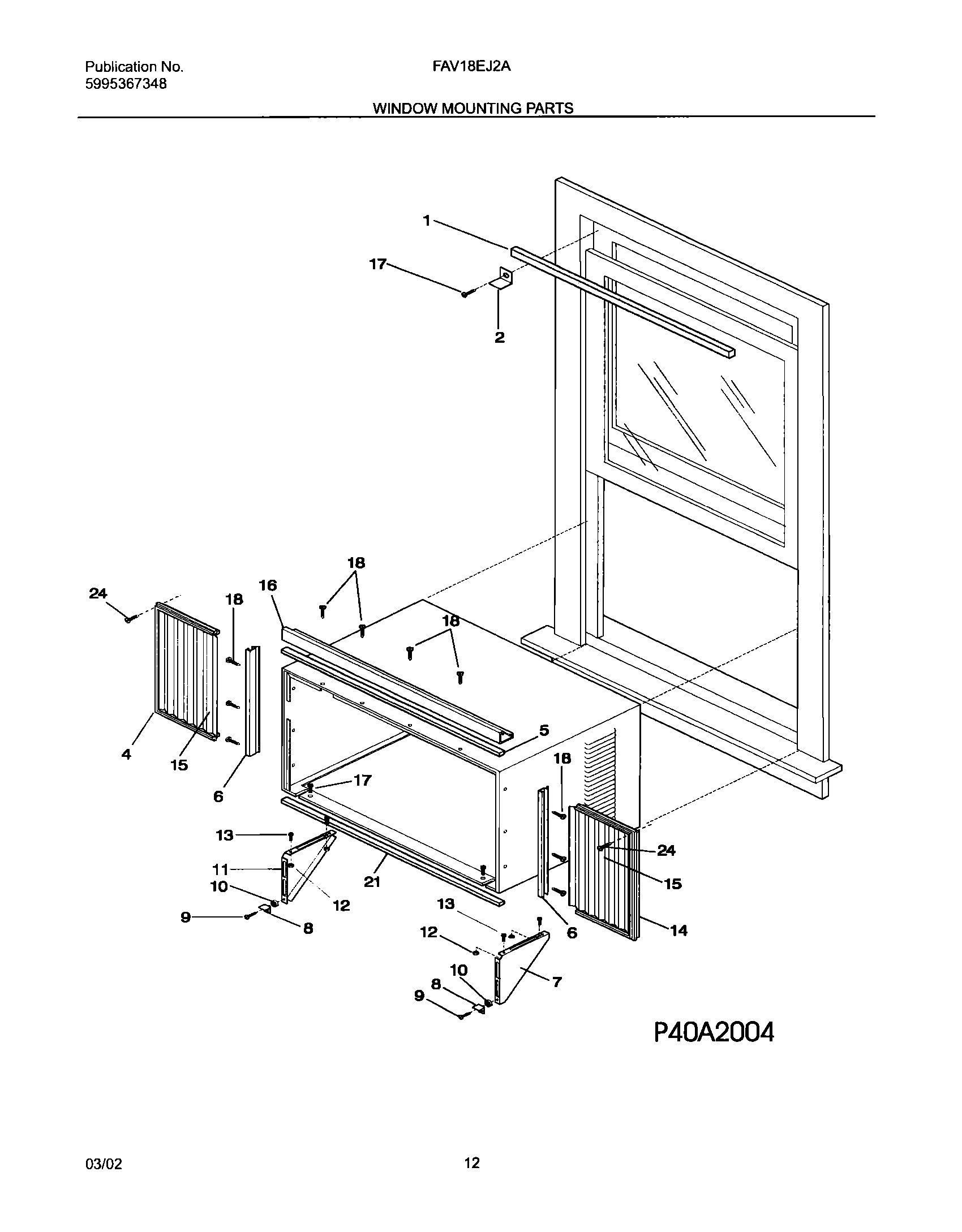

13 - WINDOW MOUNTING PARTS

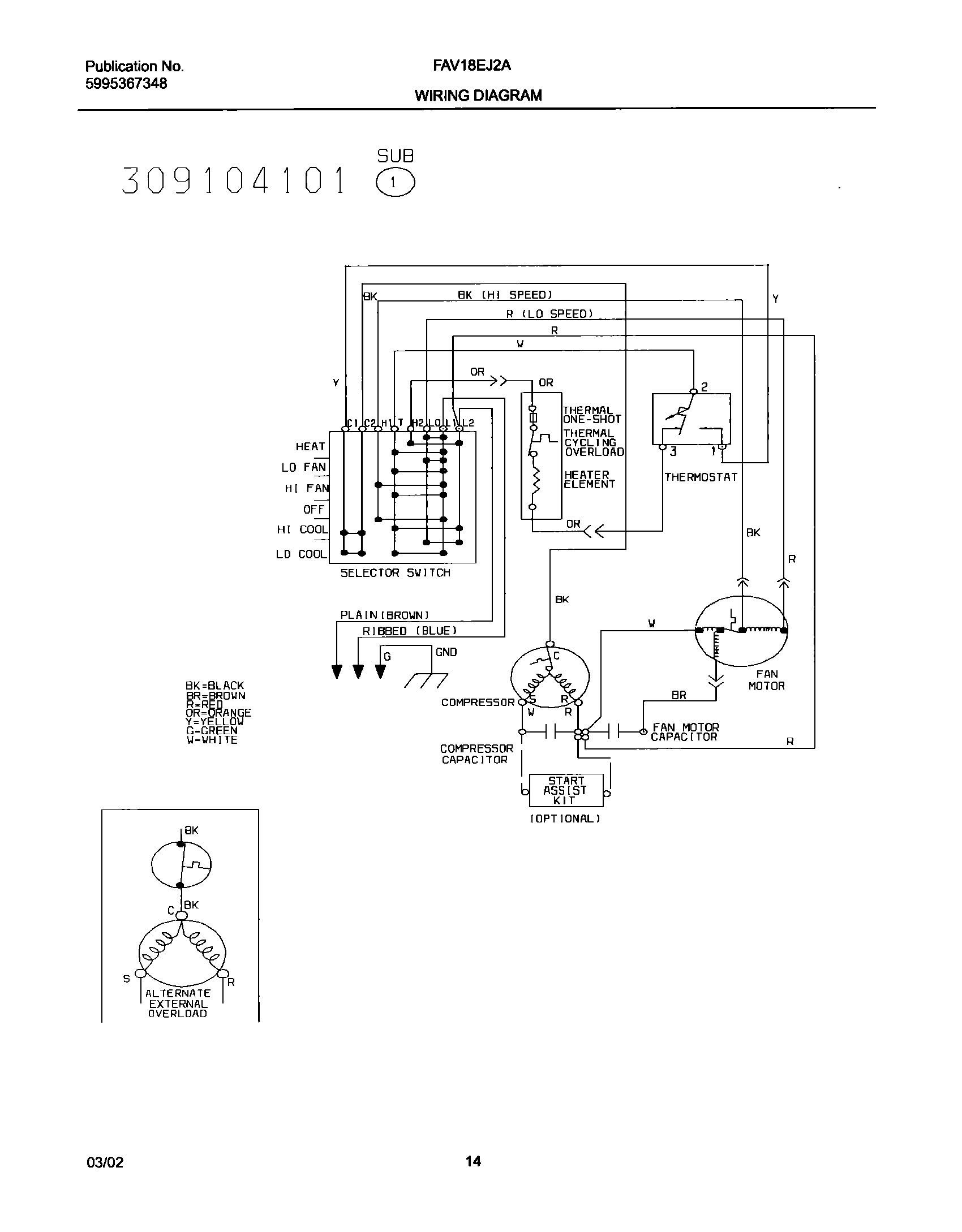

14 - WIRING DIAGRAM
Common parts from model Electrolux FAV18EJ2A3 ROOM AIR CONDITIONER
1
WCI 5303311048 WCI 5303311048 Contact Us For Availability
1
WCI 309603113 WCI 309603113 Contact Us For Availability
2
BRACKET-SASH LOCK WCI 5303211056 Contact Us For Availability
2
DOOR-VENTILATOR WCI 5303295752 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
WCI 5303201820 WCI 5303201820 Contact Us For Availability
3
Shroud,cond fan motor WCI 309623201 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
ACTUATOR-VENT DOOR WCI 5303201821 Contact Us For Availability
4
Frame,cab extension ,LH ,sliding WCI 5304419163 Contact Us For Availability
5
Retainer,actuator arm WCI 5303209200 Contact Us For Availability
5
Seal,fan housing ,19.56`` x 0.50`` ,lower WCI 5303015311 Contact Us For Availability
5
Seal,top rail/cab WCI 5304409250 Contact Us For Availability
6
Gasket,terminal cover WCI 5303291330 Contact Us For Availability
6
Retainer,accordian WCI 5304414933 Contact Us For Availability
7
WCI 5304416126 WCI 5304416126 Contact Us For Availability
7
WCI 5304414105 WCI 5304414105 Contact Us For Availability
8
Louver,horizontal WCI 309634903 Contact Us For Availability
8
WCI 309329302 WCI 309329302 Contact Us For Availability
8
Motor,3 speed fan ,60 Hz ,230 V WCI 309630603 Contact Us For Availability
8
WCI 5304414111 WCI 5304414111 Contact Us For Availability
8
Bracket,sill/unit sprt. WCI 3001815 Contact Us For Availability
8A
Louver,horizontal ,with handle WCI 309635003 Contact Us For Availability
9
WCI 5304411209 WCI 5304411209 Contact Us For Availability
9
Nut-terminal cover WCI 5303294292 Contact Us For Availability
9
Screw,1/4-20 x 0.750 WCI 3007756 Contact Us For Availability
10
WCI 5303296868 WCI 5303296868 Contact Us For Availability
10
Bulkhead,air system WCI 309623402 Contact Us For Availability
10
Nut,lock ,1/4-20 ,support bracket WCI 3007759 Contact Us For Availability
11
WCI 5304404774 WCI 5304404774 Contact Us For Availability
11
WCI 5303317606 WCI 5303317606 Contact Us For Availability
11
WCI 5304414106 WCI 5304414106 Contact Us For Availability
12
Filter WCI 309635203 Contact Us For Availability
12
Clip,spacer ,temp sensor WCI 5303211009 Contact Us For Availability
12
Insulation,bulkhead ,air side WCI 5304411225 Contact Us For Availability
12
WCI 5303306719 WCI 5303306719 Contact Us For Availability
13
Seal,19.5`` ,discharge area WCI 5304411215 Contact Us For Availability
13
Seal,6.5`` ,discharge area WCI 5304411216 Contact Us For Availability
13
Seal,11`` ,discharge area WCI 5304411217 Contact Us For Availability
13
WCI 5303202395 WCI 5303202395 Contact Us For Availability
13
WCI 5303015313 WCI 5303015313 Contact Us For Availability
13
Tray,evaporator drip WCI 5303208221 Contact Us For Availability
13
Screw,10-32 x 0.500 ,support WCI 5303281649 Contact Us For Availability
14
Insulation,cover WCI 5304411222 Contact Us For Availability
14
WCI 309632913 WCI 309632913 Contact Us For Availability
14
Frame,cab extension ,RH ,sliding WCI 5304419162 Contact Us For Availability
15
Strap,capacitor mtg WCI 3202396 Contact Us For Availability
15
Housing,blower scroll ,side discharge WCI 5304411224 Contact Us For Availability
15
Shield,heater baffle WCI 3201969 Contact Us For Availability
15
Closure,accordian type ,window mount WCI 5304414930 Contact Us For Availability
16
WCI 5304427235 WCI 5304427235 Contact Us For Availability
16
WCI 5304427225 WCI 5304427225 Contact Us For Availability
16
Rail,top WCI 5304414116 Contact Us For Availability
17
Front-cabinet,complete assy ,less dial assy WCI 309637005 Contact Us For Availability
17
Cord-electric power,12 AWG ,30 Amp ,230 V WCI 309343119 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
18
WCI 5303290357 WCI 5303290357 Contact Us For Availability
18
WCI 5308012680 WCI 5308012680 Contact Us For Availability
19
WCI 309636814 WCI 309636814 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
WCI 309307013 WCI 309307013 Contact Us For Availability
21
Knob,sliding WCI 5304414414 Contact Us For Availability
21
Seal,sleeve/shroud ,23.72`` x 1.25`` ,bottom WCI 5303212504 Contact Us For Availability
21
Washer,terminal cover WCI 5303293809 Contact Us For Availability
22
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
23
WCI 3201953 WCI 3201953 Contact Us For Availability
24
SCREW,8-18B X 0.500 WCI 3002801 Contact Us For Availability
25
Screen,air handling ,wire WCI 5303302933 Contact Us For Availability
27
Heater Assy,with thermostat WCI 5303201967 Contact Us For Availability
28
THERMOSTAT-HEATER WCI 5303016865 Contact Us For Availability
29
WCI 3201968 WCI 3201968 Contact Us For Availability
30
WCI 309363601 WCI 309363601 Contact Us For Availability
31
Screw,valve mtg. WCI 5303209503 Contact Us For Availability
32
Nut,heater assy ,self-threading WCI 3018695 Contact Us For Availability
40
SPACER-LOUVER (5) WCI 3202810 Contact Us For Availability
41
WCI 5300517130 WCI 5300517130 Contact Us For Availability
43
Frame,cabinet front WCI 309635103 Contact Us For Availability
44
WCI 5303201843 WCI 5303201843 Contact Us For Availability
45
WCI 5303201847 WCI 5303201847 Contact Us For Availability
46
Cover,control compt WCI 5303300232 Contact Us For Availability
47
WCI 5303299318 WCI 5303299318 Contact Us For Availability
58
LOUVER,VERTICAL ,W/HANDLE WCI 5303300230 Contact Us For Availability
66
Track,filter WCI 309636601 Contact Us For Availability
NI
WCI 309367462 WCI 309367462 Contact Us For Availability
NI
WCI 5304411207 WCI 5304411207 Contact Us For Availability
NI
Screw,Ph truss hd ,8-18 x 0.38 ,ground WCI 5303285199 Contact Us For Availability
NI
WCI 309112501 WCI 309112501 Contact Us For Availability
NI
Kit-mounting support WCI 309313204 Contact Us For Availability
NI
Kit-window mounting,heavy duty WCI 309313303 Contact Us For Availability
NI
Kit-Hardware,mounting WCI 5304409248 Contact Us For Availability
NI
WCI 5304409249 WCI 5304409249 Contact Us For Availability
× ![]()
