Model Electrolux FAS147P1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER

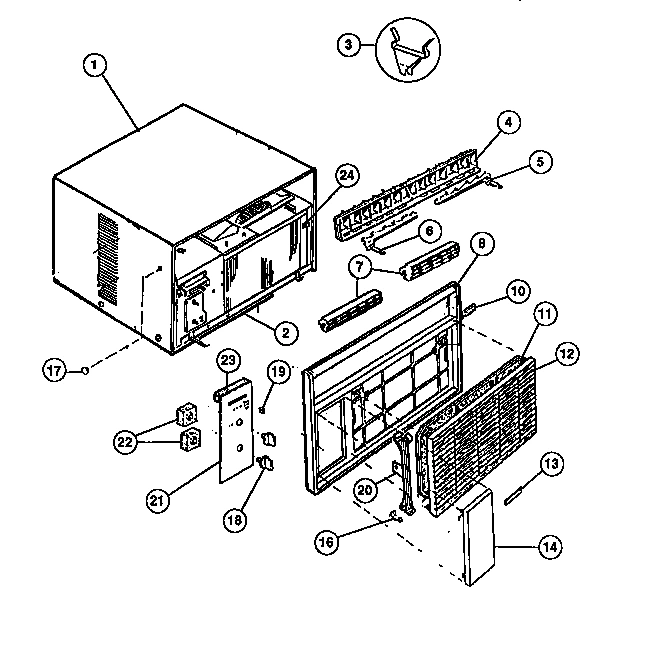

02 - CABINET FRONT & WRAPPER

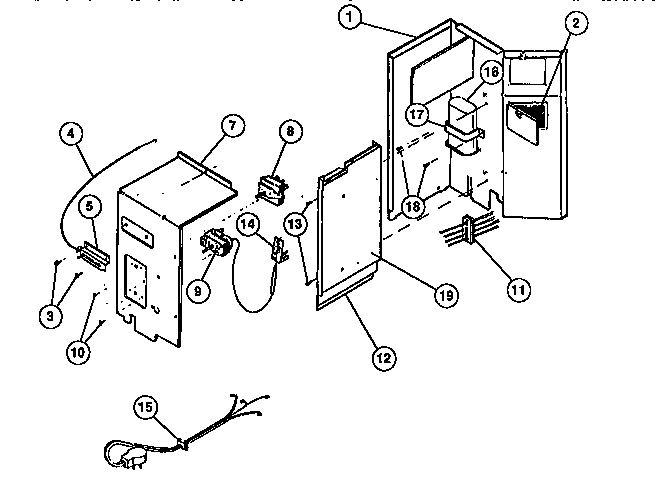

03 - CONTROL PARTS

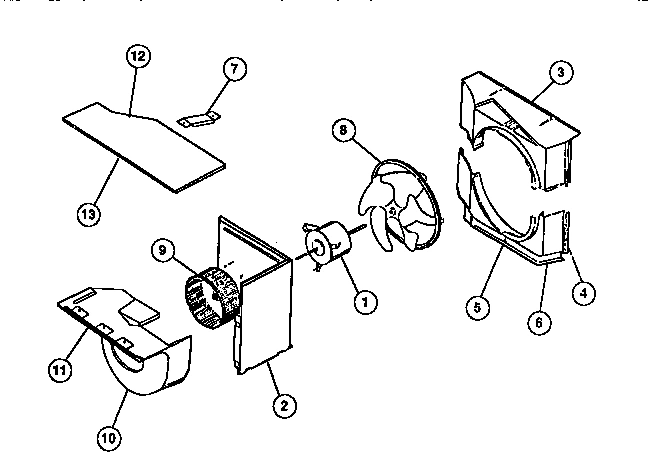

04 - AIR HANDLING PARTS

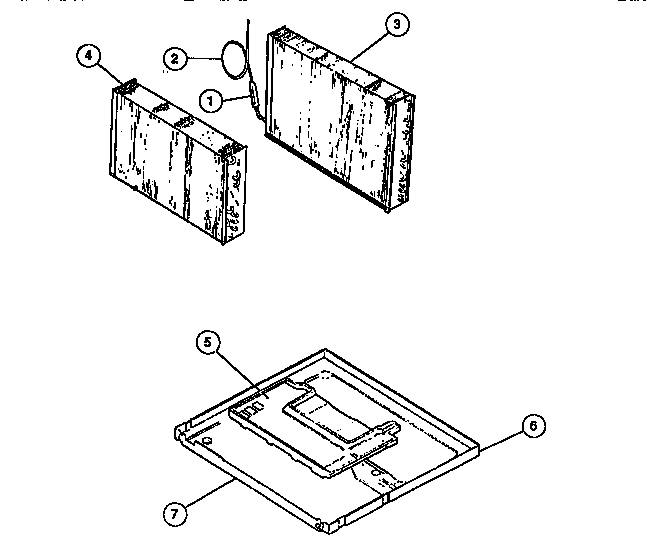

05 - EVAPORATOR, CONDENSER

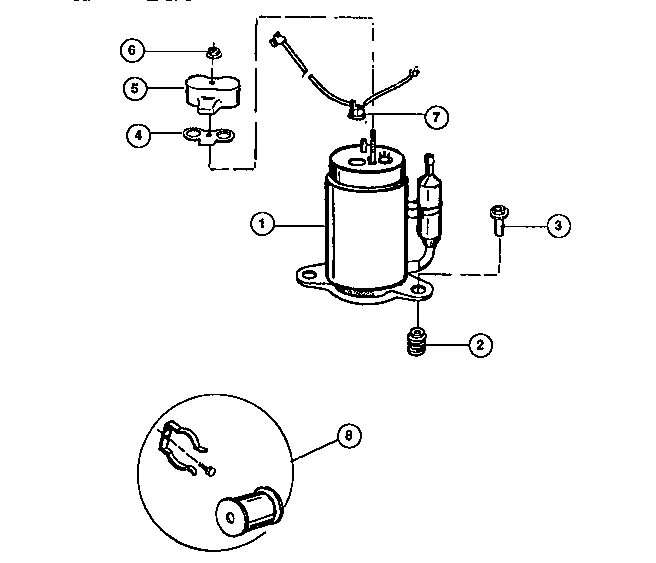

06 - COMPRESSOR

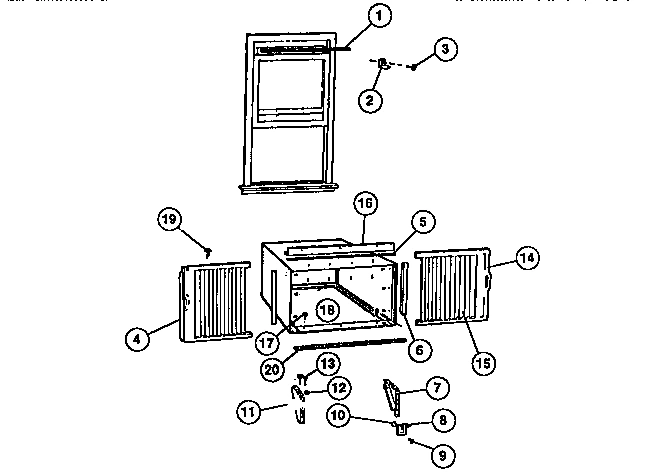

07 - WINDOW MOUNTING PARTS
Common parts from model Electrolux FAS147P1A1 ROOM AIR CONDITIONER
1
WCI 5303015315 WCI 5303015315 Contact Us For Availability
1
GRILLE REAR (NON-ILLUSTRATED) WCI 5303210207 Contact Us For Availability
1
WCI 5303271903 WCI 5303271903 Contact Us For Availability
1
BULKHEAD - CONTROL WCI 3015296 Contact Us For Availability
1
WCI 5303017346 WCI 5303017346 Contact Us For Availability
1
WCI 5303925103 WCI 5303925103 Contact Us For Availability
1
WCI 5303002608 WCI 5303002608 Contact Us For Availability
2
WCI 5303015297 WCI 5303015297 Contact Us For Availability
2
BULKHEAD - AIR WCI 3015295 Contact Us For Availability
2
WCI 5303017776 WCI 5303017776 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
ANGLE-STOP WCI 3018951 Contact Us For Availability
3
CLIP WCI 5303001844 Contact Us For Availability
3
WCI 08002968 WCI 08002968 Contact Us For Availability
3
SHROUD-CONDENSER UPPER WCI 5303015305 Contact Us For Availability
3
WCI 5303208581 WCI 5303208581 Contact Us For Availability
3
NUT (PLASTIC) WCI 5303015946 Contact Us For Availability
4
WCI 5303002459 WCI 5303002459 Contact Us For Availability
4
CABLE-DOOR VENT WCI 5303015298 Contact Us For Availability
4
SHROUD-CONDENSER LOWER WCI 5303015304 Contact Us For Availability
4
WCI 5303015595 WCI 5303015595 Contact Us For Availability
4
GASKET-COVER WCI 3206231 Contact Us For Availability
4
WCI 3202495 WCI 3202495 Contact Us For Availability
5
WCI 5303002162 WCI 5303002162 Contact Us For Availability
5
ARM-ACTUATOR (NON-ILLUSTRATED) WCI 5303015299 Contact Us For Availability
5
BRACKET-ACTUATOR WCI 5303202999 Contact Us For Availability
5
WCI 5303208665 WCI 5303208665 Contact Us For Availability
5
WCI 3206230 WCI 3206230 Contact Us For Availability
5
WCI 5303207200 WCI 5303207200 Contact Us For Availability
6
WCI 5303002163 WCI 5303002163 Contact Us For Availability
6
SEAL WCI 3016696 Contact Us For Availability
6
WCI 3016219 WCI 3016219 Contact Us For Availability
6
WCI 5303211017 WCI 5303211017 Contact Us For Availability
6
WCI 3202498 WCI 3202498 Contact Us For Availability
7
WCI 5308017160 WCI 5308017160 Contact Us For Availability
7
CLIP-FRONT TO BASE WCI 5308010914 Contact Us For Availability
7
WCI 3016763 WCI 3016763 Contact Us For Availability
7
BRACKET-SHROUD TO BULKHEAD WCI 5303015306 Contact Us For Availability
7
WCI 5303016697 WCI 5303016697 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
FRONT COMPLETE WCI 5308017179 Contact Us For Availability
8
SWITCH, SELECT WCI 5303208666 Contact Us For Availability
8
WCI 5303017959 WCI 5303017959 Contact Us For Availability
8
KIT-START WCI 5303201723 Contact Us For Availability
8
BRACKET-WINDOW (2) WCI 3001815 Contact Us For Availability
9
CONTROL WCI 5303015319 Contact Us For Availability
9
WCI 5303015309 WCI 5303015309 Contact Us For Availability
9
SCREW (2) WCI 3007756 Contact Us For Availability
10
SEAL, MULLION WCI 08016401 Contact Us For Availability
10
SEAL-EVAP OUTLET (NON-ILLUSTRATED) WCI 08017132 Contact Us For Availability
10
SCREW-CONTROL SWITCH WCI 5303007754 Contact Us For Availability
10
SCROLL-EVAPORATOR WCI 5303015310 Contact Us For Availability
10
NUT LOCKING WCI 3007759 Contact Us For Availability
11
FILTER WCI 5308017190 Contact Us For Availability
11
HARNESS-WIRE WCI 5303017345 Contact Us For Availability
11
SEAL WCI 5303015311 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
12
PANEL WCI 5303200420 Contact Us For Availability
12
WCI 5303015313 WCI 5303015313 Contact Us For Availability
13
NAME PLATE WCI 08017126 Contact Us For Availability
13
INSULATION-COVER WCI 3015314 Contact Us For Availability
13
CLAMP BLOWER WHEEL (NON-ILLUSTRATED) WCI 5303012110 Contact Us For Availability
13
SCREW (4) WCI 3002735 Contact Us For Availability
14
DOOR WCI 5308016196 Contact Us For Availability
14
SPACER-CONTROL BULB WCI 5303211009 Contact Us For Availability
14
WCI 3202497 WCI 3202497 Contact Us For Availability
15
SERVICE CORD WCI 5308017362 Contact Us For Availability
15
ACCORDIAN (2) WCI 3202496 Contact Us For Availability
16
WCI 5303019026 WCI 5303019026 Contact Us For Availability
16
WCI 3202499 WCI 3202499 Contact Us For Availability
17
WCI 5303271902 WCI 5303271902 Contact Us For Availability
17
STRAP, CAPCITOR WCI 5303015323 Contact Us For Availability
17
SCREW (2) WCI 3002803 Contact Us For Availability
18
WCI 5308016109 WCI 5308016109 Contact Us For Availability
18
SCREW (10) WCI 08012680 Contact Us For Availability
19
WCI 5303002189 WCI 5303002189 Contact Us For Availability
19
INSULATION-VERTICAL DIVIDER WCI 3015321 Contact Us For Availability
19
SCREW (2) WCI 3002801 Contact Us For Availability
20
WCI 5303212504 WCI 5303212504 Contact Us For Availability
20
TRACK (2) WCI 5308017138 Contact Us For Availability
21
WCI 5303284124 WCI 5303284124 Contact Us For Availability
22
WCI 5303001775 WCI 5303001775 Contact Us For Availability
23
WCI 5303001984 WCI 5303001984 Contact Us For Availability
24
BRACKET-FRONT WCI 5303016223 Contact Us For Availability
× ![]()
