Model Electrolux FAA063M7A1 ROOM AIR CONDITIONER – Common Parts & Diagrams

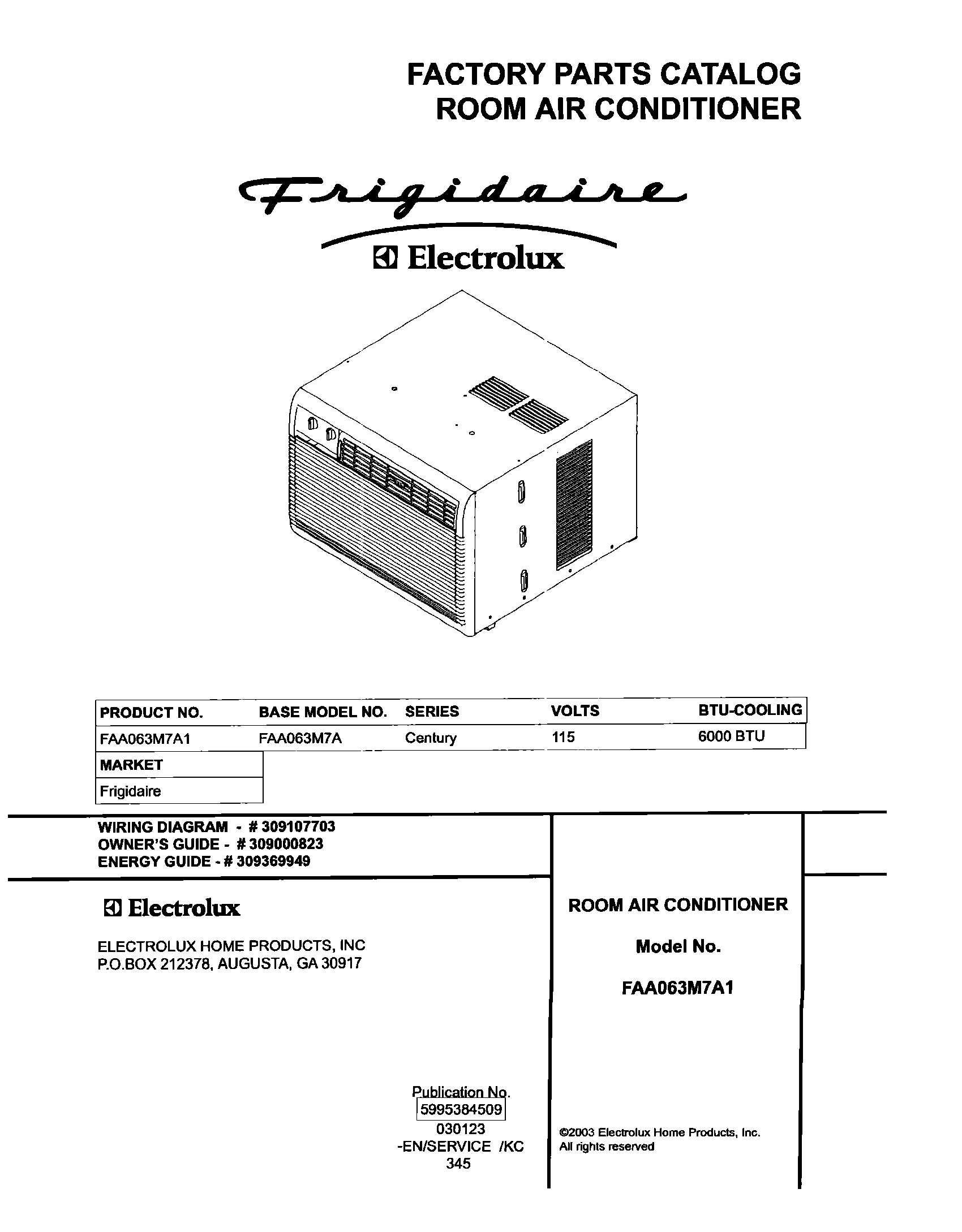

01 - COVER
03 - FRONT AND WRAPPER
05 - CONTROLS
07 - AIR HANDLING PARTS
09 - COMPRESSOR PARTS
11 - WINDOW MOUNTING PARTS
13 - WIRING DIAGRAM
Common parts from model Electrolux FAA063M7A1 ROOM AIR CONDITIONER
1
WCI 309646202 WCI 309646202 Contact Us For Availability
1
WCI 309616916 WCI 309616916 Contact Us For Availability
2
BRACKET-SASH LOCK WCI 5303211056 Contact Us For Availability
2
WCI 5304430860 WCI 5304430860 Contact Us For Availability
3
WCI 309650701 WCI 309650701 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
WCI 309644902 WCI 309644902 Contact Us For Availability
4
WCI 5304423372 WCI 5304423372 Contact Us For Availability
5
Seal,top rail/cab WCI 08016226 Contact Us For Availability
6
GASKET - TERMINAL COVER WCI 3201668 Contact Us For Availability
7
WCI 309638002 WCI 309638002 Contact Us For Availability
7
WCI 309650301 WCI 309650301 Contact Us For Availability
7
WCI 5304405245 WCI 5304405245 Contact Us For Availability
8
WCI 309639303 WCI 309639303 Contact Us For Availability
8
WCI 5303323284 WCI 5303323284 Contact Us For Availability
8
WCI 309649901 WCI 309649901 Contact Us For Availability
8
WCI 5303311029 WCI 5303311029 Contact Us For Availability
9
WCI 309342001 WCI 309342001 Contact Us For Availability
9
WCI 5304402838 WCI 5304402838 Contact Us For Availability
9
NUT,TERMINAL COVER WCI 3201670 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309649802 WCI 309649802 Contact Us For Availability
11
WCI 309648501 WCI 309648501 Contact Us For Availability
12
WCI 309343501 WCI 309343501 Contact Us For Availability
12
WCI 309645305 WCI 309645305 Contact Us For Availability
13
WCI 5304426449 WCI 5304426449 Contact Us For Availability
13
Scroll/Evap Tray,blower housing ,bottom WCI 309650401 Contact Us For Availability
14
SCREW,8-18B X 0.500 WCI 3002801 Contact Us For Availability
14
WCI 309650801 WCI 309650801 Contact Us For Availability
14
WCI 5304423373 WCI 5304423373 Contact Us For Availability
15
WCI 309645501 WCI 309645501 Contact Us For Availability
16
WCI 5304430673 WCI 5304430673 Contact Us For Availability
16
WCI 5304430650 WCI 5304430650 Contact Us For Availability
16A
WCI 309650501 WCI 309650501 Contact Us For Availability
16B
WCI 309650601 WCI 309650601 Contact Us For Availability
17
WCI 309640107 WCI 309640107 Contact Us For Availability
17
WCI 309343122 WCI 309343122 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
WCI 309342907 WCI 309342907 Contact Us For Availability
19
WCI 309112501 WCI 309112501 Contact Us For Availability
20
WCI 309364102 WCI 309364102 Contact Us For Availability
22
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
22
WCI 5304403252 WCI 5304403252 Contact Us For Availability
23
SCREW,23(T) ,10-32 X 0.310 WCI 3001806 Contact Us For Availability
24
SCREW,WOOD, TYPE 17 ,8-15 X 0.500 WCI 5308002974 Contact Us For Availability
38
WCI 309646301 WCI 309646301 Contact Us For Availability
43
WCI 309646401 WCI 309646401 Contact Us For Availability
NI
WCI 309369949 WCI 309369949 Contact Us For Availability
NI
Screw,Ph truss hd ,8-18 x 0.38 ,grounding WCI 5303285199 Contact Us For Availability
NI
WCI 327161302 WCI 327161302 Contact Us For Availability
× ![]()
