Model Electrolux EWDW6505GS0 DISHWASHER, BUILT-IN – Common Parts & Diagrams
01 - COVER SHEET

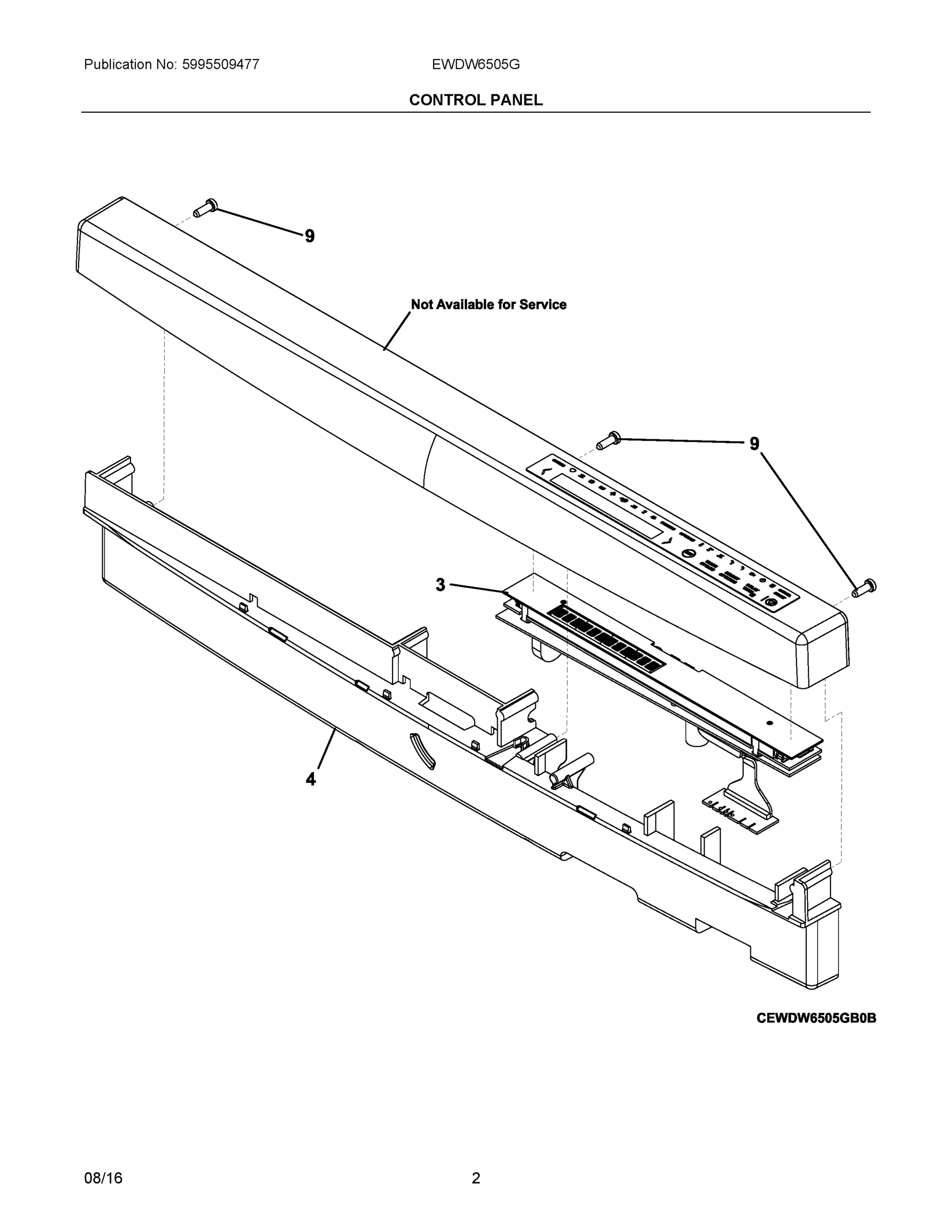

02 - CONTROL PANEL

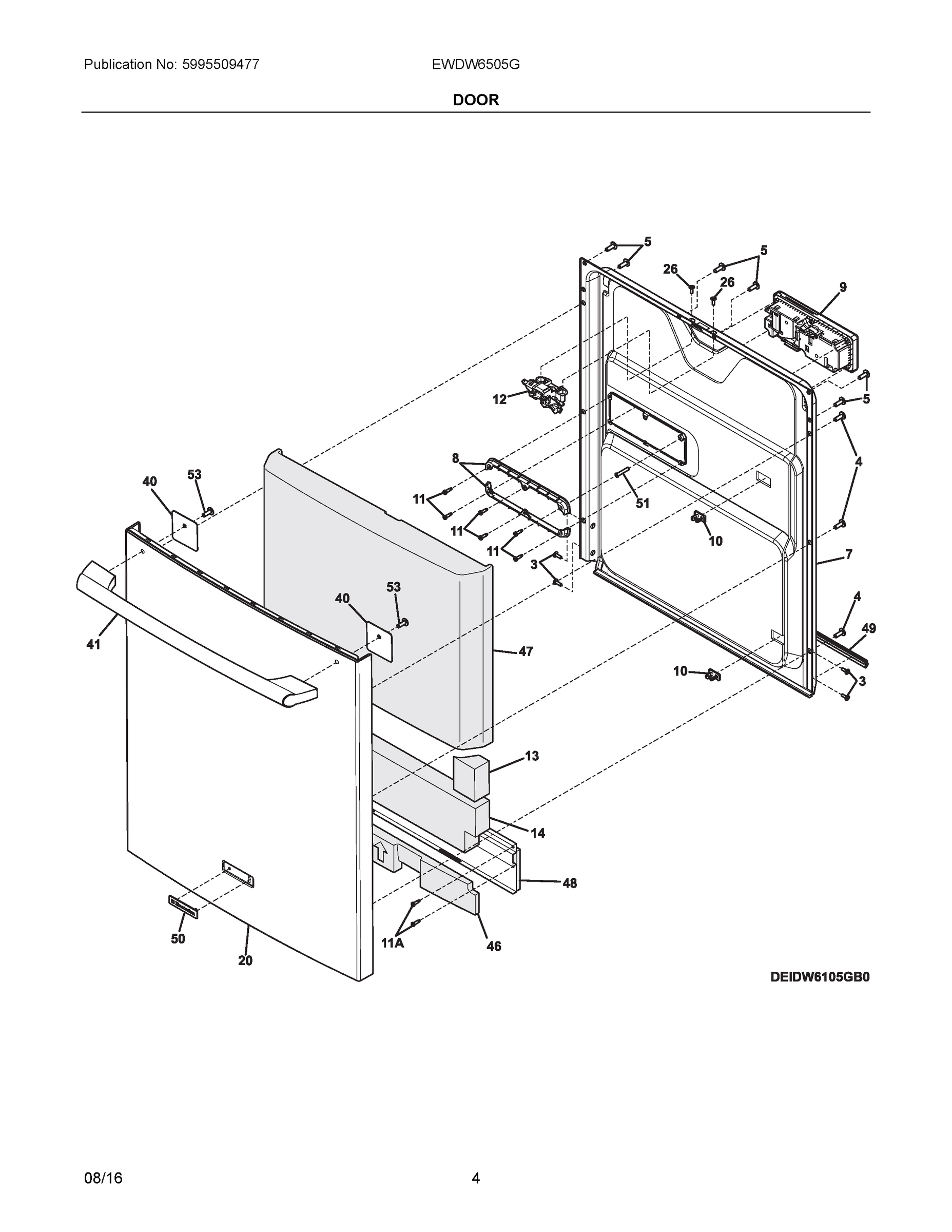

03 - DOOR

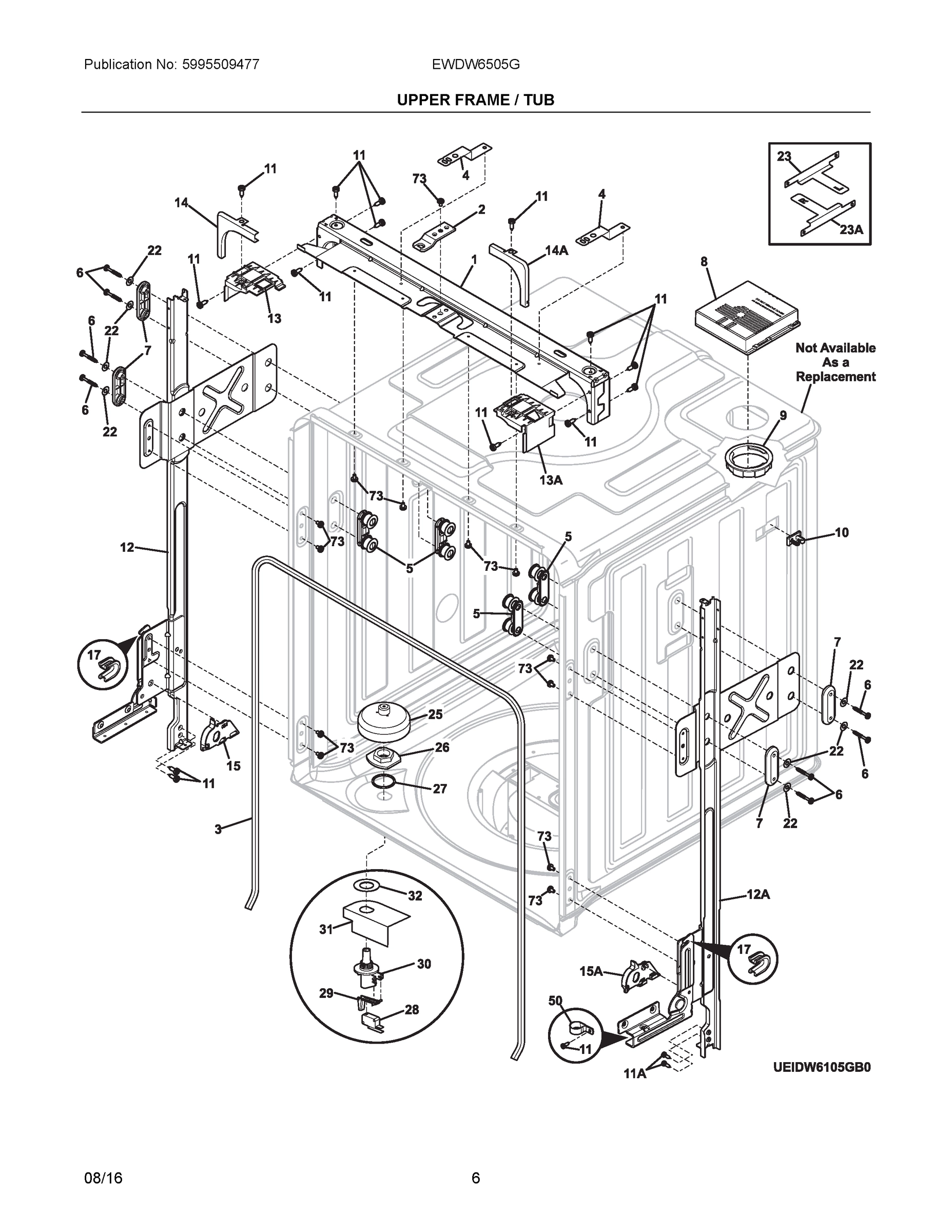

04 - UPPER FRAME/TUB

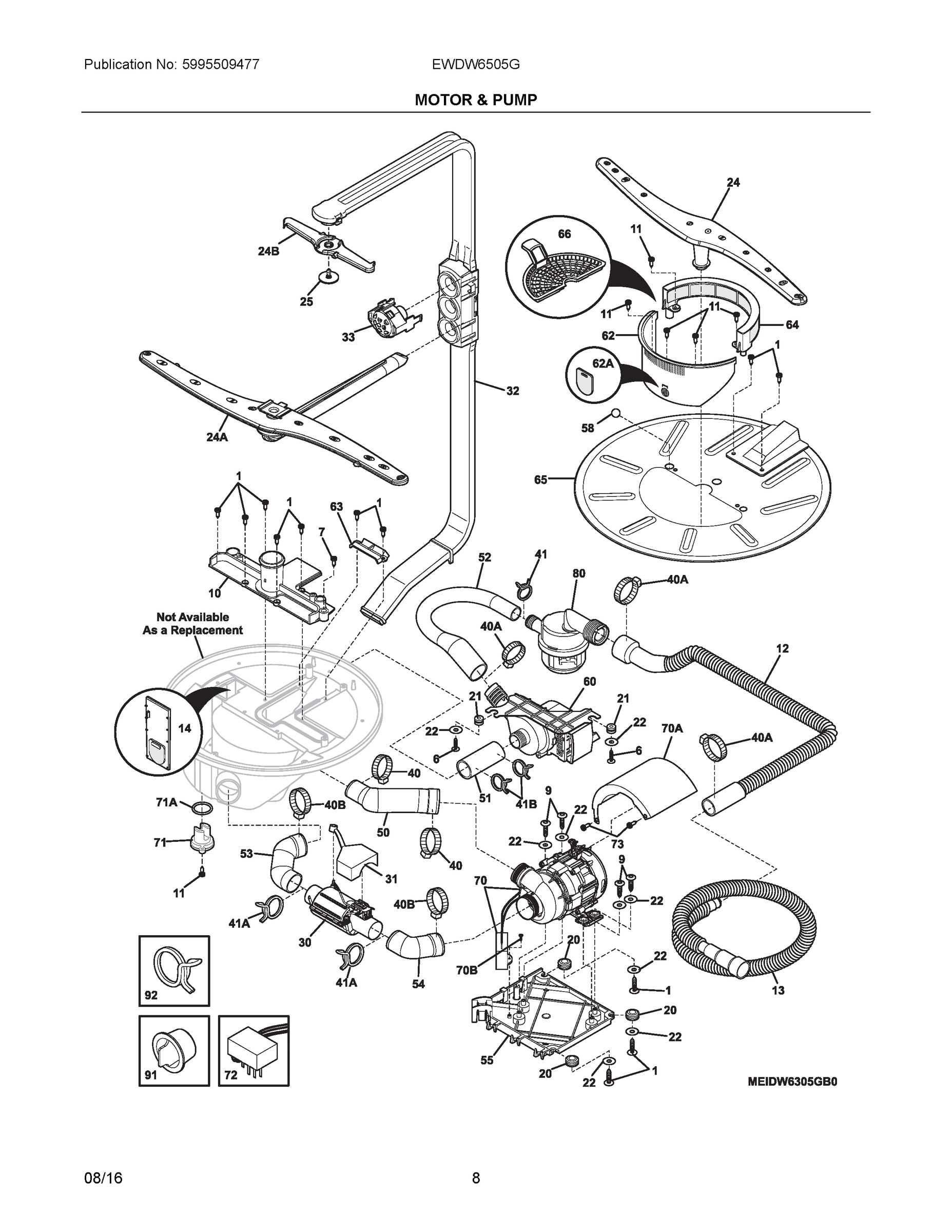

05 - MOTOR & PUMP

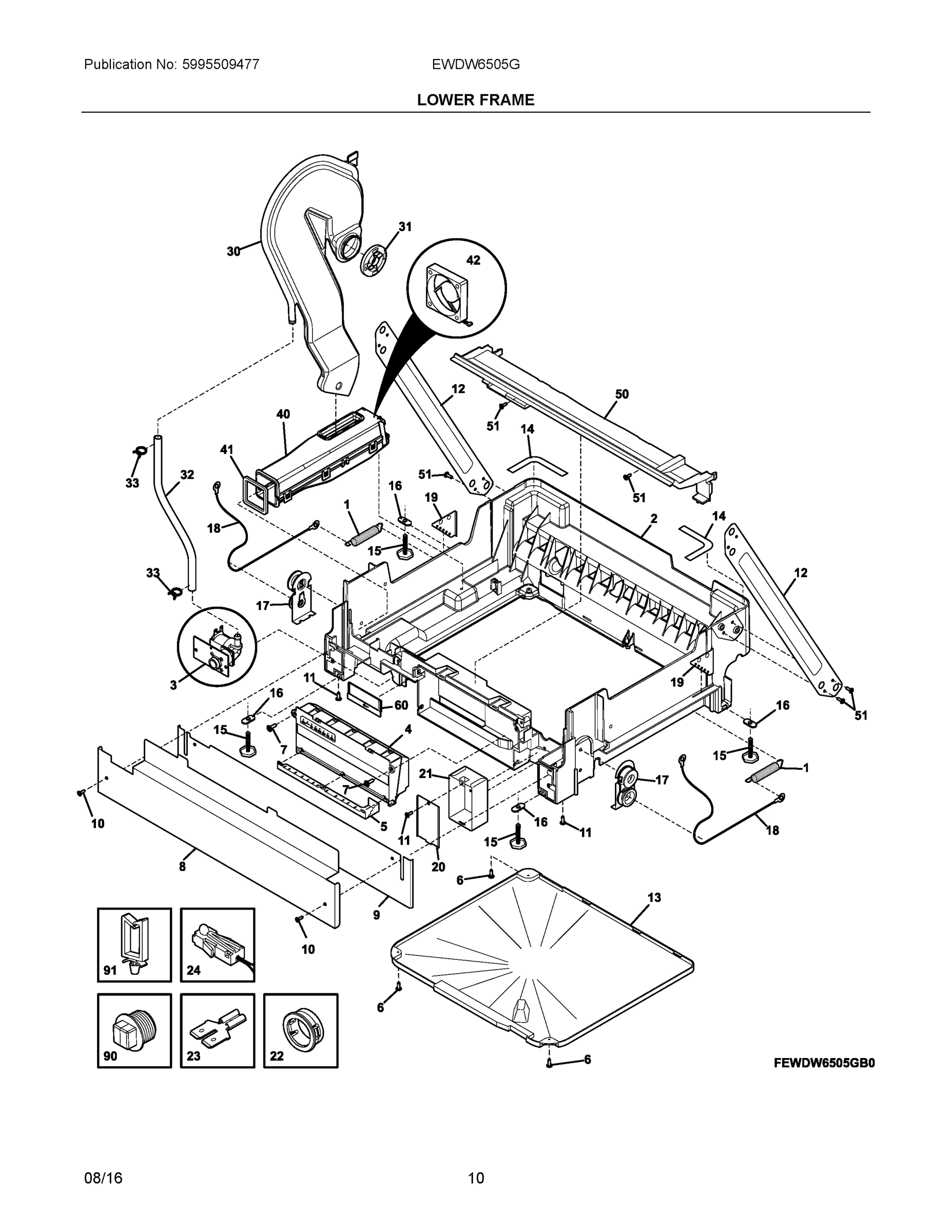

06 - LOWER FRAME

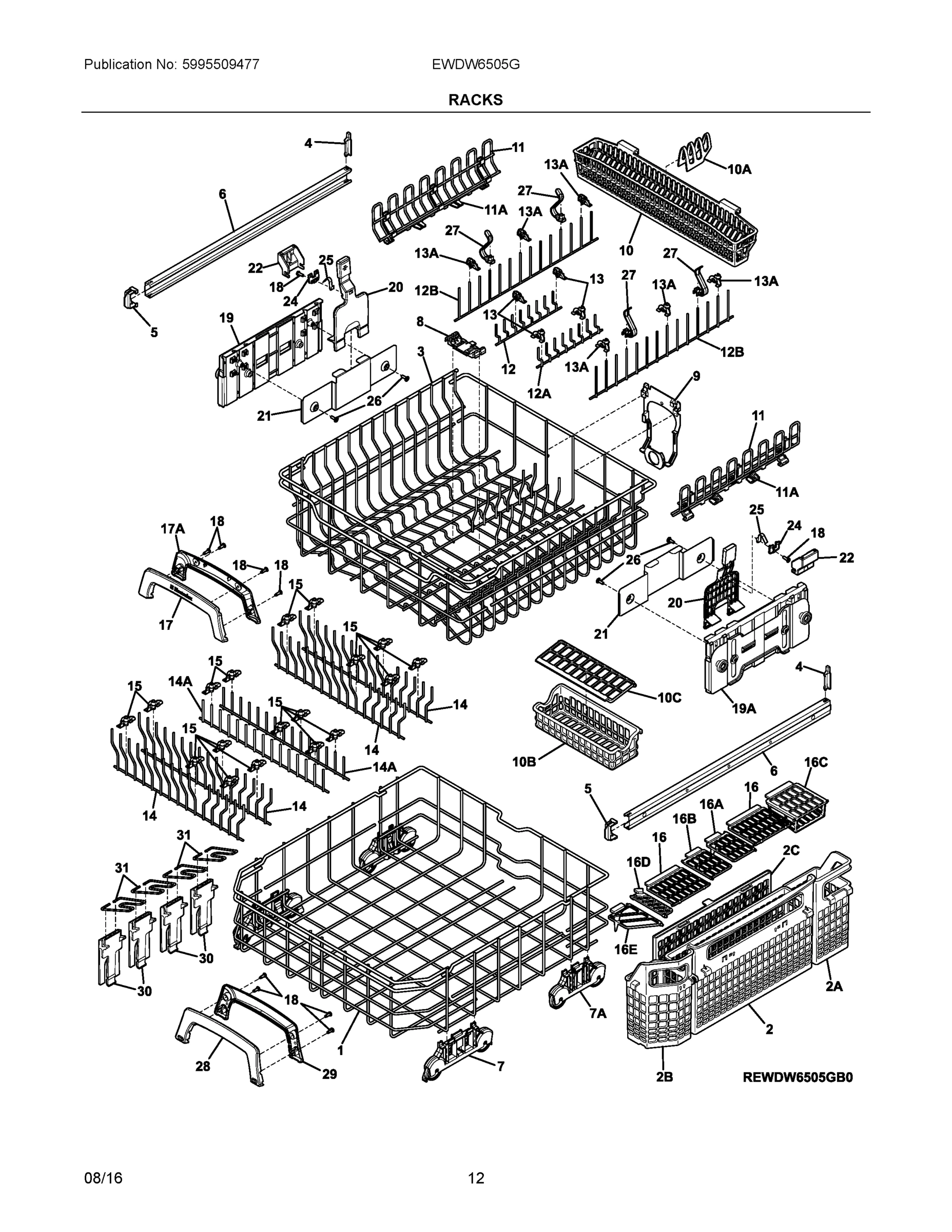

07 - RACKS
Common parts from model Electrolux EWDW6505GS0 DISHWASHER, BUILT-IN
1
BRACE, FRAME, TOP WCI 7154500701 Contact Us For Availability
1
SPRING, DOOR HINGE, (2) WCI 7154514801 Contact Us For Availability
1
RACK ASSEMBLY, LOWER WCI 7154625401 Contact Us For Availability
2
STRIKE, DOOR LATCH WCI 7154511401 Contact Us For Availability
2
BASE, FRAME MOUNTING WCI 7154502601 Contact Us For Availability
2
BASKET, SILVERWARE, MAIN, CENTER WCI 7154632401 Contact Us For Availability
2A
BASKET, SILVERWARE, SIDE, REAR WCI 7154632601 Contact Us For Availability
2B
BASKET, SILVERWARE, SIDE, FRONT WCI 7154632701 Contact Us For Availability
2C
HOLDER, SILVERWARE, FLEXIBLE WCI 7154653001 Contact Us For Availability
3
WCI 5304507341 WCI 5304507341 Contact Us For Availability
3
SCREW, 6 LOBE RECESS, #10-32, (4) WCI 7154518201 Contact Us For Availability
3
GASKET, TUB WCI 7154513401 Contact Us For Availability
3
VALVE ASSEMBLY, WATER WCI 7154513601 Contact Us For Availability
4
FRAME, CONSOLE WCI 154650001 Contact Us For Availability
4
CLIP, CABINET MTG., TOP MOUNT, (2) WCI 7154657901 Contact Us For Availability
4
WCI 7154515001 WCI 7154515001 Contact Us For Availability
5
SCREW, PH, #10-16 HI-LO, (6), 6 LOBE WCI 7154603701 Contact Us For Availability
5
ROLLER ASSEMBLY, TUB, (4), W/GASKET WCI 7154510702 Contact Us For Availability
5
BRACKET, CONTROL HOUSING WCI 7154624701 Contact Us For Availability
6
GUIDE RAIL, UPPER RACK, (2) WCI 7154510401 Contact Us For Availability
7
LINER ASSEMBLY, DOOR, INNER, W/MASTIC WCI 7154509701 Contact Us For Availability
7
PLATE, RETAINER, OUTER, (2), TUB ROLLER WCI 7154510601 Contact Us For Availability
7
ROLLER ASSEMBLY, LOWER RACK, FRONT, (2) WCI 7154671301 Contact Us For Availability
7A
ROLLER ASSEMBLY, LOWER RACK, REAR, (2) WCI 7154689501 Contact Us For Availability
8
BRACKET, DISPENSER MTG., (2) WCI 7154670901 Contact Us For Availability
8
VENT ASSEMBLY, UPPER WCI 7154688501 Contact Us For Availability
10
CLIP, WIRING HARNESS WCI 7154633501 Contact Us For Availability
10
SUPPORT, LOWER SPRAY ARM WCI 7154602001 Contact Us For Availability
10
SCREW, PHILLIPS HEAD, SILVER MIST WCI 7154371307 Contact Us For Availability
10
BASKET ASSY, KNIFE HOLDER WCI 7154581203 Contact Us For Availability
10A
HOLDER, SNAP IN WCI 7154581303 Contact Us For Availability
10B
TRAY, UTILITY WCI 7154632101 Contact Us For Availability
10C
LID, UTILITY TRAY WCI 7154652001 Contact Us For Availability
11
SCREW, FT PH 6 LOBE, #8-18 WCI 7154625702 Contact Us For Availability
11
SCREW, 6 LOBE RECESS, #8-18 WCI 7154518301 Contact Us For Availability
11
SCREW, TRUSS SS, 8 .625, (7) WCI 75303316032 Contact Us For Availability
11
SHELF, CUP, UPPER RACK, (2) WCI 7154629002 Contact Us For Availability
12
LEG AND HINGE ASSEMBLY, LEFT HAND, FRONT WCI 7154612901 Contact Us For Availability
12
HOSE, DRAIN, INTERMEDIATE WCI 7154654801 Contact Us For Availability
12
FRAME, DIAGONAL, LEG, (2) WCI 7154501301 Contact Us For Availability
12
FENCE, FOLD DOWN, LH CENTER, UPPER RACK WCI 7154629302 Contact Us For Availability
12A
LEG AND HINGE ASSEMBLY, RIGHT HAND, FRONT WCI 7154613001 Contact Us For Availability
12A
FENCE, FOLD DOWN, RH CENTER, UPPER RACK WCI 7154654302 Contact Us For Availability
12B
FENCE, FOLD DOWN, UPPER RACK WCI 7154652102 Contact Us For Availability
13
FOAM, DOOR, SIDES, (2) WCI 7154670701 Contact Us For Availability
13
BRACKET, CABINET CLIP, LH WCI 7154654401 Contact Us For Availability
13
TRAY, BASE, W/LABEL WCI 7154658101 Contact Us For Availability
13
CLIP, FOLD DOWN FENCE, UPPER RACK, (4) WCI 7154629402 Contact Us For Availability
13A
BRACKET, CABINET CLIP, RH WCI 7154654501 Contact Us For Availability
14
FOAM, DOOR WCI 7154623401 Contact Us For Availability
14
TRIM, CORNER, LH WCI 7154502901 Contact Us For Availability
14
CHECK VALVE, ASSEMBLY, DRAIN, W/FLAPPER WCI 7154511801 Contact Us For Availability
14
TAPE, CONNECTION, (2), BASE TO TUB WCI 7154610301 Contact Us For Availability
14
FENCE, FOLD DOWN, LOWER RACK, (2), SINGLE WCI 7154630902 Contact Us For Availability
14A
TRIM, CORNER, RH WCI 7154502001 Contact Us For Availability
14A
FENCE, FOLD DOWN, LOWER RACK, (2) WCI 7154631102 Contact Us For Availability
15
COVER, HINGE ARM, LH WCI 7154656801 Contact Us For Availability
15A
COVER, HINGE ARM, RH WCI 7154656901 Contact Us For Availability
16
PLATE, MOUNTING, (4), LEVELING LEG WCI 7154515401 Contact Us For Availability
16
LID, MAIN BASKET, SIDE, (2) WCI 7154631401 Contact Us For Availability
16A
LID, MAIN BASKET, LH CENTER WCI 7154632501 Contact Us For Availability
16B
LID, MAIN BASKET, RH CENTER WCI 7154651701 Contact Us For Availability
16C
LID, BASKET, KNIFE WCI 7154649001 Contact Us For Availability
16D
LID, BASKET, CHOPSTICKS WCI 7154651801 Contact Us For Availability
16E
LID, BASKET, RH SIDE WCI 7154634901 Contact Us For Availability
17
BUSHING, HINGE ARM CABLE, (2) WCI 7154671501 Contact Us For Availability
17
BRACKET ASSEMBLY, PULLEY, (2) WCI 7154516501 Contact Us For Availability
17
HANDLE, FRONT, UPPER RACK, ELECTROLUX WCI 7154629503 Contact Us For Availability
17A
HANDLE, BACK, UPPER RACK WCI 7154629601 Contact Us For Availability
18
SCREW WCI 7154629701 Contact Us For Availability
19
PLATE, ADJUSTMENT, (2), DOOR SPRING WCI 7154514901 Contact Us For Availability
19
WCI 7154673701 WCI 7154673701 Contact Us For Availability
19A
WCI 7154673601 WCI 7154673601 Contact Us For Availability
20
DOOR, OUTER, STAINLESS WCI 7154603501 Contact Us For Availability
20
GROMMET, VIBRATION, (3) WCI 7154678602 Contact Us For Availability
20
COVER, JUNCTION BOX, W/LABEL WCI 7154658201 Contact Us For Availability
20
WCI 7154655101 WCI 7154655101 Contact Us For Availability
21
GROMMET, VIBRATION, (2) WCI 7154672502 Contact Us For Availability
21
BOX, JUNCTION WCI 7154517501 Contact Us For Availability
21
WCI 7154630101 WCI 7154630101 Contact Us For Availability
22
GROMMET, ELECTRICAL WCI 7154610701 Contact Us For Availability
22
WCI 7154630301 WCI 7154630301 Contact Us For Availability
23
CONNECTOR, GROUND, 1 FEMALE, TO 2 MALE WCI 7154671801 Contact Us For Availability
23A
CLIP, CABINET MTG., RH WCI 7154654701 Contact Us For Availability
24
LIGHT ASSEMBLY, CLEANING WCI 7154657501 Contact Us For Availability
24
WCI 7154655201 WCI 7154655201 Contact Us For Availability
24A
SPRAY ARM, ASSEMBLY, MIDDLE, W/MANIFOLD WCI 154508201 No Longer Available
24B
SPRAY ARM, ASSEMBLY, UPPER WCI 7154649502 Contact Us For Availability
25
PIN, SPRAY ARM, UPPER WCI 7154650102 Contact Us For Availability
25
WCI 7154630201 WCI 7154630201 Contact Us For Availability
26
SCREW, PHLPS HD, #10-16 HI LO, (4) WCI 7154519101 Contact Us For Availability
26
WCI 7154673501 WCI 7154673501 Contact Us For Availability
27
WCI 7154528803 WCI 7154528803 Contact Us For Availability
28
WCI 7154631503 WCI 7154631503 Contact Us For Availability
29
WCI 7154631601 WCI 7154631601 Contact Us For Availability
30
WCI 7154632301 WCI 7154632301 Contact Us For Availability
31
SHIELD, FLOAT BRACKET WCI 7154657101 Contact Us For Availability
31
COVER, INLINE HEATER WCI 7154622901 Contact Us For Availability
31
COVER, DRYING INLET WCI 7154618301 Contact Us For Availability
31
WCI 7154632201 WCI 7154632201 Contact Us For Availability
32
TUBING ASSEMBLY, DELIVERY, W/CHECK VALVE WCI 7154515602 Contact Us For Availability
33
NOZZLE ASSEMBLY, MID LEVEL WCI 7154616502 Contact Us For Availability
33
CLAMP, TUBING, (2) WCI 75303318539 Contact Us For Availability
40
DUCT ASSEMBLY, LOWER DRYING, W/MOTOR WCI 7154617601 Contact Us For Availability
40B
CLAMP, HOSE, 1.75" OPEN, WORM GEAR, (2) WCI 7154672601 Contact Us For Availability
41
HANDLE, DOOR, STAINLESS WCI 7241761013 Contact Us For Availability
41
GASKET, DRYING DUCT, LOWER WCI 7154617801 Contact Us For Availability
41B
CLAMP, SPRING, (2) WCI 7154691501 Contact Us For Availability
42
MOTOR, DRYING WCI 7154619101 Contact Us For Availability
46
SUPPORT, DOOR, BOTTOM WCI 7154690501 Contact Us For Availability
47
MOISTURE BARRIER, ASSEMBLY, DOOR, W/DATA SHEE WCI 7154672001 Contact Us For Availability
48
REINFORCEMENT, ASSEMBLY, DOOR WCI 7154670301 Contact Us For Availability
49
GASKET, DOOR BOTTOM WCI 7154610601 Contact Us For Availability
50
ADAPTOR PLATE, ASSEMBLY, W/FOAM WCI 7154670401 Contact Us For Availability
51
CLAMP, DRIP LOOP, WIRE WCI 7154320301 Contact Us For Availability
53
HOSE, SUMP TO, INLINE HEATER WCI 7154653201 Contact Us For Availability
54
HOSE, INLINE HEATER, TO MOTOR WCI 7154653301 Contact Us For Availability
58
WCI 7154512401 WCI 7154512401 Contact Us For Availability
60
PUMP ASSEMBLY, DRAIN, W/BRACKET WCI 7154618701 Contact Us For Availability
60
COVER, VALVE SERVICE WCI 7154622701 Contact Us For Availability
62
FILTER ASSEMBLY, VERTICAL, W/FLAPPER WCI 7154600702 Contact Us For Availability
62A
FLAPPER, DRAIN CHECK WCI 7154511601 Contact Us For Availability
63
COVER, DELIVERY TUBE WCI 7154513501 Contact Us For Availability
64
FILTER ASSE WCI 7154604502 Contact Us For Availability
65
WCI 7154624901 WCI 7154624901 Contact Us For Availability
66
WCI 7154514302 WCI 7154514302 Contact Us For Availability
70A
WCI 7154656401 WCI 7154656401 Contact Us For Availability
70B
WCI 7154614401 WCI 7154614401 Contact Us For Availability
71A
WCI 7154376001 WCI 7154376001 Contact Us For Availability
73
WCI 7154518401 WCI 7154518401 Contact Us For Availability
90
PLUG, WATER VALVE WCI 7154679801 Contact Us For Availability
91
WCI 7154676701 WCI 7154676701 Contact Us For Availability
91
CLIP, WIRING WCI 7154690001 Contact Us For Availability
NI
WCI 154662101 No Longer Available
NI
LABEL, ENERGY GUIDE WCI 7154678401 Contact Us For Availability
NI
INSULATION, BLANKET WCI 7154623602 Contact Us For Availability
NI
CLIP, INSULATION, (2) WCI 7154679701 Contact Us For Availability
NI
HARNESS, WIRING, BASE, LH SIDE WCI 7154654001 Contact Us For Availability
NI
SCREW, 6 TRI LOBE, #10 PH, (2) WCI 7154672301 Contact Us For Availability
NI
HARNESS, WIRING, RH SID WCI 7154688401 Contact Us For Availability
NIA
SCREW, CABINET CLIP, (2) WCI 7154657201 Contact Us For Availability
NIA
WCI 7154627001 WCI 7154627001 Contact Us For Availability
NIA
WCI 7154689201 WCI 7154689201 Contact Us For Availability
× ![]()
