Model Whirlpool EV200FXEN01 VERTICAL FREEZER – Common Parts & Diagrams

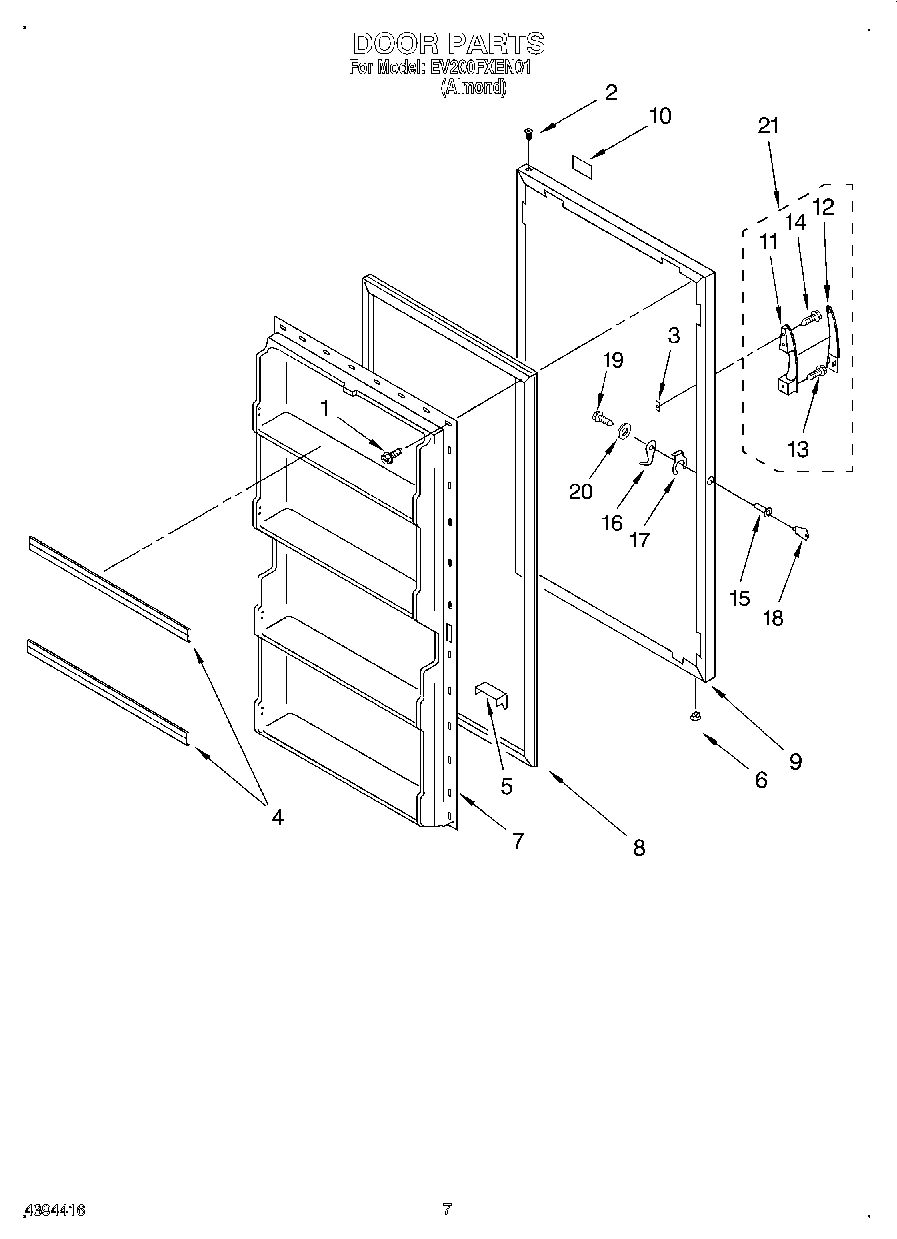

04 - DOOR

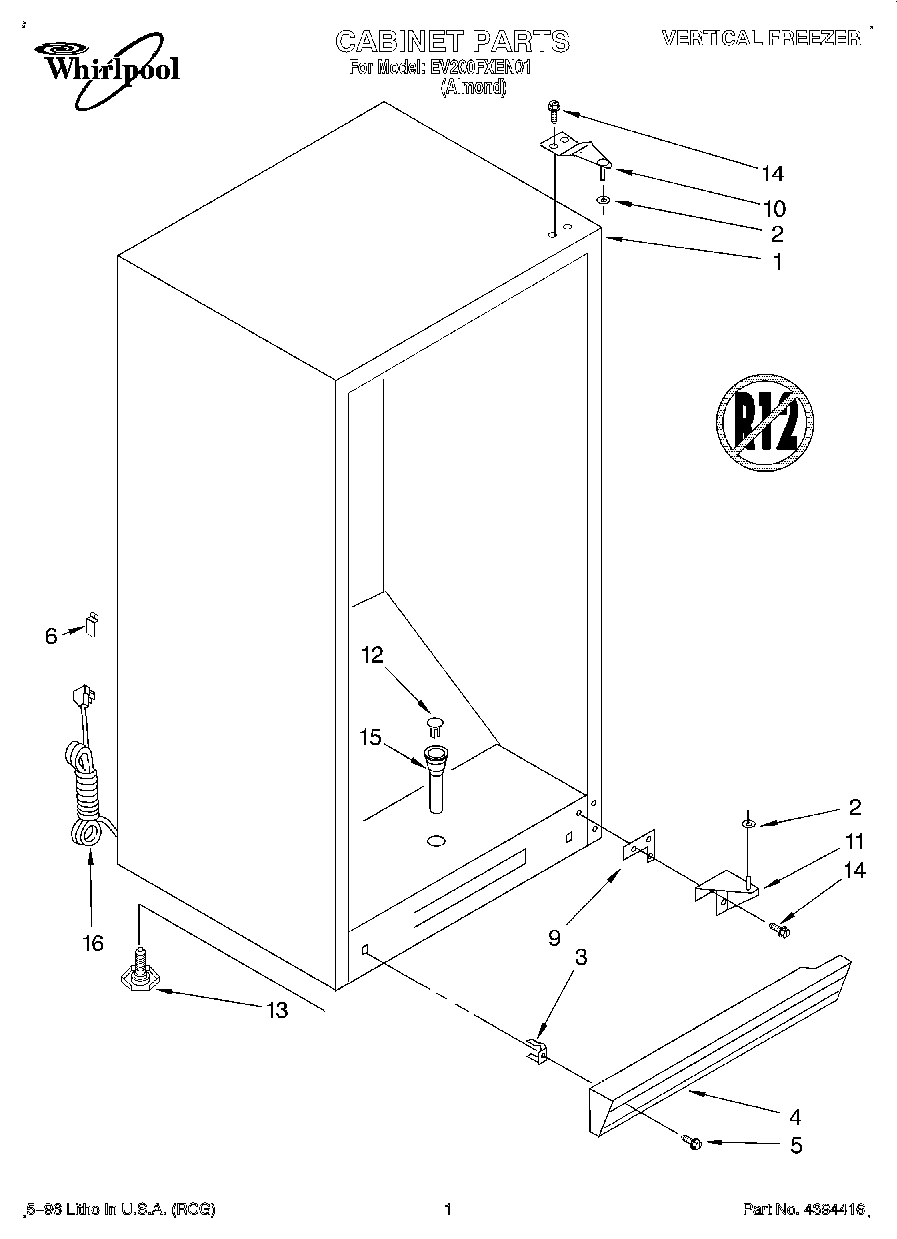

01 - CABINET

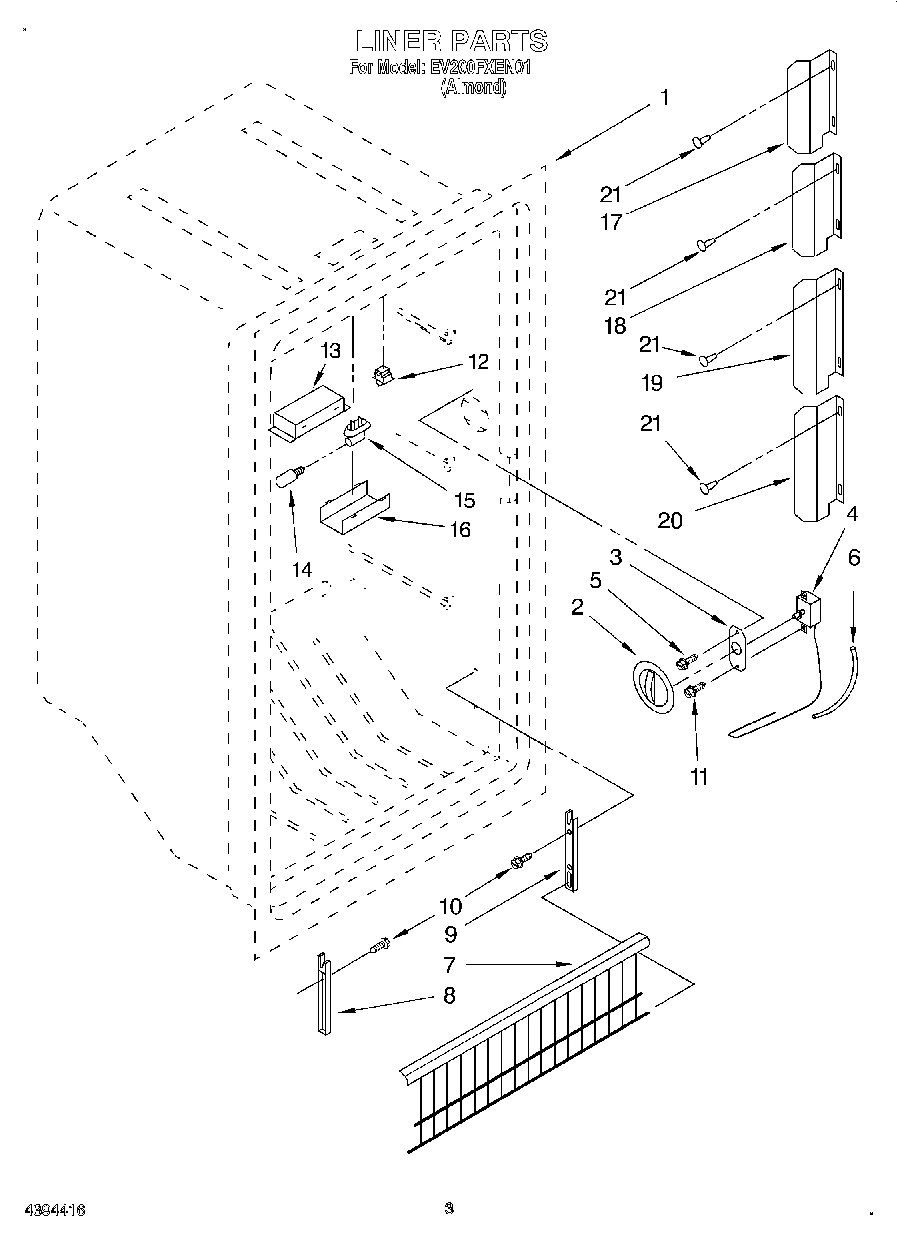

02 - LINER, LIT/OPTIONAL

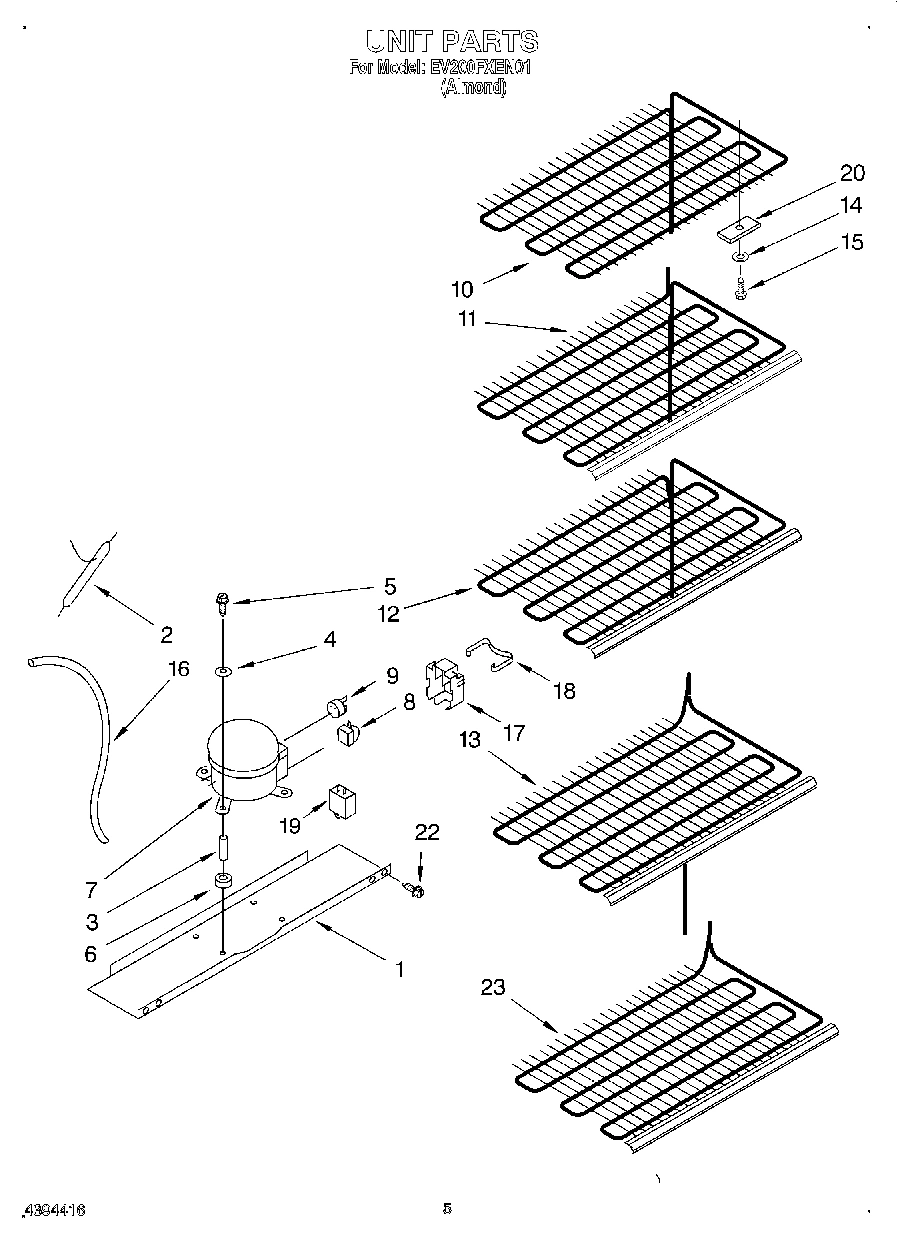

03 - UNIT
Common parts from model Whirlpool EV200FXEN01 VERTICAL FREEZER
Use & Care Guide WPL LIT4356948 Contact Us For Availability
Energy Label WPL LIT4357187 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI56234A1 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI56235A2 Contact Us For Availability
1
Compressor Mounting Pan WPL 4357114 Contact Us For Availability
2
Control Knob WPL 4357040 Contact Us For Availability
4
Grille WPL 4357113 Contact Us For Availability
4
Thermostat WPL 4356808 Contact Us For Availability
4
Washer WPL 4356847 Contact Us For Availability
5
Compressor Mounting Screw WPL 4357054 Contact Us For Availability
6
Clip WPL 4356403 Contact Us For Availability
6
Compressor Grommet WPL 4356335 Contact Us For Availability
7
Gate WPL 4357152 Contact Us For Availability
8
Support, Fence, (L.H.) WPL 4356889 Contact Us For Availability
9
Exterior Door WPL 4357150 Contact Us For Availability
9
Shim, Bottom WPL 4356828 Contact Us For Availability
9
Overload WPL 4357208 Contact Us For Availability
10
Nameplate WPL 4356940 Contact Us For Availability
10
Top, Hinge WPL 4357104 Contact Us For Availability
10
Screw WPL 4356891 Contact Us For Availability
10
Evaporator Top WPL 4357189 Contact Us For Availability
11
Handle WPL 4356895 Contact Us For Availability
11
Bottom Hinge WPL 4357102 Contact Us For Availability
11
Evaporator Shelf WPL 4357190 Contact Us For Availability
12
Insert, Handle WPL 4390553 Contact Us For Availability
12
Drain Plug WPL 4357019 Contact Us For Availability
12
Evaporator Shelf WPL 4357191 Contact Us For Availability
13
Bracket WPL 4357089 Contact Us For Availability
13
Evaporator Shelf WPL 4357192 Contact Us For Availability
14
Screw (Short) WPL 4390511 Contact Us For Availability
14
Washer WPL 4357057 Contact Us For Availability
15
Grommet, Drain WPL 4357147 Contact Us For Availability
15
Socket, Lamp WPL 4356874 Contact Us For Availability
16
Power Cord WPL 4357096 Contact Us For Availability
16
Light Shield WPL 4356934 Contact Us For Availability
16
Heat Exchanger WPL 4357188 Contact Us For Availability
17
Spring Clip WPL 4356842 Contact Us For Availability
17
Tube Cover (13.25 Inches) WPL 4356867 Contact Us For Availability
17
Cover WPL 4356946 Contact Us For Availability
18
Tube Cover (9.5 Inches) WPL 4357194 Contact Us For Availability
18
Clip WPL 4356951 Contact Us For Availability
19
Tube Cover (7.0 Inches) WPL 4357195 Contact Us For Availability
19
Capacitor WPL 4357209 Contact Us For Availability
20
Washer WPL 4356992 Contact Us For Availability
20
Tube Cover (8.25 Inches) WPL 4357196 Contact Us For Availability
21
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
21
Handle Assembly (Includes Items 11, 12, 13 & WPL 4357144 Contact Us For Availability
21
Clip WPL 4356317 Contact Us For Availability
21
Enamel (Almond) (1 Qt. Uncut) WPL 798883 Contact Us For Availability
23
Evaporator Shelf, Bottom WPL 4357193 Contact Us For Availability
× ![]()
