Model Whirlpool EU16K FREEZER – Common Parts & Diagrams

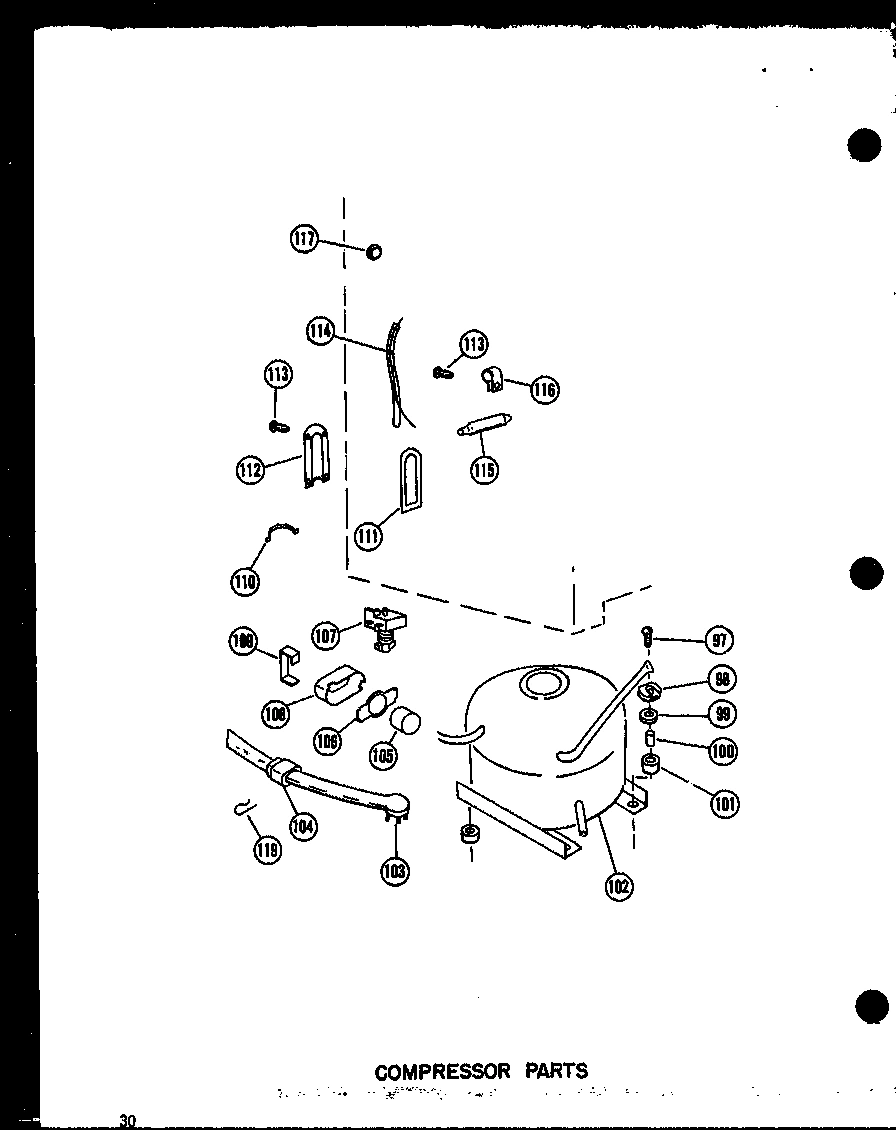

01 - COMPRESSOR PARTS

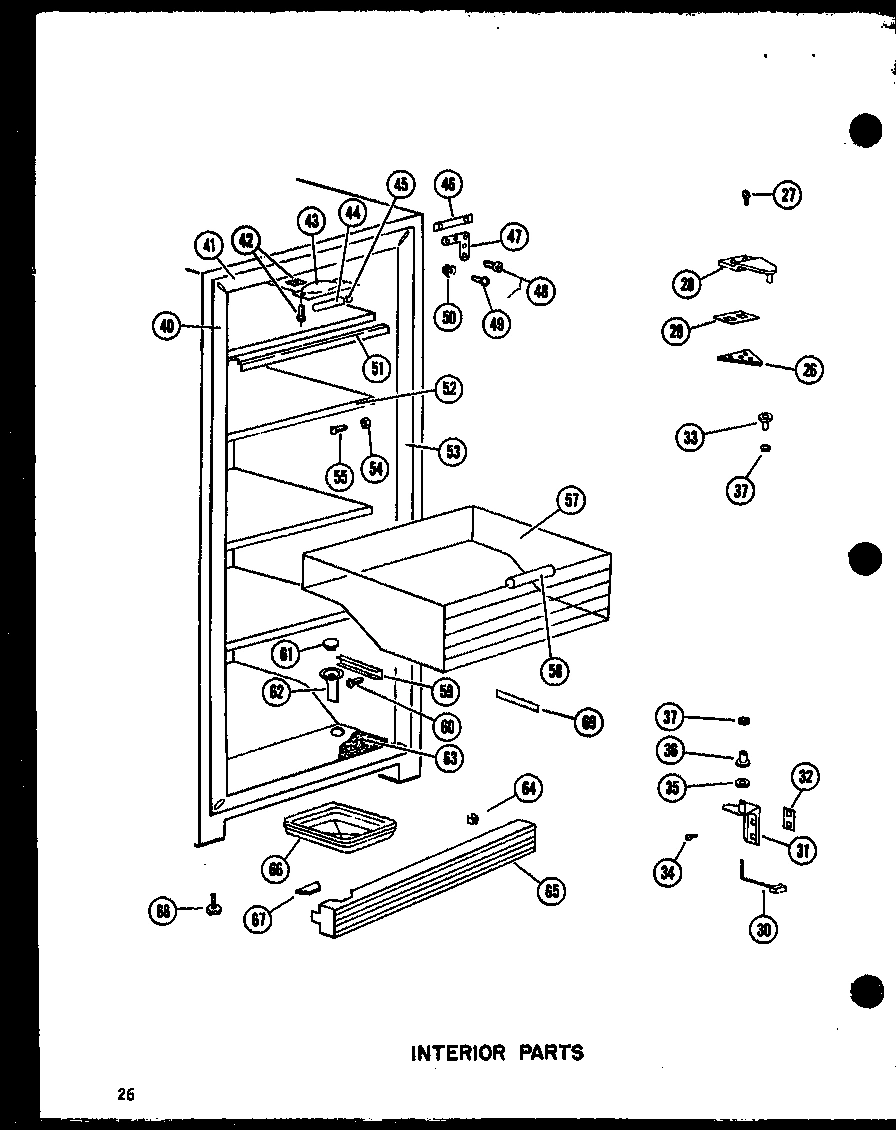

03 - INTERIOR PARTS

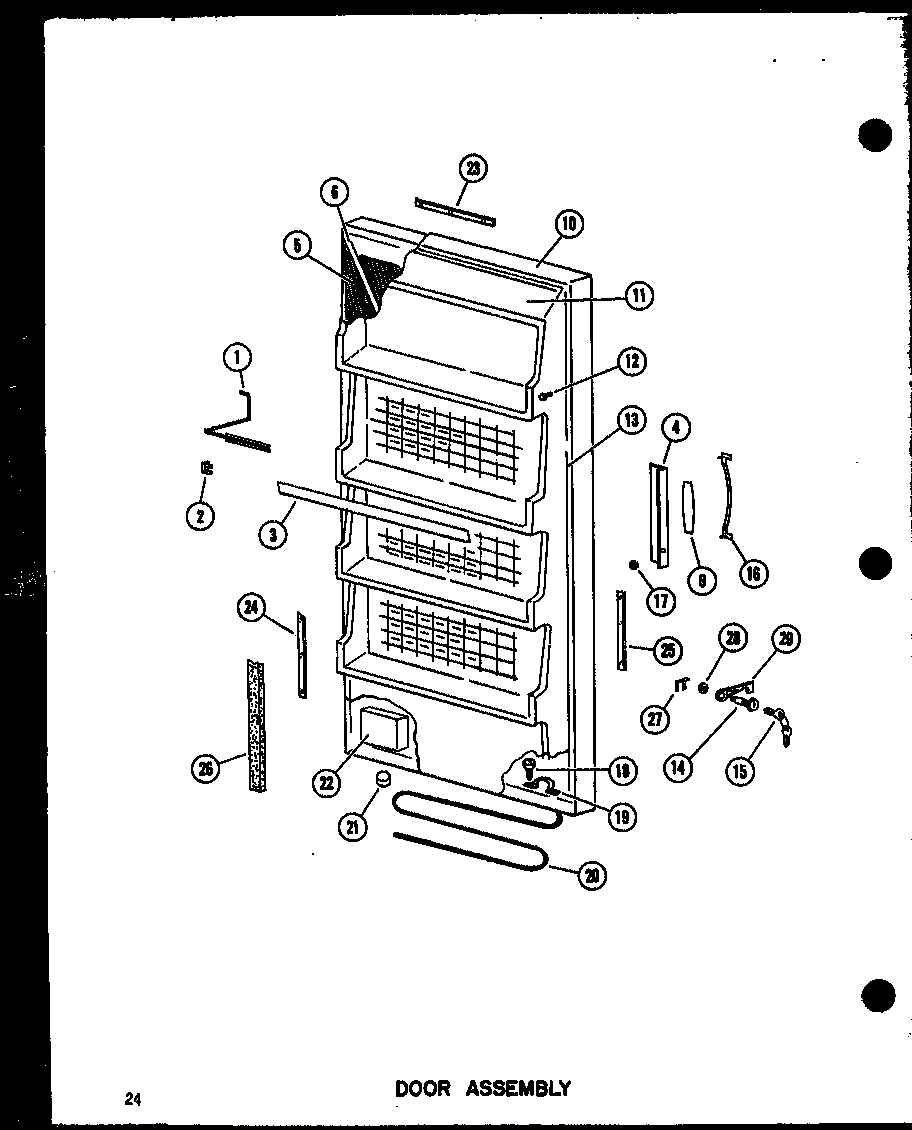

02 - DOOR ASSY

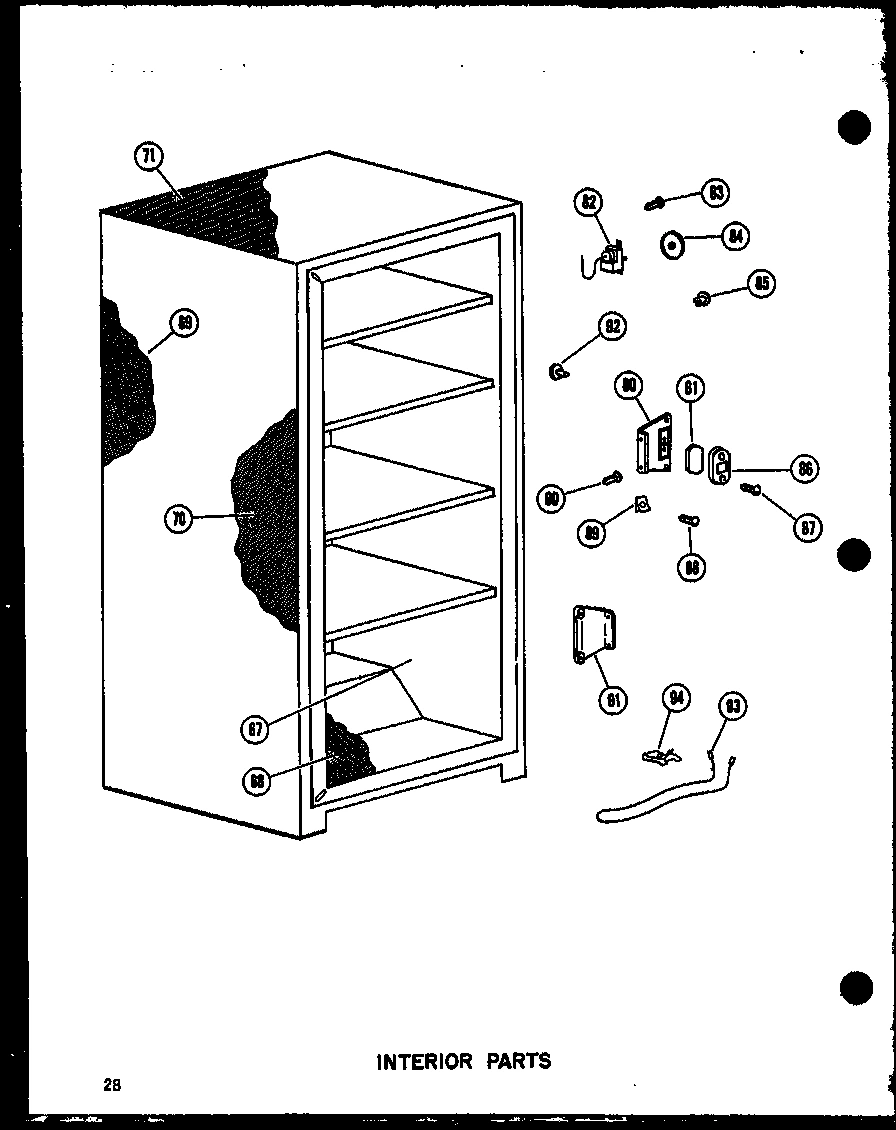

04 - INTERIOR PARTS
Common parts from model Whirlpool EU16K FREEZER
U13K/P60250-5W THESE MODELS HAVE A DANFOSS CO WPL NOTE Contact Us For Availability
1
RETAINER WPL C3683101 Contact Us For Availability
2
END CAP WPL B5687901 Contact Us For Availability
3
RETAINER WPL B5632008 Contact Us For Availability
4
PAD-HANDLE WPL D7162501 Contact Us For Availability
5
INSULATION, BATT FILLER WPL B0523820 Contact Us For Availability
5
INSULATION WPL B0566704 Contact Us For Availability
5
INSULATION WPL B0573905 Contact Us For Availability
6
TIE ROD WPL B0569802 Contact Us For Availability
9
NAMEPLATE WPL C3682702 Contact Us For Availability
10
DOOR W-UF16K WPL D7017029 Contact Us For Availability
10
DOOR C-UF16K WPL D7017030 Contact Us For Availability
10
DOOR A-UF16K WPL D7017031 Contact Us For Availability
10
DOOR G-UF16K WPL D7017032 Contact Us For Availability
11
INNER DOOR PANEL WPL D7156301 Contact Us For Availability
12
SCREW-SM WPL M0241118 Contact Us For Availability
13
GASKET, DOOR WPL D7158702 Contact Us For Availability
14
BARREL LOCK K WPL B5688002 Contact Us For Availability
15
KEY K WPL A3199101 Contact Us For Availability
16
HANDLE WPL D7096001 Contact Us For Availability
17
NUT WPL M0289801 Contact Us For Availability
18
SEMS FASTNER WPL M0243037 Contact Us For Availability
19
SPRING CLIP WPL B0544001 Contact Us For Availability
20
HEATER WIRE WPL C3643802 Contact Us For Availability
21
VENT ASSY WPL A3101901 Contact Us For Availability
22
BLOCK-AIR VENT WPL C3684701 Contact Us For Availability
23
RETAINER-GASKET WPL D7158601 Contact Us For Availability
24
RETAINER-GASKET WPL D7158604 Contact Us For Availability
25
RETAINER-GASKET WPL D7158605 Contact Us For Availability
26
TAP STRIP WPL A3139701 Contact Us For Availability
27
CLIP K WPL A3199001 Contact Us For Availability
28
HINGE-TOP WPL B5687801 Contact Us For Availability
28
WASHER-PLASTIC WPL M0274033 Contact Us For Availability
29
SHIM WPL A3143701 Contact Us For Availability
29
SHIM WPL A3143702 Contact Us For Availability
29
SHIM, TOP HINGE .064 WPL A3143703 Contact Us For Availability
29
BOLT K WPL C3682301 Contact Us For Availability
30
HINGE WIRE WPL C3685701 Contact Us For Availability
31
HINGE WPL C3682102 Contact Us For Availability
32
SHIM WPL A3061901 Contact Us For Availability
32
SHIM WPL A3061902 Contact Us For Availability
33
BEARING FLAT (TOP HINGE) WPL B0539806 Contact Us For Availability
34
SCREW WPL M0246159 Contact Us For Availability
35
WASHER K WPL M0274013 Contact Us For Availability
36
FLAT BEARING (BOTTOM HINGE) WPL B0539807 Contact Us For Availability
37
WASHER WPL M0274027 Contact Us For Availability
40
BREAKER FRAME WPL D3914002 Contact Us For Availability
41
BREAKER FRAME WPL D3710305 Contact Us For Availability
42
SPEED NUT WPL M0288010 Contact Us For Availability
43
HOUSING, LIGHT WPL C3540303 Contact Us For Availability
44
LIGHT BULB (40W / 230V) WPL A3079004 Contact Us For Availability
45
SOCKET-LIGHT WPL C3685801 Contact Us For Availability
46
TAP STRIP WPL A3013201 Contact Us For Availability
47
LINER GUSSET WPL C3523801 Contact Us For Availability
48
SCREW WPL M0250531 Contact Us For Availability
49
SEMS FASTNER WPL M0252047 Contact Us For Availability
50
GROMMET WPL A0381801 Contact Us For Availability
50
GROMMET WPL A0381802 Contact Us For Availability
51
TRIM WPL B5688802 Contact Us For Availability
52
SHELF WLDMT WPL D3856911 Contact Us For Availability
53
BREAKER FRAME WPL D7098701 Contact Us For Availability
54
NUT A WPL M0281204 Contact Us For Availability
55
SCREW WPL M0207943 Contact Us For Availability
57
BASKET K WPL D7163101 Contact Us For Availability
61
DRAIN SCREEN WPL A3113701 Contact Us For Availability
62
DRAIN-VALVE WPL A3044501 Contact Us For Availability
63
INSULATION WPL A3130001 Contact Us For Availability
63
BLOCK WPL B0555403 Contact Us For Availability
64
CLIP, GRILLE WPL M0117301 Contact Us For Availability
65
GRILLE-TOE WPL D7070202 Contact Us For Availability
66
DRAIN PAN WPL C3523101 Contact Us For Availability
67
GRILLE-TOE WPL B5641301 Contact Us For Availability
67
ASSEMBLY, LINER & TUBING WPL N6025906 Contact Us For Availability
68
GLIDER BOLT WPL M0266510 Contact Us For Availability
68
INSULATION, BATT - BOTTOM, 1-5 WPL B0523528 Contact Us For Availability
68
INSULATION, BOTTOM WPL B0553902 Contact Us For Availability
69
TAP STRIP-GLIDE WPL B5695201 Contact Us For Availability
69
INSULATION, BATT BACK WPL B0572702 Contact Us For Availability
70
INSULATION BATT, SIDES WPL B0572903 Contact Us For Availability
71
INSULATION BATT, TOP WPL B0535213 Contact Us For Availability
71
INSULATION FT. K WPL B0572828 Contact Us For Availability
80
STRIKE PAD WPL D3913901 Contact Us For Availability
81
SHIM WPL A3063201 Contact Us For Availability
81
SHIM WPL A3063202 Contact Us For Availability
82
CONTROL, TEMPERATURE WPL B0543810 Contact Us For Availability
83
SCREW WPL M0202528 Contact Us For Availability
84
KNOB, CONTROL WPL C3577902 Contact Us For Availability
85
RIVET PLASTIC WPL A3032601 Contact Us For Availability
86
STRIKE LOCK WPL B0570101 Contact Us For Availability
87
SCREW WPL M0230834 Contact Us For Availability
89
SPEED NUT WPL M0288107 Contact Us For Availability
91
TIE STRIP WPL D3913801 Contact Us For Availability
92
SWITCH, LIGHT WPL D7101301 Contact Us For Availability
93
HEATER MULLION WPL C3684902 Contact Us For Availability
98
CLIP WPL M0111001 Contact Us For Availability
101
GROMMET K WPL A4002702 Contact Us For Availability
102
COMPRESSOR, TECUMSEH WPL D3904401 Contact Us For Availability
103
CORD WPL B0568501 Contact Us For Availability
103
WIRING HARNESS WPL D7163803 Contact Us For Availability
104
STRAIN RELIEF K WPL A0319703 Contact Us For Availability
105
OVERLOAD WPL C3568401 Contact Us For Availability
106
SPRING K WPL A3043601 Contact Us For Availability
107
RELAY K WPL C3568501 Contact Us For Availability
108
TERMINAL COVER WPL B0551801 Contact Us For Availability
109
STRAP K WPL A3041801 Contact Us For Availability
110
WALL SPACER WPL A3032901 Contact Us For Availability
111
GASKET WPL A0382801 Contact Us For Availability
112
COVER PLATE WPL A0382902 Contact Us For Availability
112
COVER PLATE WPL A0382903 Contact Us For Availability
112
COVER PLATE -G WPL A0382904 Contact Us For Availability
112
COVER PLATE-L WPL A0382905 Contact Us For Availability
114
HEAT EXCHANGE ASSY WPL D7164105 Contact Us For Availability
116
CLAMP WPL M0102315 Contact Us For Availability
117
PLUG WPL A0353901 Contact Us For Availability
119
CLIP WPL M0110502 Contact Us For Availability
× ![]()
