Model Whirlpool EU13K-L FREEZER – Common Parts & Diagrams

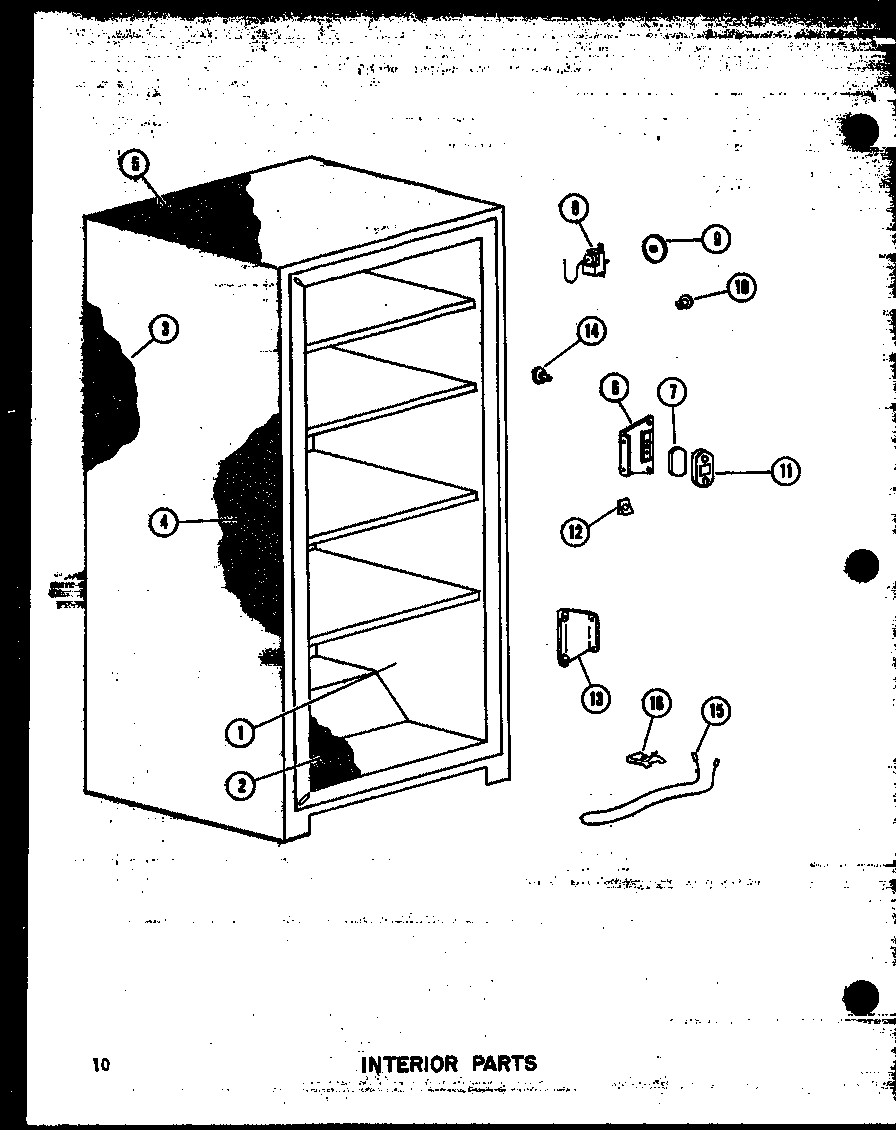

04 - INTERIOR PARTS

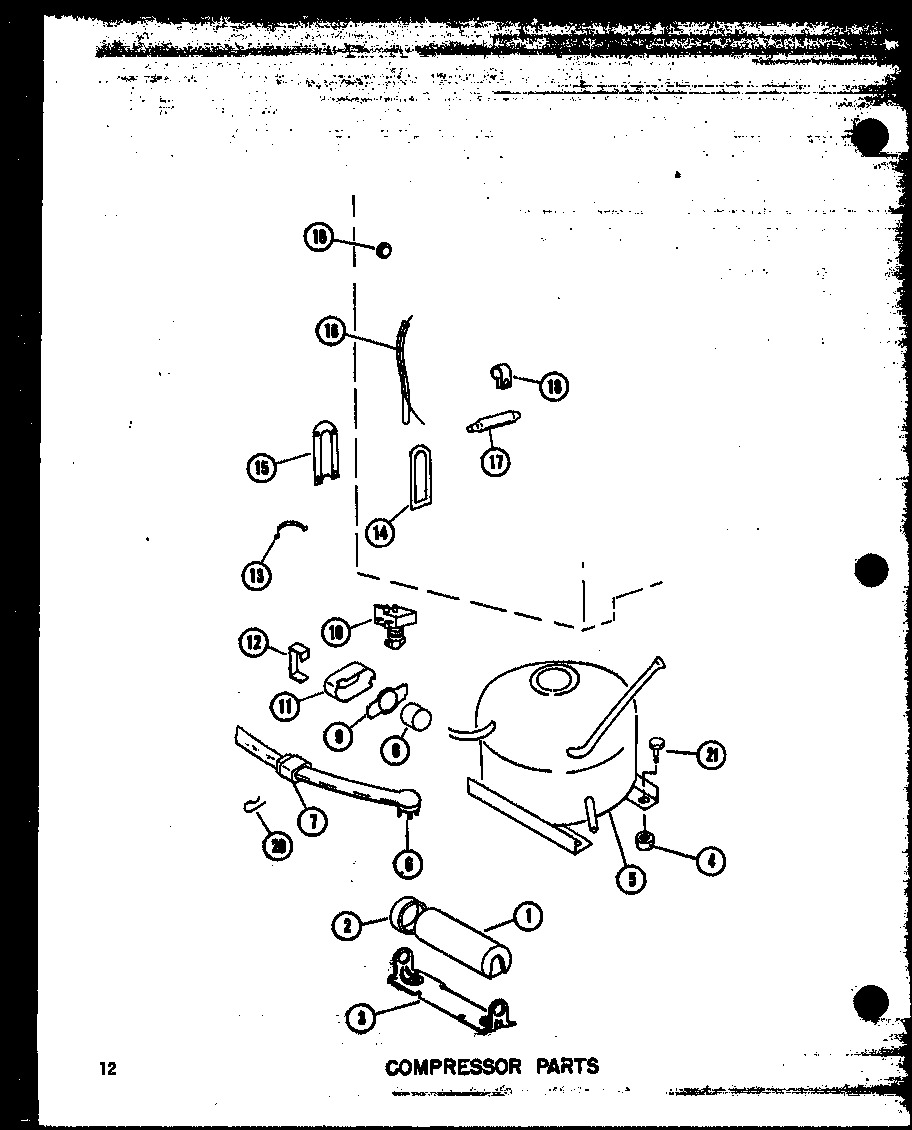

01 - COMPRESSOR PARTS

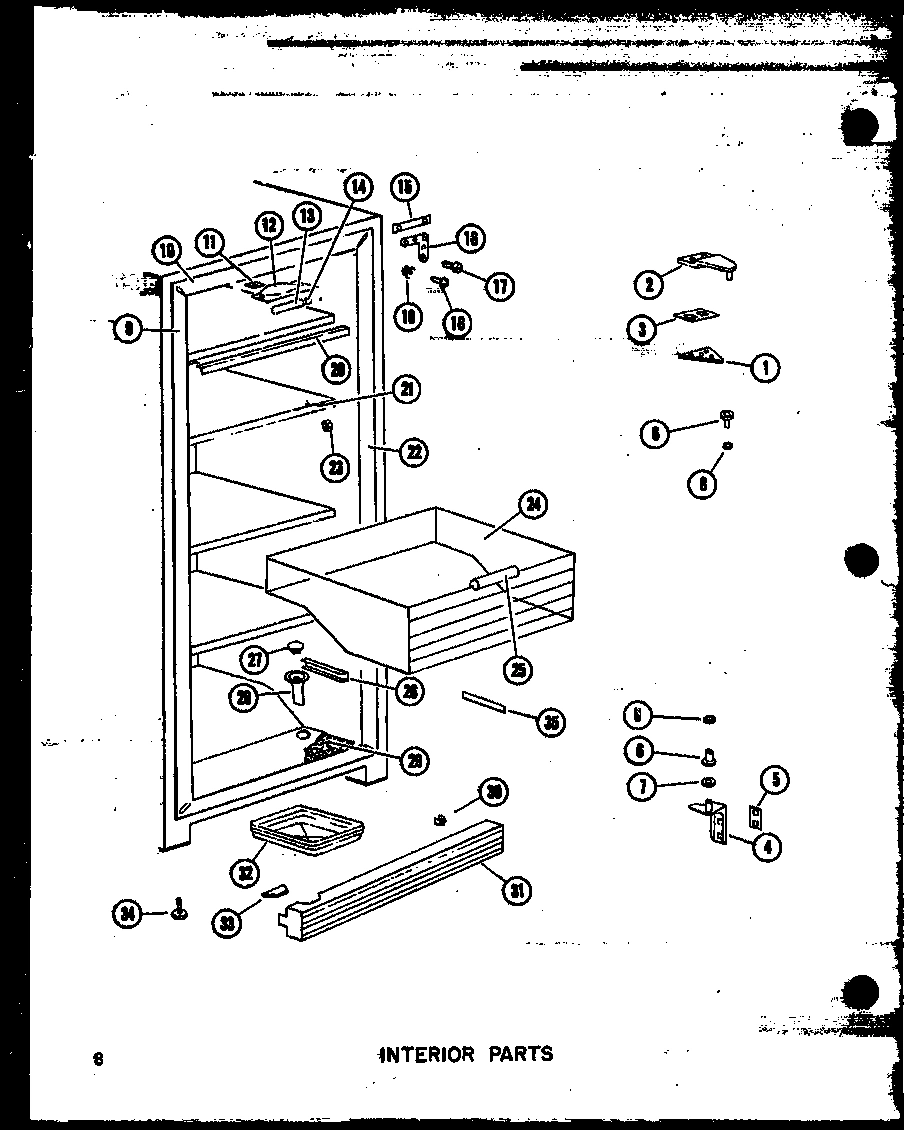

03 - INTERIOR PARTS

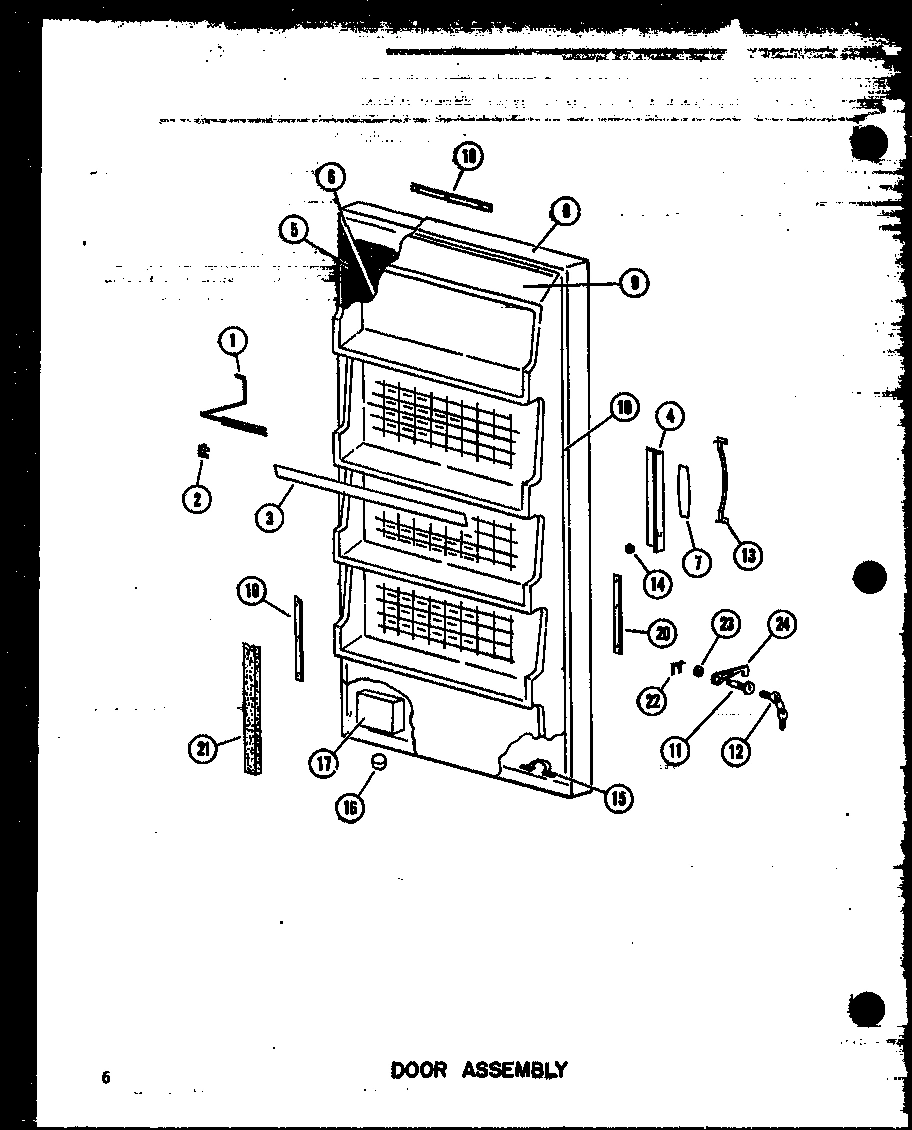

02 - DOOR ASSY
Common parts from model Whirlpool EU13K-L FREEZER
1
LINER ASSY WPL D7329005 Contact Us For Availability
1
CAPACITOR WPL M0301004 Contact Us For Availability
1
TAP STRIP WPL A3139701 Contact Us For Availability
1
RETAINER WPL C3683102 Contact Us For Availability
2
INSULATION, BATT - BOTTOM, 1-5 WPL B0523528 Contact Us For Availability
2
INSULATION, BOTTOM WPL B0553904 Contact Us For Availability
2
END CAP WPL M0301002 Contact Us For Availability
2
HINGE-TOP WPL B5721501 Contact Us For Availability
2
END CAP WPL B5687901 Contact Us For Availability
3
INSULATION BATT, BACK WPL B0572708 Contact Us For Availability
3
BRACKET-CAPACITOR WPL M0370801 Contact Us For Availability
3
SHIM, TOP HINGE WPL A3270301 Contact Us For Availability
3
SHIM-TOP HINGE K WPL A3270302 Contact Us For Availability
3
SHIM KIT WPL A3270303 Contact Us For Availability
3
RETAINER WPL B5632008 Contact Us For Availability
4
INSULATION BATT, SIDE WPL B0572906 Contact Us For Availability
4
GROMMET K WPL A4002702 Contact Us For Availability
4
HINGE, BOTTOM WPL C3682101 Contact Us For Availability
4
PAD-HANDLE WPL D7162501 Contact Us For Availability
5
INSULATION BATT, TOP WPL B0535212 Contact Us For Availability
5
COMPRESSPR AE2413A WPL D7300902 Contact Us For Availability
5
SHIM WPL A3061901 Contact Us For Availability
5
SHIM WPL A3061902 Contact Us For Availability
5
INSULATION WPL B0566709 Contact Us For Availability
5
INSULATION FT. K WPL B0572805 Contact Us For Availability
6
STRIKE PAD WPL D3913901 Contact Us For Availability
6
CORD WPL B0568501 Contact Us For Availability
6
WIRING HARNESS WPL D7237201 Contact Us For Availability
6
BEARING FLAT (TOP HINGE) WPL B0539806 Contact Us For Availability
6
TIE RODS WPL B0569801 Contact Us For Availability
7
SHIM WPL A3063201 Contact Us For Availability
7
SHIM WPL A3063202 Contact Us For Availability
7
STRAIN RELIEF K WPL A0319703 Contact Us For Availability
7
WASHER K WPL M0274013 Contact Us For Availability
7
NAMEPLATE WPL C3682701 Contact Us For Availability
8
COLD CONTROL WPL B0543809 Contact Us For Availability
8
OVERLOAD WPL C8779802 Contact Us For Availability
8
WASHER WPL M0274027 Contact Us For Availability
8
DOOR W-UF12K WPL D7017025 Contact Us For Availability
8
DOOR C-UF12K WPL D7017026 Contact Us For Availability
8
DOOR A-UF12K WPL D7017027 Contact Us For Availability
8
DOOR G-UF12K WPL D7017028 Contact Us For Availability
8
DOOR SHELL-AL WPL D7288815 Contact Us For Availability
9
KNOB, CONTROL WPL C3577902 Contact Us For Availability
9
SPRING K WPL A3043601 Contact Us For Availability
9
BREAKER FRAME WPL D7158802 Contact Us For Availability
9
INNER DOOR PANEL WPL D7159301 Contact Us For Availability
10
RIVET PLASTIC WPL A3032601 Contact Us For Availability
10
RELAY WPL M0300701 Contact Us For Availability
10
BREAKER FRAME WPL D3710305 Contact Us For Availability
10
GASKET, DOOR WPL D7158701 Contact Us For Availability
11
STRIKE-LOCK WPL B5728001 Contact Us For Availability
11
TERMINAL COVER WPL B0551801 Contact Us For Availability
11
BARREL LOCK K WPL B5688002 Contact Us For Availability
12
SPEED NUT WPL M0288107 Contact Us For Availability
12
STRAP K WPL A3041801 Contact Us For Availability
12
KEY K WPL A3199101 Contact Us For Availability
13
TIE STRIP WPL D3913801 Contact Us For Availability
13
WALL SPACER WPL A3032901 Contact Us For Availability
13
HANDLE WPL D7096001 Contact Us For Availability
14
GASKET WPL A0382801 Contact Us For Availability
14
NUT WPL M0289801 Contact Us For Availability
15
HEATER MULLION WPL C3684904 Contact Us For Availability
15
COVER PLATE WPL A0382902 Contact Us For Availability
15
COVER PLATE WPL A0382903 Contact Us For Availability
15
COVER PLATE -G WPL A0382904 Contact Us For Availability
15
COVER PLATE-L WPL A0382905 Contact Us For Availability
15
PLATE-AL WPL A0382906 Contact Us For Availability
15
TAP STRIP WPL A3013202 Contact Us For Availability
15
SPRING CLIP WPL B0544001 Contact Us For Availability
16
CLIP WPL M0113401 Contact Us For Availability
16
HEAT EXCHANGE ASSY WPL D7164104 Contact Us For Availability
16
LINER GUSSET WPL C3523802 Contact Us For Availability
16
VENT ASSY WPL A3101901 Contact Us For Availability
17
SCREW WPL M0250530 Contact Us For Availability
17
BLOCK-AIR VENT WPL C3684701 Contact Us For Availability
18
CLAMP, DRIER WPL M0102316 Contact Us For Availability
18
SEMS FASTNER WPL M0252047 Contact Us For Availability
18
RETAINER-GASKET WPL D7158601 Contact Us For Availability
19
PLUG WPL M0310314 Contact Us For Availability
19
GROMMET WPL A0381801 Contact Us For Availability
19
GROMMET WPL A0381802 Contact Us For Availability
19
GROMMET WPL A0381803 Contact Us For Availability
19
RETAINER-GASKET WPL D7158602 Contact Us For Availability
20
CLIP WPL M0110502 Contact Us For Availability
20
TRIM WPL B5688802 Contact Us For Availability
20
RETAINER-GASKET WPL D7158603 Contact Us For Availability
21
SCREW WPL M0221461 Contact Us For Availability
21
x$x SHELF WLD WPL D3884603 Contact Us For Availability
22
BREAKER FRAME WPL D7158801 Contact Us For Availability
22
CLIP K WPL A3199001 Contact Us For Availability
23
NUT A WPL M0281204 Contact Us For Availability
23
WASHER-PLASTIC WPL M0274033 Contact Us For Availability
24
BOLT K WPL C8715301 Contact Us For Availability
27
DRAIN SCREEN WPL A3113702 Contact Us For Availability
28
DRAIN-VALVE WPL A3044501 Contact Us For Availability
29
INSULATION WPL A3130001 Contact Us For Availability
29
BLOCK WPL B0555401 Contact Us For Availability
30
CLIP, GRILLE WPL M0117301 Contact Us For Availability
31
GRILLE-TOE WPL D7070207 Contact Us For Availability
32
PAN, DRAIN WPL D7001001 Contact Us For Availability
33
GRILLE-TOE WPL B5641301 Contact Us For Availability
34
GLIDER BOLT WPL M0266510 Contact Us For Availability
× ![]()
