Model Whirlpool ESUF16D FREEZER – Common Parts & Diagrams
01 - Page 1

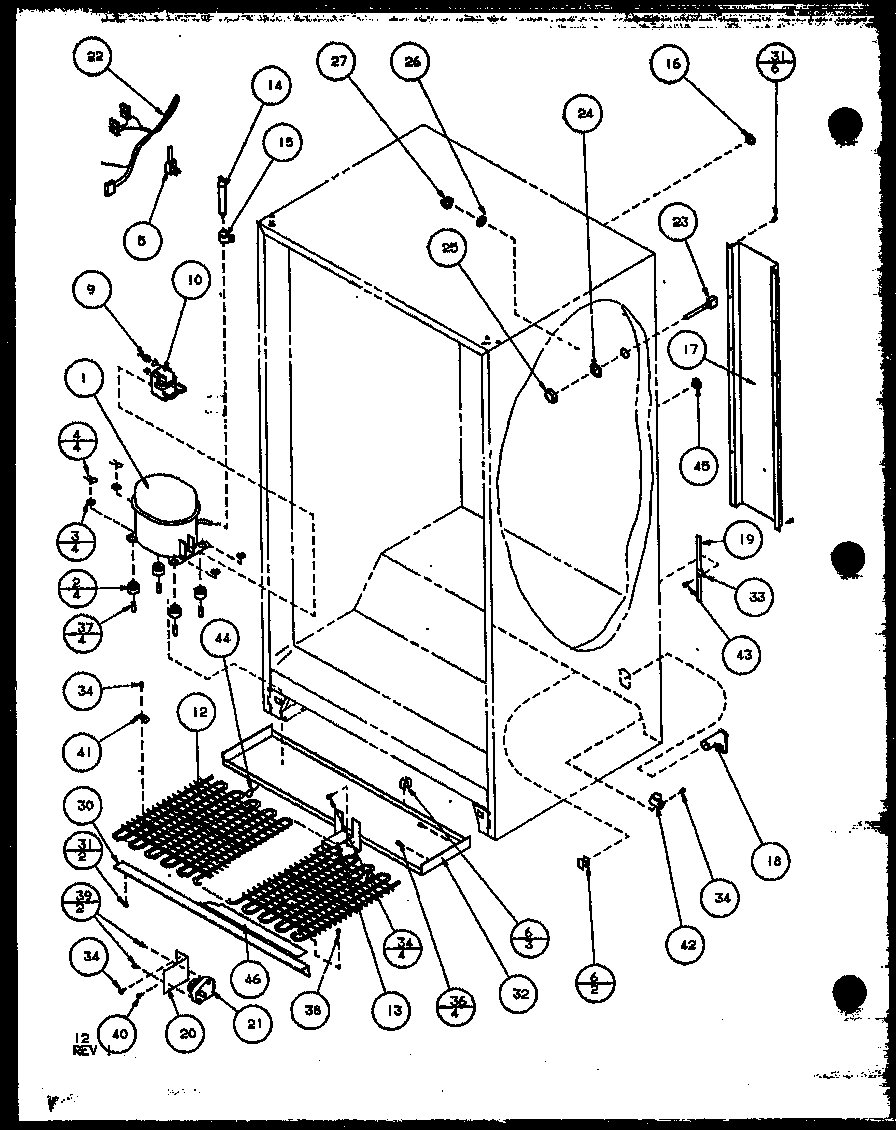

04 - Page 4

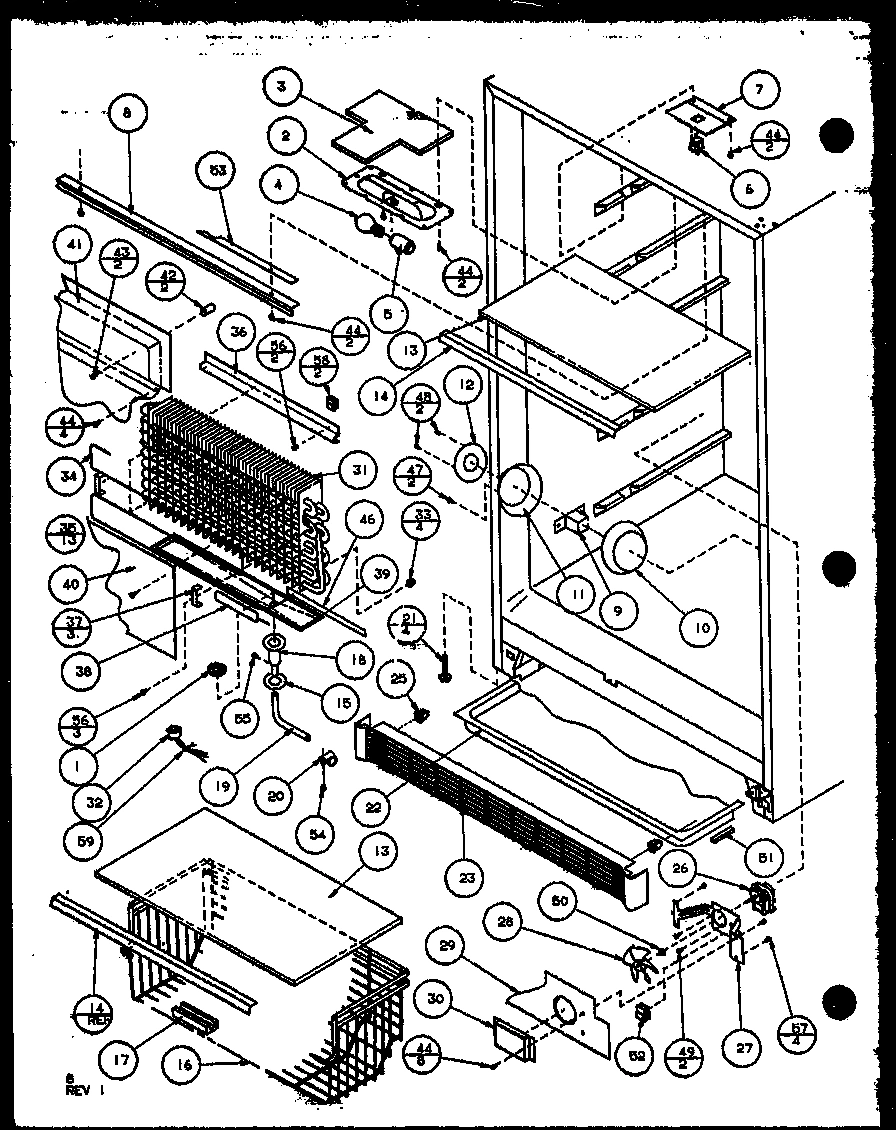

02 - Page 2

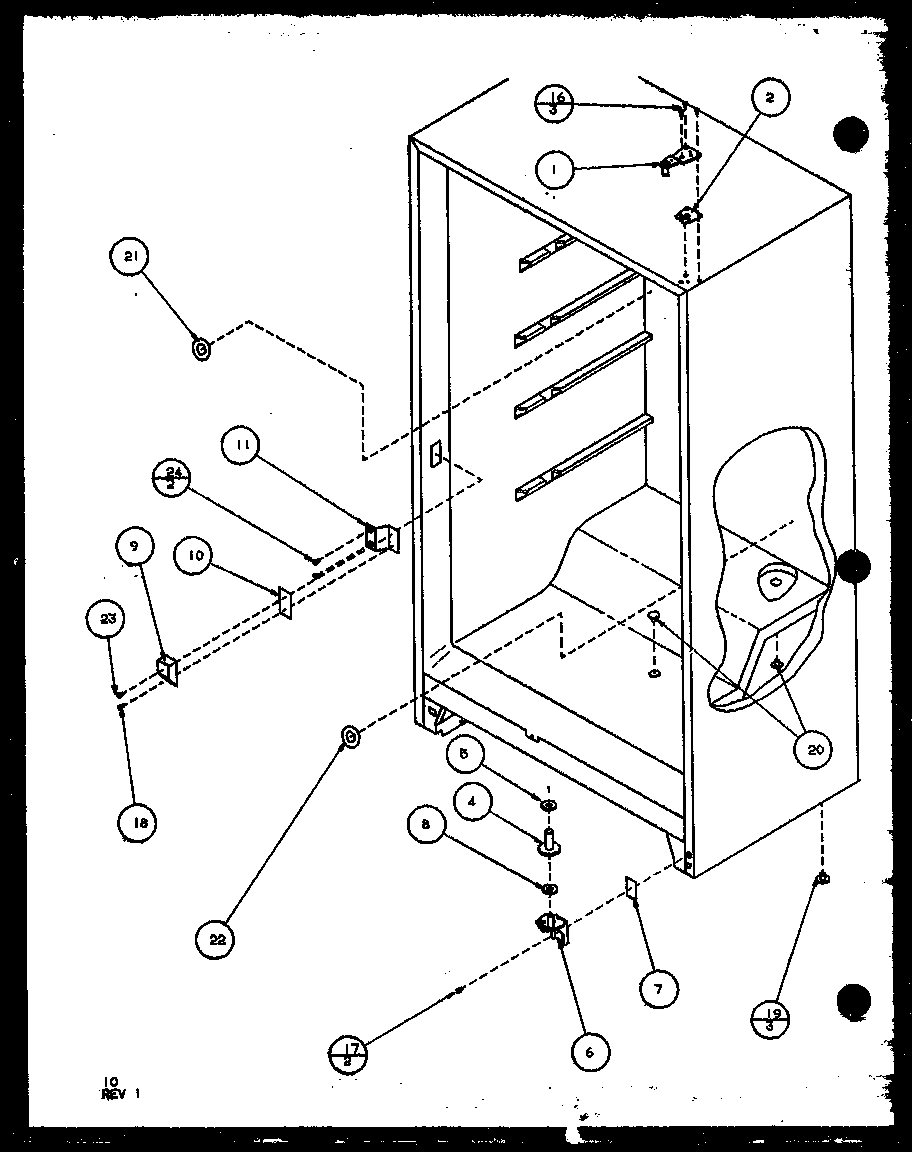

03 - Page 3
Common parts from model Whirlpool ESUF16D FREEZER
1
RETAINER WPL C3683103 Contact Us For Availability
1
RETAINER, PACKAGE WPL C3683104 Contact Us For Availability
1
DRAIN SCREEN WPL A3113702 Contact Us For Availability
1
HINGE-TOP WPL B5721501 Contact Us For Availability
2
END CAP WPL B5687901 Contact Us For Availability
2
GROMMET K WPL A3026101 Contact Us For Availability
2
HOUSING-LIGHT WPL C8758501 Contact Us For Availability
2
SHIM, TOP HINGE WPL B8389001 Contact Us For Availability
2
SHIM TOP HINGE WPL B8389002 Contact Us For Availability
2
SHIM, TOP HINGE, .016 WPL B8389003 Contact Us For Availability
3
RETAINER WPL B5632011 Contact Us For Availability
3
WASHER WPL B8365302 Contact Us For Availability
3
INSULATION WPL B5766901 Contact Us For Availability
4
PAD-HANDLE WPL D7344401 Contact Us For Availability
4
CLIP K WPL A3140801 Contact Us For Availability
5
INSULATION WPL B0566712 Contact Us For Availability
5
INSULATION WPL B0566713 Contact Us For Availability
5
INSULATION WPL B0566715 Contact Us For Availability
5
INSULATION WPL B0566719 Contact Us For Availability
5
FOAM SLAB WPL B5612023 Contact Us For Availability
5
HARNESS-MC WPL D7287103 Contact Us For Availability
5
SOCKET-LIGHT WPL D7714403 Contact Us For Availability
6
TIE ROD WPL B0569811 Contact Us For Availability
6
CLIP-CABLE WPL M0110505 Contact Us For Availability
6
HINGE, BOTTOM WPL C8728101 Contact Us For Availability
7
CLIP-TIE ROD WPL A3282201 Contact Us For Availability
7
COVER-LIGHT SWITCH WPL D7286601 Contact Us For Availability
7
SHIM WPL A3143601 Contact Us For Availability
7
SHIM WPL A3143602 Contact Us For Availability
7
SHIM WPL A3143603 Contact Us For Availability
8
NAMEPLATE WPL B5758805 Contact Us For Availability
8
SHIELD-LIGHT WPL D7288101 Contact Us For Availability
8
WASHER K WPL M0274013 Contact Us For Availability
8
WASHER K WPL M0274014 Contact Us For Availability
9
DOOR ESU17DW Q WPL D7690301 Contact Us For Availability
9
OUTER DOOR SHELL, ALMOND WPL D7690305 Contact Us For Availability
9
RELAY/OVERLOAD ASSY WPL C8949502 Contact Us For Availability
9
TEMP CONTROL WPL C8764901 Contact Us For Availability
9
STRIKE-LOCK WPL B5728001 Contact Us For Availability
10
INNER DR PANEL WPL D7279201 Contact Us For Availability
10
TERM COVER ASSY K WPL B5772901 Contact Us For Availability
10
SHIELD-CONTROL WPL C8764801 Contact Us For Availability
10
SHIM WPL A3063201 Contact Us For Availability
10
SHIM WPL A3063202 Contact Us For Availability
11
GASKET, DOOR WPL D7676603 Contact Us For Availability
11
COVER-CONTROL WPL C8762901 Contact Us For Availability
11
TAP PLATE-STRIKE WPL B5756901 Contact Us For Availability
12
BARREL-LOCK WPL B5775401 Contact Us For Availability
12
PRE-COOLER WPL D7455001 Contact Us For Availability
12
KNOB-CONTROL WPL C3577903 Contact Us For Availability
13
KEY, LOCK WPL B5775301 Contact Us For Availability
13
BRACKET WPL B5747001 Contact Us For Availability
13
SHELF WPL D7335701 Contact Us For Availability
13
SHELF WPL D7335706 Contact Us For Availability
14
BOLT-LOCK WPL C3685302 Contact Us For Availability
14
TRIM-SHELF WPL B5688804 Contact Us For Availability
15
CLAMP-DRIER WPL M0104002 Contact Us For Availability
15
PLUG BUTTON WPL B5766401 Contact Us For Availability
16
BASKET WPL D7258601 Contact Us For Availability
17
HANDLE WPL C8958201 Contact Us For Availability
17
HEAT EXCHANGER COVER WPL D7751602 Contact Us For Availability
17
HANDLE BASKET WPL B0571806 Contact Us For Availability
17
SCREW WPL M0246258 Contact Us For Availability
18
SPRING CLIP WPL B0544001 Contact Us For Availability
18
TUNNEL-HEAT EX WPL B5749501 Contact Us For Availability
18
FUNNEL-DRAIN WPL C8944301 Contact Us For Availability
18
SCREW WPL M0228532 Contact Us For Availability
19
VENT ASSY WPL A3101901 Contact Us For Availability
19
PLUG, BUTTON (BLK) WPL A3080001 Contact Us For Availability
19
HEAT EX WPL D7290001 Contact Us For Availability
19
TUBE CLAMP WPL B5760801 Contact Us For Availability
20
BLOCK-AIR VENT WPL C3684702 Contact Us For Availability
20
BRACKET-TIMER WPL C8821701 Contact Us For Availability
20
CLAMP WPL M0102303 Contact Us For Availability
21
RETAINER-GASKET WPL D3928118 Contact Us For Availability
21
TIMER, DEFROST WPL D7790401 Contact Us For Availability
21
GLIDER BOLT WPL M0266510 Contact Us For Availability
21
PLUG BUTTON WPL A3091302 Contact Us For Availability
22
RETAINER-GASKET WPL D7158610 Contact Us For Availability
22
HARNESS WPL D7496702 Contact Us For Availability
22
GROMMET-HEAT EX WPL A3091303 Contact Us For Availability
22
DRAIN PAN WPL D3920001 Contact Us For Availability
23
RETAINER-GASKET WPL D7158611 Contact Us For Availability
23
FILL TUBE ASSY WPL B8318801 Contact Us For Availability
23
GRILLE TOE WPL D7263302 Contact Us For Availability
23
SCREW WPL M0230748 Contact Us For Availability
24
INSULATION FT. K WPL B0523563 Contact Us For Availability
24
POP RIVET WPL A4539601 Contact Us For Availability
25
SCREW WPL M0219717 Contact Us For Availability
25
CAP FILL TUBE WPL B5631801 Contact Us For Availability
25
CLIP, GRILLE WPL M0117301 Contact Us For Availability
25
PLUG WPL A3069103 Contact Us For Availability
26
SEMS FASTNER WPL M0243037 Contact Us For Availability
26
PLUG, BUTTON (WHT) WPL M0310701 Contact Us For Availability
26
MOTOR KIT WPL D7289701 Contact Us For Availability
27
SCREW WPL M0250531 Contact Us For Availability
27
CAP WPL B5636301 Contact Us For Availability
27
MOTOR MOUNT WPL C8722501 Contact Us For Availability
28
INSULATION-DOOR BLOCK WPL C8799901 Contact Us For Availability
28
FAN BLADE WPL B5739301 Contact Us For Availability
29
PLATE-AIR INLET WPL D7279501 Contact Us For Availability
30
SUPPORT WPL D7308201 Contact Us For Availability
30
GRILL-AIR INLET WPL C8758901 Contact Us For Availability
31
EVAPORATOR WPL D7289901 Contact Us For Availability
32
SUPPORT WPL D7262803 Contact Us For Availability
32
TERMINATOR WPL C8765001 Contact Us For Availability
33
CLAMP WPL B5794201 Contact Us For Availability
33
GROMMET WPL M0580003 Contact Us For Availability
34
HEATER-EVAP WPL D7291601 Contact Us For Availability
35
CLIP WPL M0110301 Contact Us For Availability
36
SCREW, T F WPL M0233844 Contact Us For Availability
36
CLAMP, EVAPORATOR HEATER WPL B5760101 Contact Us For Availability
37
SLEEVE K WPL A3072001 Contact Us For Availability
37
TUBE CLAMP WPL A3253802 Contact Us For Availability
38
SCREW WPL M0241132 Contact Us For Availability
38
CONTROL WELL WPL A3030903 Contact Us For Availability
39
SCREW,TC WPL M0230017 Contact Us For Availability
39
DRIP TRAY WPL D7289801 Contact Us For Availability
40
COVER EVAP WPL D7346001 Contact Us For Availability
41
CLIP-COND WPL A3054502 Contact Us For Availability
41
COVER-AIR DUCT WPL D7280401 Contact Us For Availability
42
CLAMP WPL M0103901 Contact Us For Availability
42
SPACER WPL A3268101 Contact Us For Availability
43
SCREW WPL M0210916 Contact Us For Availability
43
SCREW WPL M0230923 Contact Us For Availability
45
PLUG BUTTON WPL M0310319 Contact Us For Availability
46
FELT Q WPL A9008324 Contact Us For Availability
46
SEAL-DRIP TRAY WPL B5758701 Contact Us For Availability
47
SCREW WPL M0230926 Contact Us For Availability
50
NUT-WELL WPL M0292002 Contact Us For Availability
51
GASKET WPL A3030327 Contact Us For Availability
52
CLIP, GROUND WPL B5733302 Contact Us For Availability
53
GASKET (1= 1FT.) WPL A3030328 Contact Us For Availability
55
SCREW WPL M0232012 Contact Us For Availability
56
SCREW K WPL M0236721 Contact Us For Availability
57
SCREW WPL M0251030 Contact Us For Availability
58
CLIP WPL M0100901 Contact Us For Availability
× ![]()
