Model Whirlpool ESUF16C-G FREEZER – Common Parts & Diagrams

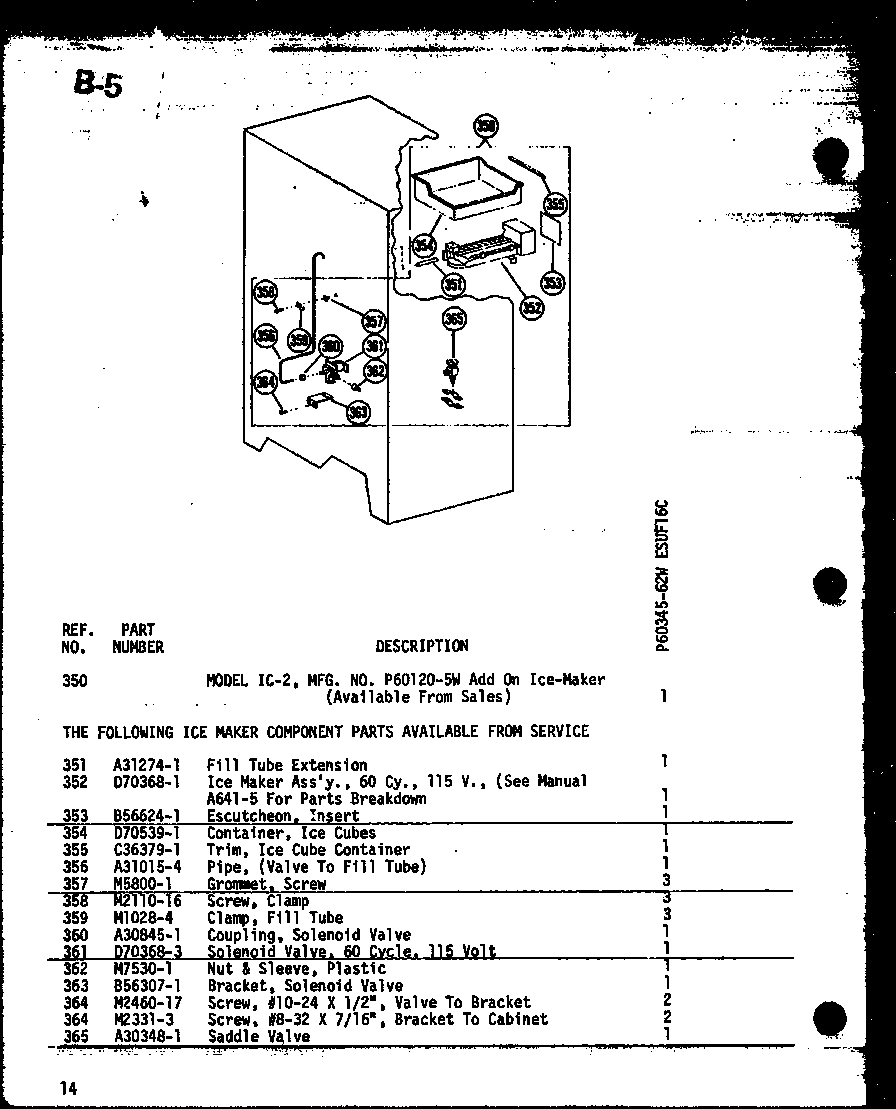

06 - Page 5

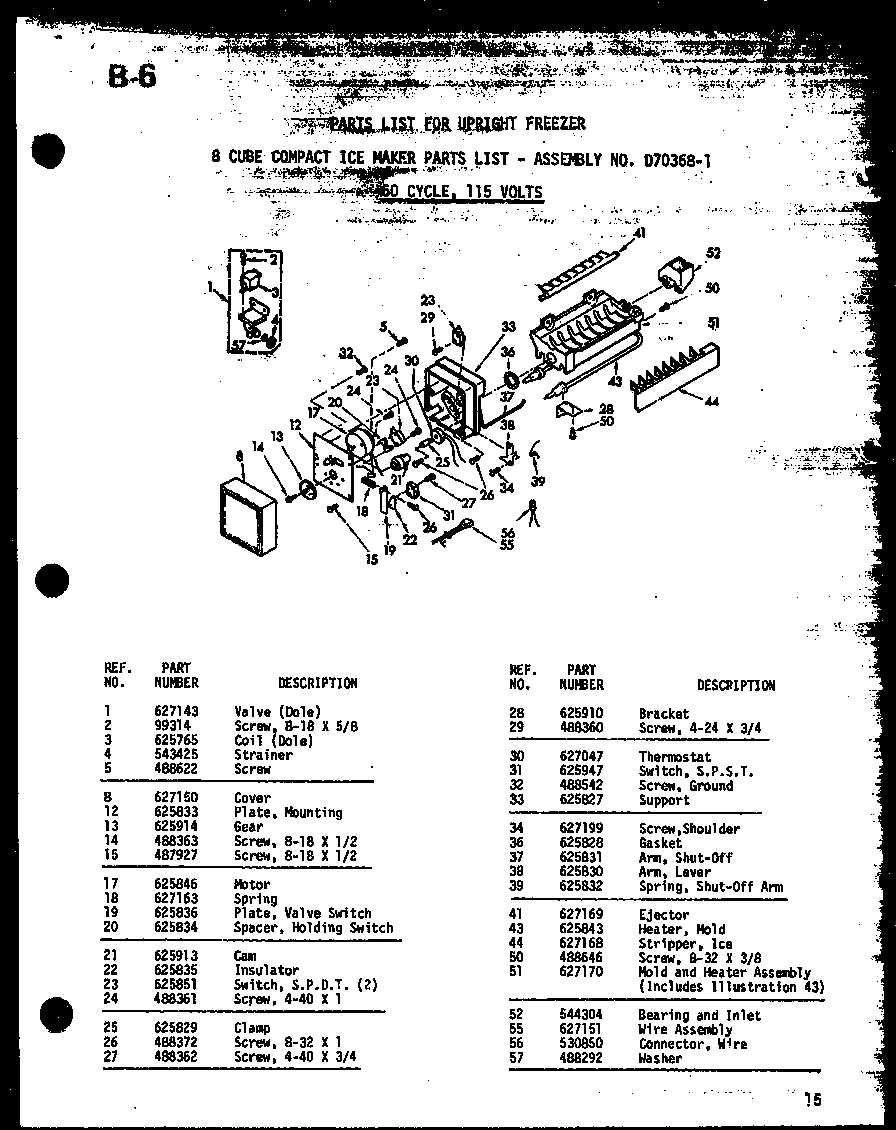

01 - 8 CUBE COMPACT ICE MAKER

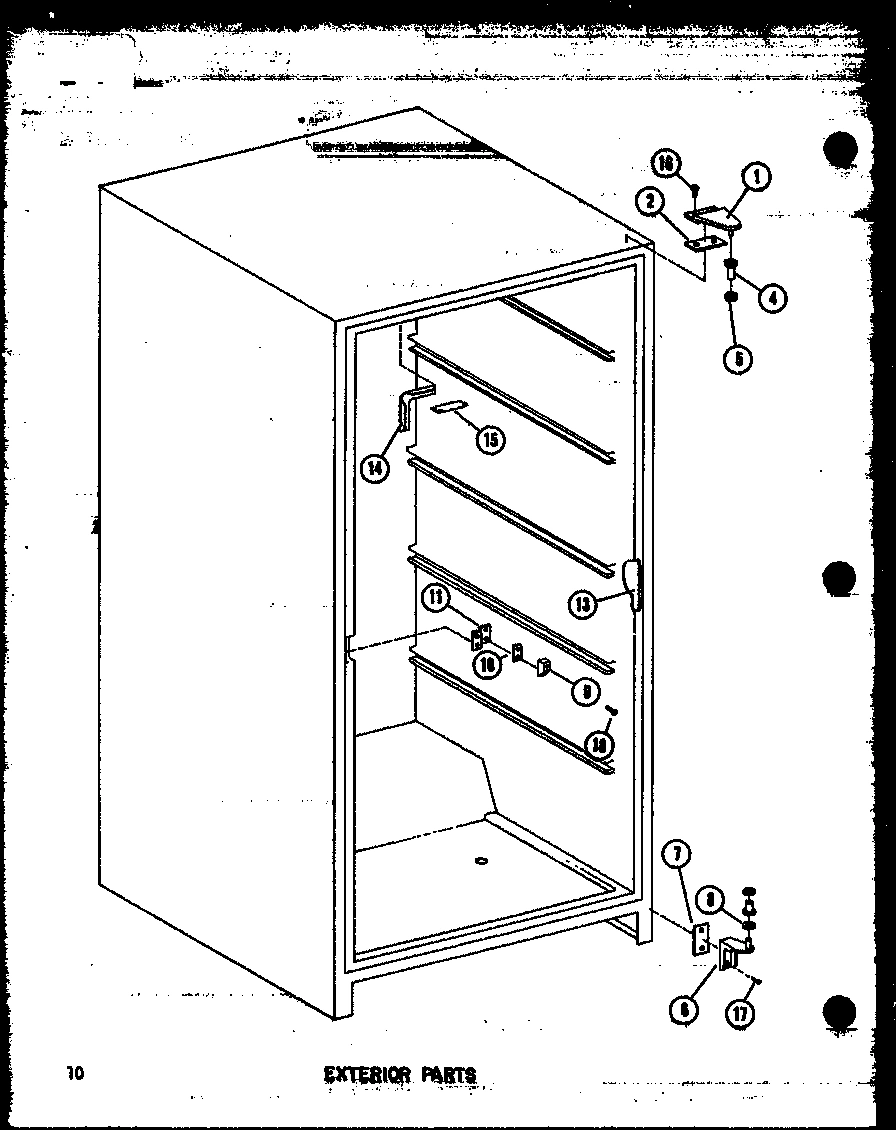

04 - EXTERIOR PARTS

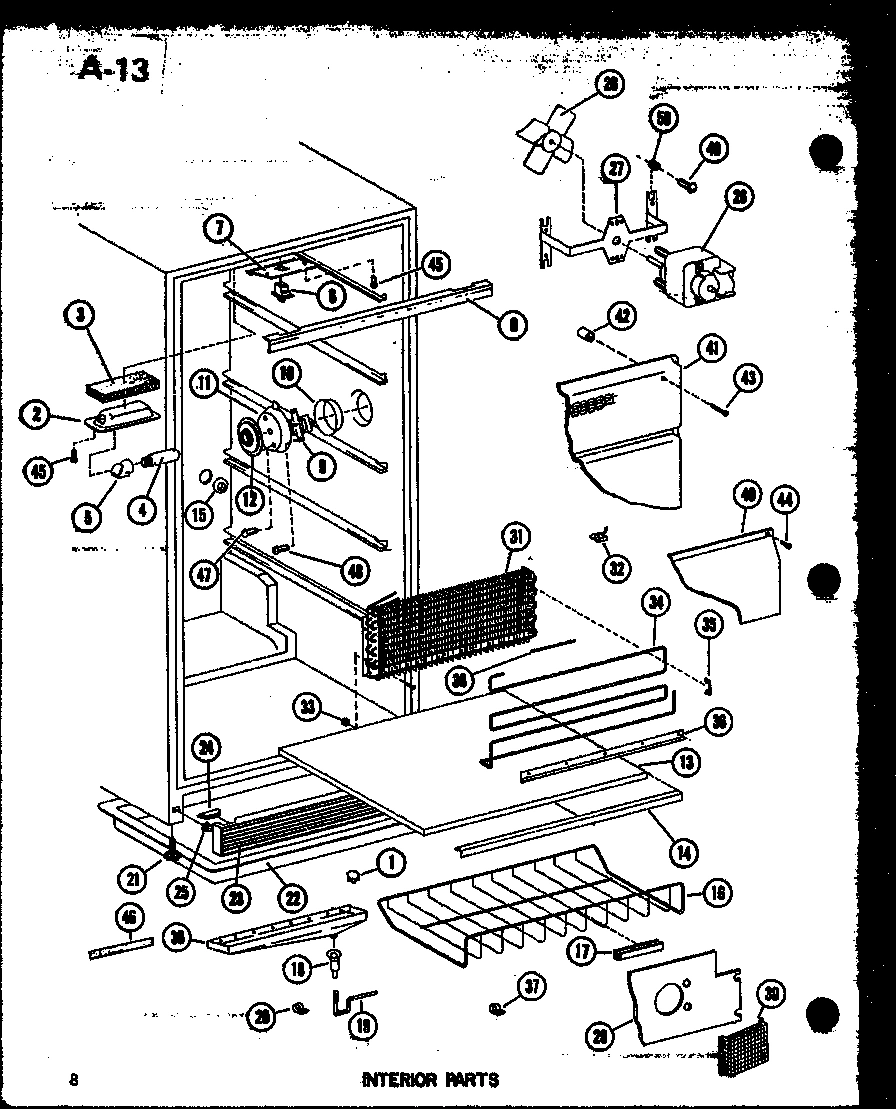

05 - INTERIOR PARTS

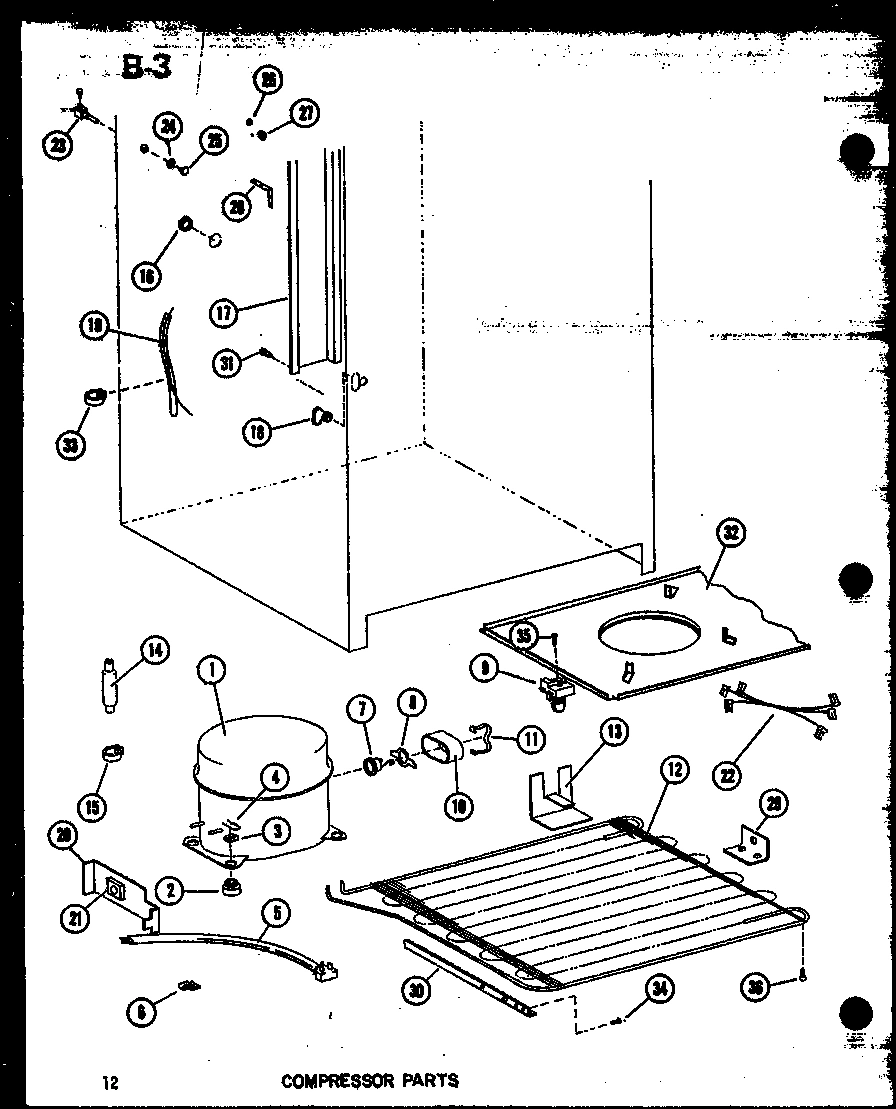

02 - COMPRESSOR PARTS

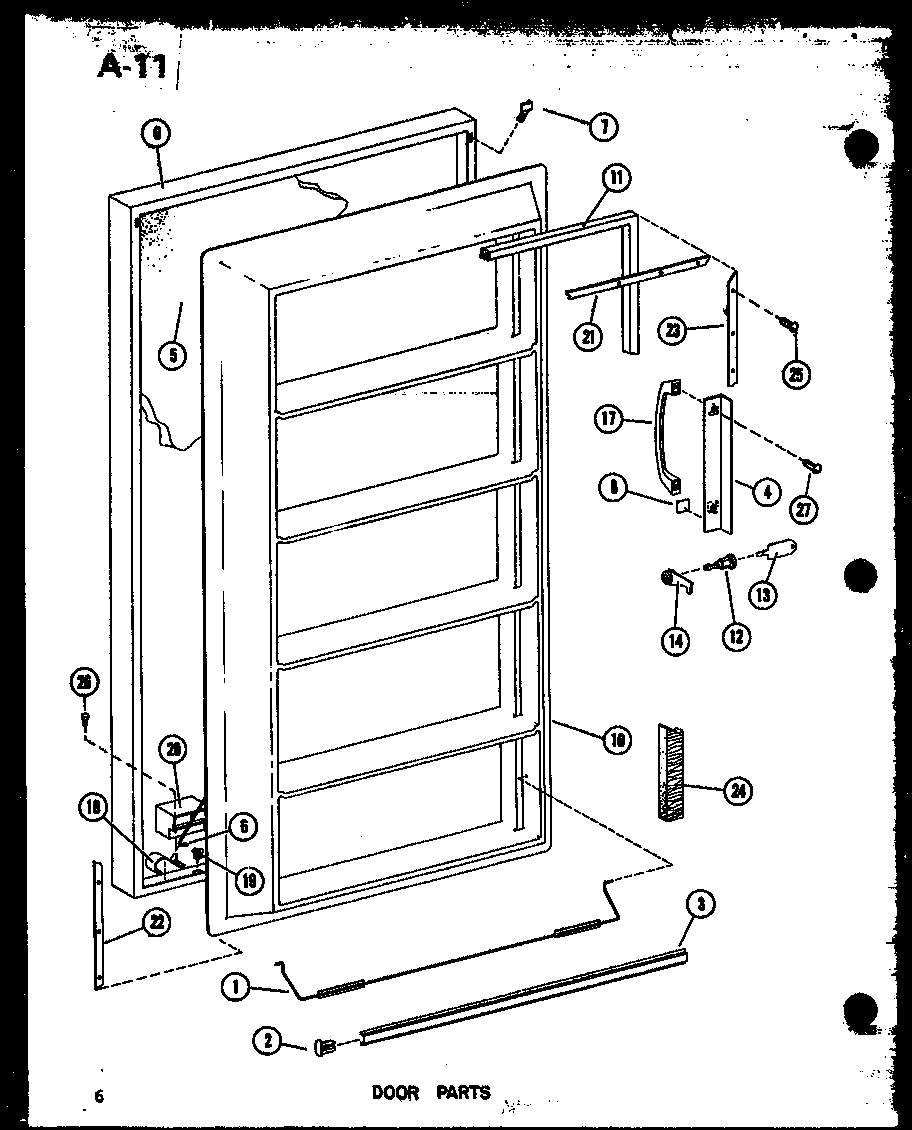

03 - DOOR PARTS
Common parts from model Whirlpool ESUF16C-G FREEZER
1
HINGE-TOP WPL B5721501 Contact Us For Availability
1
DRAIN SCREEN WPL A3113702 Contact Us For Availability
1
KIT, COMPRESSOR (DAN NF7AK) WPL D7289601 Contact Us For Availability
1
RETAINER WPL C3683103 Contact Us For Availability
2
SHIM, TOP HINGE WPL A3270301 Contact Us For Availability
2
SHIM-TOP HINGE K WPL A3270302 Contact Us For Availability
2
SHIM KIT WPL A3270303 Contact Us For Availability
2
HOUSING-LIGHT WPL C8758501 Contact Us For Availability
2
GROMMET K WPL A3026101 Contact Us For Availability
2
END CAP WPL B5687901 Contact Us For Availability
3
INSULATION WPL B5766901 Contact Us For Availability
3
WASHER, NYLON K WPL M0590101 Contact Us For Availability
3
RETAINER WPL B5632011 Contact Us For Availability
4
BEARING FLAT (TOP HINGE) WPL B0539806 Contact Us For Availability
4
CLIP K WPL A3140801 Contact Us For Availability
4
PAD-HANDLE WPL D7344401 Contact Us For Availability
5
SCREW A WPL 488622 Contact Us For Availability
5
WASHER K WPL M0274014 Contact Us For Availability
5
SOCKET-LIGHT WPL C8708801 Contact Us For Availability
5
WIRING HARNESS WPL D7287102 Contact Us For Availability
5
INSULATION WPL B0566712 Contact Us For Availability
5
INSULATION WPL B0566713 Contact Us For Availability
5
INSULATION WPL B0566715 Contact Us For Availability
5
FOAM SLAB WPL B5612024 Contact Us For Availability
6
HINGE, BOTTOM WPL C8728101 Contact Us For Availability
6
SWITCH, LIGHT WPL C3680305 Contact Us For Availability
6
CLIP K WPL M0110501 Contact Us For Availability
6
TIE ROD WPL B0569811 Contact Us For Availability
7
SHIM WPL A3061901 Contact Us For Availability
7
SHIM WPL A3061902 Contact Us For Availability
7
COVER-LIGHT SWITCH WPL D7286601 Contact Us For Availability
7
OVERLOAD K WPL C3590101 Contact Us For Availability
7
CLIP-TIE ROD WPL A3282201 Contact Us For Availability
8
COVER WPL 627150 Contact Us For Availability
8
WASHER K WPL M0274013 Contact Us For Availability
8
SHIELD-LIGHT WPL D7288101 Contact Us For Availability
8
SPRING K WPL A3043601 Contact Us For Availability
8
NAMEPLATE WPL B5758805 Contact Us For Availability
9
STRIKE-LOCK WPL B5728001 Contact Us For Availability
9
TEMP CONTROL WPL C8764901 Contact Us For Availability
9
RELAY WPL C3553401 Contact Us For Availability
9
OUTER DOOR SHELL, WHITE WPL D7388124 Contact Us For Availability
9
DOOR ESU17D C WPL D7388125 Contact Us For Availability
9
DOOR ESU17D A WPL D7388126 Contact Us For Availability
9
OUTER DOOR SHELL, GOLD WPL D7388127 Contact Us For Availability
9
OUTER DOOR SHELL, ALMOND WPL D7388128 Contact Us For Availability
10
SHIM WPL A3063201 Contact Us For Availability
10
SHIM WPL A3063202 Contact Us For Availability
10
SHIELD-CONTROL WPL C8764801 Contact Us For Availability
10
COVER K WPL B0559501 Contact Us For Availability
10
INNER DR PANEL WPL D7279201 Contact Us For Availability
11
TAP PLATE-STRIKE WPL B5756901 Contact Us For Availability
11
COVER-CONTROL WPL C8762901 Contact Us For Availability
11
STRAP K WPL A3041801 Contact Us For Availability
11
GASKET, DOOR WPL D7158705 Contact Us For Availability
12
PLATE, MOUNTING WPL 625833 Contact Us For Availability
12
KNOB-CONTROL WPL C3577903 Contact Us For Availability
12
PRE-COOLER WPL D7307601 Contact Us For Availability
12
BARREL-LOCK WPL B5775401 Contact Us For Availability
13
GEAR WPL Y625914 Contact Us For Availability
13
GASKET-FOAM WPL A3189311 Contact Us For Availability
13
SHELF WPL D7335701 Contact Us For Availability
13
SHELF WPL D7335706 Contact Us For Availability
13
BRACKET WPL B5747001 Contact Us For Availability
13
KEY, LOCK WPL B5775301 Contact Us For Availability
14
SCREW, 8-18 X 1/2 WPL 488363 Contact Us For Availability
14
CORNER BRKT WPL B5757401 Contact Us For Availability
14
TRIM-SHELF WPL B5688804 Contact Us For Availability
14
BOLT-LOCK WPL C3685302 Contact Us For Availability
15
CLIP-FLANGE WPL B5770501 Contact Us For Availability
15
PLUG BUTTON WPL B5766401 Contact Us For Availability
15
CLAMP-DRIER WPL M0104002 Contact Us For Availability
16
BASKET WPL D7258601 Contact Us For Availability
16
PLUG, BUTTON (WHT) WPL A3080002 Contact Us For Availability
17
MOTOR WPL Y625846 Contact Us For Availability
17
SCREW WPL M0246159 Contact Us For Availability
17
HANDLE BASKET WPL B0571806 Contact Us For Availability
17
COVER HEAT EX. WPL C8807006 Contact Us For Availability
17
COVER-HX C WPL C8807007 Contact Us For Availability
17
COVER HEAT EX. WPL C8807008 Contact Us For Availability
17
COVER-HX G WPL C8807009 Contact Us For Availability
17
COVER-HX L WPL C8807010 Contact Us For Availability
17
HANDLE WPL C8787101 Contact Us For Availability
18
SPRING WPL 627163 Contact Us For Availability
18
SCREW WPL M0228532 Contact Us For Availability
18
DRAIN TUBE WPL B5758502 Contact Us For Availability
18
TUNNEL-HEAT EX WPL B5749501 Contact Us For Availability
18
SPRING CLIP WPL B0544001 Contact Us For Availability
19
PLATE, VALVE SWITCH WPL 625836 Contact Us For Availability
19
TUBE CLAMP WPL B5760801 Contact Us For Availability
19
HEAT EX WPL D7290001 Contact Us For Availability
19
VENT ASSY WPL A3101901 Contact Us For Availability
20
SPACER, HOLDING SWITCH WPL 625834 Contact Us For Availability
20
CLAMP WPL M0102303 Contact Us For Availability
20
BRACKET-TIMER WPL B5746701 Contact Us For Availability
20
BLOCK-AIR VENT WPL C3684702 Contact Us For Availability
21
CAM WPL Y625913 Contact Us For Availability
21
GLIDER BOLT WPL M0266510 Contact Us For Availability
21
TIMER WPL D7004107 Contact Us For Availability
21
RETAINER-GASKET WPL D3928118 Contact Us For Availability
22
INSULATOR WPL 625835 Contact Us For Availability
22
DRAIN PAN WPL D3920001 Contact Us For Availability
22
WIRING HARNESS WPL D7287002 Contact Us For Availability
22
RETAINER-GASKET WPL D7158610 Contact Us For Availability
23
SWITCH, S.P.D.T. WPL 625851 Contact Us For Availability
23
GRILLE TOE WPL D7263302 Contact Us For Availability
23
FILL TUBE ASSY WPL B5630504 Contact Us For Availability
23
RETAINER-GASKET WPL D7158611 Contact Us For Availability
24
SCREW WPL 488361 Contact Us For Availability
24
GRILLE-TOE WPL B5641301 Contact Us For Availability
24
GROMMET-HEAT EX WPL A3091303 Contact Us For Availability
25
CLAMP WPL 625829 Contact Us For Availability
25
CLIP, GRILLE WPL M0117301 Contact Us For Availability
25
CAP FILL TUBE WPL B5631801 Contact Us For Availability
25
SCREW-SM WPL M0241118 Contact Us For Availability
26
SCREW WPL 488372 Contact Us For Availability
26
MOTOR KIT WPL D7289701 Contact Us For Availability
26
PLUG, BUTTON (WHT) WPL M0310701 Contact Us For Availability
26
SEMS FASTNER WPL M0243037 Contact Us For Availability
27
SCREW, 4-40 X 3/4 WPL 488362 Contact Us For Availability
27
MOTOR MOUNT WPL C8722501 Contact Us For Availability
27
CAP WPL B5636301 Contact Us For Availability
27
SCREW-HANDLE WPL M0218330 Contact Us For Availability
28
FAN BLADE WPL B5739301 Contact Us For Availability
28
TAP PLATE,I.M. WPL B5639801 Contact Us For Availability
29
SCREW WPL 488360 Contact Us For Availability
29
PLATE-AIR INLET WPL D7279501 Contact Us For Availability
29
BRACKET-COND WPL B5709101 Contact Us For Availability
30
THERMOSTAT WPL 627047 Contact Us For Availability
30
GRILL-AIR INLET WPL C8758901 Contact Us For Availability
30
SUPPORT WPL D7308201 Contact Us For Availability
31
SWITCH, S.P.S.T. WPL 625947 Contact Us For Availability
31
EVAPORATOR WPL D7289901 Contact Us For Availability
32
SCREW, GROUND WPL 488542 Contact Us For Availability
32
TERMINATOR WPL C8765001 Contact Us For Availability
32
SUPPORT WPL D7262801 Contact Us For Availability
33
SUPPORT WPL 625827 Contact Us For Availability
33
GROMMET WPL M0580003 Contact Us For Availability
33
CLAMP WPL M0105511 Contact Us For Availability
34
SCREW, SHOULDER WPL 627199 Contact Us For Availability
34
HEATER-EVAP WPL D7291601 Contact Us For Availability
35
CLIP WPL M0110301 Contact Us For Availability
36
GASKET WPL 625828 Contact Us For Availability
36
CLAMP, EVAPORATOR HEATER WPL B5760101 Contact Us For Availability
36
SCREW, T F WPL M0233844 Contact Us For Availability
37
ARM, SHUT-OFF WPL 625831 Contact Us For Availability
37
TUBE CLAMP WPL A3253802 Contact Us For Availability
38
LEVER ARM WPL 625830 Contact Us For Availability
38
CONTROL WELL WPL A3030903 Contact Us For Availability
39
SPRING WPL Y625832 Contact Us For Availability
39
DRIP TRAY WPL D7289801 Contact Us For Availability
40
COVER-EVAP WPL D7279801 Contact Us For Availability
41
COVER-AIR DUCT WPL D7280401 Contact Us For Availability
42
SPACER WPL A3268101 Contact Us For Availability
43
KIT WPL Y625843 Contact Us For Availability
43
SCREW WPL M0230923 Contact Us For Availability
44
STRIPPER, ICE WPL 627168 Contact Us For Availability
46
SEAL-DRIP TRAY WPL B5758701 Contact Us For Availability
47
SCREW WPL M0230926 Contact Us For Availability
48
SCREW WPL M0204716 Contact Us For Availability
50
NUT-WELL WPL M0292002 Contact Us For Availability
51
MOLD & HEATER ASSY WPL Y627170 Contact Us For Availability
52
INLET KIT WPL 544304 Contact Us For Availability
55
WIRE ASSY WPL 627151 Contact Us For Availability
56
WIRE NUT K WPL 530850 Contact Us For Availability
351
TUBE WPL A3127401 Contact Us For Availability
352
IC2-(ICE MAKER) WPL D7036801 Contact Us For Availability
353
INSERT-IM WPL B5662401 Contact Us For Availability
355
TRIM K WPL C3637901 Contact Us For Availability
356
PIPE WPL A3101504 Contact Us For Availability
357
GROMMET, SCREW WPL M0580001 Contact Us For Availability
359
CLAMP WPL M0102804 Contact Us For Availability
360
COUPLING, SOLENOID VALVE AND H WPL A3084501 Contact Us For Availability
363
BRACKET WPL B5630701 Contact Us For Availability
364
SCREW WPL M0246017 Contact Us For Availability
365
SADDLE VALVE WPL A3034801 Contact Us For Availability
× ![]()
