Model Whirlpool ESUF14B-C FREEZER – Common Parts & Diagrams

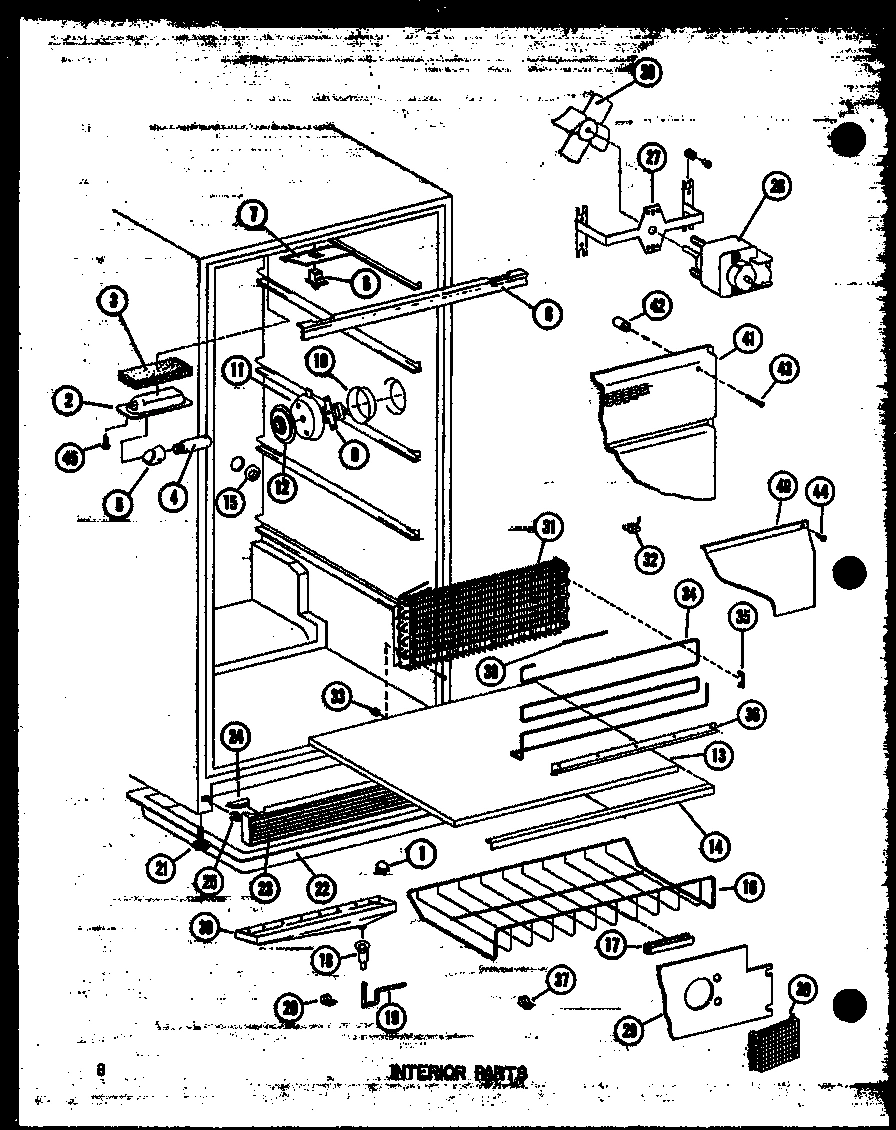

04 - INTERIOR PARTS

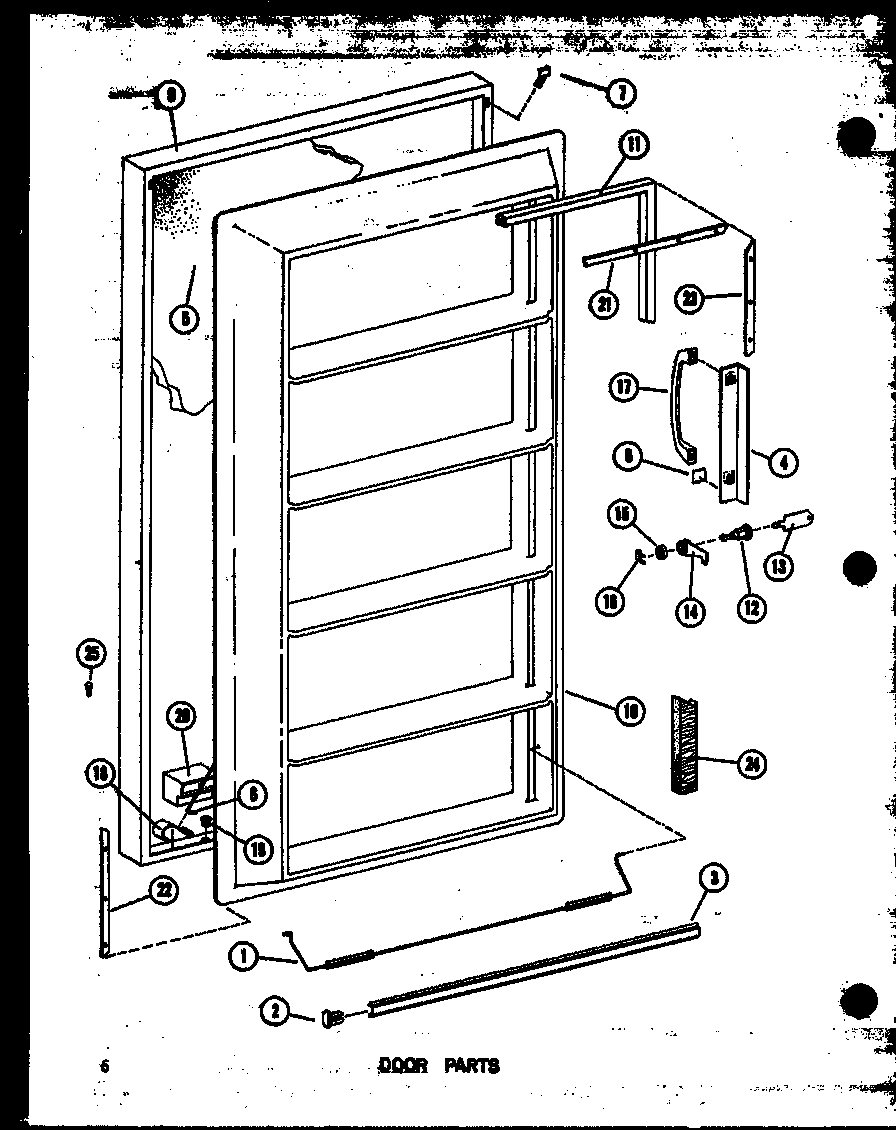

02 - DOOR PARTS
03 - EXTERIOR PARTS

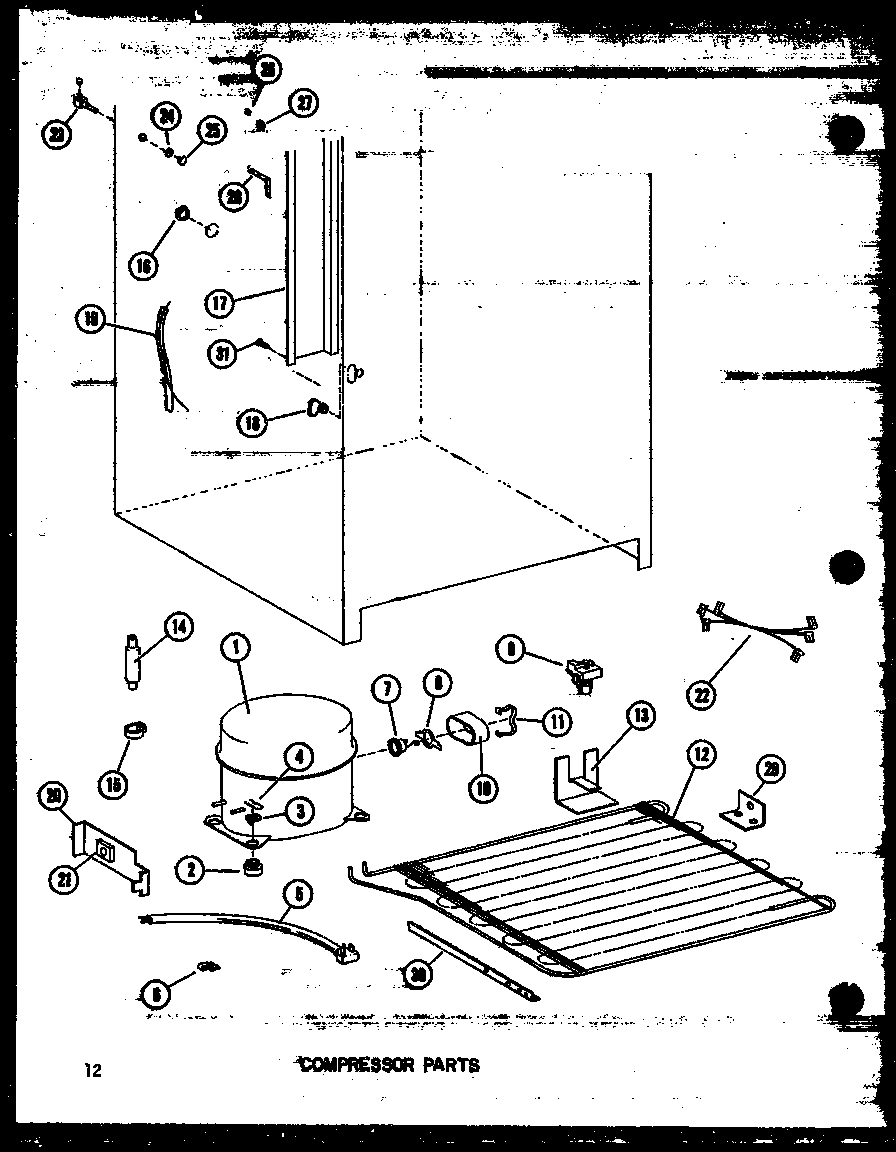

01 - COMPRESSOR PARTS
Common parts from model Whirlpool ESUF14B-C FREEZER
1
DRAIN SCREEN WPL A3113702 Contact Us For Availability
1
RETAINER WPL C3683103 Contact Us For Availability
1
HINGE-TOP WPL B5721501 Contact Us For Availability
1
KIT, COMPRESSOR (DAN NF7AK) WPL D7289601 Contact Us For Availability
2
HOUSING-LIGHT WPL C8758501 Contact Us For Availability
2
END CAP WPL B5687901 Contact Us For Availability
2
SHIM, TOP HINGE WPL A3270301 Contact Us For Availability
2
SHIM-TOP HINGE K WPL A3270302 Contact Us For Availability
2
SHIM KIT WPL A3270303 Contact Us For Availability
2
GROMMET K WPL A3026101 Contact Us For Availability
3
INSULATION WPL B5766901 Contact Us For Availability
3
RETAINER WPL B5632011 Contact Us For Availability
3
TAP STRIP-HINGE WPL A3259001 Contact Us For Availability
3
WASHER, NYLON K WPL M0590101 Contact Us For Availability
4
PAD-HANDLE WPL D7280001 Contact Us For Availability
4
BEARING FLAT (TOP HINGE) WPL B0539806 Contact Us For Availability
4
CLIP K WPL A3140801 Contact Us For Availability
5
SOCKET-LIGHT WPL C8708801 Contact Us For Availability
5
INSULATION WPL B0566712 Contact Us For Availability
5
INSULATION WPL B0566713 Contact Us For Availability
5
INSULATION WPL B0566714 Contact Us For Availability
5
FOAM SLAB WPL B5612023 Contact Us For Availability
5
WASHER WPL M0274027 Contact Us For Availability
5
WIRING HARNESS WPL D7287101 Contact Us For Availability
6
SWITCH, LIGHT WPL C3680305 Contact Us For Availability
6
TIE ROD WPL B0569812 Contact Us For Availability
6
HINGE, BOTTOM WPL C8728101 Contact Us For Availability
6
CLIP K WPL M0110501 Contact Us For Availability
7
COVER-LIGHT SWITCH WPL D7286601 Contact Us For Availability
7
CLIP-TIE ROD WPL A3282201 Contact Us For Availability
7
SHIM WPL A3061901 Contact Us For Availability
7
SHIM WPL A3061902 Contact Us For Availability
7
OVERLOAD K WPL C3590101 Contact Us For Availability
8
SHIELD-LIGHT WPL D7288101 Contact Us For Availability
8
NAMEPLATE WPL B5758804 Contact Us For Availability
8
WASHER K WPL M0274013 Contact Us For Availability
8
SPRING K WPL A3043601 Contact Us For Availability
9
TEMP CONTROL WPL C8764901 Contact Us For Availability
9
DOOR FR-W-P-ESU15B WPL D7288830 Contact Us For Availability
9
OUTER DOOR SHELL, COPPERTONE WPL D7288831 Contact Us For Availability
9
DOOR FR-A-P-ESU15B WPL D7288832 Contact Us For Availability
9
DOOR FR-G-P-ESU15B WPL D7288833 Contact Us For Availability
9
DOOR FR-L-P-ESU15B WPL D7288834 Contact Us For Availability
9
STRIKE-LOCK WPL B5728001 Contact Us For Availability
9
RELAY WPL C3553401 Contact Us For Availability
10
SHIELD-CONTROL WPL C8764801 Contact Us For Availability
10
SHIM WPL A3063201 Contact Us For Availability
10
SHIM WPL A3063202 Contact Us For Availability
10
COVER K WPL B0559501 Contact Us For Availability
11
COVER-CONTROL WPL C8762901 Contact Us For Availability
11
GASKET DOOR WPL D7158704 Contact Us For Availability
11
TAP PLATE-STRIKE WPL B5756901 Contact Us For Availability
11
STRAP K WPL A3041801 Contact Us For Availability
12
KNOB-CONTROL WPL C3577903 Contact Us For Availability
12
BARREL LOCK K WPL B5688002 Contact Us For Availability
12
INSULATION FT. K WPL B0523563 Contact Us For Availability
12
PRE-COOLER WPL D7307601 Contact Us For Availability
13
SHELF WPL D7335702 Contact Us For Availability
13
SHELF WPL D7335707 Contact Us For Availability
13
KEY K WPL A3199101 Contact Us For Availability
13
GASKET-FOAM WPL A3189311 Contact Us For Availability
13
BRACKET WPL B5747001 Contact Us For Availability
14
TRIM-SHELF WPL B5688804 Contact Us For Availability
14
TRIM-SHELF WPL B5688805 Contact Us For Availability
14
BOLT-LOCK WPL C3685302 Contact Us For Availability
14
CORNER BRKT WPL B5757401 Contact Us For Availability
15
PLUG BUTTON WPL B5766401 Contact Us For Availability
15
WASHER-PLASTIC WPL M0274033 Contact Us For Availability
15
CLIP-FLANGE WPL B5770501 Contact Us For Availability
15
CLAMP-DRIER WPL M0104002 Contact Us For Availability
16
BASKET-SLIDE OUT WPL D7258502 Contact Us For Availability
16
CLIP K WPL A3199001 Contact Us For Availability
16
PLUG, BUTTON (WHT) WPL A3080002 Contact Us For Availability
17
HANDLE BASKET WPL B0571806 Contact Us For Availability
17
DOOR HANDLE WPL B5657201 Contact Us For Availability
17
SCREW WPL M0246159 Contact Us For Availability
17
BACK COVER, WHITE WPL C8760901 Contact Us For Availability
17
BACK COVER, COPPERTONE WPL C8760902 Contact Us For Availability
17
BACK COVER, AVOCADO WPL C8760903 Contact Us For Availability
17
BACK COVER, AUTUMN GOLD WPL C8760904 Contact Us For Availability
17
BACK COVER, ALMOND WPL C8760905 Contact Us For Availability
18
DRAIN TUBE WPL B5758502 Contact Us For Availability
18
SPRING CLIP WPL B0544001 Contact Us For Availability
18
TUNNEL-HEAT EX WPL B5749501 Contact Us For Availability
19
TUBE CLAMP WPL B5760801 Contact Us For Availability
19
VENT ASSY WPL A3101901 Contact Us For Availability
19
HEAT EX WPL D7290001 Contact Us For Availability
20
CLAMP WPL M0102303 Contact Us For Availability
20
BLOCK-AIR VENT WPL C3684702 Contact Us For Availability
20
BRACKET-TIMER WPL B5746701 Contact Us For Availability
21
GLIDER BOLT WPL M0266510 Contact Us For Availability
21
RETAINER-GASKET WPL D3928118 Contact Us For Availability
21
TIMER WPL D7004107 Contact Us For Availability
22
DRAIN PAN WPL D3920001 Contact Us For Availability
22
RETAINER-GASKET WPL D7158608 Contact Us For Availability
22
WIRING HARNESS WPL D7287001 Contact Us For Availability
23
GRILLE TOE WPL D7263302 Contact Us For Availability
23
RETAINER-GASKET WPL D7158609 Contact Us For Availability
24
GRILLE-TOE WPL B5641301 Contact Us For Availability
25
CLIP, GRILLE WPL M0117301 Contact Us For Availability
25
SEMS FASTNER WPL M0243037 Contact Us For Availability
26
MOTOR KIT WPL D7289701 Contact Us For Availability
27
MOTOR MOUNT WPL C8722501 Contact Us For Availability
28
FAN BLADE WPL B5739301 Contact Us For Availability
29
PLATE-AIR INLET WPL D7279501 Contact Us For Availability
29
BRACKET-COND WPL B5709101 Contact Us For Availability
30
GRILL-AIR INLET WPL C8758901 Contact Us For Availability
30
SUPPORT WPL D7308201 Contact Us For Availability
31
EVAPORATOR WPL D7289901 Contact Us For Availability
32
TERMINATOR WPL C8765001 Contact Us For Availability
33
GROMMET WPL M0580003 Contact Us For Availability
34
HEATER-EVAP WPL D7291601 Contact Us For Availability
35
CLIP WPL M0110301 Contact Us For Availability
36
CLAMP, EVAPORATOR HEATER WPL B5760101 Contact Us For Availability
37
CLAMP, TUBE WPL A3253801 Contact Us For Availability
38
CONTROL WELL WPL A3205801 Contact Us For Availability
39
DRIP TRAY WPL D7289801 Contact Us For Availability
40
COVER-EVAP WPL D7279801 Contact Us For Availability
41
COVER-AIR DUCT WPL D7280402 Contact Us For Availability
42
SPACER WPL A3268101 Contact Us For Availability
43
SCREW WPL M0230949 Contact Us For Availability
× ![]()
