Model Whirlpool ESU513-A FREEZER – Common Parts & Diagrams

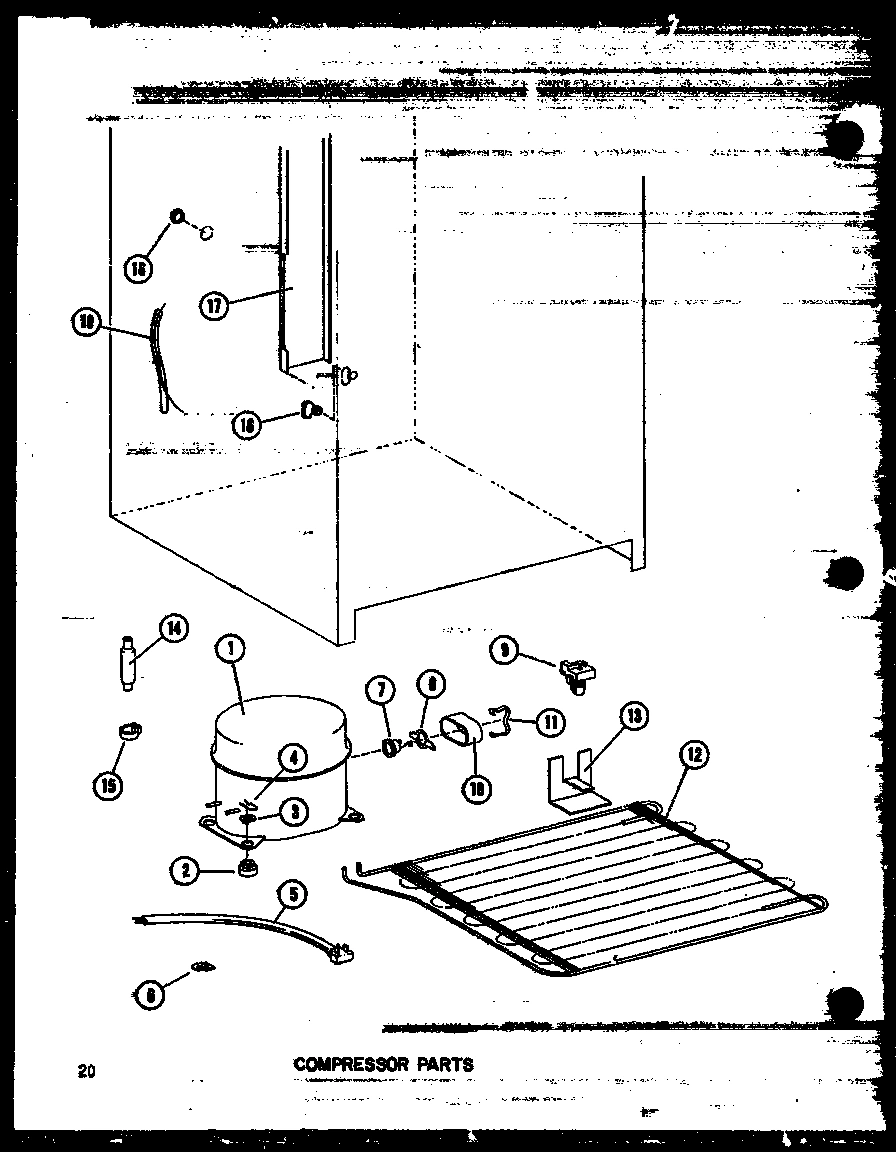

01 - COMPRESSOR PARTS

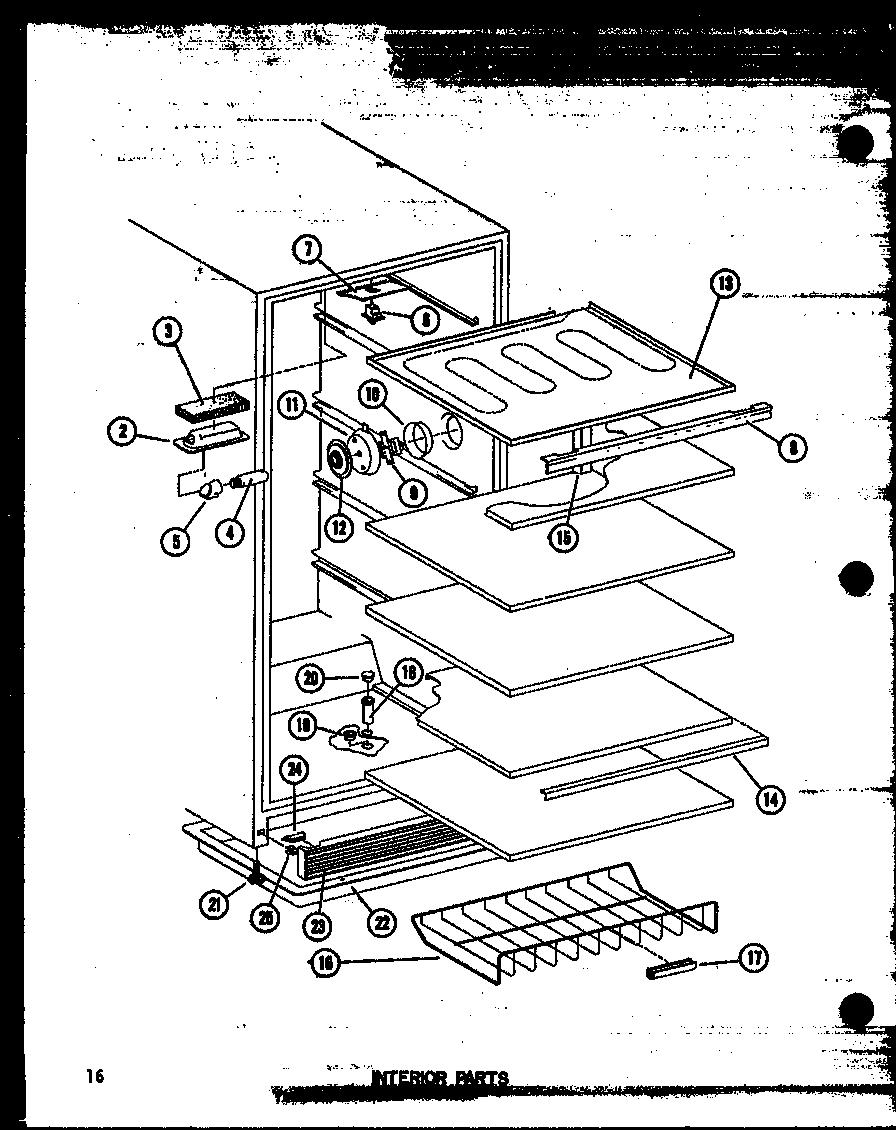

04 - INTERIOR PARTS

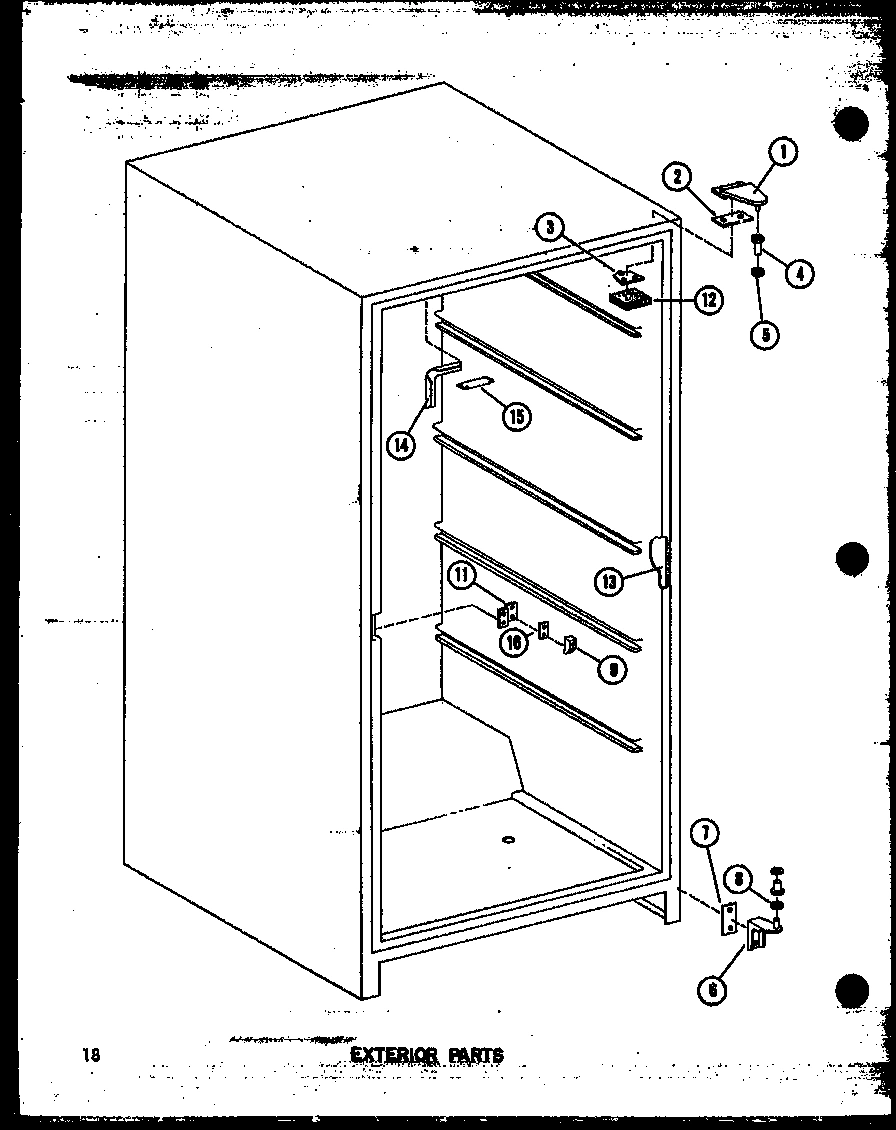

03 - EXTERIOR PARTS

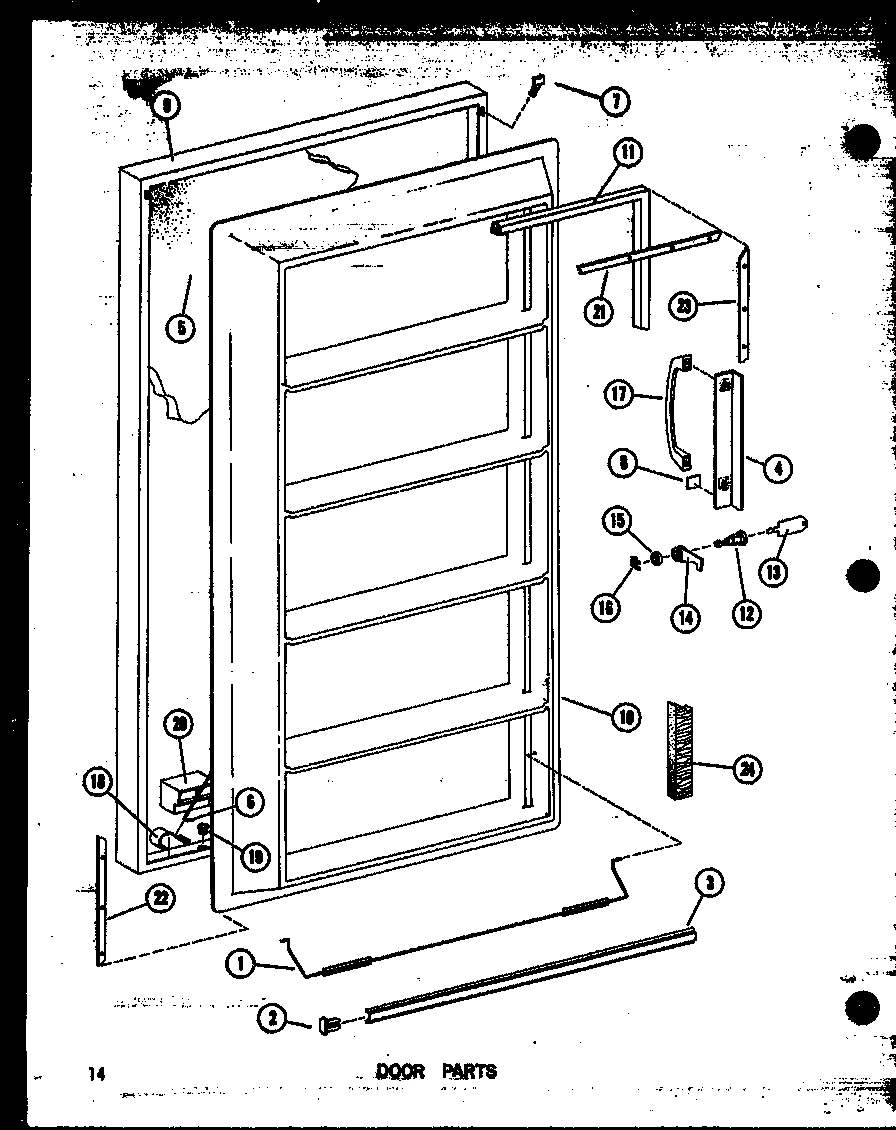

02 - DOOR PARTS
Common parts from model Whirlpool ESU513-A FREEZER
1
COMPRESSOR AE1380A WPL D7284202 Contact Us For Availability
1
HINGE-TOP WPL B5721501 Contact Us For Availability
1
RETAINER WPL C3683103 Contact Us For Availability
2
GROMMET K WPL A3026101 Contact Us For Availability
2
SHIM, TOP HINGE WPL A3270301 Contact Us For Availability
2
SHIM-TOP HINGE K WPL A3270302 Contact Us For Availability
2
SHIM KIT WPL A3270303 Contact Us For Availability
2
END CAP WPL B5687901 Contact Us For Availability
3
WASHER, NYLON K WPL M0590101 Contact Us For Availability
3
TAP STRIP-HINGE WPL A3259001 Contact Us For Availability
3
RETAINER WPL B5632011 Contact Us For Availability
4
CLIP K WPL A3140801 Contact Us For Availability
4
BEARING FLAT (TOP HINGE) WPL B0539806 Contact Us For Availability
4
PAD-HANDLE WPL D7280001 Contact Us For Availability
5
WIRING HARNESS WPL D7287203 Contact Us For Availability
5
WASHER WPL M0274027 Contact Us For Availability
5
INSULATION WPL B0566712 Contact Us For Availability
5
INSULATION WPL B0566713 Contact Us For Availability
5
INSULATION WPL B0566714 Contact Us For Availability
5
FOAM SLAB WPL B5612024 Contact Us For Availability
6
CLIP K WPL M0110501 Contact Us For Availability
6
HINGE, BOTTOM WPL C8728101 Contact Us For Availability
6
TIE ROD WPL B0569812 Contact Us For Availability
7
OVERLOAD WPL B0589801 Contact Us For Availability
7
SHIM WPL A3061901 Contact Us For Availability
7
SHIM WPL A3061902 Contact Us For Availability
7
CLIP-TIE ROD WPL A3282201 Contact Us For Availability
8
SPRING K WPL A3043601 Contact Us For Availability
8
SHIELD-LIGHT WPL D7288101 Contact Us For Availability
8
WASHER K WPL M0274013 Contact Us For Availability
8
NAMEPLATE-HANDLE WPL B5758801 Contact Us For Availability
9
RELAY WPL C3584801 Contact Us For Availability
9
CONTROL WPL C8764903 Contact Us For Availability
9
STRIKE-LOCK WPL B5728001 Contact Us For Availability
9
DOOR W-P-ESU15 WPL D7288801 Contact Us For Availability
9
DOOR C-P-ESU15 WPL D7288802 Contact Us For Availability
9
DOOR A-P-ESU15 WPL D7288803 Contact Us For Availability
9
DOOR G-P-ESU15 WPL D7288804 Contact Us For Availability
9
DOOR L-P-ESU15 WPL D7288813 Contact Us For Availability
10
COVER K WPL B0559501 Contact Us For Availability
10
SHIELD-CONTROL WPL C8764801 Contact Us For Availability
10
SHIM WPL A3063201 Contact Us For Availability
10
SHIM WPL A3063202 Contact Us For Availability
10
INNER DR PANEL WPL D7280801 Contact Us For Availability
11
STRAP K WPL A3041801 Contact Us For Availability
11
COVER-CONTROL WPL C8762901 Contact Us For Availability
11
TAP PLATE-STRIKE WPL B5756901 Contact Us For Availability
11
GASKET DOOR WPL D7158704 Contact Us For Availability
12
PRE-COOLER WPL D7307601 Contact Us For Availability
12
KNOB-CONTROL WPL C3577903 Contact Us For Availability
12
INSULATION FT. K WPL B0523563 Contact Us For Availability
12
BARREL LOCK K WPL B5688002 Contact Us For Availability
13
BRACKET WPL B5747001 Contact Us For Availability
13
SHELF & HEAT EX ASSY WPL D7289404 Contact Us For Availability
13
GASKET-FOAM WPL A3189311 Contact Us For Availability
13
KEY K WPL A3199101 Contact Us For Availability
14
TRIM-SHELF WPL B5688805 Contact Us For Availability
14
CORNER BRKT WPL B5757401 Contact Us For Availability
14
BOLT-LOCK WPL C3685302 Contact Us For Availability
15
CLAMP-DRIER WPL M0104002 Contact Us For Availability
15
COVER-TUBING WPL C8763101 Contact Us For Availability
15
COVER-TUBING WPL C8763103 Contact Us For Availability
15
COVER-TUBING WPL C8763105 Contact Us For Availability
15
CLIP-FLANGE WPL B5770501 Contact Us For Availability
15
WASHER-PLASTIC WPL M0274033 Contact Us For Availability
16
PLUG, BUTTON (WHT) WPL A3080002 Contact Us For Availability
16
CLIP K WPL A3199001 Contact Us For Availability
17
COVER WPL B5748301 Contact Us For Availability
17
COVER WPL B5748302 Contact Us For Availability
17
COVER WPL B5748303 Contact Us For Availability
17
COVER WPL B5748304 Contact Us For Availability
17
COVER WPL B5748305 Contact Us For Availability
17
DOOR HANDLE WPL B5657201 Contact Us For Availability
18
TUNNEL-HEAT EX WPL B5749501 Contact Us For Availability
18
DRAIN TUBE WPL A3224901 Contact Us For Availability
18
SPRING CLIP WPL B0544001 Contact Us For Availability
19
HEAT EXCHANGER WPL D7291801 Contact Us For Availability
19
HEAT EXCHANGER WPL D7291901 Contact Us For Availability
19
GROMMET WPL A3138301 Contact Us For Availability
19
VENT ASSY WPL A3101901 Contact Us For Availability
20
DRAIN PLUG WPL B5721101 Contact Us For Availability
20
BLOCK-AIR VENT WPL C3684702 Contact Us For Availability
21
GLIDER BOLT WPL M0266510 Contact Us For Availability
21
RETAINER-GASKET WPL D3928118 Contact Us For Availability
22
DRAIN PAN WPL D3920001 Contact Us For Availability
22
RETAINER-GASKET WPL D7158608 Contact Us For Availability
23
GRILLE TOE WPL D7263301 Contact Us For Availability
23
RETAINER-GASKET WPL D7158609 Contact Us For Availability
24
GRILLE-TOE WPL B5641301 Contact Us For Availability
25
CLIP, GRILLE WPL M0117301 Contact Us For Availability
× ![]()
