Model Whirlpool ESU17C FREEZER – Common Parts & Diagrams

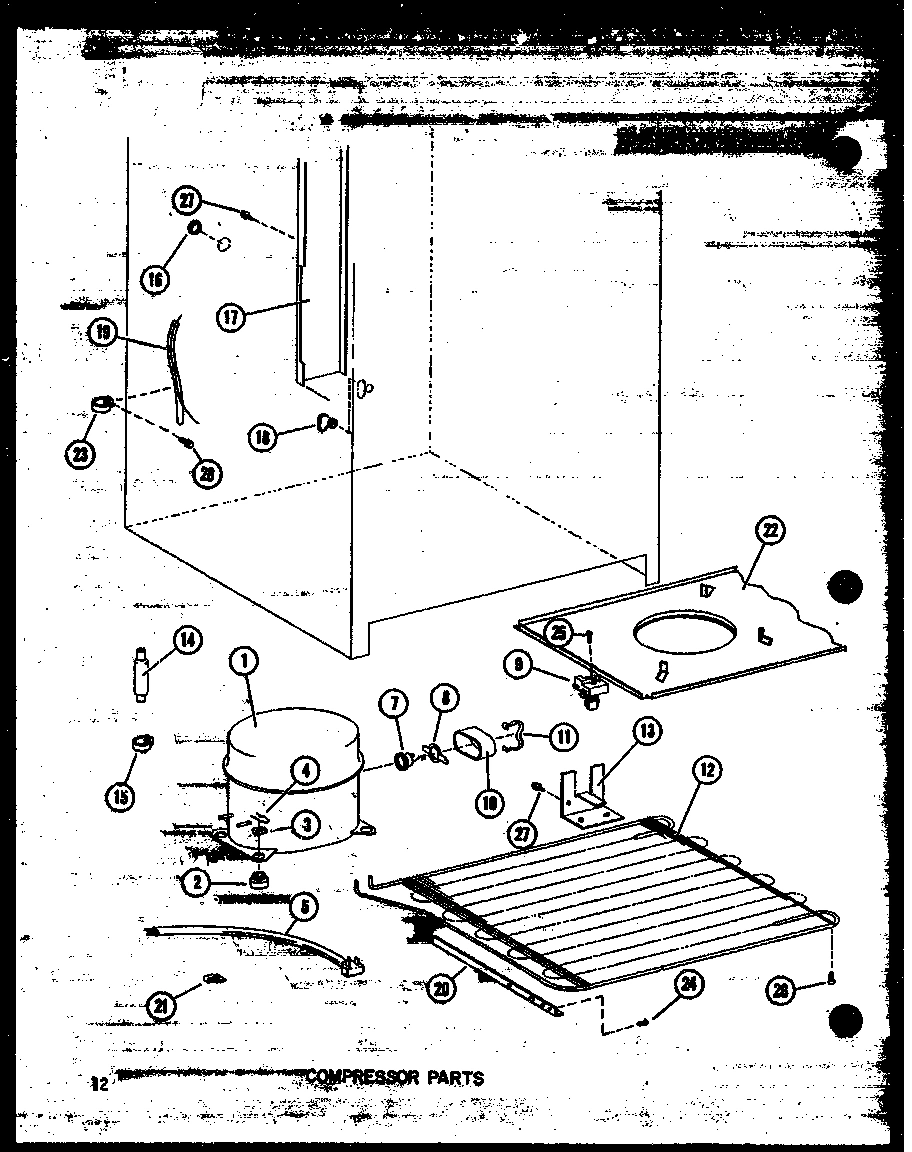

01 - COMPRESSOR PARTS

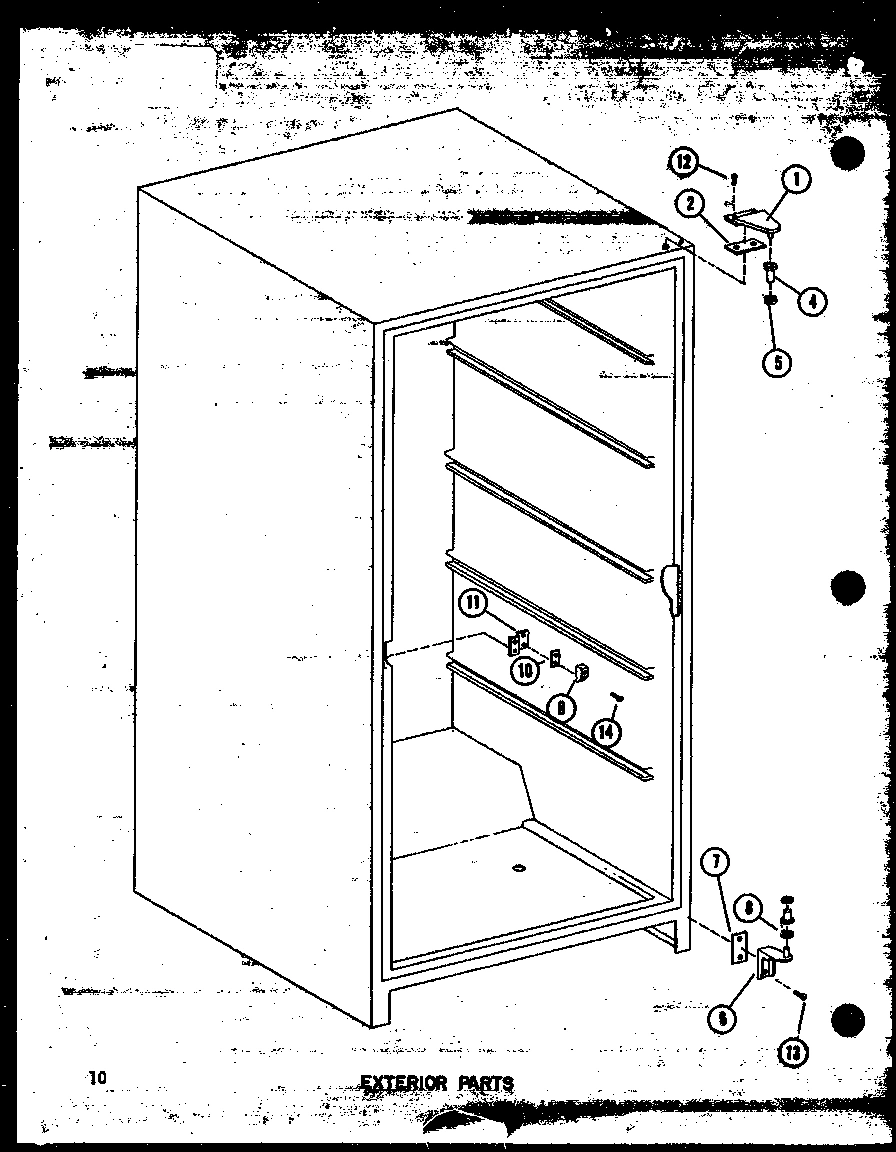

03 - EXTERIOR PARTS

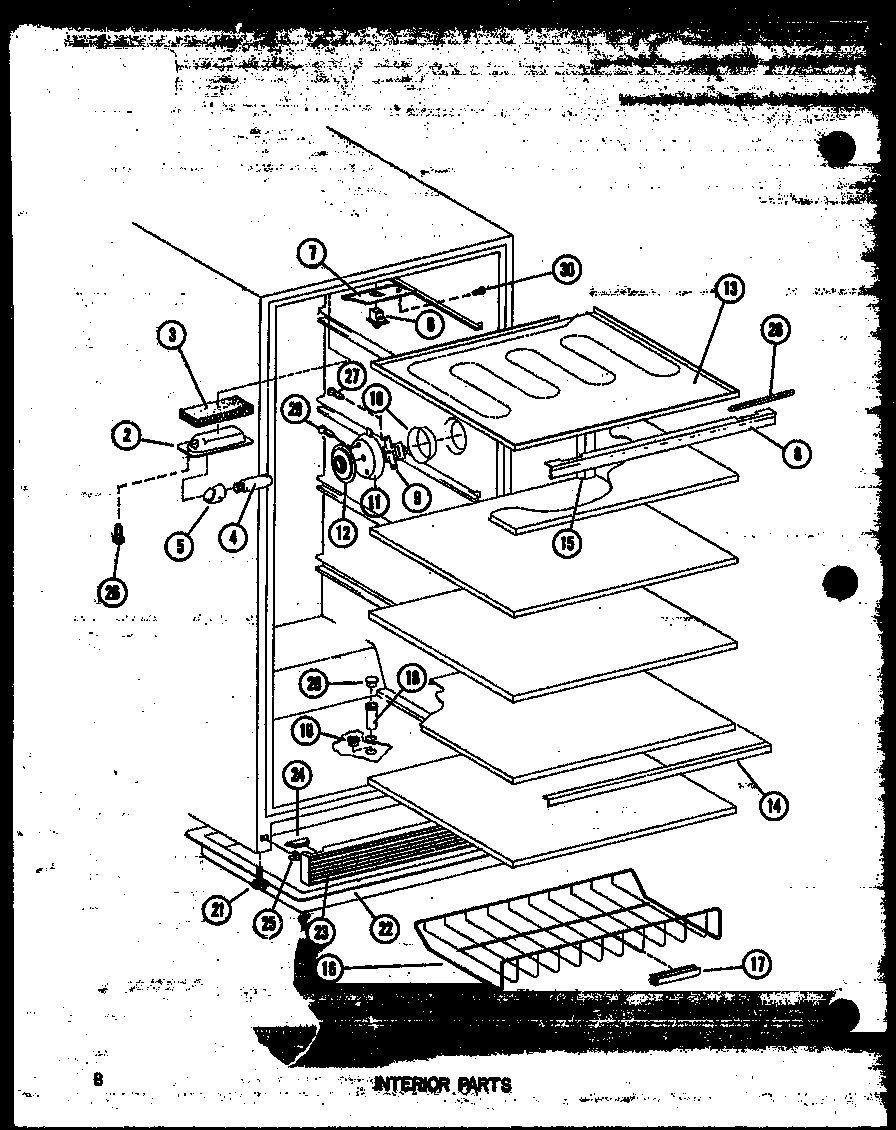

04 - INTERIOR PARTS

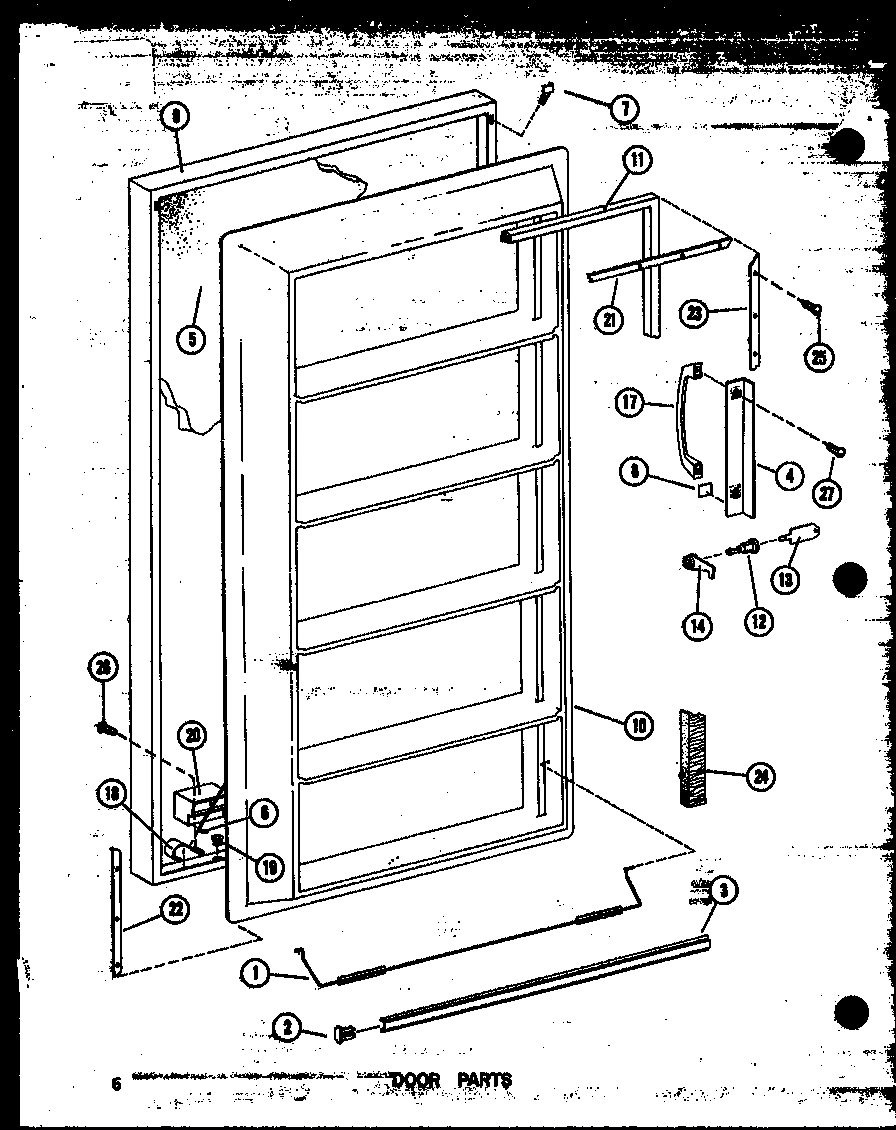

02 - DOOR PARTS
Common parts from model Whirlpool ESU17C FREEZER
1
KIT, COMPRESSOR (DAN NF7AK) WPL D7289601 Contact Us For Availability
1
HINGE-TOP WPL B5721501 Contact Us For Availability
1
RETAINER WPL C3683103 Contact Us For Availability
2
GROMMET K WPL A3026101 Contact Us For Availability
2
SHIM, TOP HINGE WPL A3270301 Contact Us For Availability
2
SHIM-TOP HINGE K WPL A3270302 Contact Us For Availability
2
SHIM KIT WPL A3270303 Contact Us For Availability
2
HOUSING-LIGHT WPL C8758501 Contact Us For Availability
2
END CAP WPL B5687901 Contact Us For Availability
3
WASHER, NYLON K WPL M0590101 Contact Us For Availability
3
INSULATION WPL B5766901 Contact Us For Availability
3
RETAINER WPL B5632011 Contact Us For Availability
4
CLIP K WPL A3140801 Contact Us For Availability
4
BEARING FLAT (TOP HINGE) WPL B0539806 Contact Us For Availability
4
PAD-HANDLE WPL D7344401 Contact Us For Availability
5
WIRING HARNESS WPL D7287201 Contact Us For Availability
5
SEAL-O RING WPL M0500901 Contact Us For Availability
5
SOCKET-LIGHT WPL C8708801 Contact Us For Availability
5
INSULATION WPL B0566712 Contact Us For Availability
5
INSULATION WPL B0566713 Contact Us For Availability
5
INSULATION WPL B0566715 Contact Us For Availability
5
FOAM SLAB WPL B5612023 Contact Us For Availability
6
HINGE, BOTTOM WPL C8728101 Contact Us For Availability
6
TIE ROD WPL B0569811 Contact Us For Availability
7
OVERLOAD K WPL C3590101 Contact Us For Availability
7
SHIM WPL A3061901 Contact Us For Availability
7
SHIM WPL A3061902 Contact Us For Availability
7
COVER-LIGHT SWITCH WPL D7286601 Contact Us For Availability
7
CLIP-TIE ROD WPL A3282201 Contact Us For Availability
8
SPRING K WPL A3043601 Contact Us For Availability
8
WASHER K WPL M0274013 Contact Us For Availability
8
WASHER K WPL M0274014 Contact Us For Availability
8
SHIELD-LIGHT WPL D7288101 Contact Us For Availability
8
NAMEPLATE-HANDLE WPL B5758803 Contact Us For Availability
9
RELAY WPL C3553401 Contact Us For Availability
9
STRIKE-LOCK WPL B5728001 Contact Us For Availability
9
CONTROL WPL C8764905 Contact Us For Availability
9
OUTER DOOR SHELL, WHITE WPL D7388124 Contact Us For Availability
9
DOOR ESU17D C WPL D7388125 Contact Us For Availability
9
DOOR ESU17D A WPL D7388126 Contact Us For Availability
9
OUTER DOOR SHELL, GOLD WPL D7388127 Contact Us For Availability
9
OUTER DOOR SHELL, ALMOND WPL D7388128 Contact Us For Availability
10
COVER K WPL B0559501 Contact Us For Availability
10
SHIM WPL A3063201 Contact Us For Availability
10
SHIM WPL A3063202 Contact Us For Availability
10
SHIELD-CONTROL WPL C8764801 Contact Us For Availability
10
INNER DR PANEL WPL D7279201 Contact Us For Availability
11
STRAP K WPL A3041801 Contact Us For Availability
11
TAP PLATE-STRIKE WPL B5756901 Contact Us For Availability
11
COVER-CONTROL WPL C8762901 Contact Us For Availability
11
GASKET, DOOR WPL D7158705 Contact Us For Availability
12
PRE-COOLER WPL D7307601 Contact Us For Availability
12
KNOB-CONTROL WPL C3577903 Contact Us For Availability
12
BARREL-LOCK WPL B5775401 Contact Us For Availability
13
BRACKET WPL B5747001 Contact Us For Availability
13
SCREW WPL M0246159 Contact Us For Availability
13
SHELF & HEAT EX ASSY WPL D7289406 Contact Us For Availability
13
KEY, LOCK WPL B5775301 Contact Us For Availability
14
SCREW WPL M0228532 Contact Us For Availability
14
TRIM-SHELF WPL B5688804 Contact Us For Availability
14
BOLT-LOCK WPL C3685302 Contact Us For Availability
15
CLAMP-DRIER WPL M0104002 Contact Us For Availability
15
COVER-TUBING WPL C8763101 Contact Us For Availability
15
COVER-TUBING WPL C8763102 Contact Us For Availability
15
COVER-TUBING WPL C8763104 Contact Us For Availability
16
PLUG, BUTTON (WHT) WPL A3080002 Contact Us For Availability
16
BASKET-SLIDE OUT WPL D7258501 Contact Us For Availability
17
COVER, O.C. BACK, WHITE WPL C8807001 Contact Us For Availability
17
COVER-HX C WPL C8807002 Contact Us For Availability
17
COVER-HX A WPL C8807003 Contact Us For Availability
17
COVER-HX G WPL C8807004 Contact Us For Availability
17
COVER, O.C. BACK, ALMOND WPL C8807005 Contact Us For Availability
17
HANDLE BASKET WPL B0571806 Contact Us For Availability
17
HANDLE WPL C8787101 Contact Us For Availability
18
TUNNEL-HEAT EX WPL B5749501 Contact Us For Availability
18
DRAIN TUBE WPL A3224901 Contact Us For Availability
18
SPRING CLIP WPL B0544001 Contact Us For Availability
19
HEAT EXCHANGER WPL D7291901 Contact Us For Availability
19
GROMMET WPL A3138301 Contact Us For Availability
19
VENT ASSY WPL A3101901 Contact Us For Availability
20
SUPPORT WPL D7308201 Contact Us For Availability
20
DRAIN PLUG WPL B5721101 Contact Us For Availability
20
BLOCK-AIR VENT WPL C3684702 Contact Us For Availability
21
CLAMP WPL M0103901 Contact Us For Availability
21
GLIDER BOLT WPL M0266510 Contact Us For Availability
21
RETAINER-GASKET WPL D3928118 Contact Us For Availability
22
SUPPORT WPL D7262801 Contact Us For Availability
22
DRAIN PAN WPL D3920001 Contact Us For Availability
23
CLAMP WPL M0105511 Contact Us For Availability
23
GRILLE TOE WPL D7263302 Contact Us For Availability
23
RETAINER-GASKET WPL D7158610 Contact Us For Availability
23
RETAINER-GASKET WPL D7158611 Contact Us For Availability
24
GRILLE-TOE WPL B5641301 Contact Us For Availability
25
CLIP, GRILLE WPL M0117301 Contact Us For Availability
25
SCREW-SM WPL M0241118 Contact Us For Availability
26
SCREW, T F WPL M0233844 Contact Us For Availability
26
SEMS FASTNER WPL M0243037 Contact Us For Availability
27
SCREW WPL M0204716 Contact Us For Availability
27
SCREW-HANDLE WPL M0218330 Contact Us For Availability
28
SCREW WPL M0233743 Contact Us For Availability
28
GASKET (1= 1FT.) WPL A3030328 Contact Us For Availability
29
SCREW WPL M0230926 Contact Us For Availability
× ![]()
