Model Whirlpool EST308 ELECTRIC RANGE – Common Parts & Diagrams

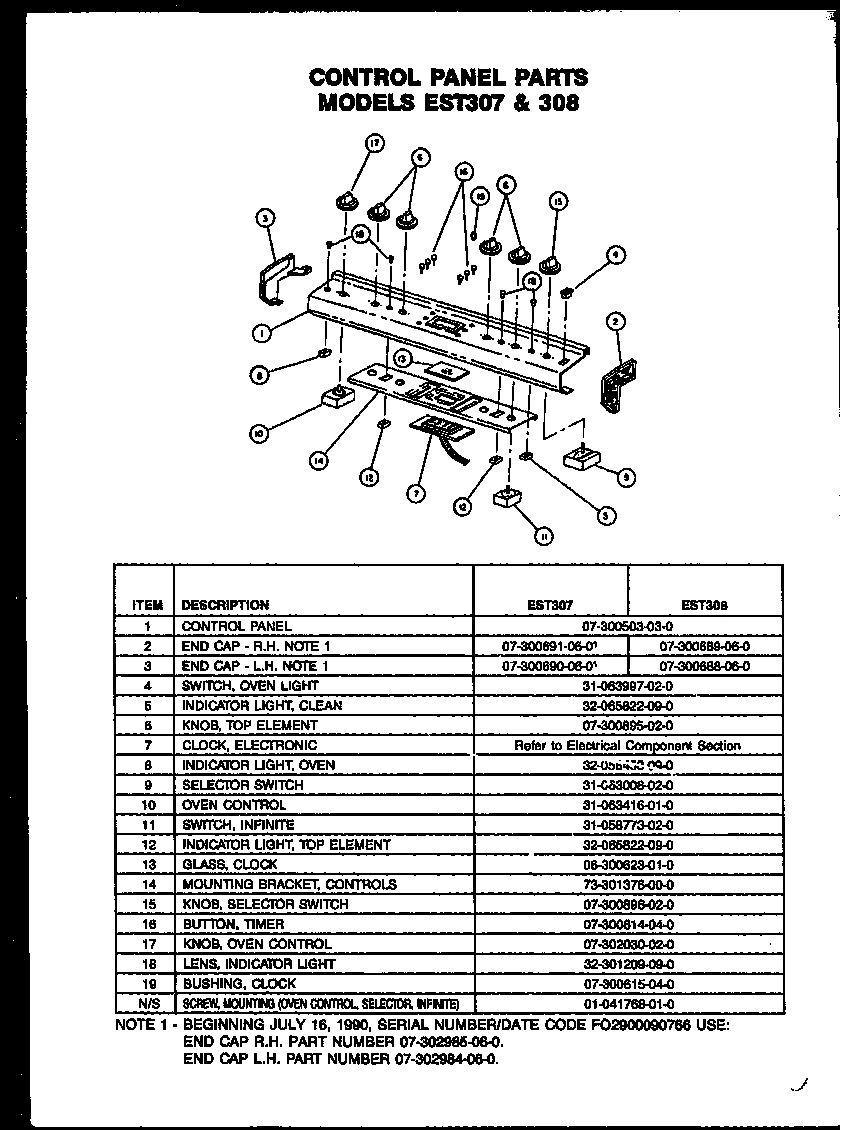

03 - CONTROL PANEL PARTS

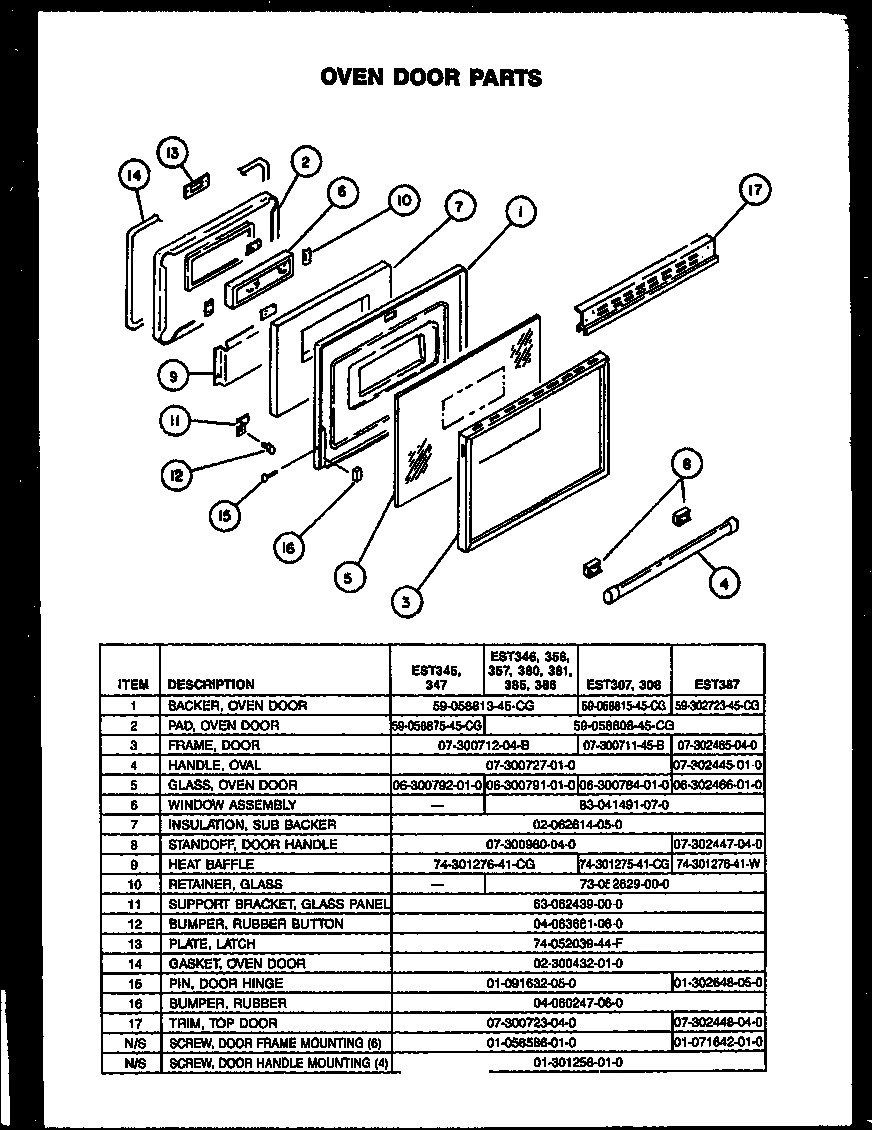

05 - OVEN DOOR PARTS

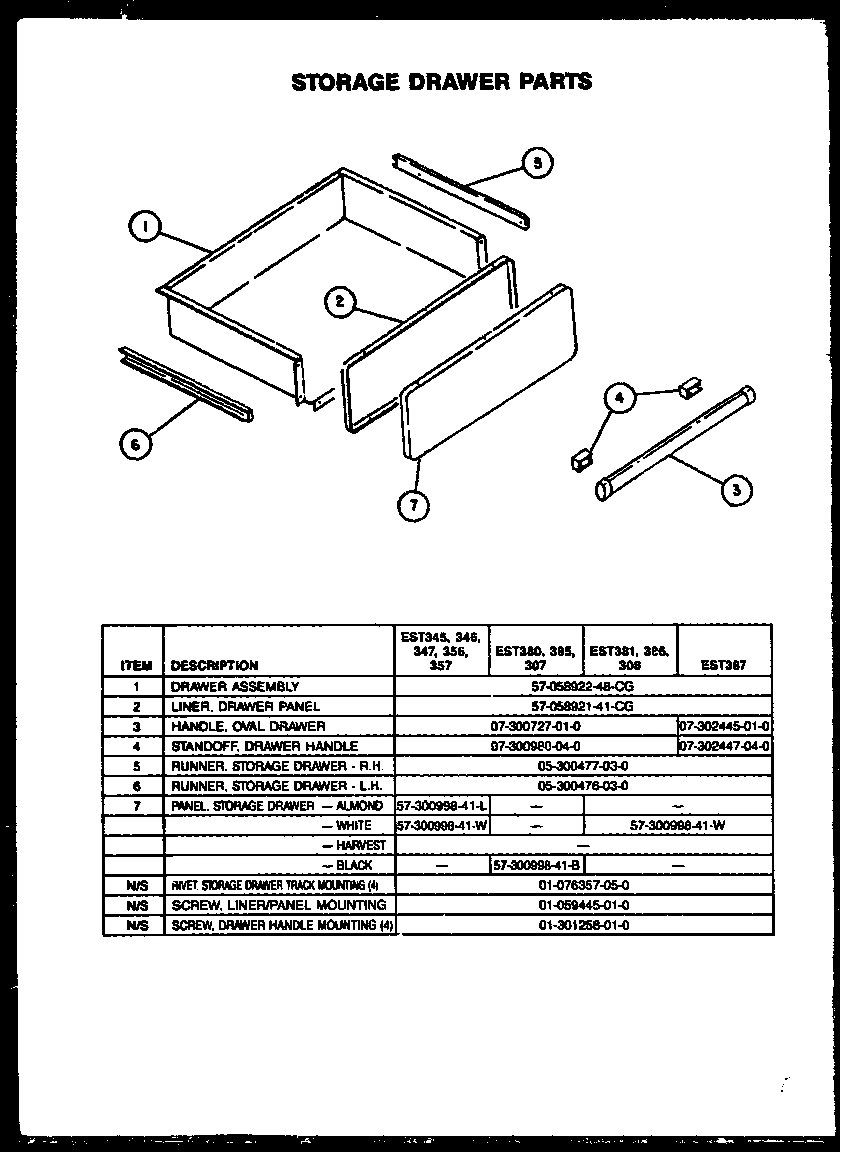

07 - STORAGE DRAWER PARTS

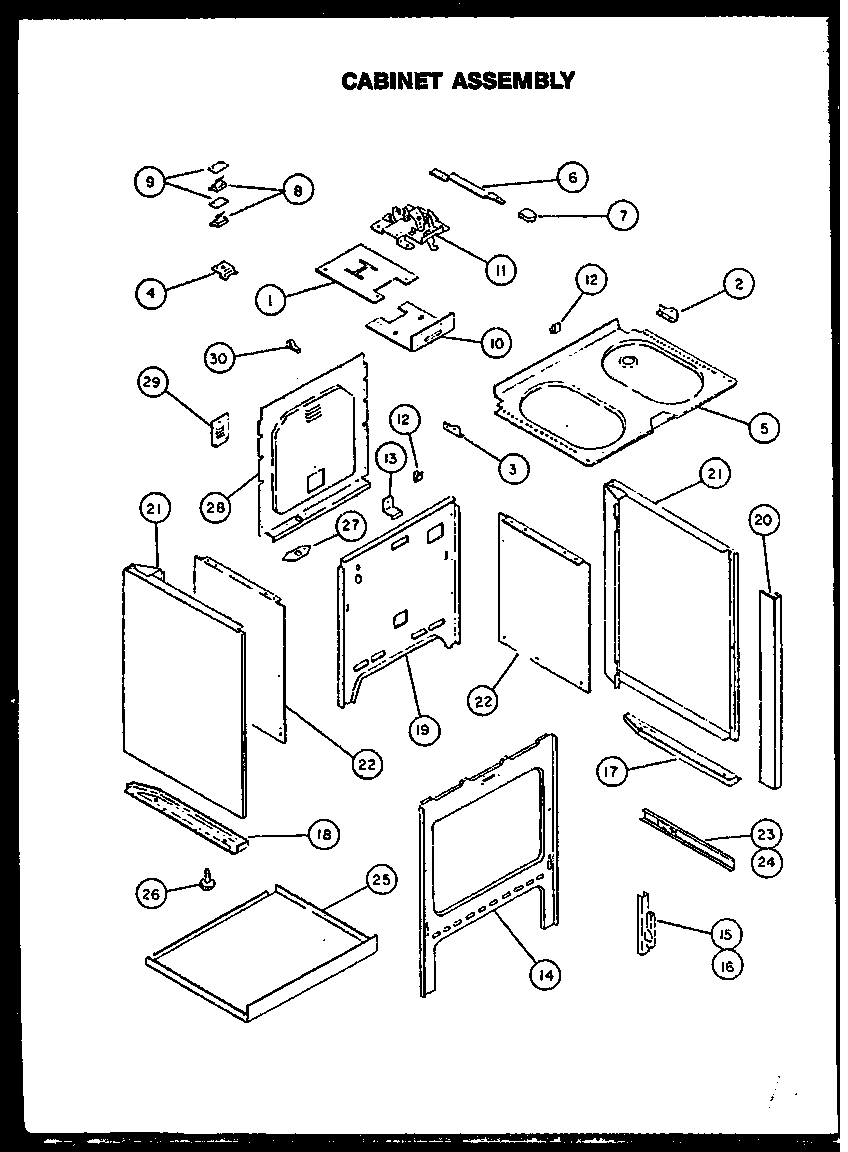

02 - CABINET ASSY

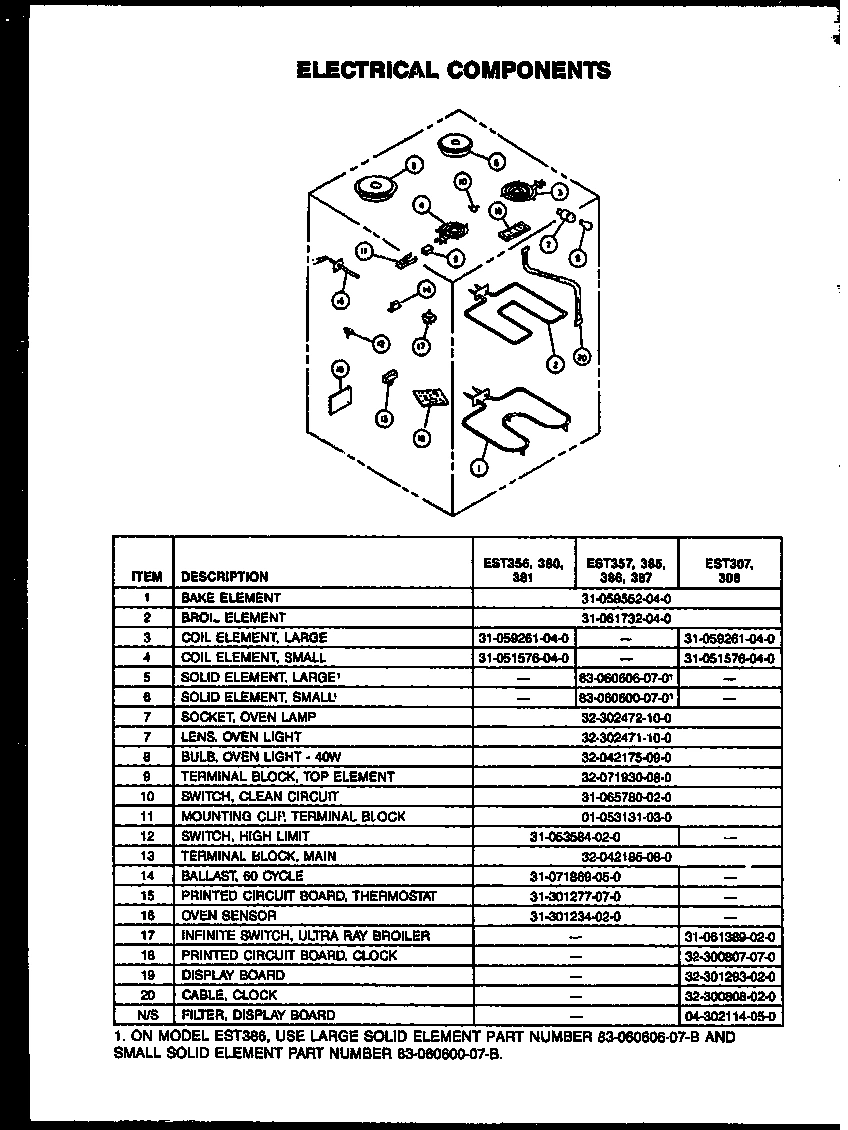

04 - ELECTRICAL COMPONENTS

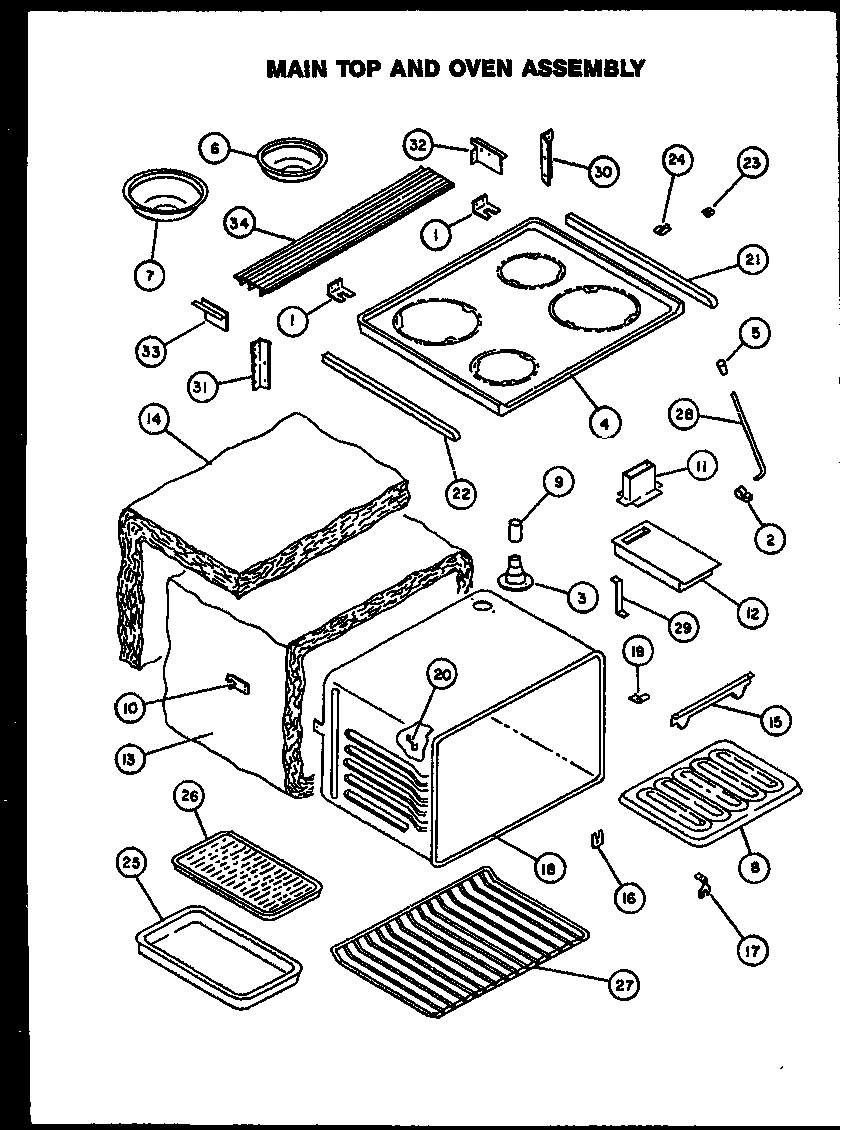

06 - Page 3

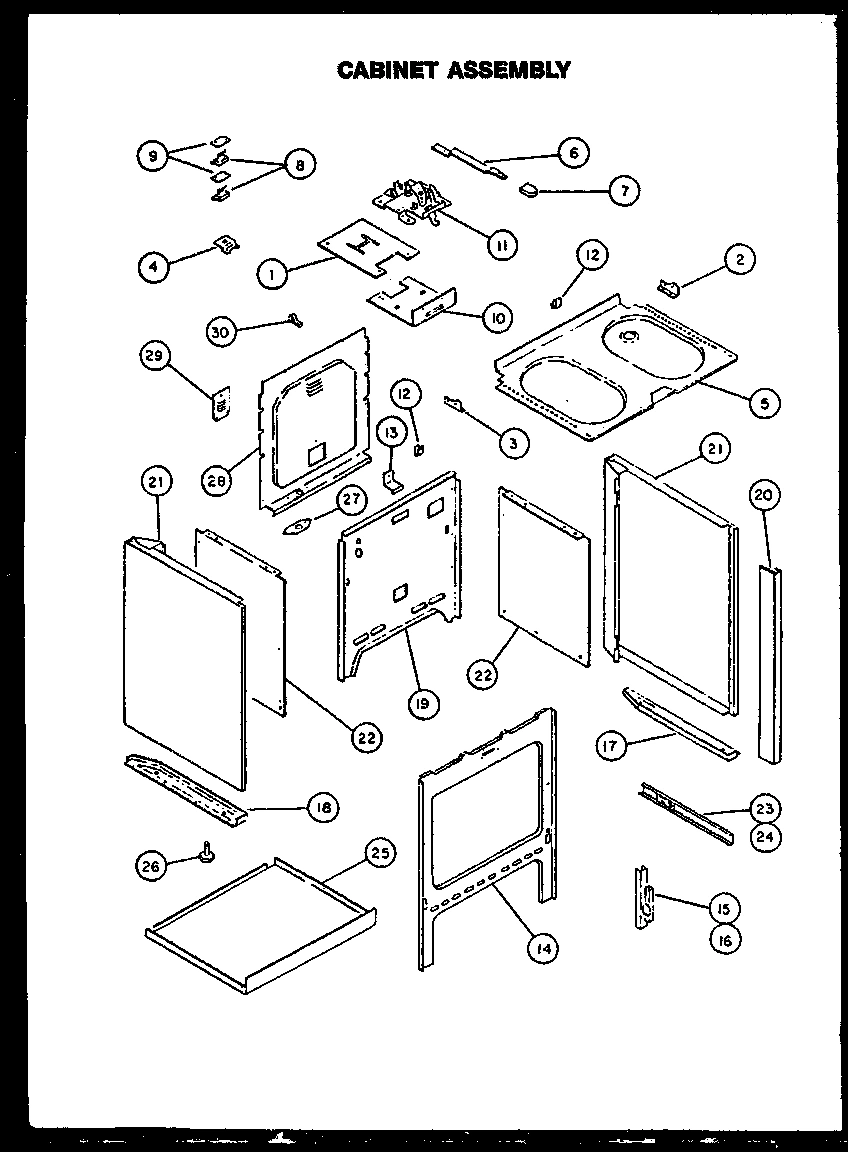

01 - CABINET ASSY
Common parts from model Whirlpool EST308 ELECTRIC RANGE
1
PANEL, CONTROL WPL Y0300503 Contact Us For Availability
1
BACKER, OVEN DOOR WPL W10124803 Contact Us For Availability
1
WRAPPER, STOR DRAWER WPL 58922CG Contact Us For Availability
1
HINGE, UPPER MAIN TOP WPL 0059260 Contact Us For Availability
1
RETAINER, OVEN LIGHT WPL Y0063353 Contact Us For Availability
2
END CAP, CONTROL PANEL, RH WPL 0302985 Contact Us For Availability
2
PAD, OVEN DOOR WPL W10124799 Contact Us For Availability
2
LINER DRAWER (BLK) WPL Y0058921 Contact Us For Availability
2
TIMERMAN WPL Y0041869 Contact Us For Availability
3
END CAP, CONTROL PANEL, LH WPL 0302984 Contact Us For Availability
3
FRAME, GLASS DOOR (BLACK) WPL 300711B Contact Us For Availability
3
HANDLE, DOOR WPL 0300727 Contact Us For Availability
3
SMOKE ELIMINATOR WPL Y0063337 Contact Us For Availability
3
HINGE, LOWER, MAIN TOP WPL Y0066374 Contact Us For Availability
4
SWITCH, ROCKER WPL Y0063997 Contact Us For Availability
4
STANDOFF, DOOR HANDLE WPL 0300980 Contact Us For Availability
4
MAIN TOP WHITE WPL W10124573 Contact Us For Availability
4
BRACKET, SWITCH MOUNTING WPL Y0068091 Contact Us For Availability
5
GLASS, OVEN DOOR WPL Y0300784 Contact Us For Availability
5
RUNNER, STORAGE DOOR R.H. WPL 0300477 Contact Us For Availability
5
ROD TIP, RUBBER WPL Y0042002 Contact Us For Availability
5
SUB 59456CG, DRIP BAFFLE WPL 059456Y Contact Us For Availability
6
KIT, TOP ELEMENT KNOB WPL Y0300895 Contact Us For Availability
6
WINDOW ASSY WPL 0041491 Contact Us For Availability
6
RUNNER, STORAGE DOOR, L.H. WPL Y0300476 Contact Us For Availability
6
BOWL, DRIP (6`` W/HOLE-BLK) WPL Y0300728 Contact Us For Availability
6
LATCH ARM BLACK WPL Y0065779 Contact Us For Availability
7
INSULATION,DOOR-SUB BACKER WPL 0062614 Contact Us For Availability
7
PANEL, DRAWER WPL 300998W Contact Us For Availability
7
BOWL, BURNER 8`` (BLACK) WPL Y0300730 Contact Us For Availability
7
KNOB, LATCH WPL 0300734 Contact Us For Availability
8
INDICATOR LIGHT WPL Y0058453 Contact Us For Availability
8
BULB, LIGHT WPL Y0042175 Contact Us For Availability
8
SWITCH, CLEAN CIRCUIT WPL Y0065780 Contact Us For Availability
8
REFLECTOR, BROIL ELEMENT WPL Y0061781 Contact Us For Availability
9
SWITCH, SELECTOR WPL Y0063008 Contact Us For Availability
9
TUBE, VENT EXTENSION WPL 0060633 Contact Us For Availability
9
INSULATION, ESM WPL Y0091523 Contact Us For Availability
10
THERMOSTAT WPL Y0063416 Contact Us For Availability
10
RETAINER, DOOR GLASS WPL Y0052629 Contact Us For Availability
10
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
10
BRACKET, LATCH MTG. WPL Y0058918 Contact Us For Availability
11
SUPPORT BRACKET, GLASS WPL Y0062439 Contact Us For Availability
11
MOUNTING BRKT. PLUG BLOCK WPL Y0053131 Contact Us For Availability
11
FLUE BOX, REAR WPL Y0059431 Contact Us For Availability
11
LATCH, OVEN DOOR WPL Y0300327 Contact Us For Availability
12
LIGHT INDICATOR WPL 0065822 Contact Us For Availability
12
BUMPER, OVEN DOOR WPL Y0063661 Contact Us For Availability
12
FLUE BOX WPL Y0060627 Contact Us For Availability
12
CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability
13
GLASS, CLOCK WPL 0300623 Contact Us For Availability
13
LATCH PLATE WPL Y0052039 Contact Us For Availability
13
TERM BLK 1M-MIN WPL 0042185 Contact Us For Availability
13
INSULATION, WRAPPER WPL 0300973 Contact Us For Availability
13
BRACKET, SWITCH MTG. WPL 0061384 Contact Us For Availability
14
MOUNTING BRACKET, CONTROLS WPL Y0301376 Contact Us For Availability
14
GASKET, OVEN DR 82`` WPL Y0300432 Contact Us For Availability
14
INSULATION, REAR WPL Y0300974 Contact Us For Availability
15
KNOB, SELECTOR WPL 0300896 Contact Us For Availability
15
RIVET WPL 0091632 Contact Us For Availability
15
BRACKET, REFLECTOR MOUNTING WPL Y0061557 Contact Us For Availability
15
KIT, DOOR HINGE(RH-SS) WPL Y0067795 Contact Us For Availability
16
BUTTON, W/CUSHION WPL Y0300614 Contact Us For Availability
16
BUMPER, RUBBER WPL Y0060247 Contact Us For Availability
16
KIT, DOOR HINGE(LH-HS) WPL Y0066953 Contact Us For Availability
17
KNOB, THERMOSTAT WPL 0302030 Contact Us For Availability
17
KIT, DR HNDL/TRIM (BLACK) WPL Y0300723 Contact Us For Availability
17

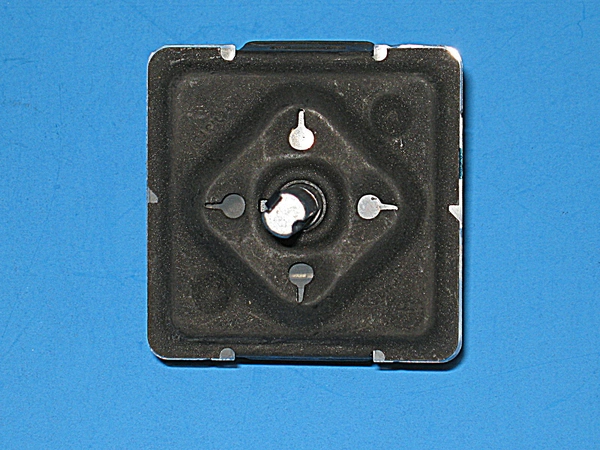

INFINITE SWITCH WPL Y0061389 Contact Us For Availability
17
BRACKET, MOUNTING WPL 0061556 Contact Us For Availability
17
BRACE, LEVELING LEG (LT) WPL Y0058991 Contact Us For Availability
18
LENS, INDICATOR LIGHT, RED WPL Y0301209 Contact Us For Availability
18
P.C. BOARD, POWER SUPPLY WPL Y0300807 Contact Us For Availability
18
OVEN SHELL WPL W10124600 Contact Us For Availability
18
BRACE, LEVELING LEG (LT) WPL Y0058992 Contact Us For Availability
19
SUB 301481, BUSHING, CLOCK WPL Y0300615 Contact Us For Availability
19
DISPLAY BOARD (CLOCK) WPL 0301293 Contact Us For Availability
19
CHIP COVER WPL 0300278 Contact Us For Availability
19
INS. RETAINER, REAR WPL 0058897 Contact Us For Availability
20
CABLE WPL Y0300808 Contact Us For Availability
20
TRIM, SIDE PANEL, LH WPL Y0301117 Contact Us For Availability
20
TRIM, SIDE PANEL, RH WPL Y0301118 Contact Us For Availability
21
TRIM, TOP, RH WPL Y0301417 Contact Us For Availability
21
PANEL, SIDE (WHT) WPL 302710W Contact Us For Availability
22
INSULATION RETAINER, SIDE WPL Y0058999 Contact Us For Availability
22
TRIM, TOP, LH WPL Y0301416 Contact Us For Availability
23
TRACK, STORAGE DRAWER-R.H. WPL 0300475 Contact Us For Availability
23
NUT, TYPE ``U`` WPL Y0096604 Contact Us For Availability
24
TRACK, STORAGE DRAWER-L.H. WPL Y0300474 Contact Us For Availability
24
WIRE CLAMP WPL 0071203 Contact Us For Availability
25
INS. RETAINER, BOTTOM WPL Y0057531 Contact Us For Availability
25
SUB 11161CG, BROILER PAN WPL Y0011161 Contact Us For Availability
26
LEG, LEVELING WPL Y0300585 Contact Us For Availability
27
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
28
REAR COVER PLATE WPL 0058433 Contact Us For Availability
28
PROP ROD GT-483-583 WPL Y0042737 Contact Us For Availability
29
ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability
29
BRACKET, SUPPORT WPL Y0060312 Contact Us For Availability
30
CLAMP, WIRE-INSULATE WPL Y0068513 Contact Us For Availability
30
SUPPORT, BACKGUARD RT WPL Y0058912 Contact Us For Availability
31
SUPPORT, BACKGUARD LT WPL Y0058913 Contact Us For Availability
32
END CAP, RH WPL Y0301414 Contact Us For Availability
33
END CAP, LH WPL Y0301415 Contact Us For Availability
34
LO BACK RAIL WPL Y0301413 Contact Us For Availability
NI
SEE NOTE FILLER STRIP, CONTROL PANEL WPL Y00000000 Contact Us For Availability
NI
SCREW, 8-32 X 1 1/2 WPL 0301258 Contact Us For Availability
NI
SCREW {J} WPL Y0058586 Contact Us For Availability
NI
RIVET, POP WPL Y0076357 Contact Us For Availability
NI
SCREW WAFER HEAD WPL 0059446 Contact Us For Availability
NI
TAPE, SEAL 1=1FT WPL 0069187 Contact Us For Availability
NI
SCREW 6 32X5/16 PH FH WPL Y0041769 Contact Us For Availability
NI
HEAT SHIELD WPL Y0058895 Contact Us For Availability
NI
COVER, CONTROL BOARD WPL Y0060245 Contact Us For Availability
NI
SCREW, TT 23 4-40 X 5/8 WPL Y0065664 Contact Us For Availability
NI
SUPPORT WPL Y0300662 Contact Us For Availability
NI
ANTI-TIP PACK WPL Y0301552 Contact Us For Availability
NI
FILTER, GRAY WPL Y0302114 Contact Us For Availability
NI
END CAPS 4`` PYRO TH WPL Y0042518 Contact Us For Availability
NI
LO BACKRAIL 4`` WPL Y0301219 Contact Us For Availability
NI
BACKRAIL 4`` WPL Y0301220 Contact Us For Availability
× ![]()
